2002CPDP

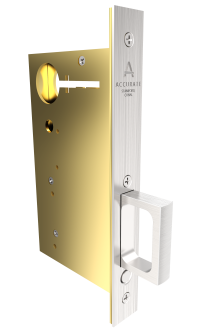

Pocket Door Edge Pull
Premium quality mortise lock for non-locking passage pocket doors featuring a spring loaded edge pull that pops out with the press of a button allowing for comfortable operation to pull door out of the pocket. Pair with blank flush pulls.
- 3-3/8" overall depth standard.
- 2-7/8" overall depth available (specify as 2002CPDP-SD).
- Heavy Gauge, Wrought Case (11/16" thick).
- 1" wide armor front, 8" tall standard made from brass, bronze or stainless steel, and finished as required.
- 1/2" thick pull, 2" high, 1-1/4" throw.
- Jamb Protector Plate available (for wood frames), 1" wide x 8" tall. Specify 2002JPP separately.
- Specify 2002CPDP-Q for Quiet Pocket Door Edge Pull.
Sell Sheet
Specification Sheet
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Lock. Finish. Other
Examples
-
Pocket Door Edge Pull
E.g.: 2002CPDP. US15 -
Pocket Door Edge Pull | Jamb Protector Plate
E.g.: 2002CPDP. US14. 2002JPP -
Pocket Door Edge Pull | All Bolts Finished
E.g.: 2002CPDP. US19. US19BOLTS
Notes
- Available with SilentPac™ 2002CPDP-Q Quiet Pocket Door strike featuring a quiet, slow release edge pull.
