• UL Listed 3 Hour (R13846 and R27504).
  • Grade 1 certified to ANSI/BHMA A156.13.2005 standard – exceeding 5 million cycles at an independent third-party test facility.
  • 2-1/2", 2-3/4"backset standard.
  • For door stiles 4" wide and up.
  • 316 Stainless Steel Case, (15/16" thick).
  • 316 Stainless Steel Armor Front. Adjustable bevel.
  • 316 Stainless Steel Latch Bolt, anti-friction type. 3/4" throw.
  • Brass-chrome plated deadbolt with saw proof pins. 1" throw.
  • 316 Stainless Steel Strike, 4-7/8" ASA.
  • Hubs available in different sizes to be compatible with various trims.
  • Thumb Turn Hub 3/16" (5mm) on the diamond.
  • Stainless Steel Dust Box.

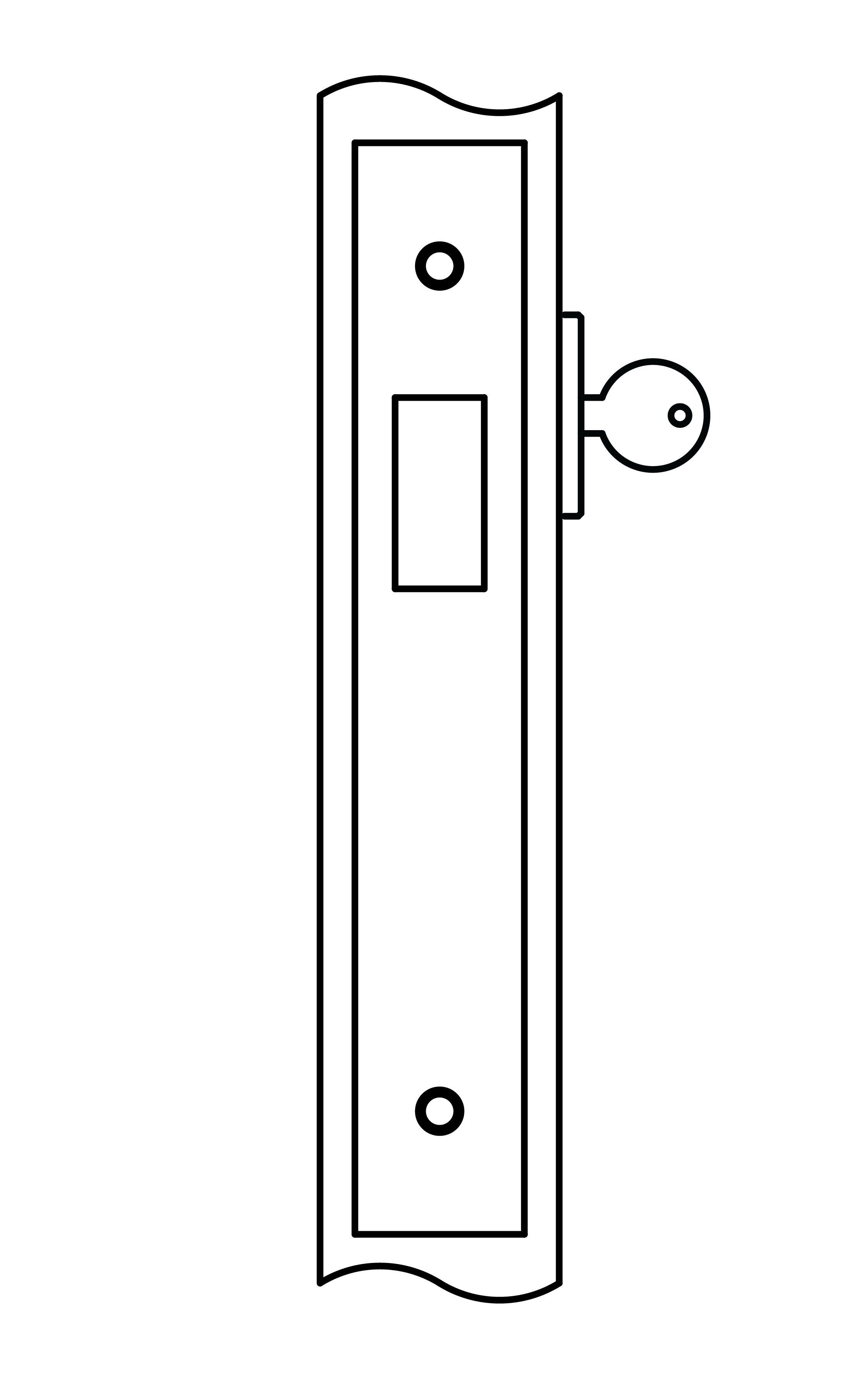

9001M | 9101M Deadlock

(ANSI SERIES 1000-F18)


  • Deadbolt by key outside.
  • No inside operation.

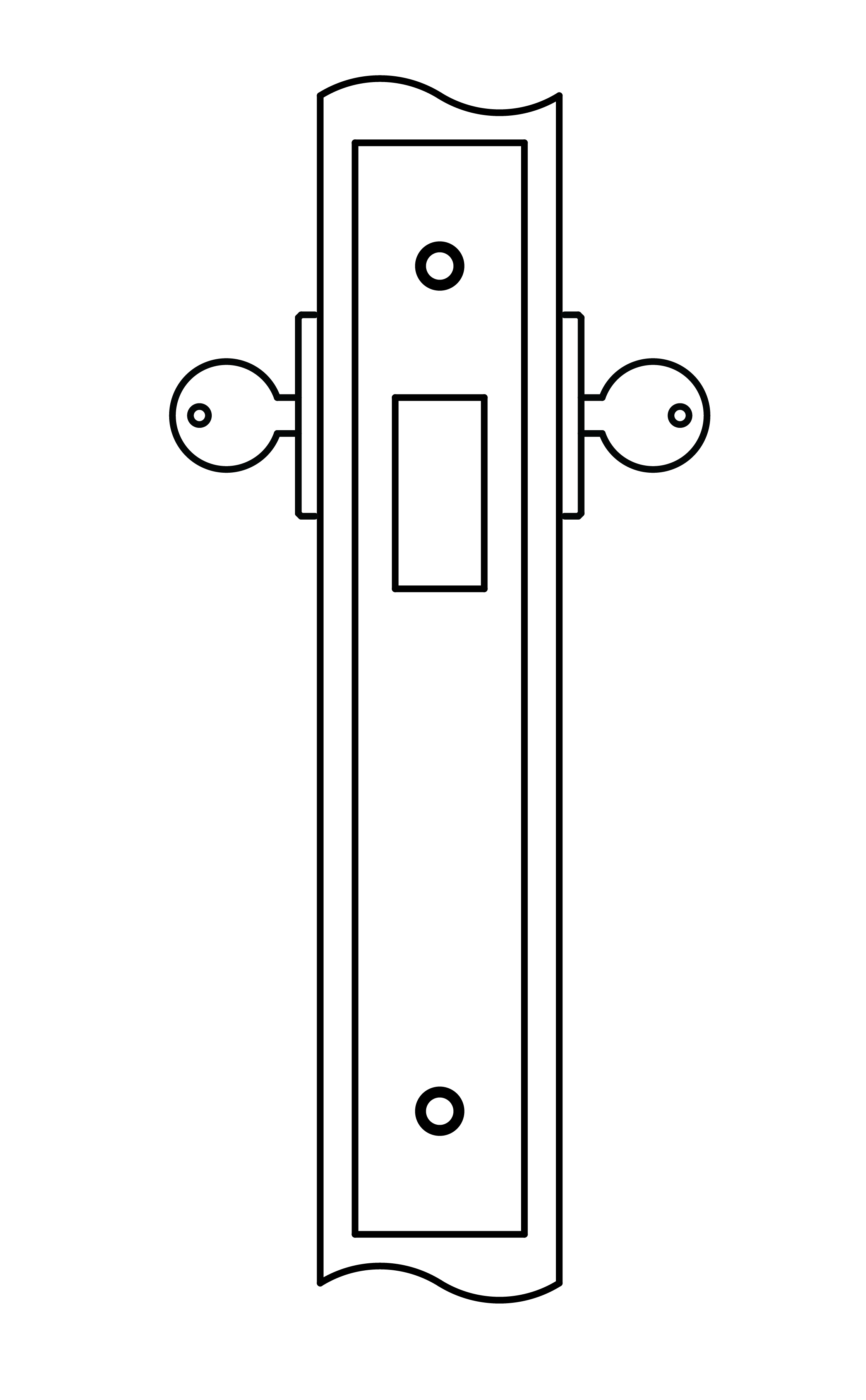

9002M | 9102M Deadlock

(ANSI SERIES 1000-F16)


  • Deadbolt by key either side.

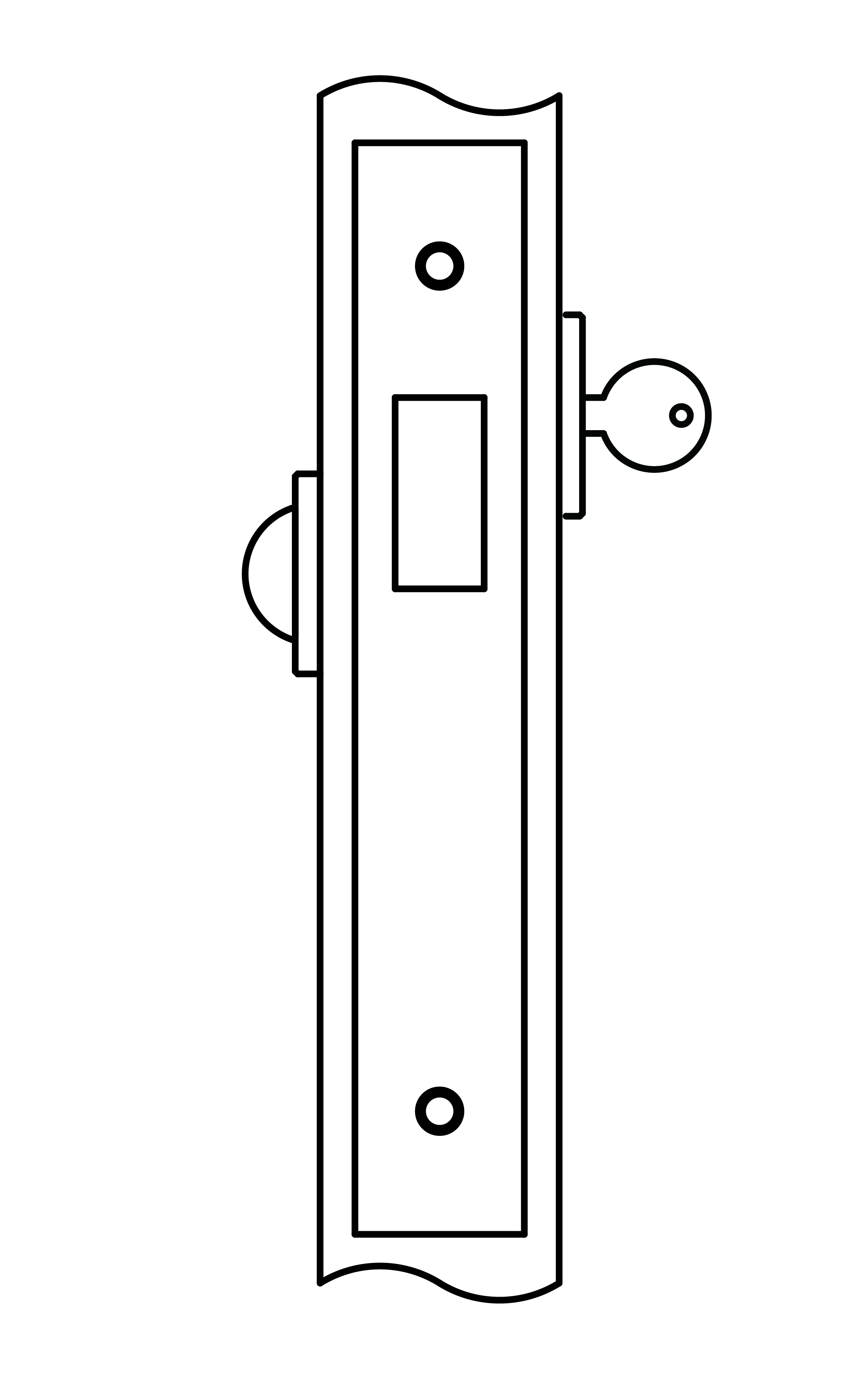

9003M | 9103M Deadlock

(ANSI SERIES 1000-F17)


  • Deadbolt by key outside and turn piece inside.

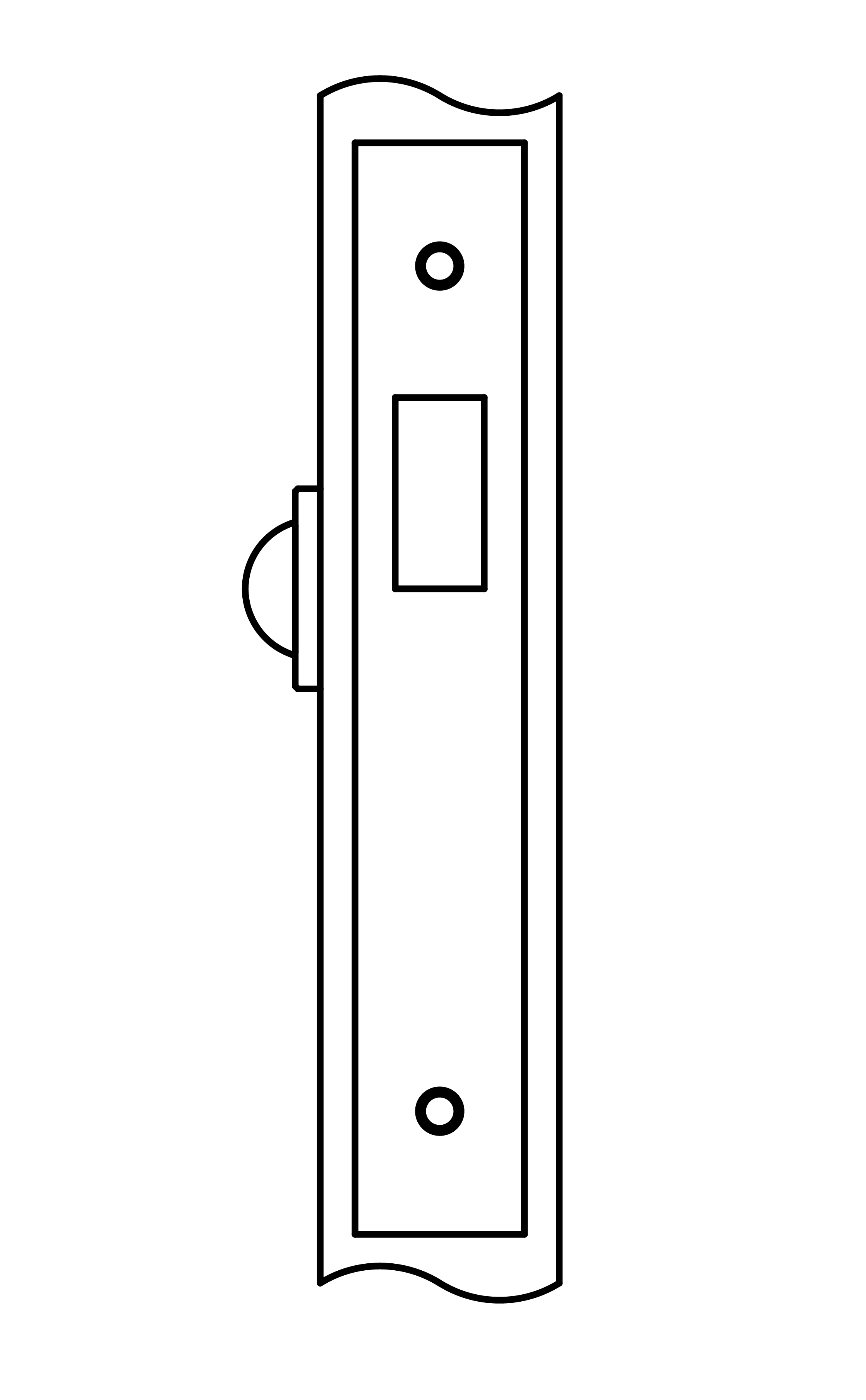

9004M | 9104M Deadlock


  • Deadbolt by turn piece inside.
  • No outside operation.

9005M | 9105M Deadlock


  • Deadbolt by turn piece inside and emergency key outside.

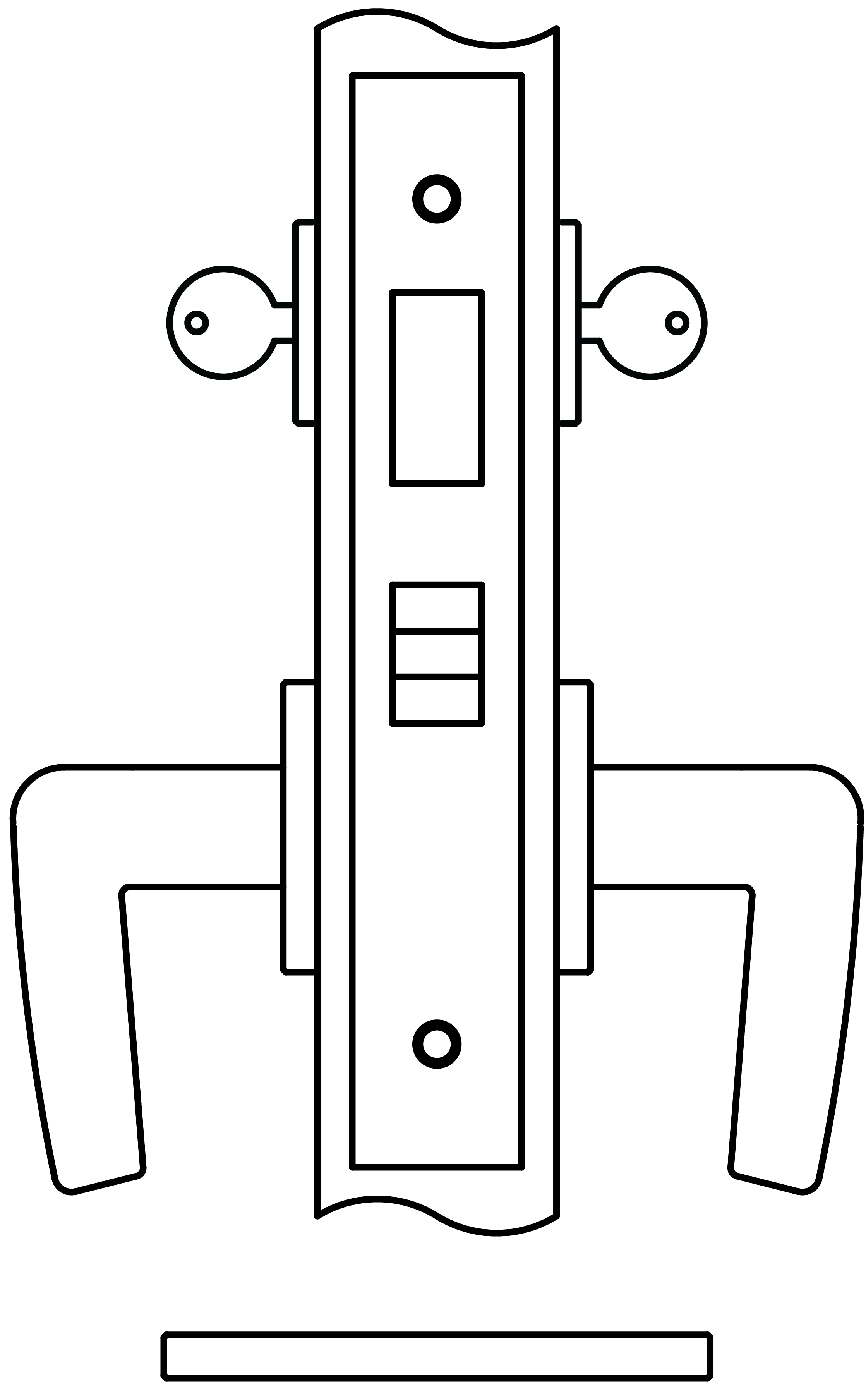

9022M | 9122M Store Door Lock

(ANSI SERIES 1000-F14)


  • Latch bolt by lever either side.
  • Deadbolt by key either side.

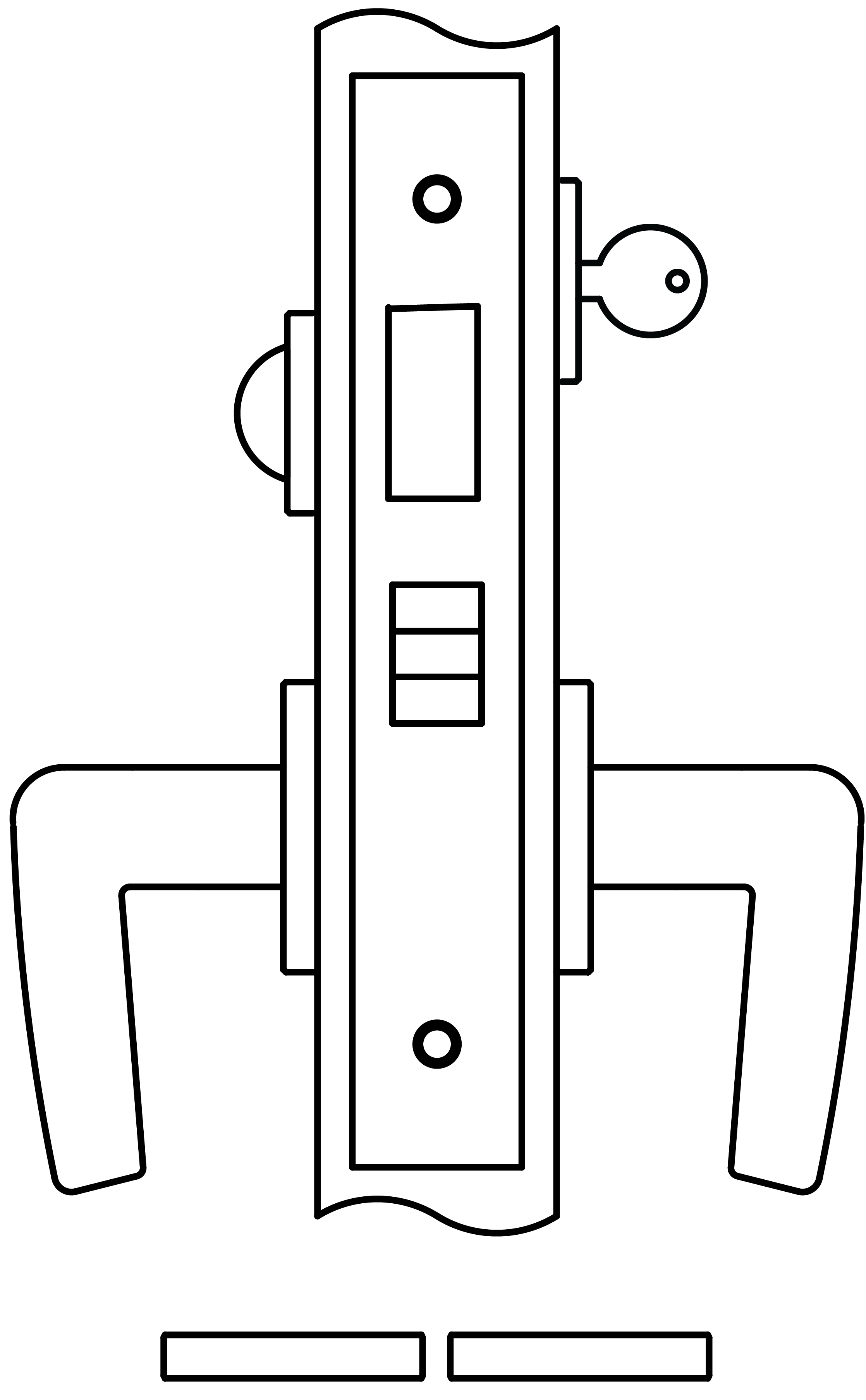

9024M | 9124M Dormitory or Entrance

(ANSI SERIES 1000-F13)


  • Latch bolt by lever either side.
  • Deadbolt by key outside and turn piece inside.
  • Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

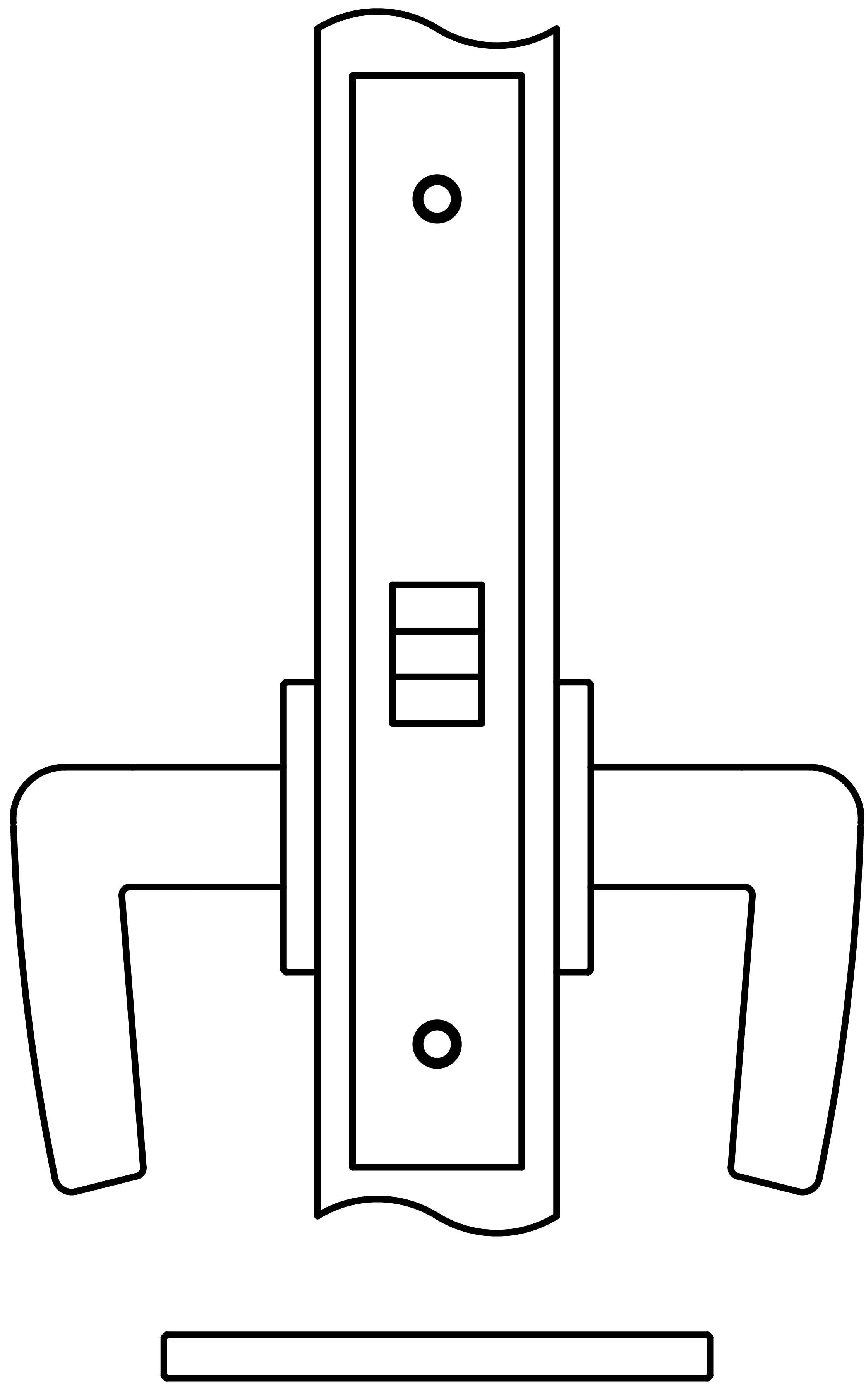

9025M | 9125M Passage

(ANSI SERIES 1000-F01)


  • Latch bolt by lever either side.

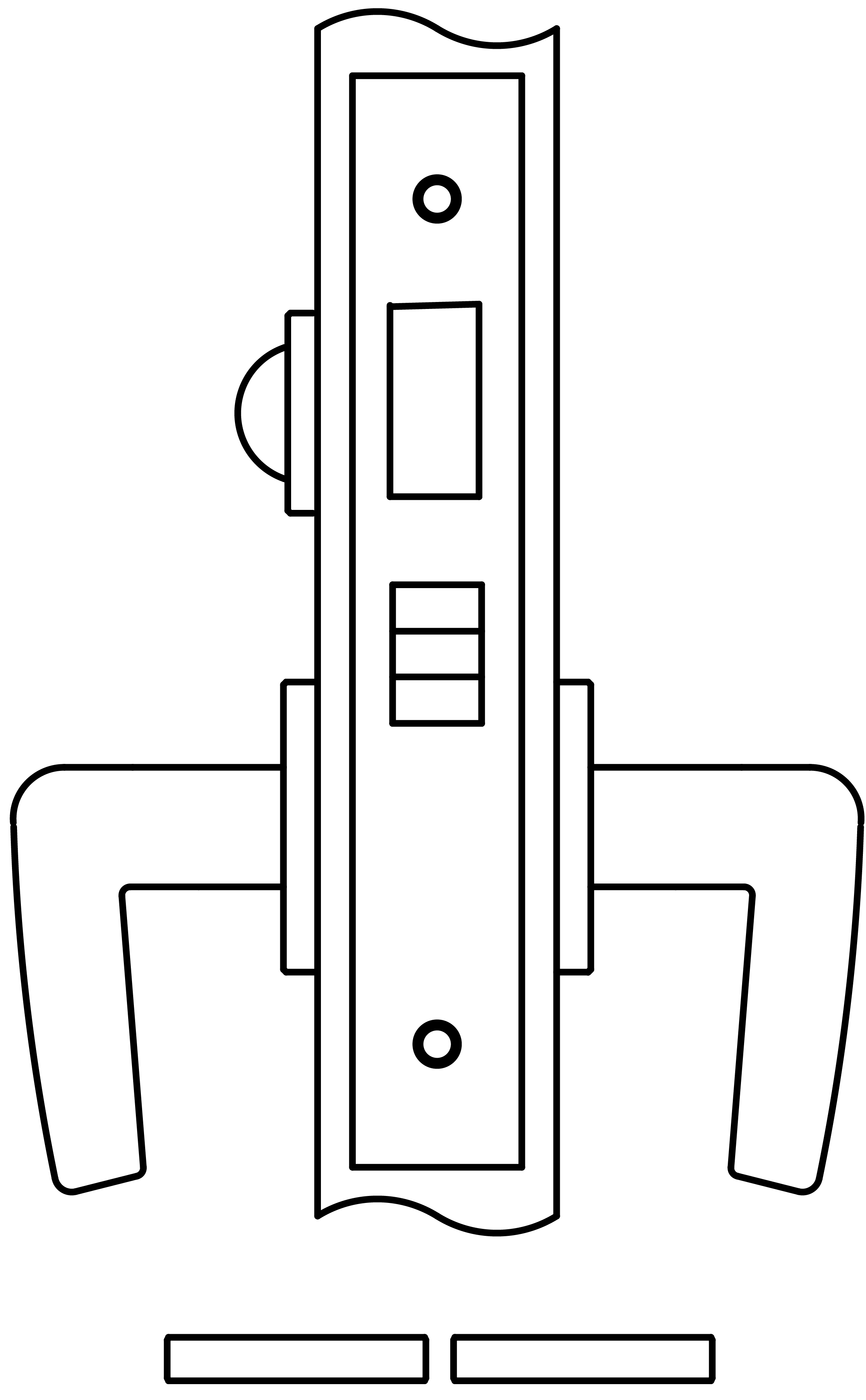

9039M | 9139M Privacy

(ANSI SERIES 1000-F19)


  • Latch bolt by lever either side.
  • Deadbolt by turn piece inside and optional emergency key outside.
  • Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

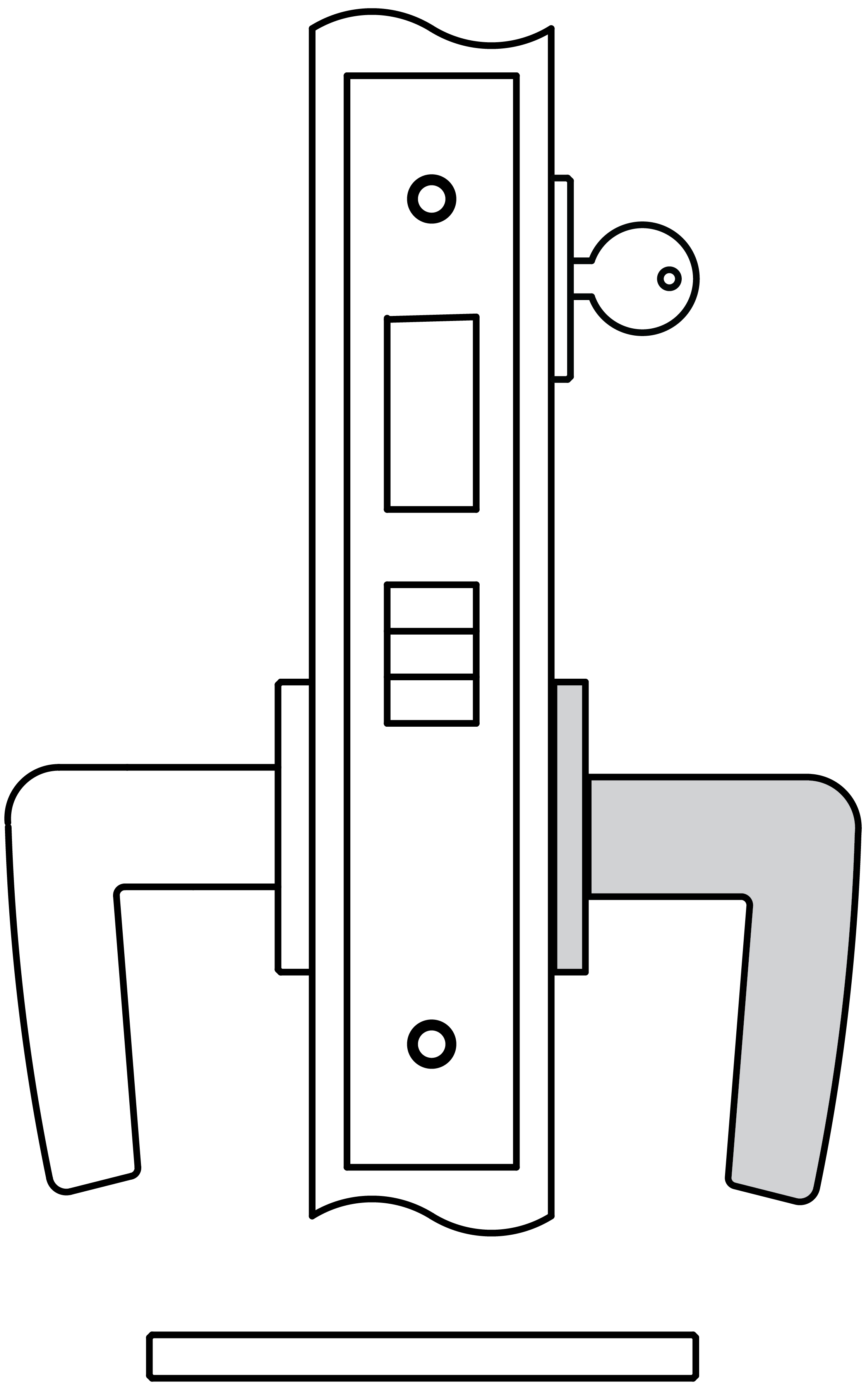

9059M | 9159M Storeroom or Closet

(ANSI SERIES 1000-F07)


  • Latch by lever inside and key outside.
  • Outside lever always RIGID.
  • Auxiliary latch deadlocks latch bolt.
View More Functions +










Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome
  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
  • DURO
    Duronotic
  • ESN
    Electroless Nickel
  • US15A
    Antique Nickel
  • US5
    Satin Brass + Black
  • Cerakote
    Protective Ceramic Coating
US26D
Satin Chrome





How to Specify


Function. Backset. Finish. Hand. Door Thickness.



Examples
  • Marine Grade Deadlock
    E.g.: 9101M. 212. US3NL. RH. 134
  • Marine Grade Privacy Lock
    E.g.: 9139M. 234. TN. 134
