9500VR

Vertical Rod Sets


An alternative locking solution designed for single sliding door applications. Allows the door to be locked onto the floor (VRB) or up into track or header in the ceiling (VRT). Ideal for use in both residential and commercial settings.





  • Designed for sliding door applications.
  • Allows the door to be locked onto the floor (VRB) or up into track or header in the ceiling (VRT).
  • For use with flush pulls or accessible hardware.
  • For single door openings (or double door openings if independent locking is desired).
  • Features locking capability without a protruding strike (strike options available).
  • Ideal for use in both residential and commercial settings.
  • Pair with different trim options to best fit the design intent and specific project requirements: flush pulls, ADA pulls.
  • Recommended floor strike Ives DP1 or Ives DP2, supplied by others.

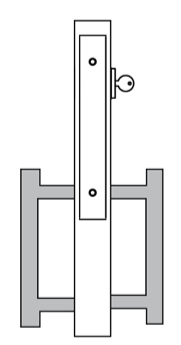

9500VRB-1 | 9500VRT-1 Single Cylinder


  • Deadbolt by key outside.

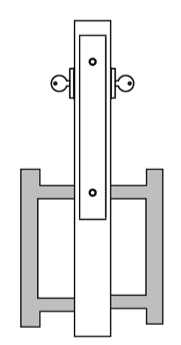

9500VRB-2 | 9500VRT-2 Double Cylinder


  • Deadbolt by key either side.

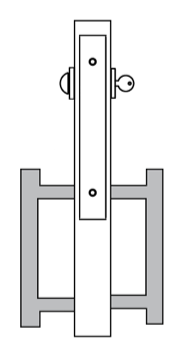

9500VRB-3 | 9500VRT-3 Entry


  • Deadbolt by key outside or turn piece inside.

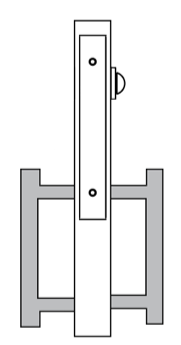

9500VRB-4 | 9500VRT-4 Privacy


  • Deadbolt by turn piece inside.

9500VRB-5 | 9500VRT-5 Privacy


  • Deadbolt by emergency release outside, turn piece inside.

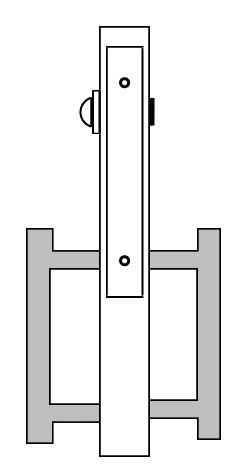

9500VRB-5i | 9500VRT-5i Privacy with Indicator


  • Deadbolt by emergency release with indicator outside, turn piece inside.
View More Functions +




Video
  • 9500VR Vertical Rod Sets Product Spotlight
    9500VR Vertical Rod Sets Product Spotlight




Click on a swatch below to get a closer look
  • CVB
    Cerakote Vortex Bronze
  • Cerakote Black Gloss CBG
    Cerakote Black Gloss
  • Cerakote White Gloss Cerakote White Gloss
    CWG
  • Cerakote White Matte CWM
    Cerakote White Matte
  • Cerakote Black Matte CBM
    Cerakote Black Matte
  • Cerakote
    Protective Ceramic Coating
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • US15A
    Antique Nickel
  • TB
    Tarnished Brass
  • ESN
    Electroless Nickel
  • DURO
    Duronotic
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • US32
    Bright Stainless Steel
  • US26
    Polished Chrome
  • US19
    Oxidized Black + Lacquer
  • US15
    Satin Nickel
  • US10
    Satin Bronze
  • US9
    Polished Bronze
  • US4NL
    Satin Brass + No Lacquer
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US4
    Satin Brass
  • US32D
    Satin Stainless Steel
  • US3
    Polished Brass
  • US14
    Polished Nickel
  • US5
    Satin Brass + Black
  • TN
    Tarnished Nickel
  • US10B
    Oil Rubbed Bronze
  • US25D Satin Chrome US26D
    Satin Chrome
US25D Satin Chrome US26D
Satin Chrome
REQUEST FINISH SAMPLE




How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness. Vertical Dimension



Examples
  • Vertical Rod Lock Bottom | Privacy | Flush Pull Trim
    E.g.: S. 9500VRB-5. 212. US3NL. RH. 134. 39
  • Vertical Rod Lock Top | Entry | ADA Trim
    E.g.: ADA. 9500VRT-3. 6. US10B. LH. 134. 39
  • Vertical Rod Lock Bottom | Classroom Deadlock | ADA Trim
    E.g.: ADA. 9500VRB-3ST. 5. US4. RH. 134. 39
Notes
  • For all functions except 9500VR-1 and 9500VR-2, specify backset to thumb turn and then cylinder will be located 1-3/16” away. (E.g. Thumb turn backset: 5”, Cylinder backset: 3-13/16").
  • For 9500VR-1 and 9500VR-2, specify backset to the cylinder.
  • ADA: Minimum 5” backset to thumb turn on barn door applications.
  • Flush Trim: Min. 2-1/2” backset to thumb turn.
  • Other backsets available.
  • Also available for swinging door applications, please call for assistance.
