T2200ML

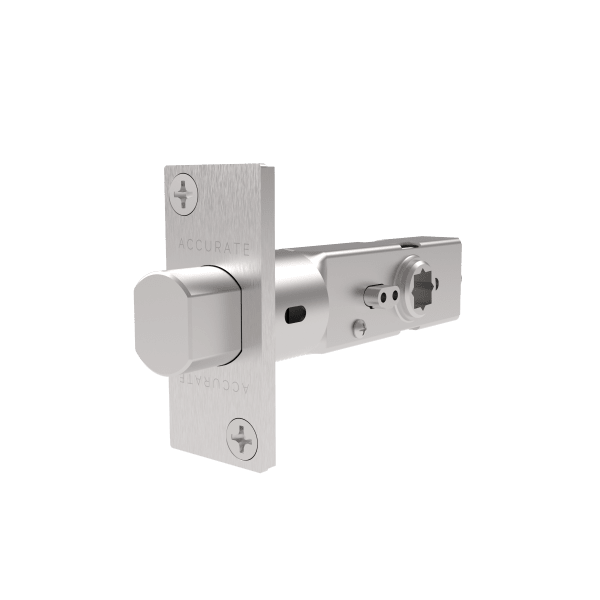

Tubular Magnetic Latch
Accurate’s Tubular Magnetic Latch combines the simplicity of tubular design with a magnetic latch to allow for a quieter door operation and seamless jamb and edge aesthetic.
Magnetic Latch
- BACKSET: 2 3⁄8”, 2 3⁄4” standard
- CASE: Heavy gauge, stainless steel
- FRONT: Brass, bronze, aluminum or stainless steel, finished as required. Field removable faceplate, swivel front for bevel or flat doors.
- LATCH BOLT: Stainless steel.
- THROW: Standard 1/2” throw. Projection can be increased up to 1⁄8” in the field to help accommodate a larger gap.
- STRIKE: No lip strike.
- HUBS: Field adjustable. 3° up or 3° down to compensate for lever pitch tilt.
- DUST BOX: Magnetic dust box. Brass, stainless steel or oil rubbed bronze.

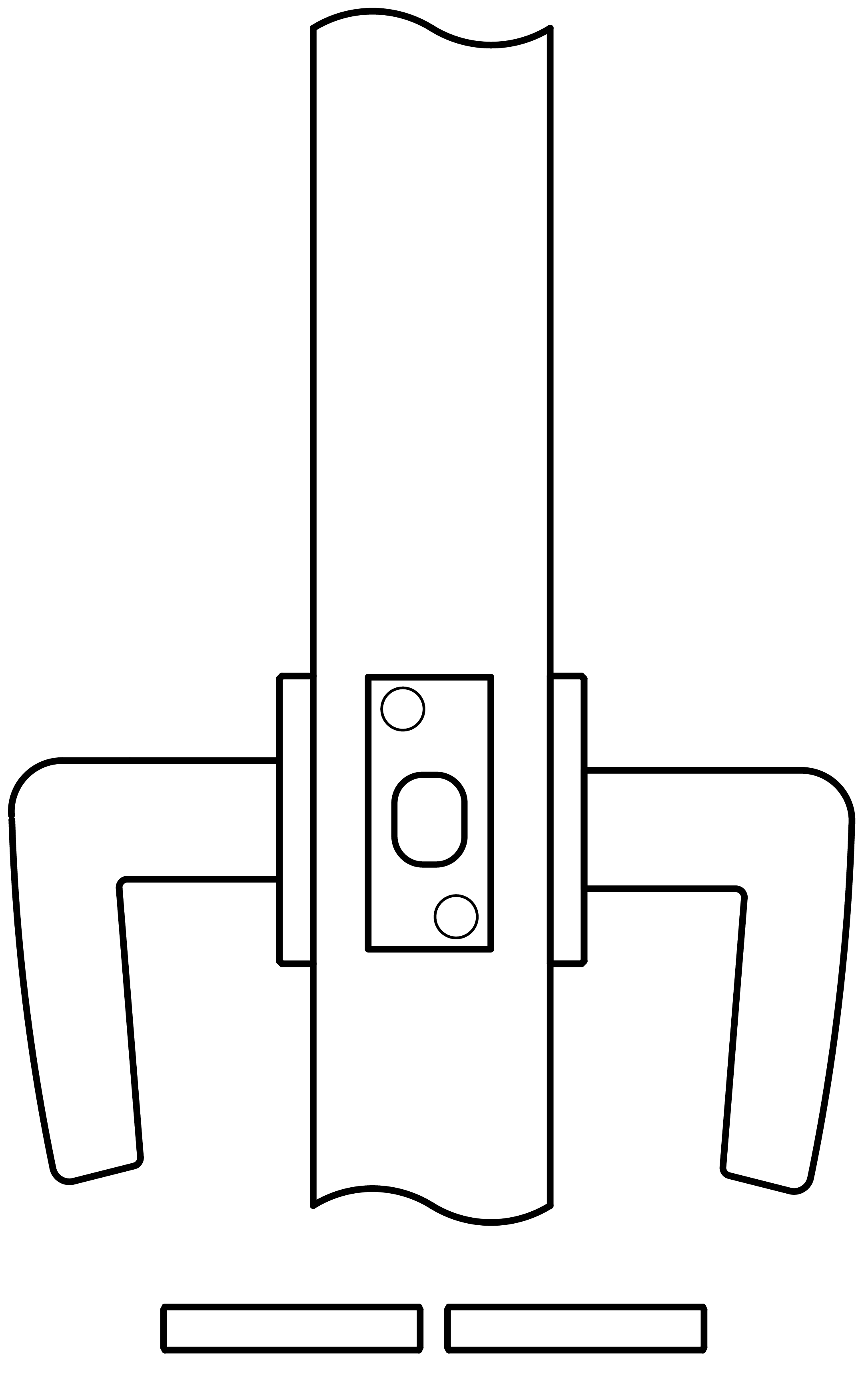

T2225ML | Passage
- Latch bolt by lever either side.

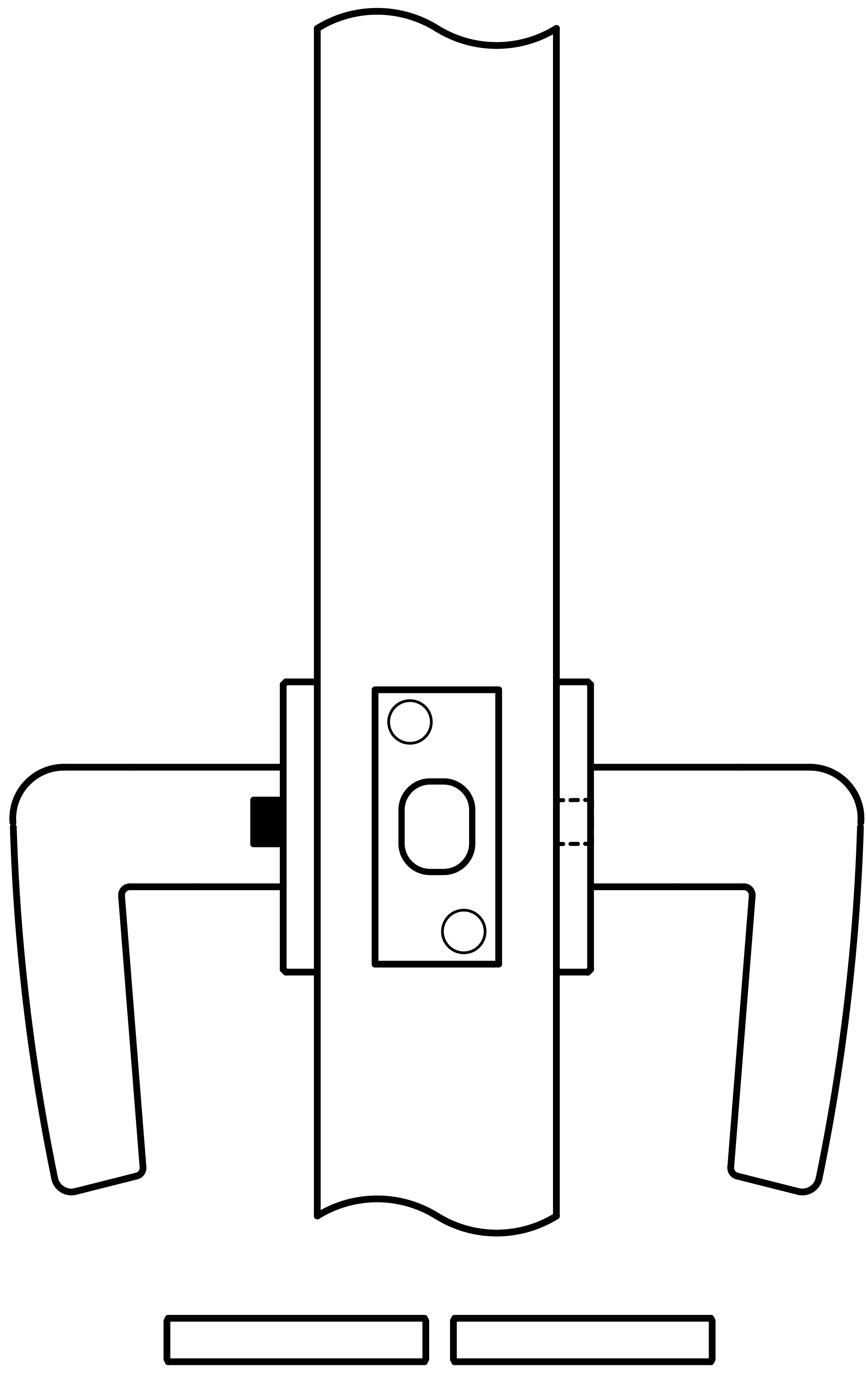

T2239ML | Privacy | Bedroom/Bathroom
- Latch bolt by lever either side except when outside lever is locked by inside push pin.
- Operating inside lever or outside emergency release unlocks outside lever.
Specification Sheet
Installation Template
Sell Sheet
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function[K/L]. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Tubular Magnetic Latch | Passage | Accurate Lever Trim
E.g.: TL2225ML. 238. T-84L/T-84R. US4. RH. 134 -
Tubular Magnetic Latch | Passage | Other Manufacturers' Knob Trim
E.g.: TK2225ML. 234. KxK.8mm. US19. LH. 134 -
Tubular Magnetic Latch | Privacy | Thom Filicia for Accurate Lever Trim
E.g.: TL2239ML. 238. CL/R-CVS. US10B. RH. 138 -
Tubular Magnetic Latch | Privacy | Other Manufacturers' Trim
E.g.: TK2239ML. 238. KxK.8mm. US3NL. LH. 138
Notes
- For other manufacturers' trim, specify push pin position for privacy functions, call for compatibility.
- Accurate trim available for use with tubular lock, specify T-XXL or T-XR (e.g. T-19L, T-1R).
