T2200
Tubular Latch
Accurate’s Tubular Latch combines the simplicity of tubular design with a variety of premium upgrades to make it the most durable and feature-rich product in its class. Features include: stainless steel construction, field adjustable hub orientation to prevent lever tilt, adjustable latch projection, removable latch bolt to conveniently complement faceplate finish and a removable faceplate that allows for finish flexibility.
- Ergonomically designed to open a door with only 26° rotation on the lever.
- Backset: 2-3/8", 2-3/4" standard.
- Case: Heavy gauge, stainless steel.
- Front: Brass, bronze, aluminum or stainless steel, finished as required. Field removable faceplate, swivel front for bevel or flat doors.
- Latch Bolt: Brass, stainless steel or plastic (for quiet option).
- Throw: Standard 1/2” throw. Projection can be increased up to 1/8" in the field to help accommodate a larger gap.
- Strike: T-Strike.
- Hubs: Field adjustable. 3° up or 3° down to compensate for lever tilt. (Hub sizes available to fit most decorative hardware brands.)
- Dust Box: Brass, stainless steel or oil rubbed bronze.

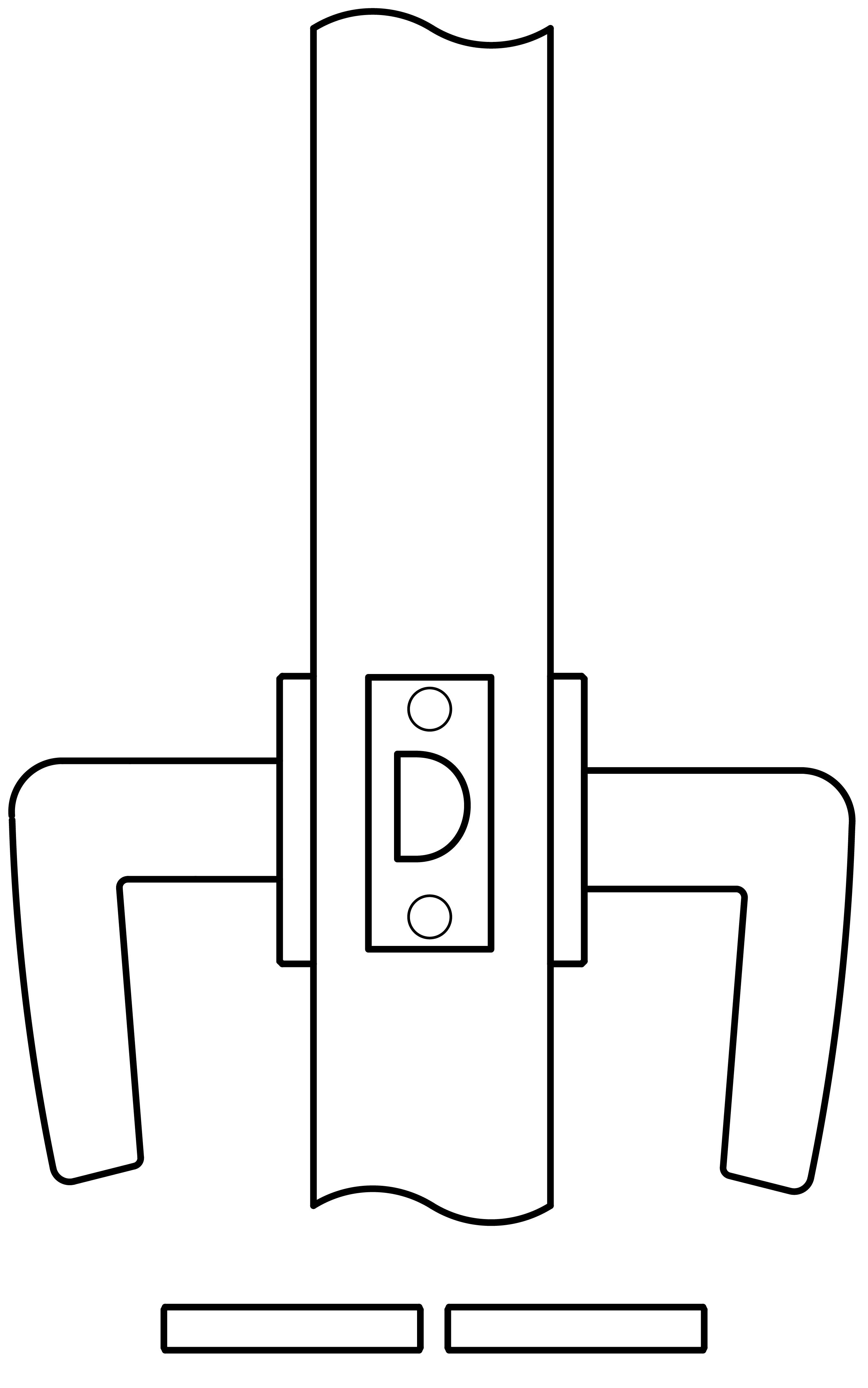

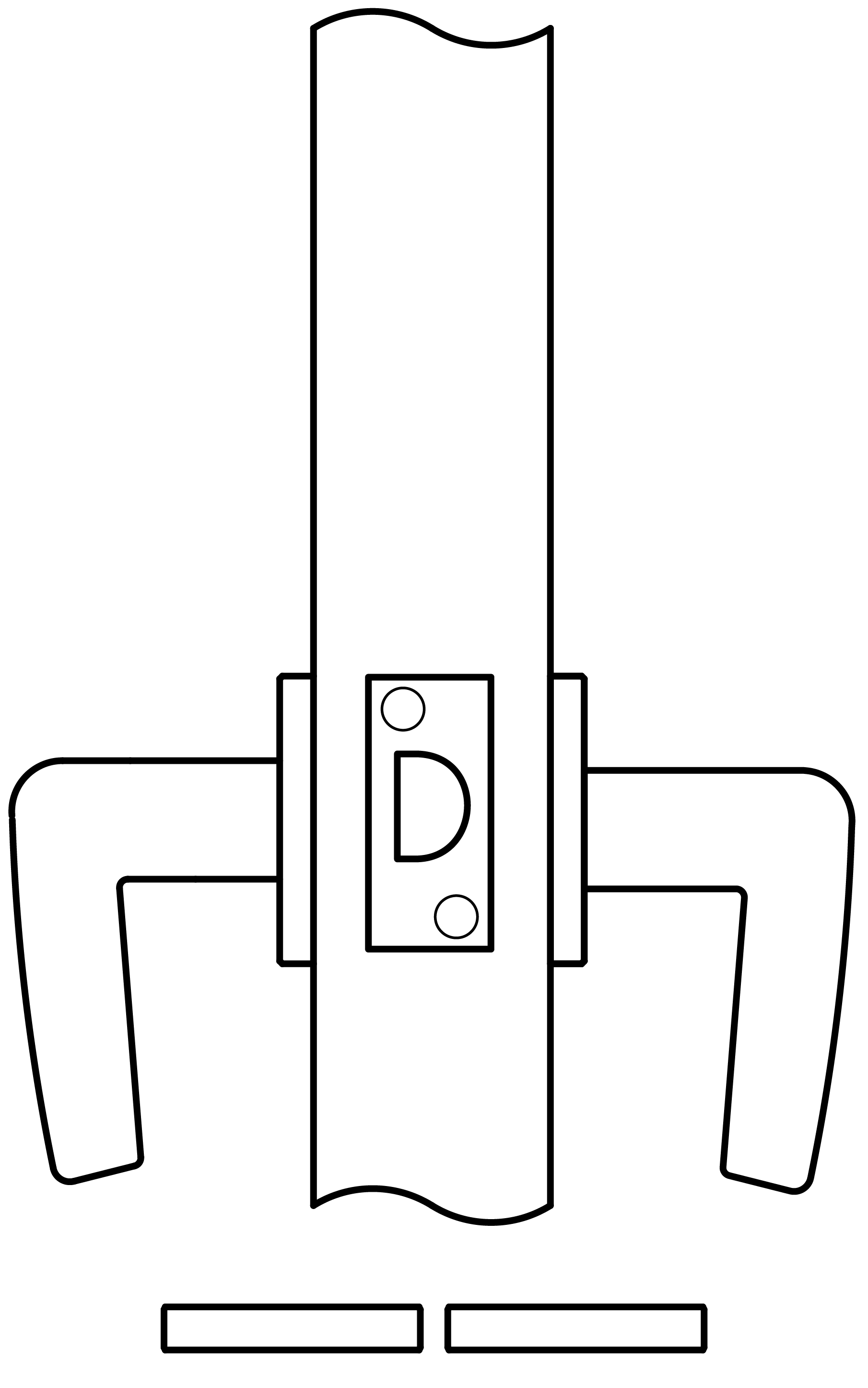

TL2225 | Passage
- Latch bolt by lever either side.

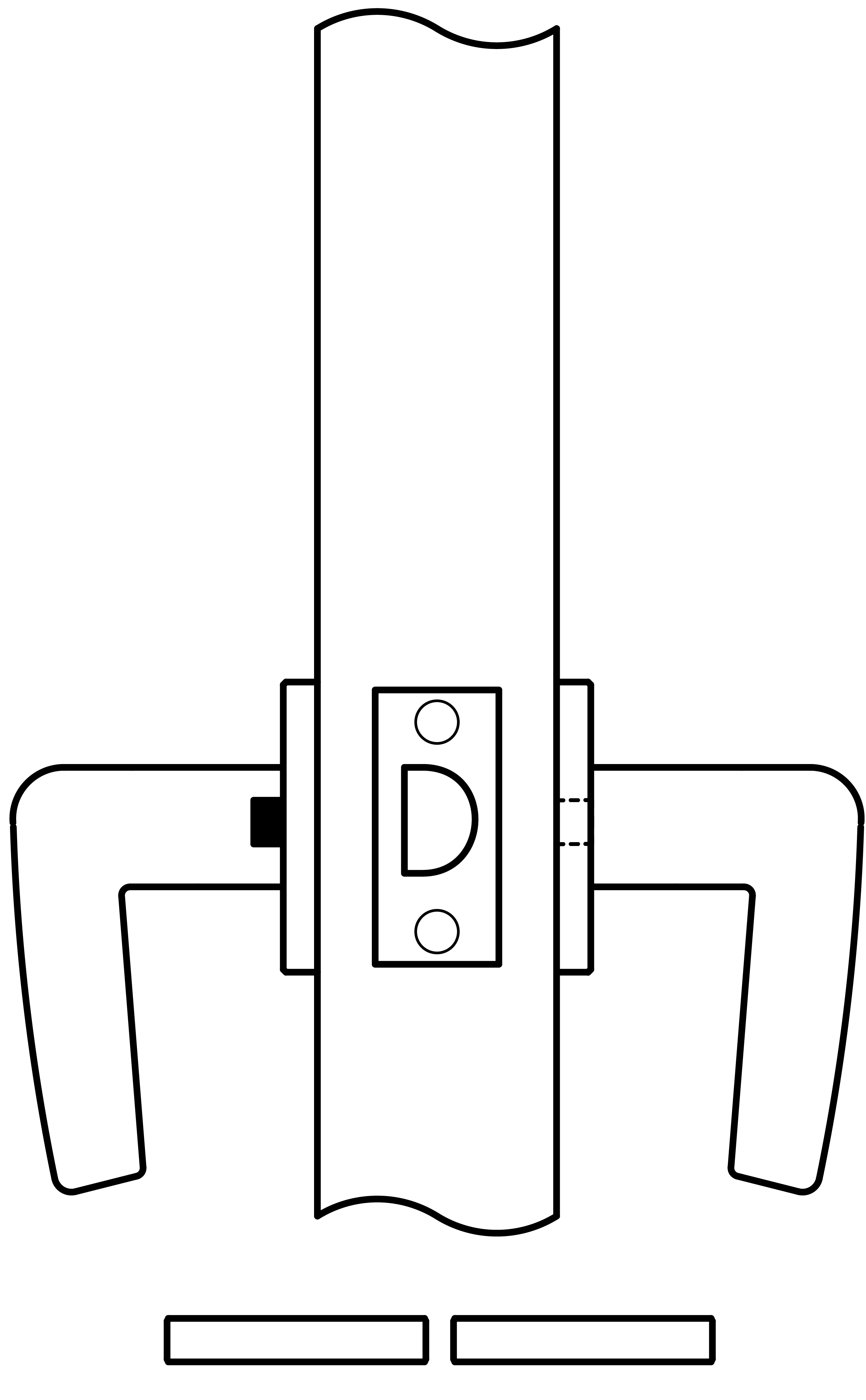

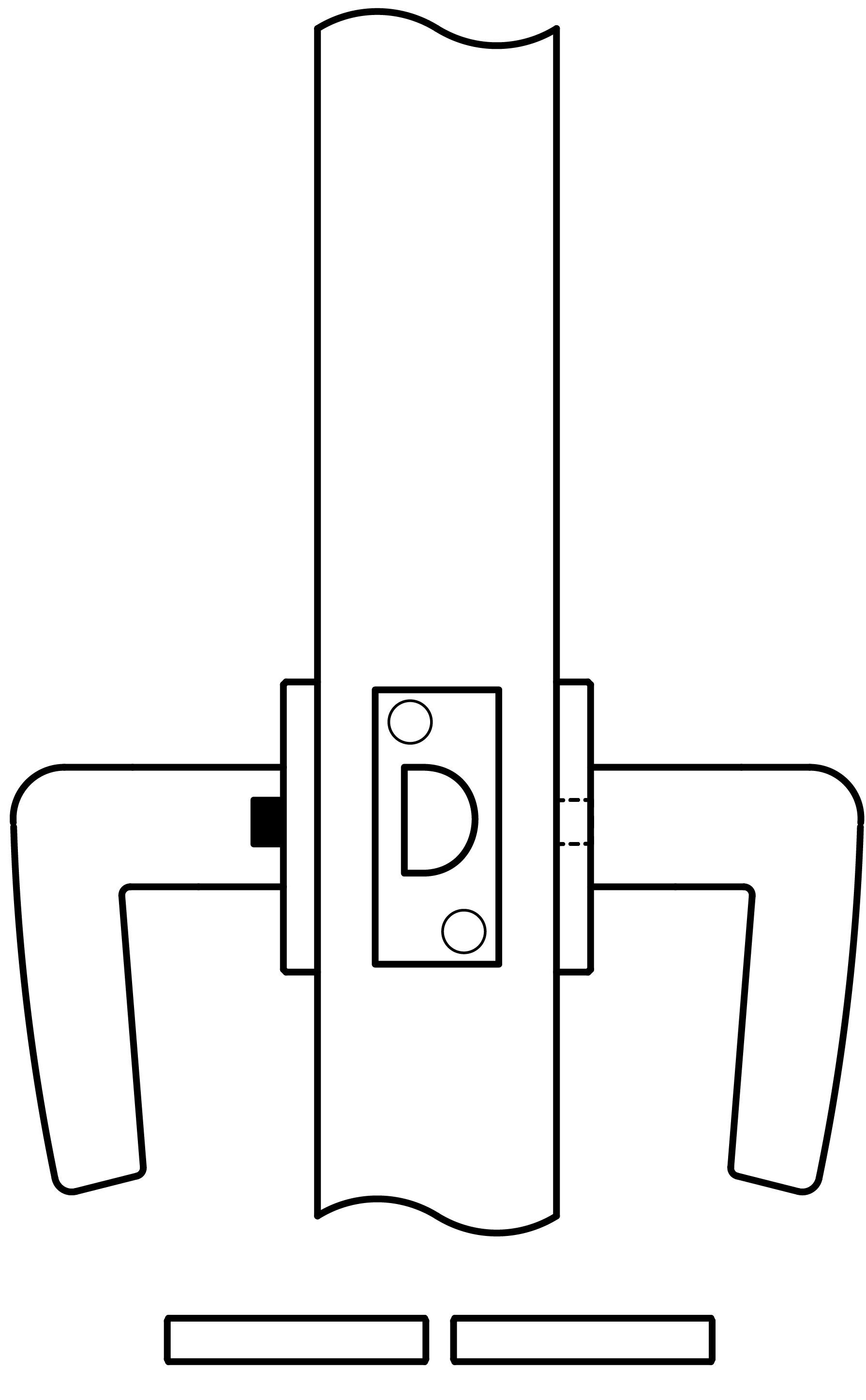

TL2239 | Privacy | Bedroom/Bathroom
- Latch bolt by lever either side except when outside lever is locked by inside push pin.
- Operating inside lever or outside emergency release unlocks outside lever.
- Closing door will retract latch and unlock outside lever.
TK2225 | Passage
- Latch bolt by knob either side.

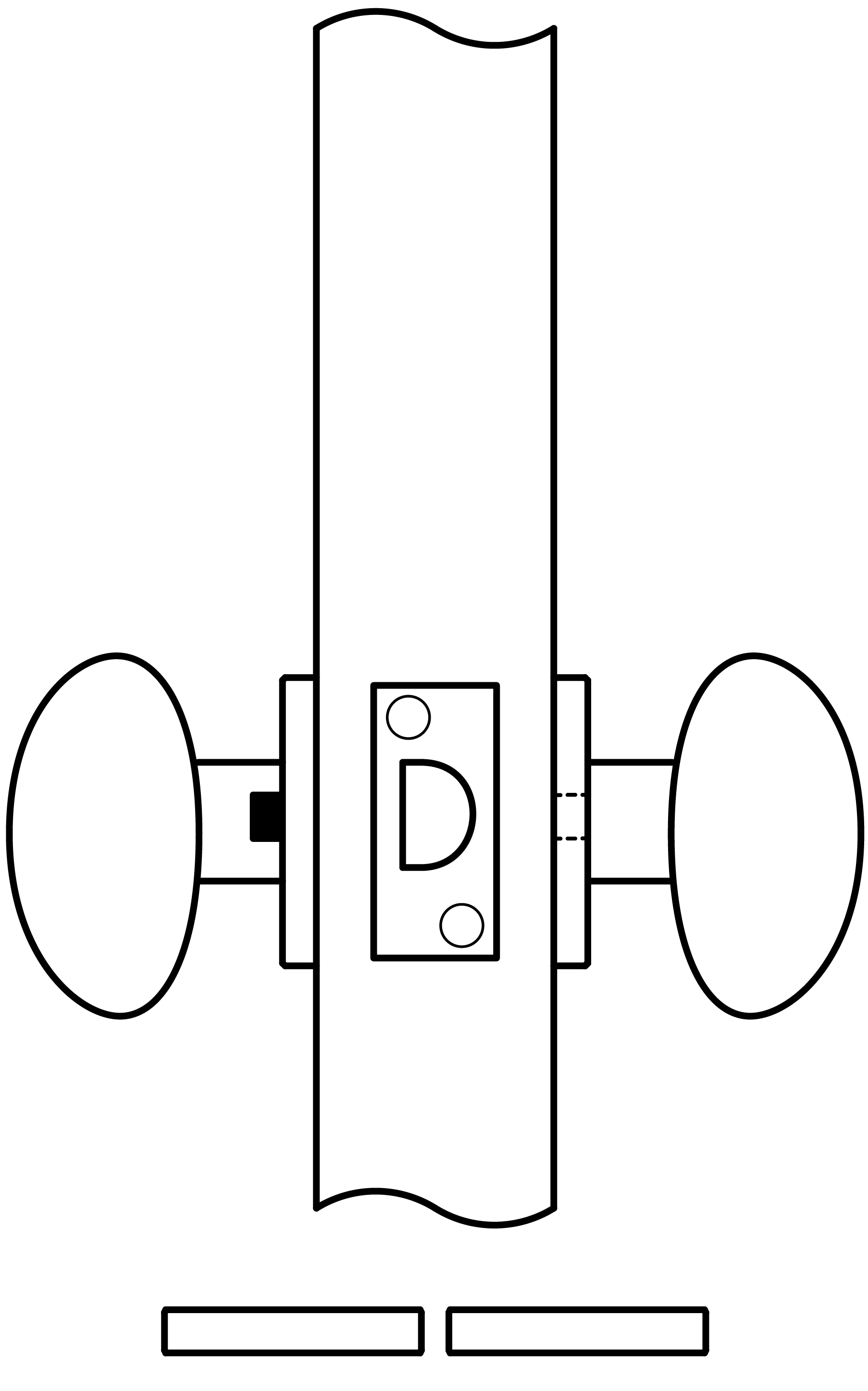

TK2239 | Privacy | Bedroom/Bathroom
- Latch bolt by knob either side except when outside knob is locked by inside push pin.
- Operating inside knob or outside emergency release unlocks outside knob.
- Closing door will retract latch and unlock outside knob.
Sell Sheet
Specification Sheets
Installation Template
Video
-
T2200 Tubular Latch Product Spotlight
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function[K/L]. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Tubular Latch | Passage | Accurate Lever Trim
E.g.: TL2225. 238. T-19L/T1-R. US4. RH. 134 -
Tubular Latch | Passage | Other Manufacturers' Knob Trim
E.g.: TK2225. 234. KxK.8mm. US19. LH. 134 -
Tubular Latch | Privacy | Accurate Lever Trim
E.g.: TL2239. 238. T-21L/T-2R. US10B. RH. 138 -
Tubular Latch | Privacy | Other Manufacturers' Trim
E.g.: TK2239. 238. KxK.8mm. US3NL. LH. 138
Notes
- For other manufacturers' trim, specify push pin position for privacy functions, call for compatibility.
- Accurate trim available for use with tubular lock, specify T-XXL or T-XR (e.g. T-19L, T-1R).
