1700
Narrow Backset Mortise Lock
The 1700 Series allows for more flexibility for narrow stile aluminum doors. Popular in storefront or office applications, pair the 1700 with a variety of decorative or commercial trim options to do more with less. Available in a range of finishes and functions, the 1700 Series opens the door to endless possibilities.
- Minimum door stile 2".
- Maintain sleek lines where narrow stile doors are prominent.
- Narrow backsets (1-1/8") are ideal for aluminum storefront and glass wall partition systems with narrow stile framing (minimum 2" stile recommended).
- Special order 1” backset available, please contact us for assistance.
- Compatible with Accurate Levers or custom fitted for most manufacturers' sectional trim (narrow roses).
- Can be used with standard or mortise cylinders.
- Features latch holdback by cylinder (optional on select functions).
- Pair with Accurate Levers designed for narrow backset applications (14L, 15L, 16L, 17L).

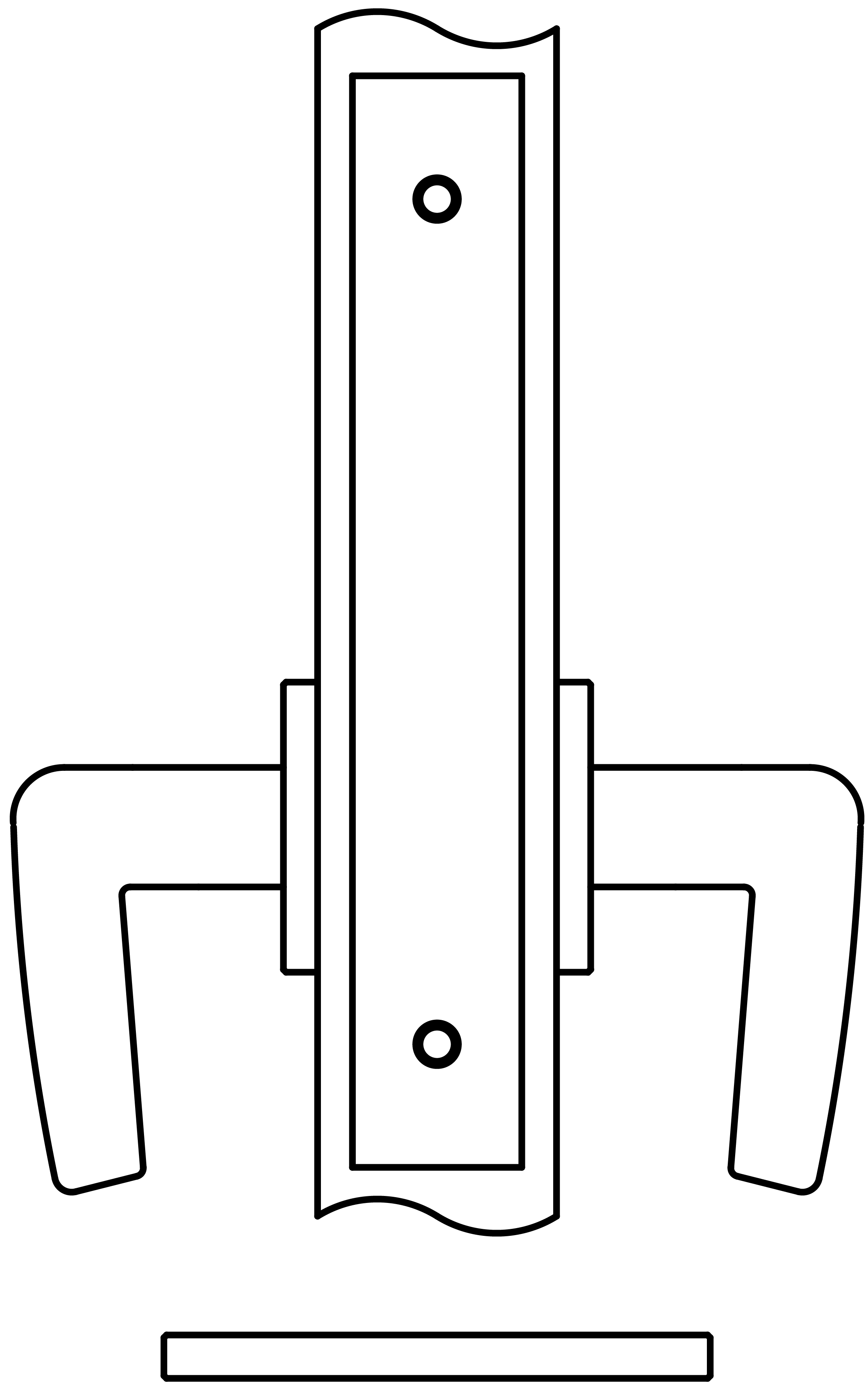

1700ADL Active Dummy Lock
- Active handles inside and outside.

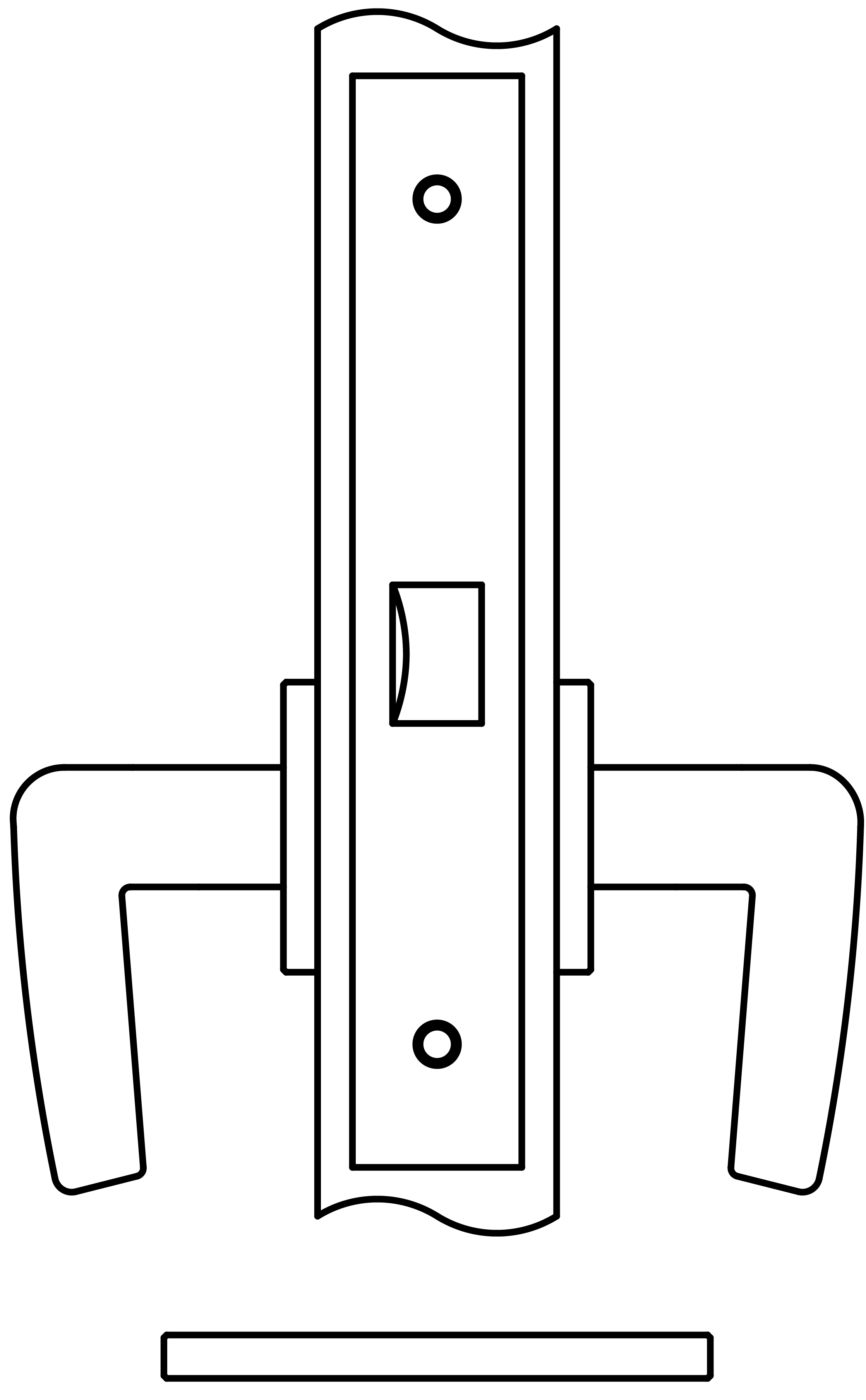

1725 Passage
- Latch bolt by lever either side.
- Latch bolt can be held retracted by depressing, then turning key.*
- *Optional, please specify 1725H.
1745 Classroom
- Latch bolt by lever either side unless outside lever is locked by key.
- Auxiliary latch deadlocks latch bolt.
- Inside lever always free egress.
1750 Entrance
- Latch bolt by lever either side unless outside lever locked by thumb turn inside or key outside.
- When outside lever is locked, operating the inside lever will NOT unlock outside lever.
- Auxiliary latch deadlocks latch bolt. Inside lever always free egress.

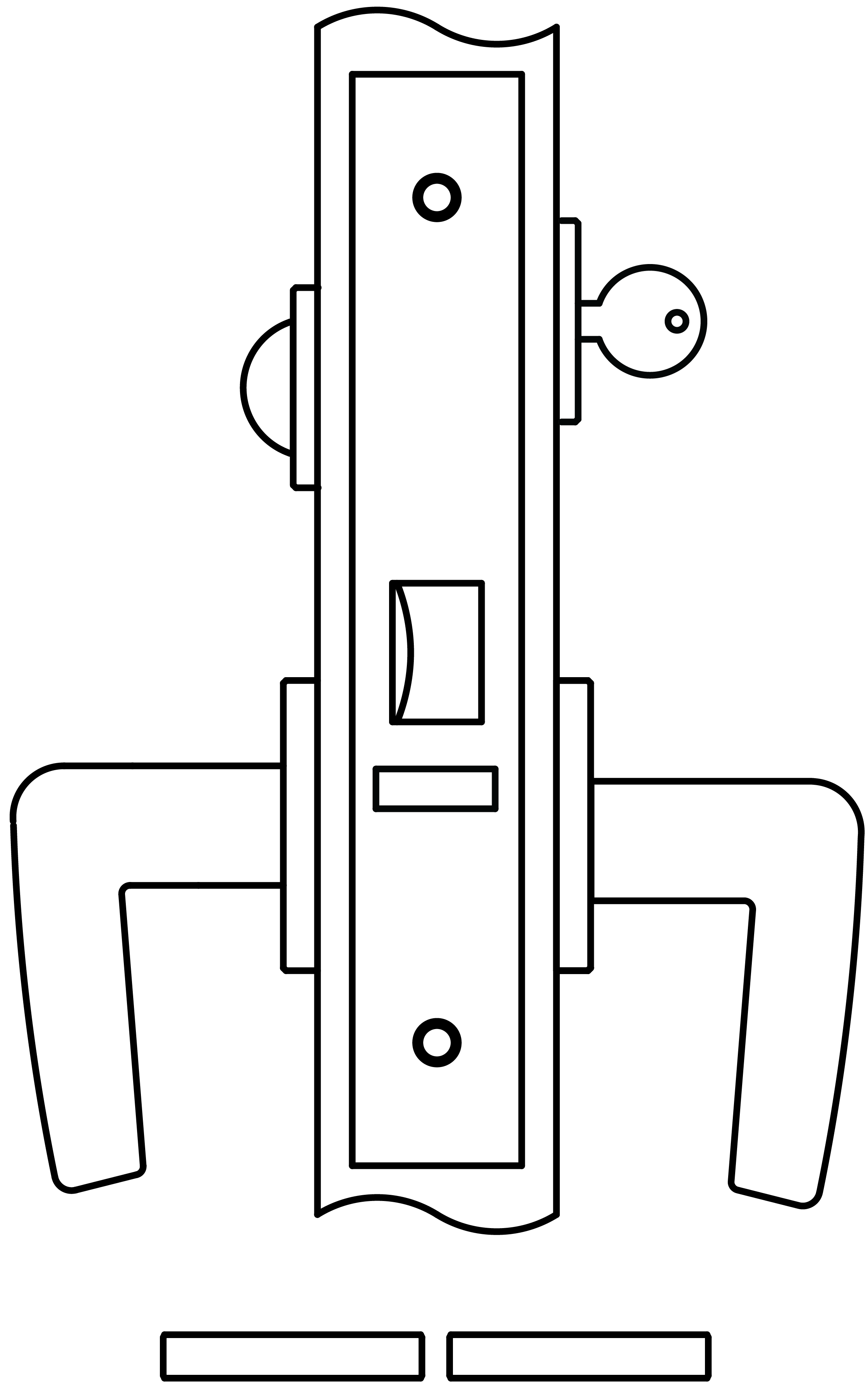

1753 Entrance
- Latch bolt by lever either side unless locked by thumb turn inside or key outside (both levers become rigid).
- Auxiliary latch deadlocks latch bolt.
- No emergency egress.

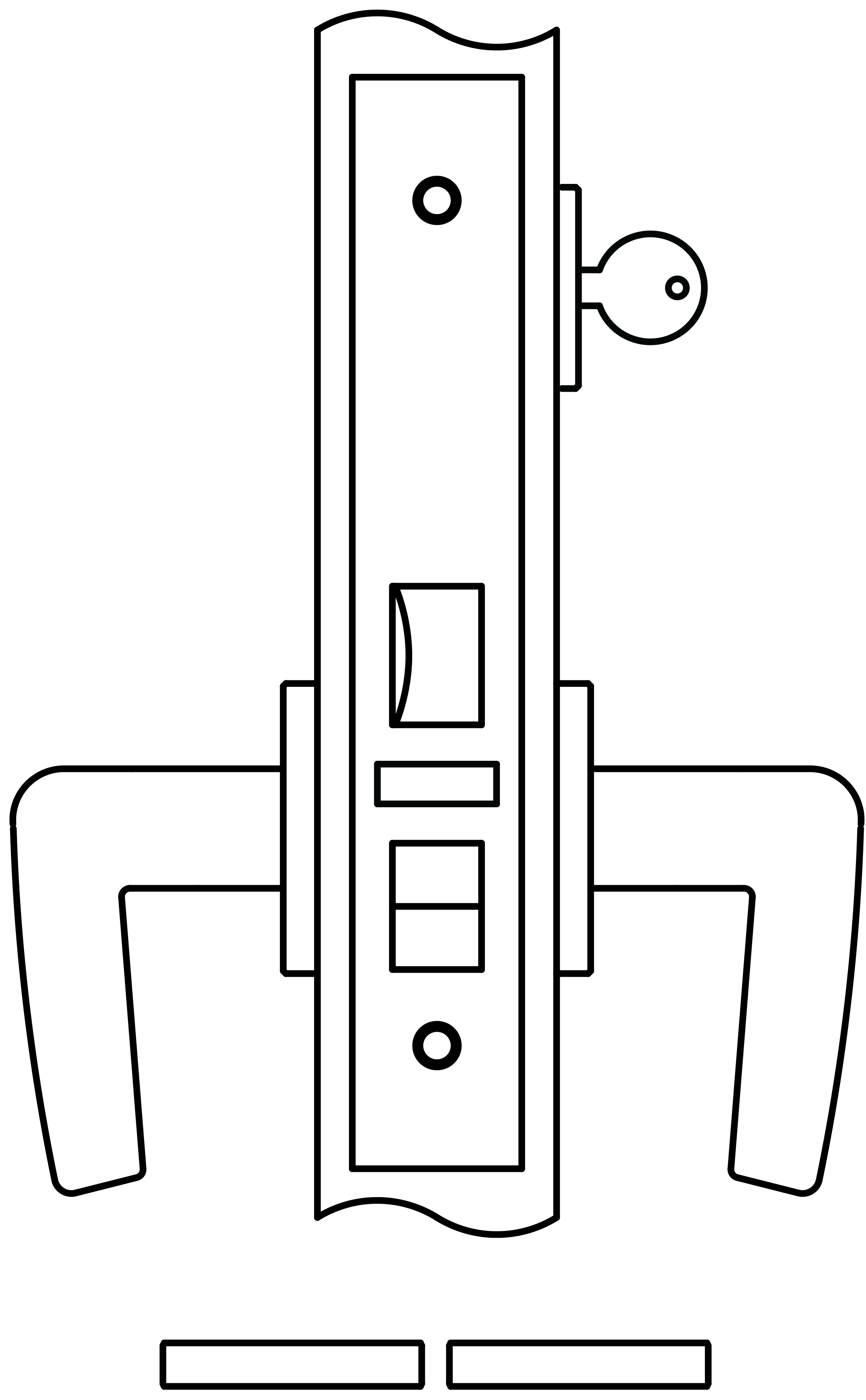

1756 Entrance or Office
- Latch bolt by key outside and lever
- either side unless outside lever is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.
- Latch bolt can be held retracted by depressing, then turning key.*
- *Optional, please specify 1756H

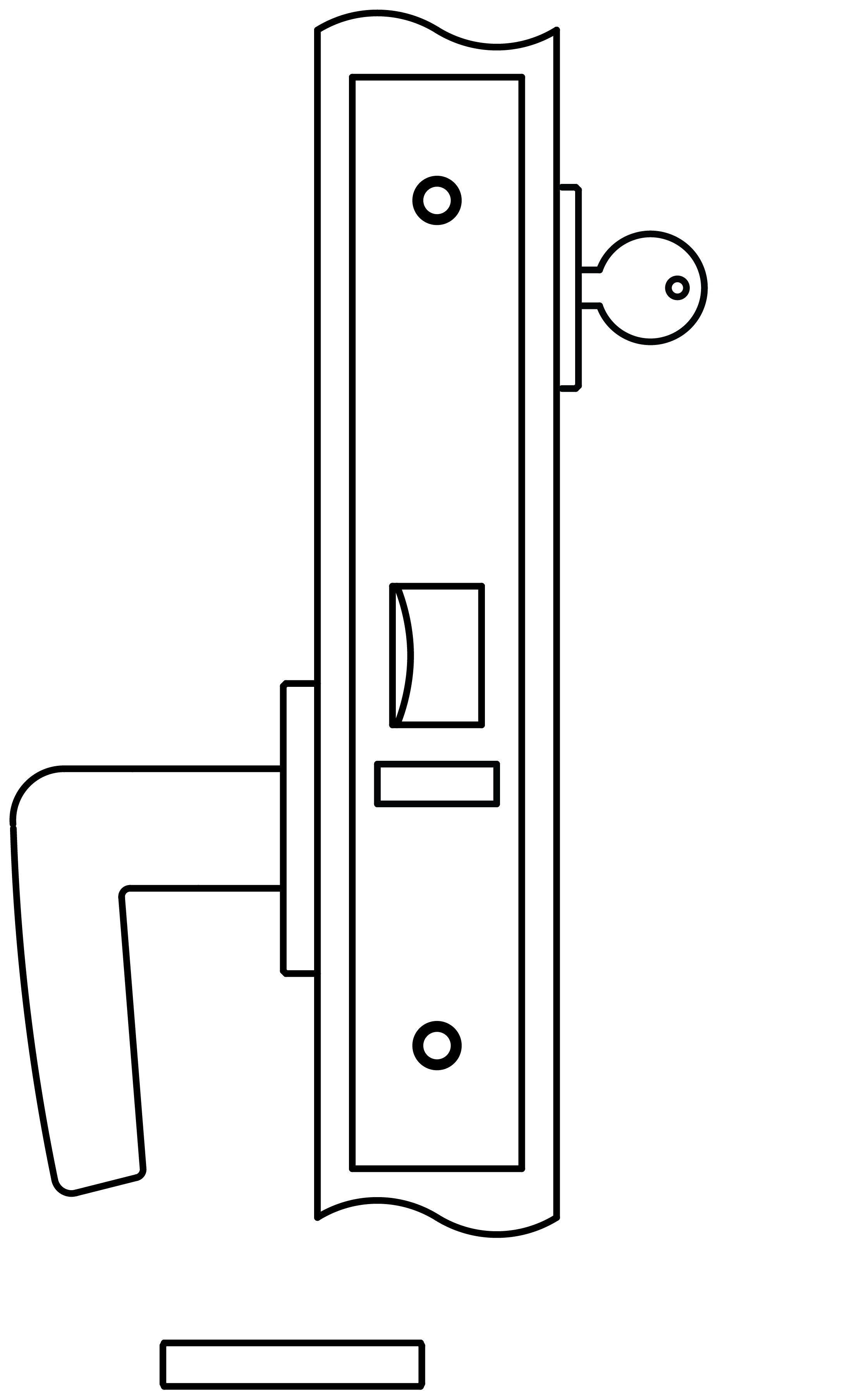

1757 Entrance or Office
- Latch by lever inside and key outside.
- No outside lever.
- Auxiliary latch deadlocks latch bolt.
- Latch bolt can be held retracted by depressing, then turning key.*
- *Optional, please specify 1757H

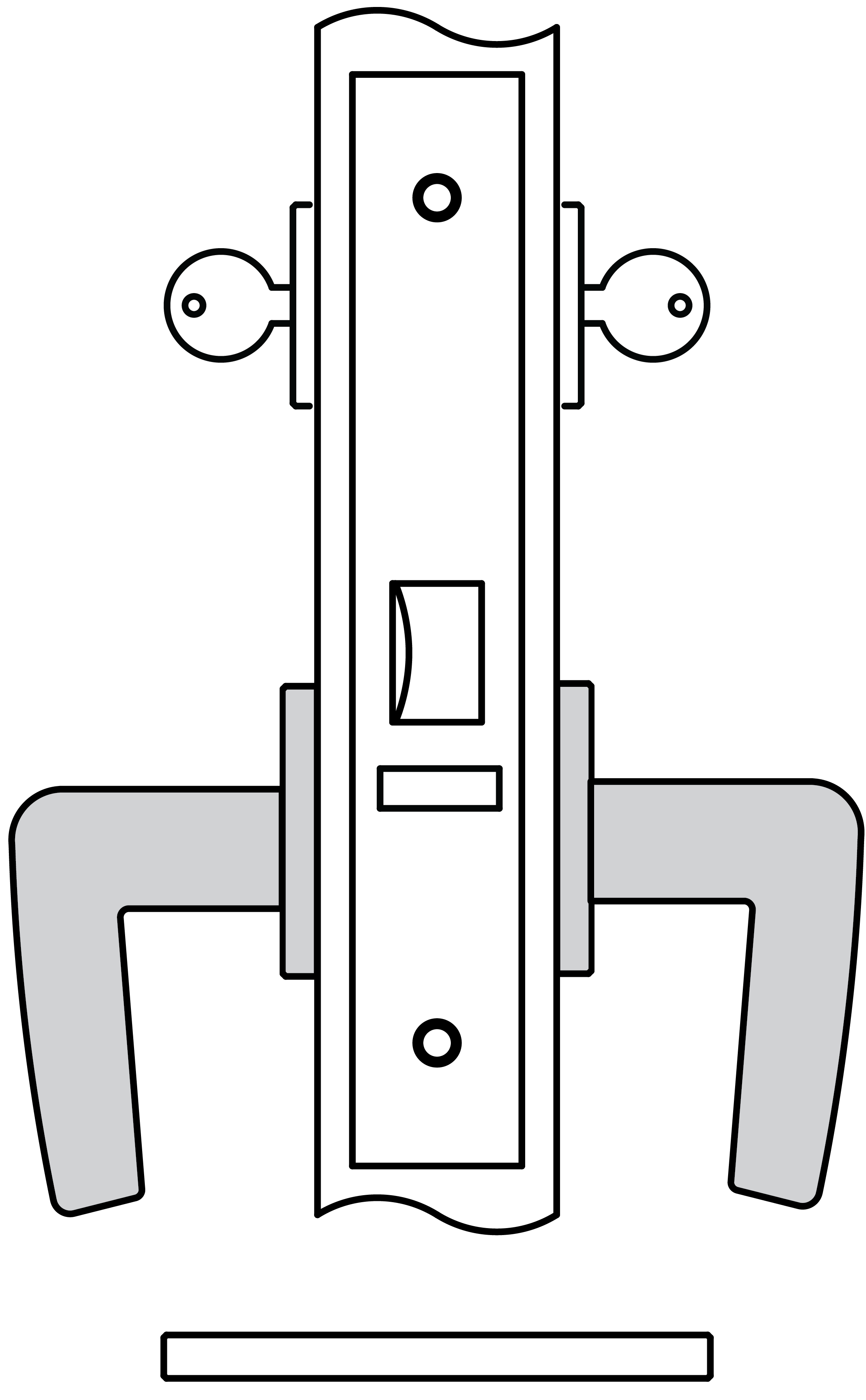

1758 Institution or Asylum
- Latch by key either side.
- Inside and outside levers always rigid.*
- Auxiliary latch deadlocks latch bolt.
- Latch bolt can be held retracted by depressing, then turning key.**
- *Verify code compliance before using this function.
- **Optional, please specify 1758H

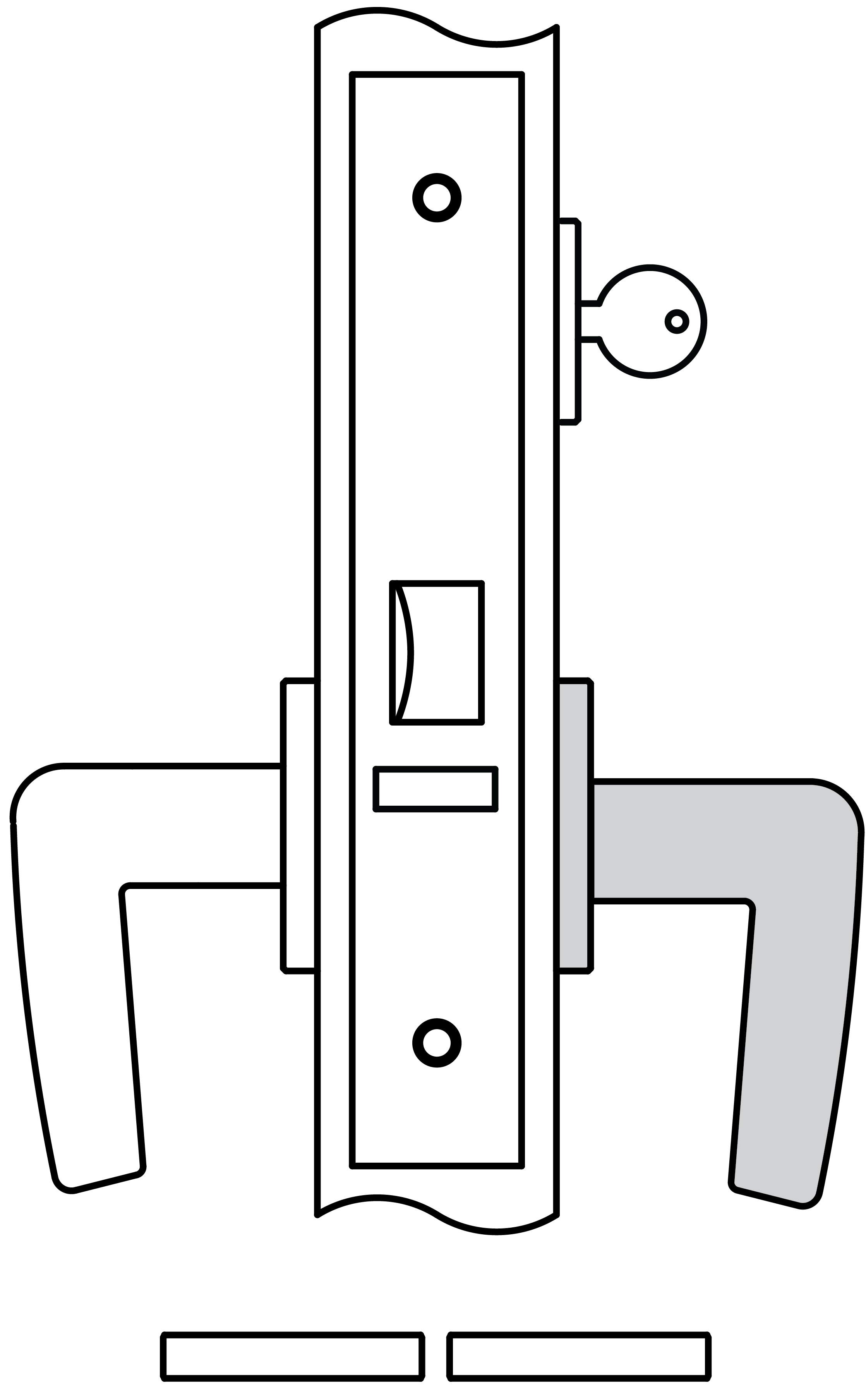

1759 Storeroom or Closet
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
- *Optional, please specify 1759H.
Sell Sheet
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Faceplate
Examples
-
Office Lock | Radius Faceplate Round Corners | Accurate Trim
E.g.: 1756. RFRC. 118. 29/1E-175. US26D. RH. 134 -
Storeroom Lock | Flat Faceplate Round Corners | Accurate Trim
E.g.: 1759. RC. 118. 29L/4R. US19. RH. 134 -
Entry Lock | Beveled Faceplate Square Corners | Other Manufacturers’ Trim
E.g.: 1757. BF. 118. 8mm. US5. LH. 138
Notes
- Set up for levers by other manufacturers.
- For compatibility with other manufacturers’ trim please call for assistance.
- Available for glass (G17) and sliding door applications (SL1700SDL).
