G17
Narrow Backset Glass Patch Mortise Sets
Accurate’s smallest glass patch makes a minimal statement that enhances the beauty of glass doors. Offered as a complete package including lock body, patch assembly and levers; as well as cylinder and thumb turn if required. Available in a range of finishes and functions, the G17 Series allows for sleek and modern open-space design.
- Maintain the European-inspired aesthetic where glass doors are prominent.
- Compatible with various partition system configurations for ultimate design versatility.
- Fits 1/2" and 3/8" tempered glass standard, other door thicknesses available.
- Available in a variety of functions.
- Can be used with standard mortise cylinders.
- Features latch holdback by cylinder.
- Quick installation.
- Pair with Accurate Levers designed for narrow backset applications (14L, 15L, 16L, 17L).

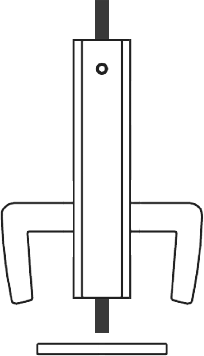

G1700ADL/GO1700ADL Active Dummy Lock
- Active handles inside and outside.

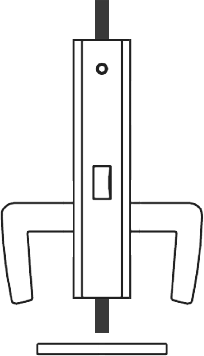

G1725/GO1725 Passage
- Latch bolt by lever either side.

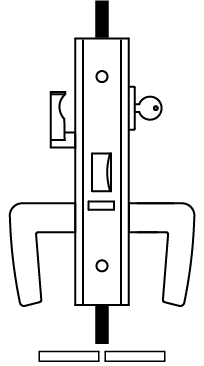

G1753/GO1753 Entrance
- Latch bolt by key outside.
- Latch bolt by lever either side unless locked by thumb turn inside (both levers become rigid).
- Auxiliary latch deadlocks latch bolt.
- Latch can be held retracted by key.
- No emergency egress.

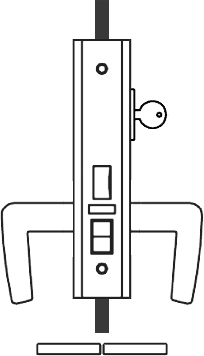

G1756/GO1756 Entrance or Office
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.
- Latch can be held retracted by key.

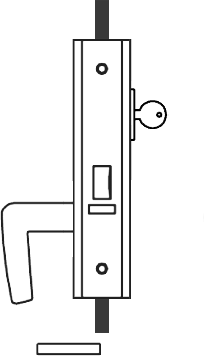

G1757/GO1757 Entrance or Office
- Latch by lever inside and key outside.
- No outside lever.
- Auxiliary latch deadlocks latch bolt.
- Latch can be held retracted by key.

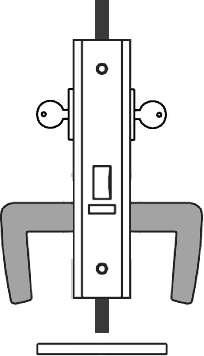

G1758/GO1758 Entrance or Asylum
- Latch by key either side.
- Inside and outside levers always rigid.*
- Auxiliary latch deadlocks latch bolt.
- Latch can be held retracted by key.
- Verify code compliance before using this function.

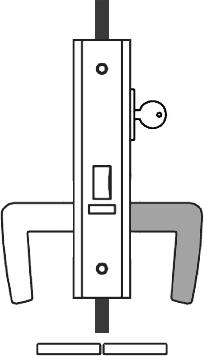

G1759/GO1759 Storeroom or Closet
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
- Latch can be held retracted by key.
Sell Sheet
Specification Sheets
- Spec.G1700ADL
- Spec.G1725
- Spec.G1756
- Spec.G1757
- Spec.GO1700ADL
- Spec.G1758
- Spec.G1759
- Spec.GO1725
- Spec.GO1756
- Spec.GO1756
- Spec.GO1757
- Spec.GO1758
Installation Templates
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
-
US28
Satin Aluminum
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Strike Strike
Examples
-
Narrow Backset Glass Patch Mortise Set | Entrance | Glass Wall
E.g.: G1757. 118. 29L. US28. RH. 1/2. G17-GPS -
Narrow Backset Glass Patch Mortise Set | Entrance | Offset | Aluminum Frame (4-7/8" Strike)
E.g.: GO1756. 118. 16L. US19. RH. 1/2. SD -
Narrow Backset Glass Patch Mortise Set | Passage
E.g.: G1725. 118. 17L. ESN. LH. 1/2
Notes
- G17 Series can be set up for levers by other manufacturers.
- 1-1/8" backset standard, 1" backset available special order.
- Available for Access Control Applications, Sliding Doors (GS17) and Self-Latching Sliding Doors (GS17).
- Cylinders and cylinder thumb turns must be specified separately if required.
- Narrow Backset Glass Patch Strikes (G17-GPS) are sold and specified separately.
