GO87
Offset Glass Patch Mortise Sets
The GO87 Glass Patch Mortise Set allows for a contemporary open-space design that can inspire more transparency, versatility, and efficiency in the workplace. This sleek patch sits offset on glass and fits standard ½” tempered glass. The GO87 is offered as a complete package including lock body, thumb turn (emergency release where applicable), patch assembly, and levers.
- GO87 is the offset solution designed for swinging doors (for centered on glass see G87).
- Compatible with various door designs and configurations.
- Offered as a complete package including lock body, thumb turn (emergency release where applicable), patch assembly and levers.
- Standard set up is 2" backset for 1/2" thick tempered glass.

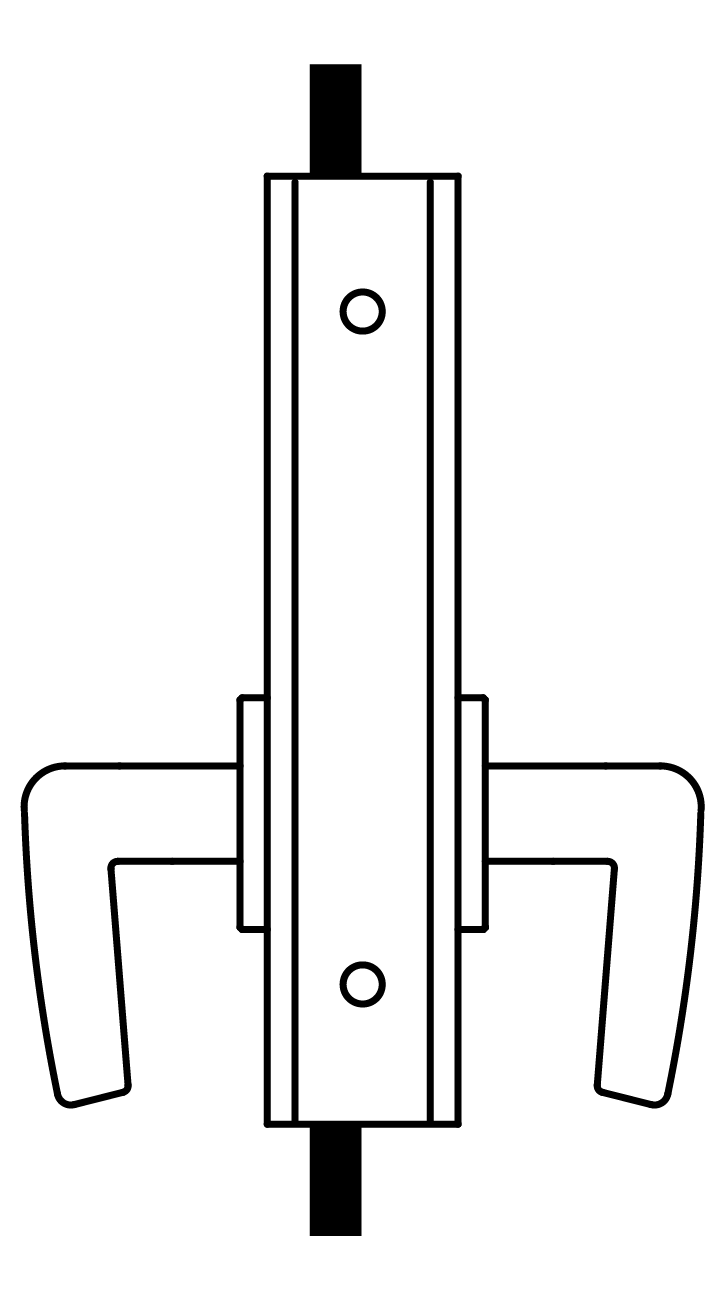

GO8700ADL Active Dummy Lock
- Active handles inside and out.

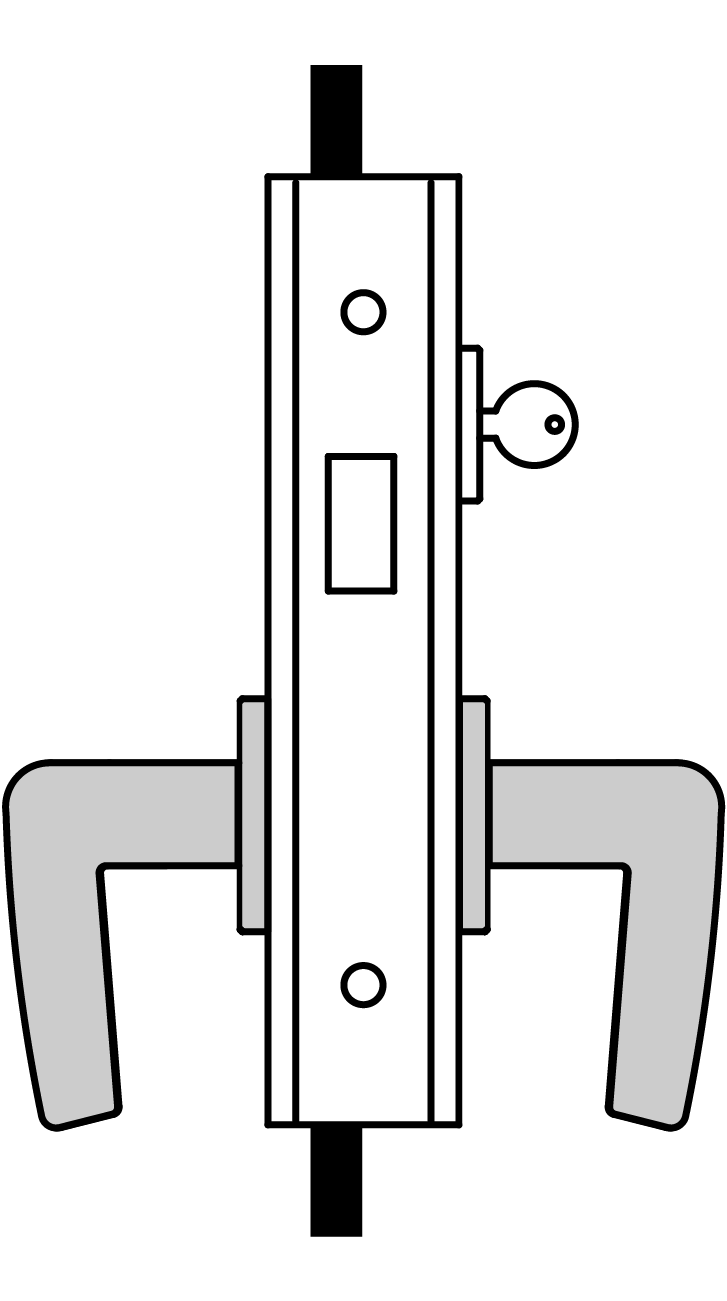

GO8701 Deadlock
- Deadbolt by key outside, no inside operation.

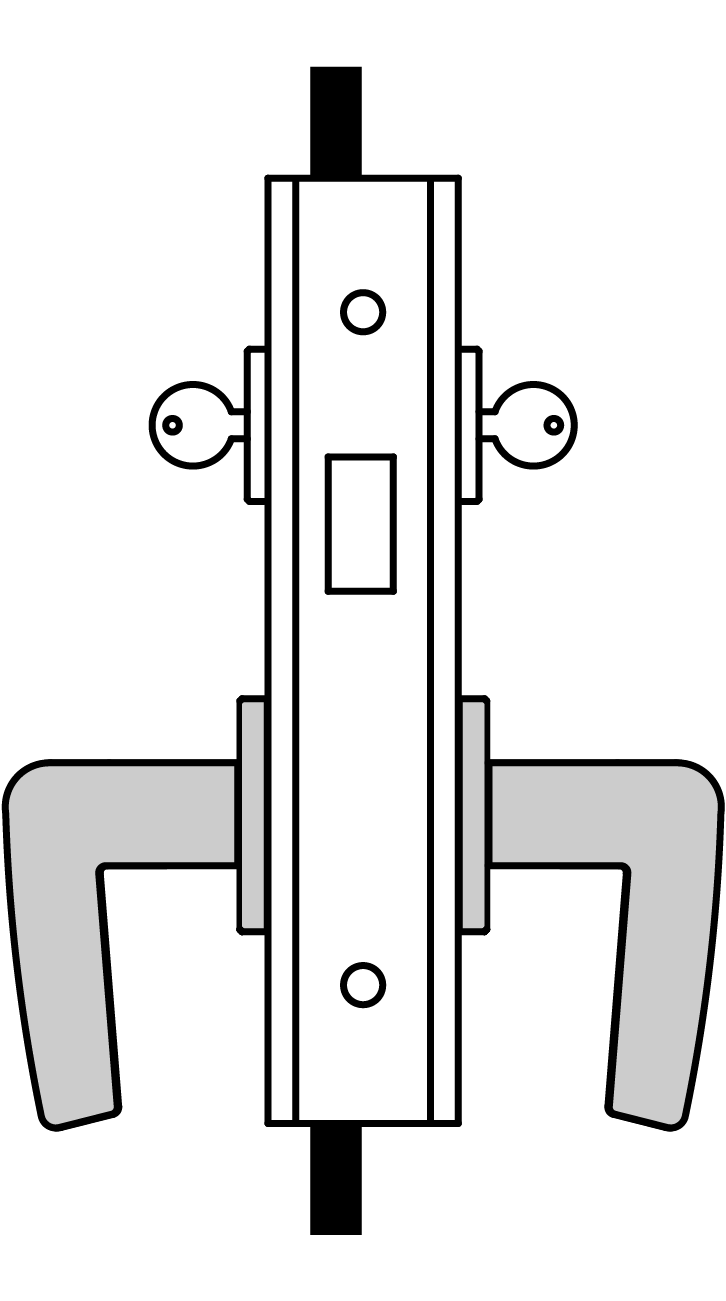

GO8702 Deadlock
- Deadbolt by key either side.

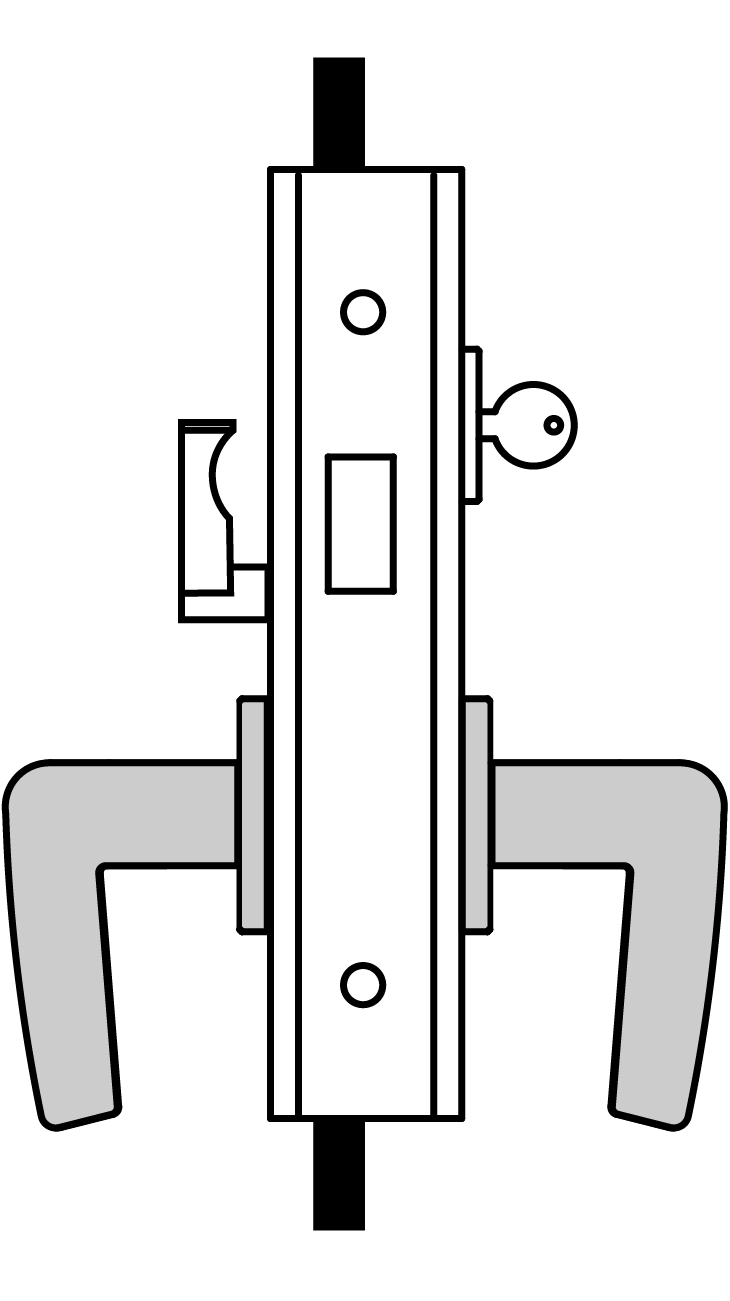

GO8703 Deadlock
- Deadbolt by key outside, thumb turn inside.

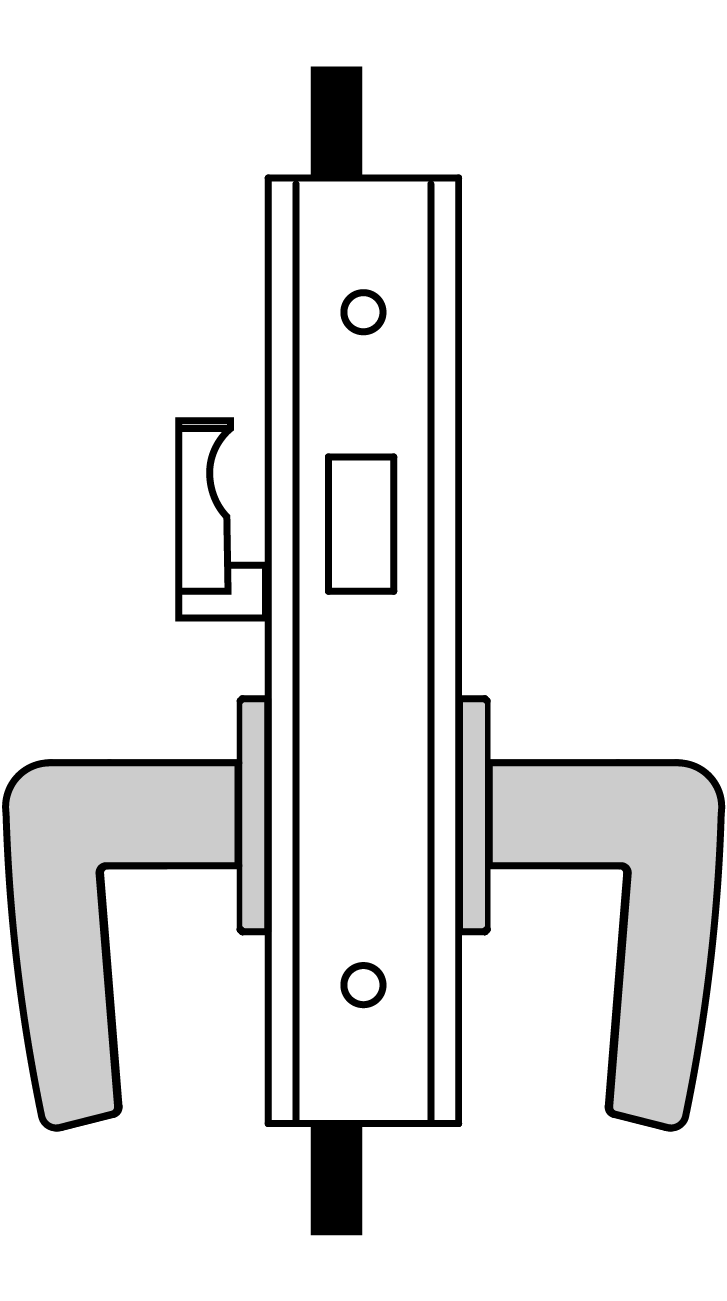

GO8704 Deadlock
- Deadbolt by thumb turn inside only.

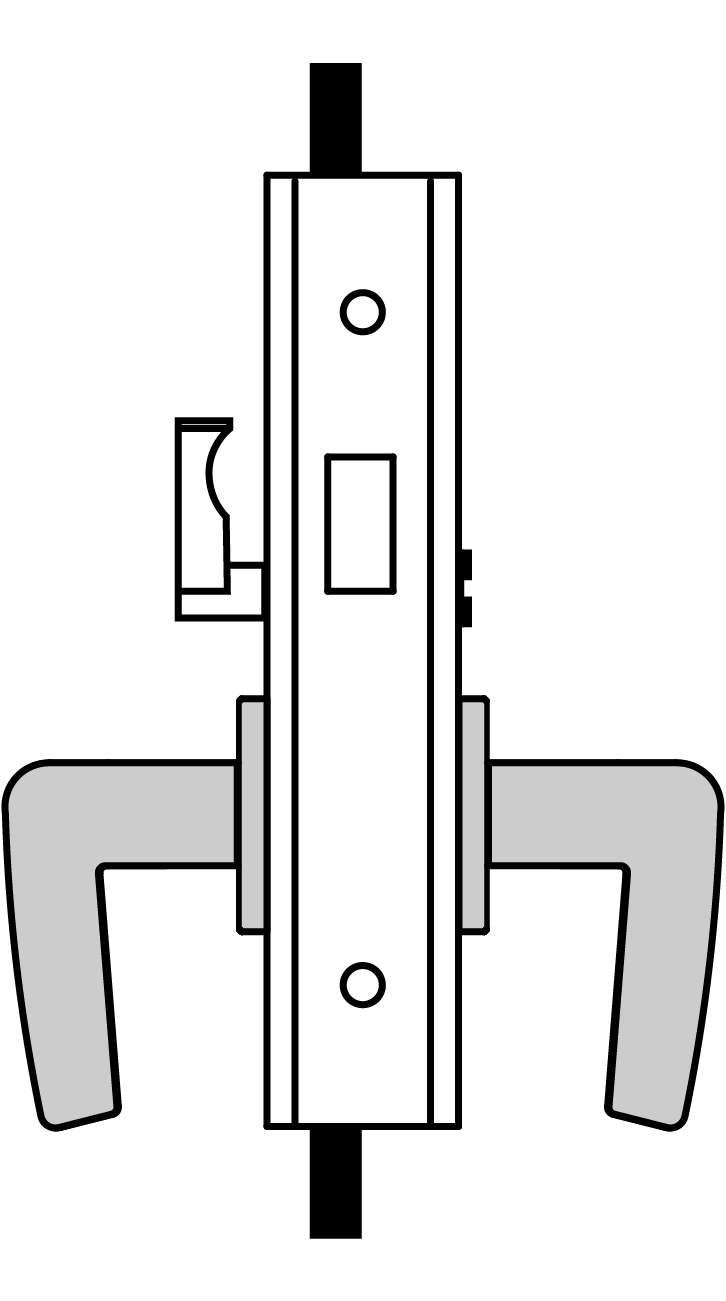

GO8705 Deadlock
- Deadbolt by emergency release outside, thumb turn inside.

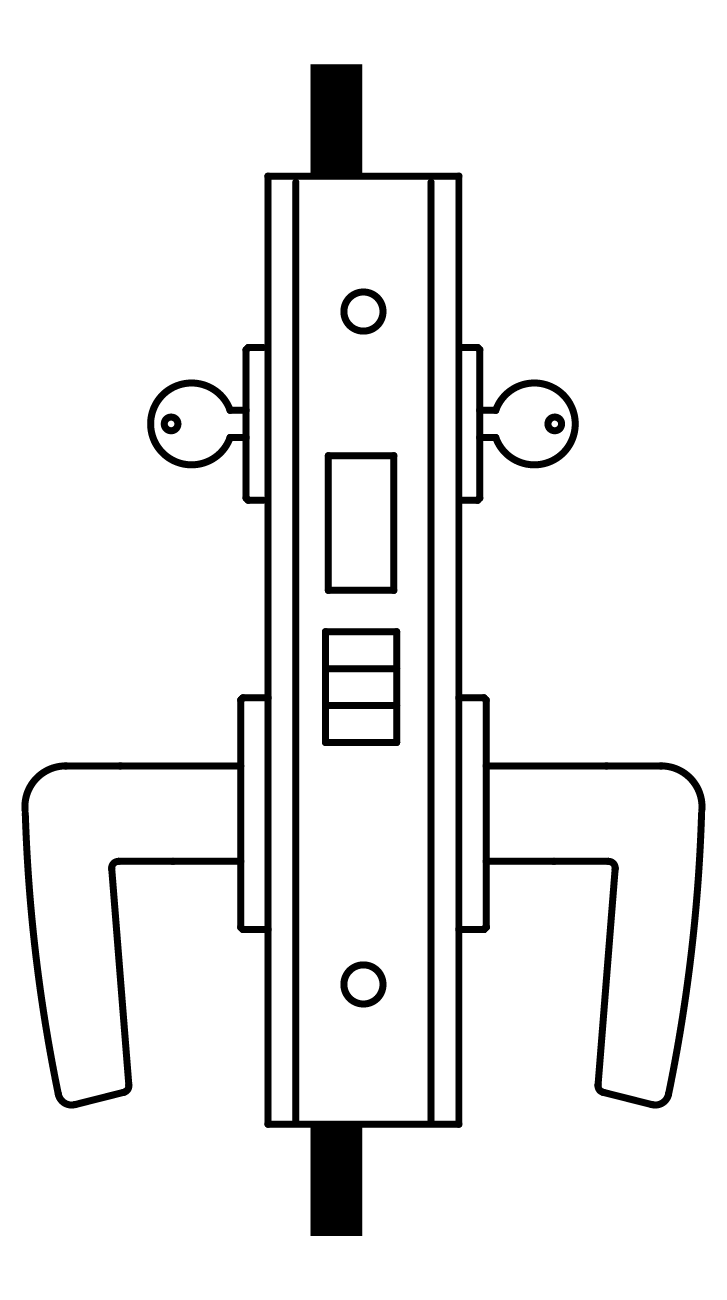

GO8722 Store Door Lock
- Latch bolt by lever either side.
- Deadbolt by key either side.
- No emergency egress.

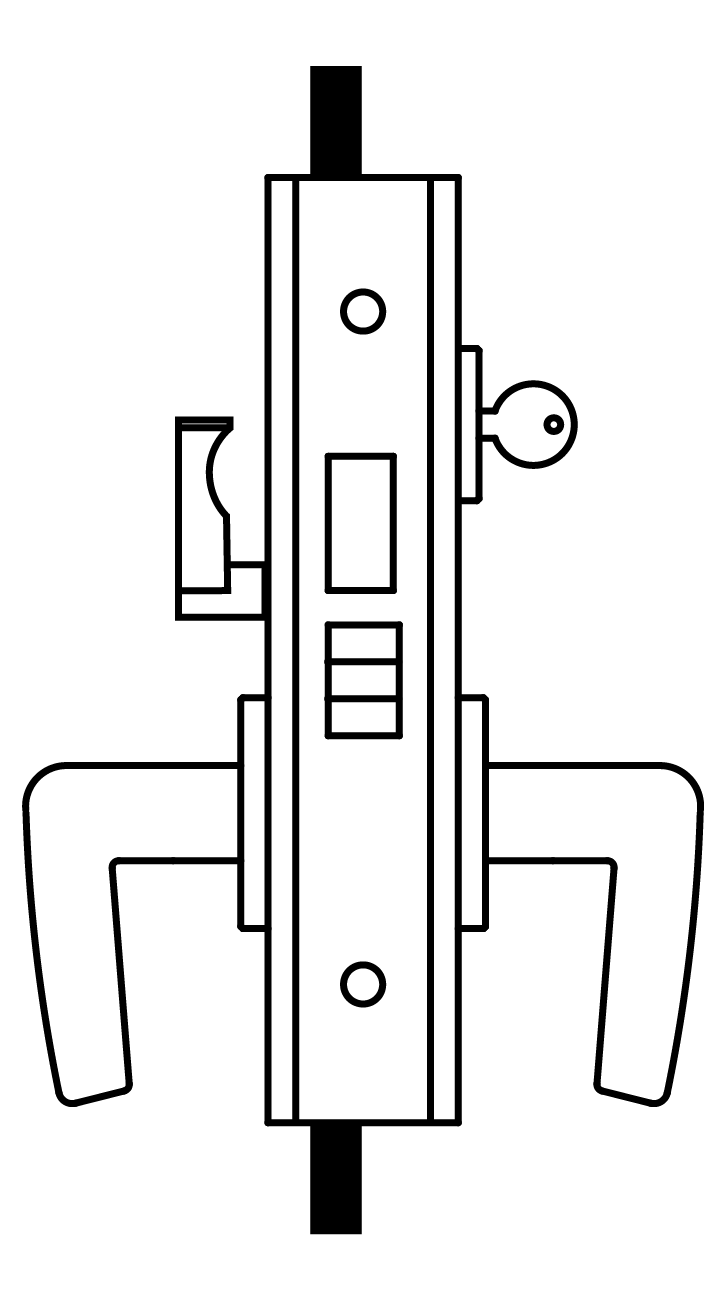

GO8724 Dormitory
- Latch bolt by lever either side.
- Deadbolt by key outside, thumb turn inside.
- A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

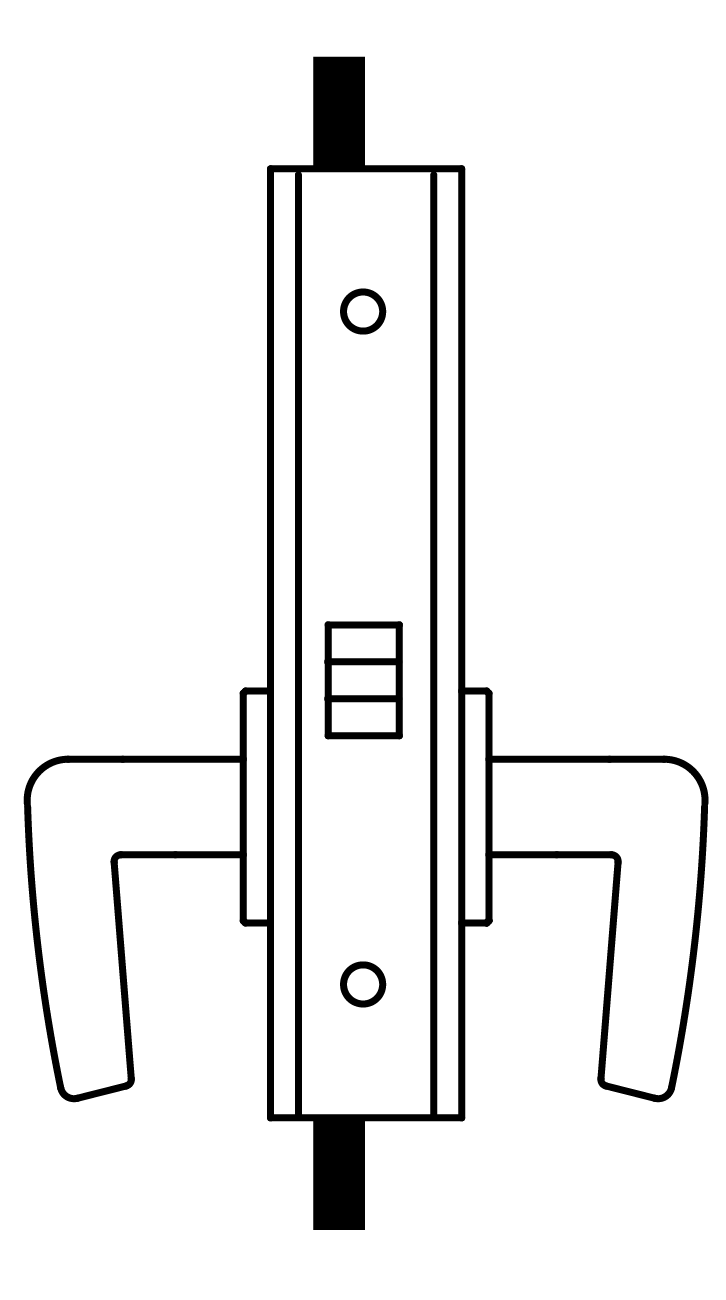

GO8725 Passage
- Latch bolt by lever either side.

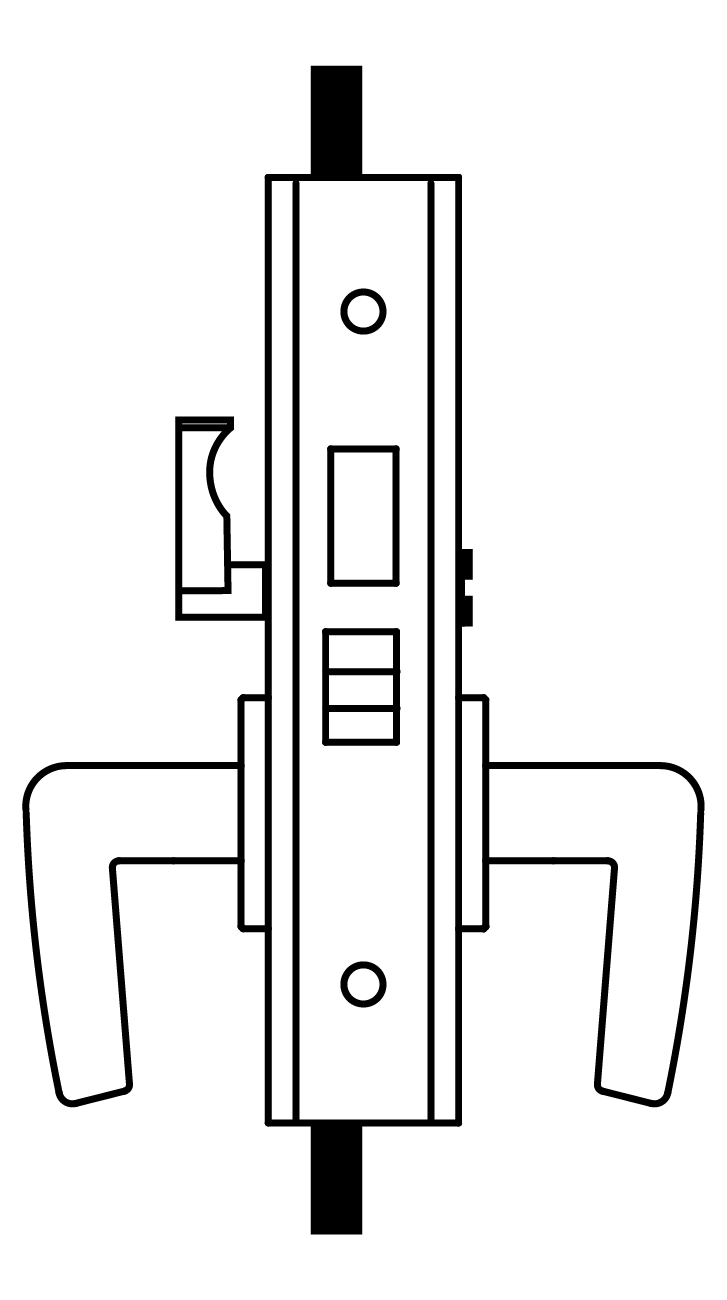

GO8739 Privacy
- Latch bolt by lever either side.
- Deadbolt by thumb turn and optional emergency coin turn outside.
- A turn of the inside lever retracts latch and deadbolt simultaneously.

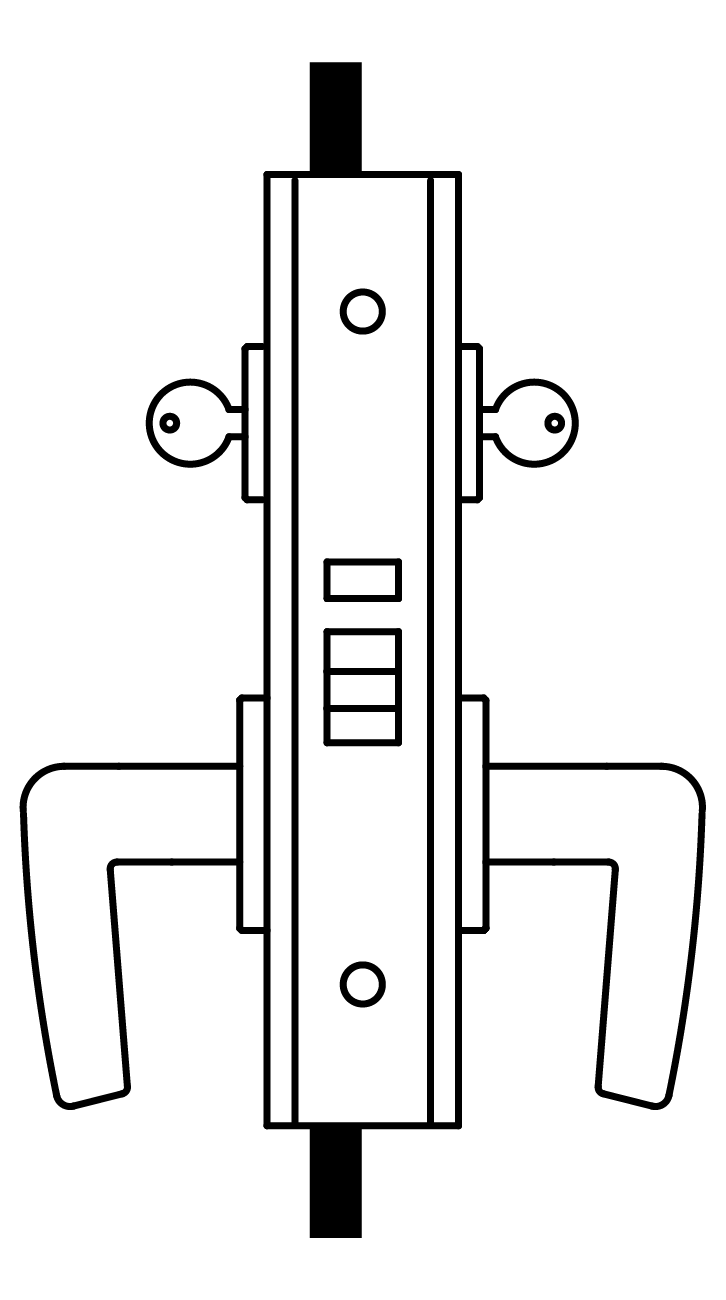

GO8742 Entrance
- Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
- When outside lever is locked, latch bolt by key outside and lever inside.
- Auxiliary latch deadlocks latch bolt.

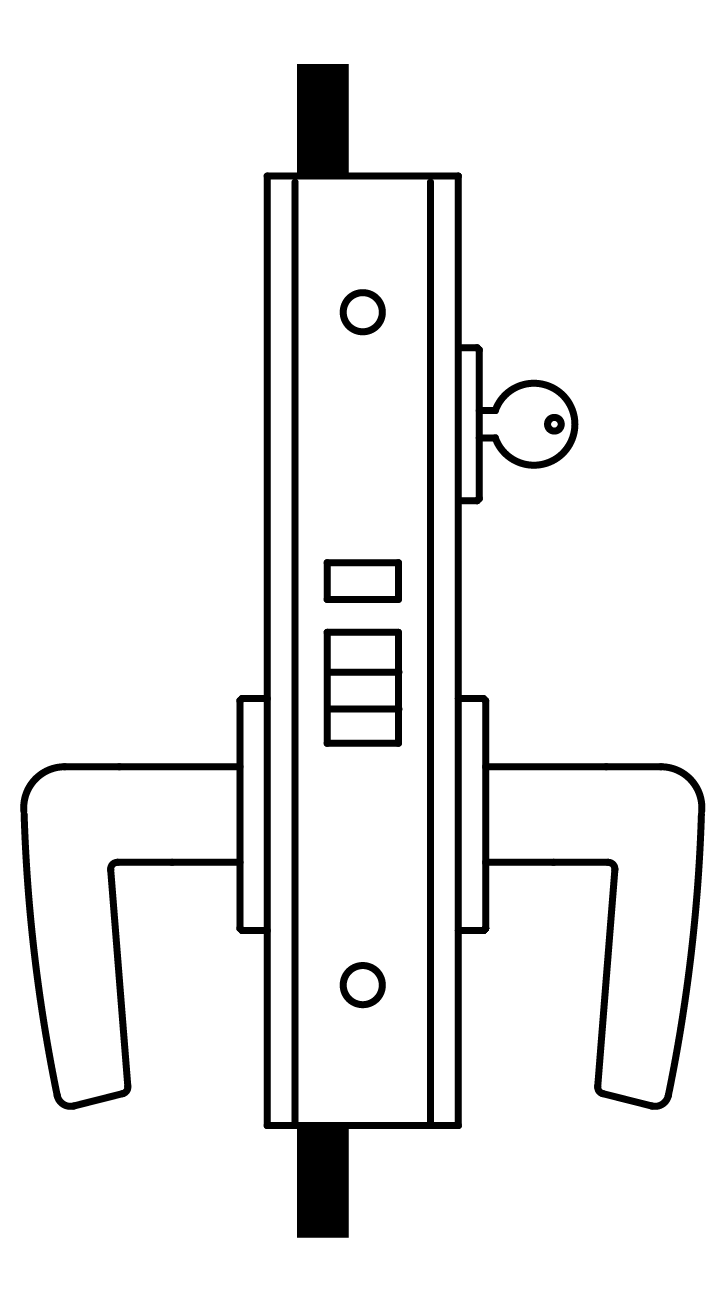

GO8745 Classroom
- Latch bolt by key outside and lever inside unless outside lever is locked by key.
- Auxiliary latch deadlocks latch bolt.

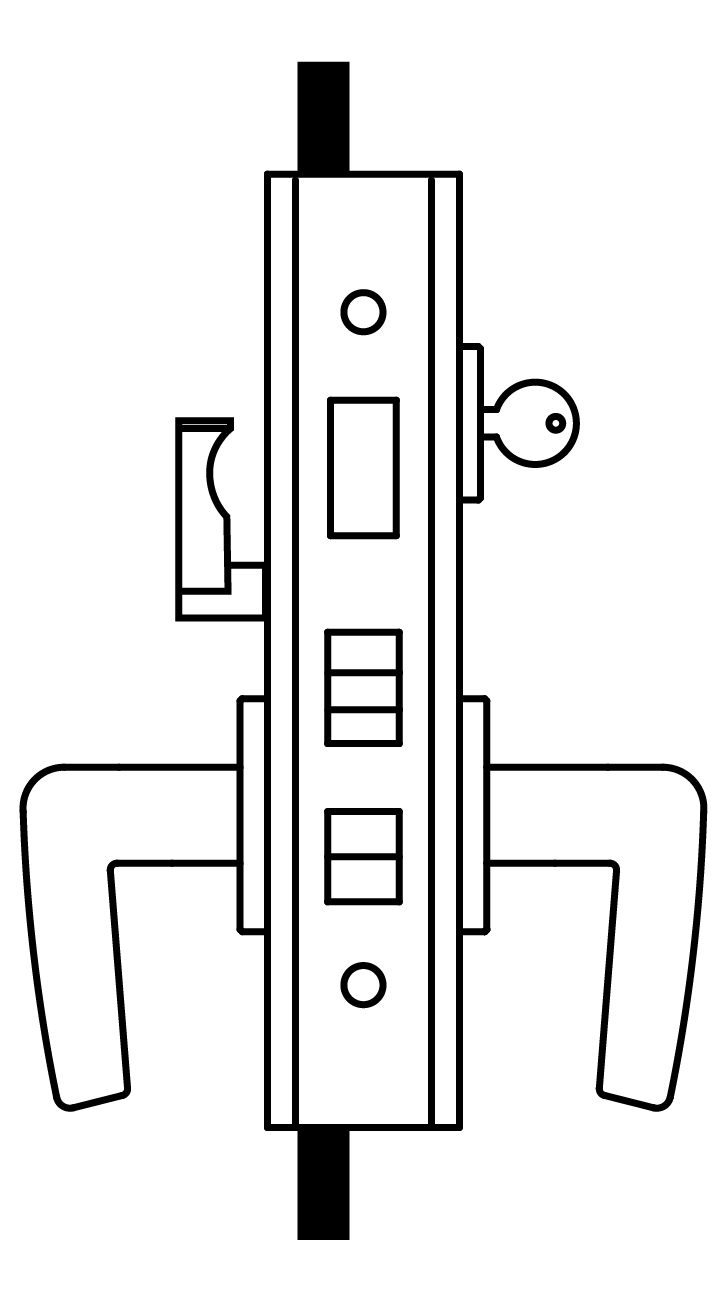

GO8748 Entrance
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and turn piece inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains locked until manually unlocked by toggle.
GO8749 Entrance
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and turn piece inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.

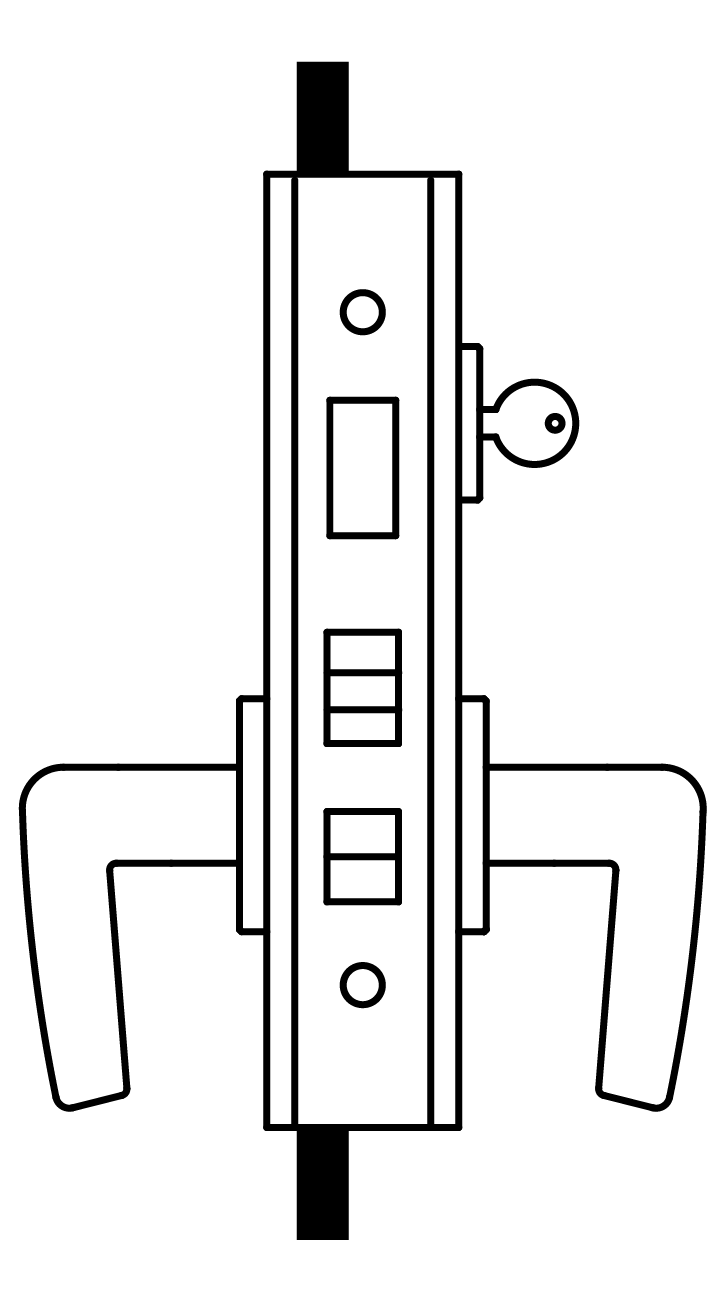

GO8756 Entrance or Office
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

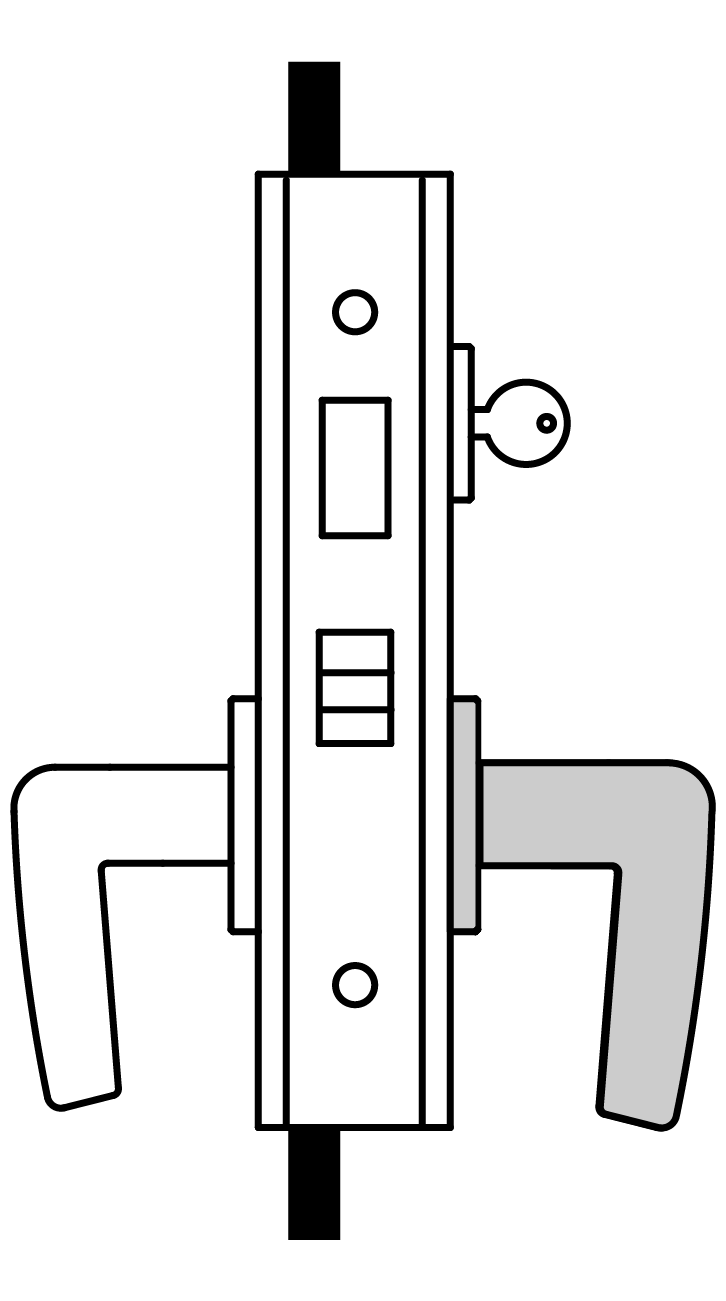

GO8759 Storeroom
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
