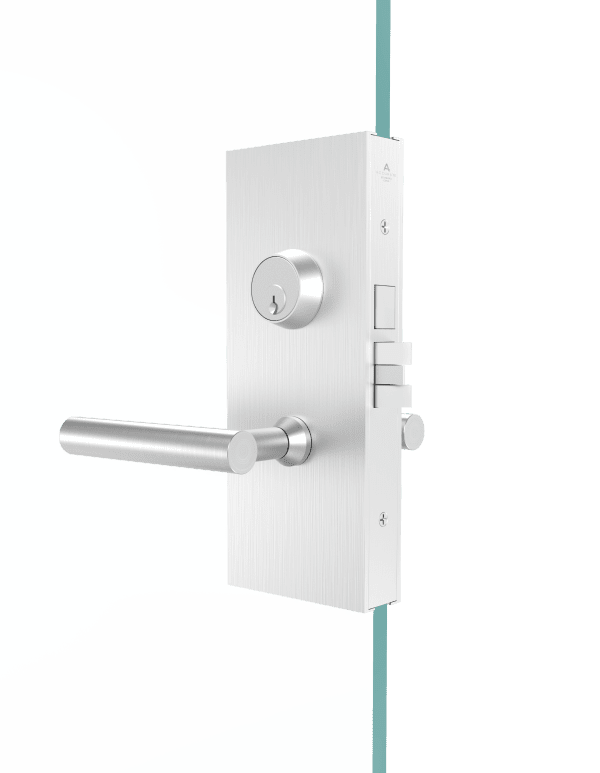

G87 Glass Patch Mortise Set for Swinging Doors

G87 Glass Patch Mortise Set with G87-GPS Strike

G87 Glass Patch Mortise Set for Swinging Doors in Office

G87

Glass Patch Mortise Sets

Add to collection

The G87 Series Glass Patch Mortise Set allows for a contemporary open-space design that can inspire more transparency, versatility, and efficiency in the workplace. This sleek design can be easily installed to fit the standard ½” tempered glass and is compatible with various door designs and configurations as well. The G87 is offered as a complete package including lock body, thumb turn (emergency release where applicable), patch assembly, and levers.

Info
Functions
Resources
Available Finishes
How to Specify

Centered on glass (for offset on glass, see GO87).
Compatible with various door designs and configurations.
Standard set up is 2" backset for 1/2" thick tempered glass.
G87 is offered as a complete package including lock body, thumb turn (emergency release where applicable), patch assembly and levers.
Glass Patch Strikes specified and sold separately.

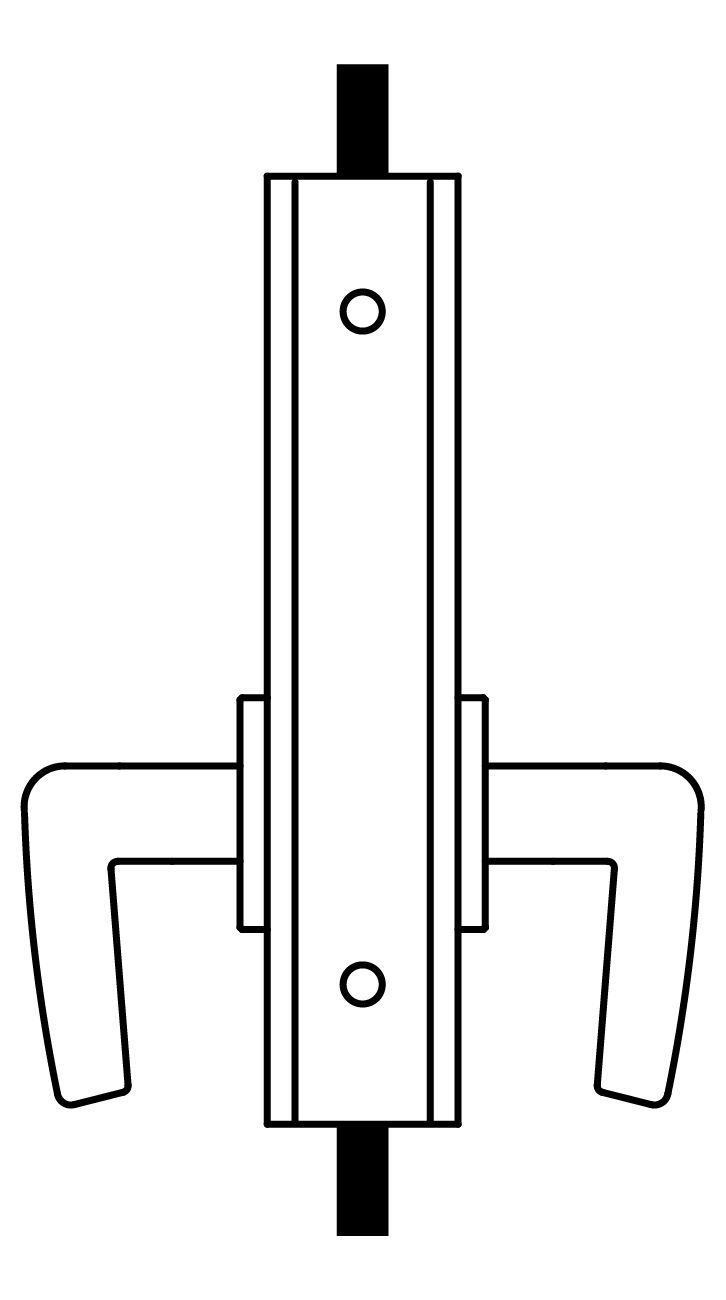

G8700ADL Active Dummy Lock

Active handles inside and out.

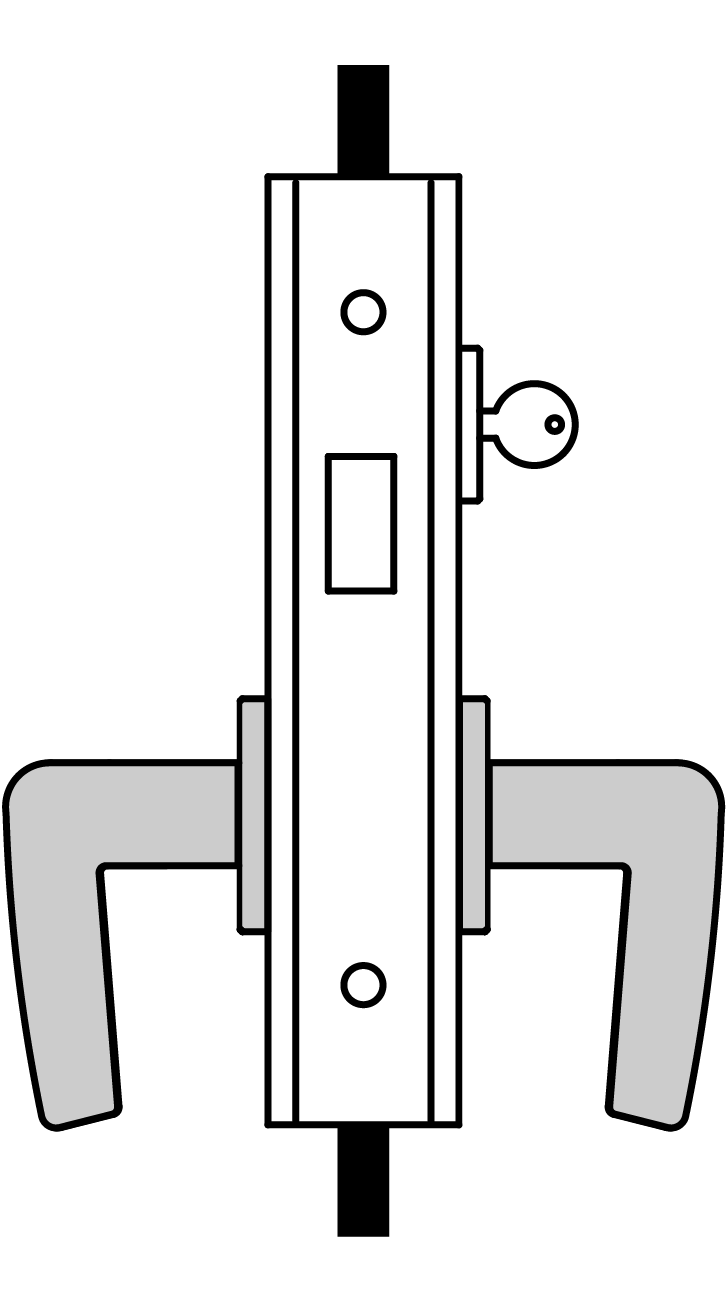

G8701 Single Cylinder Deadlock

Deadbolt by key outside, no inside operation.

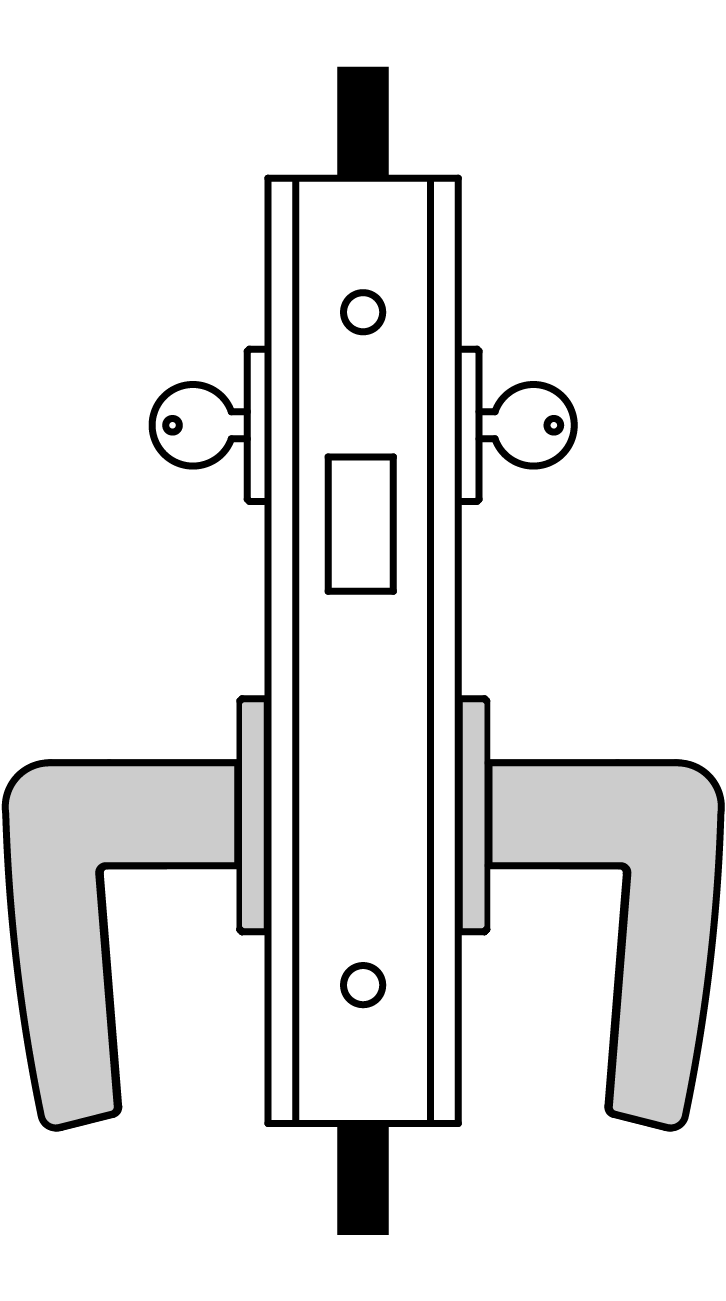

G8702 Double Cylinder Deadlock

Deadlock by key either side.

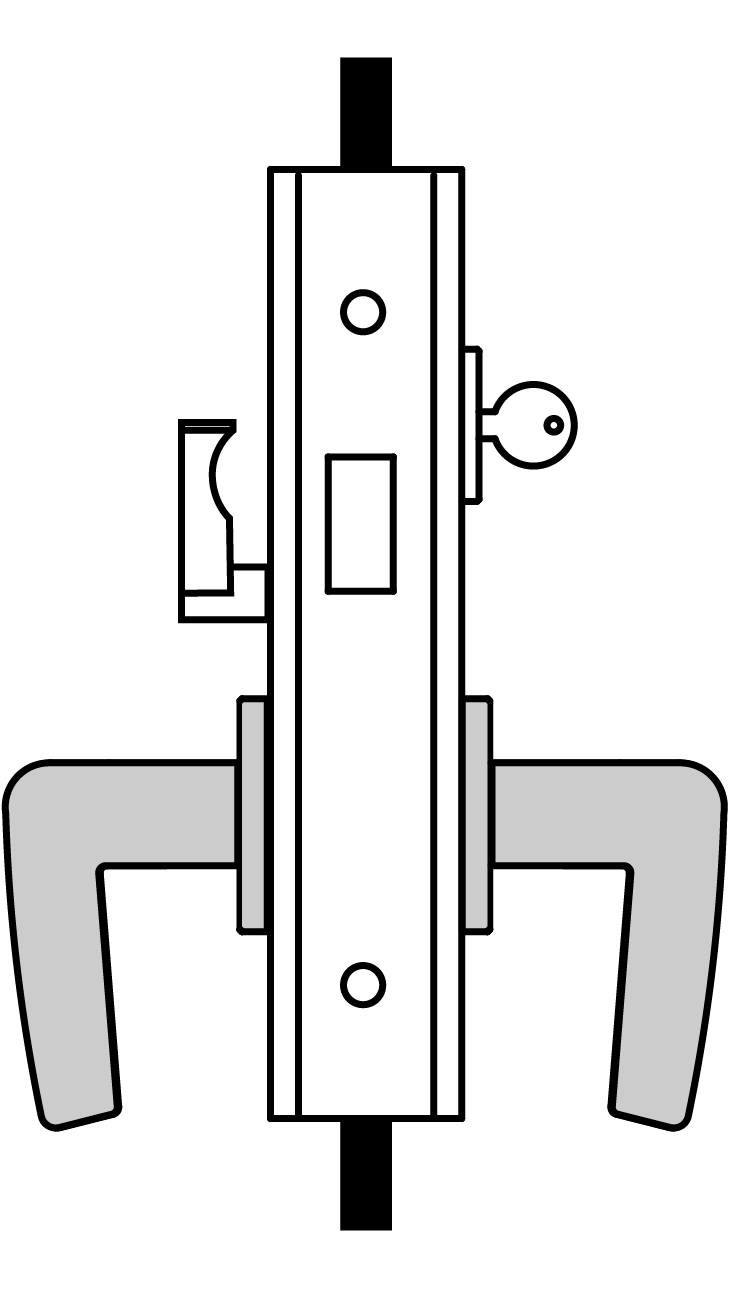

G8703 Deadlock (Cylinder x Thumb Turn)

Deadbolt by key outside, thumb turn inside.

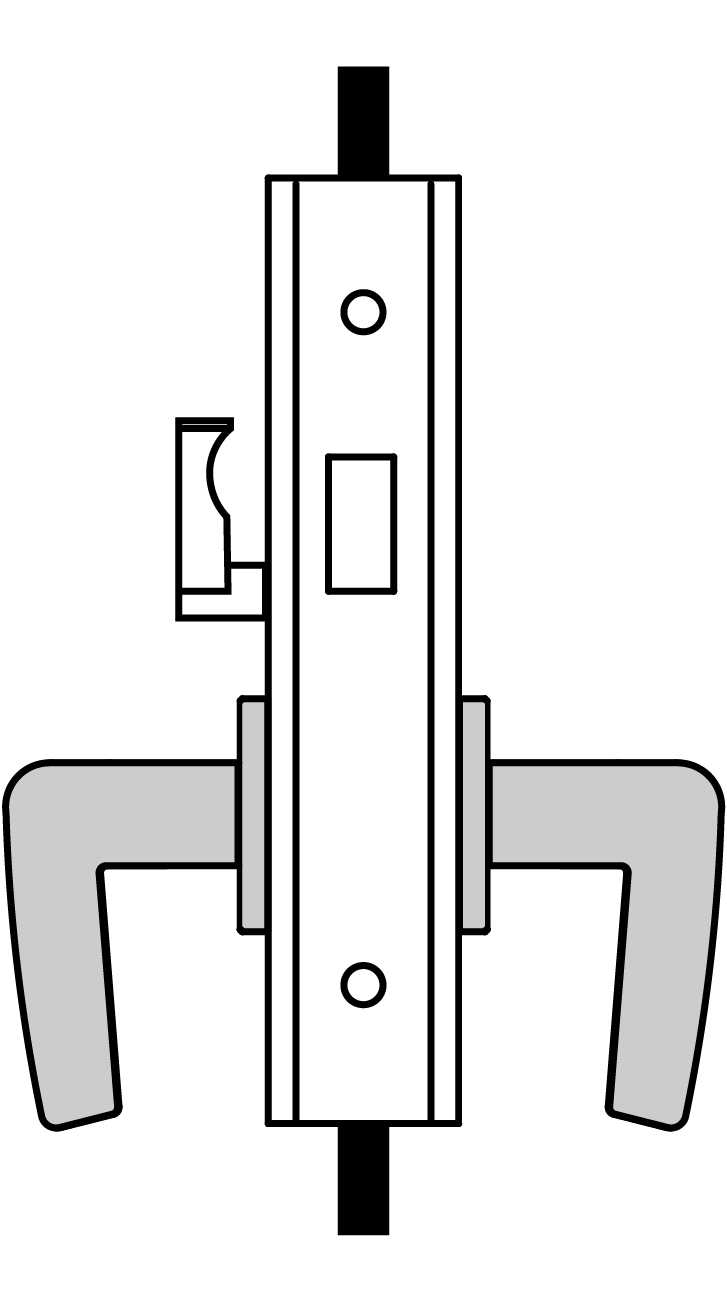

G8704 Deadlock (Thumb Turn Inside)

Deadbolt by thumb turn inside only.

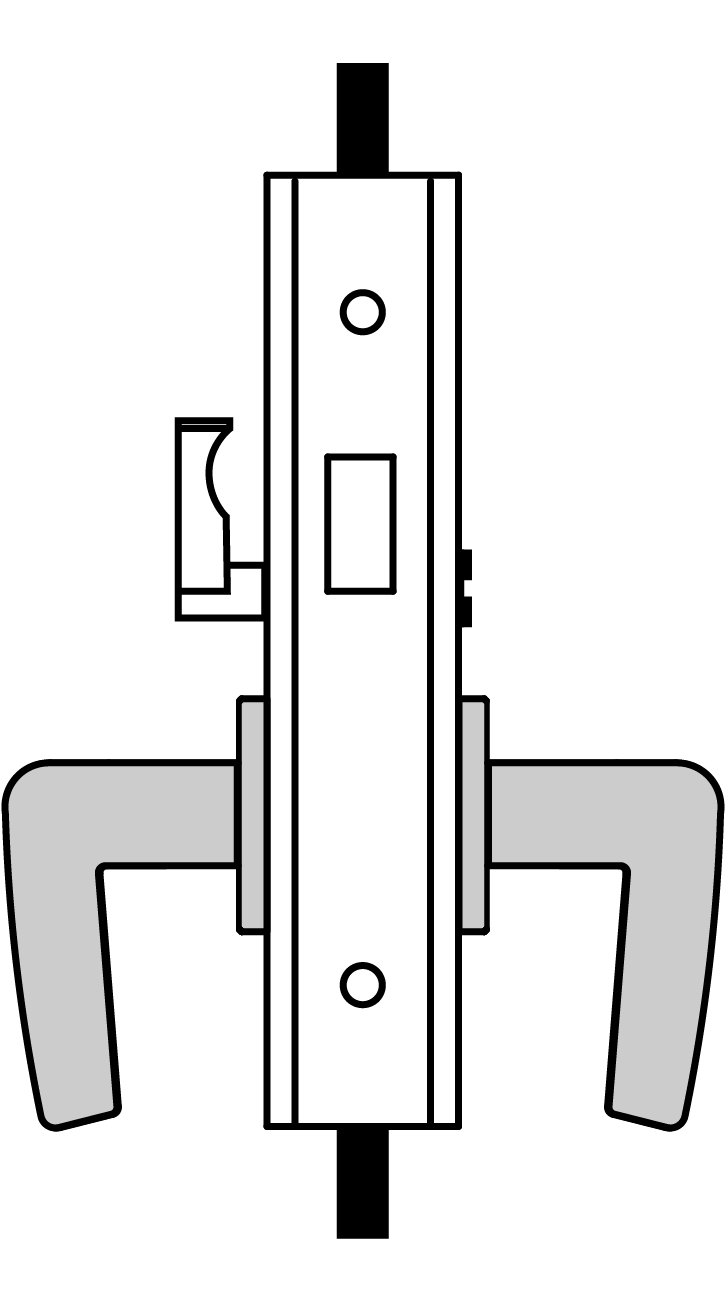

G8705 Deadlock (Emergency Release x Thumb Turn)

Deadbolt by emergency release outside, thumb turn inside.

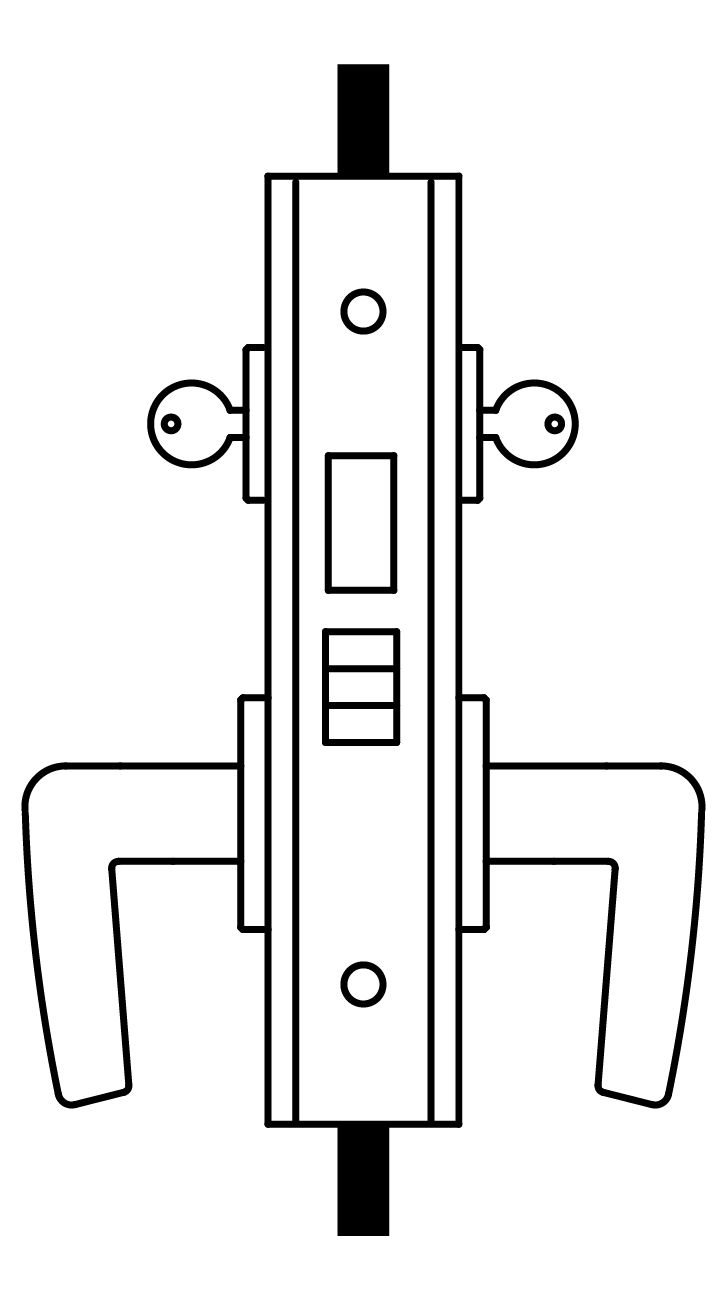

G8722 Store Door

Latch bolt by lever either side.
Deadbolt by key either side.
No emergency egress.

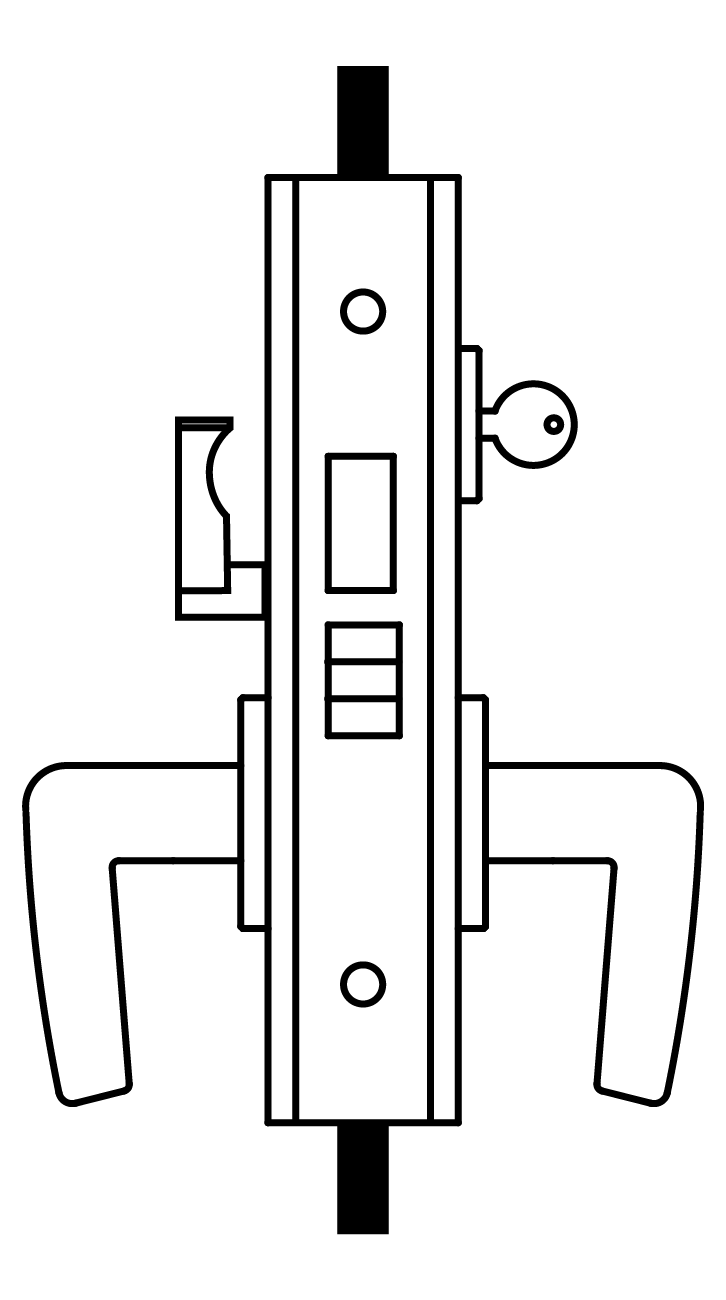

G8724 Dormitory

Latch bolt by lever either side.
Deadbolt by key outside, thumb turn inside.
A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

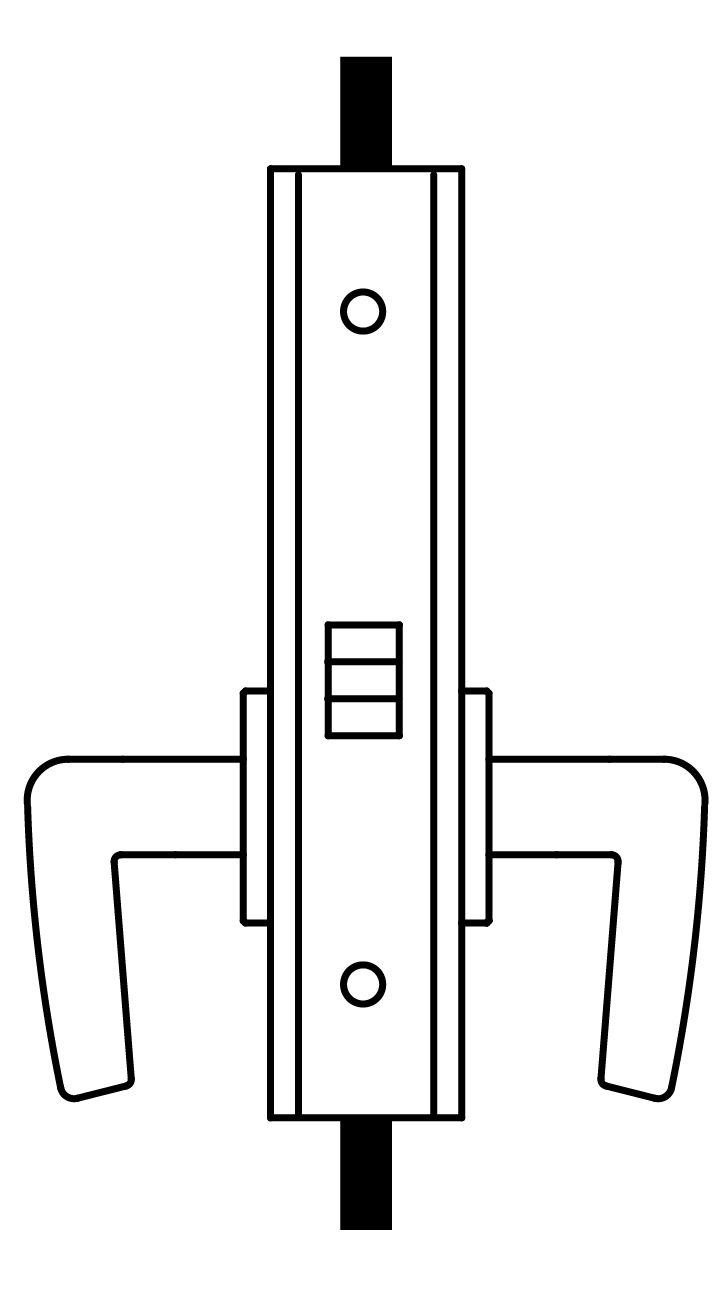

G8725 Passage

Latch bolt by lever either side.

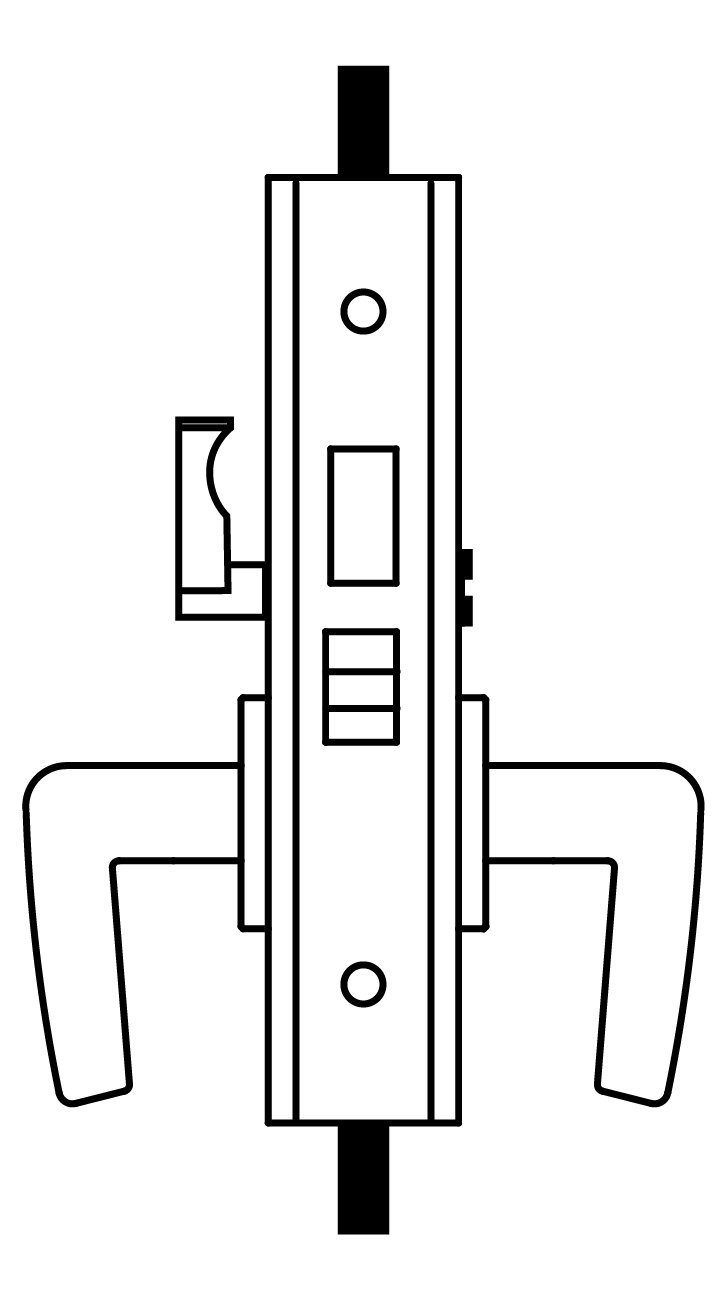

G8739 Privacy

Latch bolt by lever either side.
Deadbolt by thumb turn and optional emergency coin turn outside.
A turn of inside lever retracts latch and deadbolt simultaneously.

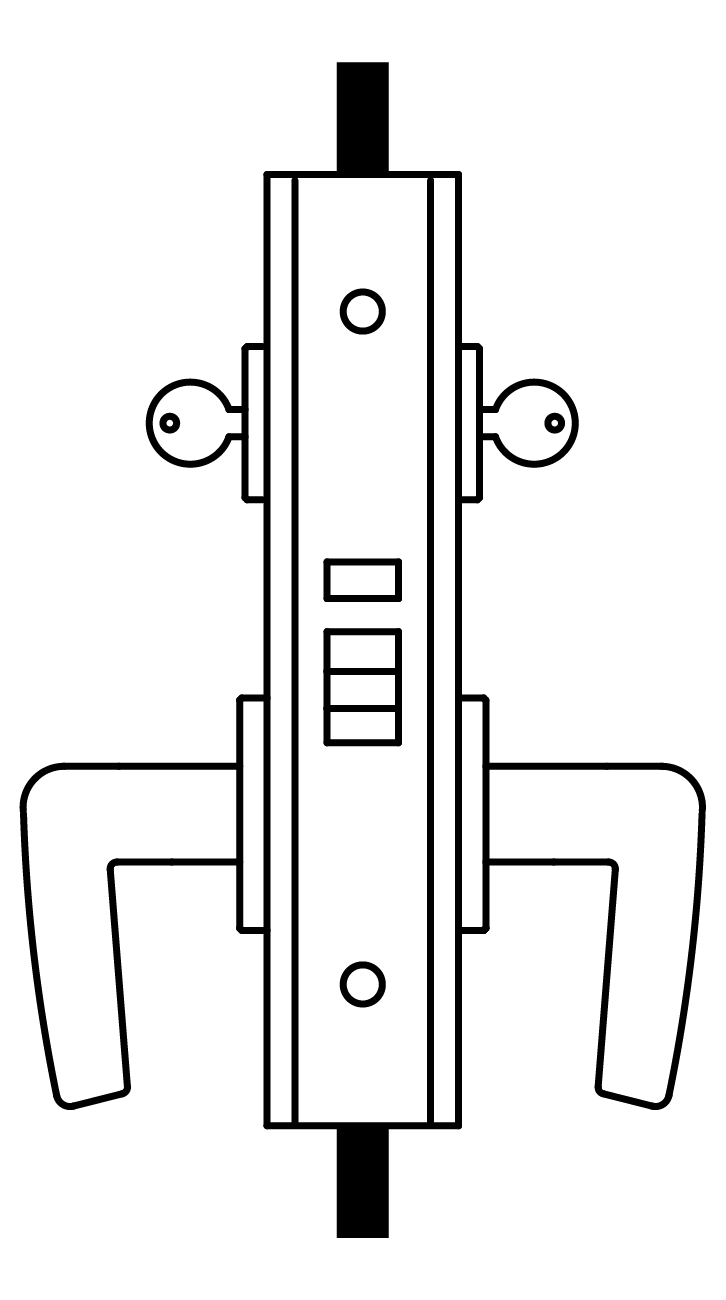

G8742 Entrance

Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
When outside lever is locked, latch bolt by key outside and lever inside.
Auxiliary latch deadlocks latch bolt.

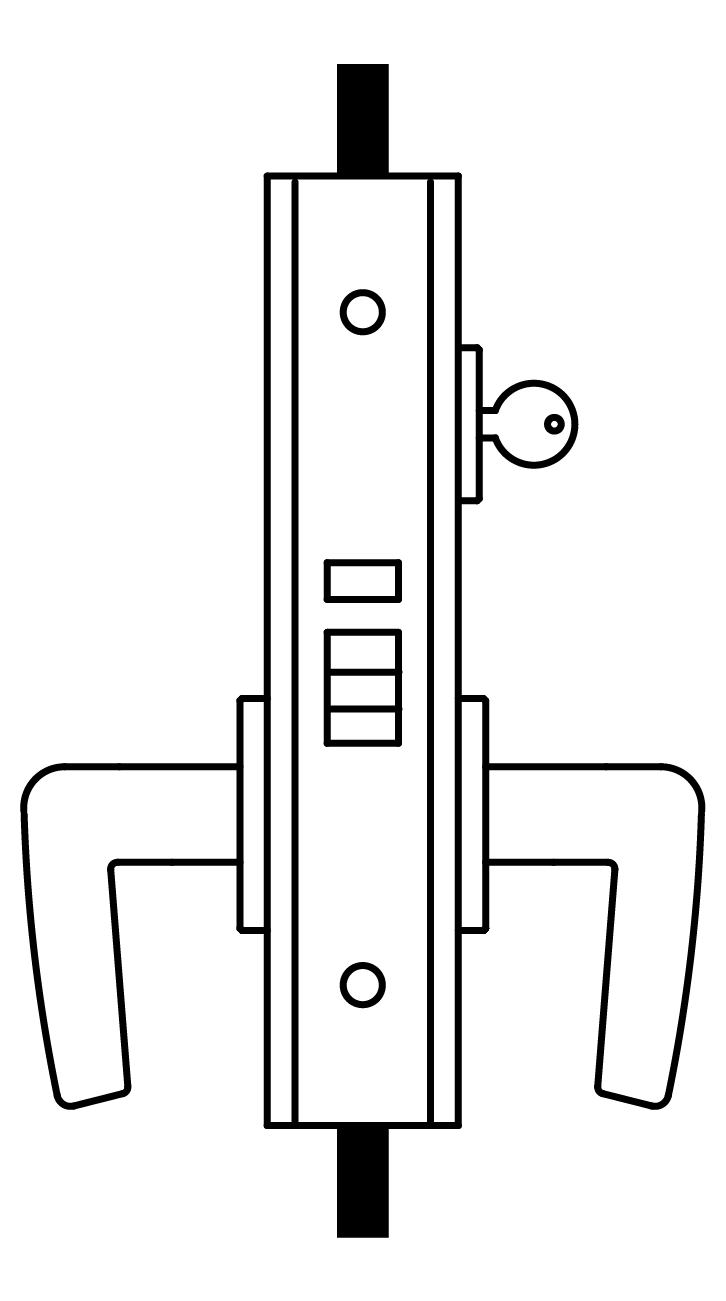

G8745 Classroom

Latch bolt by key outside and lever either side unless outside lever is locked by key.
Auxiliary latch deadlocks latch bolt.

G8748 Entrance

Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
Deadbolt by key outside and turn piece inside.
Turning inside lever retracts latch and deadbolt simultaneously.
Outside lever remains locked until manually unlocked by toggle.

View More Details +

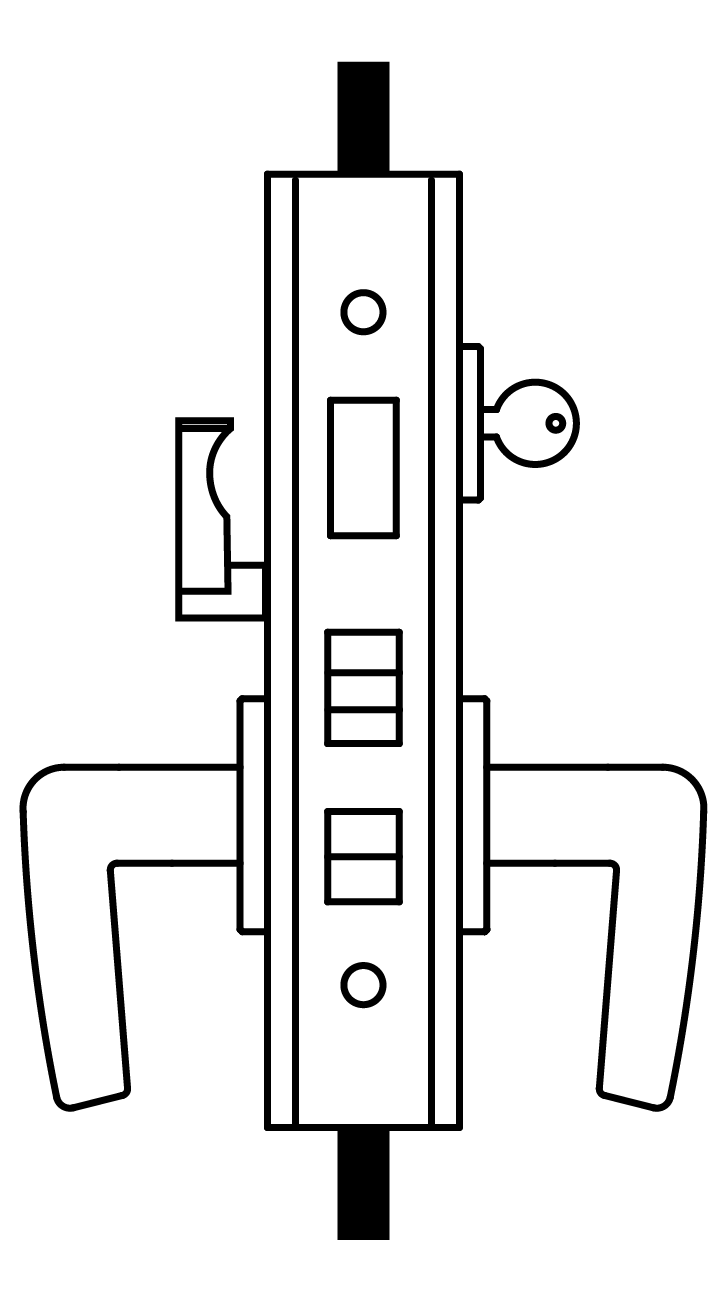

G8749 Entrance

Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
Deadbolt by key outside and turn piece inside.
Turning inside lever retracts latch and deadbolt simultaneously.
Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.

View More Details +

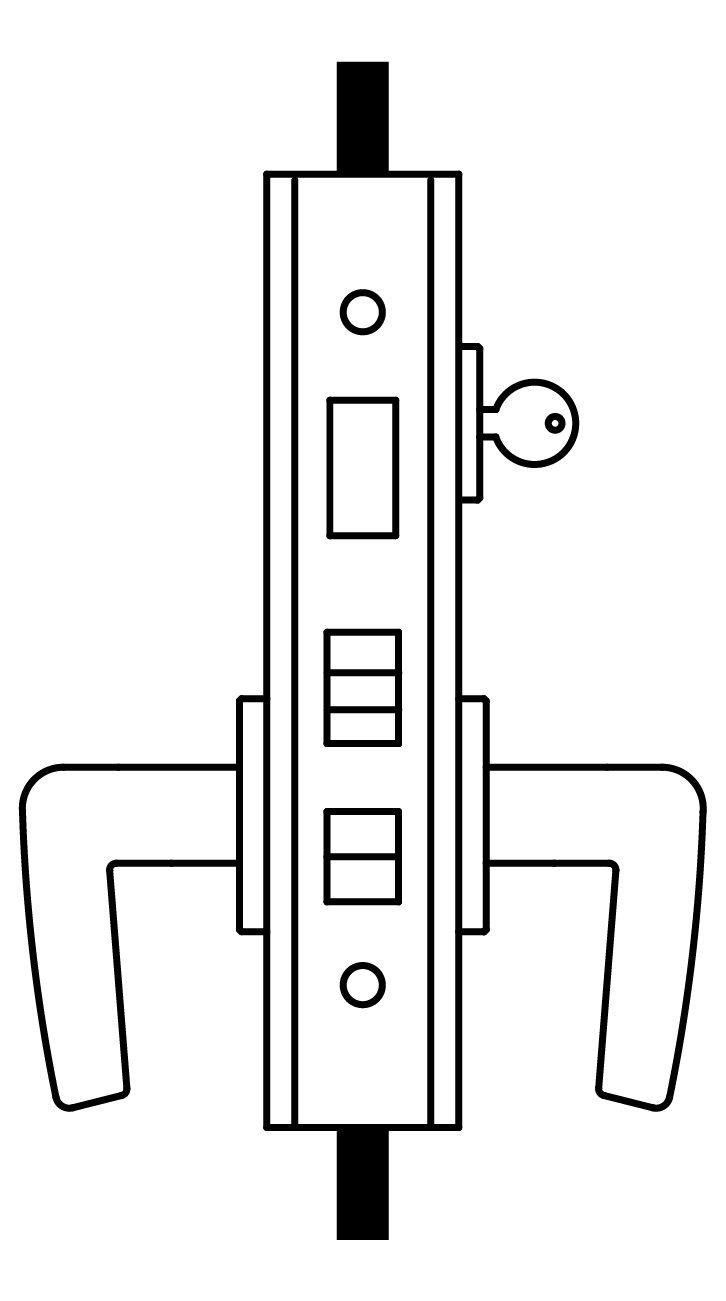

G8756 Entrance or Office

Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
Auxiliary latch deadlocks latch bolt.

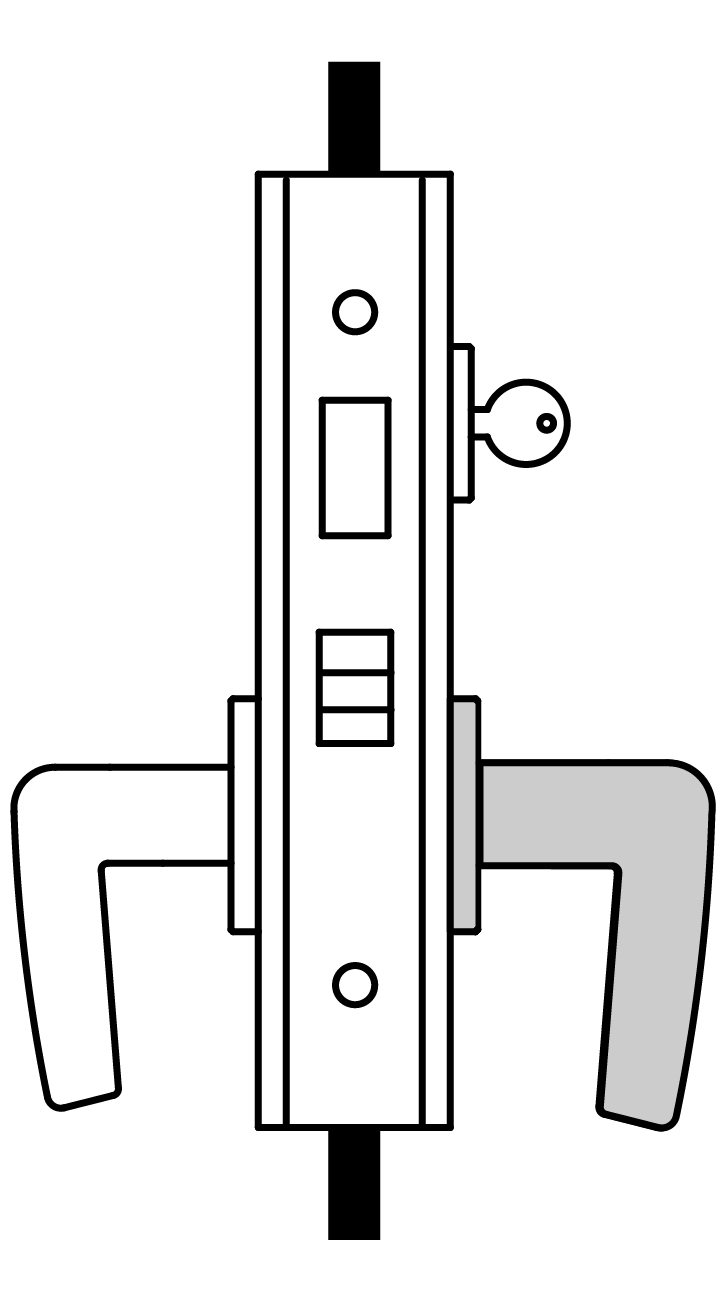

G8759 Storeroom

Latch by lever inside and key outside.
Outside lever always rigid.
Auxiliary latch deadlocks latch bolt.

View More Functions +

Sell Sheet

G87 Glass Patch Mortise Sets

Specification Sheets

Installation Templates

Click on a swatch below to get a closer look

ESN
Electroless Nickel
US19
Oxidized Black + Lacquer
US28
Satin Aluminum

Order a finish sample ring Request a custom finish

How to Specify

Function. Backset. Trim. Finish. Hand. Door Thickness. Strike Other

Examples

Swinging Door Glass Patch Set | Dormitory | Glass Wall
E.g.: G8724. 2. 72L. ESN. RH. 1/2. G87-GPS
Swinging Door Glass Patch Set | Entrance | Aluminum Frame (4-7/8”Strike)
E.g.: G8756. 2. 18L. US19. LH. 1/2. SD
Swinging Door Glass Patch Set | Privacy | No Strike
E.g.: G8739. 2. 21L. US28. RH. 1/2

Notes

G87 Series can be set up for levers by other manufacturers upon request.
Access control applications available.
Glass Patch Strikes (G87-GPS) sold and specified separately.
