2002Q

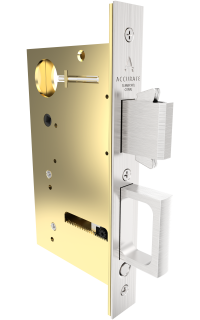

Quiet Pocket Door Lock with Integrated Edge Pull
Premium quality mortise lock for pocket doors featuring an integrated slow release edge pull allowing for comfortable and quiet operation to pull door out of the pocket. For use with single doors or pair with 2002CPDS-Q for pair of doors.
- 2", 2-1/2", 2-3/4", 3-3/4", 5", or 6" backsets standard (other backsets available as a custom order).
- Heavy Gauge, Wrought Case (11/16" thick).
- 1/2" thick deadbolt, 1-7/32" high, 1" throw.
- 1/2" thick pull, 2" high, 1-1/4" throw.
- Thumb Turn Hub 3/16" (5mm) on the diamond standard (specialty 6mm square hub available as a special order).
- 1" wide armor front. 8" tall standard made from brass, bronze or stainless steel, and finished as required.
- 3-1/2" x 1" deadlock type strike for single doors included (specify SD). 2002JPP Jamb Protector Plate available. For double door openings, refer to 2002CPDS-Q.
- Dust box available for single doors. Available in brass, stainless steel or US10B.
- Cylinders must be specified separately, lock requires standard American mortise cylinder with a clover leaf cam.
- Specify 2002CPDL for Standard Pocket Door Lock with Integrated Edge Pull.
Sell Sheet
Specification Sheet
Installation Templates
- T-ALH.2002CPDL.2002Q
- T-ALH.2002CPDL.2002Q.A.N.O
- T-ALH.2002CPDL.2002Q.S
- T-ALH.2002CPDL.2002Q.CA.CN.CO
- T-ALH.2002CPDL.2002Q.CS
- T-ALH.2002CPDL.2002Q.IA.IN.IO
- T-ALH.2002CPDL.2002Q.IS
- T-ALH.2002CPDL.2002Q.24R
- T-ALH.2002CPDL.2002Q.24S
- T-ALH.2002CPDL.2002Q-3.FC2348T.C
- T-ALH.2002CPDL.2002Q-3.FE2348T.C
- T-ALH.2002CPDL.2002Q-5.FC2348T.E
- T-ALH.2002CPDL.2002Q-5.FE2348T.E
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Lock. Backset. Finish. Options
Examples
-
Quiet Pocket Door Lock with Integrated Edge Pull
E.g.: 2002Q. 212. US14 -
Quiet Pocket Door Lock with Integrated Edge Pull | 8" Strike
E.g.: 2002Q. 234. US10. SD-8 -
Quiet Pocket Door Lock with Integrated Edge Pull | All Bolts Finished
E.g.: 2002Q. 2. US19LL.M. US19BOLTS
Notes
- Custom narrow and large backsets are available. 1-3/4” backset available for non-cylinder functions.
- SD Strike and Dust Box are included in the lock cost. (SD-8 Strike requires an upcharge).
- Furnished standard with lacquered satin brass bolt/button/bail.
- Patinated components are available as a special order, please specify accordingly.
