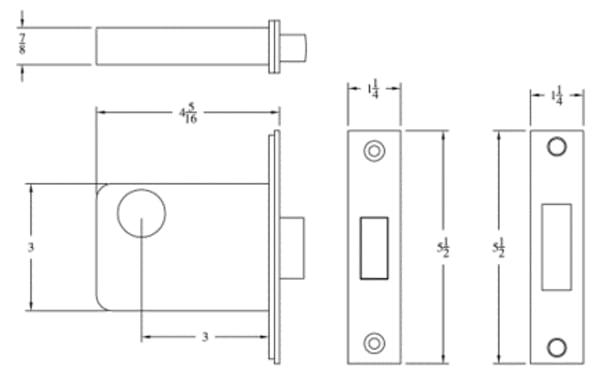

2R78

Deadlock


This institutional deadlock offers different operations:

2R78 By key, outside only, deadbolt throw 9/16″.

2R78 1/4 By key outside and inside.

2R79 By key outside, thumb turn inside.





  • MATERIAL: Bronze, brass or stainless steel armored front. Bronze bolt. Annealed gray iron case, japanned inside and outside.
  • FRONT: Flat front, reversible. Beveled front available to order, specify hand.
  • STRIKE: Bronze (not furnished - as ordered only at extra cost). Wrought box available to order.
  • Optional R278 Escutcheon Plate sometimes used with 2R78 Deadlock.




Sell Sheet




Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome
  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
