6500
Screen Door Mortise Lock
This small body mortise lock is popular for screen doors and can also be used on interior doors with narrow stiles. Available in privacy and passage functions to pair with lever, knob, escutcheon and rose trim.
- Made from almost entirely stainless steel (non-corrosive) with limited parts in brass (non-ferrous).
- Standard Backsets: 1-1/2", 1-3/4", 2".
- For door stiles 2-11/16" wide and up.
- Stainless steel case (1/2" thick).
- Brass or stainless steel latch bolt, 3/8" throw.
- Brass or stainless steel deadbolt, 7/16" throw.
- Hubs are available in different sizes to be compatible with various trim.
- Thumb Turn Hub: 3/16" (5mm) on the diamond.
- Pair with brass, stainless steel, or US10B dust boxes.
- Available with rabbeted fronts and strikes.

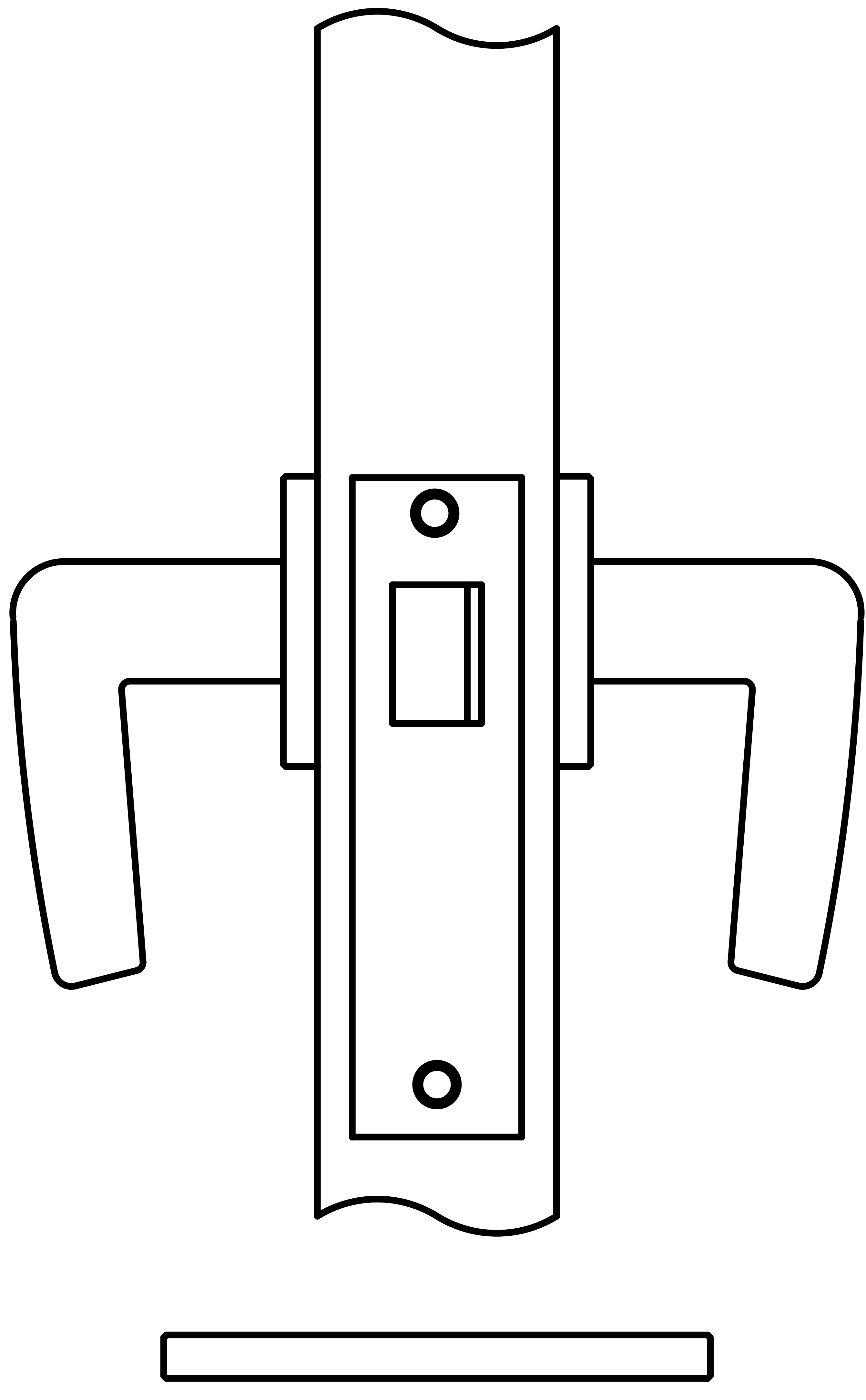

6525 Passage Screen Door Lock
- Latch bolt by lever either side.

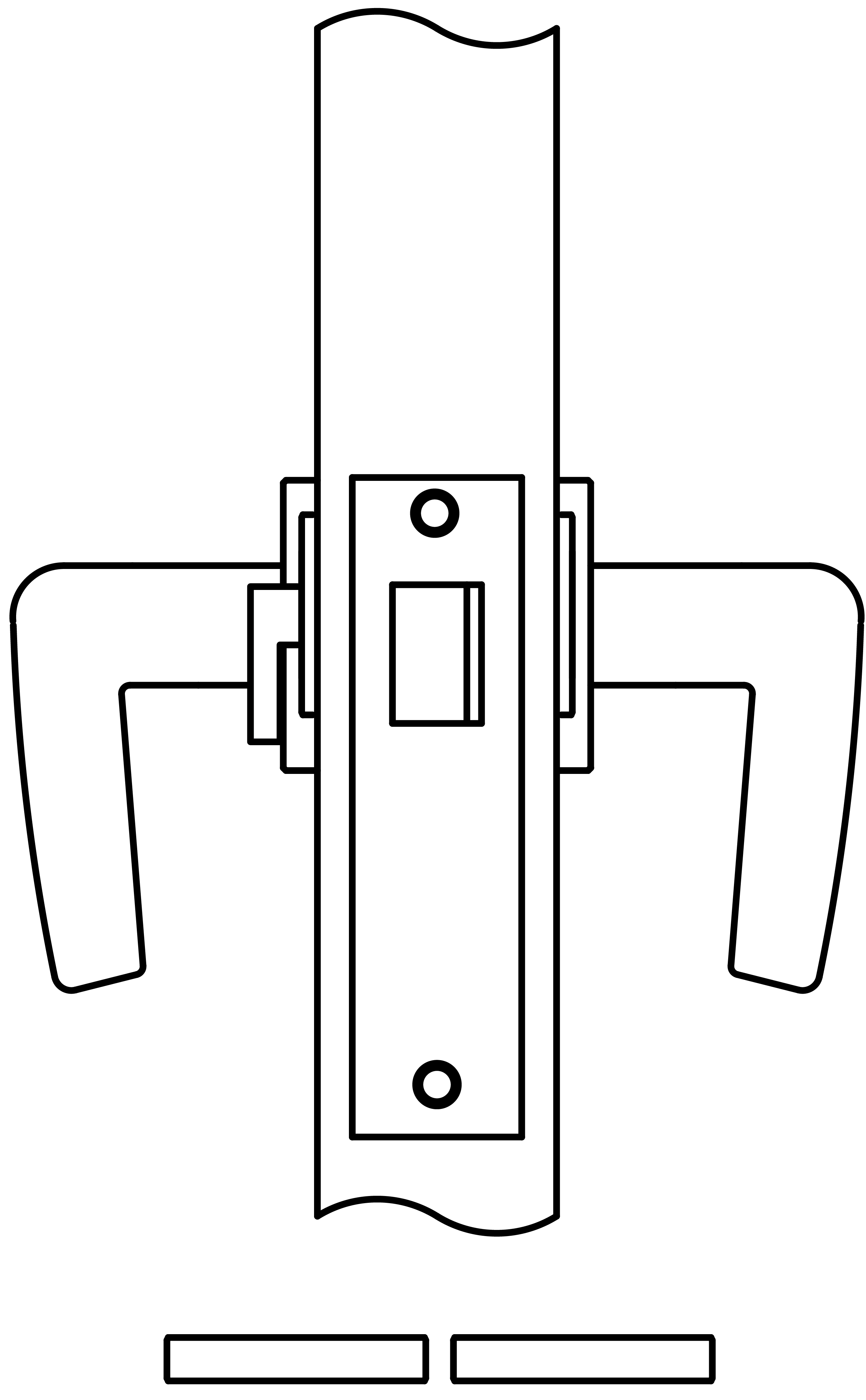

6539 Privacy Screen Door Lock
- Latch bolt by knob or lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.
Sell Sheet
Specification Sheets
Installation Template
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Passage Screen Door Latch | Other Manufacturers’ Trim
E.g.: 6525. 2. LxL.8mm. US32. RH. 118 -
Passage Screen Door Latch | Stamford Lever | Traditional Escutcheon
E.g.: 6525. 112. 6S/6T. TN. RH. 118 -
Privacy Screen Door Lock | Colonial Knob | Ovalo Escutcheon
E.g.: 6539. 2. 6C/6O. US10B. RH. 118
Notes
- Specify trim manufacturer, spindle size, or Accurate trim options.
- Locks are supplied with strikes for 1-1/8" thick doors.
