6500DB
Deadbolt Only

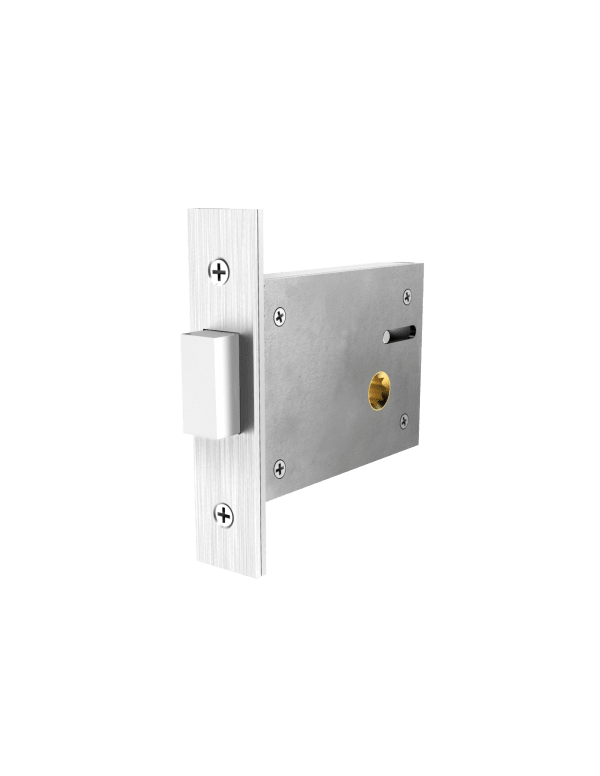

This Deadbolt only mortise lock is designed for use on screen doors or interior doors where smaller locks may be preferred. It can be used on its own or pair with the 6500LB Latch Bolt. Commonly used with a thumb turn and emergency release and/or dummy style trim.
- Made from almost entirely stainless steel (non-corrosive) with limited parts in brass(non-ferrous).
- Standard backsets: 1-1/2", 1-3/4", 2".
- Stainless steel case (1/2" thick).
- Wrought brass, bronze, or stainless steel armor front.
- Brass or stainless steel deadbolt, 1/2" throw.
- Hubs are available in different sizes to be compatible with various trim.
- Pair with brass, stainless steel, or US10B dust boxes.
- Pair with Accurate Screen Door Trim options.
Sell Sheet
Specification Sheet
Installation Template
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
Cerakote
Protective Ceramic Coating
-
US19LL
Oxidized Black Less Lines + Lacquer
-
US15A
Antique Nickel
-
TB
Tarnished Brass
-
ESN
Electroless Nickel
-
DURO
Duronotic
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
US32
Bright Stainless Steel
-
US26
Polished Chrome
-
US19
Oxidized Black + Lacquer
-
US15
Satin Nickel
-
US10
Satin Bronze
-
US9
Polished Bronze
-
US4NL
Satin Brass + No Lacquer
-
US3NL
Polished Brass + No Lacquer
-
US4
Satin Brass
-
US32D
Satin Stainless Steel
-
US3
Polished Brass
-
US14
Polished Nickel
-
US5
Satin Brass + Black
-
TN
Tarnished Nickel
-
US10B
Oil Rubbed Bronze
-
US26D
Satin Chrome
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Door Thickness.
Examples
-
6500DB Deadbolt | 2" Backset | Lock Only
E.g.: 6500DB. 2. US14. 118 -
6500DB Deadbolt | 1-3/4" Backset | Lock Only
E.g.: 6500DB. 134. TB. 118 -
6500DB Deadbolt | 2" Backset | Accurate Screen Door Trim
E.g.: 6500DB. 2. 6RS. US4. 118
Notes
- All standard 6500 Series Mortise Locks include standard strikes for 1-1/8” thick doors.
