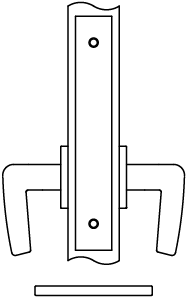

9000 | 9100ADL Active Dummy Lock

• Active handles inside and out.

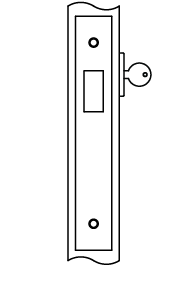

9001 | 9101 Deadlock

(ANSI SERIES 1000-F18)

• Deadbolt by key outside.
• No inside operation.

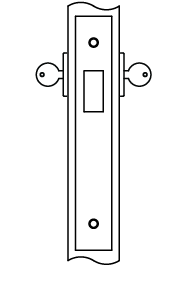

9002 | 9102 Deadlock

(ANSI SERIES 1000-F16)

• Deadbolt by key either side.

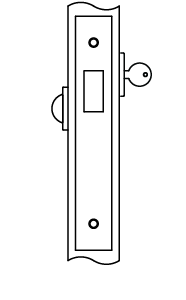

9003 | 9103 Deadlock

(ANSI SERIES 1000-F17)

• Deadbolt by key outside, thumb turn inside.

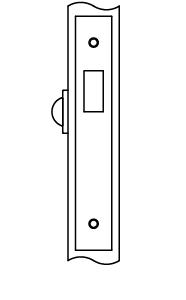

9004 | 9104 Deadlock

• Deadbolt by thumb turn inside only, no outside operations.

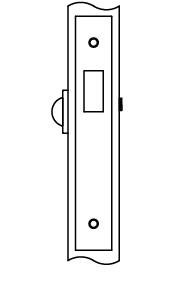

9005 | 9105 Deadlock

• Deadbolt by emergency release outside, thumb turn inside.

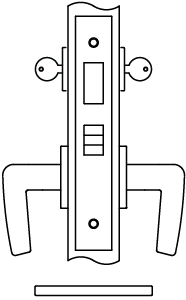

9022 | 9122 Store Door

(ANSI SERIES 1000-F14)

• Latch bolt by lever either side.
• Deadbolt by key either side.
• No emergency egress.

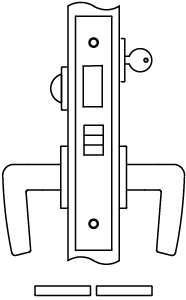

9024 | 9124 Dormitory

(ANSI SERIES 1000-F13)

• Latch bolt by lever either side.
• Deadbolt by key outside, thumb turn inside.
• A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

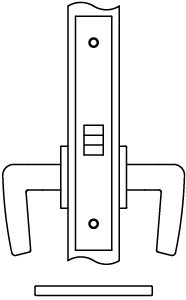

9025 | 9125 Passage

(ANSI SERIES 1000-F01)

• Latch bolt by lever either side.

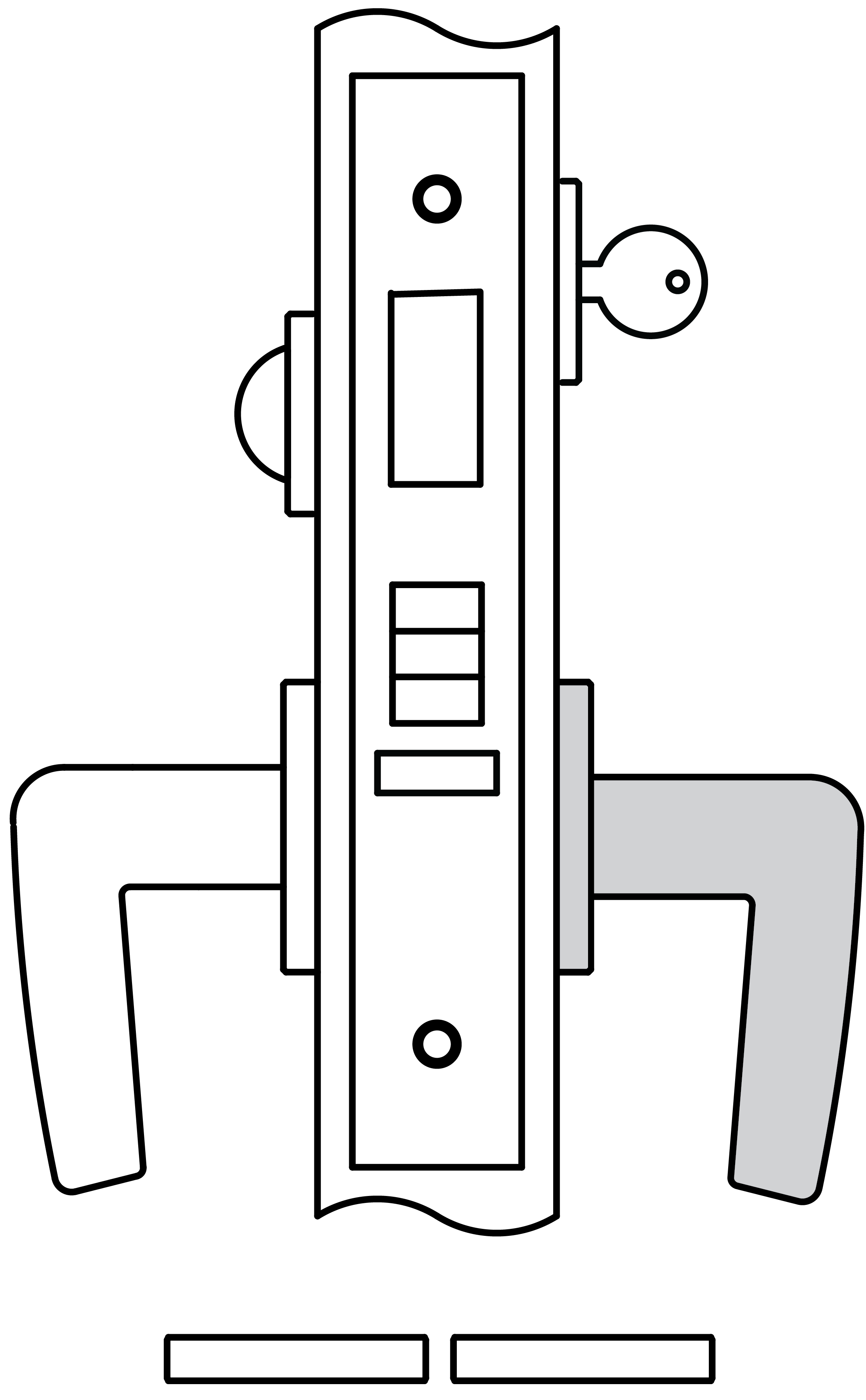

9034 | 9134 Hotel or Motel

(ANSI SERIES 1000-F15)

• Latch bolt by lever either side and guest or Master Key outside.
• Outside lever always rigid.
• Deadbolt by thumb turn inside.
• Turn of inside lever retracts latch and deadbolt simultaneously.
• Auxiliary latch deadlocks latch bolt.

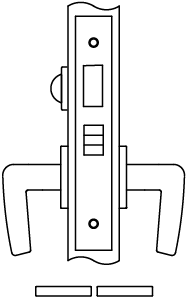

9039 | 9139 Privacy Bedroom or Bathroom

(ANSI SERIES 1000-F19)

• Latch bolt by lever either side.
• Deadbolt by thumb turn inside and optional emergency release outside.
• Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

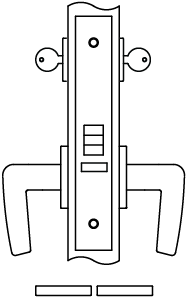

9042 | 9142 Entrance

(ANSI SERIES 1000-F09)

• Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
• When outside lever is locked, latch bolt by key outside and lever inside.
• Auxiliary latch deadlocks latch bolt.

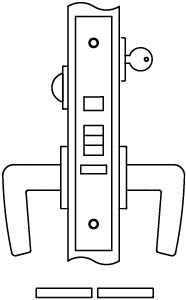

9043 | 9143 Institutional Privacy

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Key locks or unlocks outside lever.
• Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned or door closes.

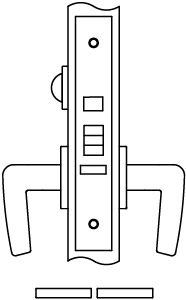

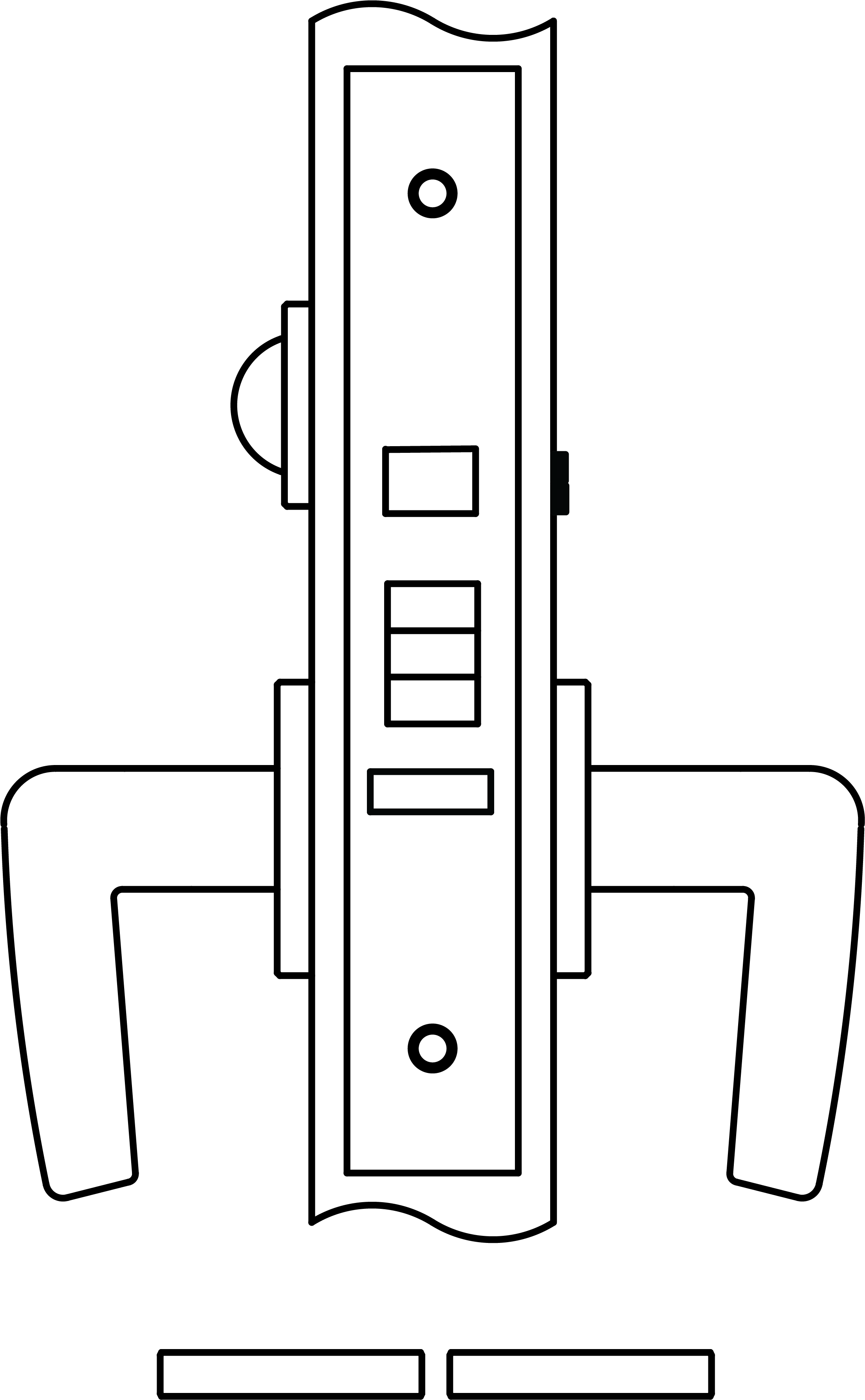

9043E | 9143E Institutional Privacy or Emergency Release

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Emergency release locks or unlocks outside lever.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned or door closes.

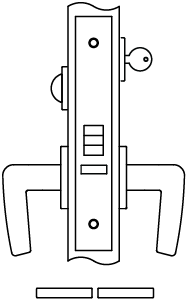

9044 | 9144 Institutional Privacy

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Key locks or unlocks outside lever.
• Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever.)

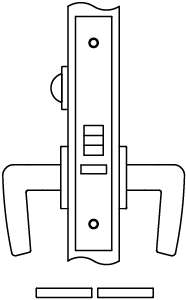

9044E | 9144E Institutional Privacy or Emergency Egress

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever).

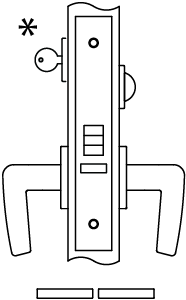

9044TO | 9144TO Time Out Lock

• Latch retracted by lever either side unless outside thumb turn is rotated and held into position to temporarily lock inside lever.
• When thumb turn is released by user, inside lever unlocks.
• Optional key inside retracts latch for emergency exit in case thumb turn is held locked by unauthorized person outside.

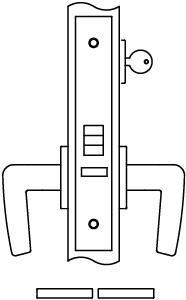

9045 | 9145 Classroom

(ANSI SERIES 1000-F05)

• Latch bolt by key outside and lever either side unless outside lever is locked by key.
• Auxiliary latch deadlocks latch bolt.

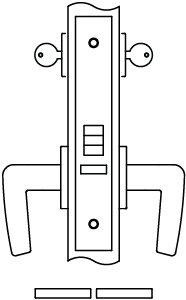

9045S | 9145S Classroom Security

(ANSI SERIES 1000-F88)

• Latch bolt by lever either side unless outside lever is locked by key outside or inside.
• When locked, latch bolt retracted by key inside or outside or lever inside.
• Inside lever always free.
• Auxiliary latch deadlocks latch bolt.

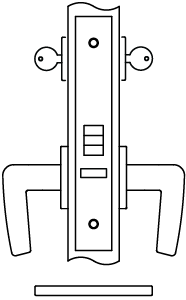

9046 | 9146 Classroom Double Locking

• Latch bolt by key from either side.
• Key from either side locks and unlocks outside and inside* levers.
• Auxiliary latch deadlocks latch bolt.
• *Inside lever is not always free—verify code compliance before using this function.

9048 | 9148 Entrance or Apartment

(ANSI SERIES 1000-F12)

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Deadbolt by key outside and thumb turn inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains locked until manually unlocked by toggle.

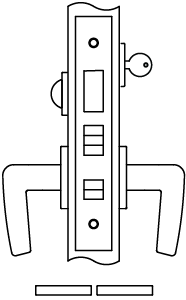

9049 | 9149 Entrance or Apartment

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Deadbolt by key outside and thumb turn inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
• *Function not offered on thumb grip x thumb grip applications.

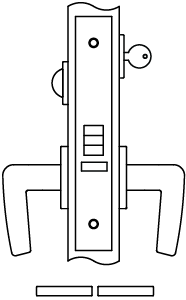

9053 | 9153 Entrance or Office

(ANSI SERIES 1000-F04)

• Latchbolt by lever either side unless outside lever locked by thumbturn or key.
• Key or thumbturn locks or unlocks outside lever.
• Inside lever always free egress.
• Auxiliary latch deadlocks latch bolt.

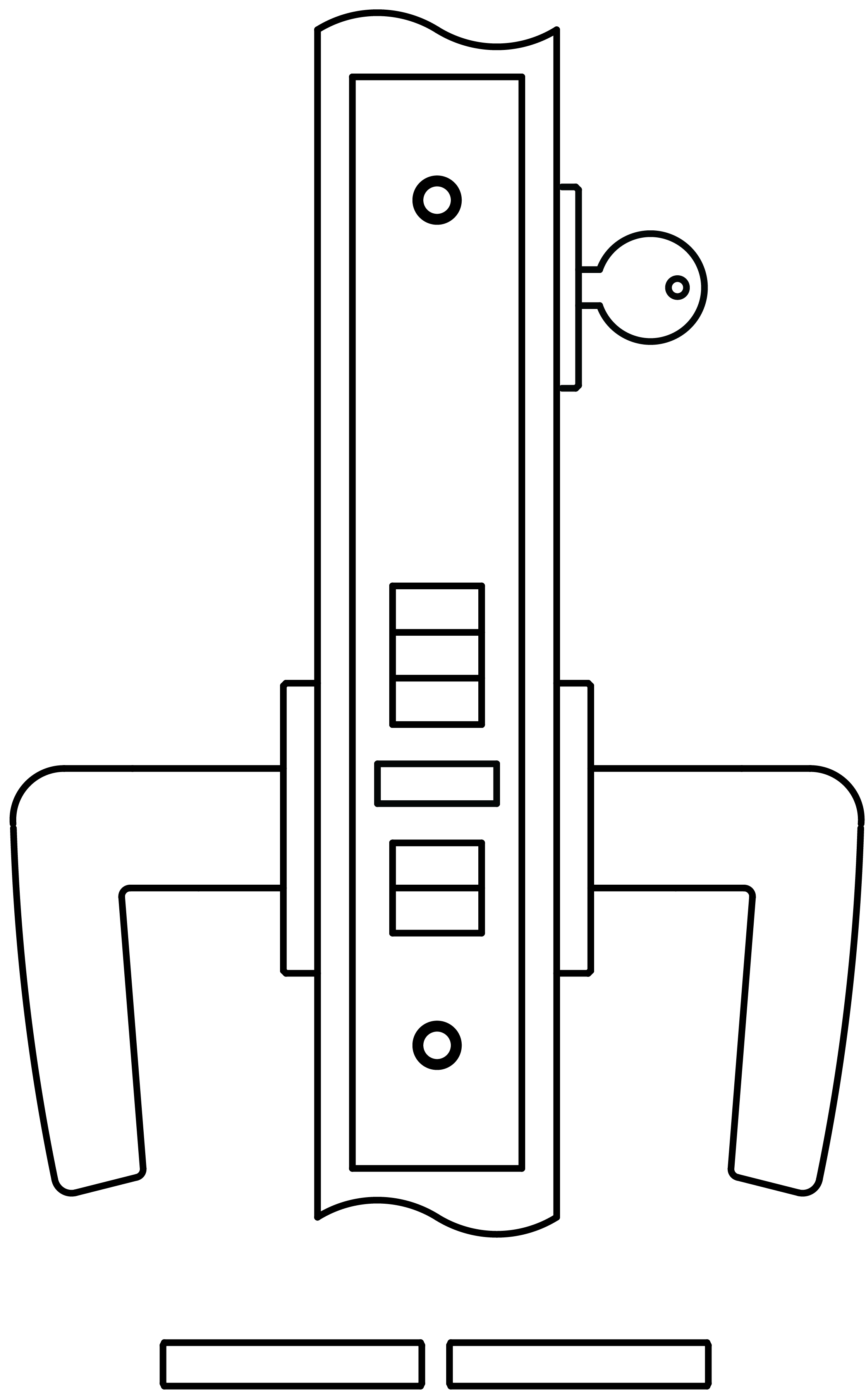

9056 | 9156 Entrance or Office

(ANSI SERIES 1000-F04)

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle.
• Auxiliary latch deadlocks latch bolt.

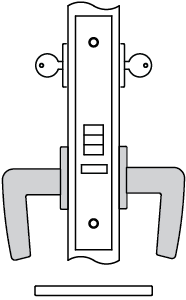

9058 | 9158 Institution or Asylum

(ANSI SERIES 1000-F30)

• Latch by key either side.
• Inside* and outside lever always rigid.
• Auxiliary latch deadlocks latch bolt.
• *Verify code compliance before using this function.

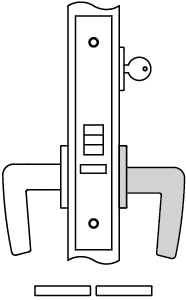

9059 | 9159 Storeroom or Closet

(ANSI SERIES 1000-F07)

• Latch by lever inside and key outside.
• Outside lever always rigid.
• Auxiliary latch deadlocks latch bolt.

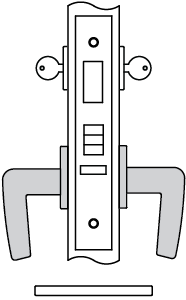

9060 | 9160 Asylum with Deadbolt

• Latch by key either side.
• Deadbolt by key either side (key projects deadbolt and retracts latch bolt and deadbolt).
• Inside and outside handle always rigid.*
• Auxiliary latch deadlocks latch bolt.
• *Verify code compliance before using this function.

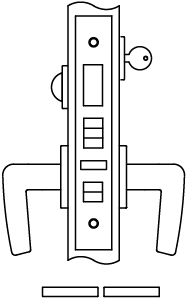

9067 | 9167 Entrance or Apartment

(ANSI SERIES 1000-F20)

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Deadbolt by key outside and thumb turn inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains locked until manually unlocked by toggle.
• Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.

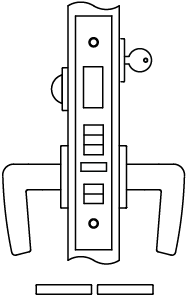

9069 | 9169 Entrance or Apartment

• Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
• Deadbolt by key outside and thumb turn inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
• Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
• *Function not offered on thumb grip x thumb grip applications.
