• All technology components are hidden inside the mortise pocket.
  • Compatible with most architectural hardware, compatible with different trim configurations (LxL, TPxK, etc.)
  • Does not require any wiring through the door frame, battery powered for easy installation.
  • State-of-the-art smartphone technology.
  • Lock/unlock the door and grant keyless entry via smartphone app.
  • iOS and Android compatible.
  • Local access via Bluetooth.
  • Admin can provide access to up to 25 users 24/7 or on a schedule.
  • Battery operated with app indicator.
  • Control lock remotely from anywhere in the world.
  • UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
  • High Security Mortise Lock furnished standard.
  • Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
  • Exceeds ASTM F1577-95b Security Grade 1 (2,400 Impacts).
  • Standard backsets: 2-1/2", 2-3/4".
  • Supplied standard with Ethernet Bridge and Range Extender.
  • Optional Keypad is available.

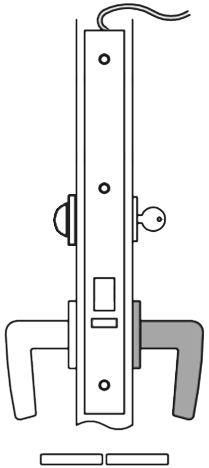

  • OUTSIDE: Latch by lever outside after handle is unlocked with smart phone or fob. Outside lever remains unlocked unless user changes settings to have the lever automatically re-lock. If outside handle is unlocked, phone or fob used to re-lock. If lock is electronically disabled (Secure Mode) on home screen or in settings, outside lever automatically locks and latch bolt can only be retracted by key. When lock is in Secure Mode, outside lever will remain locked at all times.
  • INSIDE: Latch by lever inside always. When inside lever retracts latch, outside lever unlocks (similar to 9124) unless user changes settings to have lever automatically re-lock (similar to 9148). Rotating thumb turn locks the outside handle and thumb turn springs back to home position. Thumb turn will NOT unlock the outside lever.
  • STATUS: Latch bolt monitor- confirms that latch bolt is fully projected. Stop bar monitor- confirms that outside handle is locked.
  • GENERAL NOTES: System uses Bluetooth when in proximity and Ethernet Bridge when remote. Lock operated by (4) AA batteries with low battery warning in app. To replace the batteries simply remove armor plate on edge of door and access the battery pack. Lock can also be powered with traditional hard wired power supply up to 24 volts. Please specify if you are using it this way.
View More Details +

Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome
  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
  • DURO
  • ESN
    Electroless Nickel
  • US15A
    Antique Nickel
  • US5
    Satin Brass + Black
  • Cerakote
    Protective Ceramic Coating
Satin Chrome

How to Specify

Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type Other

  • SmartEntry Lock | Accurate Trim
    E.g.: SM9159E-SEC. 212. 29L/2R. US19. RH. 134
  • SmartEntry Lock (Grade 1) | Accurate Trim
    E.g.: SM9159E-AF. 212. 18L/1R. US26D. LH. 134
  • SmartEntry Lock | Sectional Trim by Others | 2-1/4" Thick Door
    E.g.: SM9159E-SEC. 234. LXL.8mm. US4. LH. 214
  • Special options also available: USD K x K Upside Down (cylinder/thumb turn below knobs),USD L x L Upside Down (cylinder/thumb turn below levers).
  • Please call for assistance when using escutcheon trim
