M9100E
Motor Drive Electrified Mortise Lock
This alternative to the previous generation solenoid version has more flexibility, monitoring features and options for efficient and flexible access control system design. Motor Drive Electrified Mortise Locks feature universal output voltage and can easily be change from FAIL SECURE to FAIL SAFE to adapt to design variations.
Electrified Locks
RMS Standard Product
- For Door Stiles 4" or Wider.
- M9058E/M9059E/M9056E/M9045E for doors 1 3/8" minimum (1" armor front).
- M9158E/M9159E/M9156E/M9145E for doors 1 3/4" minimum (1 1/4" armor front).
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- Standard backsets: 2 1/2", 2 3/4", 3 3/4", 5", or 6".
- Key Cylinder (by others) will override electronics to retract latch bolt.
- 12-24V AC/DC (11V - 30V Operating Range).
- 250mA MAX Inrush.
- 10mA MAX Holding.
- Non-polarized Leads.

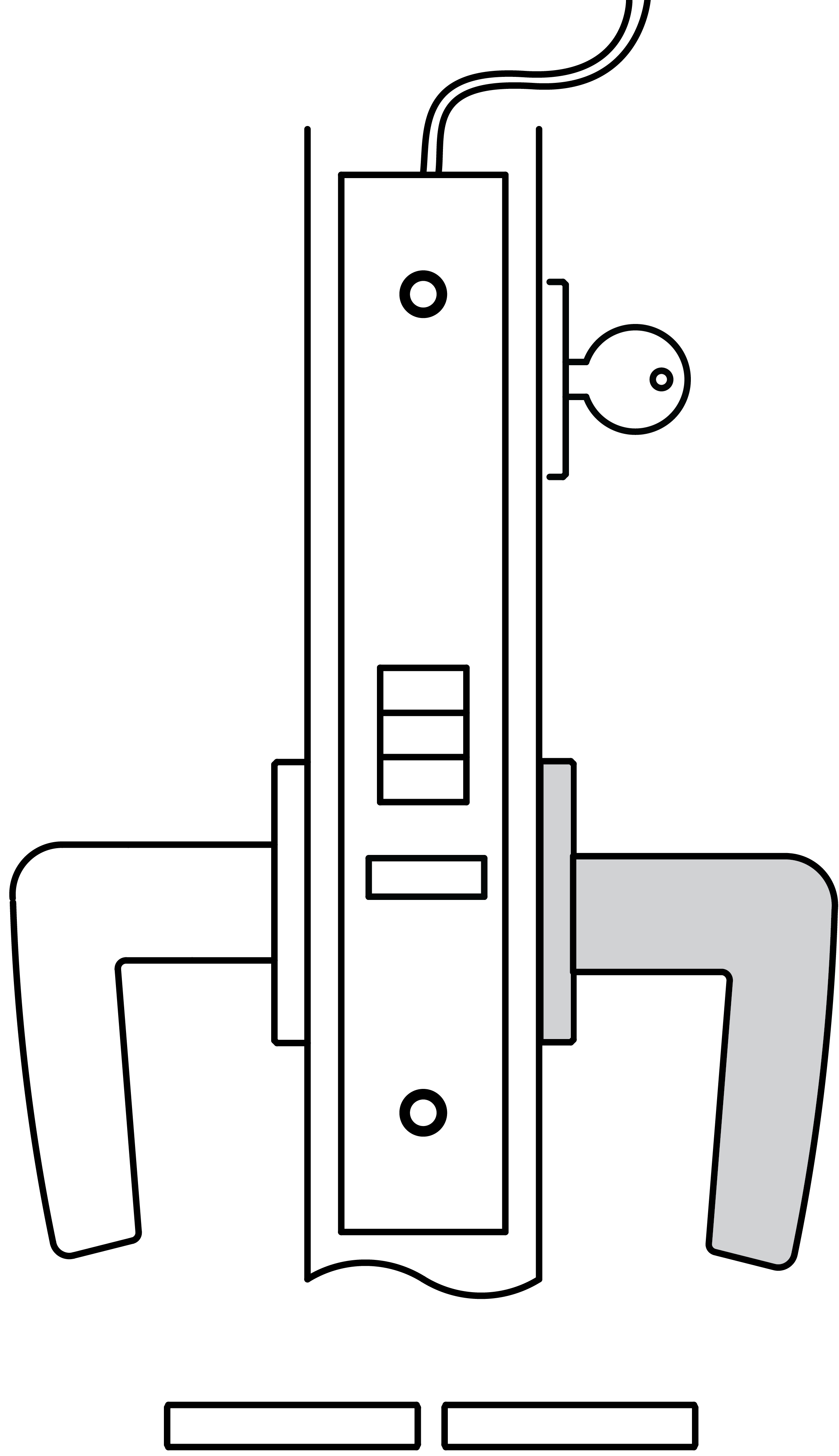

M9145E Classroom Lock
- Inside trim always free.
- Latch bolt by key outside.
- Key cylinder (by others) will override electronics to retract latch bolt.
- Auxiliary latch deadlocks latch bolt.
- Rotating the key in one direction would place the lock in “unlocked” state (passage), blocking the electrified function.
- Rotating the key in the opposite direction would return the lock to
- standard electrified operation.
- FAIL SECURE OPERATION:
- Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION:
- Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

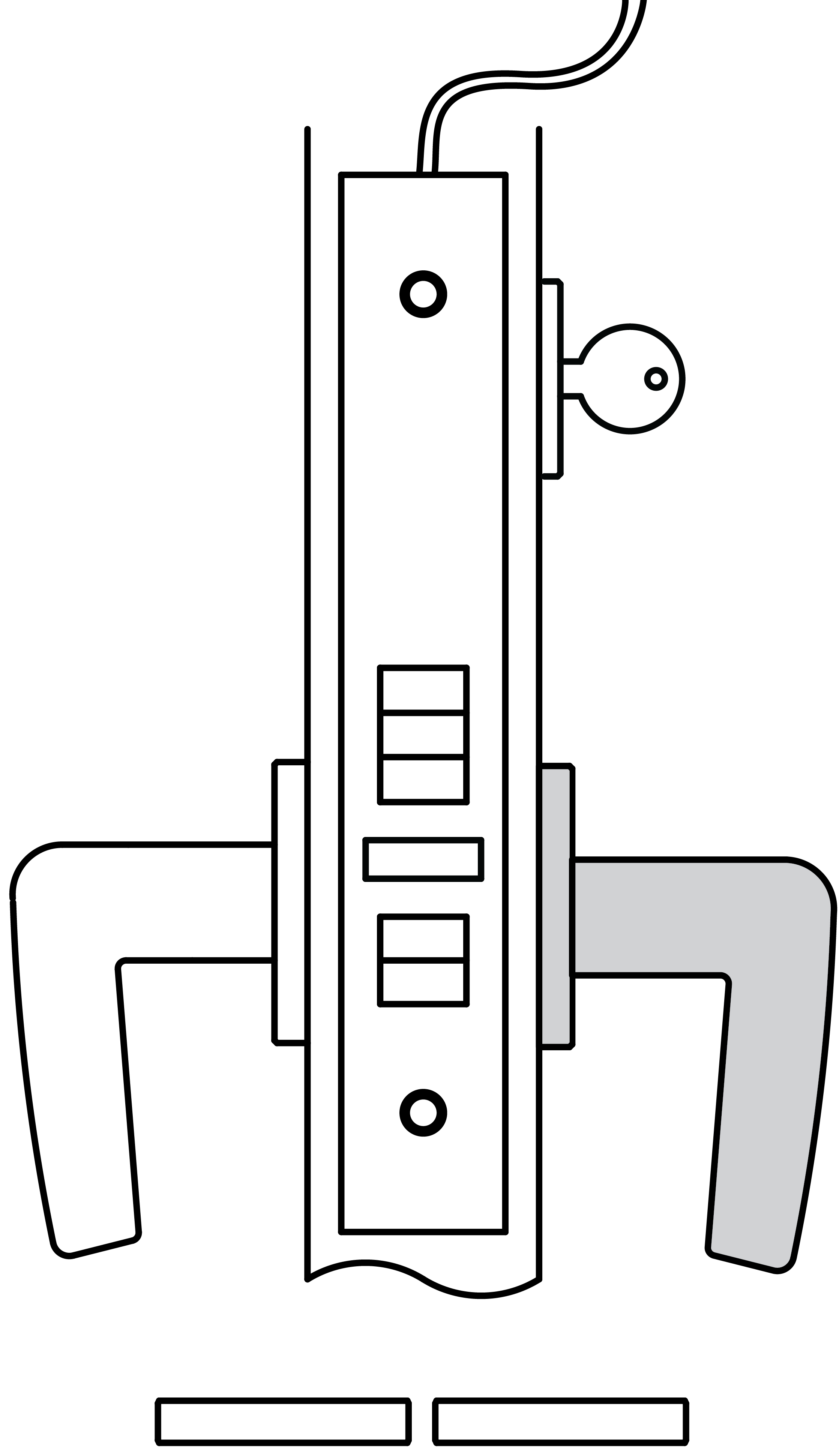

M9156E Entrance
- Inside trim always free.
- Latch bolt by key outside.
- Key cylinder (by others) will override electronics to retract latch bolt.
- Auxiliary latch deadlocks latch bolt.
- For passage mode, toggle can be set to keep outside lever unlocked.
- After unlocking lever with toggle, lever can only be re-locked by toggle, not by electronics.
- FAIL SECURE OPERATION:
- Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION:
- Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

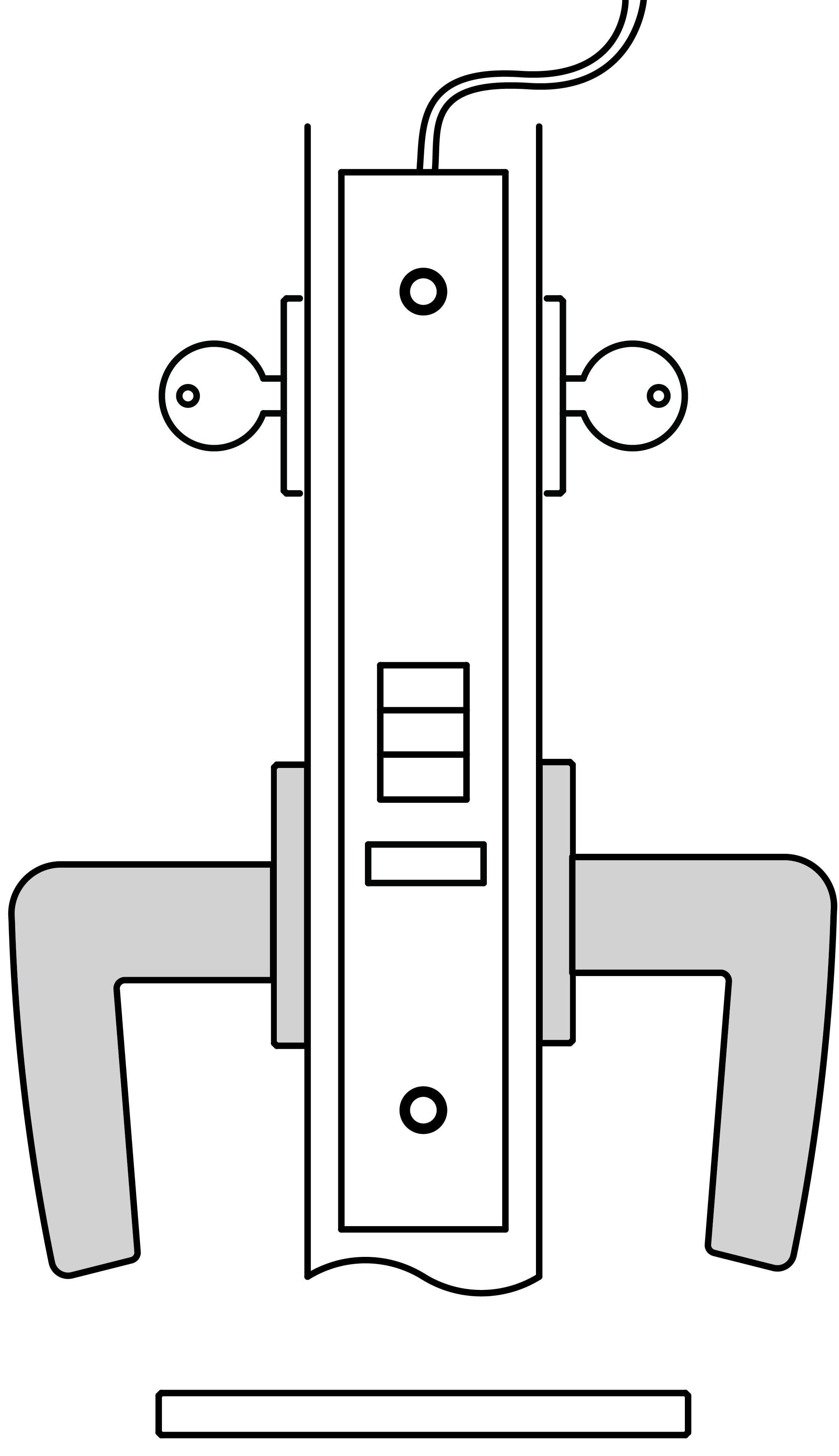

M9158E Institution / Asylum
- Latch bolt by key either side.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION:
- Inside and outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION:
- Inside and outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

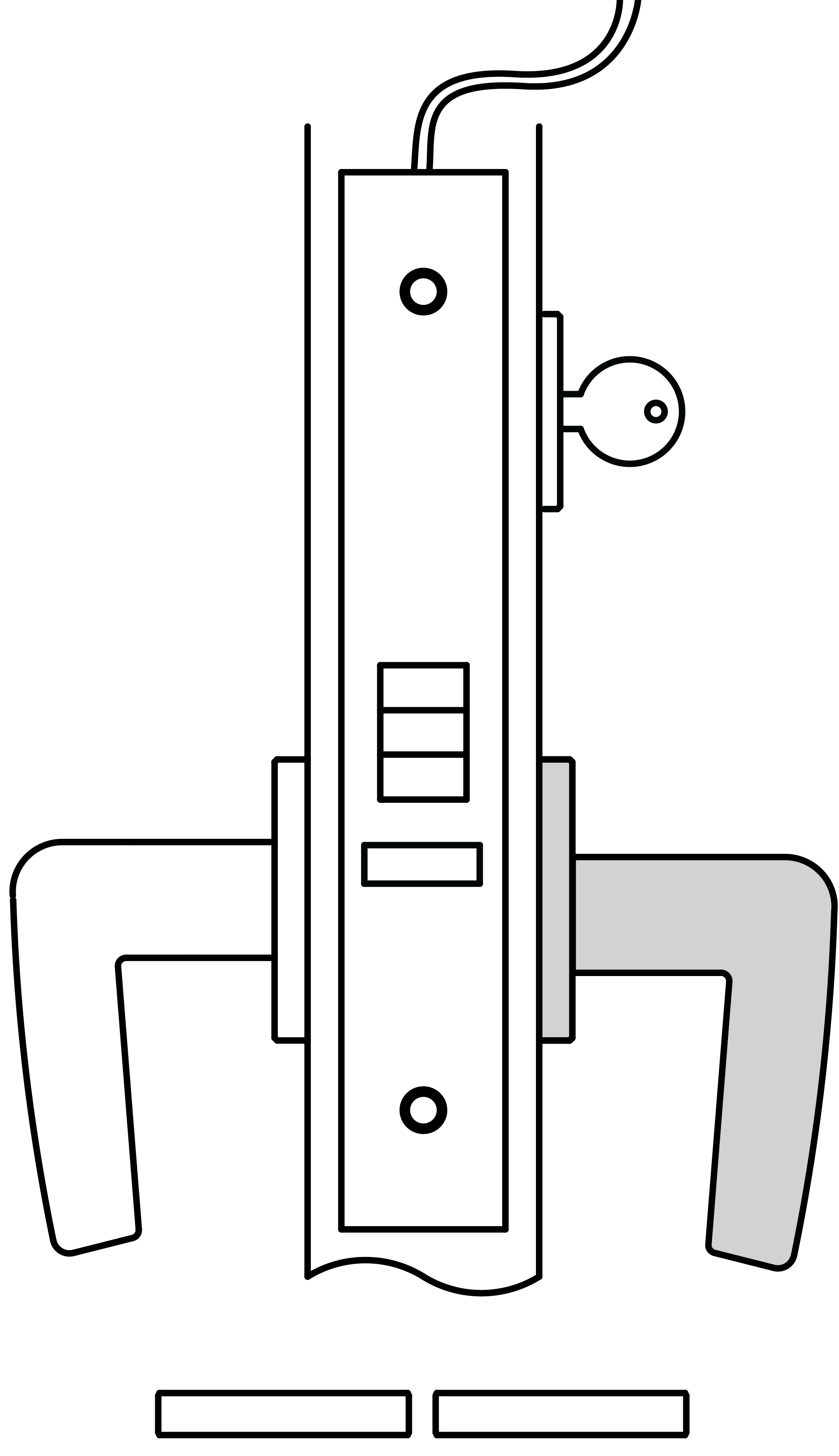

M9159E Storeroom
- Inside trim always free.
- Latch bolt by key outside.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION:
- Outside trim unlocked when power is applied and locked when power is
- removed.
- FAIL SAFE OPERATION:
- Outside trim locked when power is applied and unlocked when power is
- removed. Lockset will unlock in the event of power failure.
Sell Sheet
Specification Sheet
Installation Templates
- T-ALH.M9045E
- T-ALH.M9056E
- T-ALH.M9058E
- T-ALH.M9059E
- T-ALH.M9145E
- T-ALH.M9156E
- T-ALH.M9158E
- T-ALH.M9159E
- T-ALH.M9159E.USD
Operating Instructions
Video
-
M9100E Motor Drive Electrified Mortise Lock
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Electrified Lock with Double Cylinder | Authorized Egress | Accurate Trim
E.g.: M9158E-AE. 212. 29L/2R. US26D. RH. 134 -
Electrified Lock | Dead Latch Monitoring | Accurate Trim
E.g.: M9159E-AM. 234. 19L/1R. US4. LH. 134 -
Electrified Lock | Passage Mode by Authorized Personnel Only | Accurate Trim
E.g.: M9145E. 234. 20L/1E. US26D. RH. 134 -
Electrified Lock with Party Function + Request to Exit | Trim by Others
E.g.: M9156E-AE. 212. 7mm. US3NL. LH. 134
Notes
- Specify SS Security Strikes.
- USD K x K Upside Down (cylinder/thumb turn below knobs).
- USD L x L Upside Down (cylinder/thumb turn below levers).
- SLB Solid Latch Bolt (not available for SilentPac™ Quiet Lock).
- K x L Knob Outside, Lever Inside.
- L x K Lever Outside, Knob Inside.
- TP x L Thumbpress Outside, Lever Inside.
- TP x K Thumbpress Outside, Knob Inside.
- TP x TP Thumbpress Outside, Thumbpress Inside.
- Compatible with the following add-ons: SilentPac™ Quiet Lock, SilentPac™ Lever Dampening Disc, High Security Solutions.
