• For door Stiles 4" or wider.
  • Please note that on upside down locks that accept cylinders, the cylinder core will be upside down as well – we recommend specifying cylinders without face markings.

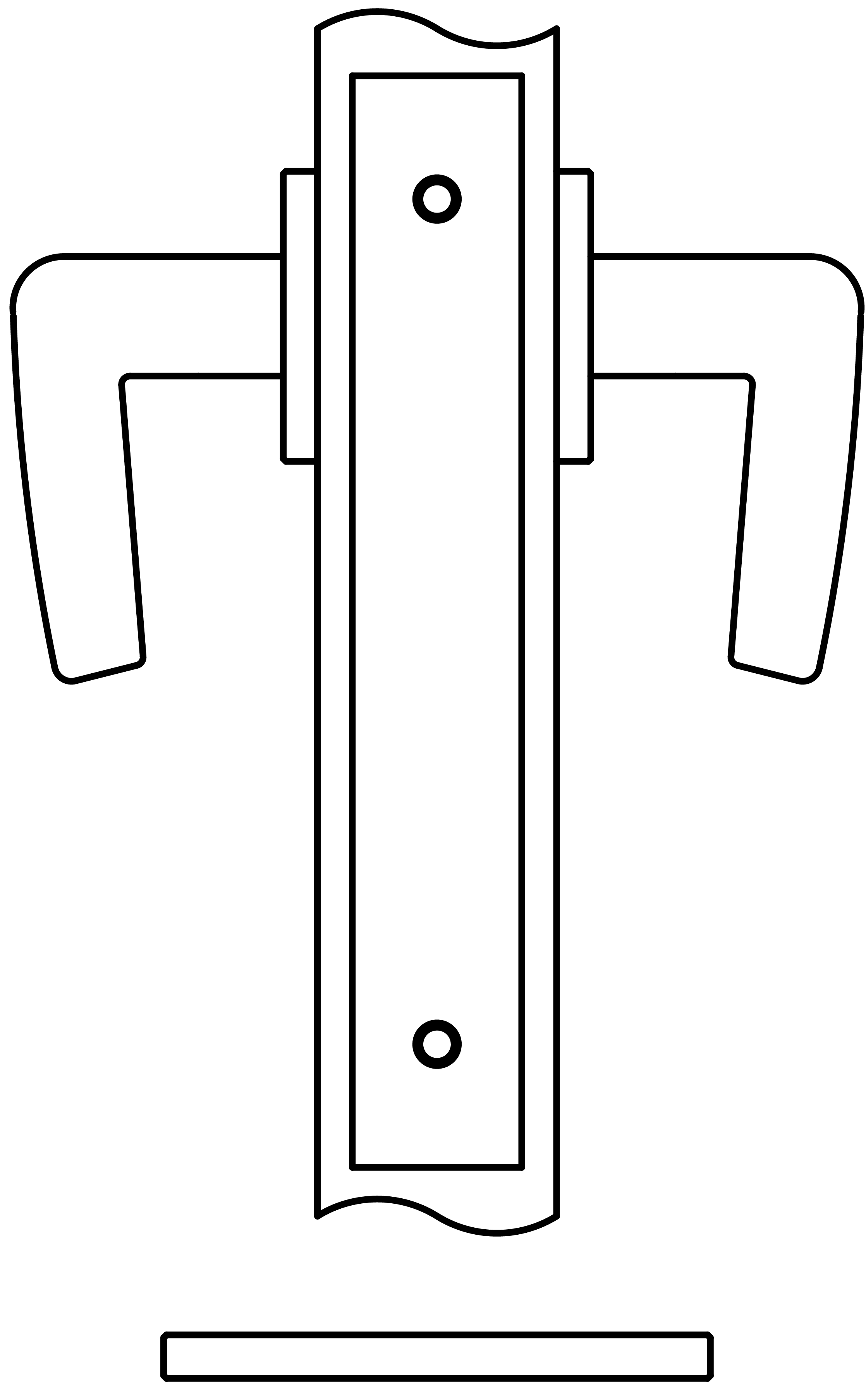

9000ADL-USD | 9100ADL-USD Active Dummy Lock


  • Active handles inside and out.

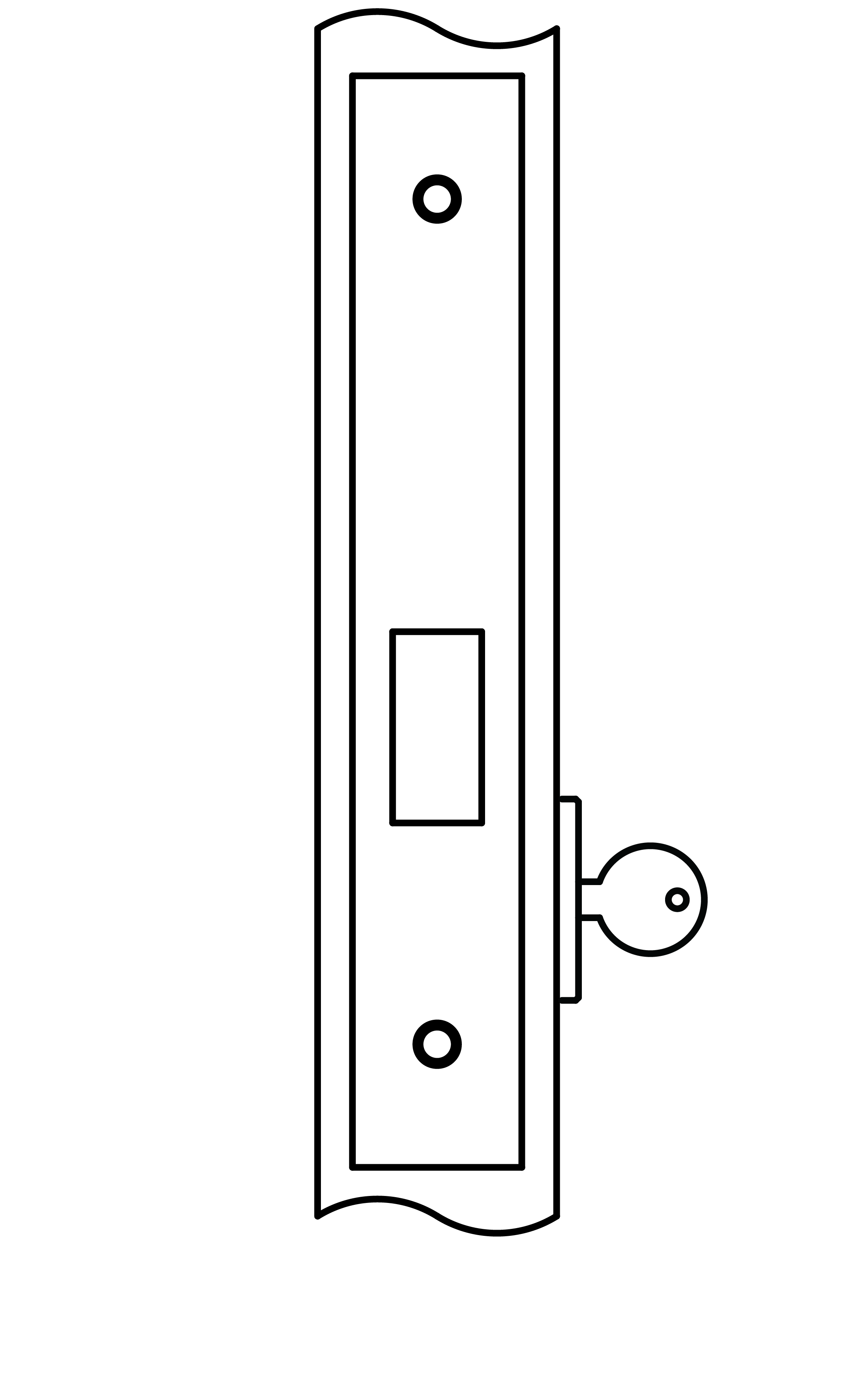

9001USD | 9101USD Deadlock

(ANSI SERIES 1000-F18)


  • Deadbolt by key outside.
  • No inside operation.

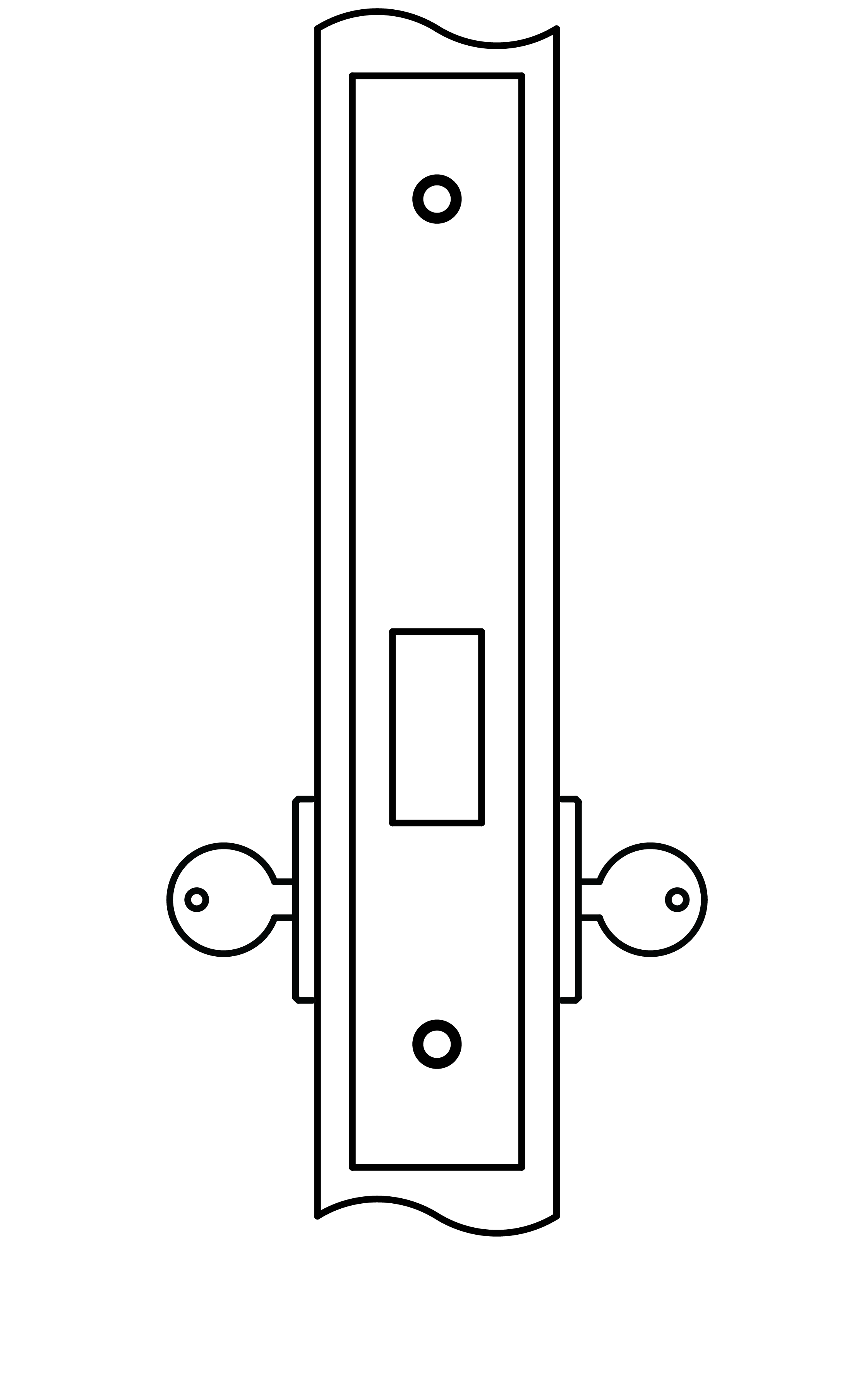

9002USD | 9102USD Deadlock

(ANSI SERIES 1000-F16)


  • Deadbolt by key either side.

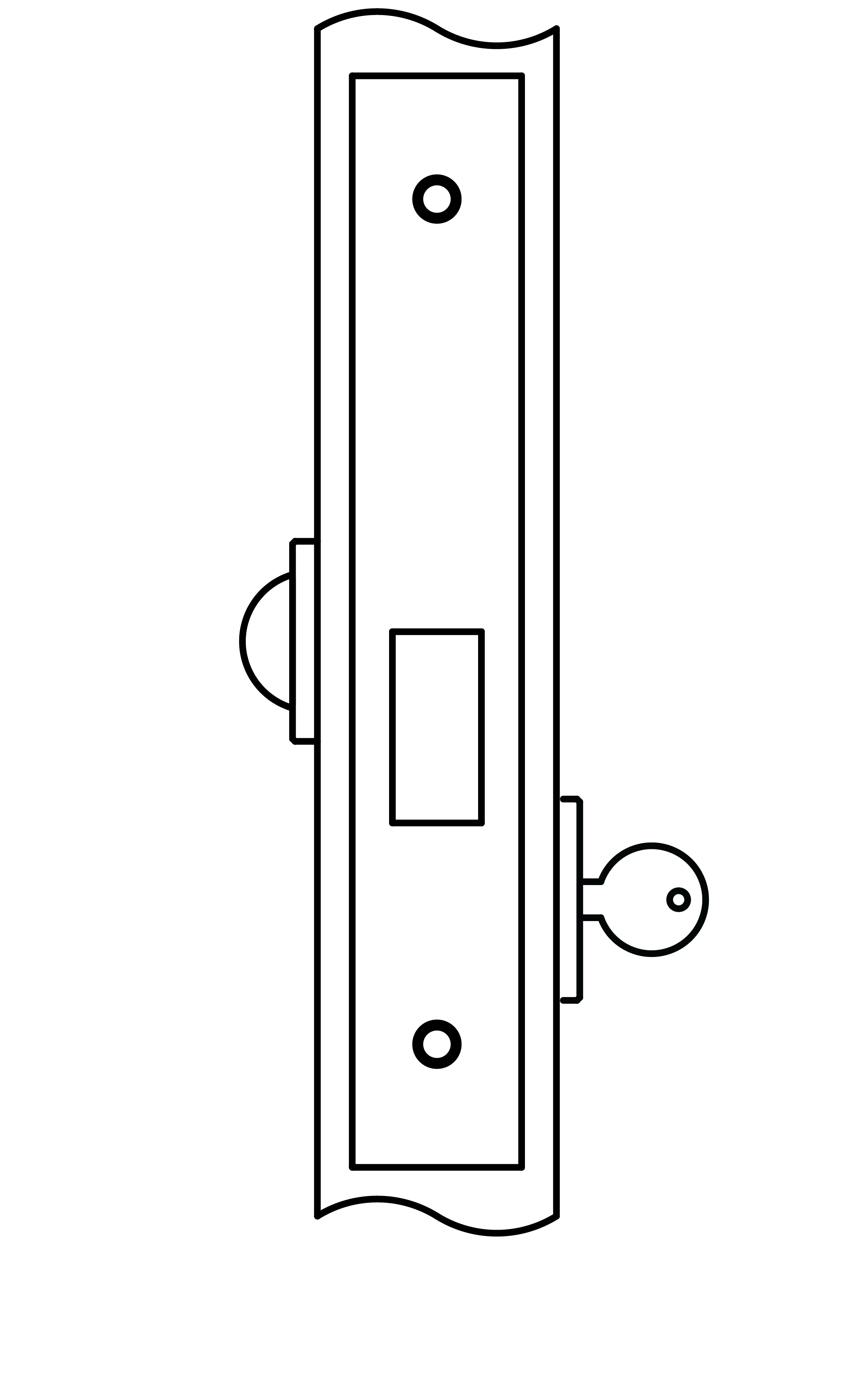

9003USD | 9103USD Deadlock

(ANSI SERIES 1000-F17)


  • Deadbolt by key outside, thumb turn inside.

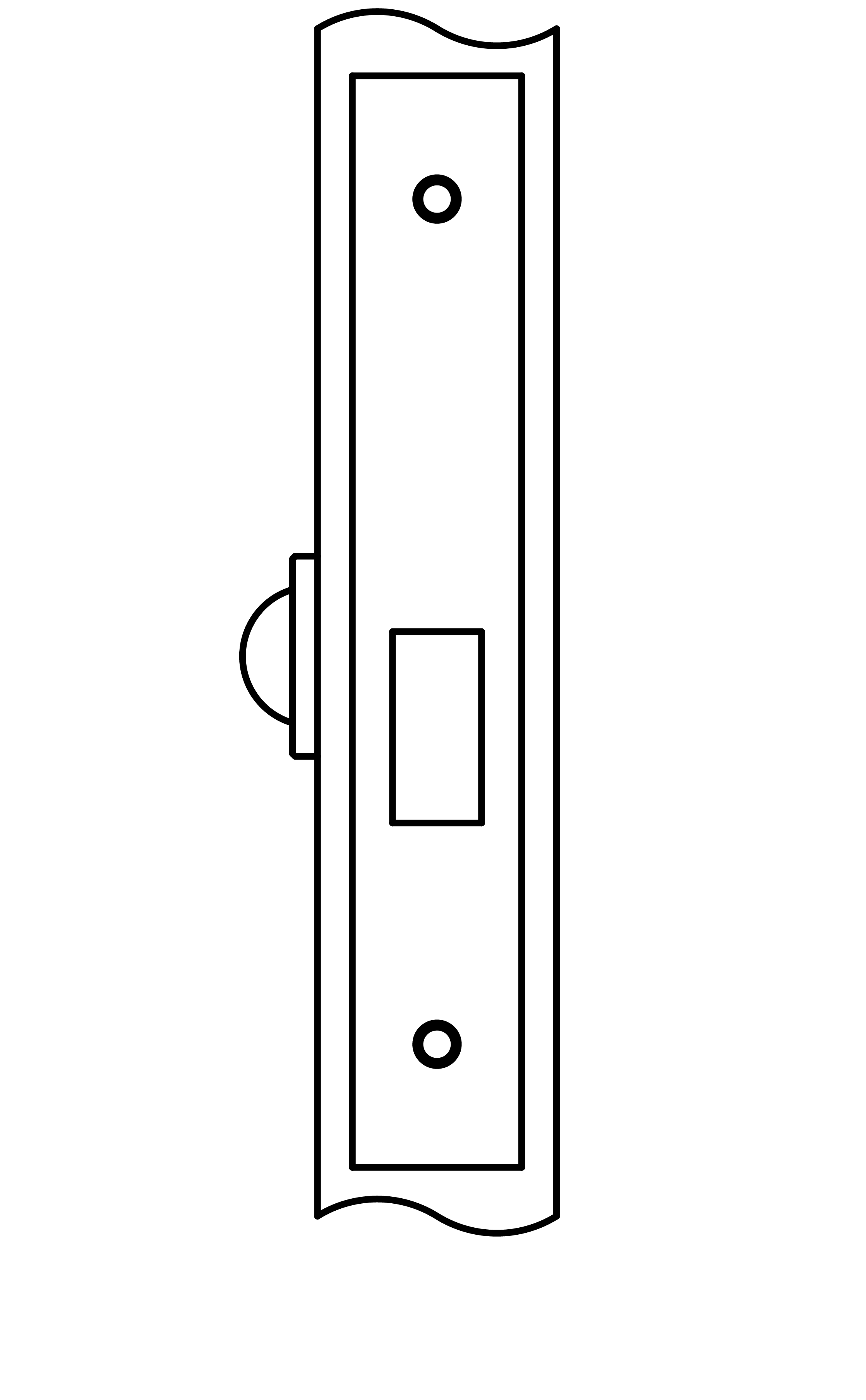

9004USD | 9104USD Deadlock


  • Deadbolt by thumb turn inside only, no outside operations.

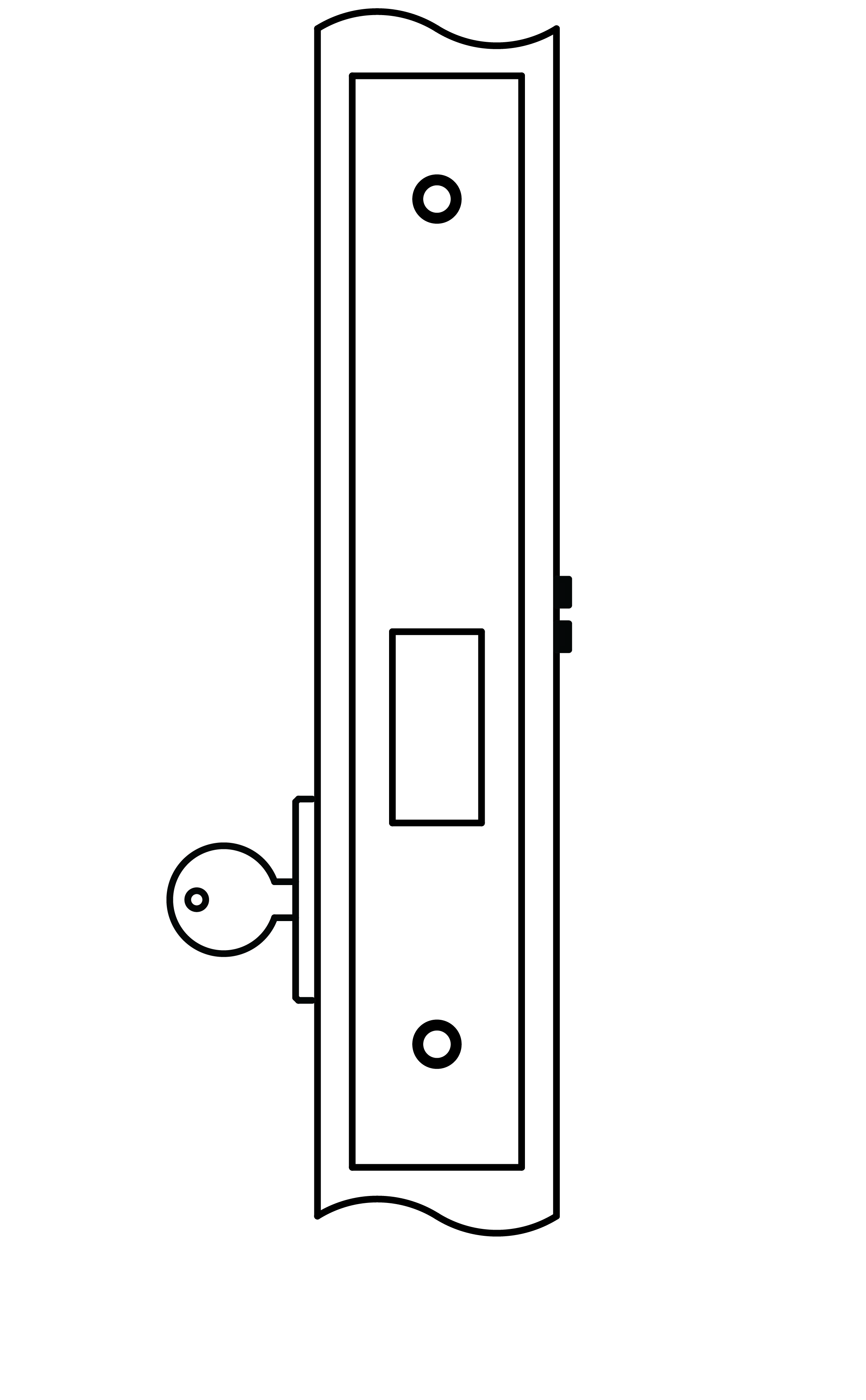

9005USD | 9105USD Deadlock


  • Deadbolt by emergency release outside, cylinder inside.

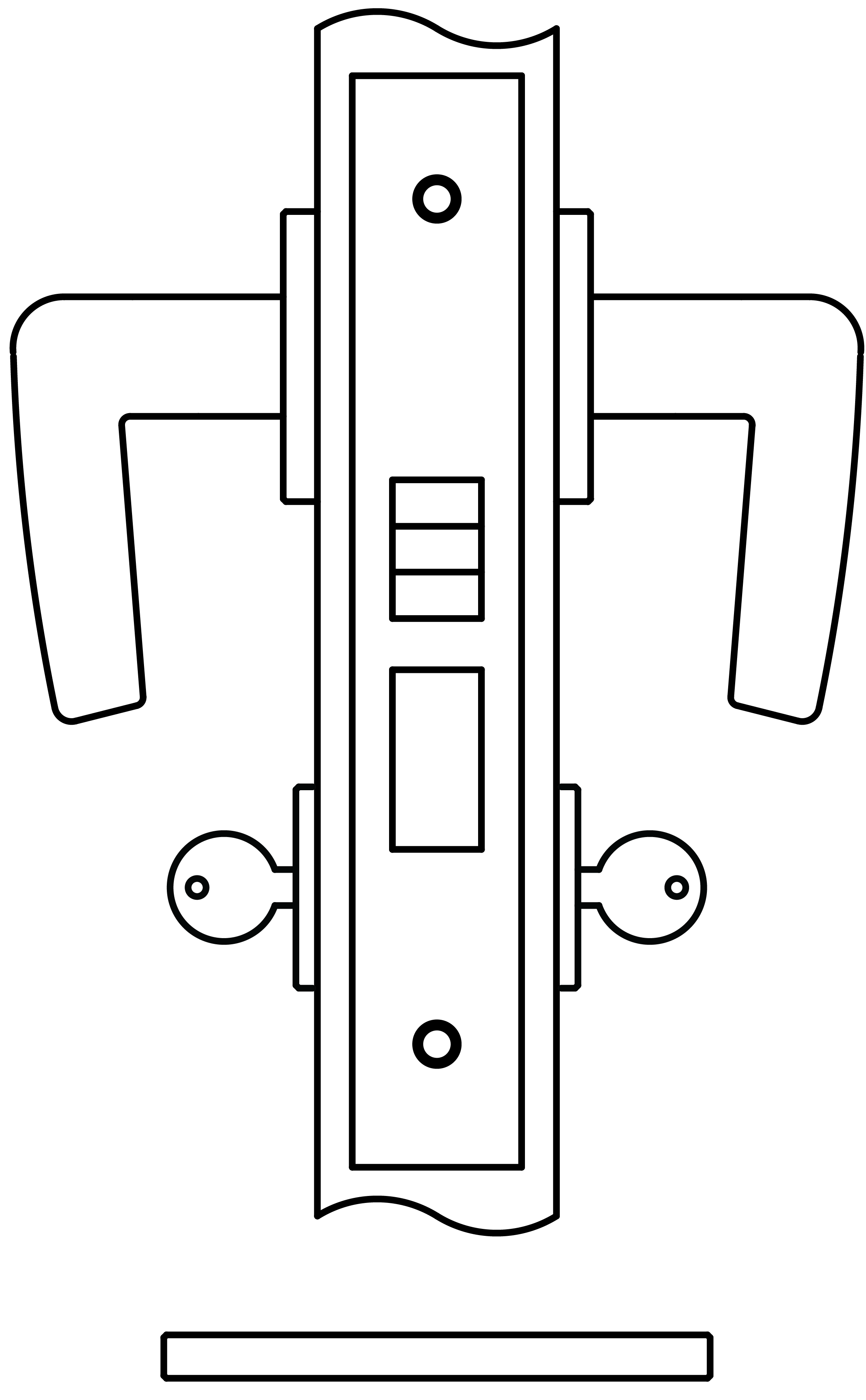

9022USD | 9122USD Store Door

(ANSI SERIES 1000-F14)


  • Latch bolt by lever either side.
  • Deadbolt by key either side.
  • No emergency egress.

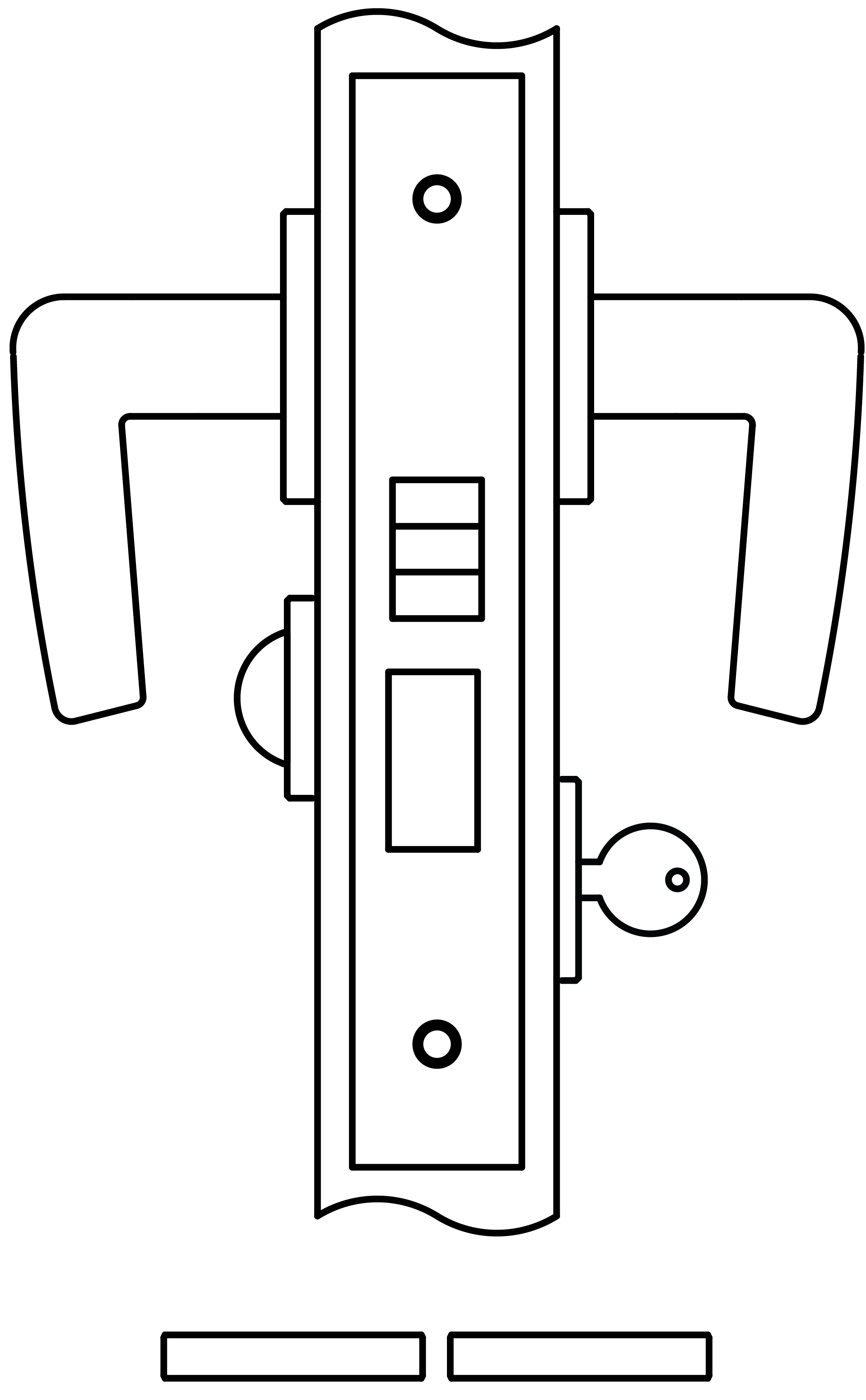

9024USD | 9124USD Dormitory

(ANSI SERIES 1000-F13)


  • Latch bolt by lever either side.
  • Deadbolt by key outside, thumb turn inside.
  • A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

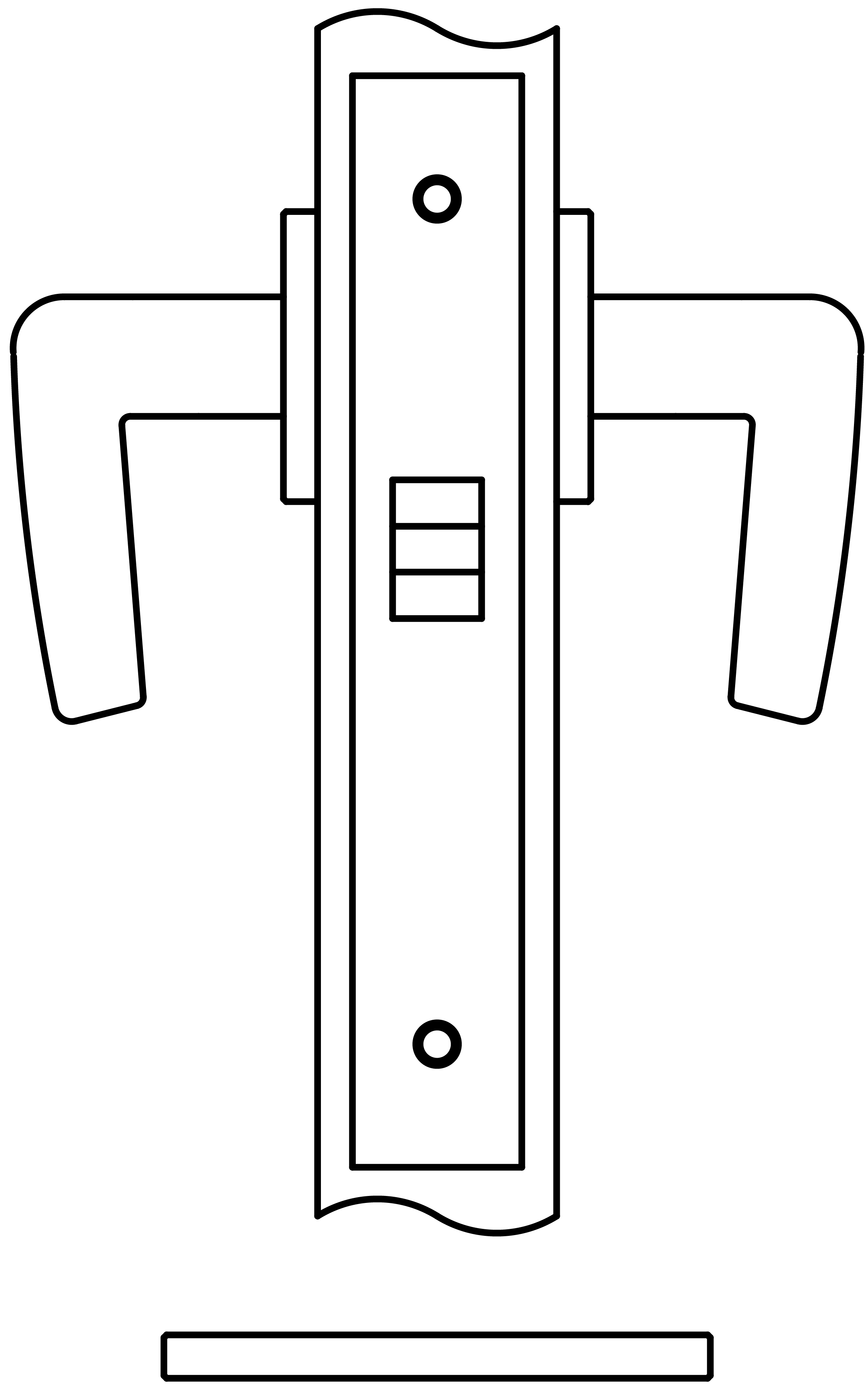

9025USD | 9125USD Passage

(ANSI SERIES 1000-F01)


  • Latch bolt by lever either side.

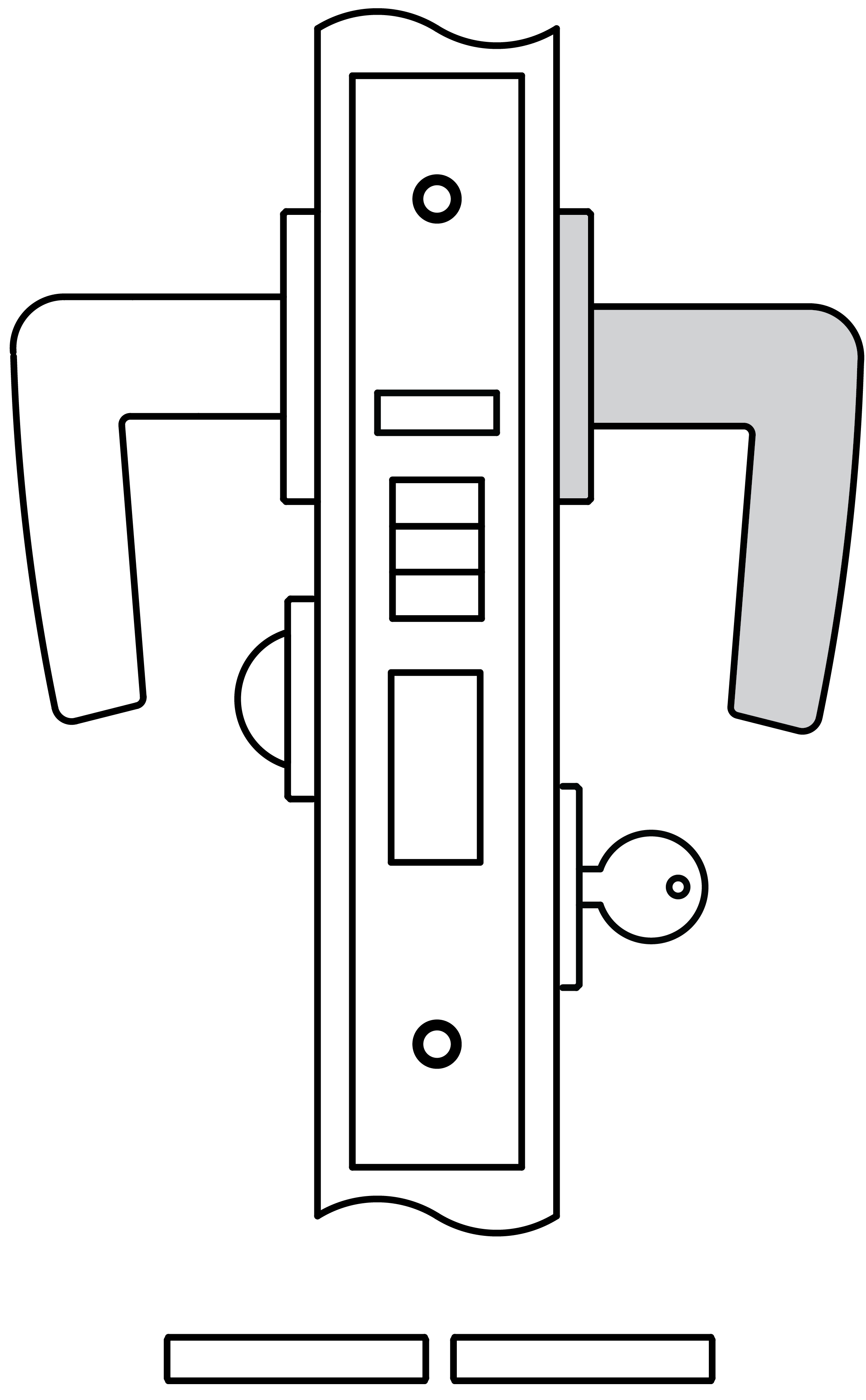

9034USD | 9134USD Hotel or Motel

(ANSI SERIES 1000-F15)


  • Latch bolt by lever either side and guest or Master Key outside.
  • Outside lever always rigid.
  • Deadbolt by thumb turn inside.
  • Turn of inside lever retracts latch and deadbolt simultaneously.
  • Auxiliary latch deadlocks latch bolt.
View More Details +

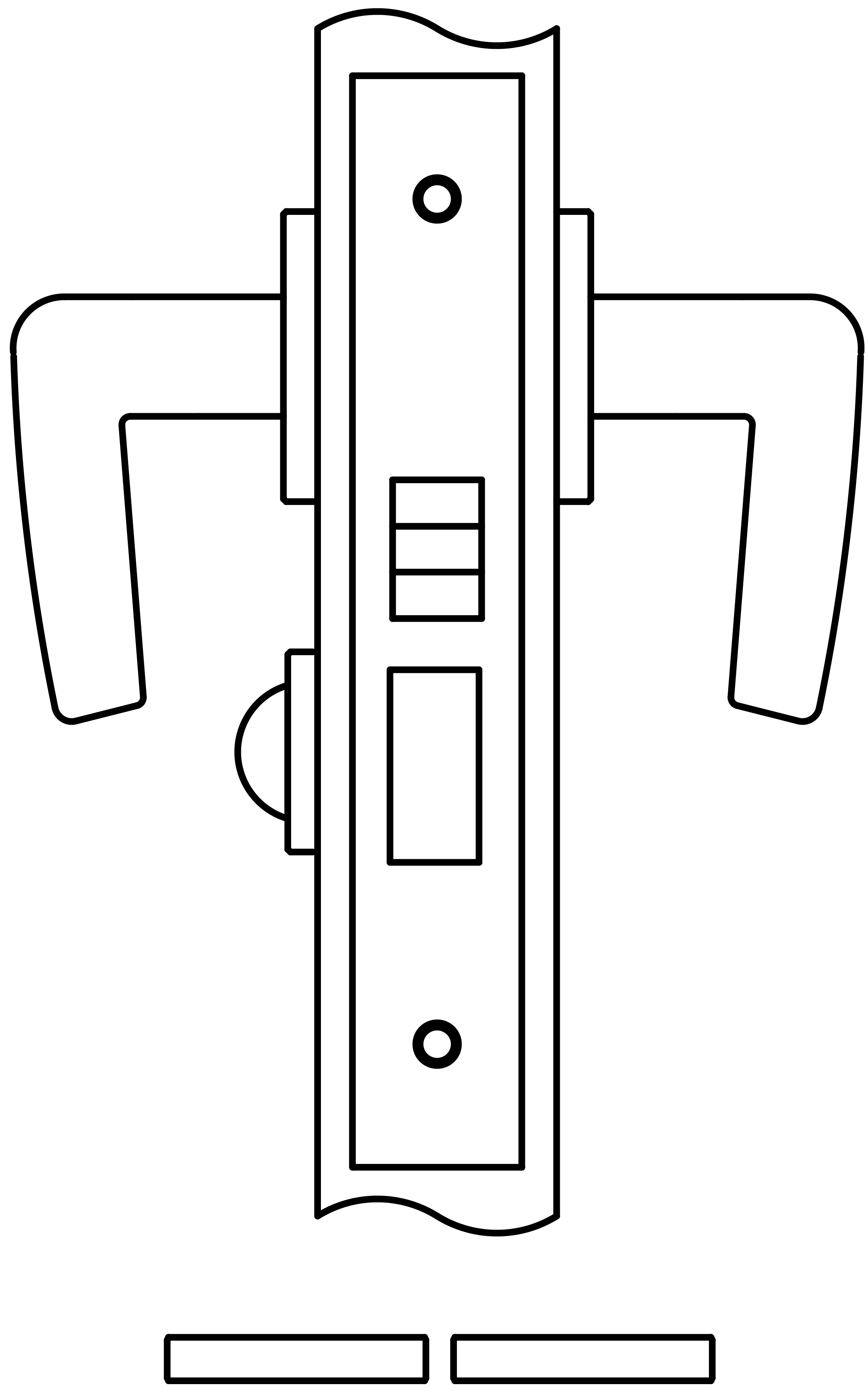

9039USD | 9139USD Privacy Bedroom or Bathroom

(ANSI SERIES 1000-F19)


  • Latch bolt by lever either side.
  • Deadbolt by thumb turn inside and optional emergency release outside.
  • Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

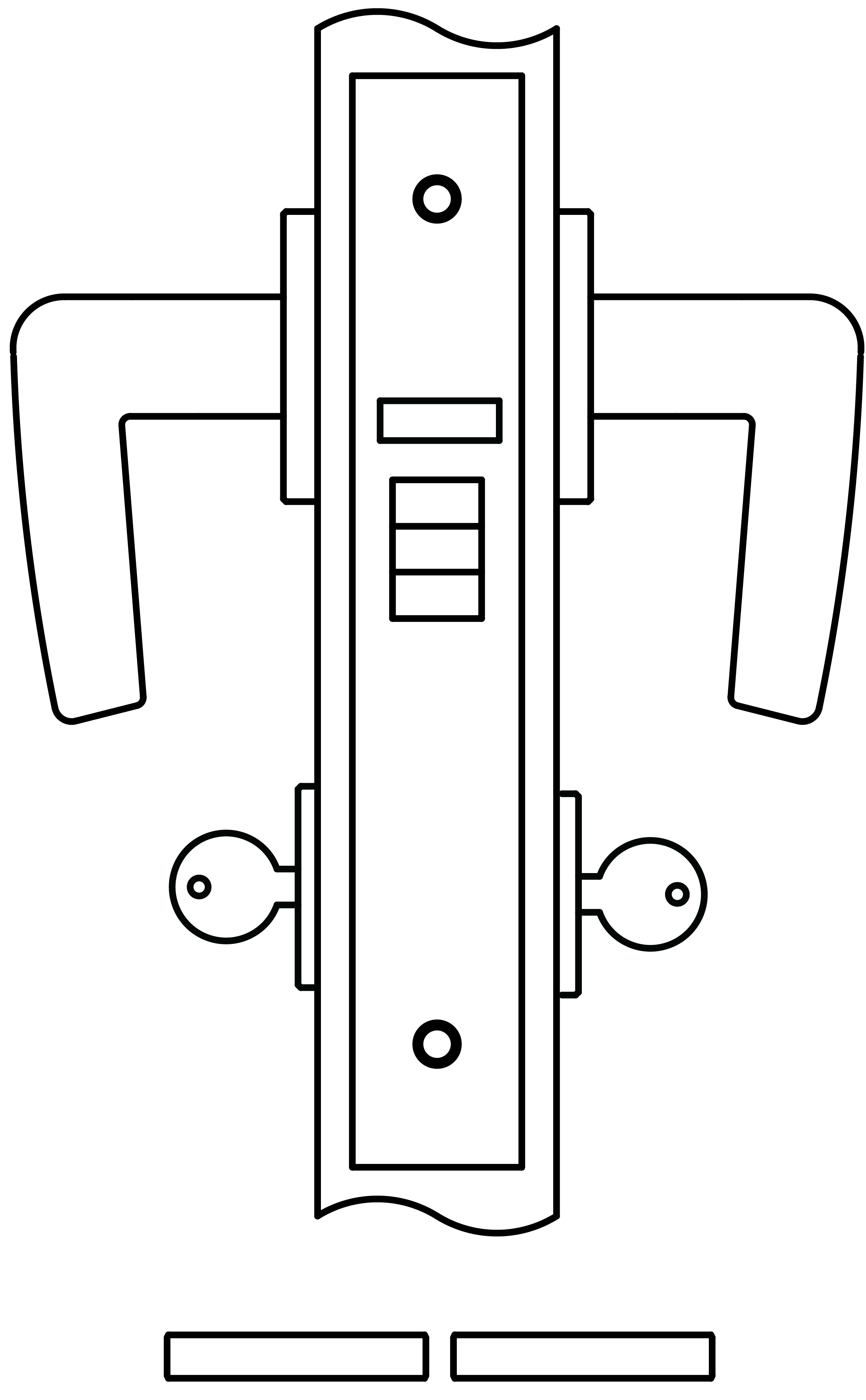

9042USD | 9142USD Entrance

(ANSI SERIES 1000-F09)


  • Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
  • When outside lever is locked, latch bolt by key outside and lever inside.
  • Auxiliary latch deadlocks latch bolt.

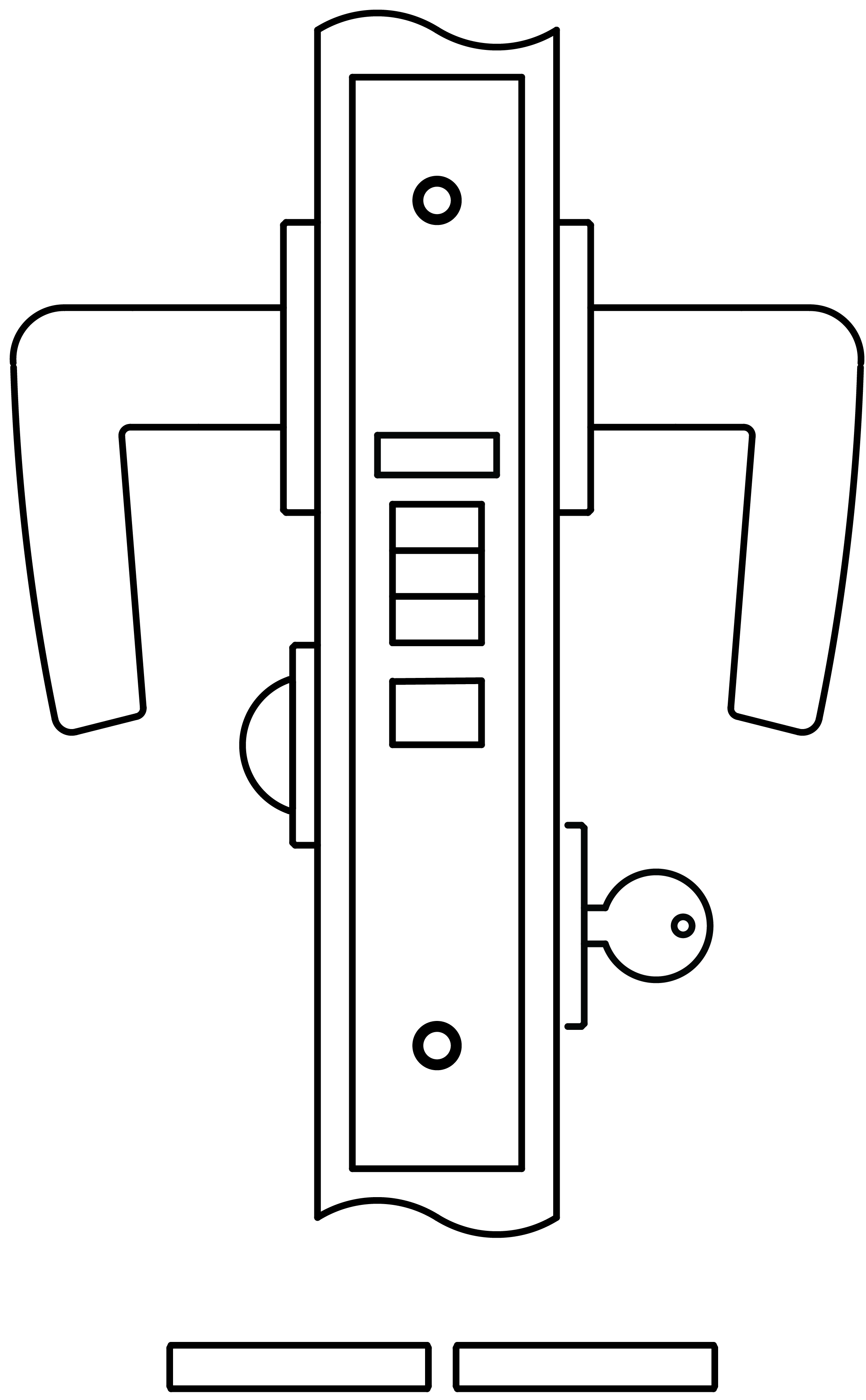

9043USD | 9143USD Institutional Privacy


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Key locks or unlocks outside lever.
  • Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned or door closes.
View More Details +

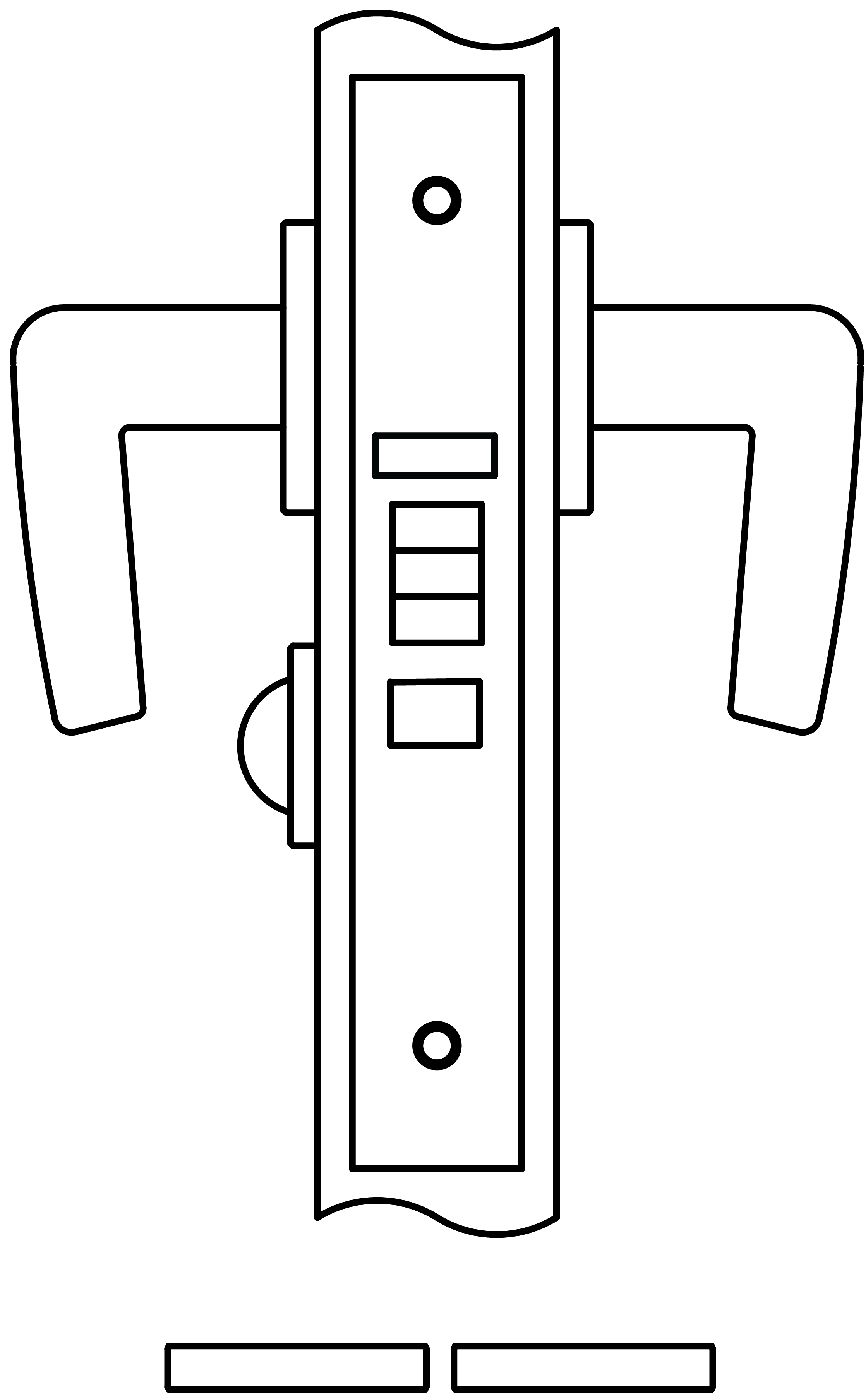

9043E-USD | 9143E-USD Institutional Privacy or Emergency Release


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Emergency release locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned or door closes.
View More Details +

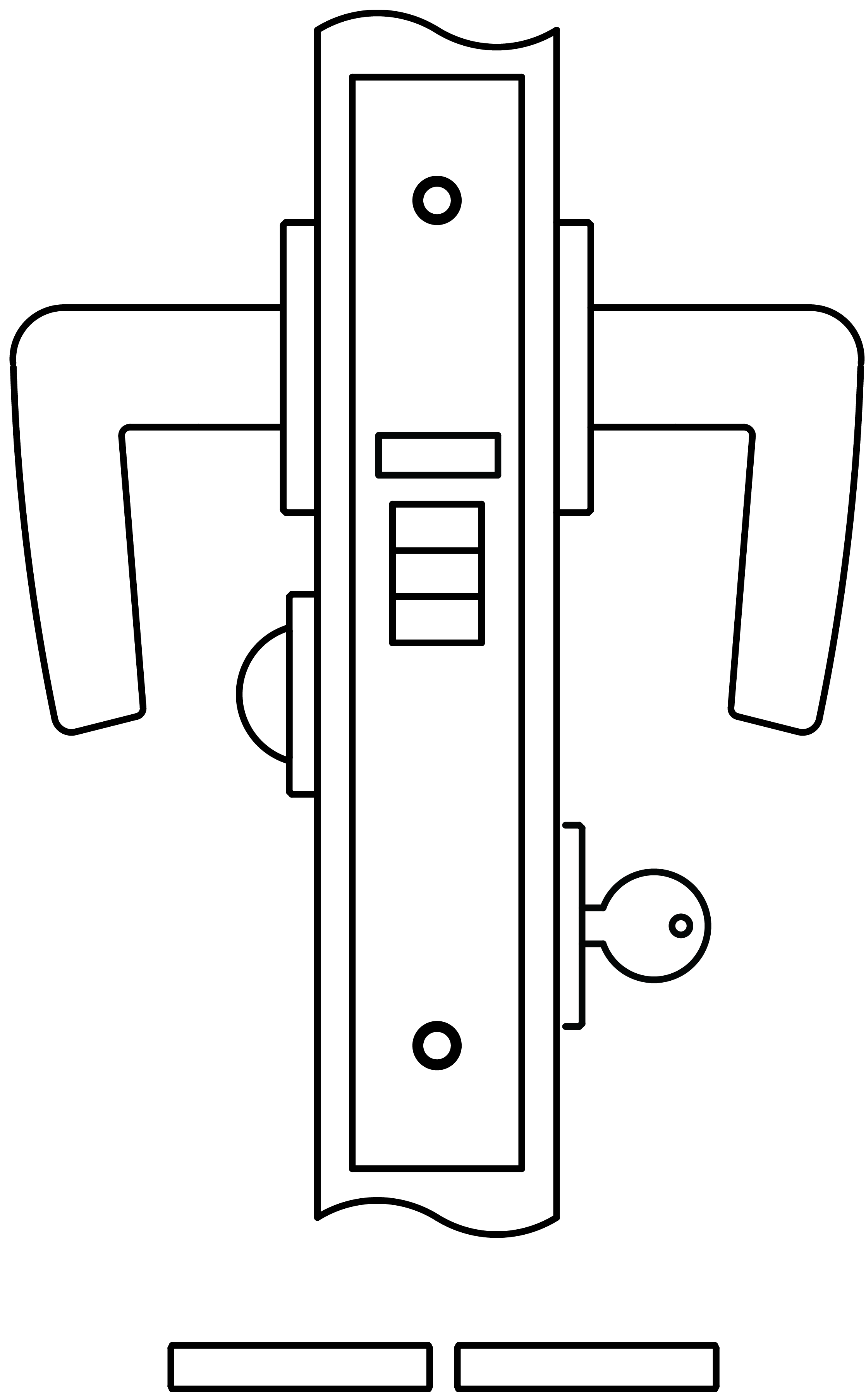

9044USD | 9144USD Institutional Privacy


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Key locks or unlocks outside lever.
  • Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever.)
View More Details +

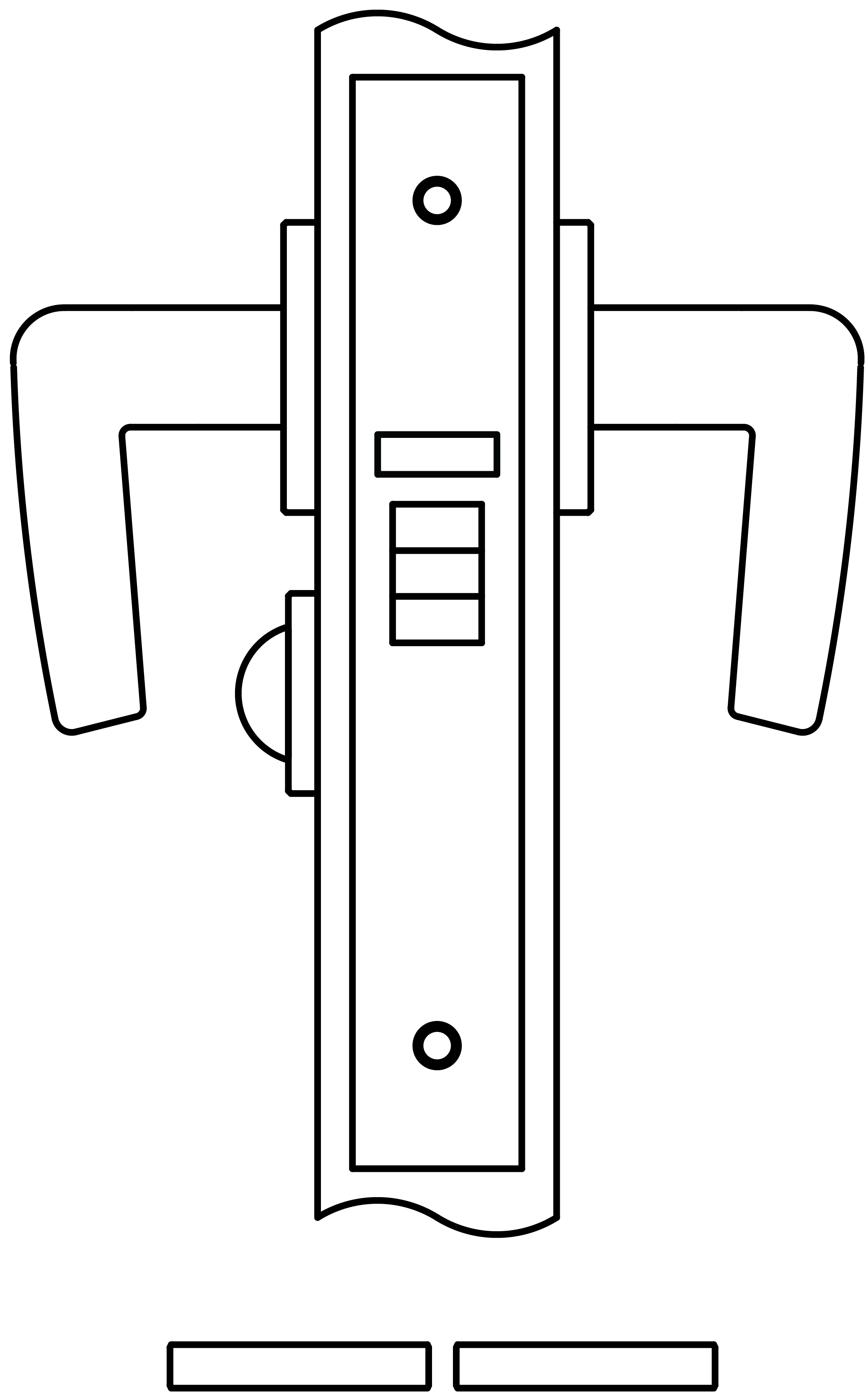

9044E-USD | 9144E-USD Institutional Privacy or Emergency Egress


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever).
View More Details +

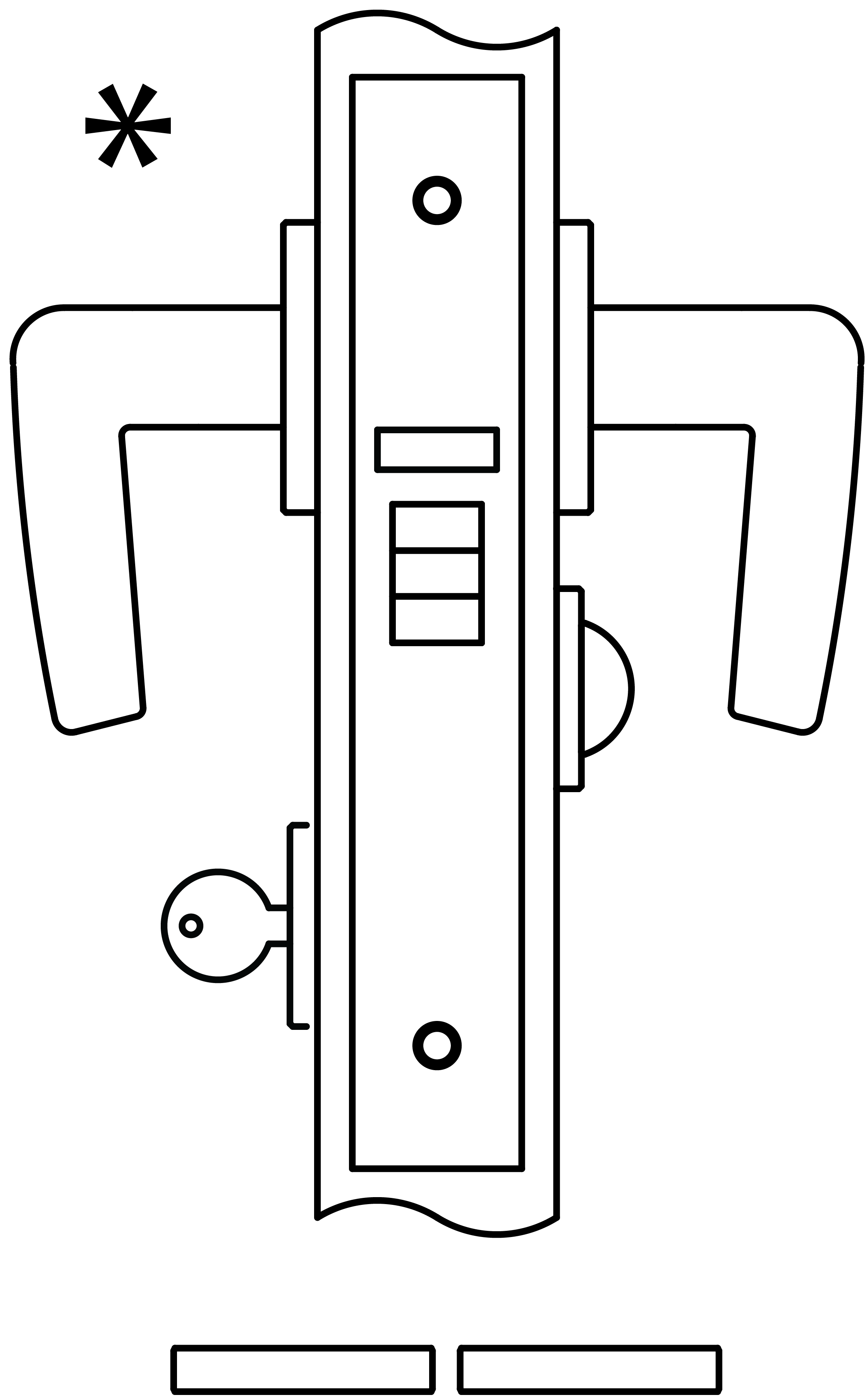

9044TO-USD | 9144TO-USD Time Out Lock


  • Latch retracted by lever either side unless outside thumb turn is rotated and held into position to temporarily lock inside lever.
  • When thumb turn is released by user, inside lever unlocks.
  • Optional key inside retracts latch for emergency exit in case thumb turn is held locked by unauthorized person outside.

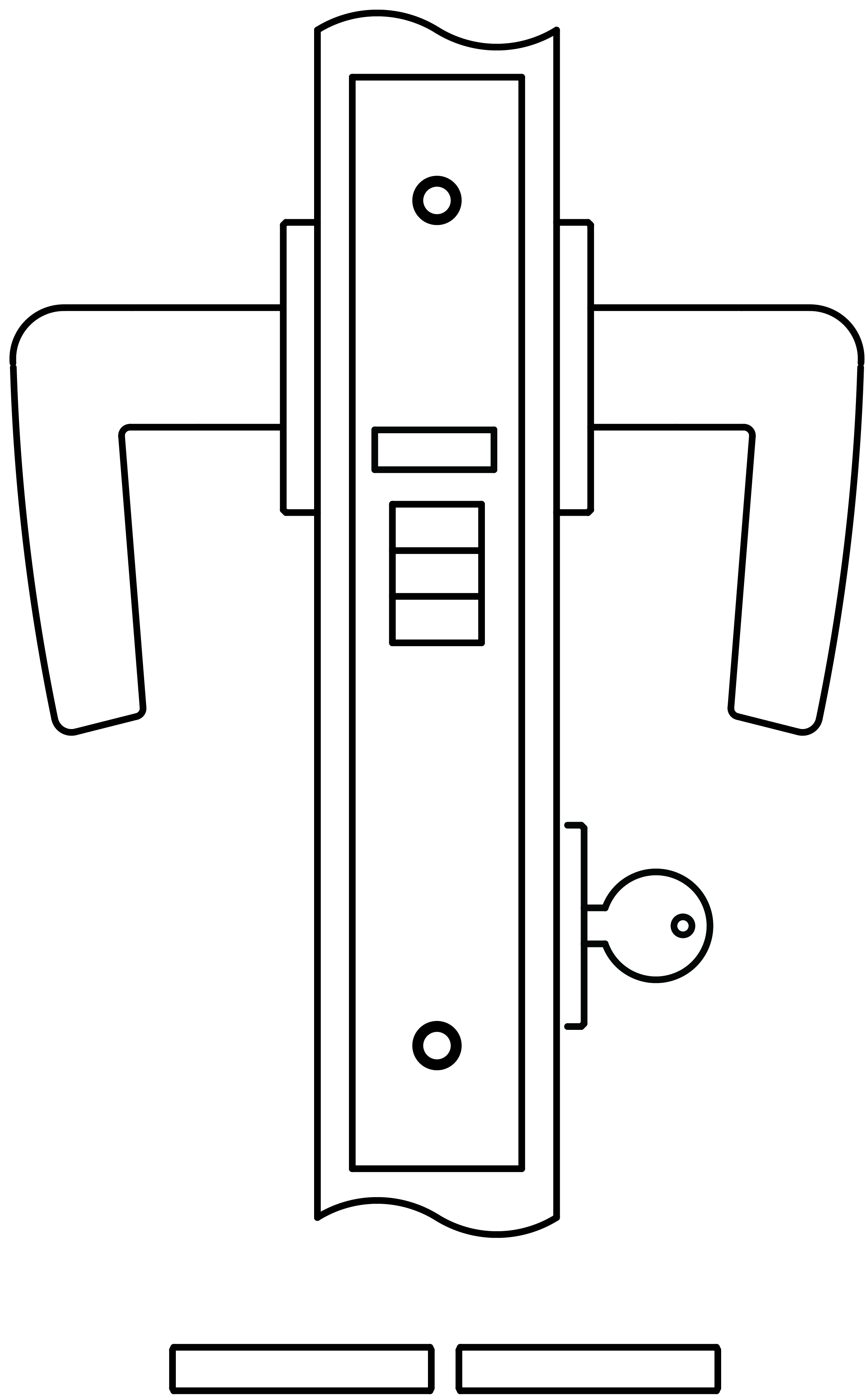

9045USD | 9145USD Classroom

(ANSI SERIES 1000-F05)


  • Latch bolt by key outside and lever either side unless outside lever is locked by key.
  • Auxiliary latch deadlocks latch bolt.

9045S-USD | 9145S-USD Classroom Security

(ANSI SERIES 1000-F88)


  • Latch bolt by lever either side unless outside lever is locked by key outside or inside.
  • When locked, latch bolt retracted by key inside or outside or lever inside.
  • Inside lever always free.
  • Auxiliary latch deadlocks latch bolt.
View More Details +

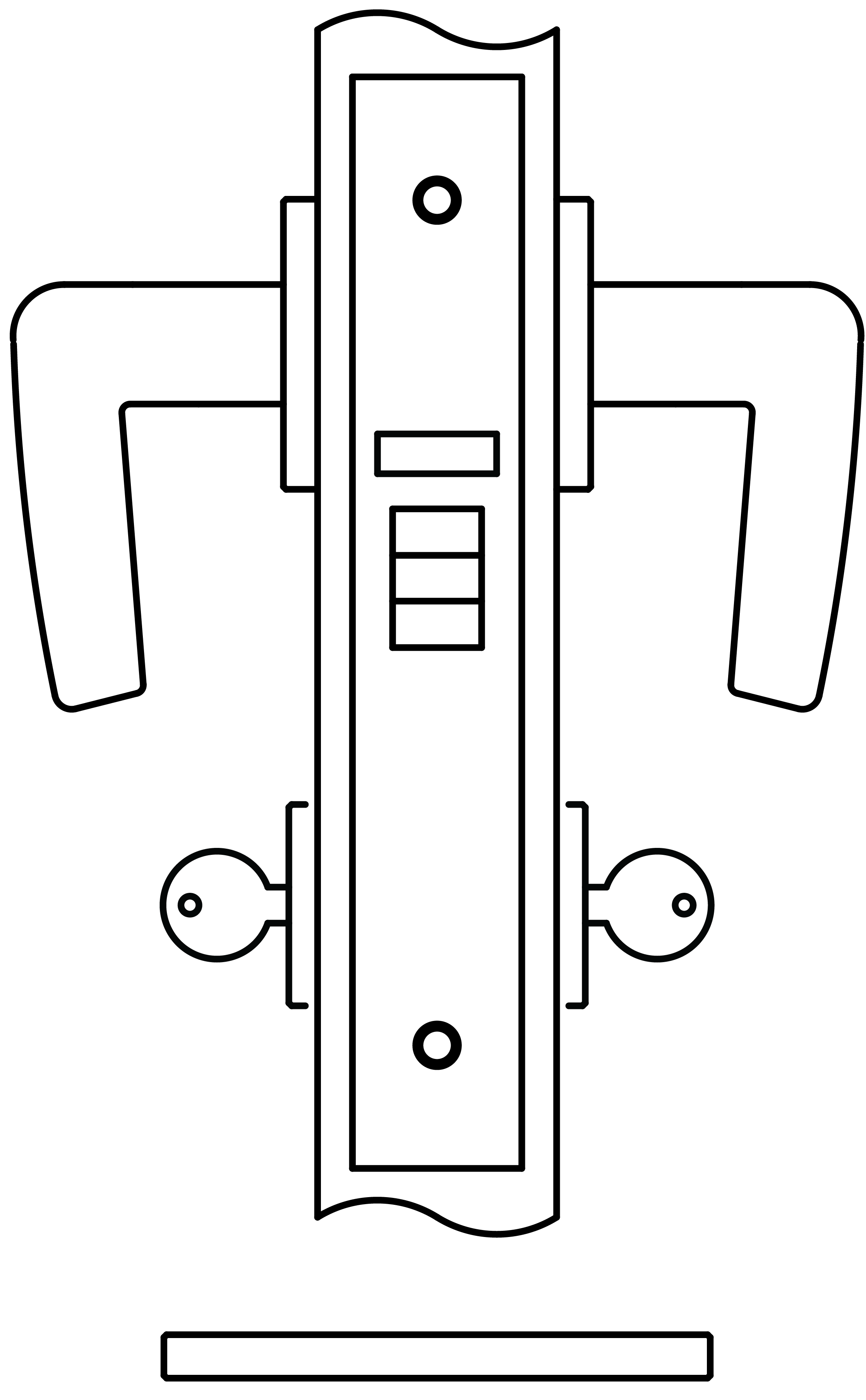

9046-USD | 9146-USD Classroom Double Locking


  • Latch bolt by key from either side.
  • Key from either side locks and unlocks outside and inside* levers.
  • Auxiliary latch deadlocks latch bolt.
  • *Inside lever is not always free—verify code compliance before using this function.
View More Details +

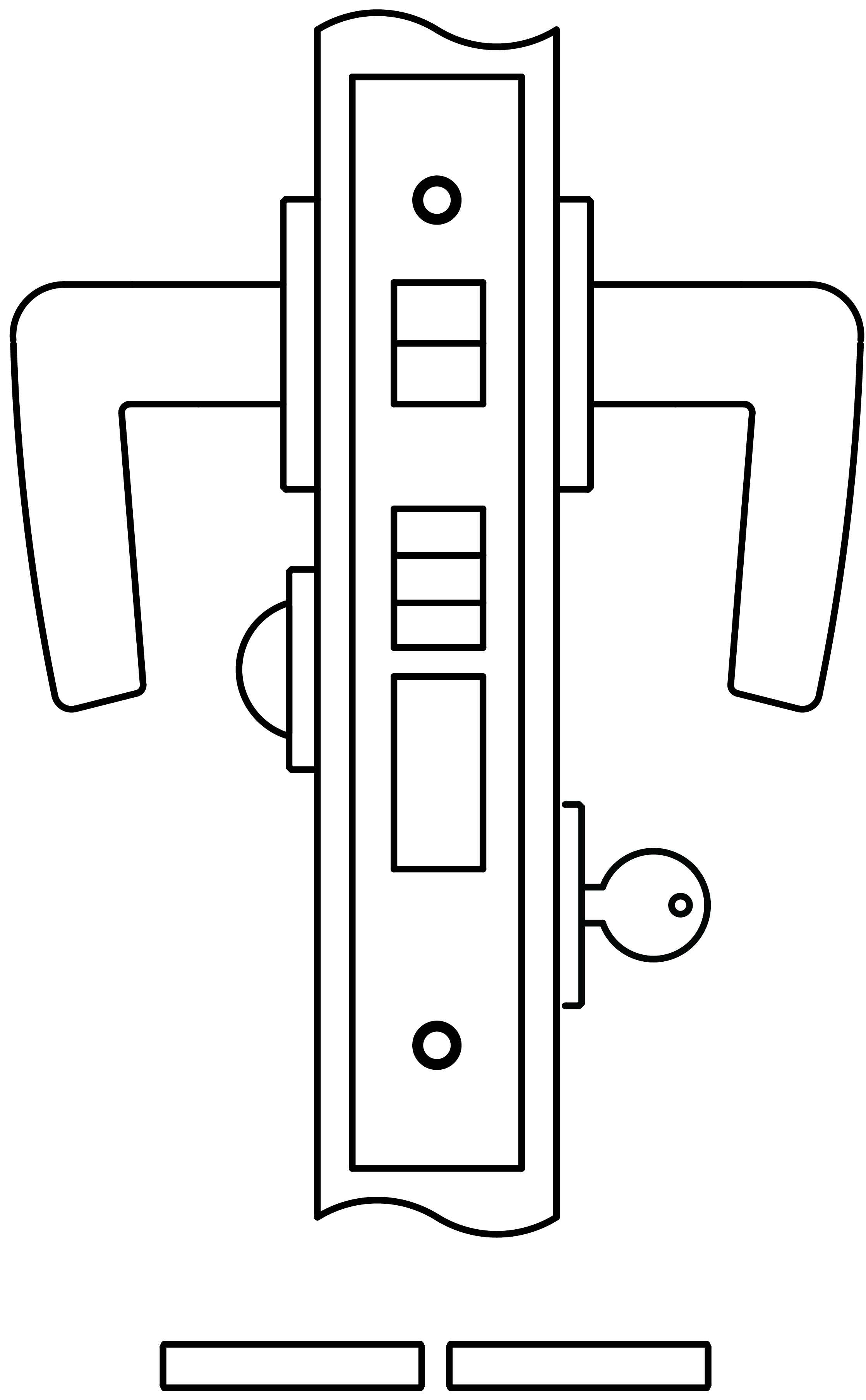

9048USD | 9148USD Entrance or Apartment

(ANSI SERIES 1000-F12)


  • Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
  • Deadbolt by key outside and thumb turn inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains locked until manually unlocked by toggle.
View More Details +

9049USD | 9149USD Entrance or Apartment


  • Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
  • Deadbolt by key outside and thumb turn inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
  • *Function not offered on thumb grip x thumb grip applications.
View More Details +

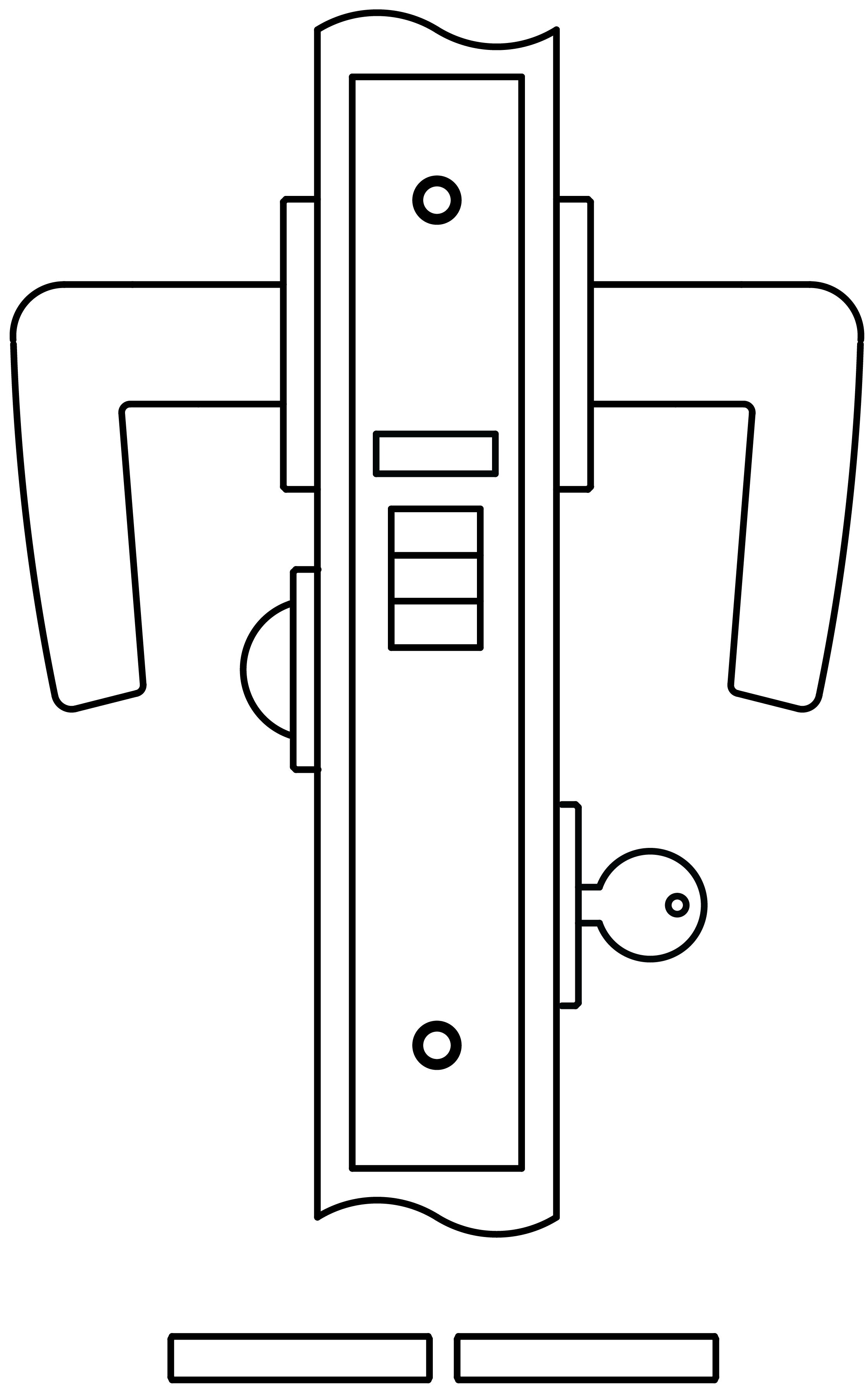

9053USD | 9153USD Entrance or Office

(ANSI SERIES 1000-F04)


  • Latch bolt by key outside and lever either side unless lever is locked by thumb turn or key.
  • Key or thumb turn locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt.

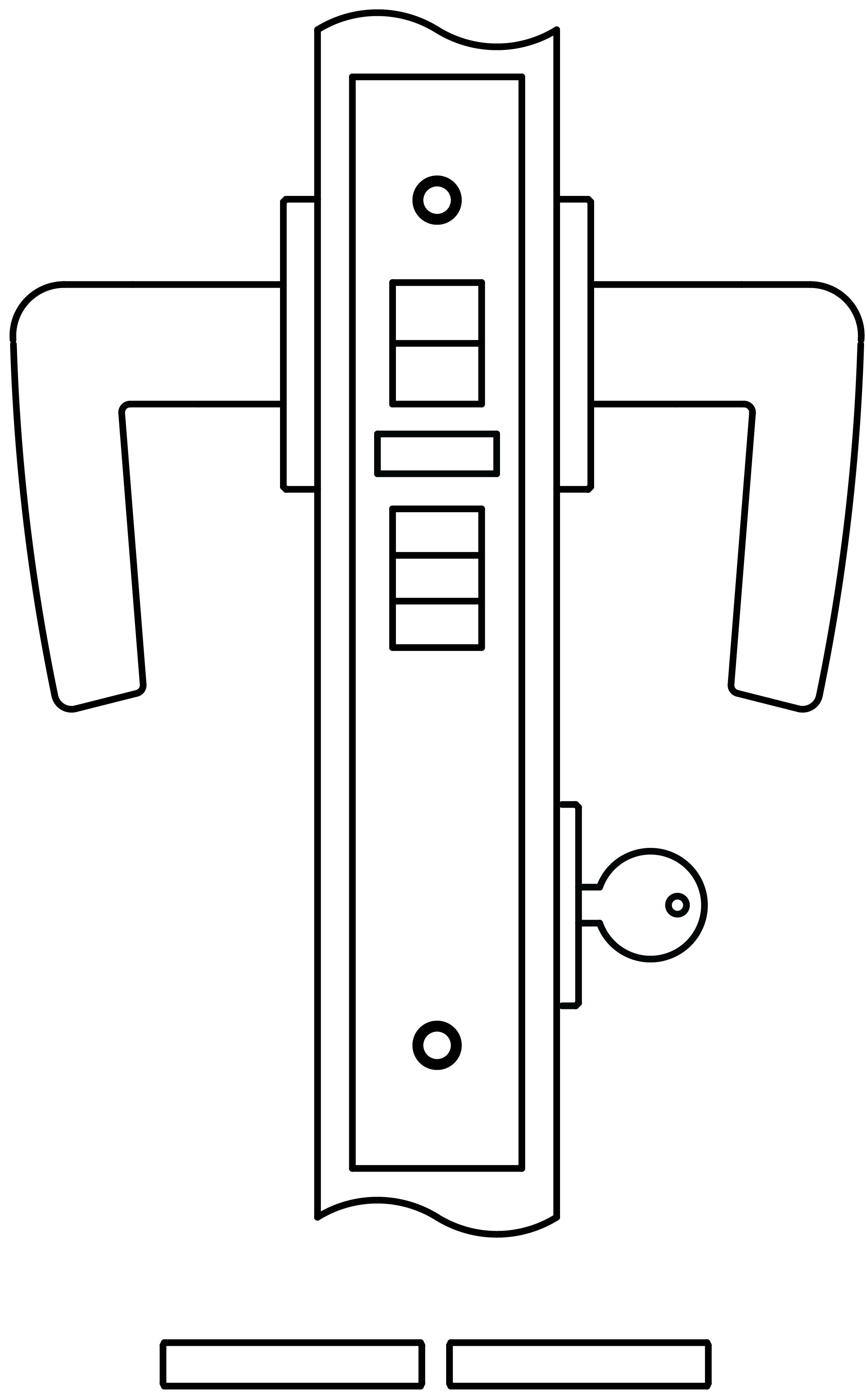

9056USD | 9156USD Entrance or Office

(ANSI SERIES 1000-F04)


  • Latch bolt by key outside and lever either side unless outside lever is locked by toogle.
  • Auxiliary latch deadlocks latch bolt.

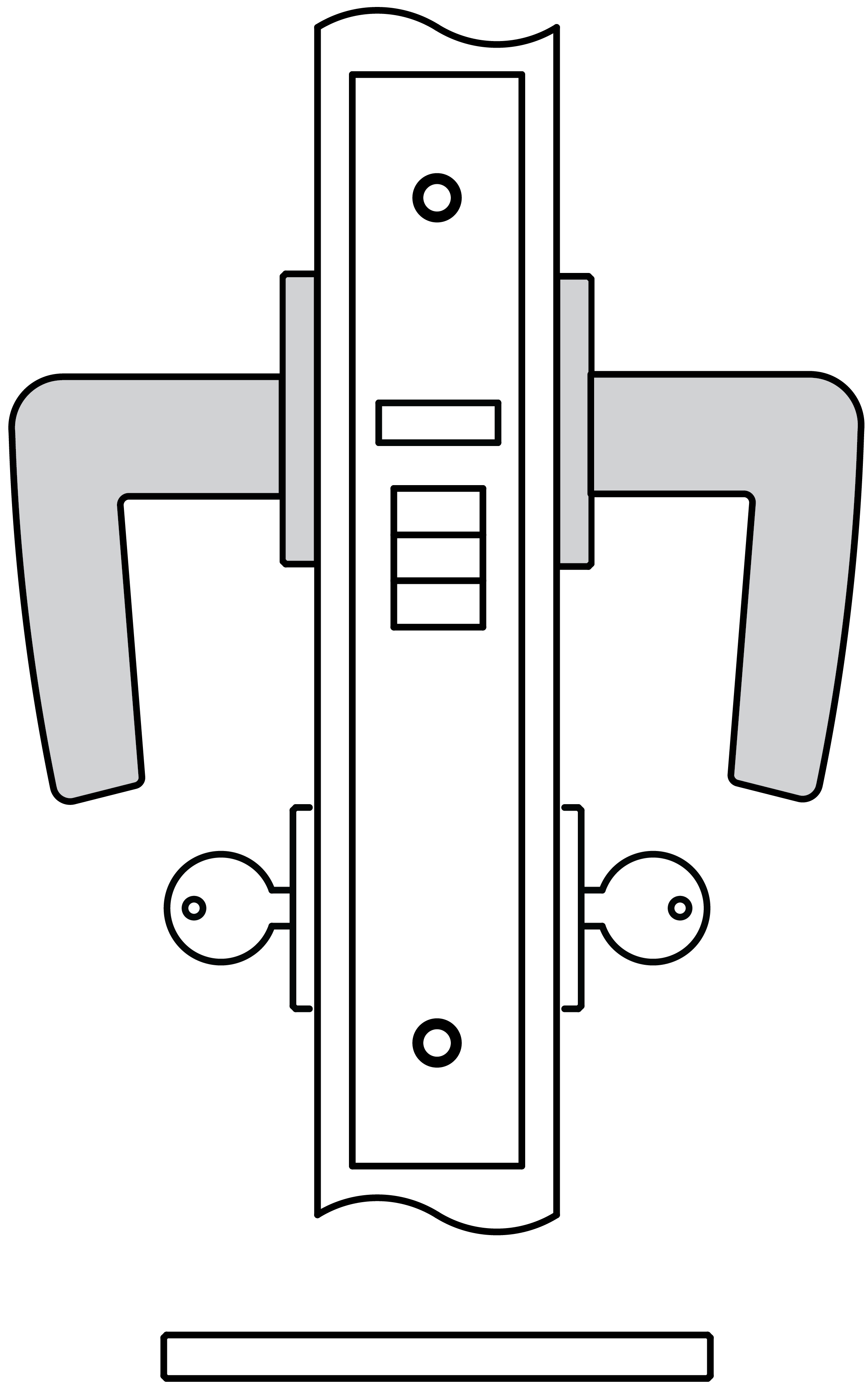

9058USD | 9158USD Institution or Asylum

(ANSI SERIES 1000-F30)


  • Latch by key either side.
  • Inside* and outside lever always rigid.
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before using this function.
View More Details +

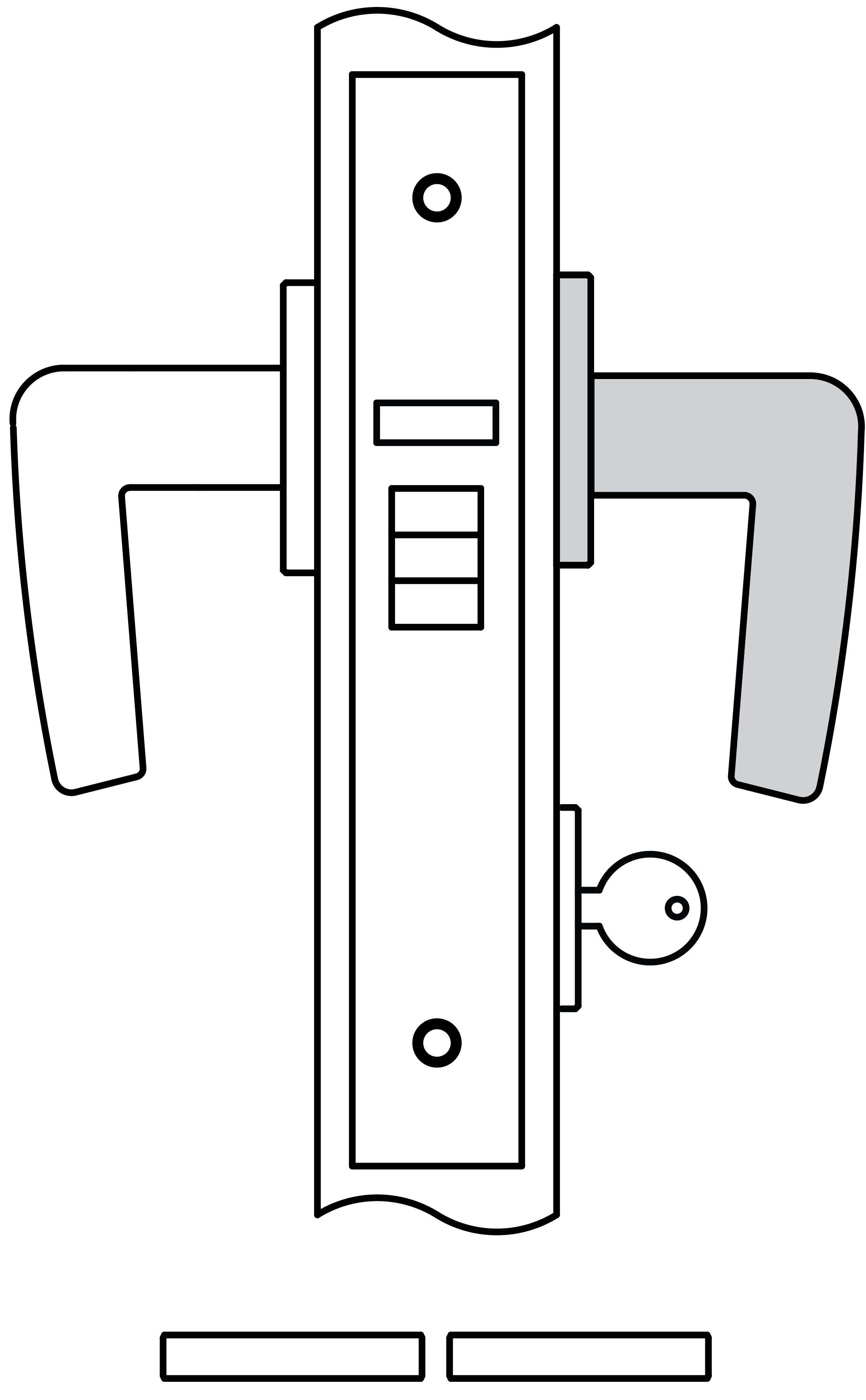

9059USD | 9159USD Store Room or Closet

(ANSI SERIES 1000-F07)


  • Latch by lever inside and key outside.
  • Outside lever always rigid.
  • Auxiliary latch deadlocks latch bolt.

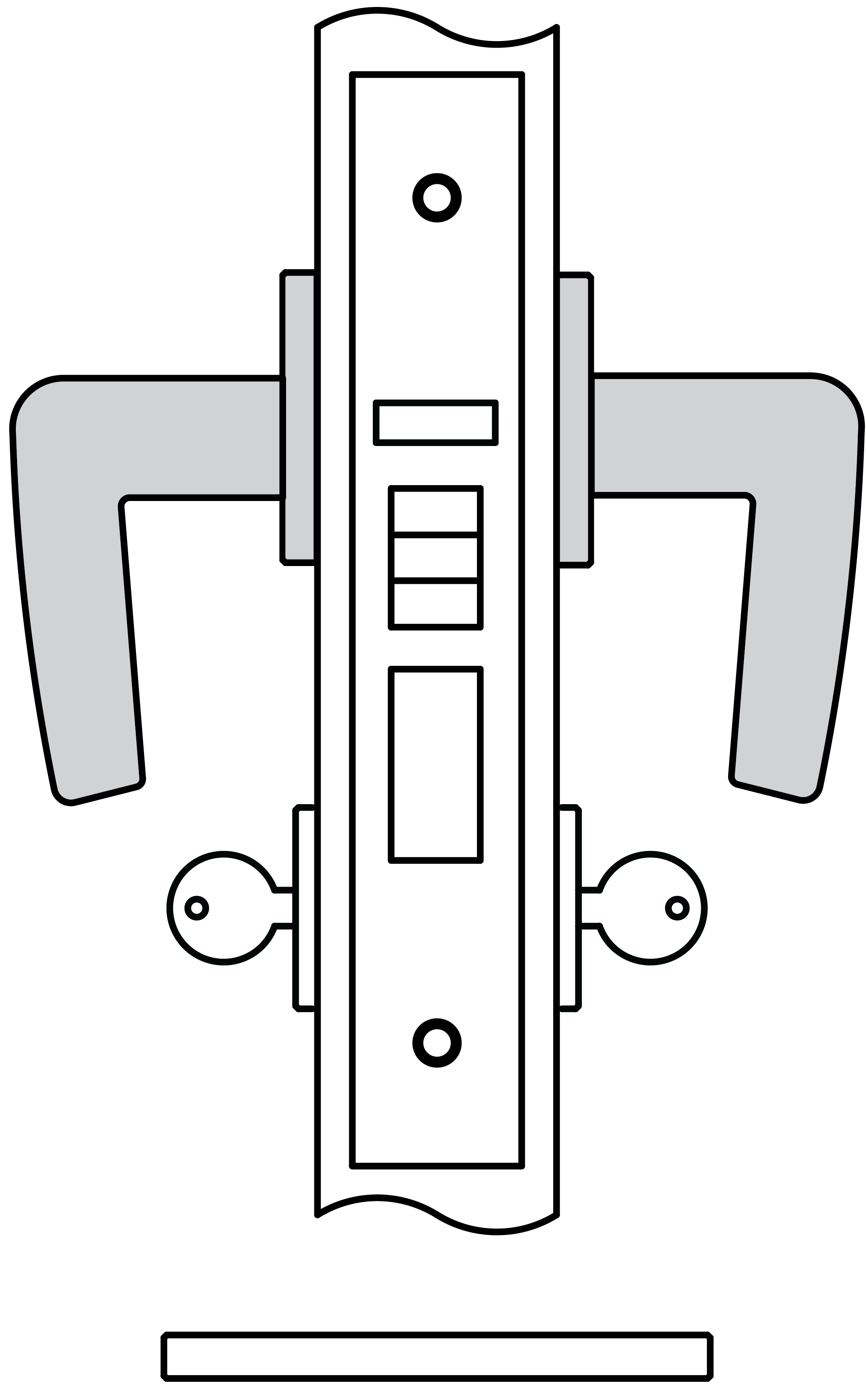

9060USD | 9160USD Asylum with Deadbolt


  • Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
  • Deadbolt by key outside and thumb turn inside.
  • Turning inside lever retracts latch and deadbolt simultaneously. Outside lever remains locked until manually unlocked by toggle.

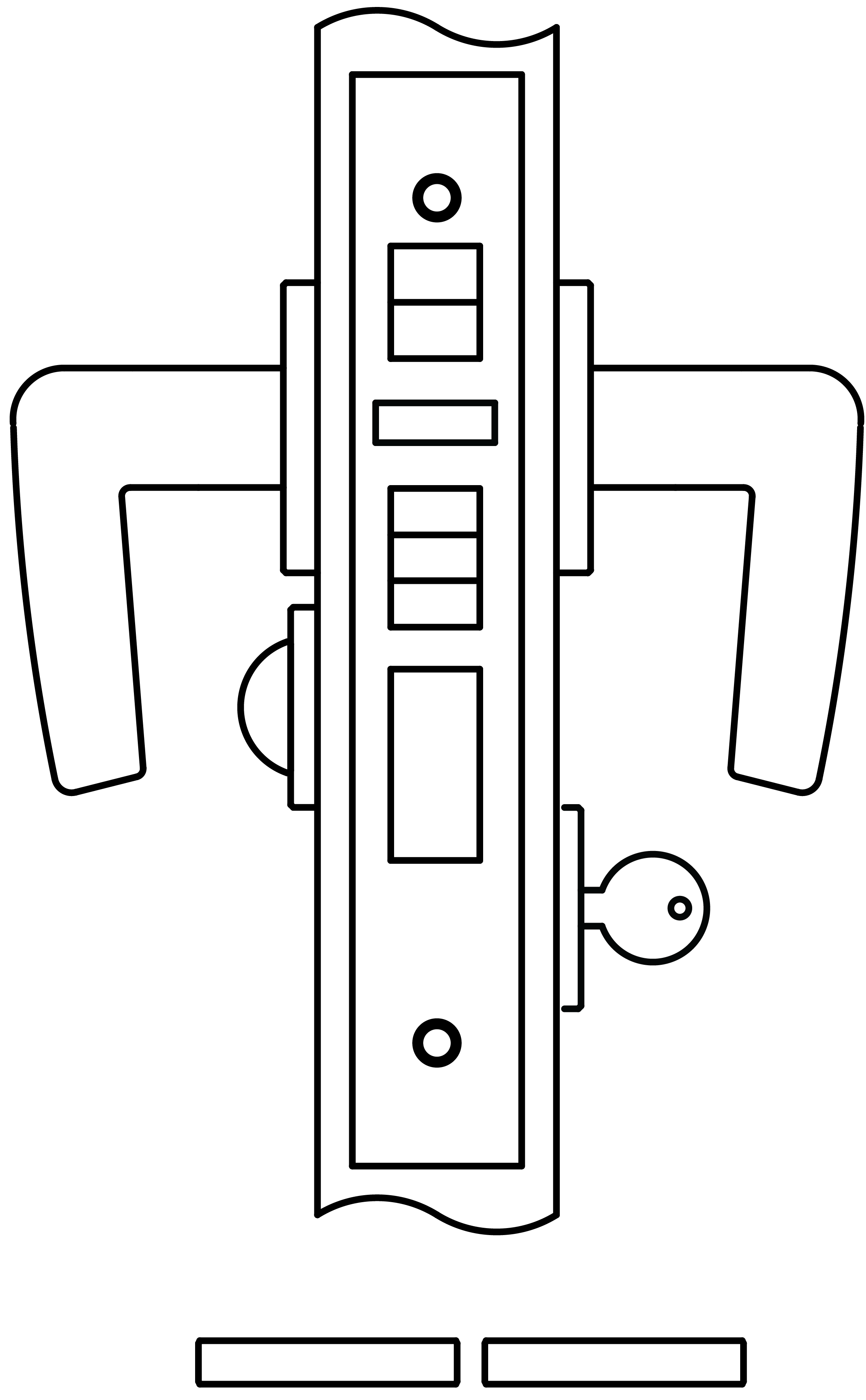

9067USD | 9167USD Entrance or Apartment

(ANSI SERIES 1000-F20)


  • Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
  • Deadbolt by key outside and thumb turn inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains locked until manually unlocked by toggle.
  • Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
View More Details +

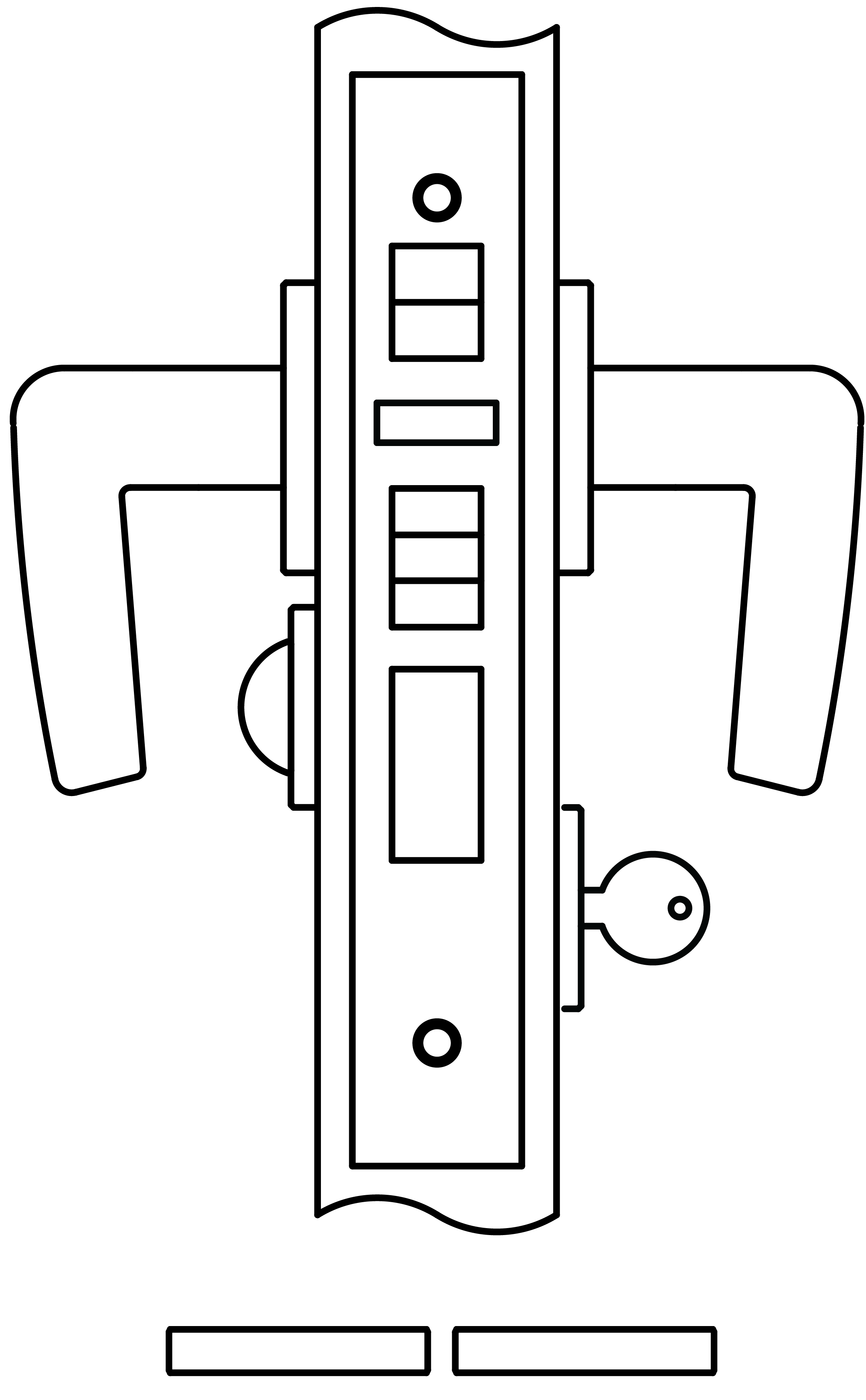

9069USD | 9169USD Entrance or Apartment


  • Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
  • Deadbolt by key outside and thumb turn inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
  • Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
  • *Function not offered on thumb grip x thumb grip applications.
View More Details +
View More Functions +










Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome
  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
  • DURO
    Duronotic
  • ESN
    Electroless Nickel
  • US15A
    Antique Nickel
  • US5
    Satin Brass + Black
  • Cerakote
    Protective Ceramic Coating
US26D
Satin Chrome





How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type Other



Examples
  • Upside Down Passage Lock | Accurate Trim
    E.g.: 9125USD. 212. 29L/1R. US10B. RH. 134
  • Upside Down Entry Lock | Other Manufacturers’ Trim
    E.g.: 9067USD. 234. LxL.8mm. US26. LHR. 234
