• The roller latch locks will come standard with no hubs, ideal for use on push/pull applications with Accurate flush pulls (e.g. 24RT, 24ST, FC3127, FC5007) or a pair of back to back 7200P pulls.
  • 2-1/2" or 2-3/4" backset standard.
  • If rigid hubs are required, please specify: -F: Suffix for rigid handles, indicated spindle size or trim manufacturer (i.e. 9124RL 8mm).

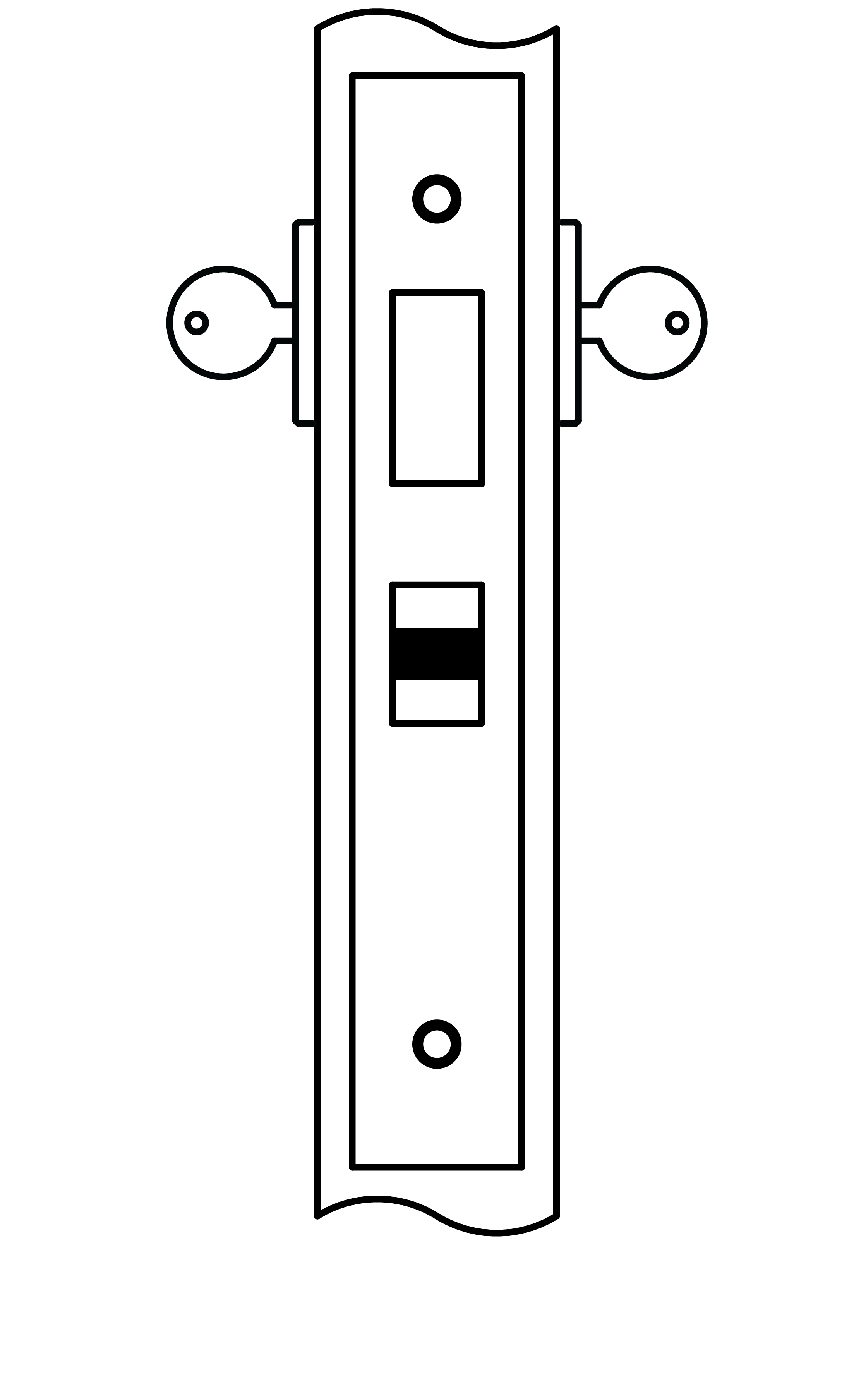

9022ARL | 9122ARL Double Cylinder Roller Latch


  • For push/pull privacy applications.
  • Deadbolt by key outside and inside.

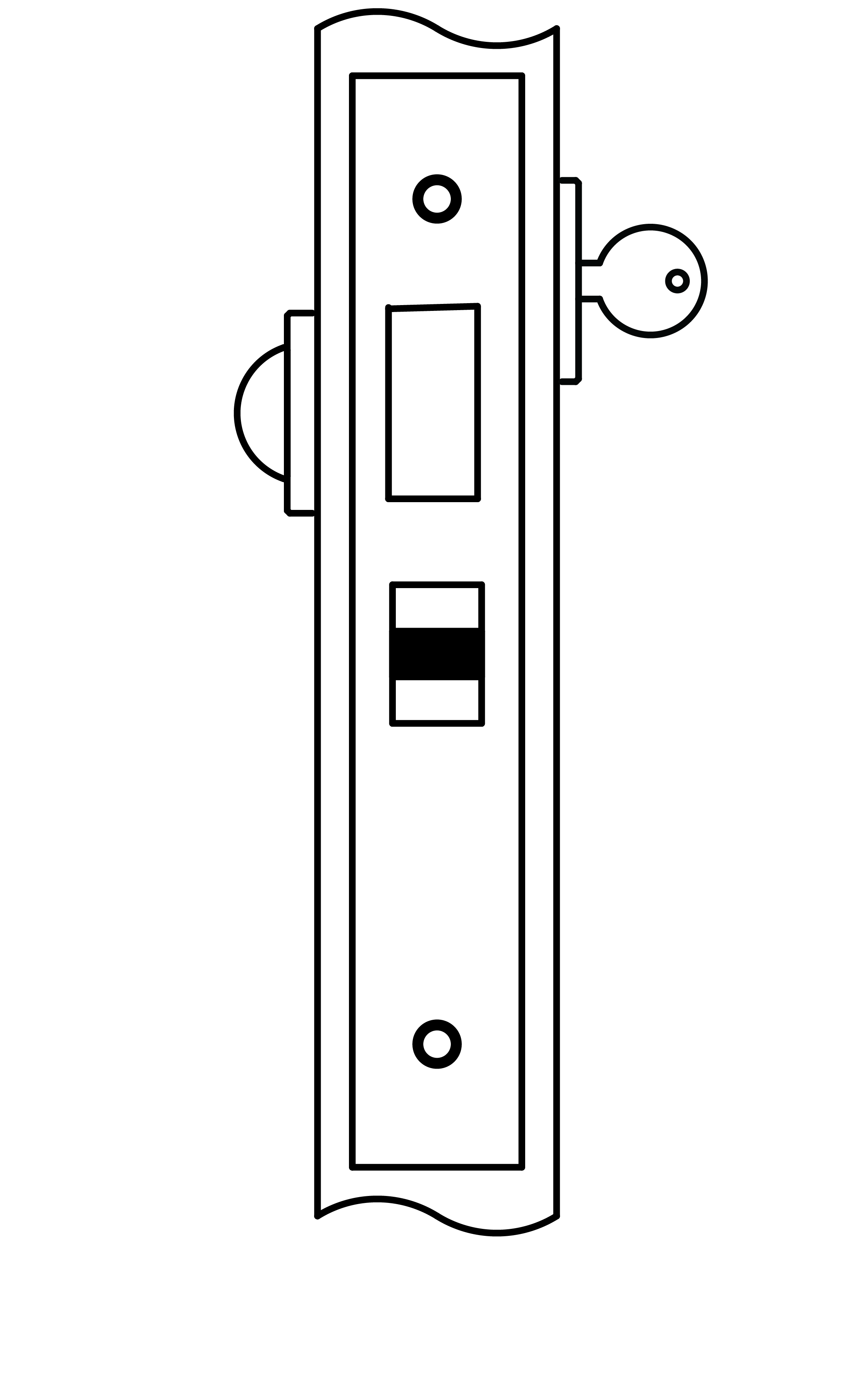

9024ARL | 9124ARL Roller Latch Lock


  • For push/pull privacy applications.
  • Deadbolt by key outside and thumb turn inside.

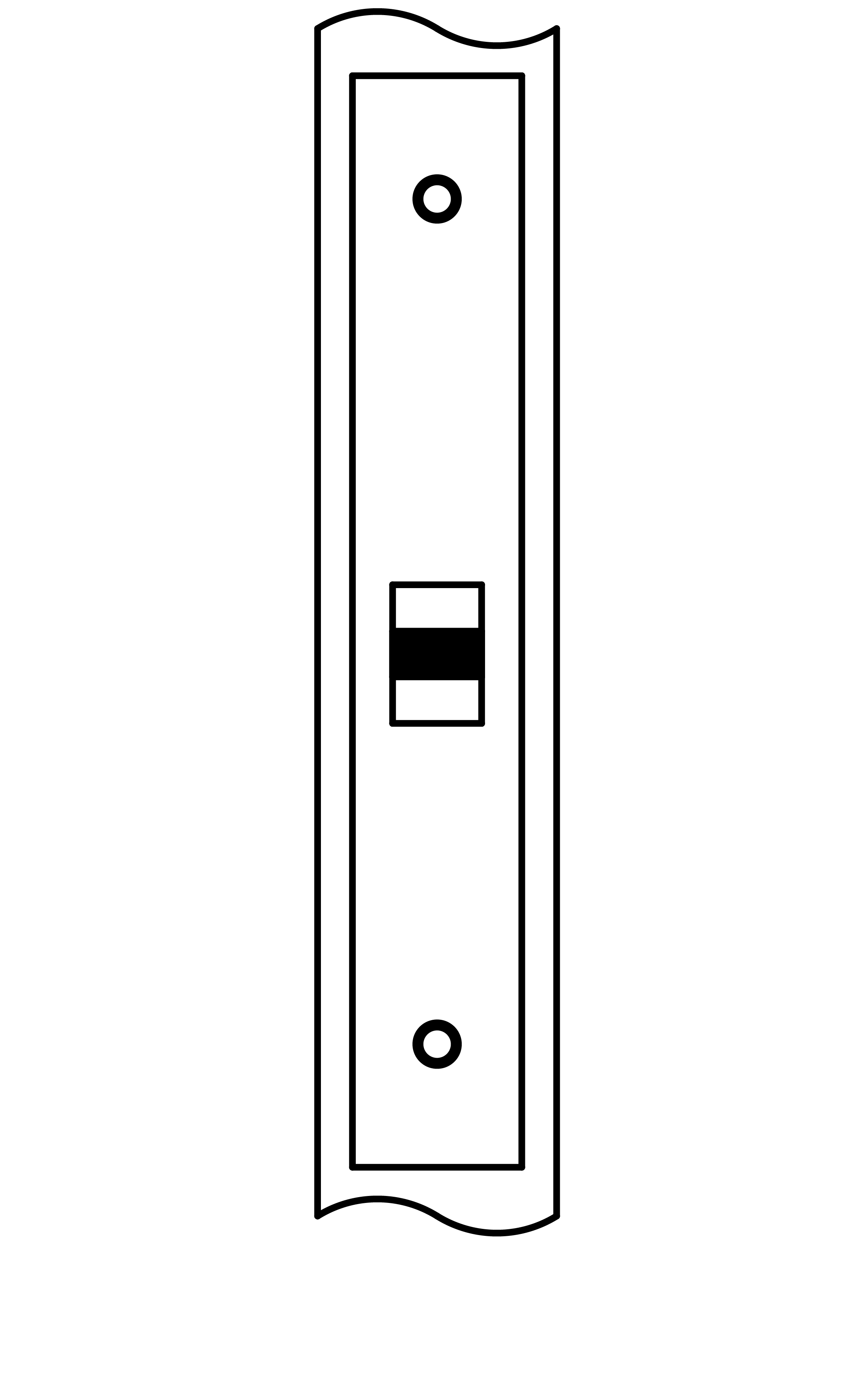

9025ARL | 9125ARL Passage


  • For push/pull passage applications.

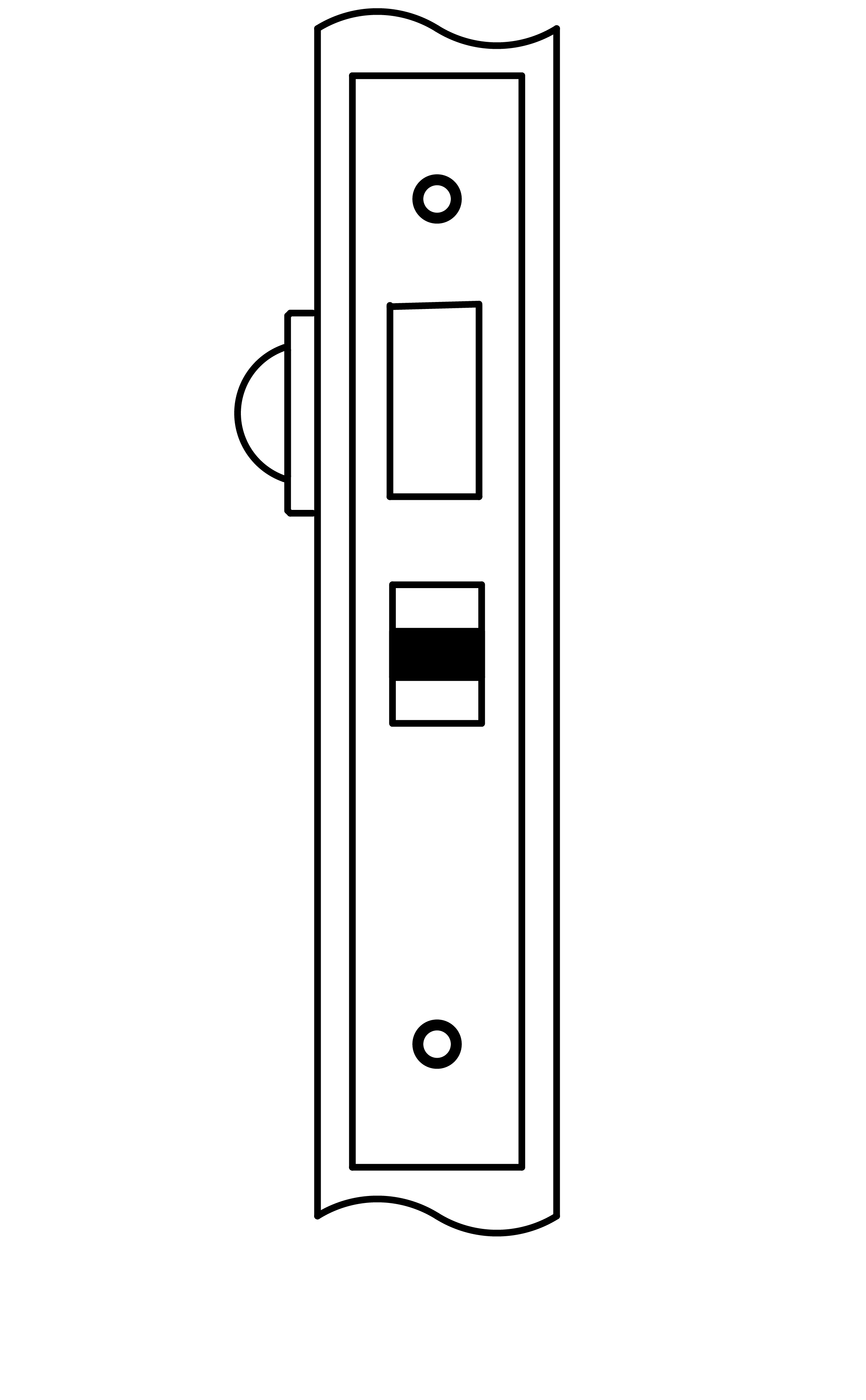

9039ARL | 9139ARL Passage


  • For push/pull privacy applications.
  • Deadbolt by thumb turn inside and optional emergency key outside.
View More Functions +





Sell Sheet
Specification Sheets
Installation Templates
Video

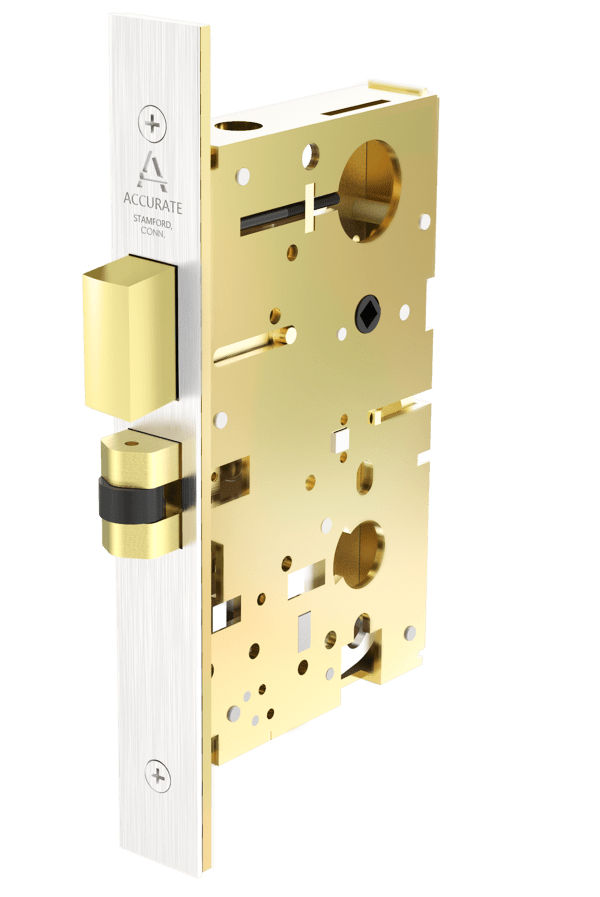

  • 9100ARL Adjustable Roller Latch Mortise Lock







Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome
  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
  • DURO
    Duronotic
  • ESN
    Electroless Nickel
  • US15A
    Antique Nickel
  • US5
    Satin Brass + Black
  • Cerakote
    Protective Ceramic Coating
US26D
Satin Chrome





How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness.



Examples
  • Adjustable Roller Latch | Double Cylinder | Accurate Rigid Pulls
    E.g.: 9122ARL. 212. 7200P. US26D. RH. 134
  • Adjustable Roller Latch | Passage | Other Manufacturers' Trim
    E.g.: 9125ARL-F. 234. 8mm. US3. LH. 134
  • Adjustable Roller Latch | Privacy | Accurate Rigid Pulls
    E.g.: 9039ARL. 234. 7200P. US10B. RH. 134
  • Adjustable Roller Latch | Privacy | Accurate Lever Trim
    E.g.: 9139ARL-F. 234. 21L/1R. US19. RH. 134
Notes
  • Furnished standard with adjustable latch bolt.
  • For compatibility, please contact us.
