8700ARL | 8800ARL
Narrow Backset Adjustable Roller Latch Mortise Lock
Roller latch locks now feature an adjustment to address both tension and latch projection. Designed for doors with narrow stiles that do not have any active levers, knobs or thumb latches, the 8800 Adjustable Roller Latch can help control door gaps caused by wind, weather and climate changes and maintain security.
- For Door Stiles 2 1/2" or wider.
- Roller latch locks will come standard with no hubs, ideal for use on push/pull applications with Accurate flush pulls (e.g. 24RT, 24ST, FC3127, FC5007) or a pair of back to back 7200 pulls.
- For 1-3/8" thick doors, specify 8700ARL.
- For 1-3/4" thick doors, specify 8800ARL.
- If rigid hubs are required, please specify: -F: Suffix for rigid handles, indicated spindle size or trim manufacturer (i.e. 8824ARL-F 8mm).

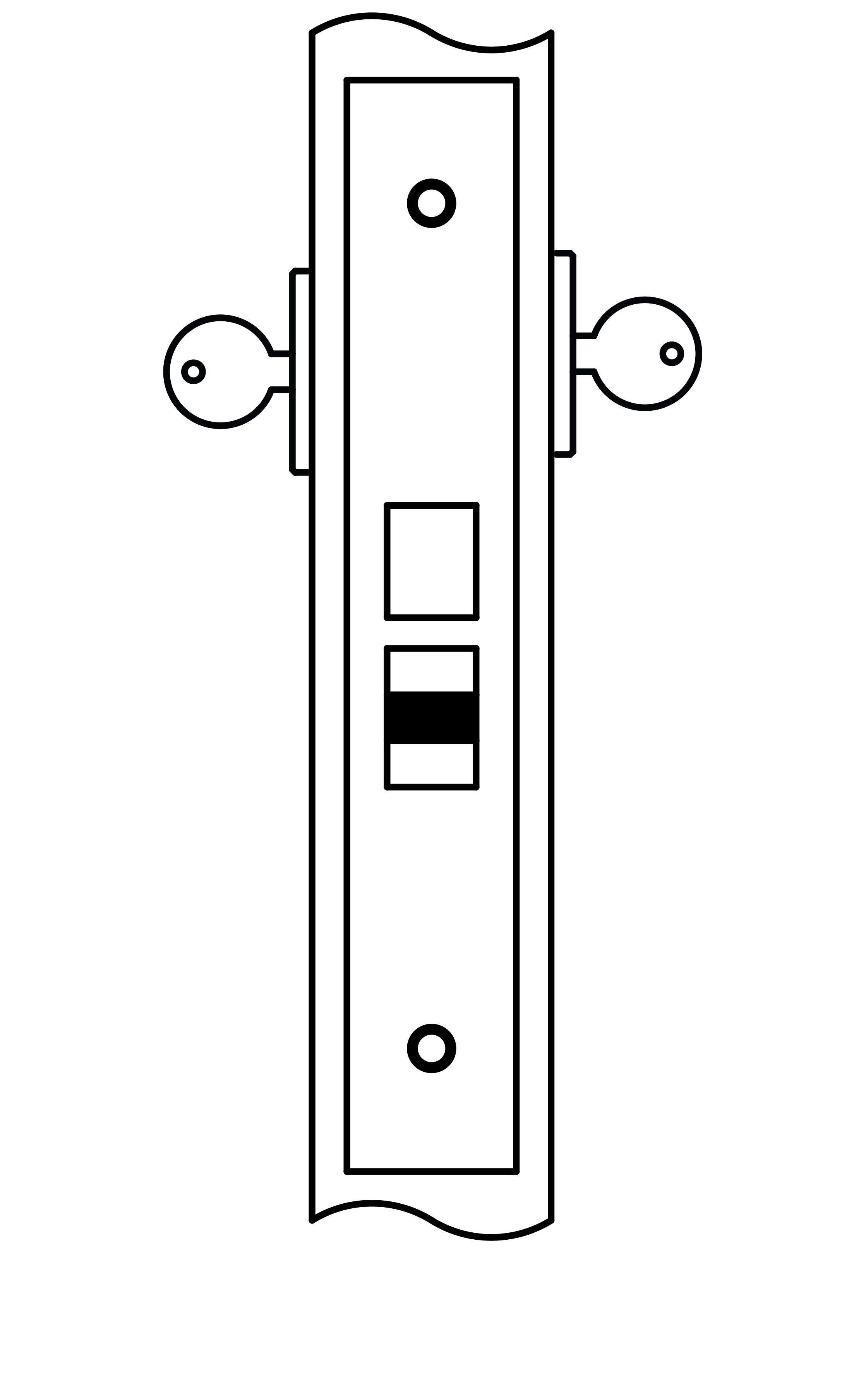

8722ARL | 8822ARL Double Cylinder Adjustable Roller Latch
- For push/pull privacy applications.
- Deadbolt by key outside and inside.

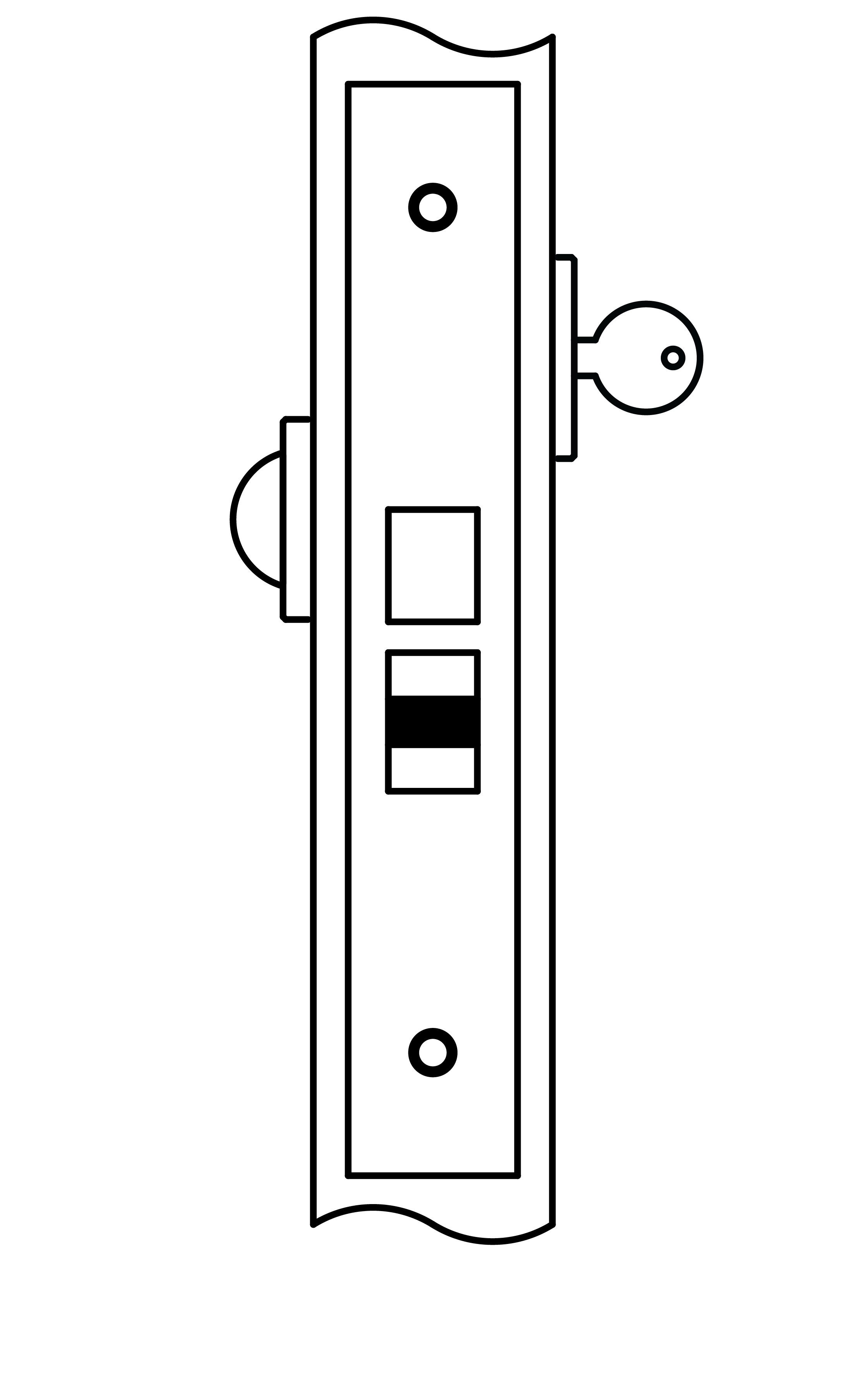

8724ARL | 8824ARL Privacy Adjustable Roller Latch
- For push/pull privacy applications.
- Deadbolt by key outside and thumb turn inside.

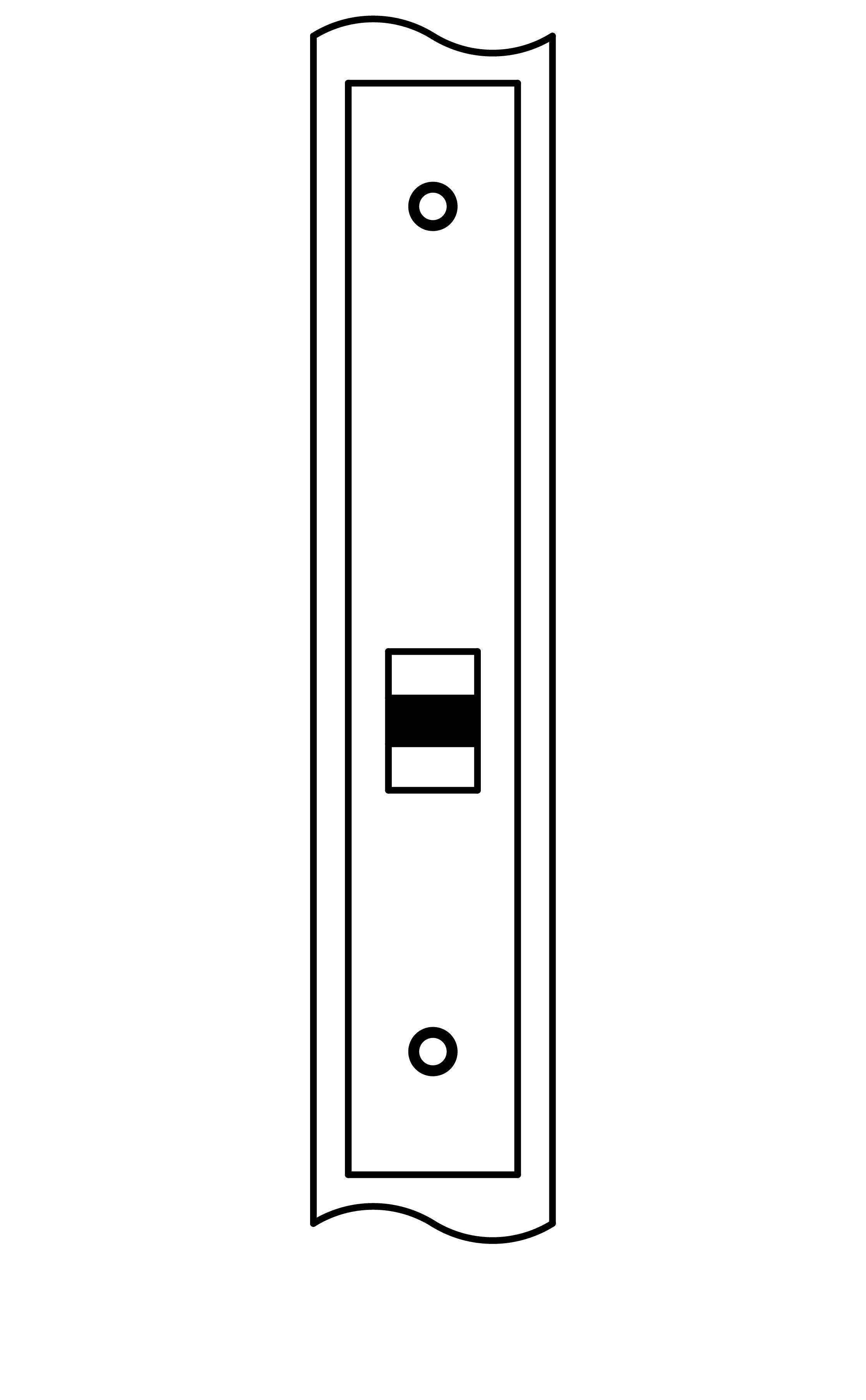

8725ARL | 8825ARL Passage Adjustable Roller Latch
- For push/pull passage applications.

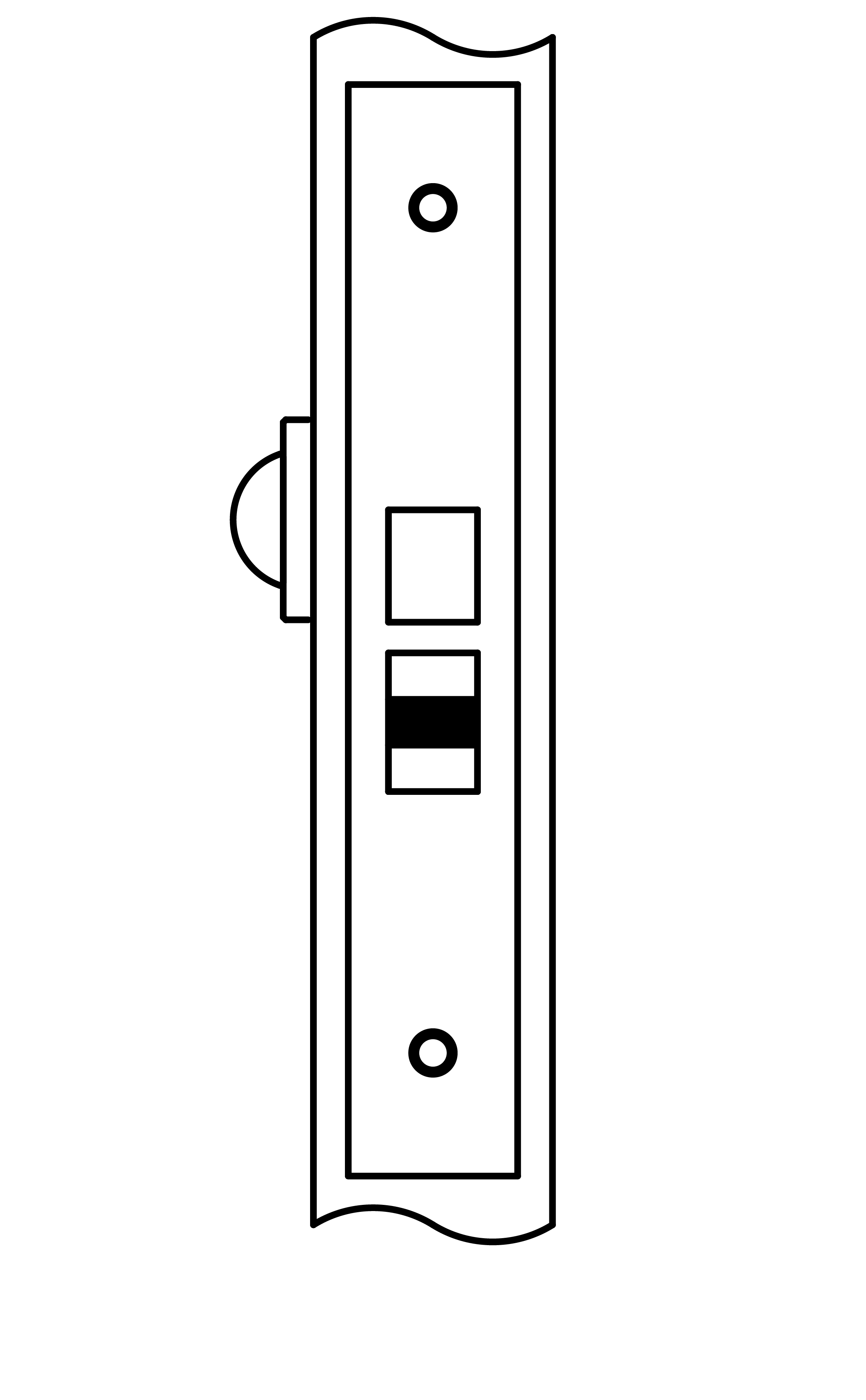

8739ARL | 8839ARL Privacy Adjustable Roller Latch
- For push/pull privacy applications.
- Deadbolt by thumb turn inside and optional emergency key outside.
Sell Sheet
Specification Sheets
Installation Templates
- T-ALH.8722ARL
- T-ALH.8724ARL
- T-ALH.8725ARL
- T-ALH.8739ARL
- T-ALH.8822ARL
- T-ALH.8824ARL
- T-ALH.8825ARL
- T-ALH.8839ARL
Video
-
8800ARL Narrow Backset Adjustable Roller Latch Mortise Lock
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Finish. Hand. Door Thickness. STRIKE
Examples
-
Adjustable Roller Latch | Narrow Backset | Passage | Other Manufacturers' Trim | Double Lipped Strike
E.g.: 8825ARL-F. 214. 8mm. US19. LH. 134. 8800ARL.DLS -
Adjustable Roller Latch | Narrow Backset | Privacy | Accurate Trim
E.g.: 8839ARL. 112. 7200P. US14. RH. 134 -
Adjustable Roller Latch | Narrow Backset | Double Cylinder | Accurate Trim
E.g.: 8822ARL. 2. 7200P. US26D. RH. 134
Notes
- Furnished standard with adjustable latch bolt.
- For compatibility, please call for assistance.
