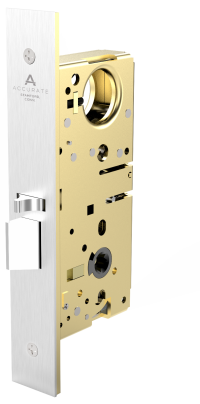

8700UL | 8800UL
UL Listed Narrow Backset Mortise Lock
UL Listed solution for doors requiring narrow backset locks, minimum 3″ stile recommended. Featuring Emergency Egress (single-action egress). On functions with latch and deadbolts, activating the inside handle will retract latch bolt and deadbolt simultaneously. Compatible with Accurate levers, roses and escutcheons or most other manufacturers’ trim.
- 1-3/4", 2", 2-1/4".
- For door stiles 2-1/2" or wider.
- Heavy gauge, plated steel case.
- Wrought brass, bronze or stainless steel armor front. Adjustable bevel.
- Brass latch bolt, solid type 3/4" throw.
- Brass deadbolt, 1" throw. Other throw sizes available as a custom order. Please call for assistance.
- 4-7/8" ASA strike.
- Hubs are available in different sizes to be compatible with various trim.
- Thumb turn hub 3/16" (5mm) on the diamond.
- Brass, stainless steel or oil rubbed bronze dust box.

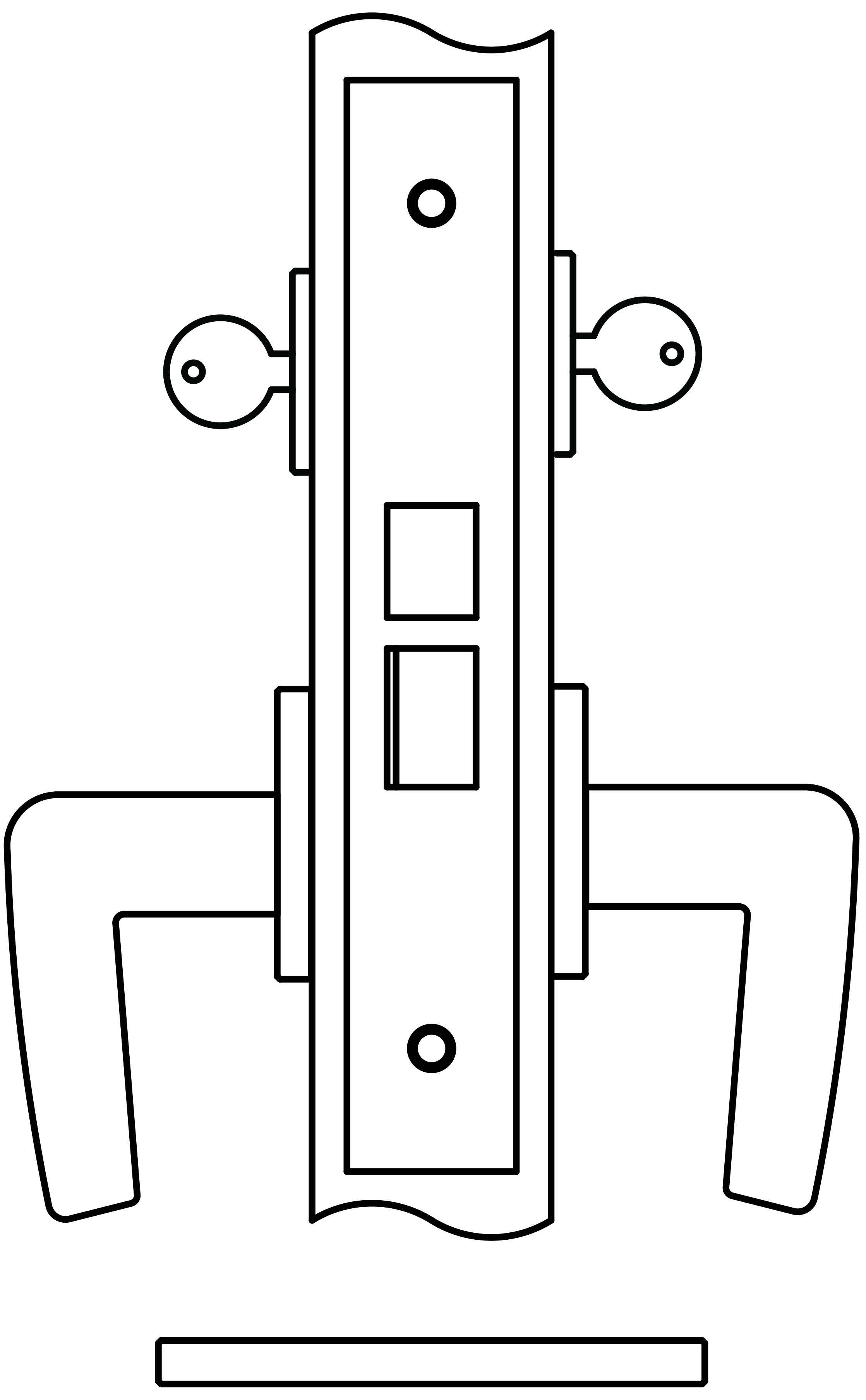

8722UL | 8822UL Store Door
(ANSI Series 1000-F14)
- Latch bolt by lever either side.
- Deadbolt by key either side.
- No emergency egress.

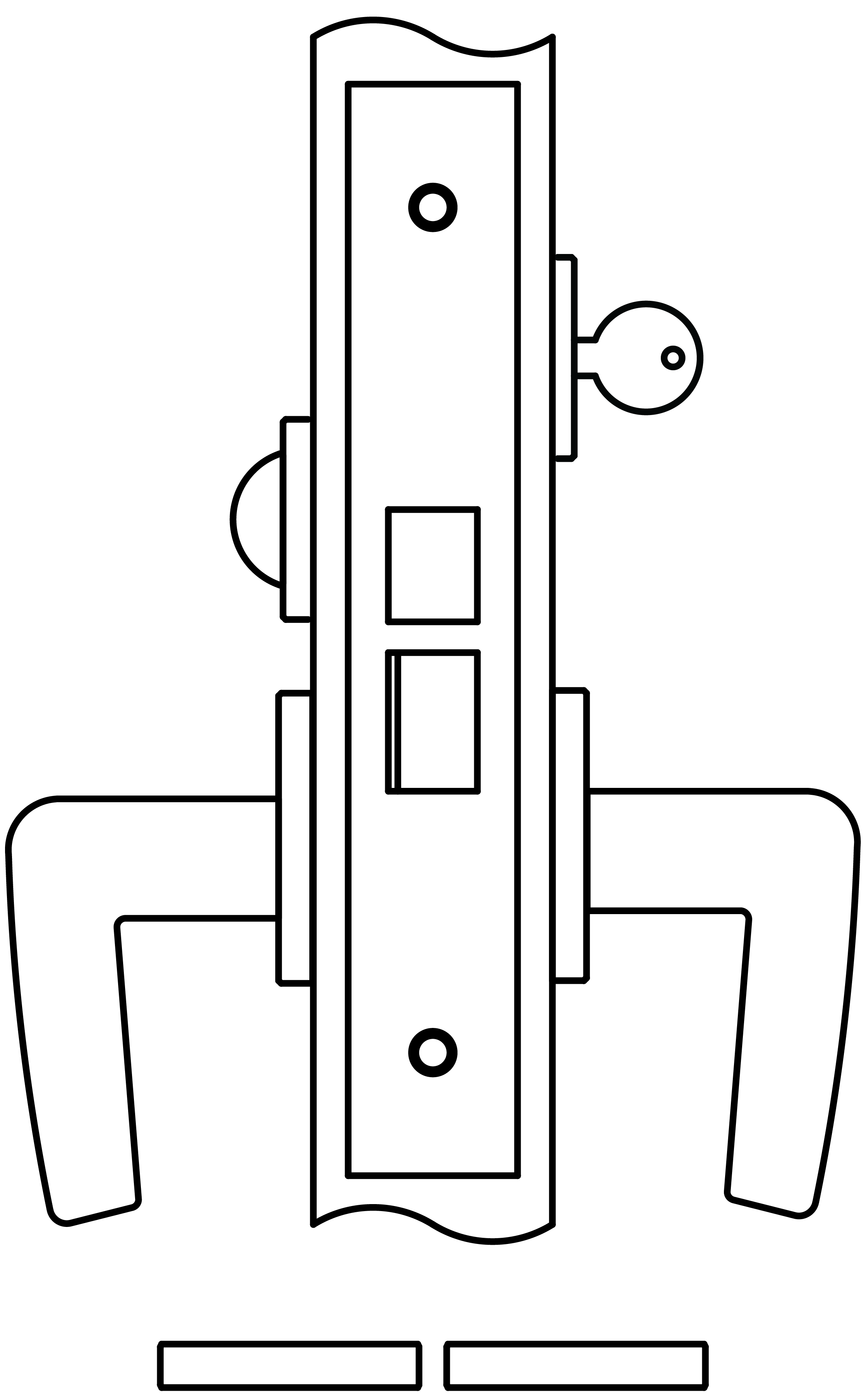

8724UL | 8824UL Dormitory
(ANSI Series 1000-F13)
- Latch bolt by lever either side.
- Deadbolt by key outside, thumb turn inside.
- A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

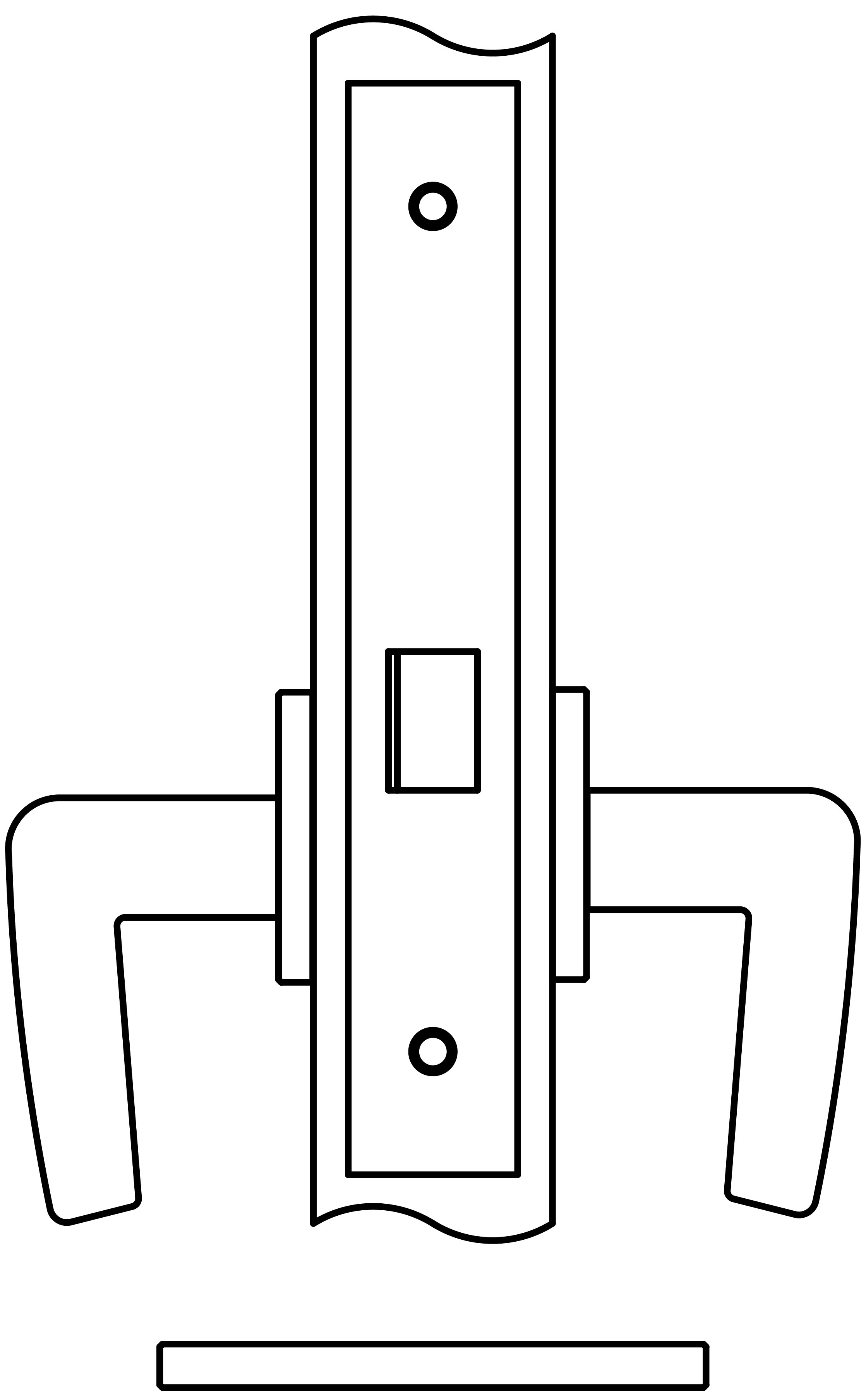

8725UL | 8825UL Passage
(ANSI Series 1000-F01)
- Latch bolt by lever either side.

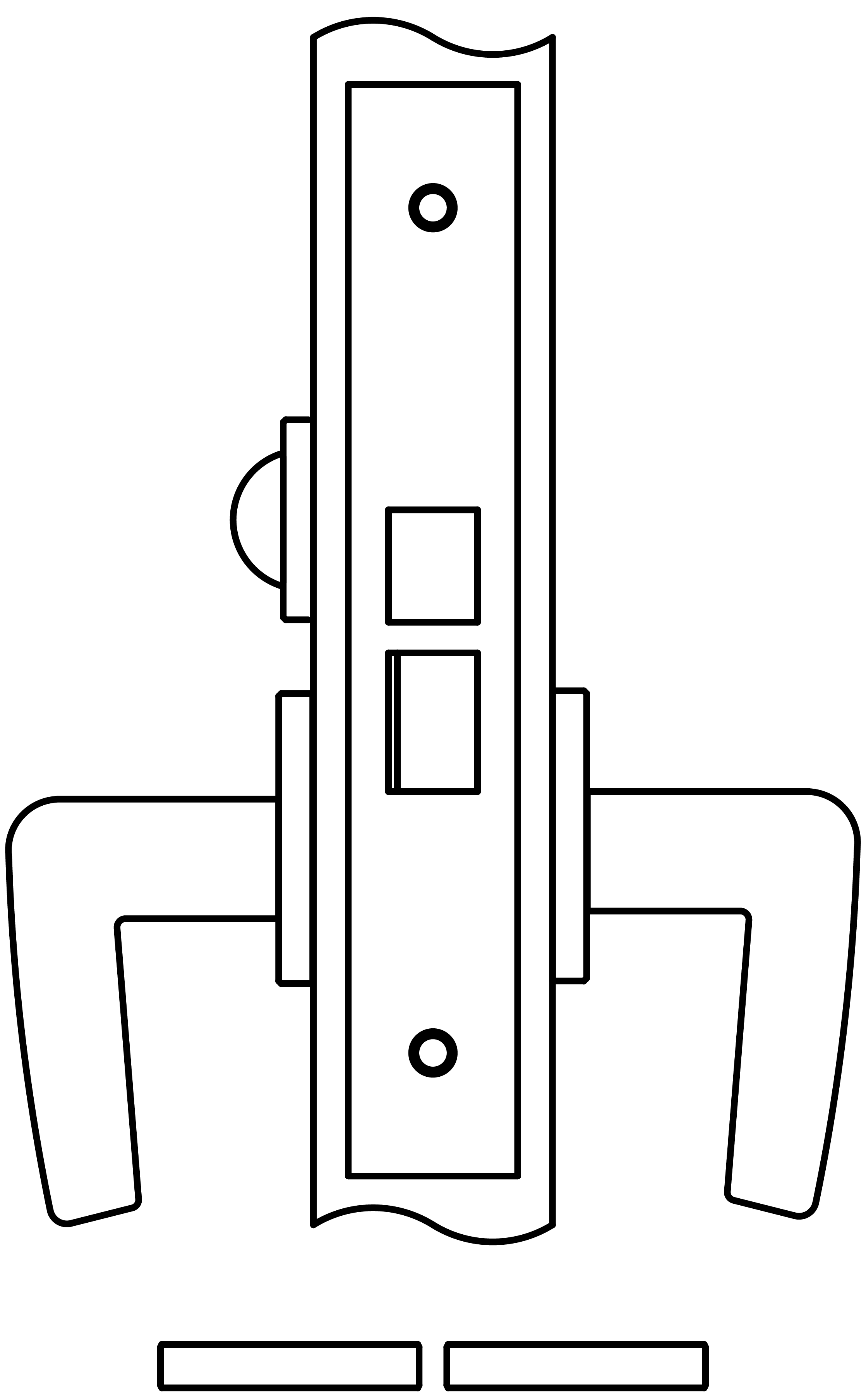

8739UL | 8839UL Privacy
(ANSI Series 1000-F19)
- Latch bolt by lever either side.
- Deadbolt by turn piece inside, optional emergency key outside.
- A turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

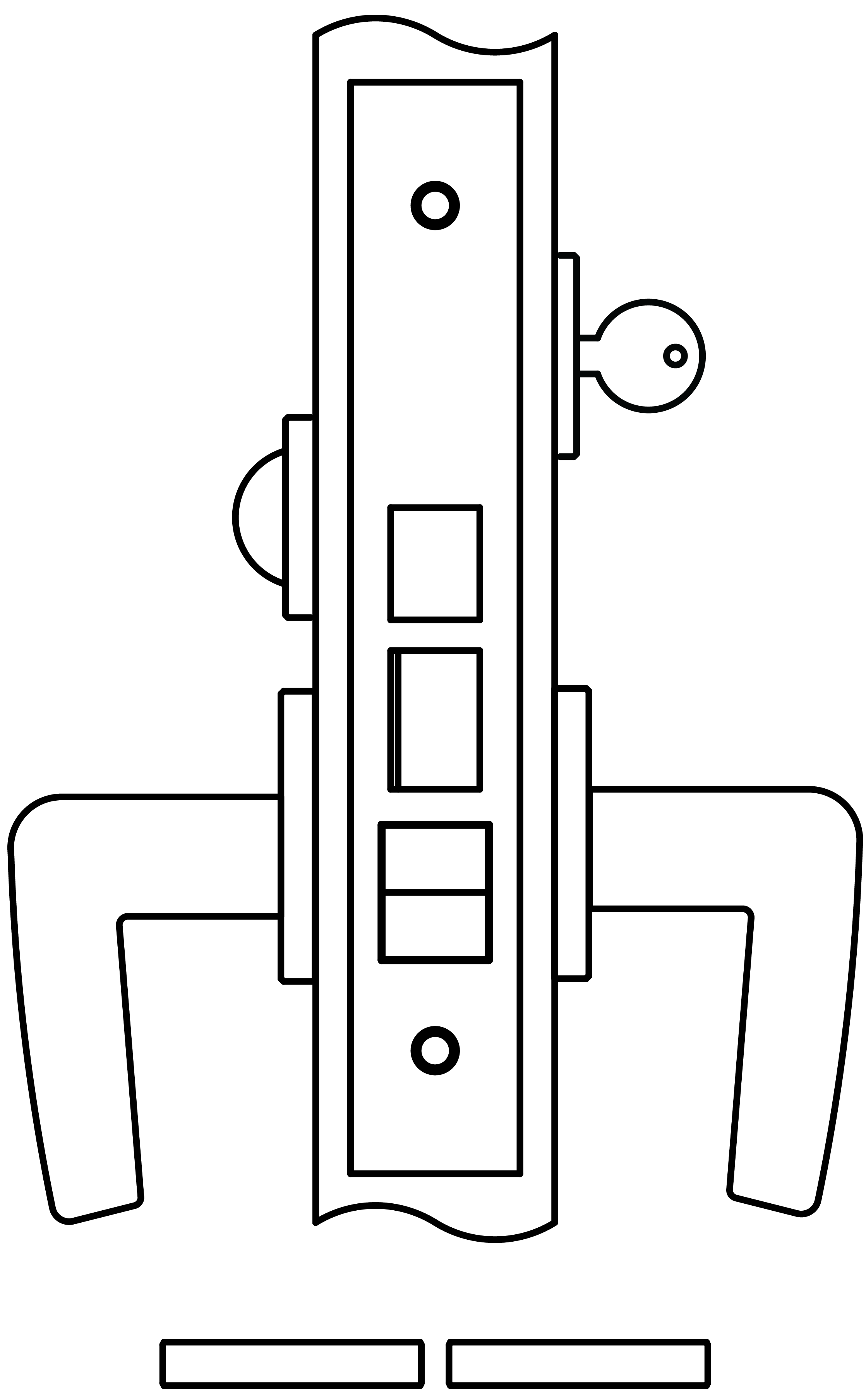

8748UL | 8848UL Entrance
(ANSI Series 1000-F12)
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and turn piece inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains locked until manually unlocked by toggle.

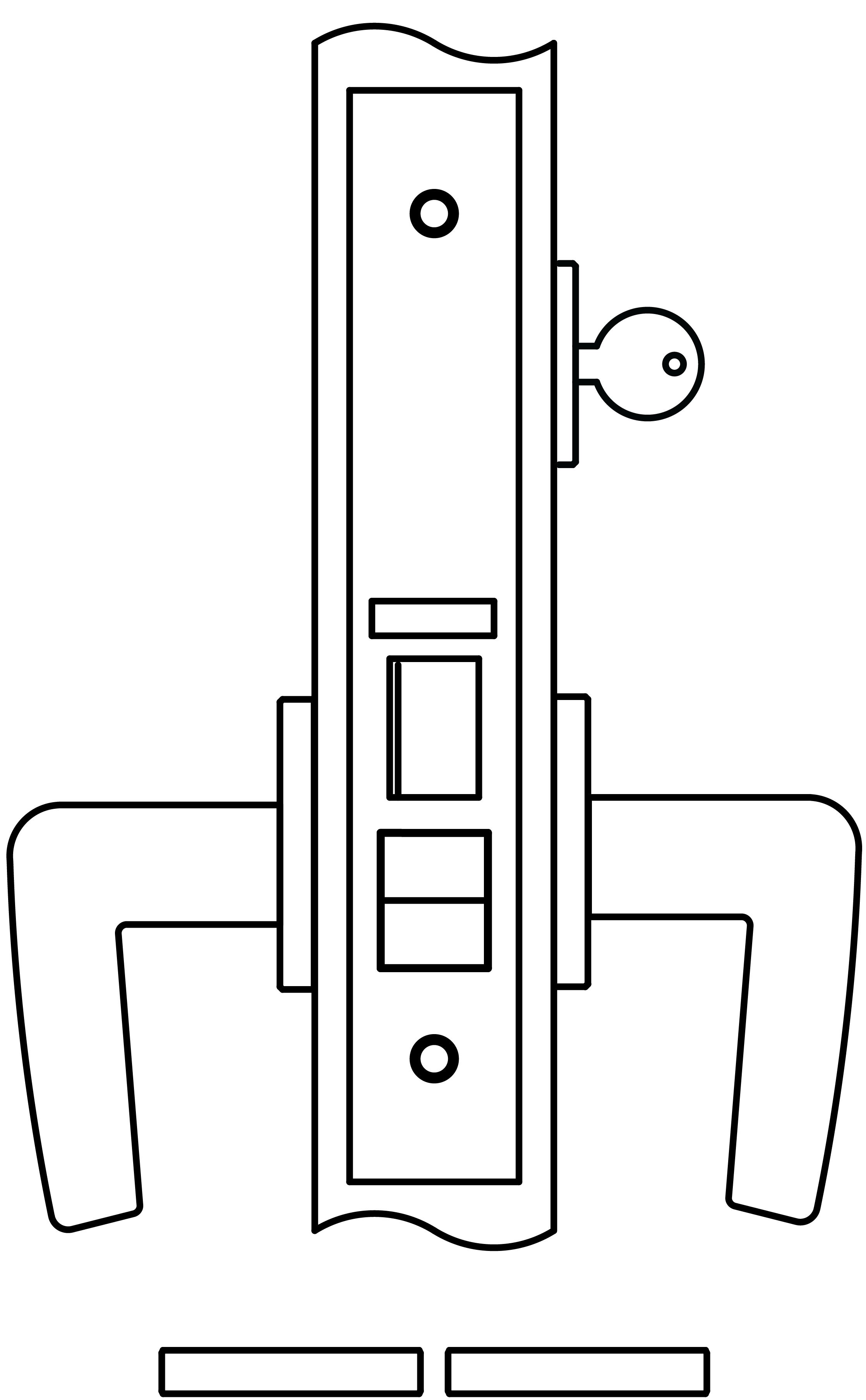

8756UL | 8856UL Entrance or Office
(ANSI SERIES 1000-F14)
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

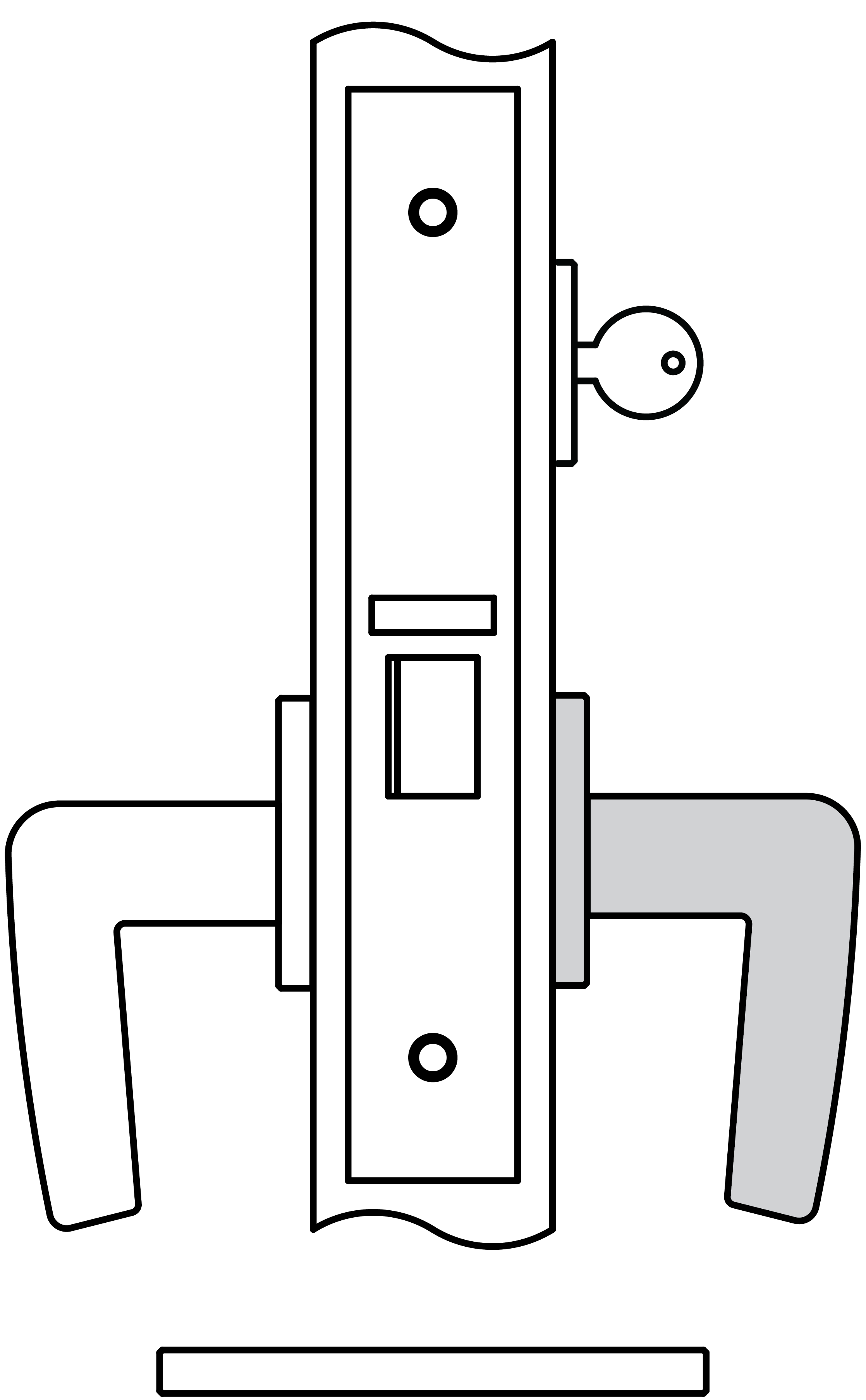

8759UL | 8859UL Storeroom
(ANSI Series 1000-F07)
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
Sell Sheets
- 8700UL | 8800UL Series Narrow Backset Mortise Lock
- UL Listing Certification
- UL Listing Certification ACSI
- UL Listing Certification Canada
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type Other
Examples
-
UL Listed Entry Lock | Knob x Knob | Other Manufacturers’ Trim
E.g.: 8824UL. 214. KxK.8mm. US4. RH. 134 -
UL Listed Office Lock| Accurate Trim | 1 ¾” Thick Door
E.g.: 8825UL. 134. 29L/2R. US26D. LH. 134
