8700 | 8800

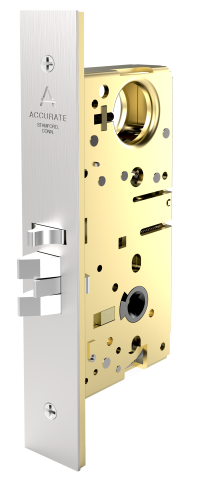

Narrow Backset Mortise Lock
The popular lock for narrow stile doors now features an anti-friction latch. This smoother, upgraded latch will result in more reliable closing, higher performance and overall better operation by reducing friction when it engages with the strike. Pair with Accurate lever trim in a variety of finishes and functions. Solid latch bolt furnished standard on 1-1/2” backset functions with deadbolts. See functions for certain exclusions.
- 8700 Series comes standard with a 1″ wide faceplate
- 8800 Series comes standard with a 1 1/4″ wide faceplate
RMS Standard Product
- 1-1/2", 1-3/4", 2", 2-1/4" backsets standard.
- For door stiles 3" or wider.
- Heavy gauge, plated steel case (15/16" thick).
- Adjustable bevel brass, bronze, or stainless steel armor front, finished as required.
- Brass latch bolt, anti-friction type, 1/2" throw.
- Brass deadbolt, 1" throw. Other throw sizes available as a custom order. Please call for assistance.
- 4-7/8" ASA Strike.
- Hubs available in different sizes to be compatible with various trim.
- Thumb Turn Hub: 3/16" (5mm) on the diamond.
- Brass, stainless steel or oil rubbed bronze dust box.
- Electromechanical versions available (M8800E, M8800ELR).
- 8700 Series comes standard with a 1" wide faceplate
- 8800 Series comes standard with a 1 1/4" wide faceplate

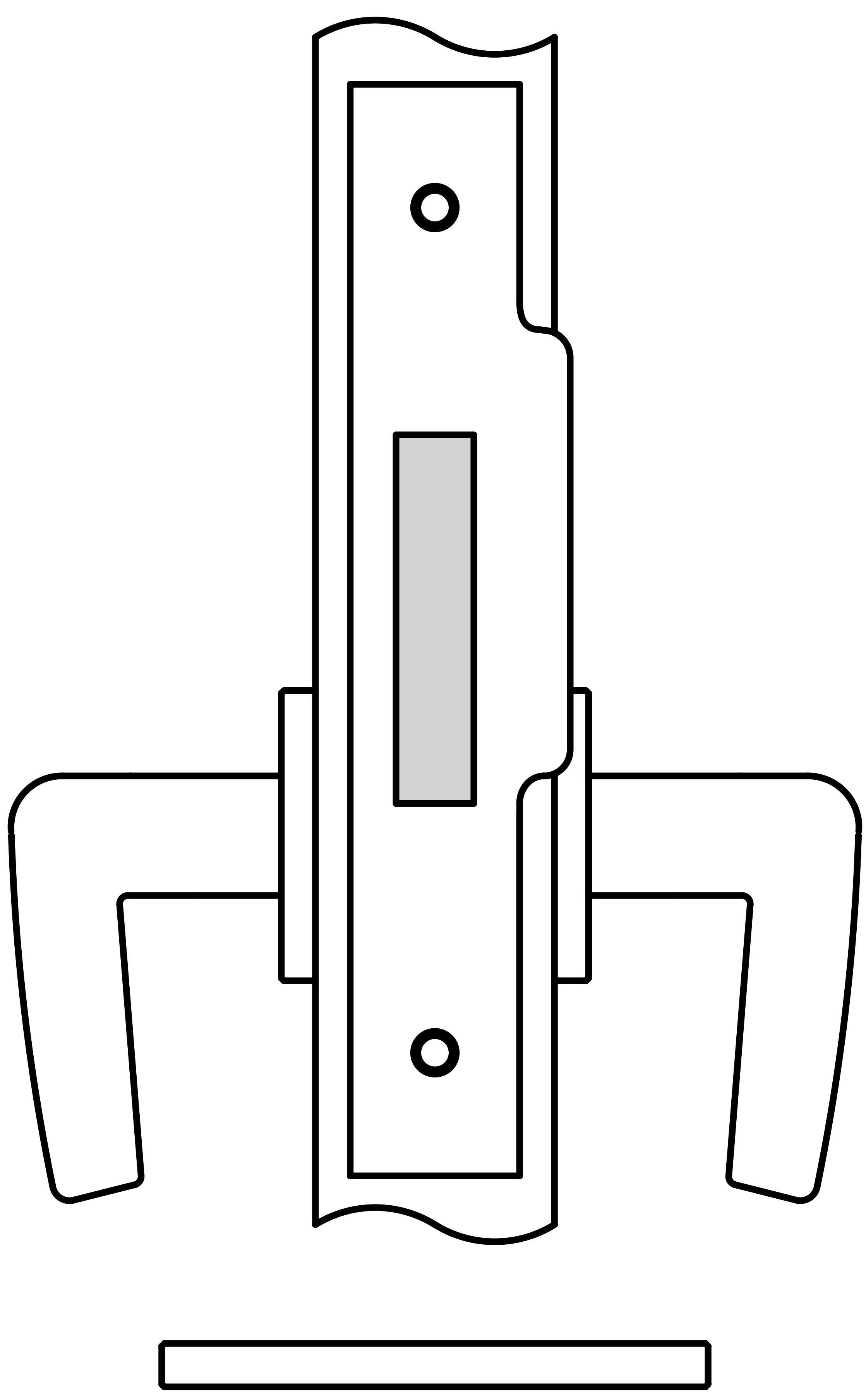

8700ADLS | 8800ADLS Active Dummy Lock as Strike
- Active handles inside and outside.
- For use on “dummy door” (in double door applications).

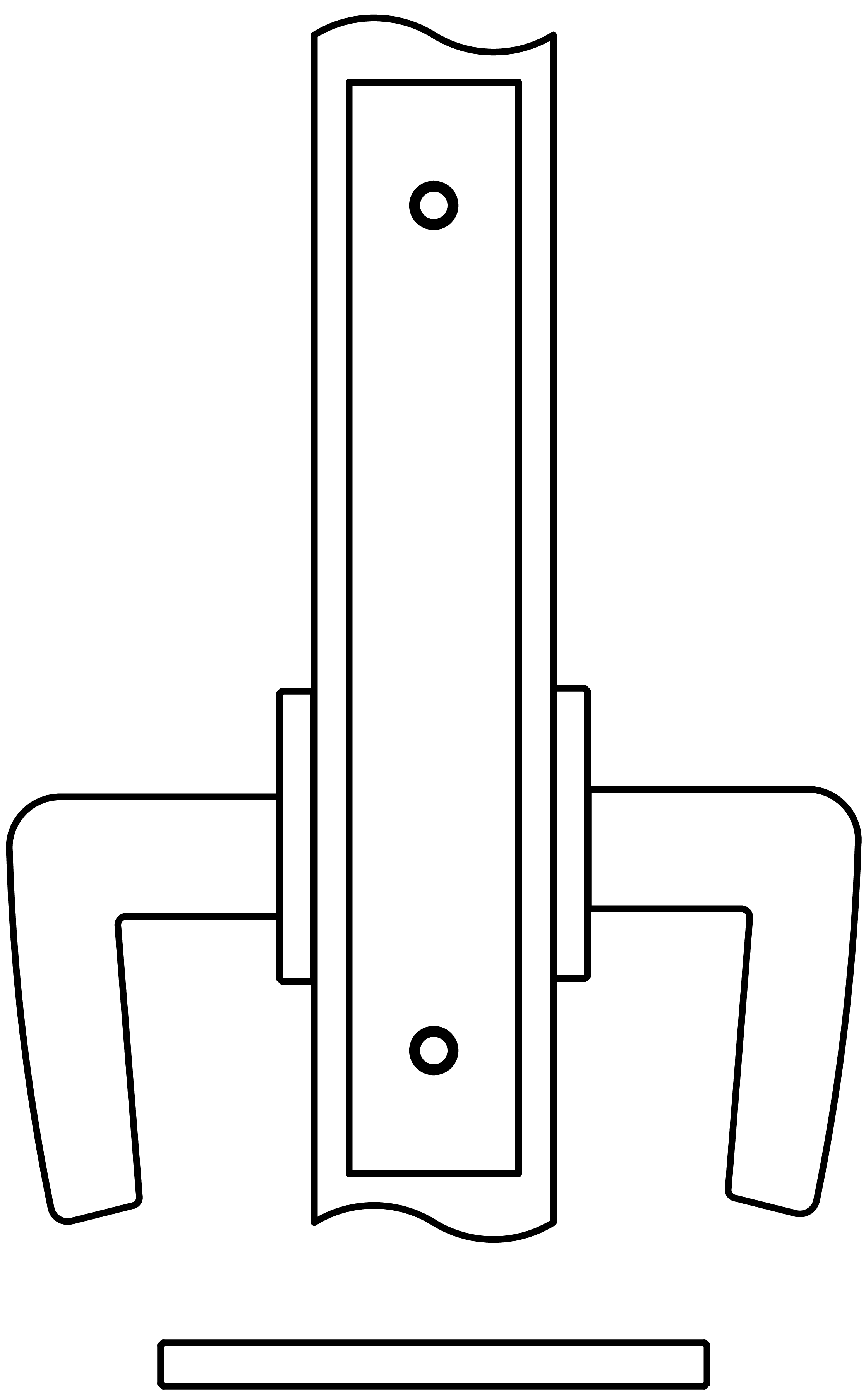

8700ADL | 8800ADL Active Dummy Lock
- Active handles inside and outside.

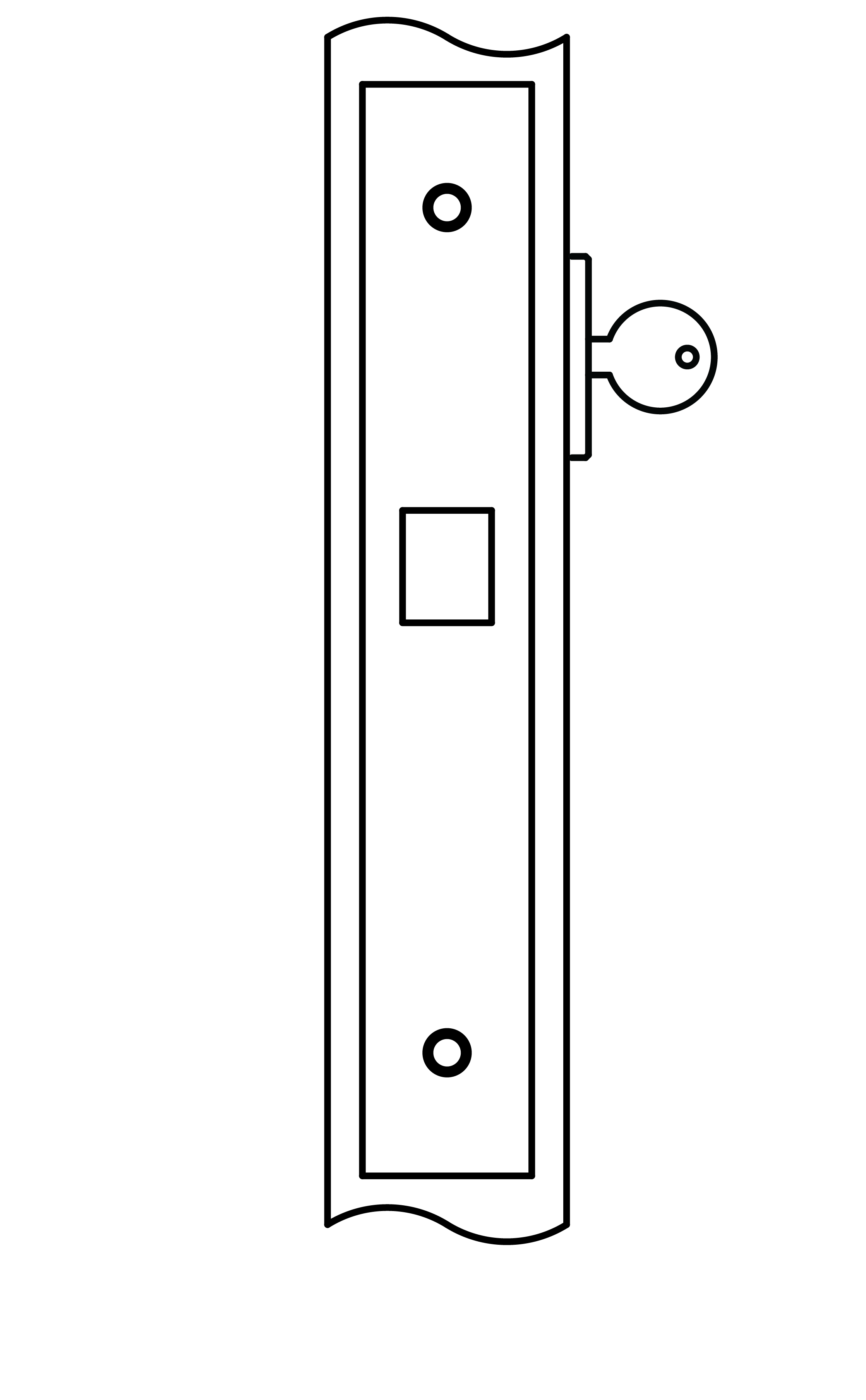

8701 | 8801 Deadlock
(ANSI Series 1000-F18)
- Deadbolt by key outside.
- No inside operation.

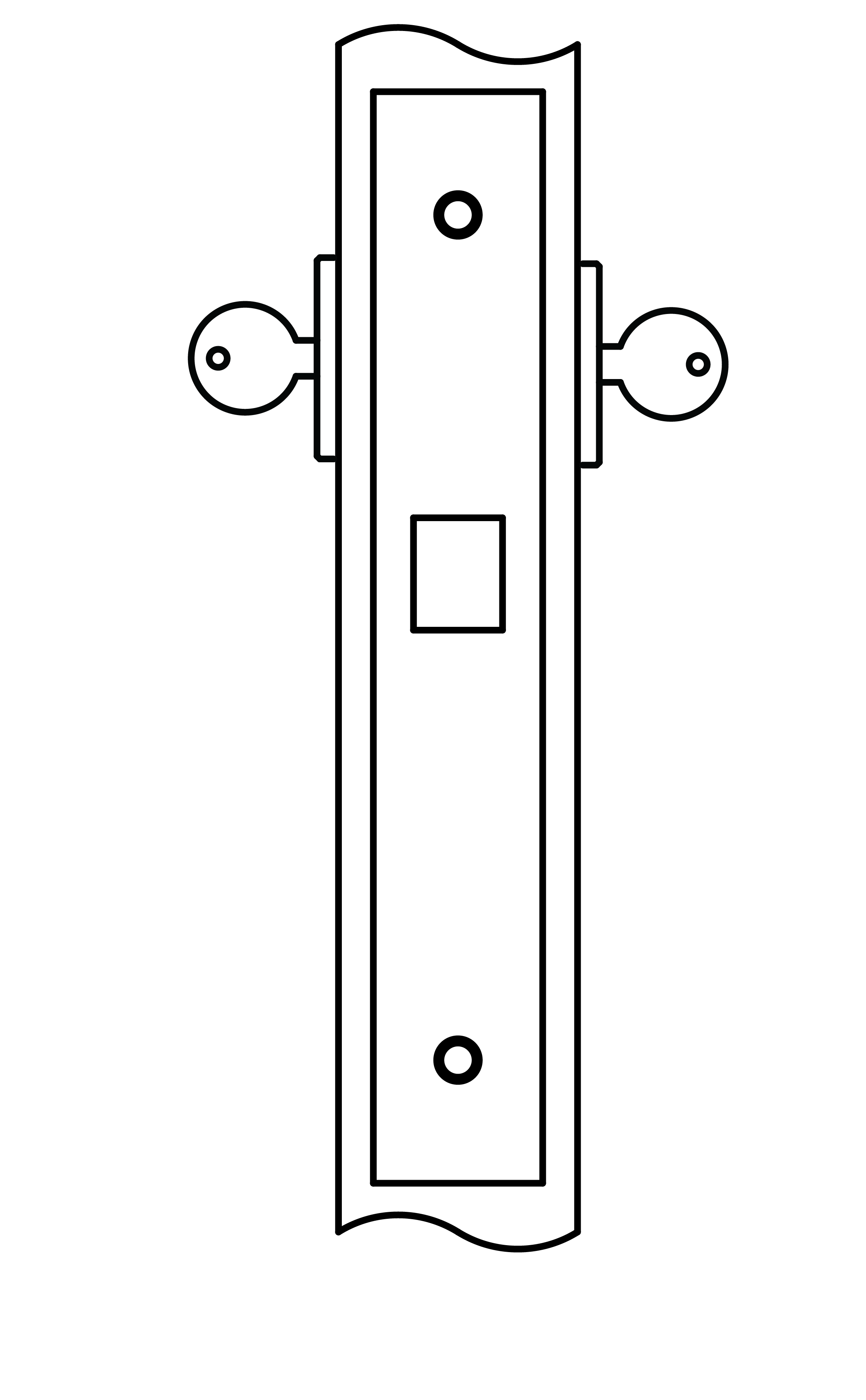

8702 | 8802 Deadlock
(ANSI Series 1000-F16)
- Deadbolt by key either side.

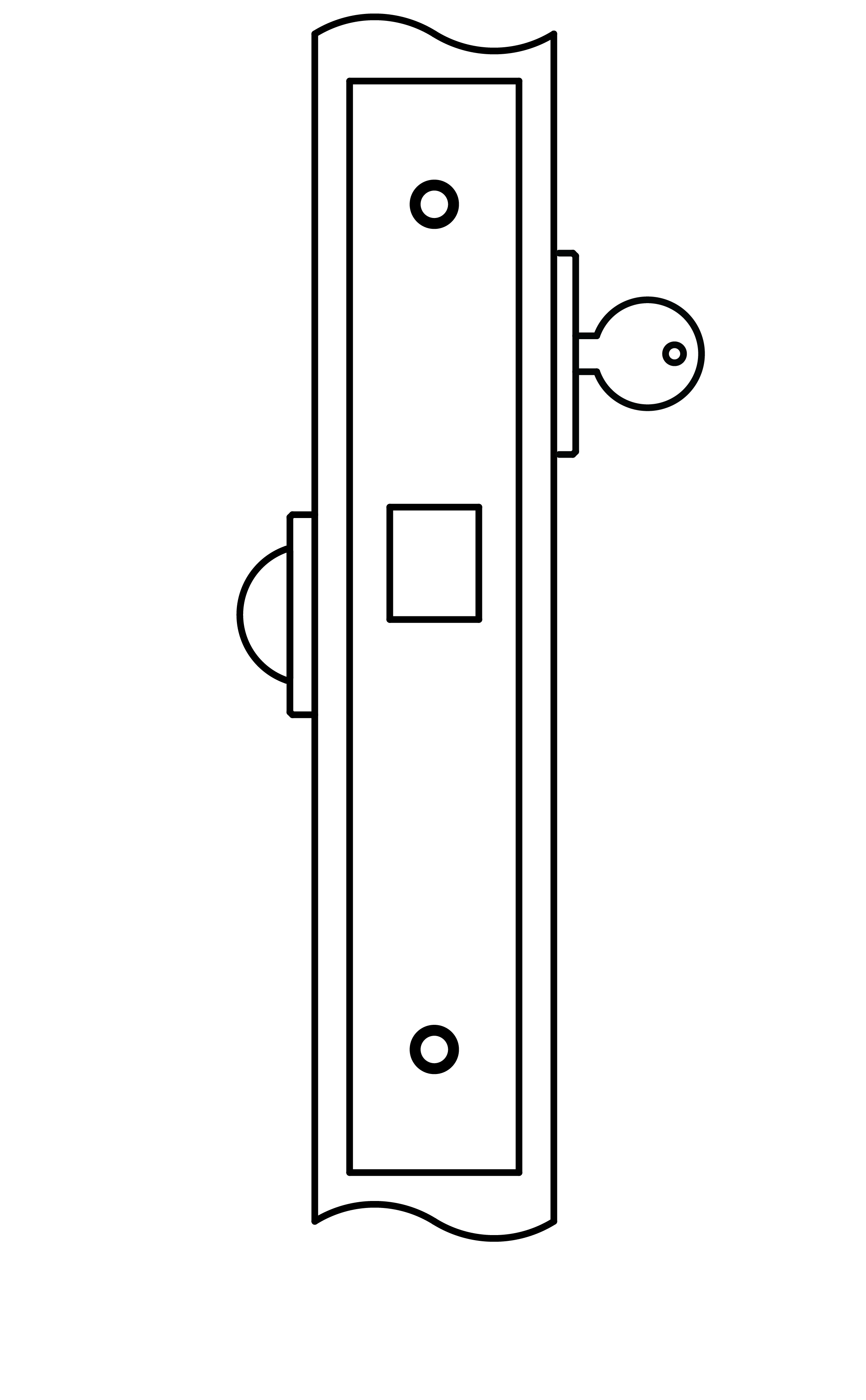

8703 | 8803 Deadlock
(ANSI Series 1000-F17)
- Deadbolt by key outside and turn piece inside.

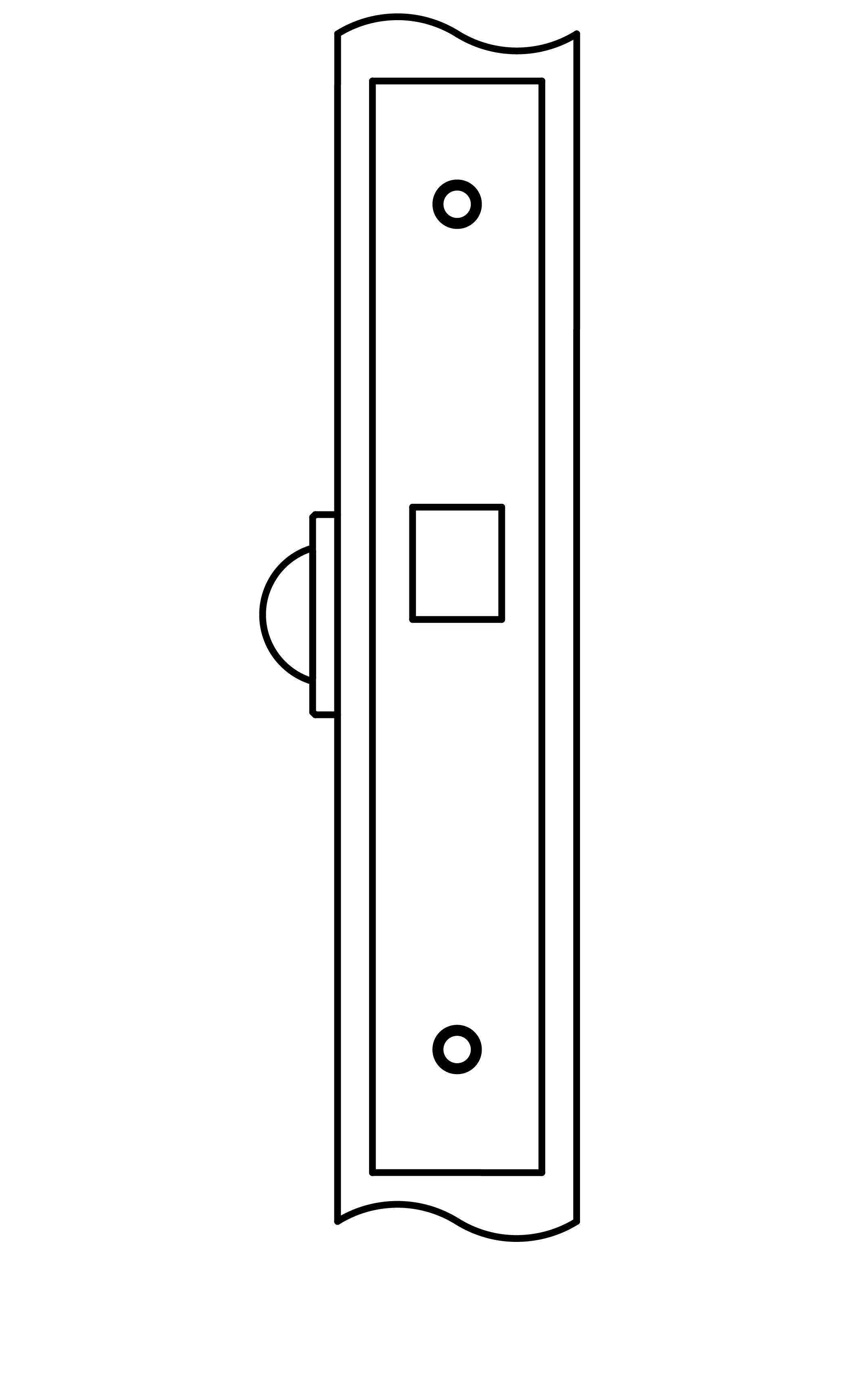

8704 | 8804 Deadlock
- Deadbolt by turn piece inside.
- No outside operation.

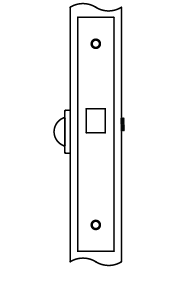

8705 | 8805 Deadlock
- Deadbolt by turn piece inside and emergency key outside.

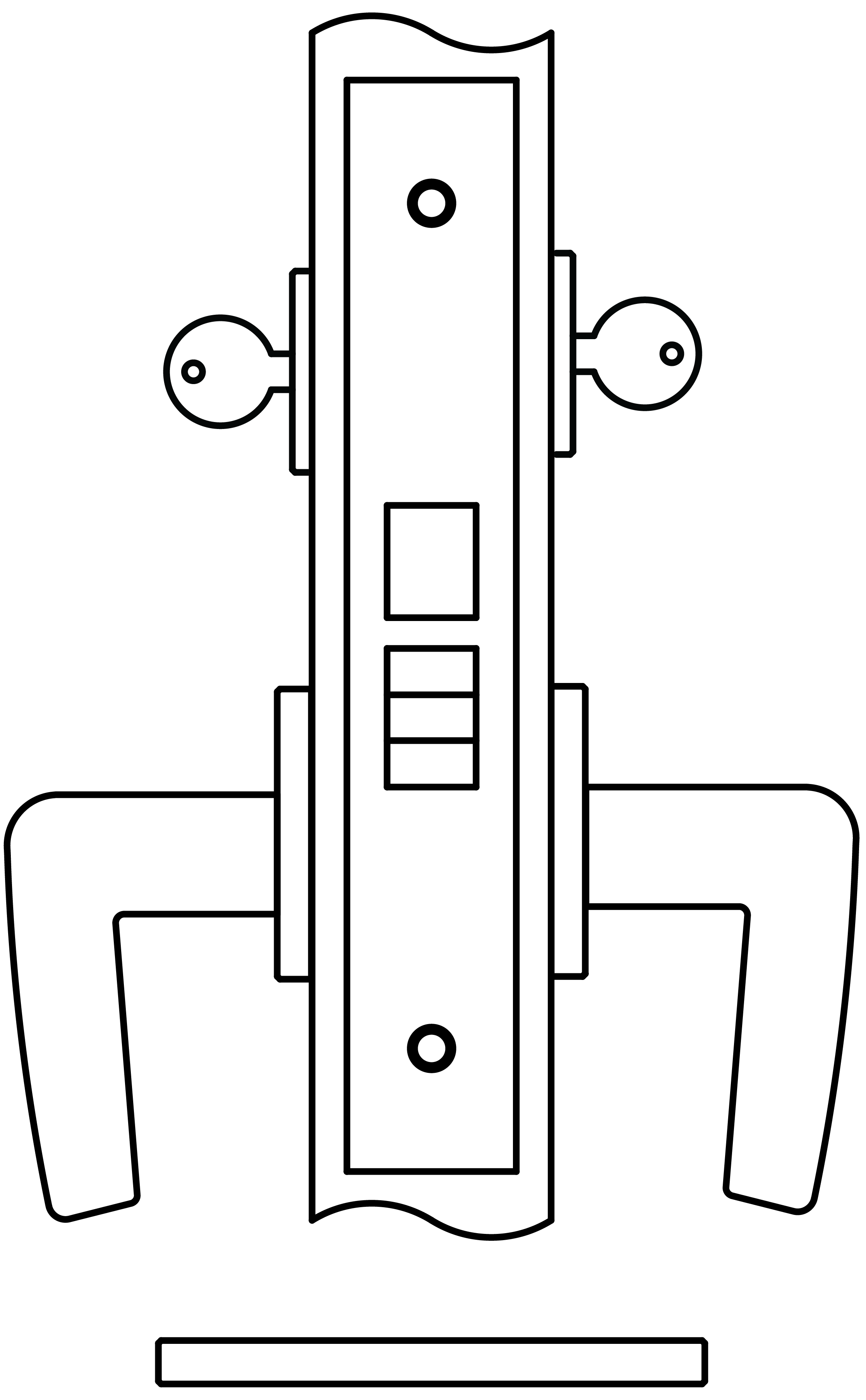

8722 | 8822* Store Door (ANSI Series 1000-F14)
- Latch bolt by lever either side.
- Deadbolt by key either side.
- No emergency egress.
- *Solid latch bolt furnished standard on 1-1/2” backset

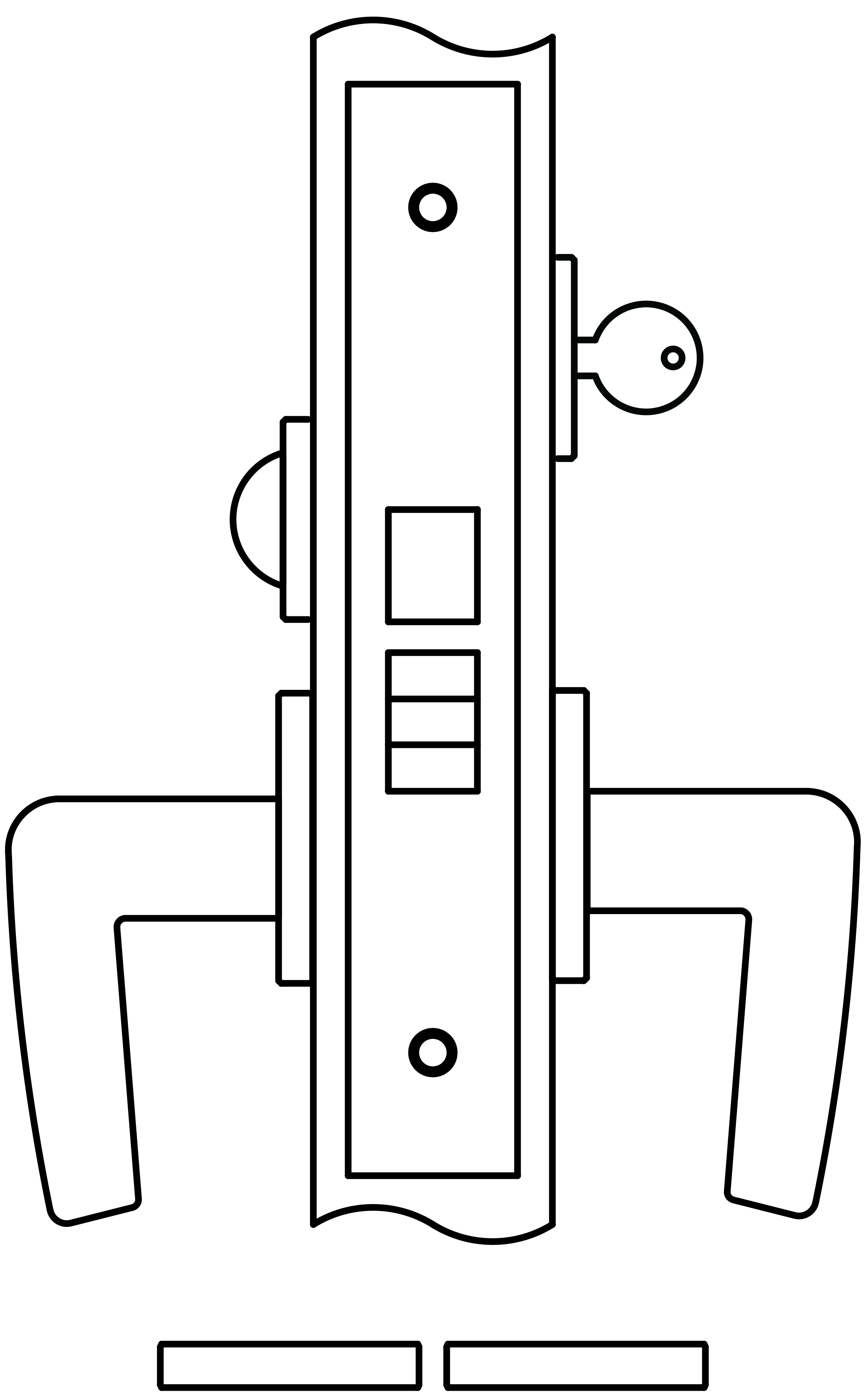

8724 | 8824* Dormitory
(ANSI Series 1000-F13)
- Latch bolt by lever either side.
- Deadbolt by key outside, thumb turn inside.
- A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.
- *Solid latch bolt furnished standard on 1-1/2” backset

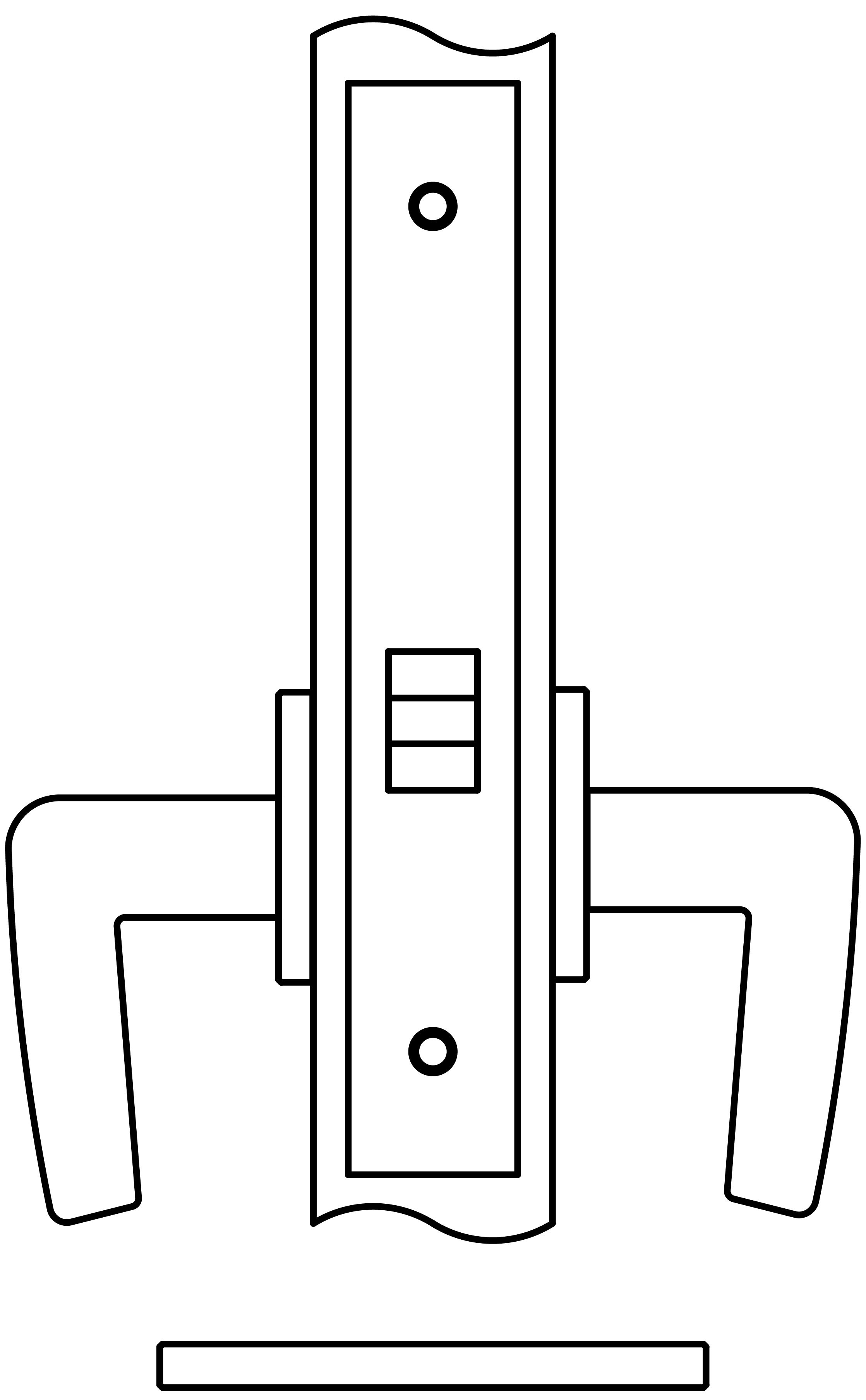

8725 | 8825 Passage
(ANSI Series 1000-F01)
- Latch bolt by lever either side.

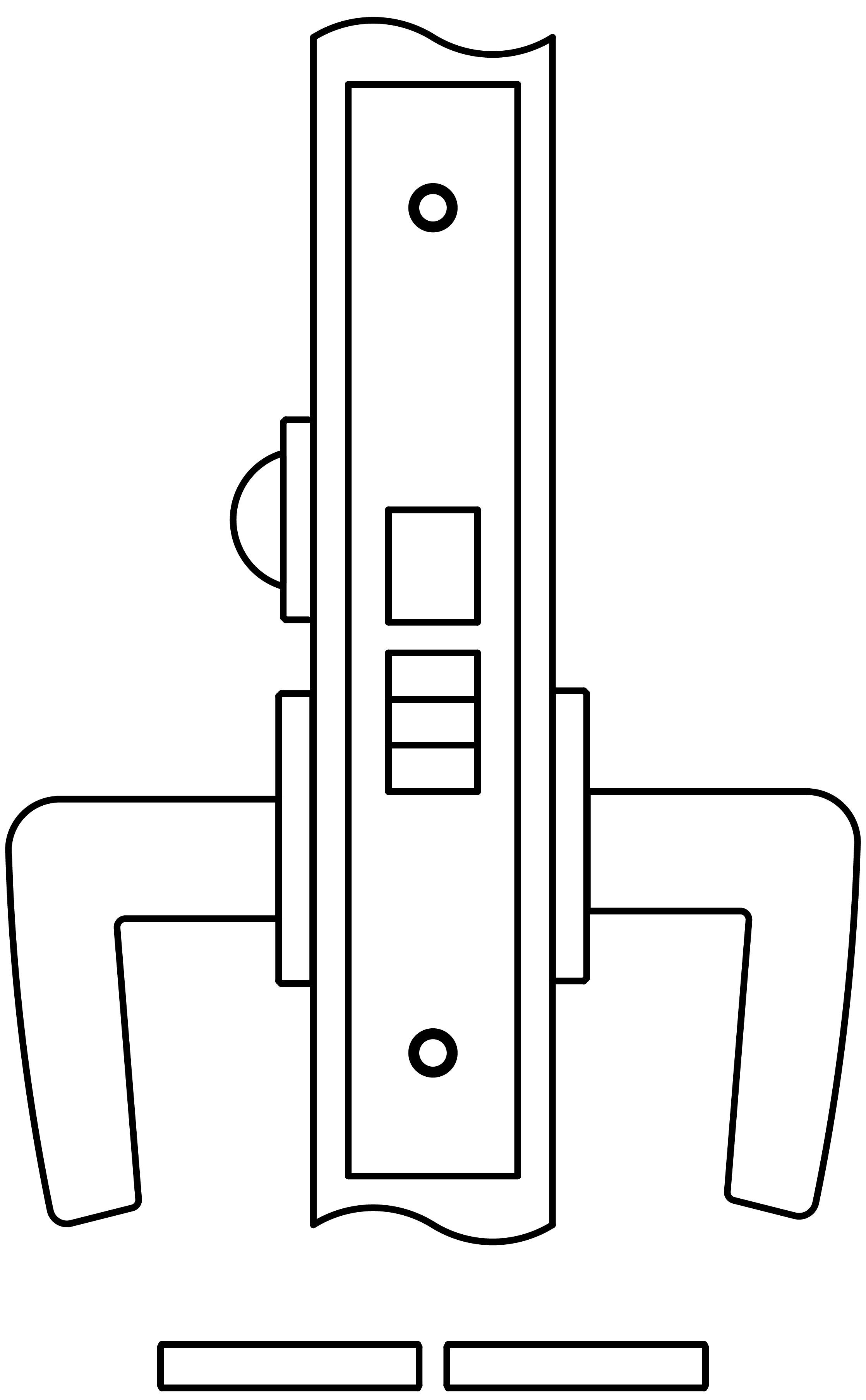

8739 | 8839* Privacy
(ANSI Series 1000-F19)
- Latch bolt by lever either side.
- Deadbolt by turn piece inside, optional emergency key outside.
- A turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.
- *Solid latch bolt furnished standard on 1-1/2” backset
8742 | 8842 Entrance or Public Restroom
(ANSI Series 1000-F09)
- Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
- When outside lever is locked, latch bolt by key outside and lever inside.
- Auxiliary latch deadlocks latch bolt.
8744 | 8844 Office/Institutional Privacy
- Latch bolt by key outside and lever either side unless outside lever is locked by thumb turn or key.
- Key or thumb turn locks or unlocks outside lever.
- Auxiliary latch deadlocks latch bolt.
- Operating inside lever automatically unlocks outside lever.

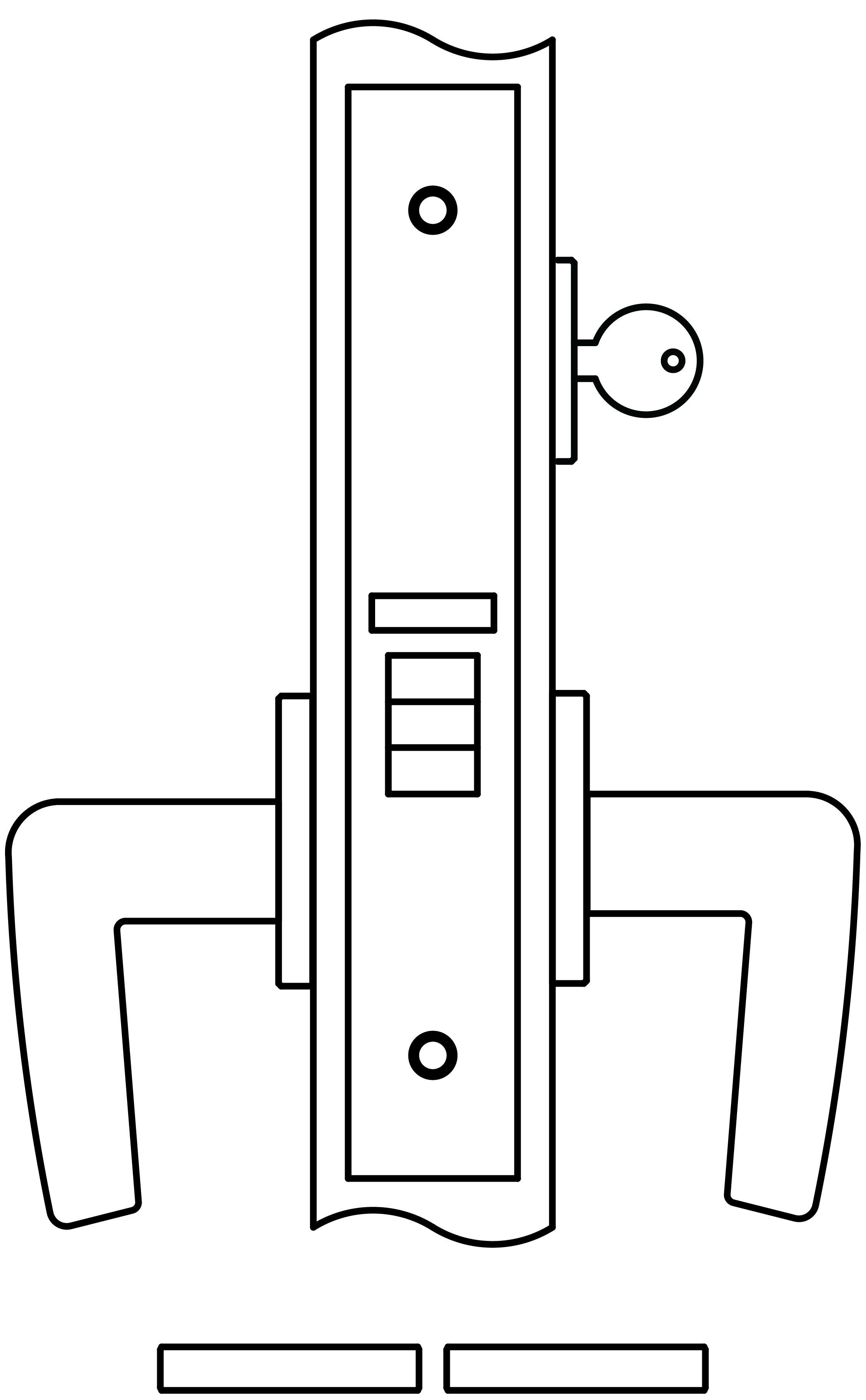

8745 | 8845 Classroom
(ANSI Series 1000-F05)
- Latch bolt by key outside and lever either side unless outside lever is locked by key.
- Auxiliary latch deadlocks latch bolt.

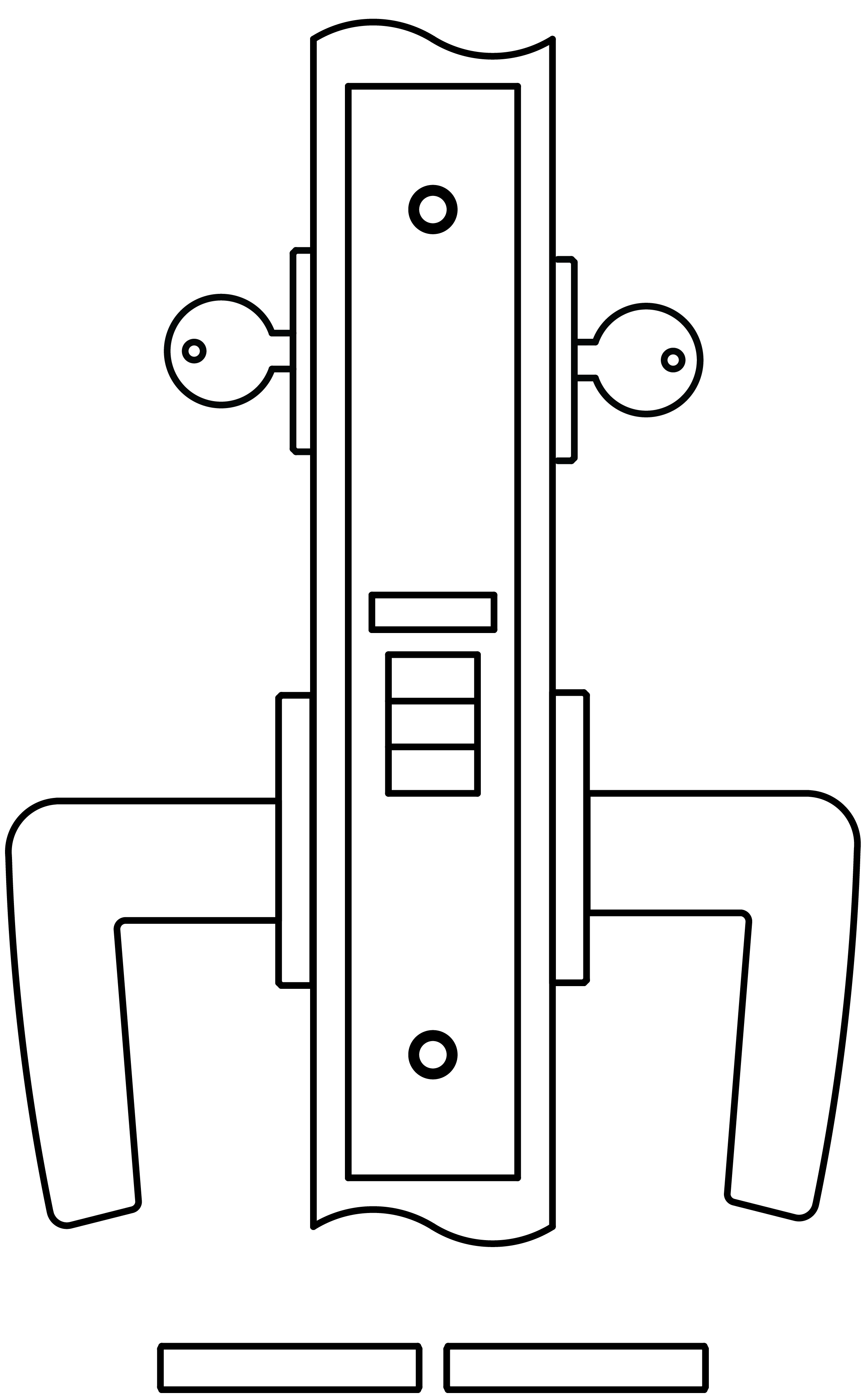

8745S | 8845S Classroom Security
(ANSI Series 1000-F88)
- Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
- When outside lever is locked, latch bolt by key outside and lever inside.
- Auxiliary latch deadlocks latch bolt.

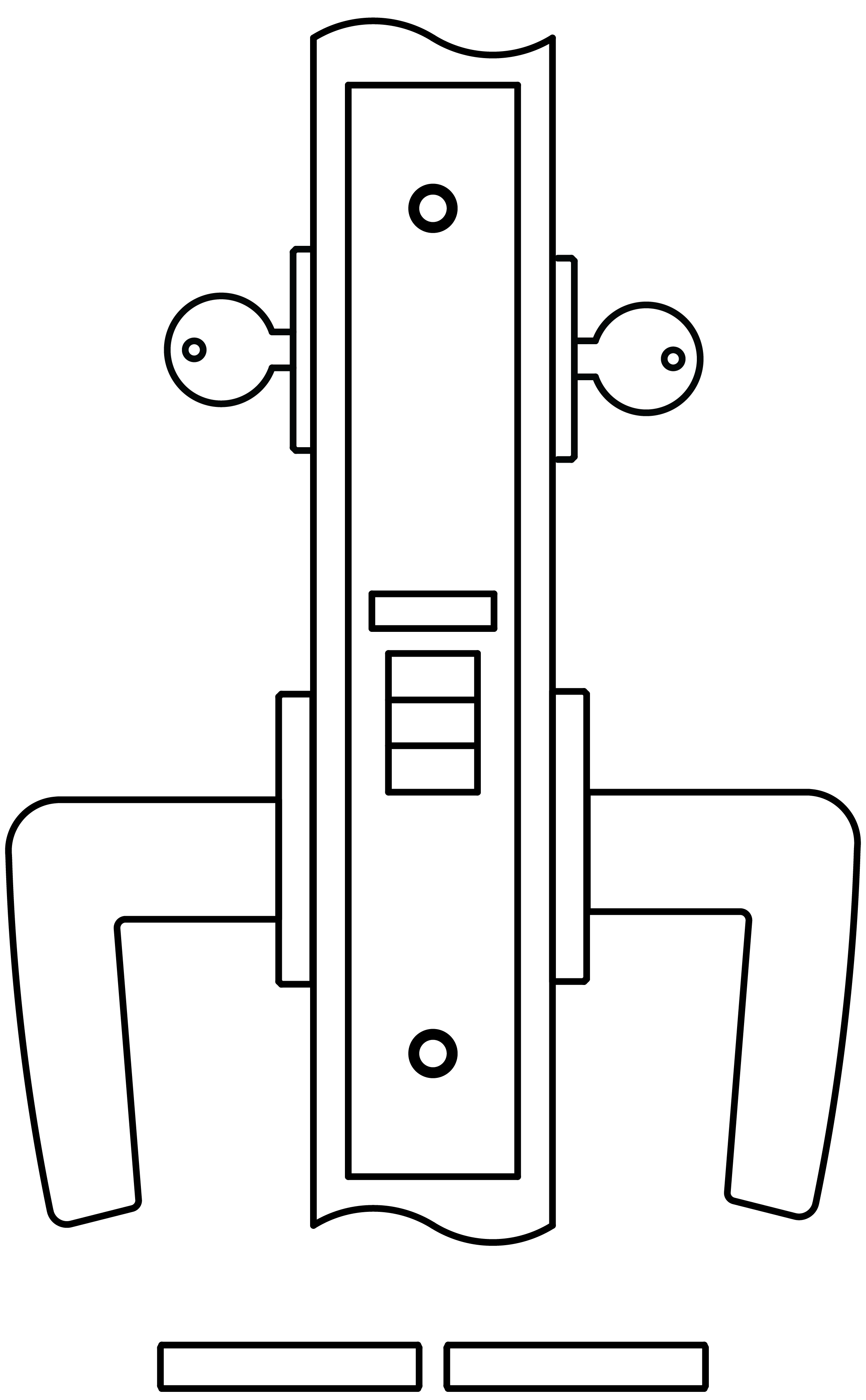

8746 | 8846 Classroom Double Locking
- Latch bolt by key from either side.
- Key from either side locks and unlocks outside and inside* levers.
- Auxiliary latch deadlocks latch bolt.
- *Inside lever is not always free. Verify code compliance before using this function

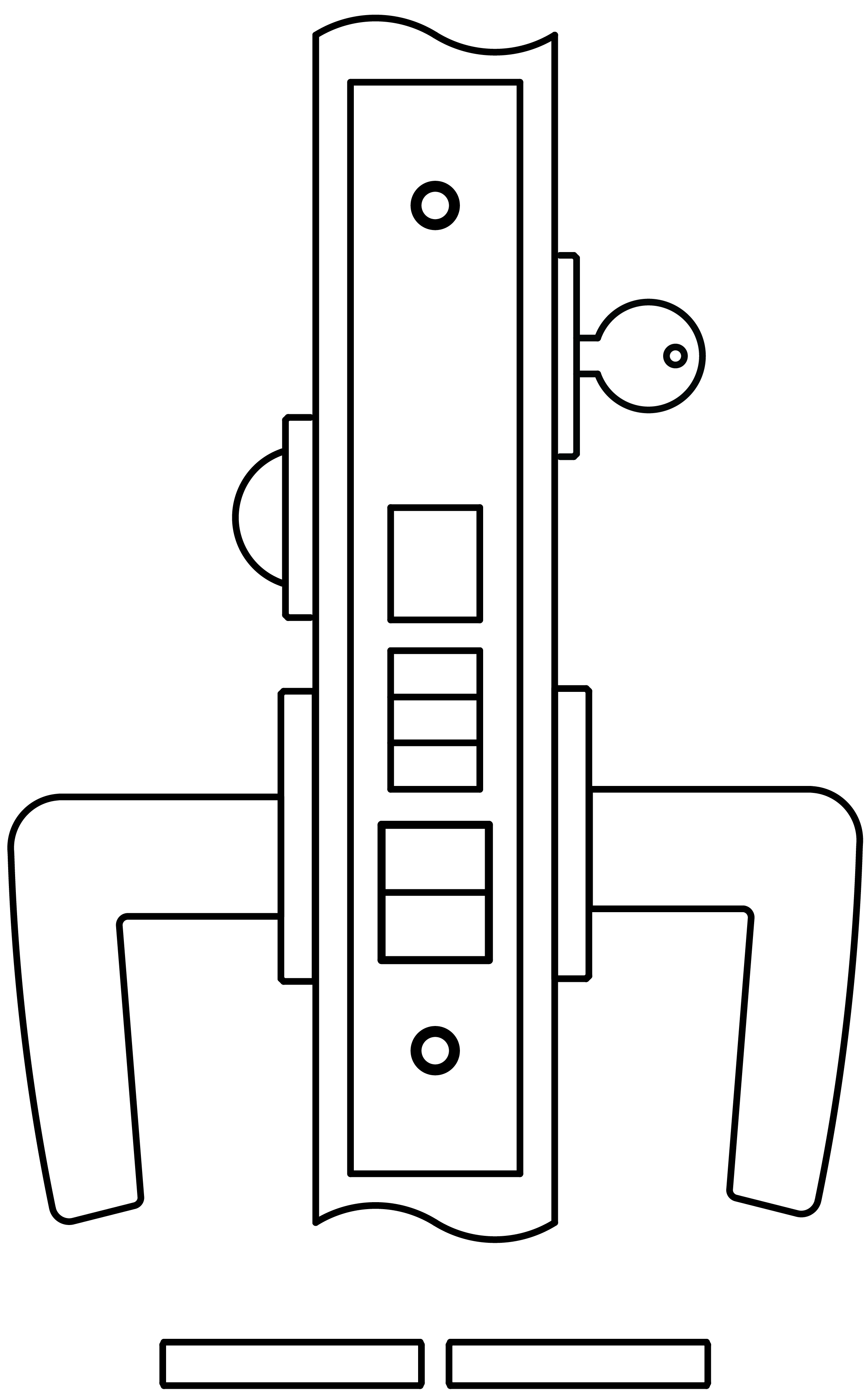

8748 | 8848* Entrance or Apartment
(ANSI Series 1000-F12)
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and turn piece inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains locked until manually unlocked by toggle.
- *Solid latch bolt furnished standard on 1-1/2” backset

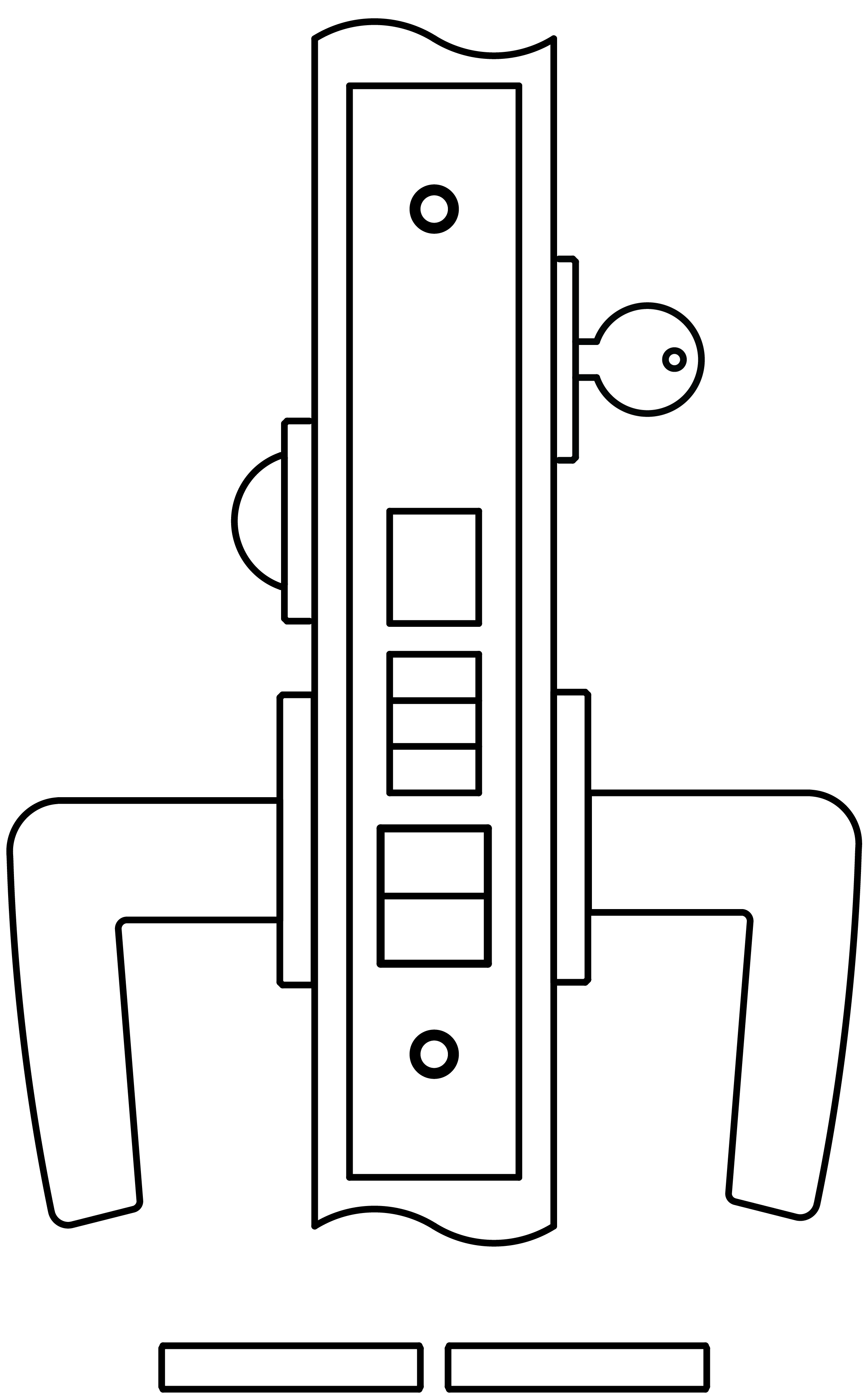

8749 | 8849* Entrance or Apartment
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and turn piece inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
- *Solid latch bolt furnished standard on 1-1/2” backset

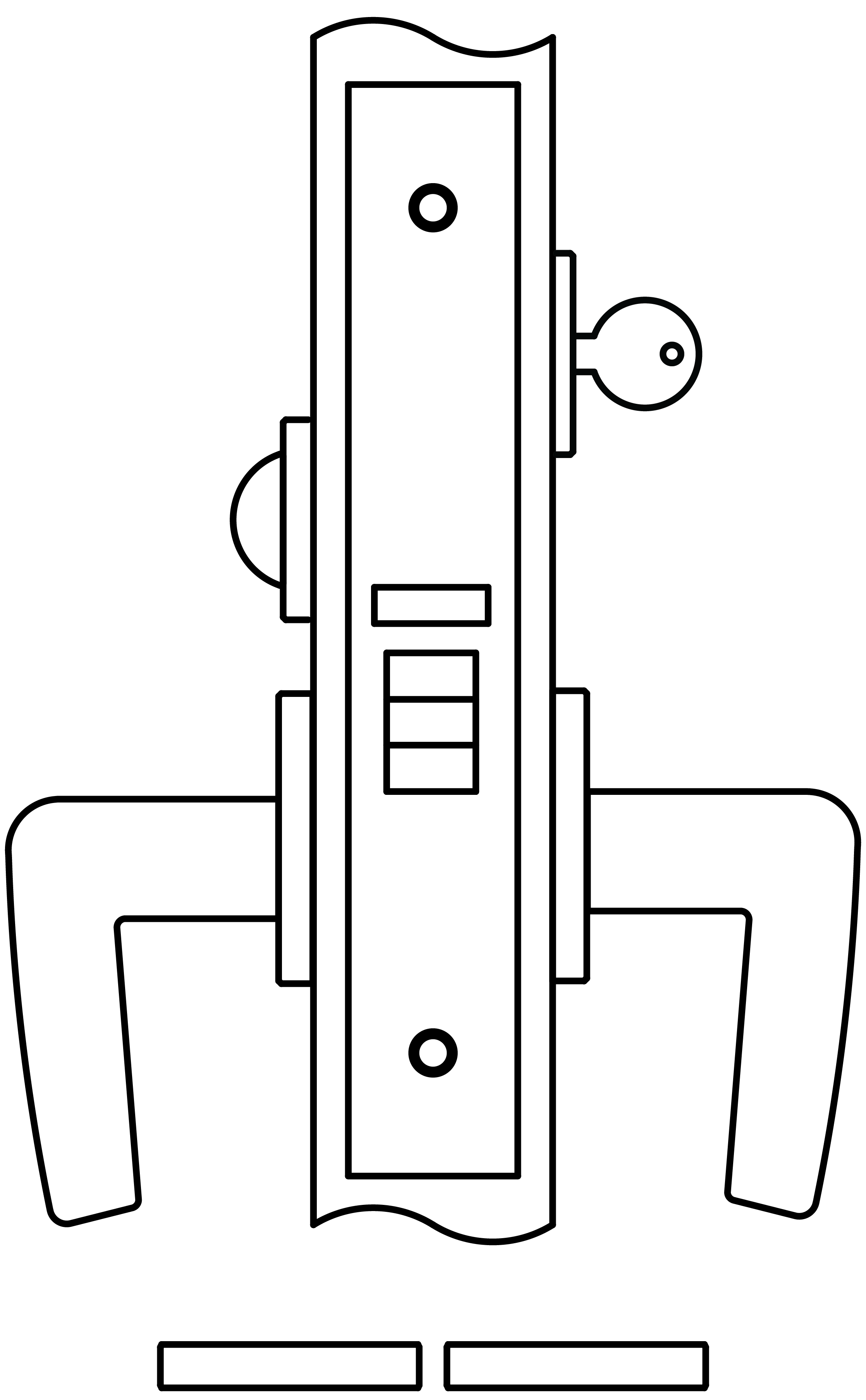

8753 | 8853 Entrance or Office
(ANSI Series 1000-F04)
- Latch bolt by key outside and lever either side unless outside lever is locked by thumb turn or key.
- Key or thumb turn locks or unlocks outside lever.
- Auxiliary latch deadlocks latch bolt.

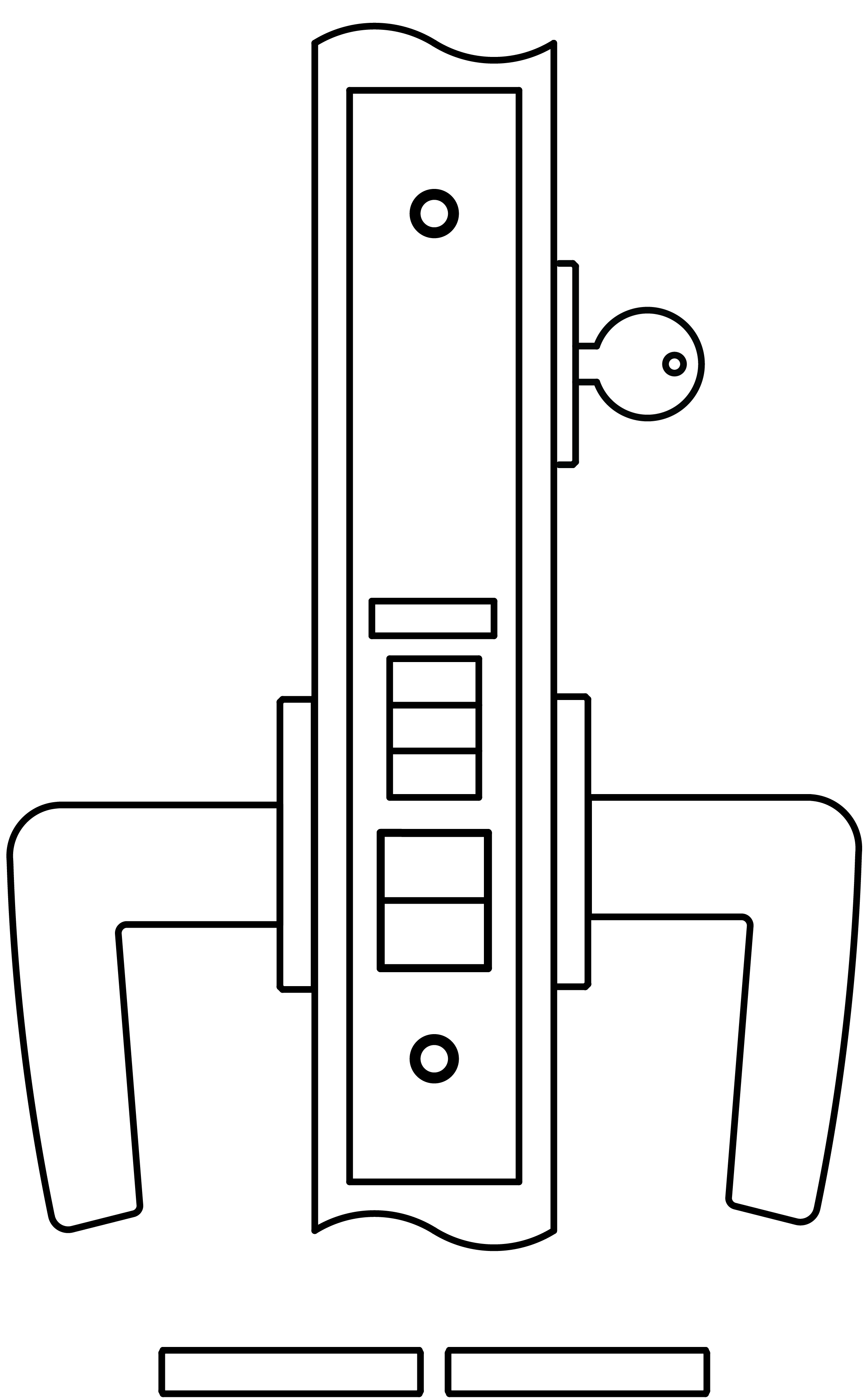

8756 | 8856 Entrance or Office
(ANSI Series 1000-F04)
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

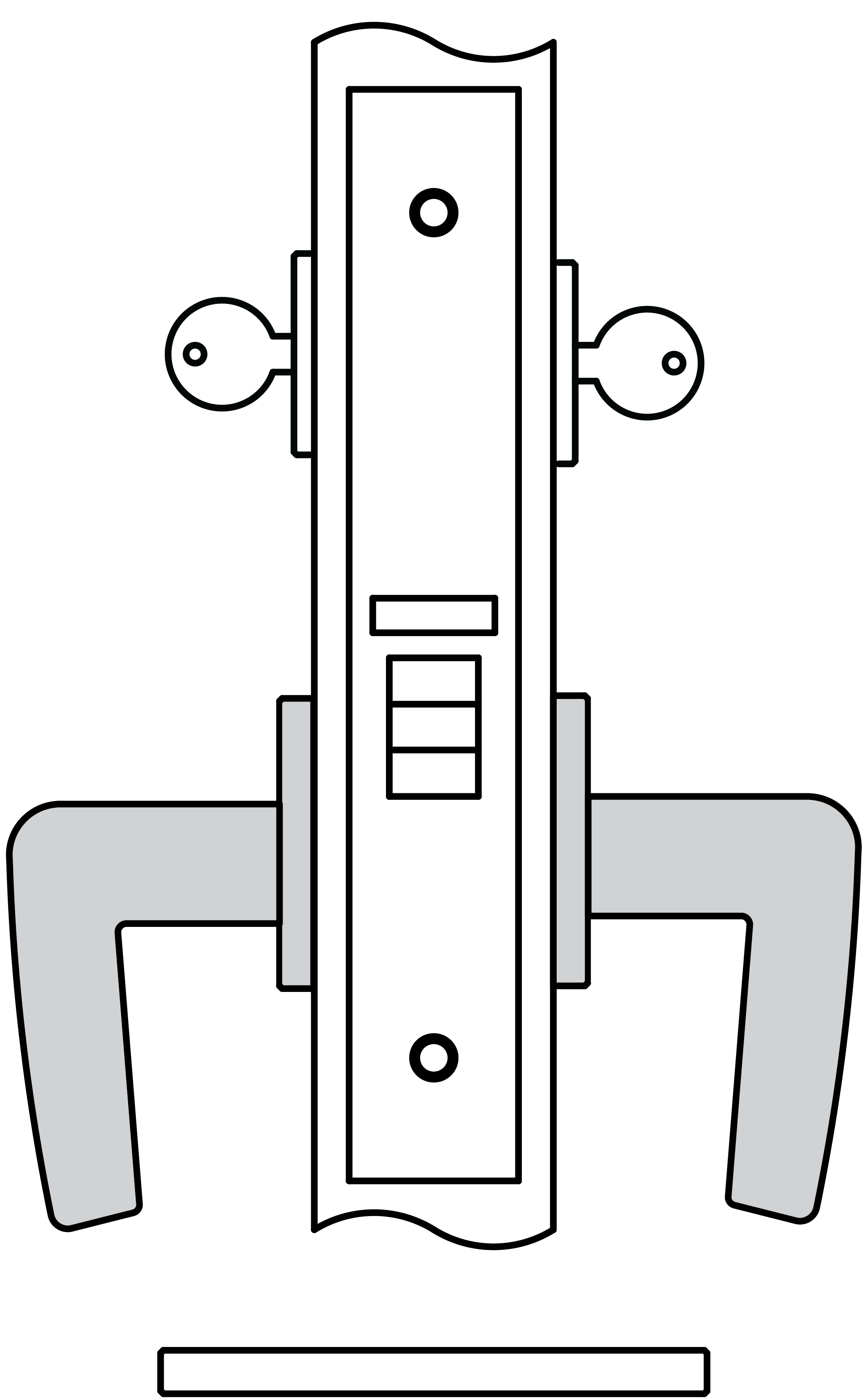

8758 | 8858 Institutional
- Latch bolt by key either side.
- Inside* and outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
- *Verify code compliance before using this function.

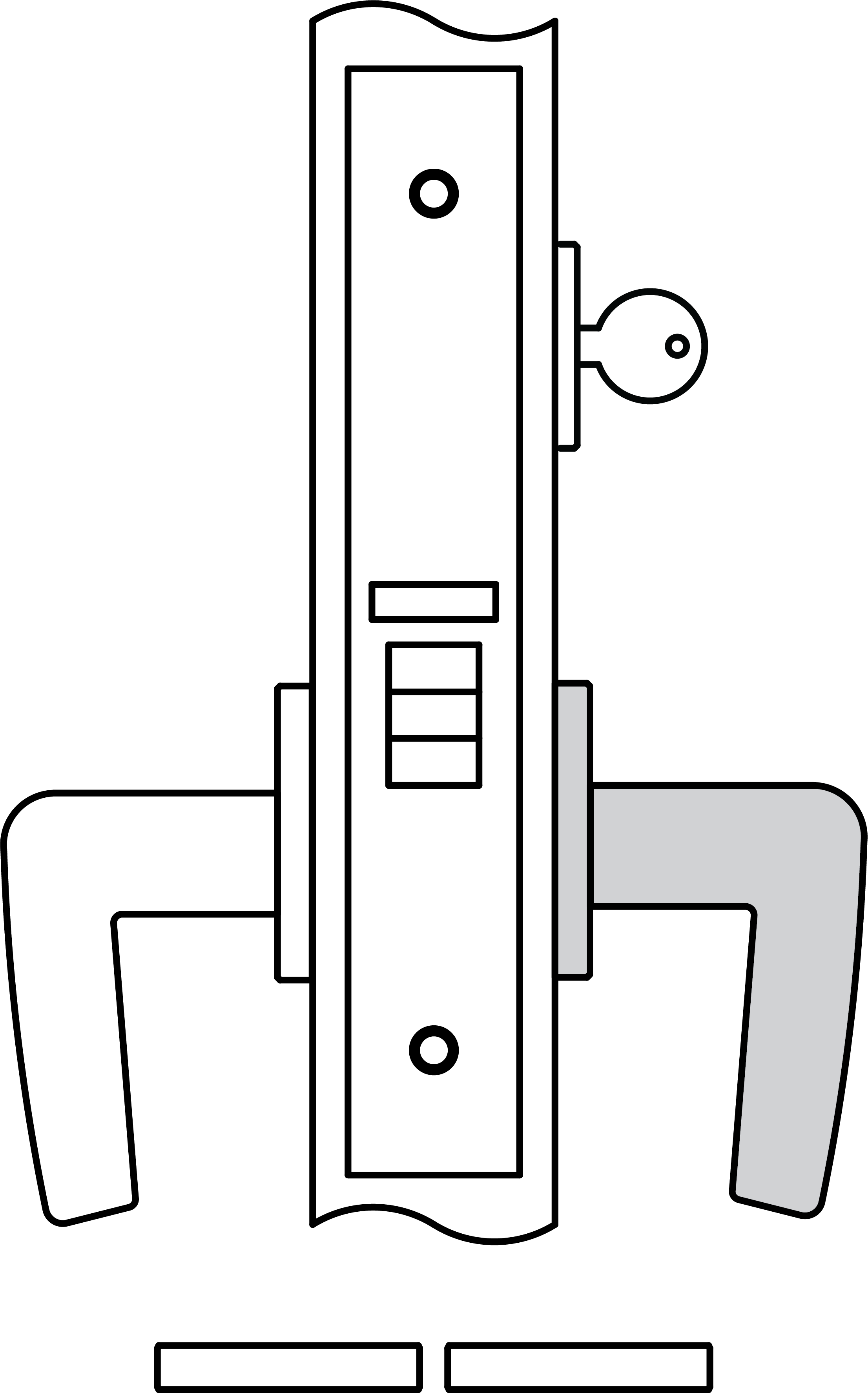

8759 | 8859 Storeroom or Closet
(ANSI Series 1000-F07)
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.
Sell Sheet
Specification Sheet
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Narrow Backset Mortise | Classroom | Other Manufacturers’ Trim
E.g.: 8845. 2. LxL.8mm. US26D. LH. 214 -
Narrow Backset Mortise | Office | Accurate Trim
E.g.: 8856. 134. 29L/2R. LH. US26D. 134 -
Narrow Backset Mortise | Privacy | Upside Down | Accurate Trim
E.g.: 8839USD. 112. 18L/1R. US14. RH. 134
Notes
- Furnished standard with anti-friction latch bolt (solid latch bolt available, special order).
- Solid latch bolt furnished standard on 1-1/2” backset functions with deadbolts. See functions for certain exclusions.
- For compatibility, please verify vertical spacing as well as through-bolting locations or call for assistance.
