8500 | 8600

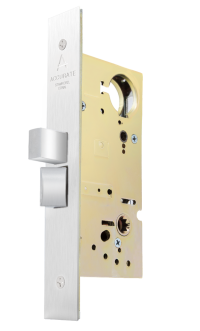

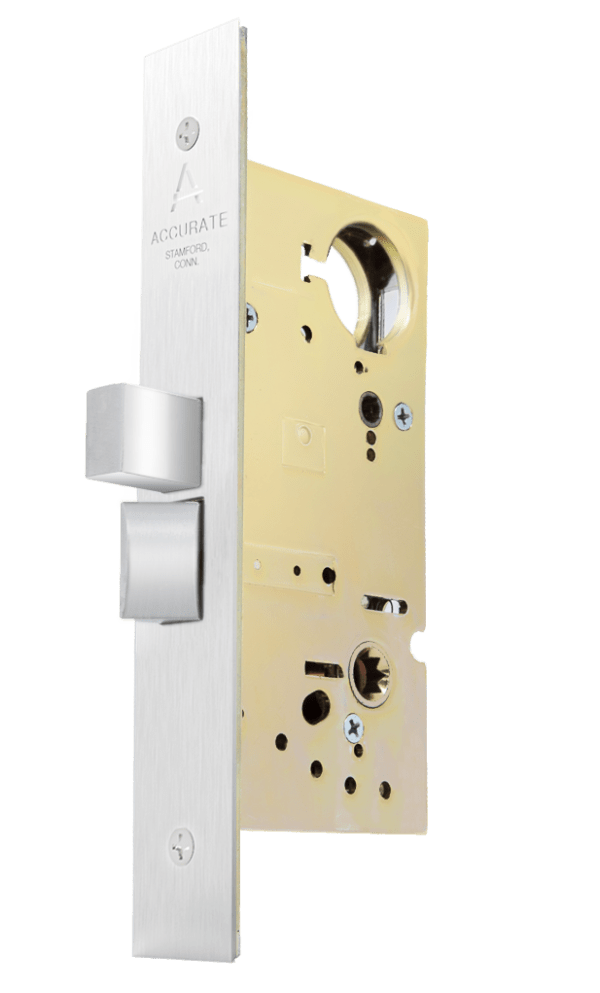

Narrow Backset Mortise Lock
Narrow backset lock for use with Accurate trim or custom fitted for most manufacturers trim. For lever x lever as well as knob x knob in some functions. Compatible with SilentPac™ Lever Dampening Disc and available for upside down, European-style installation. Can be customized for use on rabbeted doors (with standard or traditional style rabbeted kits).
RMS Standard Product
- 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4" backsets standard.
- For door stiles 2-3/8" or wider.
- Heavy gauge, plated steel cage (27/32" thick).
- Adjustable bevel brass, bronze, or stainless steel armor front, finished as required.
- Brass, solid type latch bolt 1/2" throw.
- Brass deadbolt, 1" throw. Other throw sizes available as a custom order. Please call for assistance.
- 4-7/8" ASA Strike.
- Hubs available in different sizes to be compatible with various trims.
- Thumb turn hub 3/16" (5mm) on the diamond.
- Brass, stainless steel or US10B dust box.

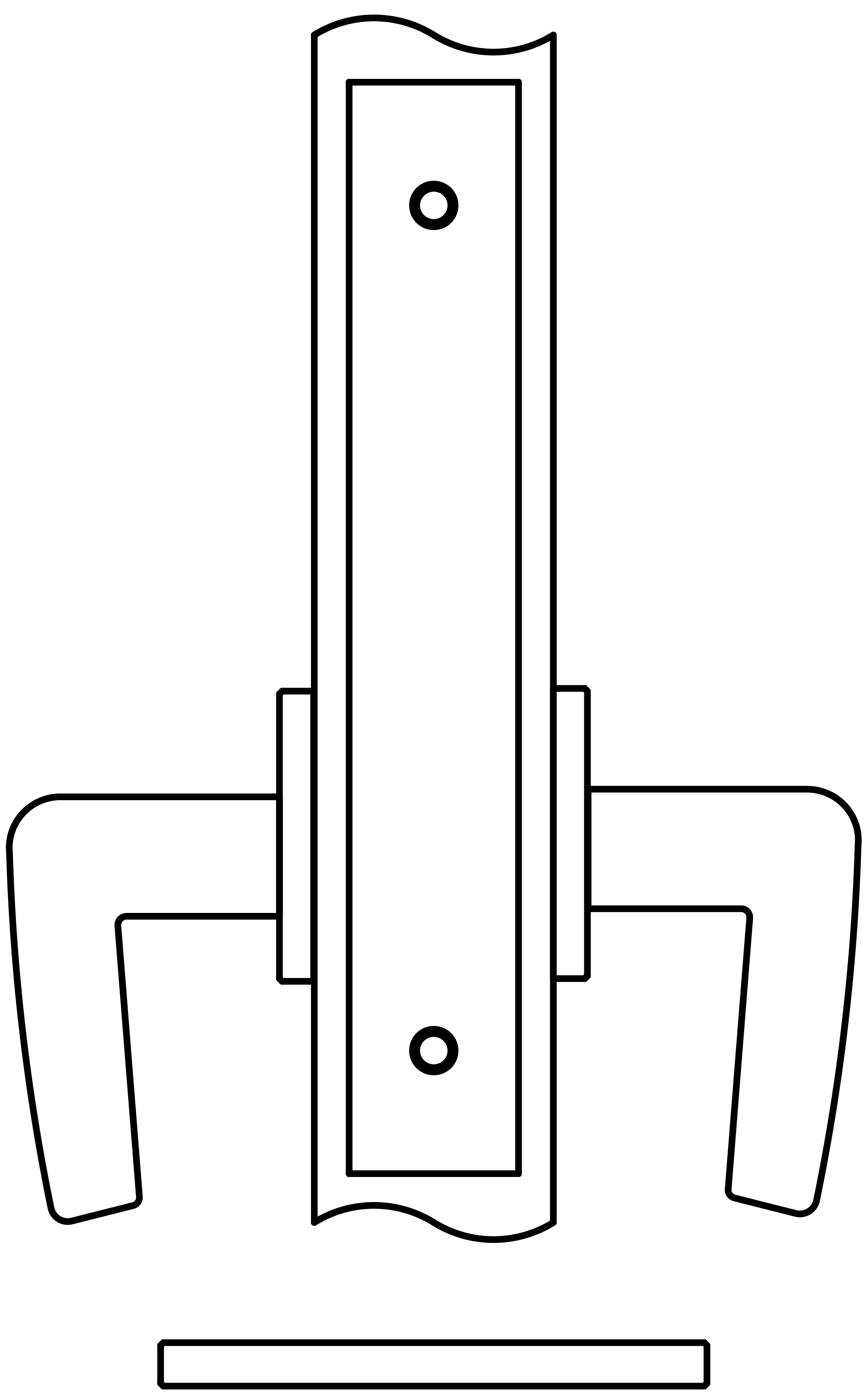

8500ADL | 8600ADL Active Dummy Lock
- Active handles inside and out.

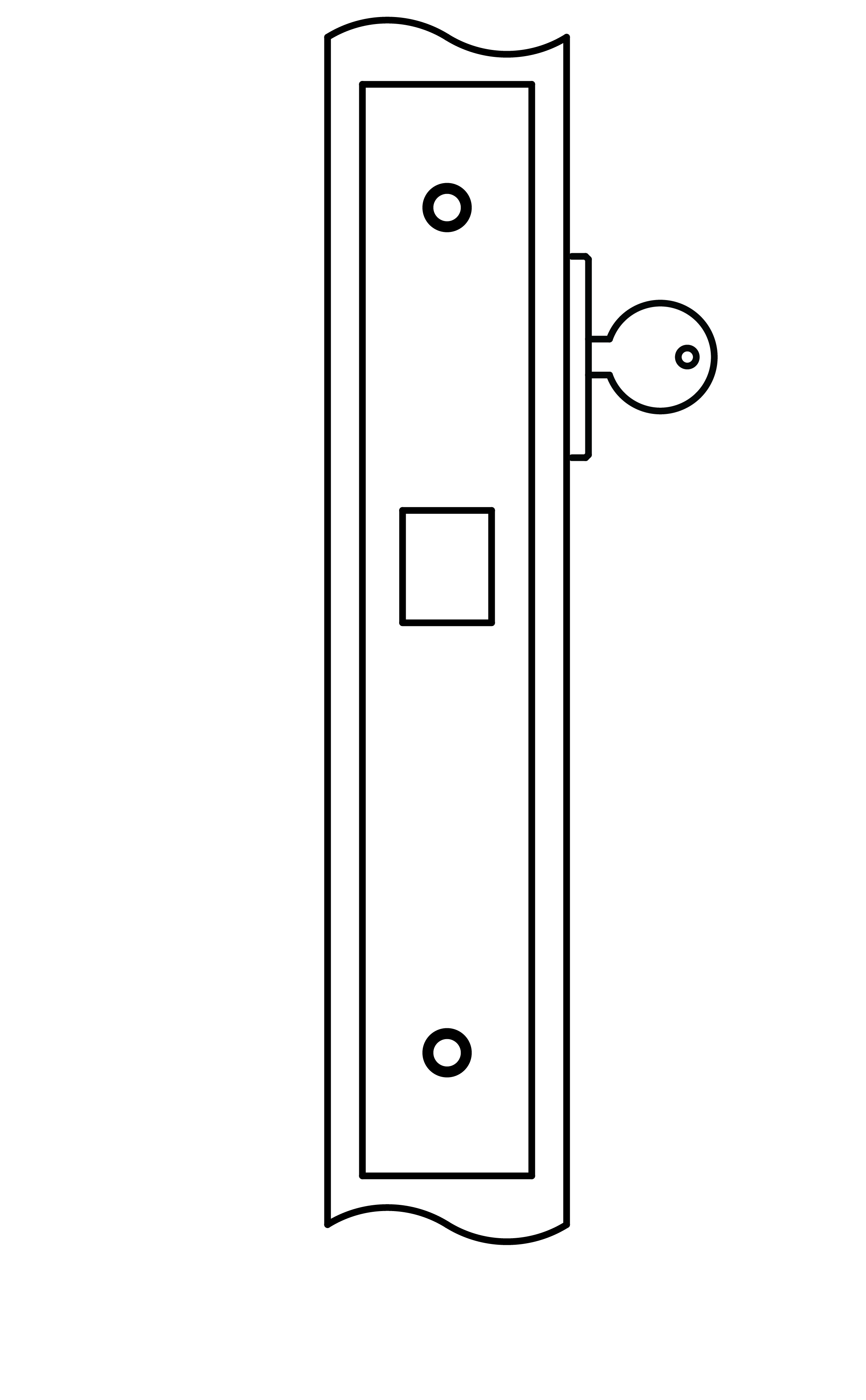

8501 | 8601 Deadlock
(ANSI SERIES 1000-F18)
- Deadbolt by key outside.

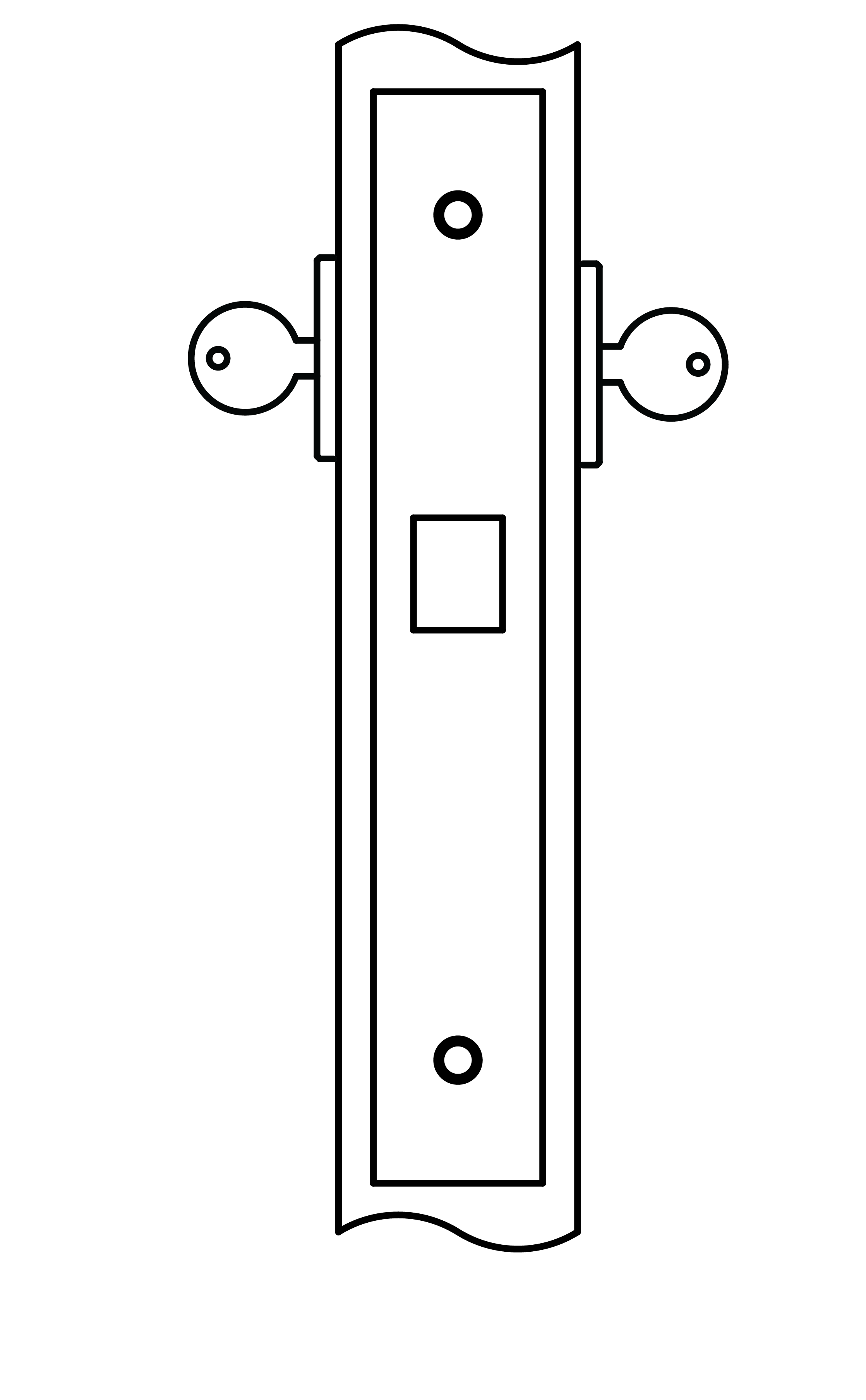

8502 | 8602 Deadlock
(ANSI Series 1000-F16)
- Deadbolt by key either side.

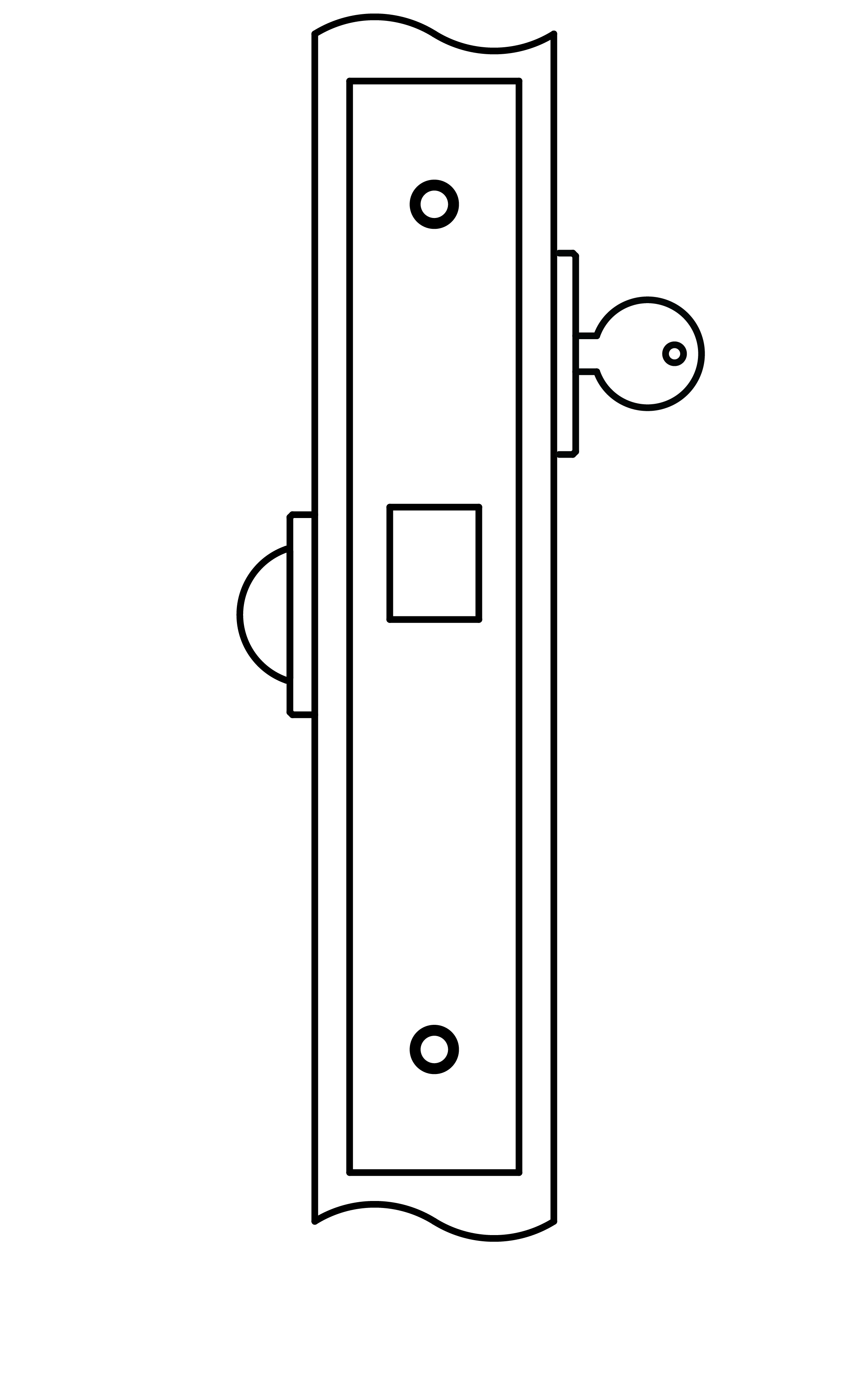

8503 | 8603 Deadlock
(ANSI Series 1000-F17)
- Deadbolt by key outside and turn piece inside.

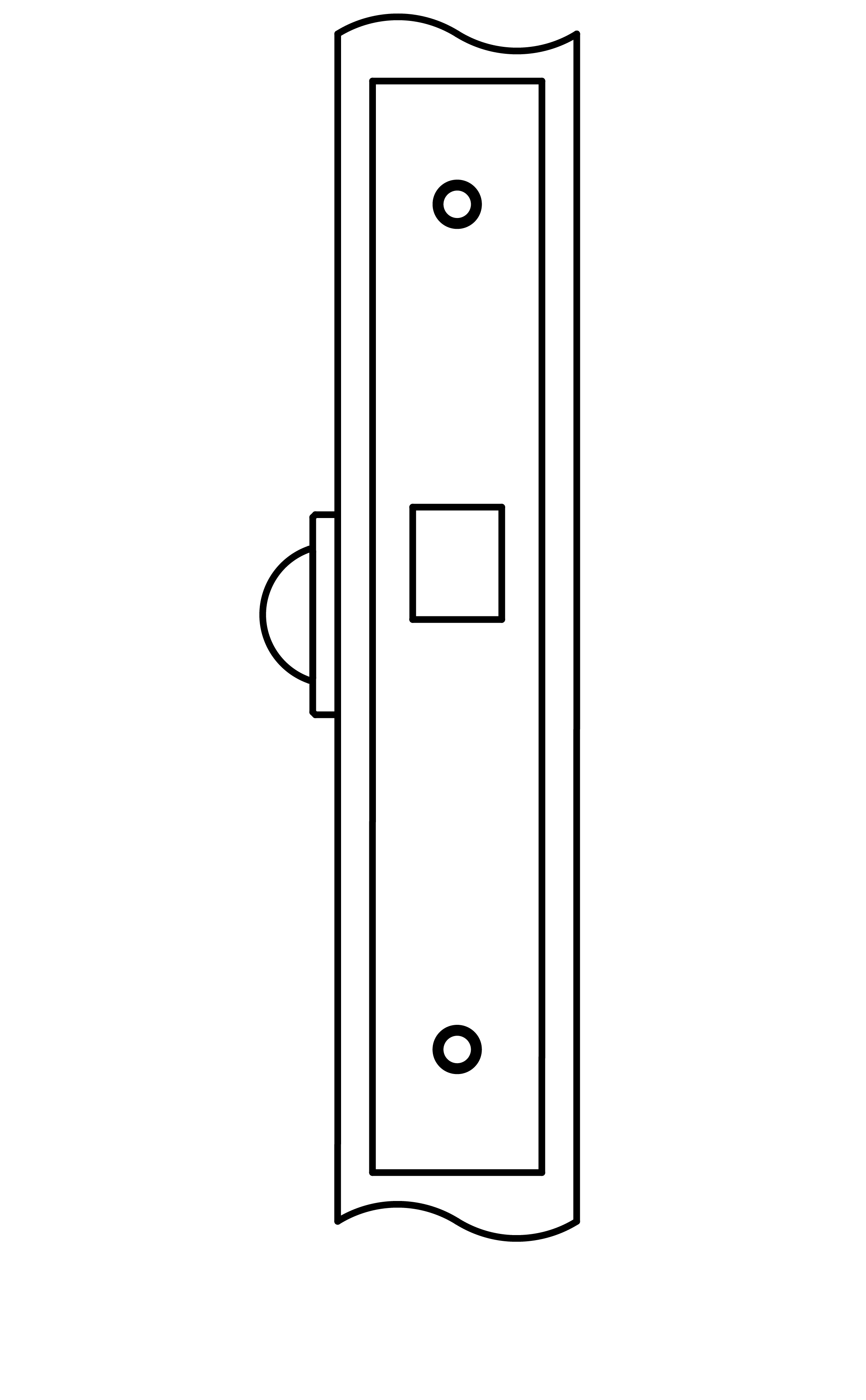

8504 | 8604 Deadlock
- Deadbolt by turn piece inside.
- No outside operation.

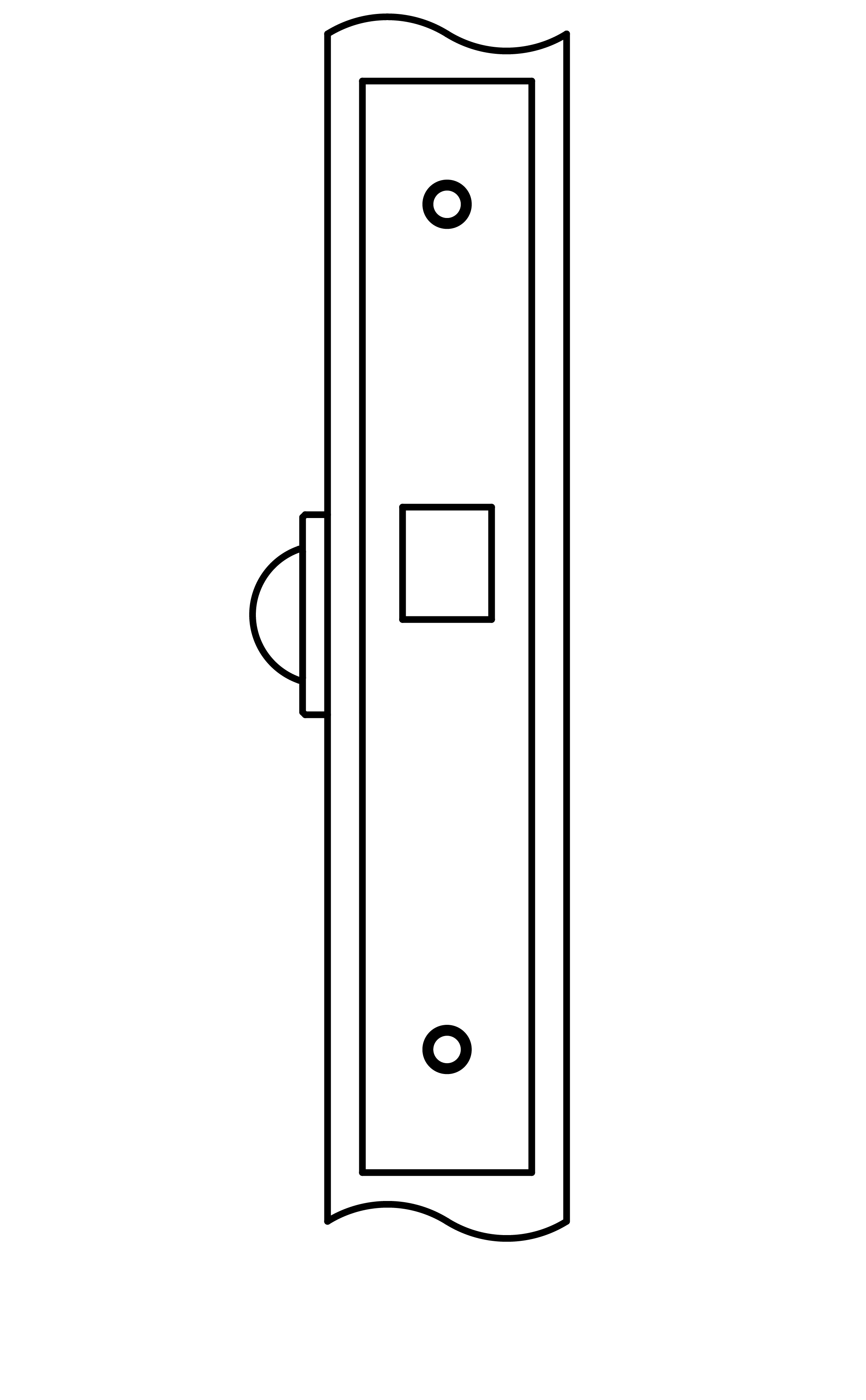

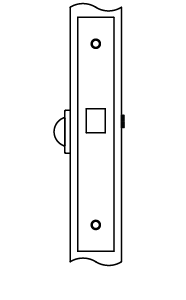

8505 | 8605 Deadlock
- Deadbolt by turn piece inside and emergency key outside.

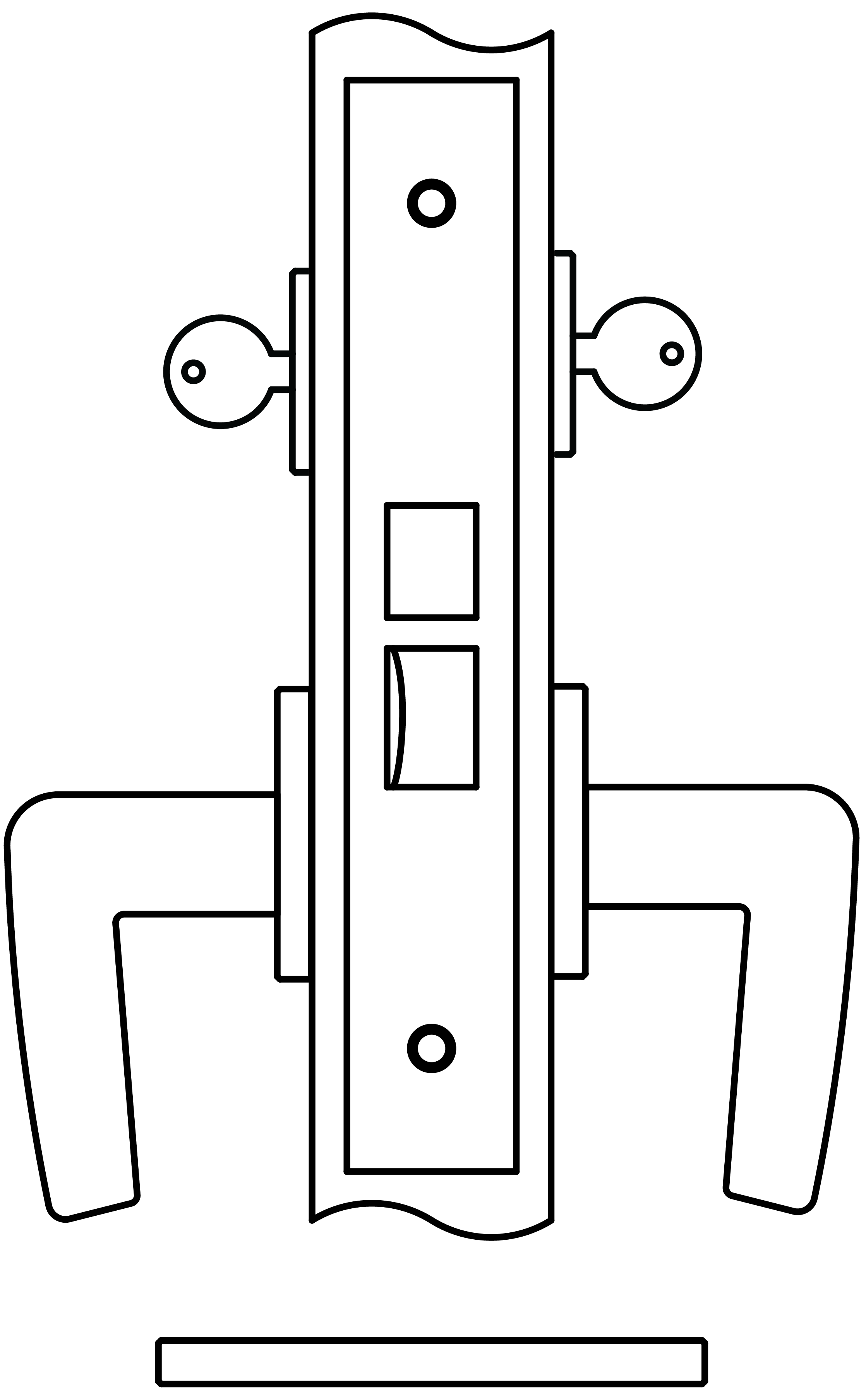

8522 | 8622 Store Door Lock
(ANSI Series 1000-F14)
- Latch bolt by lever either side.
- Deadbolt by key either side.

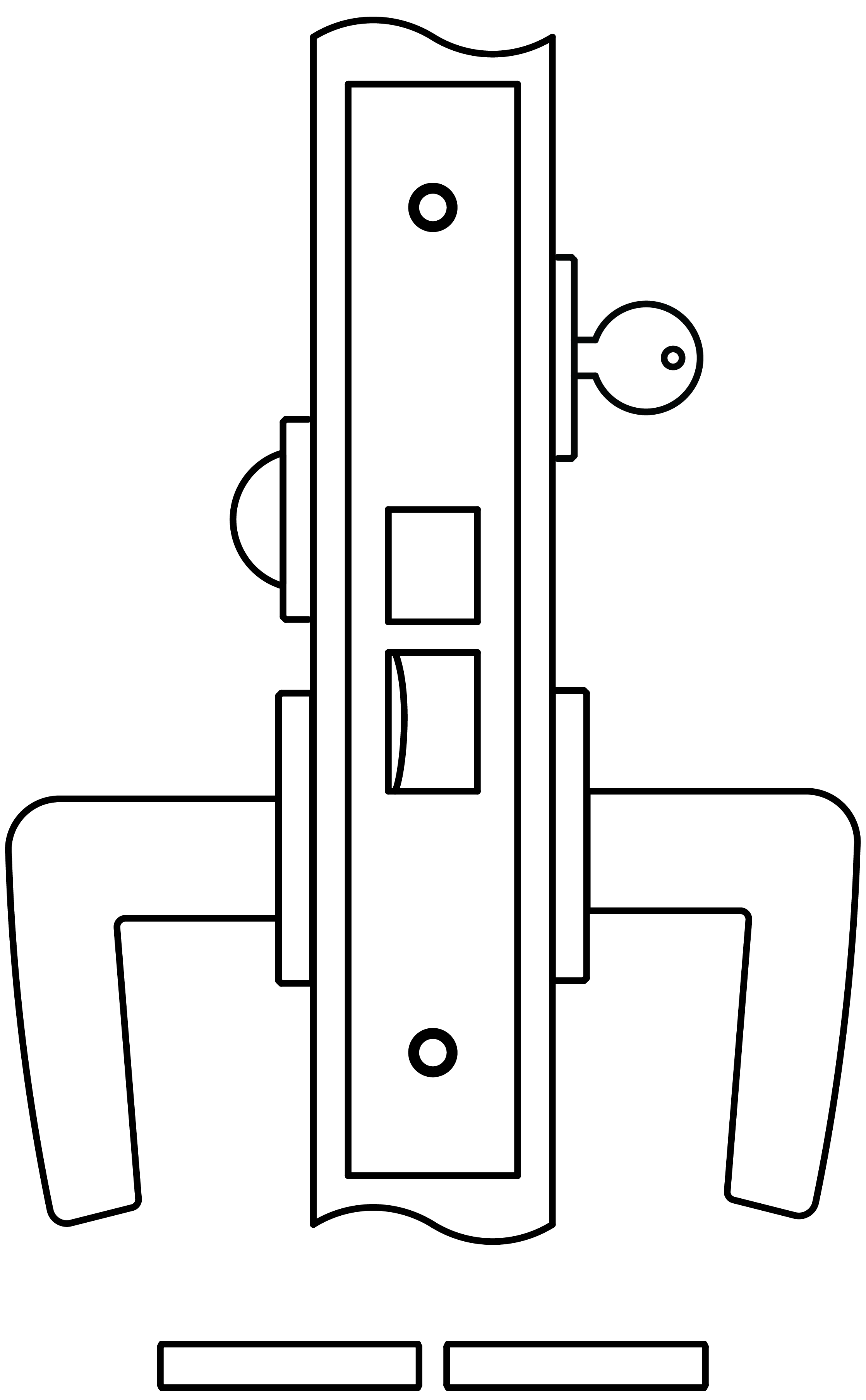

8524 | 8624 Dormitory
(ANSI Series 1000-F21)
- Latch bolt by lever either side.
- Deadbolt by key outside and turn piece inside.

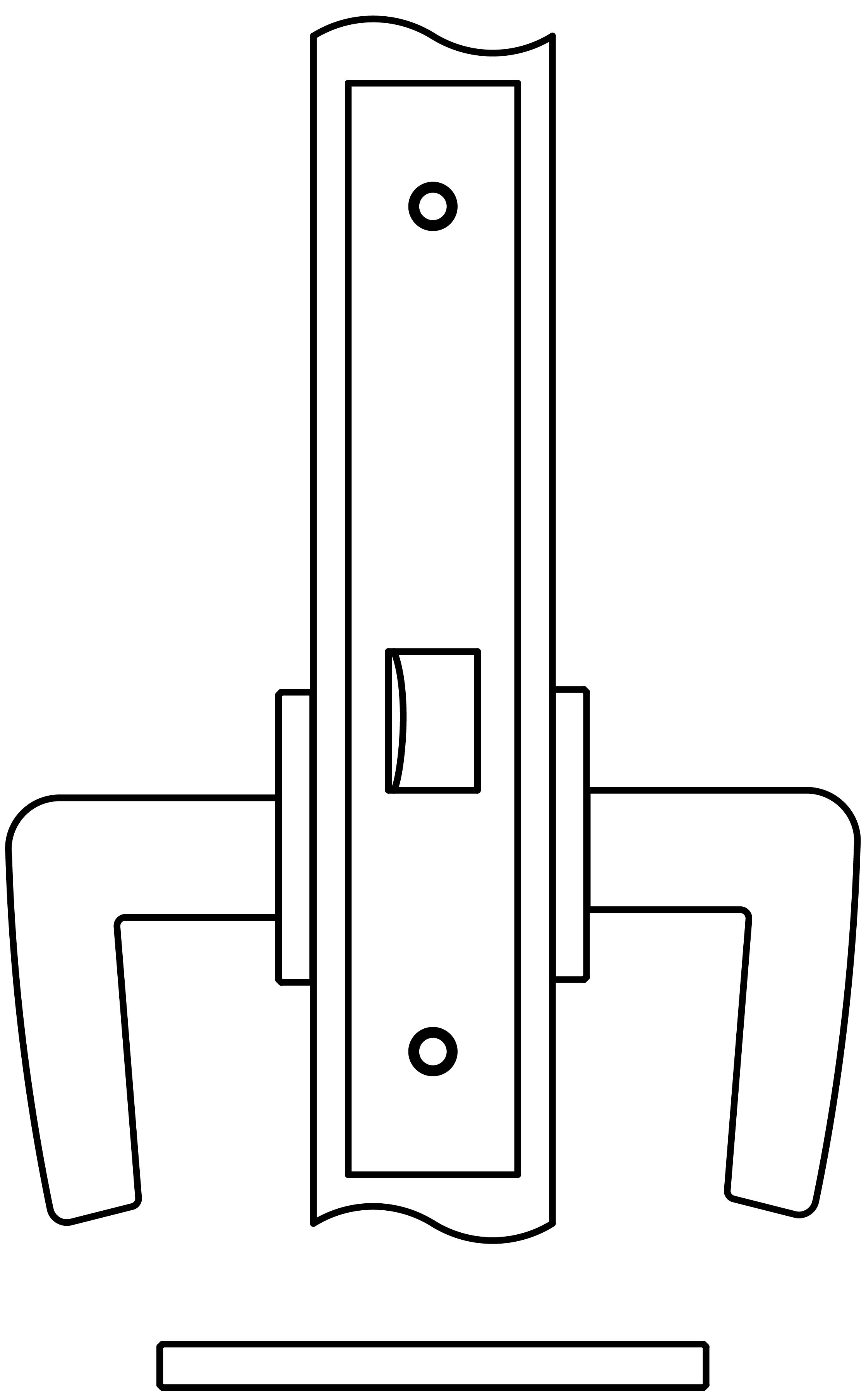

8525 | 8625 Passage and Closet Latch
(ANSI Series 1000-F01)
- Latch bolt by lever either side.

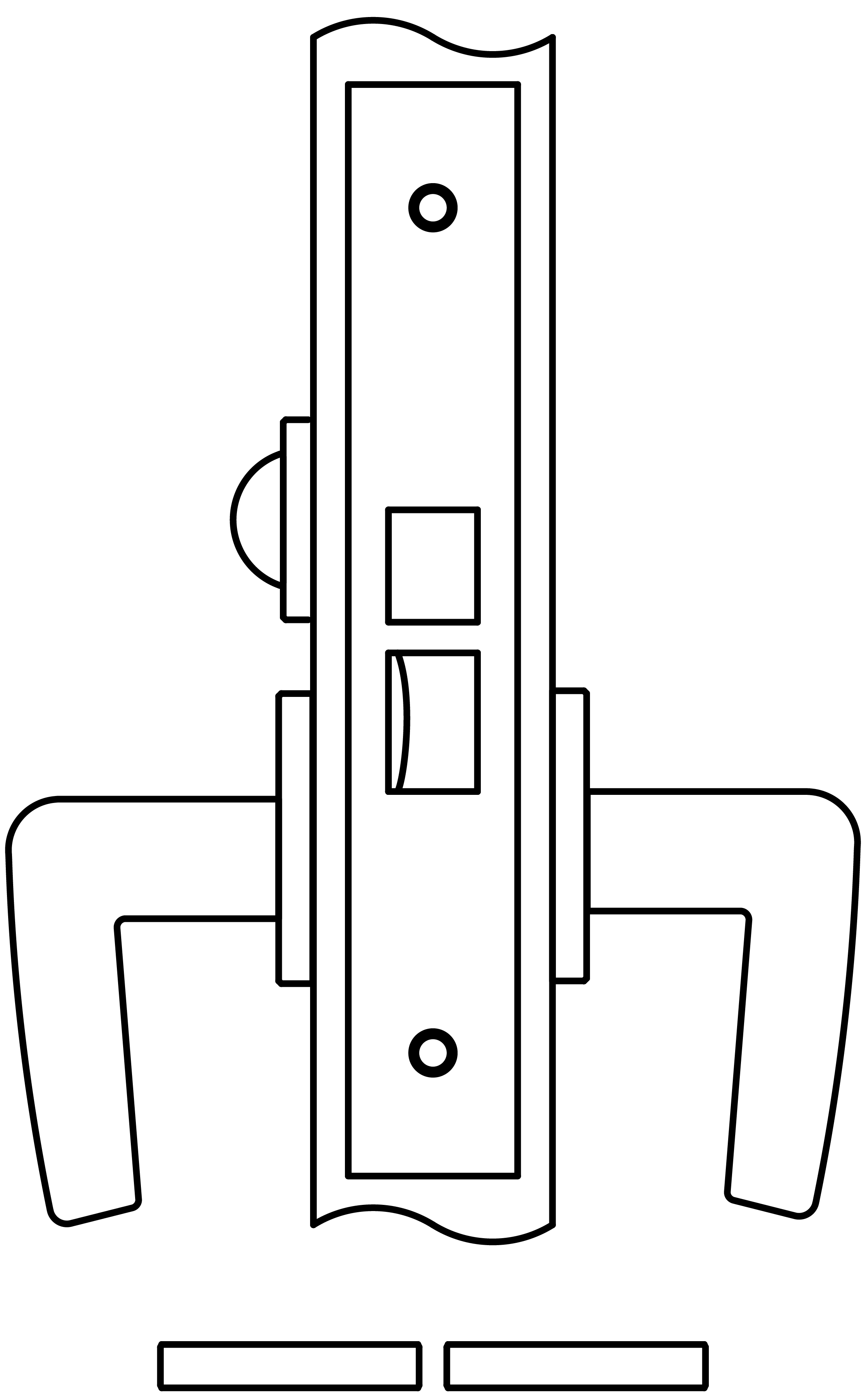

8539 | 8639 Privacy
(ANSI Series 1000-F19)
- Latch bolt by lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.

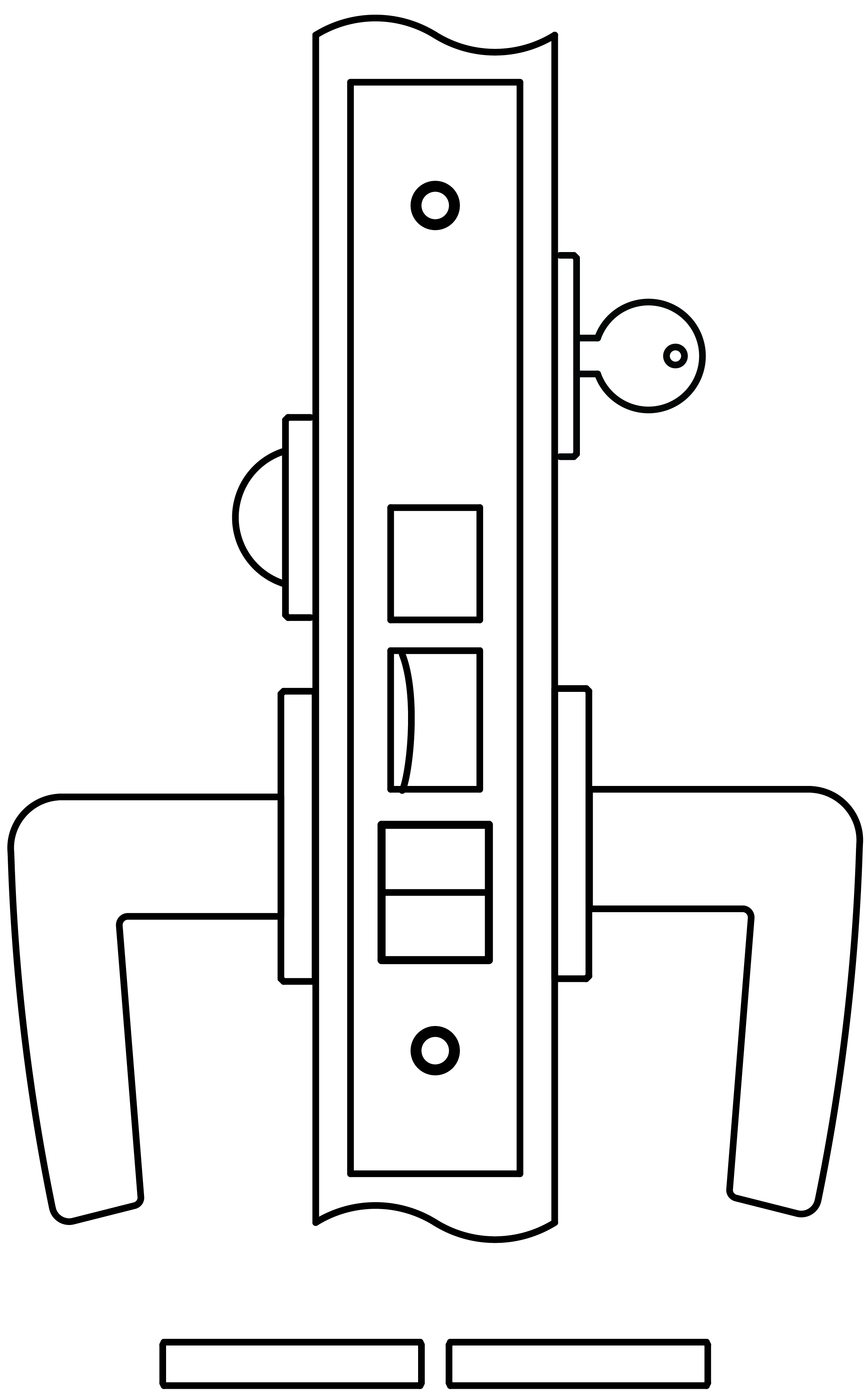

8548 | 8648 Entrance
(ANSI Series 1000-F12)
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
- Deadbolt by key outside and turn piece inside.

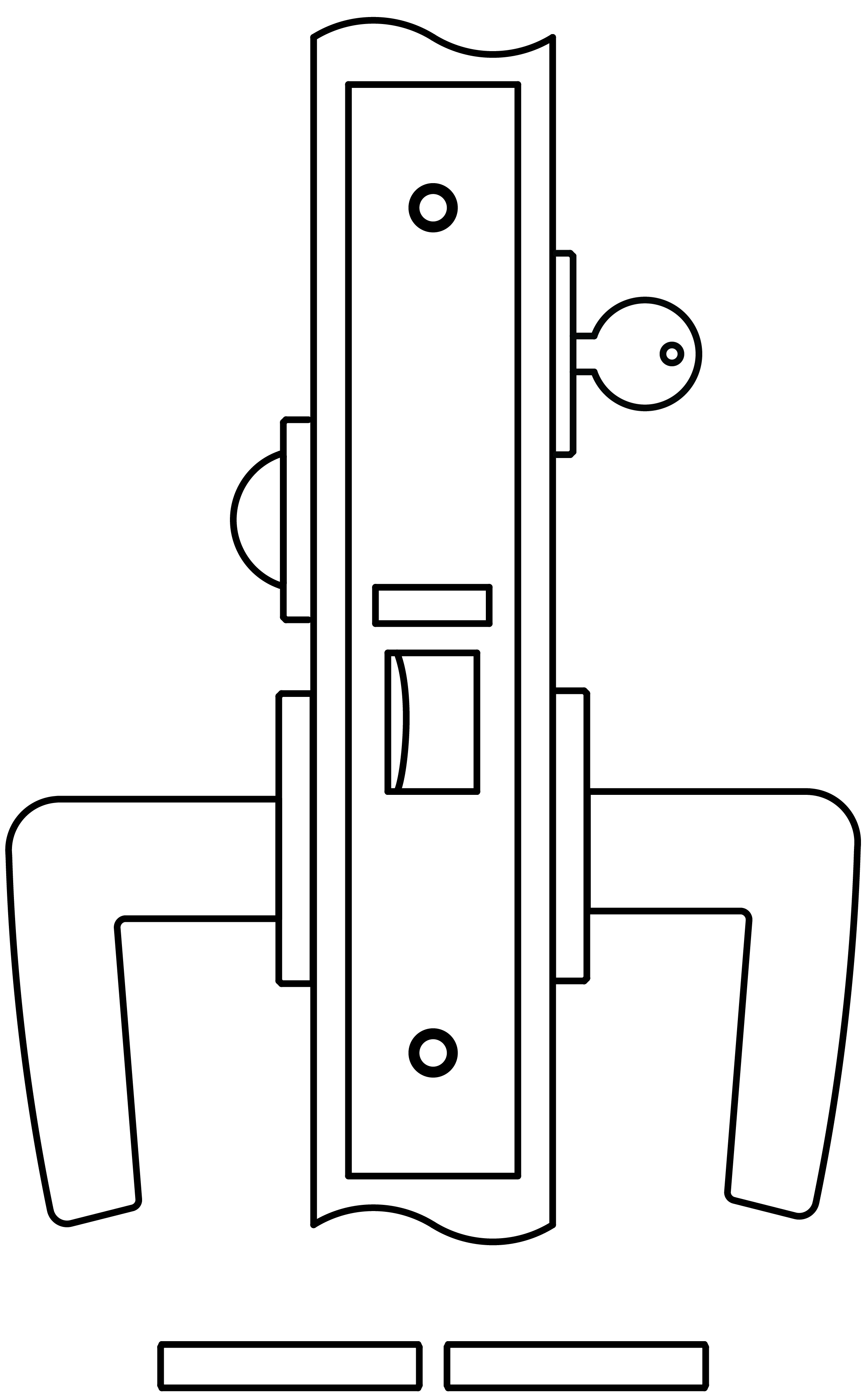

8556 | 8656 Entrance or Office
(ANSI Series 1000-F04)
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

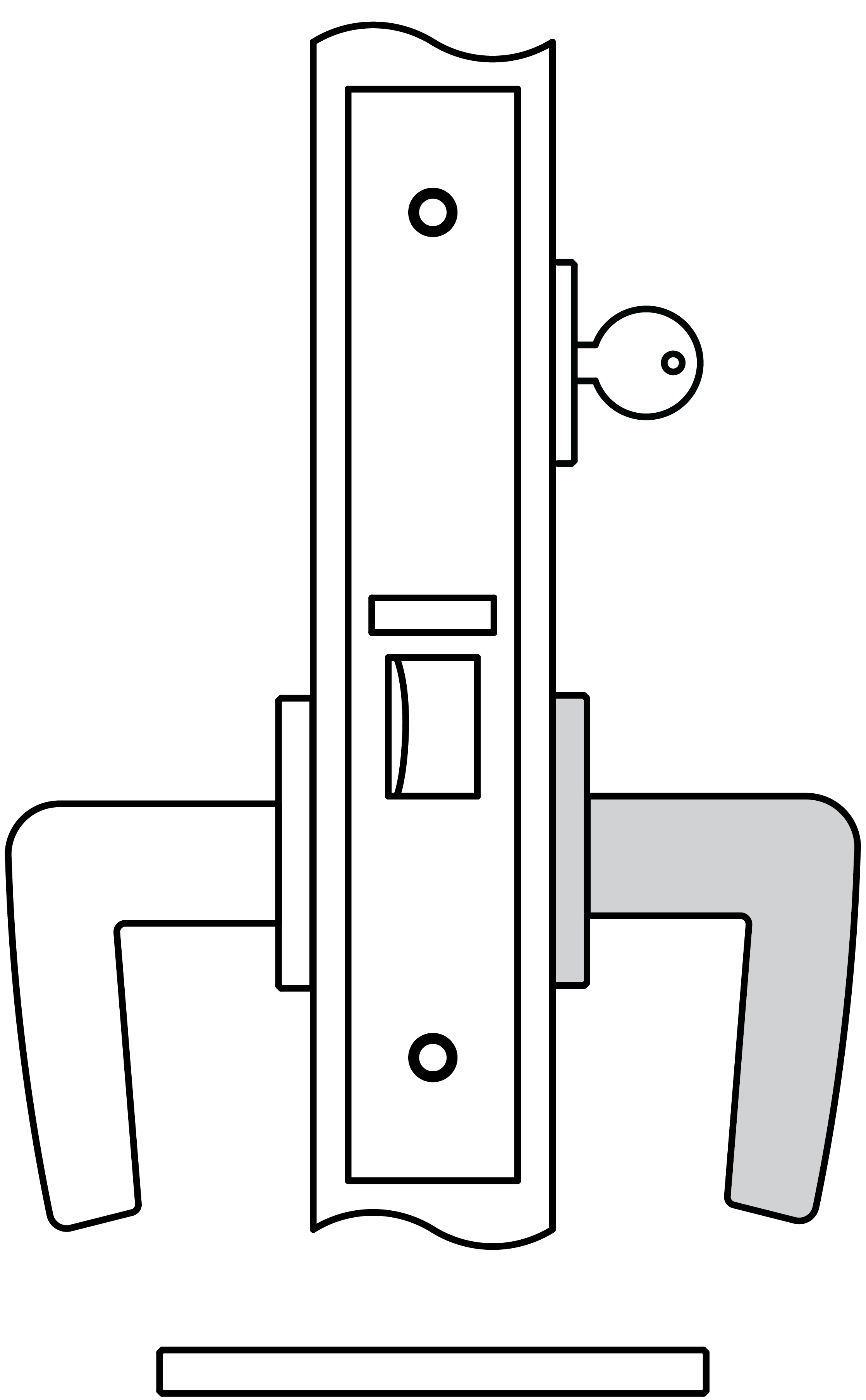

8559 | 8659 Storeroom
(ANSI Series 1000-F07)
- Latch by handle inside and key outside.
- Outside handle always rigid.
- Auxiliary latch deadlocks latch bolt.
Sell Sheet
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type
Examples
-
Storeroom Lock | Other Manufacturers’ Trim
E.g.: 8559. 2. LxL.8mm. US26D. RH. 214 -
Office Lock| Accurate Trim
E.g.: 8556. 114. 18L/2R. US19. LHR. 134
