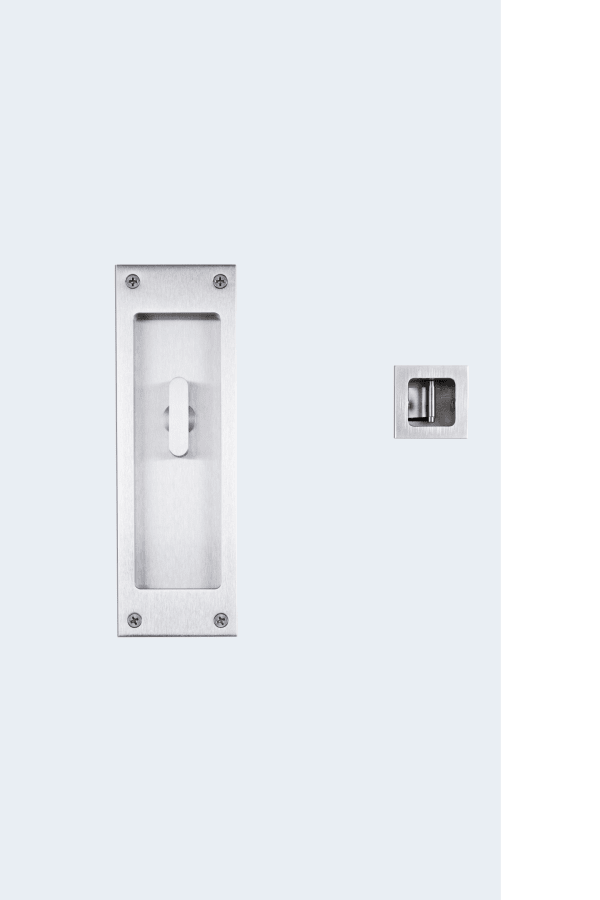

9100BDL
Barn Door Sets
Featuring locking capability without a protruding strike for popular barn doors. The concealed latching mechanism allows for clean and simple hardware design. Ideal for use in both residential and commercial settings, the Barn Door Lock can be paired with different trim options to best fit the design intent and specific project requirements.
ADA Compliant
- 6” backset for 3” overlap configuration.
- Privacy and keyed functions available.
- Pair with a variety of trim options:
- Flush Pulls with exposed, concealed or Invisi-Mount.
- Back-to-Back ADA pulls that meet accessibility requirements. Pair with 7200ADA thumb turn for full ADA Set.
- Combine Flush Pulls and ADA trim which can be ideal for overlapping barn doors.
- Cylinders not included.

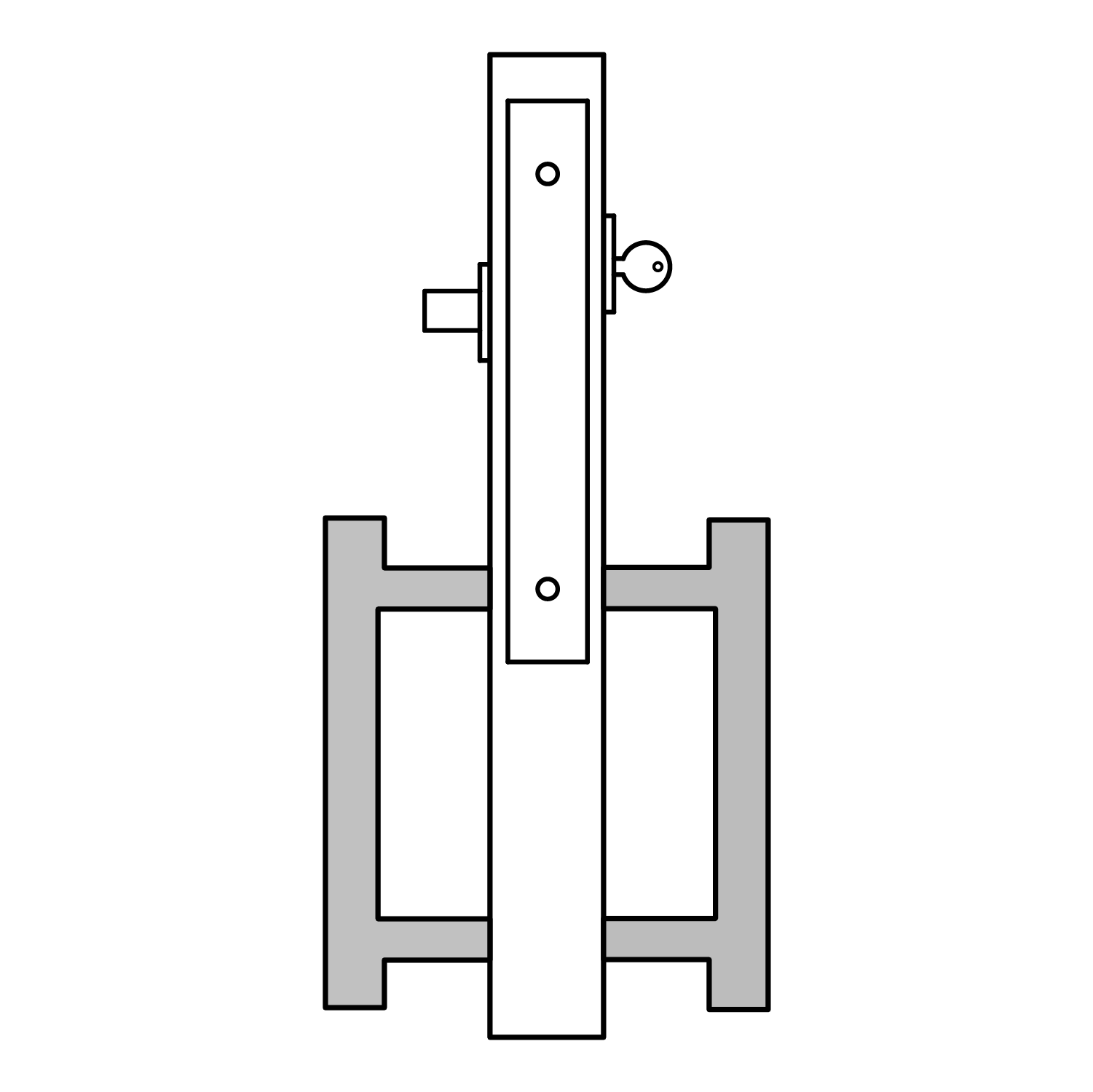

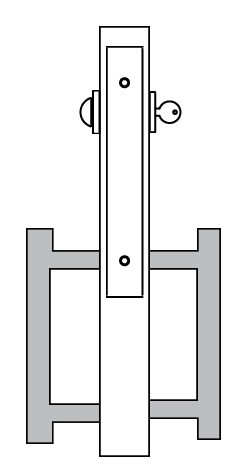

9100BDL-3 Entry
- Deadbolt by key outside or turn piece inside.
9100BDL-3ST Classroom Deadlock
- Turn piece inside will only retract deadbolt.
9100BDL-5 Privacy
- Deadbolt by emergency release outside, turn piece inside.

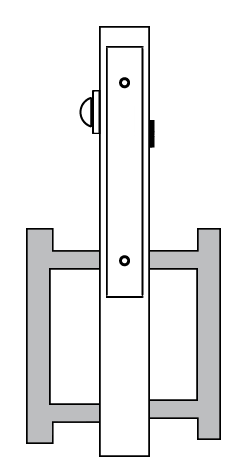

9100BDL-5i Privacy Set with Indicator
- Deadbolt by emergency release outside, turn piece inside.
Sell Sheet
Installation Instruction
Specification Sheets
- Spec.9100BDL-3.ADA
- Spec.9100BDL-5.ADA
- Spec.9100BDL-3.S2002C.T
- Spec.9100BDL-3.7200P.S2002T
- Spec.9100BDL-5.7200P.S2002T
- Spec.9100BDL-5.S2002E.T
- Spec.9100BDL-5i.ADA
- Spec.9100BDL-5i.7200P.S2002T
- Spec.9100BDL-5i.S2002-Oi.T
Installation Templates
- T-ALH.9100BDL-3.ADA
- T-ALH.9100BDL-3.7200P.S2002T
- T-ALH.9100BDL-3.S2002C.T
- T-ALH.9100BDL-5.ADA
- T-ALH.9100BDL-5.7200P.S2002T
- T-ALH.9100BDL-5.S2002E.T
Videos
-
9100BDL Barn Door Locksets
-
9100BDL Barn Door Lock Installation Instructions
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Barn Door Lockset | Privacy | Flush Pull Trim
E.g.: S2002. 9100BDL-5. 6. US3NL. LH. 134 -
Barn Door Lockset | Classroom Deadlock | ADA Trim
E.g.: ADA. 9100BDL-3ST. 6. US10B. LH. 134 -
Barn Door Lockset | Entry | Combo Trim
E.g.: CS2002/7200ADA. 9100BDL-5. 6. US4. RH. 134
