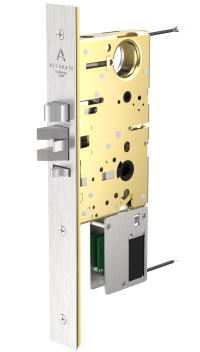

M9143ELR
Motor Drive Electrified Latch Retraction Accessible Restroom Lock
For commercial use, the M9143ELR utilizes a wired push paddle paired with electrified latch retraction to open and close the door behind the user. An ADA thumb turn shunts the push paddle outside, locking the door and allowing for complete privacy. Ideal for bathrooms or any power-operated openings that require accessibility or ADA compliance. This electrified solution helps maintain privacy while also allowing for ease of access with the integration of a low energy power operator and wired push paddle (by others).
ADA Compliant
Electrified Locks
- M9143ELR for doors 1 3/4" minimum (1 1/4" armor front).
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- BACKSETS: 2-1/2" and 2-3/4"(larger backsets available upon request).
- OPERATION: FAIL SECURE ONLY. Latch retracts when power is applied. Key cylinder (by others) will override electronics to retract latch bolt.
- Furnished standard with LB Locking Bar Monitor.
- Filtered and Regulated Power Supply.
- Voltage: 24VDC (21VDC – 30VDC).
- Current: 625mA MAX Inrush, 150mA MAX Holding.
- Non-polarized Leads.

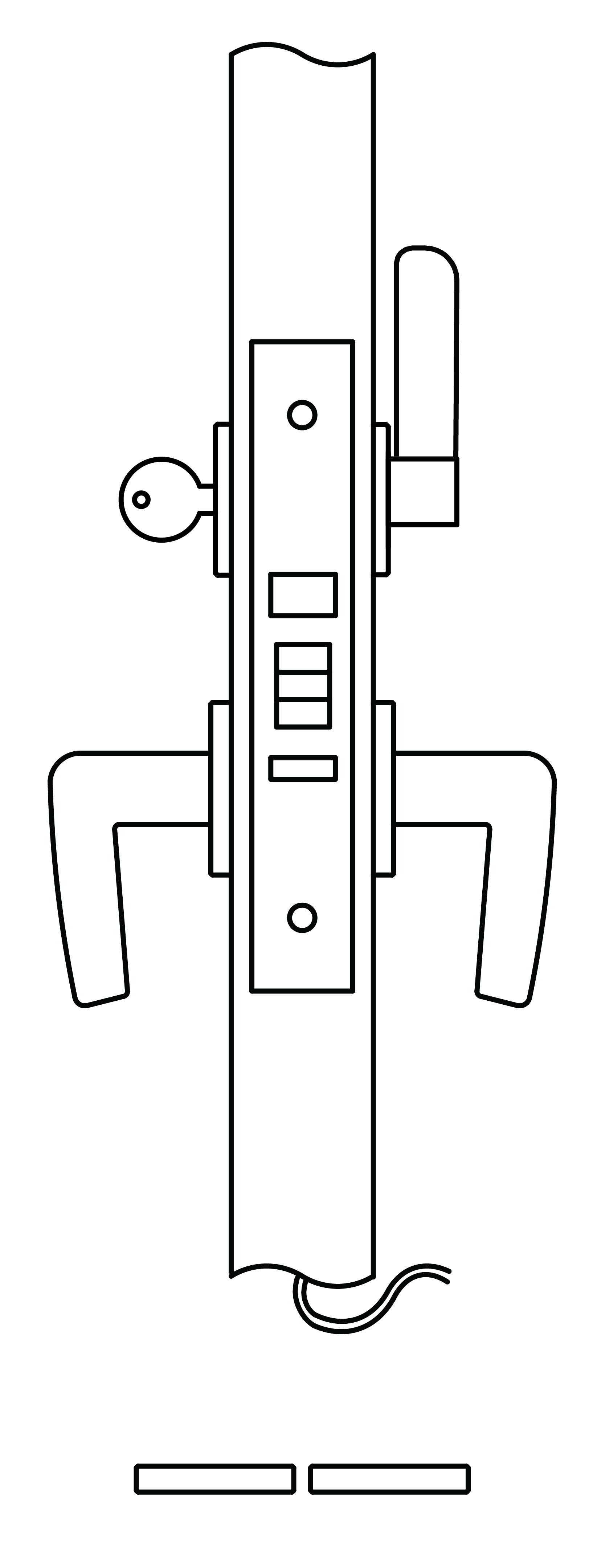

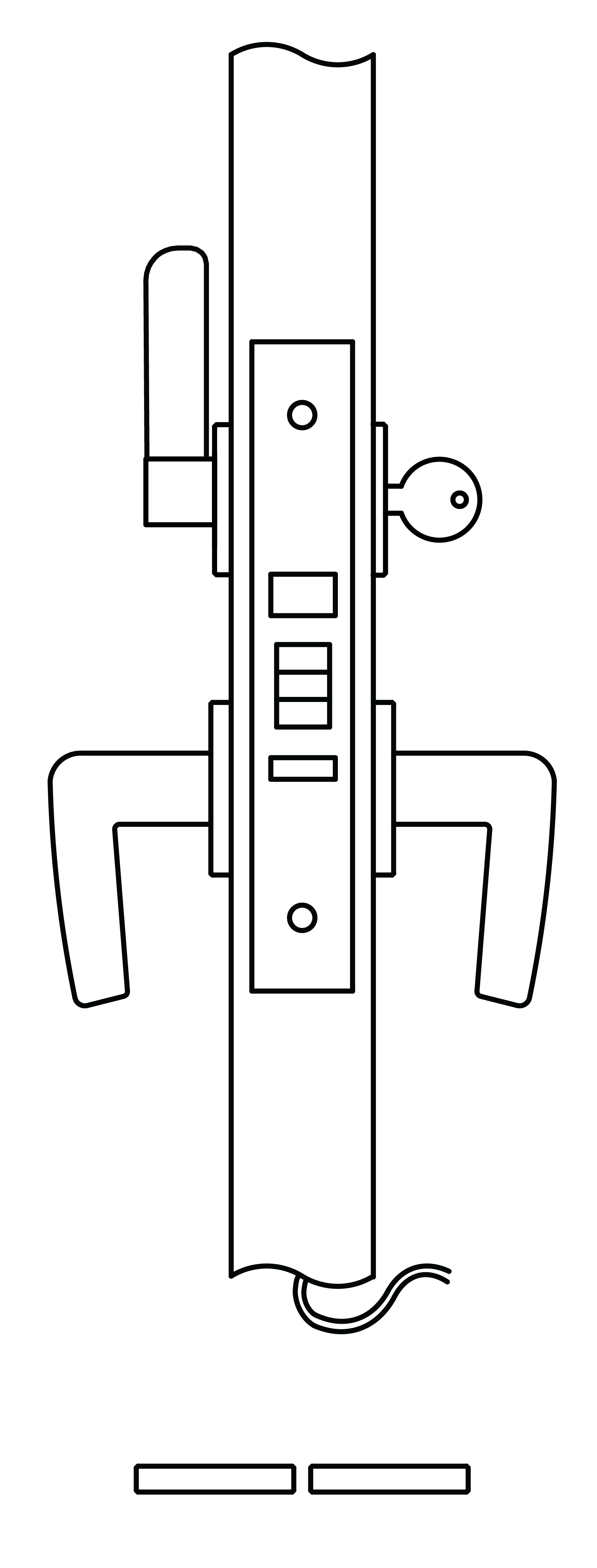

Restroom
- Latch bolt by handle either side unless outside handle is locked by thumb turn or key.
- Rotating thumb turn locks outside handle and deactivates outside push paddle for privacy.
- Thumb turn and key lock or unlock outside handle.
- When outside handle is locked, key retracts latch bolt.
- Auxiliary latch deadlocks latch bolt.
- Outside handle unlocks when inside handle is turned or door closes.
- Inside handle always free for egress.
- Inside wired push paddle always free for egress.
- FAIL SECURE OPERATION ONLY.
Sell Sheet
Specification Sheet
Installation Templates
Operating Instructions
Video
-
M9143ELR Motor Drive Electrified Latch Retraction Accessible Restroom Lock
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type
Examples
-
Electrified Latch Retraction | Accessible Restroom | Accurate Trim | Wood Door
E.g.: M9143ELR. 234. 29L/2R. US26D. RH. 134. WOOD -
Electrified Latch Retraction | Accessible Restroom | Accurate Trim | Metal Door
E.g.: M9143ELR. 234. 19L/1E. US15. RH. 134. METAL -
Electrified Latch Retraction | Accessible Restroom with Authorized Egress | Accurate Trim | Metal Door
E.g.: M9143ELR-AE. 234. 19L/1E. US10B. RH. 134. METAL
