G2002
Pocket Door Glass Patch

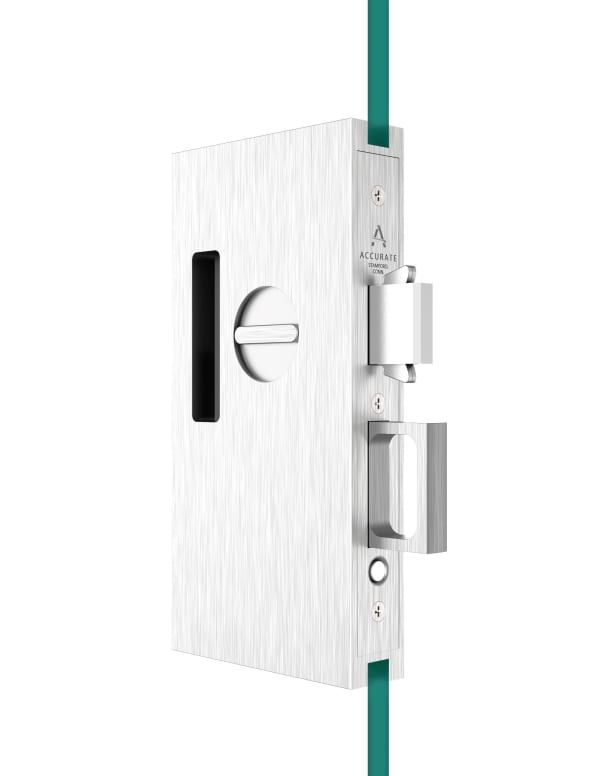

The G2002 is a unique glass patch designed for space-saving pocket doors. Create open passages throughout living or office spaces that can easily be closed or locked while maintaining the desired aesthetic. The elegant patch kit features a recessed flush pull and thumb turn for privacy along with an integrated edge pull for ease of operation.
- Furnished with the industry standard 2002CPDL Pocket Door Lock with Integrated Edge Pull.
- Offered as a complete package including lock body, thumb turn (when applicable) and patch assembly.
- Standard set up is for 2” backset onto 1⁄2” thick tempered glass.
- Custom options available including: other backsets, other door thicknesses, custom anodized aluminum finishes/colors.
- Glass Patch Strikes sold separately.

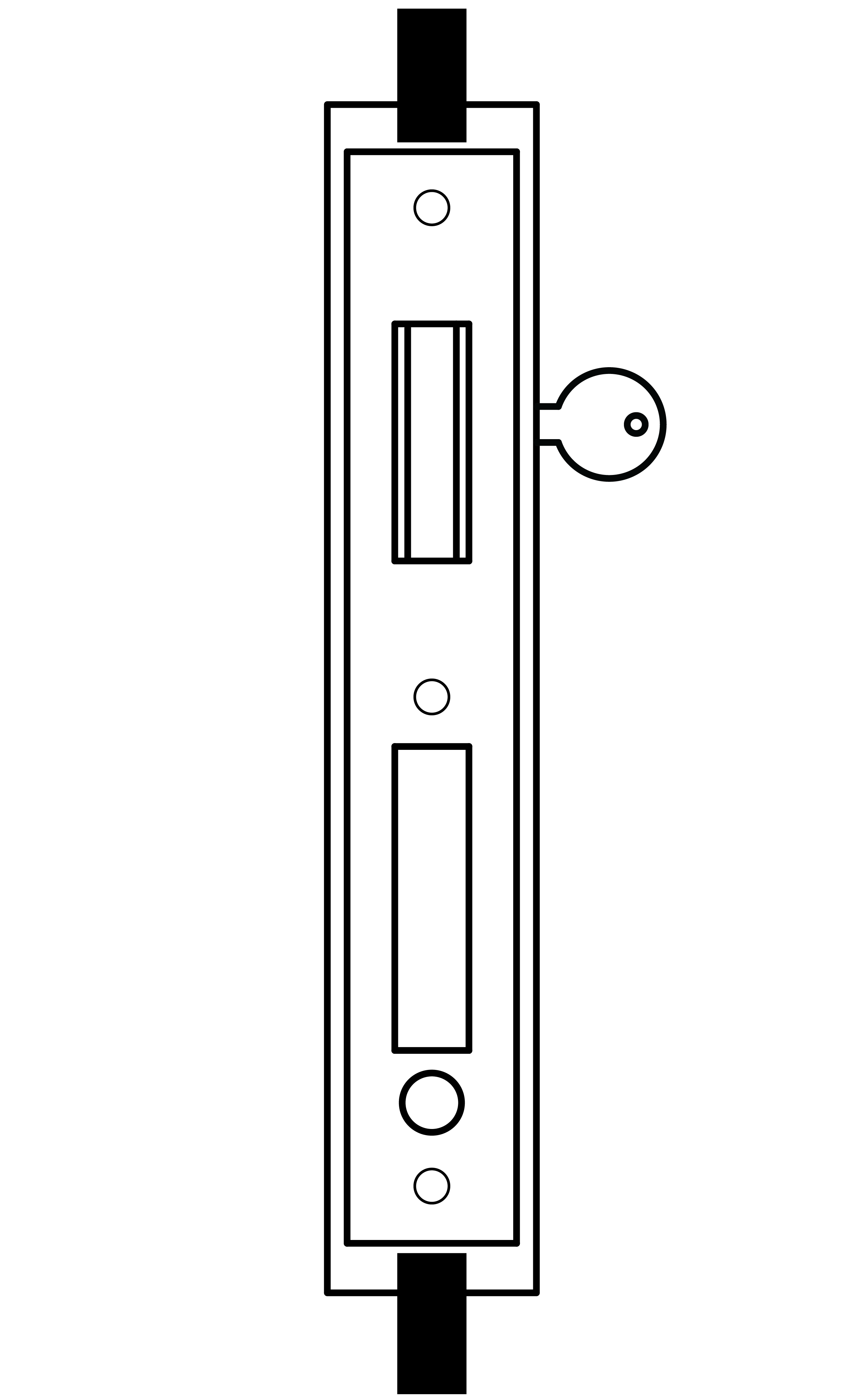

G2002-1 Single Cylinder
- By key outside only.

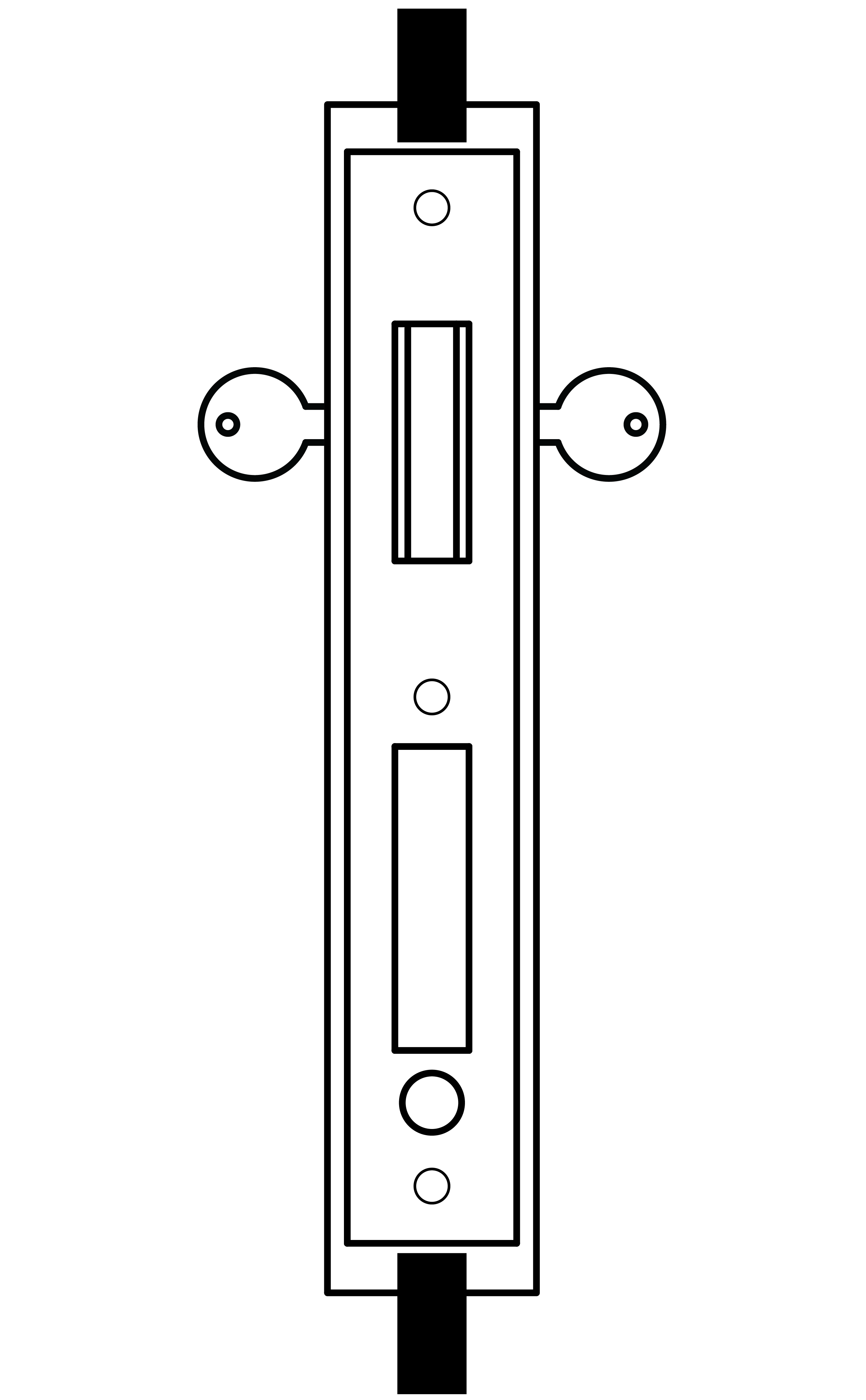

G2002-2 Double Cylinder
- By key outside and inside.

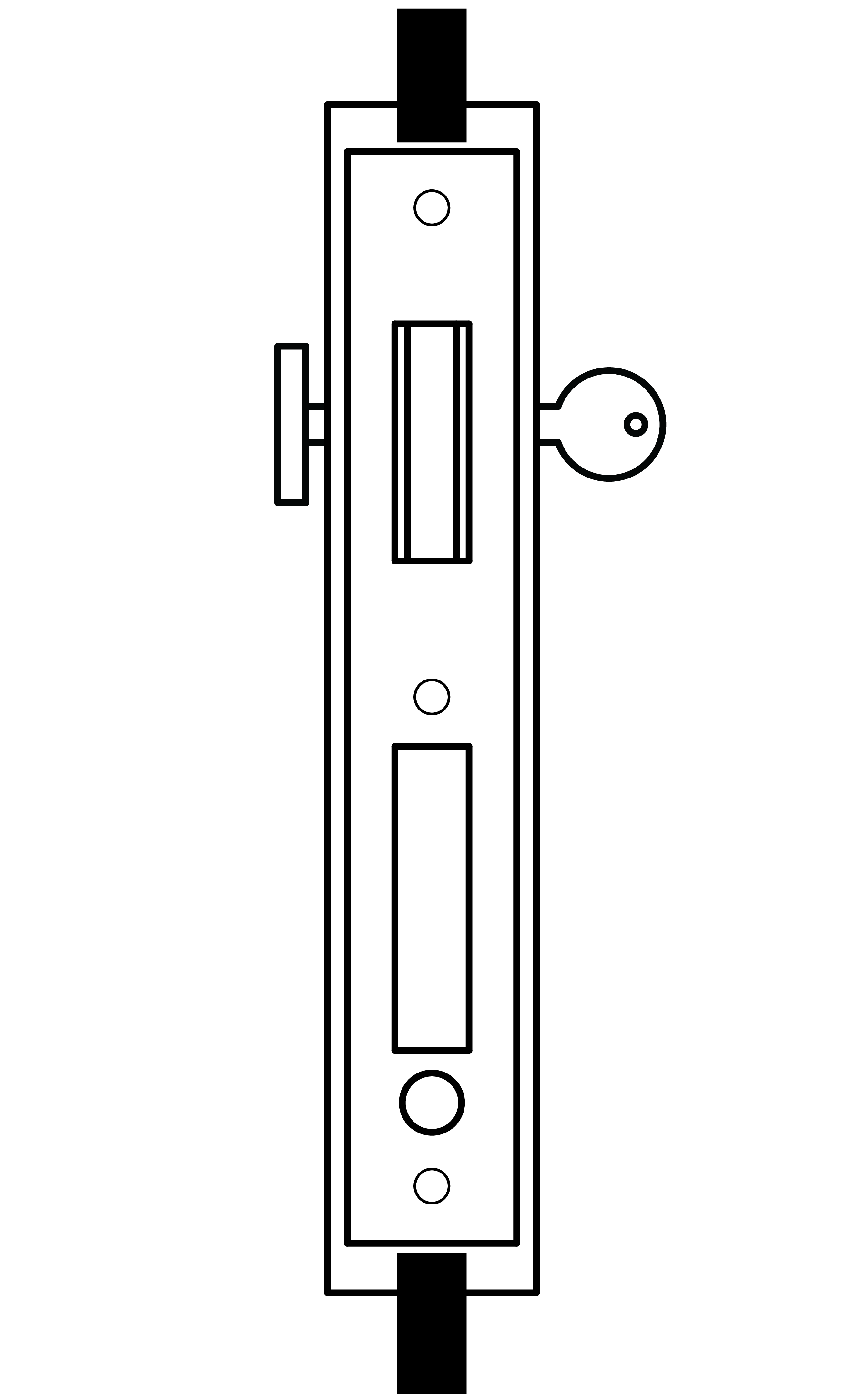

G2002-3 Entry
- By key outside and thumb turn inside.

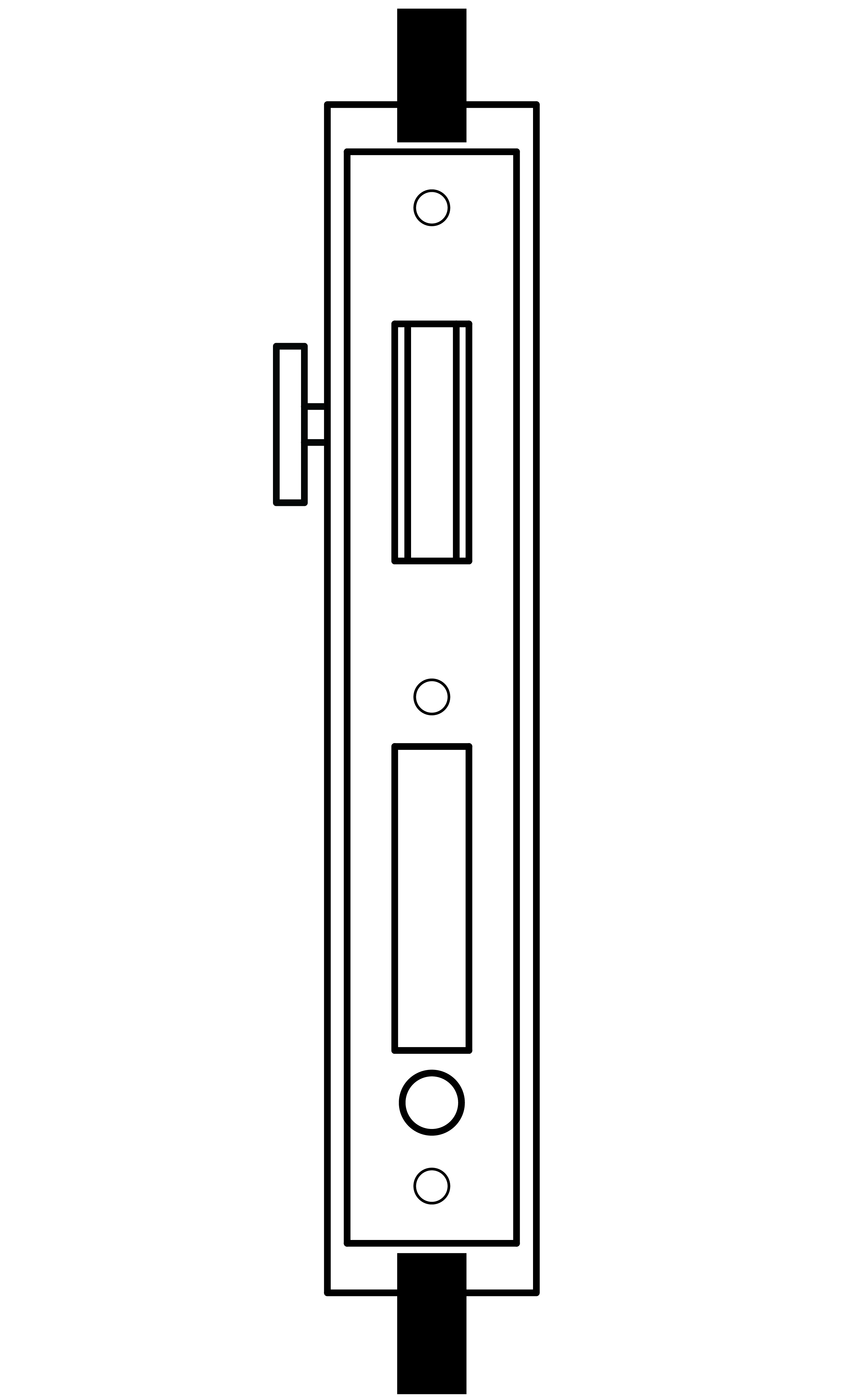

G2002-4 Patio
- By thumb turn inside only.

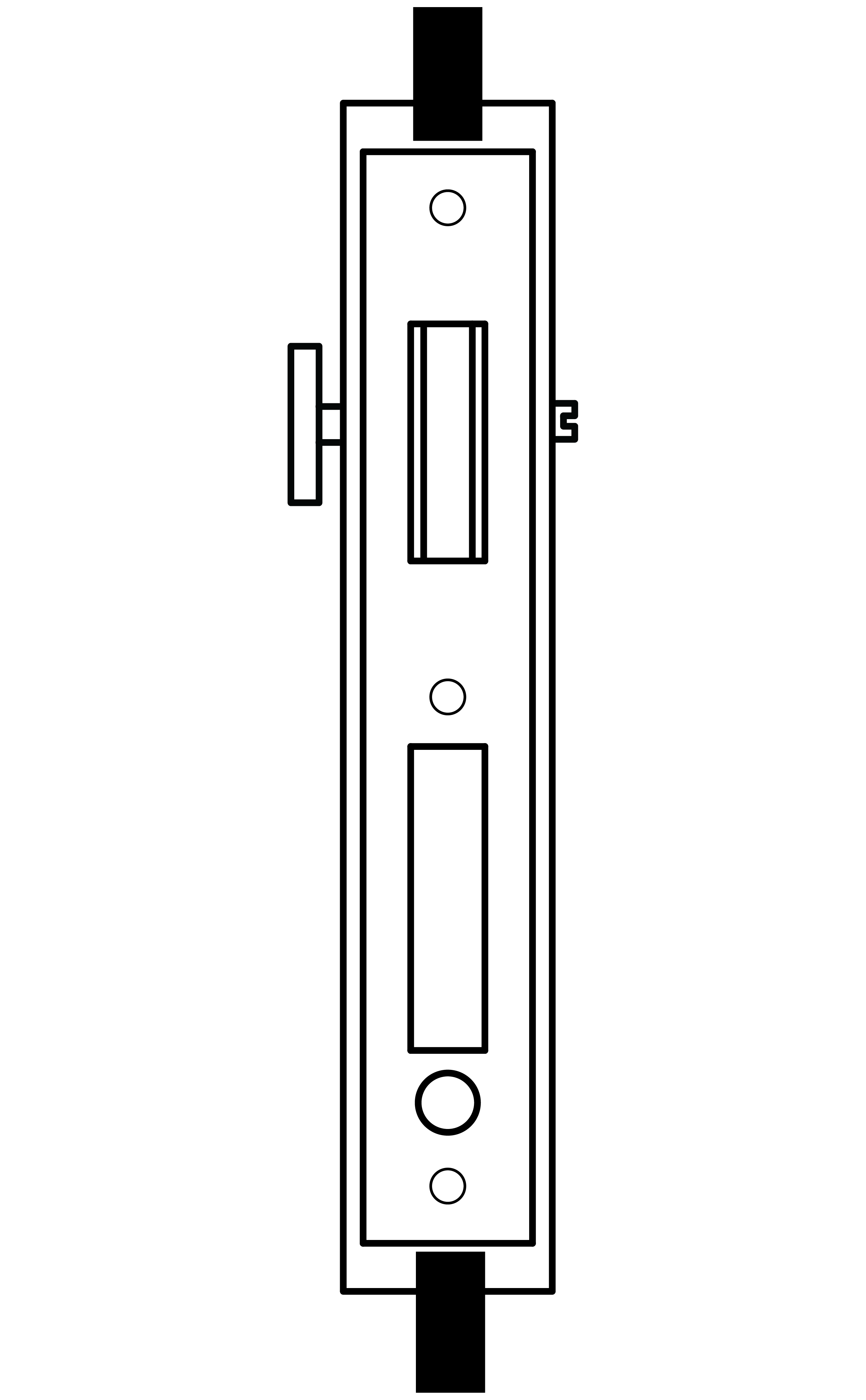

G2002-5 Privacy
- By thumb turn inside, emergency release outside.
Sell Sheet
Specification Sheet
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
-
US28
Satin Aluminum
How to Specify
Function. Backset. Finish. Door Thickness. Strike
Examples
-
Pocket Door Glass Patch | Entry | Glass Patch Strike
E.g.: G2002-3. 2. ESN. 1/2. GS87-GPS -
Pocket Door Glass Patch | Privacy | Standard Strike
E.g.: G2002-5. 2. US19. 1/2. GS87-DWSTK -
Pocket Door Glass Patch | Single Cylinder | Dry Wall Strike
E.g.: G2002-1. 2. ESN. 1/2. GS87-DWSTK
Notes
- Pocket Door Glass Patch Strikes and Dry Wall Strikes (DWSTK/DWSTK-DP) sold and specified separately (from G2002 Glass Patch Hardware Sets for Sliding Doors).
