2002 Concealed
Pocket Door Sets Concealed Fasteners
Pocket Door Sets are available in privacy and passage locking functions for space-saving doors. Pair with a variety of flush pulls with concealed fasteners available in most architectural finishes. Available with SilentPac™ 2002Q Quiet Pocket Door Pull featuring a quiet, slow release edge pull.
Noise Reduction
RMS Standard Product
- Backsets: 2”, 2-1/2”, 2-3/4”, 3-3/4”, 5”, 6” (other backsets available custom order).
- For single or pair of doors.
- Available in a variety of functions for passage, privacy or entry doors.
- Passage Options:
- 2000 | 2002Q Pocket Door Edge Pull, 5"
- 2002CPDP | 2002CPDP-Q Pocket Door Edge Pull, 8"
- 2002CPDP-SD | 2002CPDP-SD-Q Pocket Door Edge Pull Narrow Stile (2 7/8" depth)
- 2011PDP | 2011PDP-Q Pocket Door Edge Pull, Large Bale
- Privacy Options:
- 2002CPDL | 2002Q Privacy Pocket Door Lock with Integrated Edge Pull
- 2002CPDS | 2002CPDS-Q Pocket Door Strike with Integrated Edge Pull
- Specify Q for SilentPac™ Quiet Pocket Door Pull.
- Flush Pulls:
- CS, CN, CA, CO Flush Pulls | Concealed Fasteners
- FC2348
- 24S | 24R
2002CPDL-1 | 2002Q-1 Single Cylinder
- By key outside only.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Blank.
- 2002C Cylinder Collar.
2002CPDL-2 | 2002Q-2 Double Cylinder
- By key outside and inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Cylinder Cutout.
- 2002C Cylinder Collar (2).
2002CPDL-3 | 2002Q-3 Entry
- By key outside x T-turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.
2002CPDL-3i | 2002Q-3i Entry with Indicator
- By key outside x thumb turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout with Indicator x T-turn.
- 2002C Cylinder Collar.
- Specify handing.
2002CPDL-4 | 2002Q-4 Patio
- By T-turn inside only.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Blank x T-turn.
2002CPDL-5 | 2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
2002CPDL-5i | 2002Q-5i Privacy with Indicator
- By T-turn inside, ERi outside.
- Includes:
- 2002CPDL-5i or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- Specify handing.
2002CPDL-3 | 2002Q-3 Privacy
- By key outside, T-turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.
- 2002CPDS or 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
2002CPDL-5 | 2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
- 2002CPDS or 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.

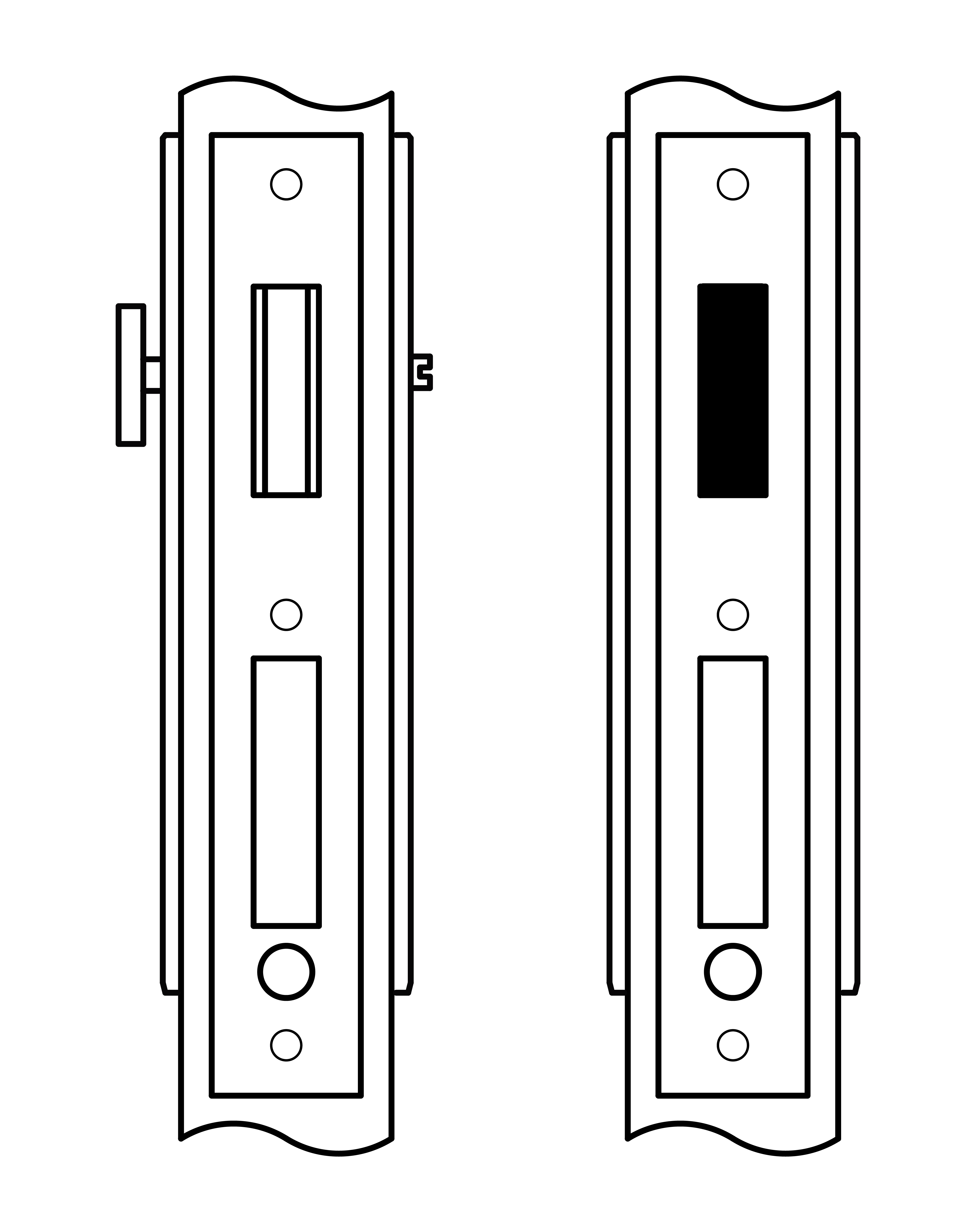

2002CPDL-5i | 2002Q-5i Privacy with Indicator
- By T-turn inside, ERi outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
- Specify handing.
Sell Sheet
Specification Sheets
- Spec.CS2002
- Spec.CA2002
- Spec.CN2002
- Spec.CO2002
- Spec.2002CPDL
- Spec.2002Q
- Spec.2002CPDS
- Spec.2002CPDP-Q
- Spec.2002CPDP
- Spec.2002CPDS-Q
Installation Templates
- T-ALH.2002CPDL.2002Q.CA.CN.CO
- T-ALH.2002CPDL.2002Q.CS
- T-ALH.2002CPDS.CPDS-Q.CA.CN.CO
- T-ALH.2002CPDS.CPDS-Q.CS
- T-ALH.2002CPDP.CPDP-Q.CA.CN.CO
- T-ALH.2002CPDP.CPDP-Q.CS
- T-ALH.2002CPDL.2002Q.24R
- T-ALH.2002CPDL.2002Q.24S
- T-ALH.2002CPDL.2002Q-3.FC2348T.C
- T-ALH.2002CPDL.2002Q-3.FE2348T.C
- T-ALH.2002CPDL.2002Q-5.FC2348T.E
- T-ALH.2002CPDL.2002Q-5.FE2348T.E
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type. OPTIONS
Examples
-
Quiet Pocket Door Privacy Set | Concealed Fasteners | Single Door | Jamb Protector Plate
E.g.: CS. 2002Q-5. 2. US19. 134. SD. 2002JPP -
Pocket Door Privacy Set with Indicator | Concealed Fasteners | Pair of Doors
E.g.: CO. 2002CPDL-5i. 212. US14. RH. 134. PD -
Pocket Door Privacy Set | Concealed Fasteners | Passage Large Bale | Single Door
E.g.: CA. 2011PDP. 234. US4. 134. SD -
Pocket Door Privacy Set | Concealed Fasteners | Privacy | Pair of Doors | All Bolts Finished
E.g.: CS. 2002Q-5. 2. US19. 134. PD. US19BOLTS
Notes
- Available with SilentPac™ Quiet Pocket Door Pull.
- SD Strike and Dust Box are included in the lock cost. (2002JPP and 2002CPDS-Q require an upcharge).
- Custom narrow and large backsets are available. 1-3/4” backset available for non-cylinder functions.
- Furnished standard with lacquered satin brass bolt/button/bail.
- Patinated components are available as a special order, please specify accordingly.
- Specify handing for pocket doors sets with indicator (-3i, -5i).
