2002 Exposed
Pocket Door Sets Exposed Fasteners
The original design of pocket door flush pulls features exposed fasteners on each corner of the pull. Pocket Door Sets are available in privacy and passage functions for space-saving doors. Pair with a variety of flush pulls in most architectural finishes. Available with SilentPac™ Quiet Pocket Door Pull lock options featuring a quiet, slow release edge pull.
Noise Reduction
- Backsets: 2”, 2-1/2”, 2-3/4”, 3-3/4”, 5”, 6” (other backsets available custom order).
- For single or a pair of doors.
- Available in a variety of functions for passage, privacy or entry doors.
- Passage Options:
- 2000 | 2002Q Pocket Door Edge Pull, 5"
- 2002CPDP | 2002CPDP-Q Pocket Door Edge Pull, 8"
- 2002CPDP-SD | 2002CPDP-SD-Q Pocket Door Edge Pull Narrow Stile (2 7/8" depth)
- 2011PDP | 2011PDP-Q Pocket Door Edge Pull, Large Bale
- Privacy Options:
- 2002CPDL | 2002Q Privacy Pocket Door Lock with Integrated Edge Pull
- 2002CPDS | 2002CPDS-Q Pocket Door Strike with Integrated Edge Pull
- Specify Q for SilentPac™ Quiet Pocket Door Pull.
- Flush Pulls:
- S, A, N, O Flush Pulls | Exposed Fasteners
- FE2348
- 24S | 24R

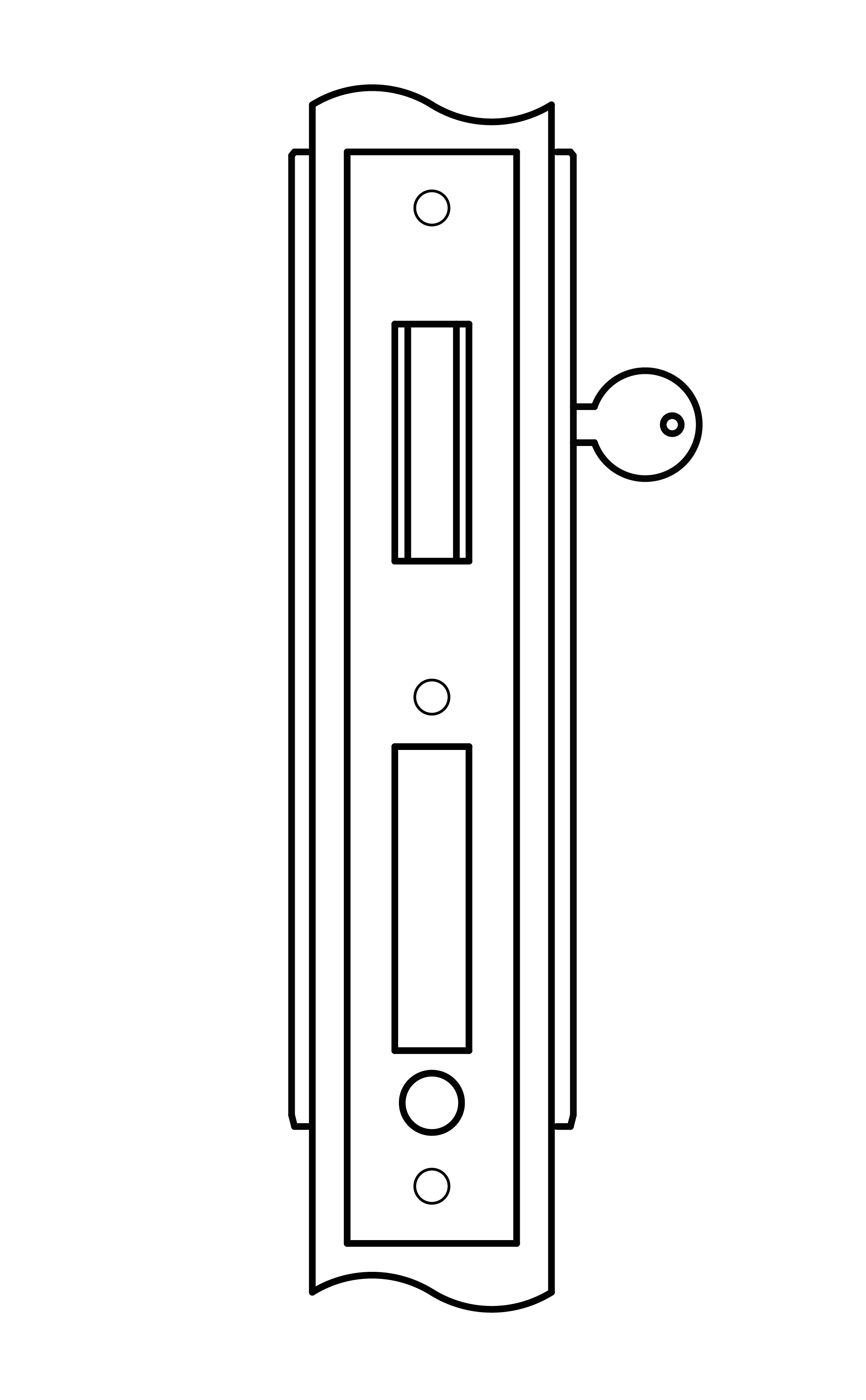

2002CPDL-1 | 2002Q-1 Single Cylinder
- By key outside only.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Blank.
- 2002C Cylinder Collar.

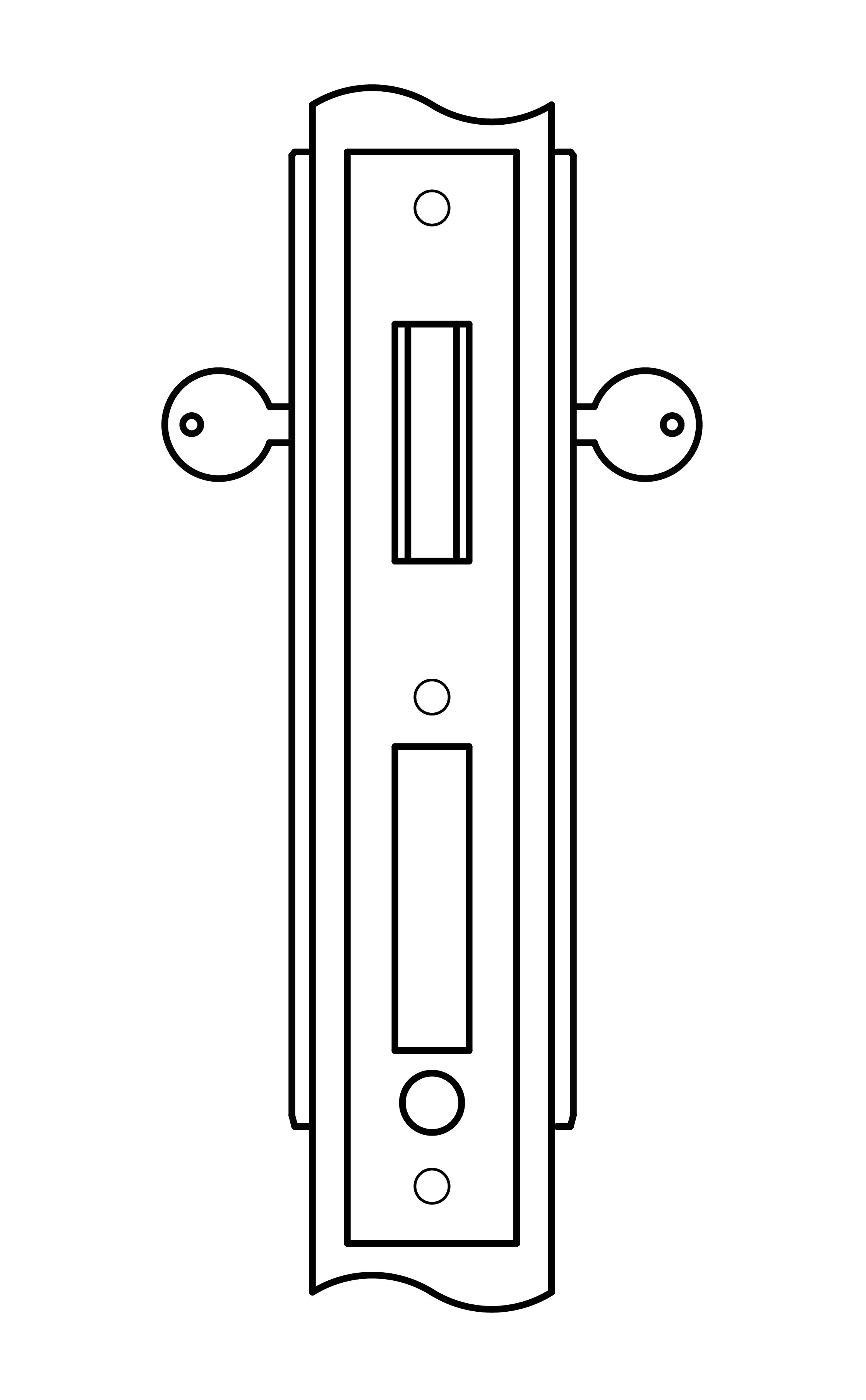

2002CPDL-2 | 2002Q-2 Double Cylinder
- By key outside and inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Cylinder Cutout.
- 2002C Cylinder Collar (2).
2002CPDL-3 | 2002Q-3 Entry
- By key outside x T-turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.

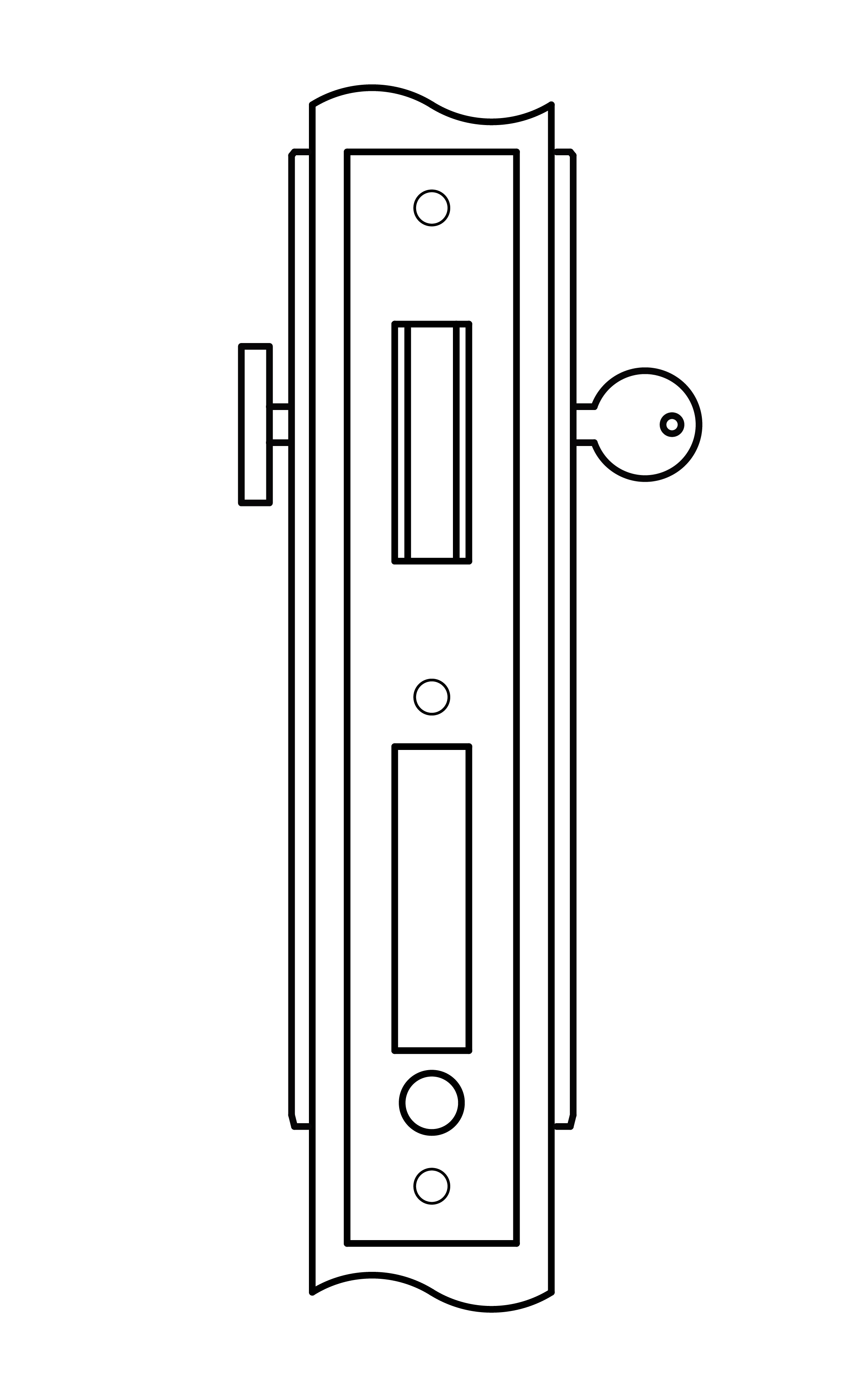

2002CPDL-3i | 2002Q-3i Entry with Indicator
- By key outside x thumb turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout with Indicator x T-turn.
- 2002C Cylinder Collar.
- Specify handing.

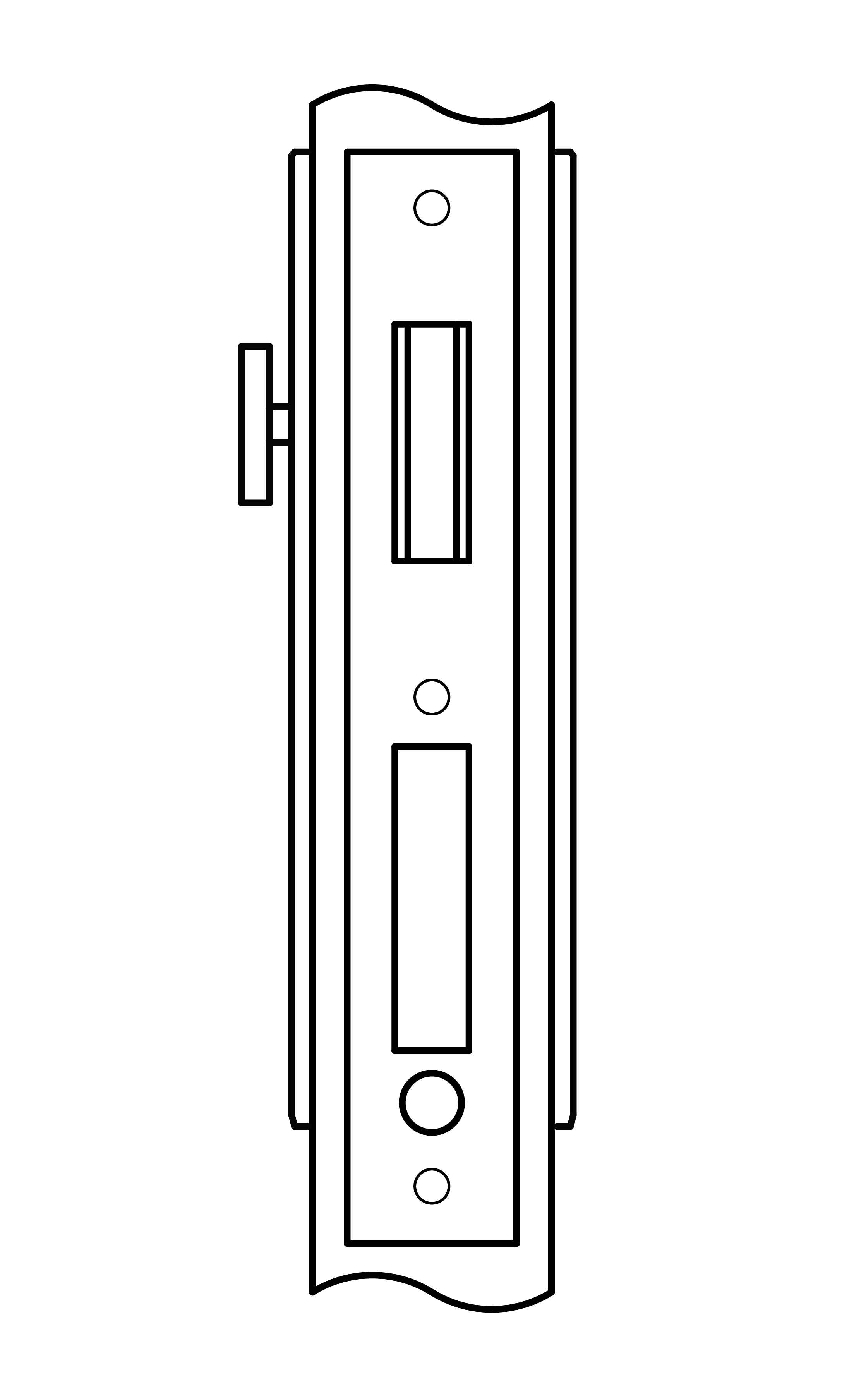

2002CPDL-4 | 2002Q-4 Patio
- By T-turn inside only.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Blank x T-turn.

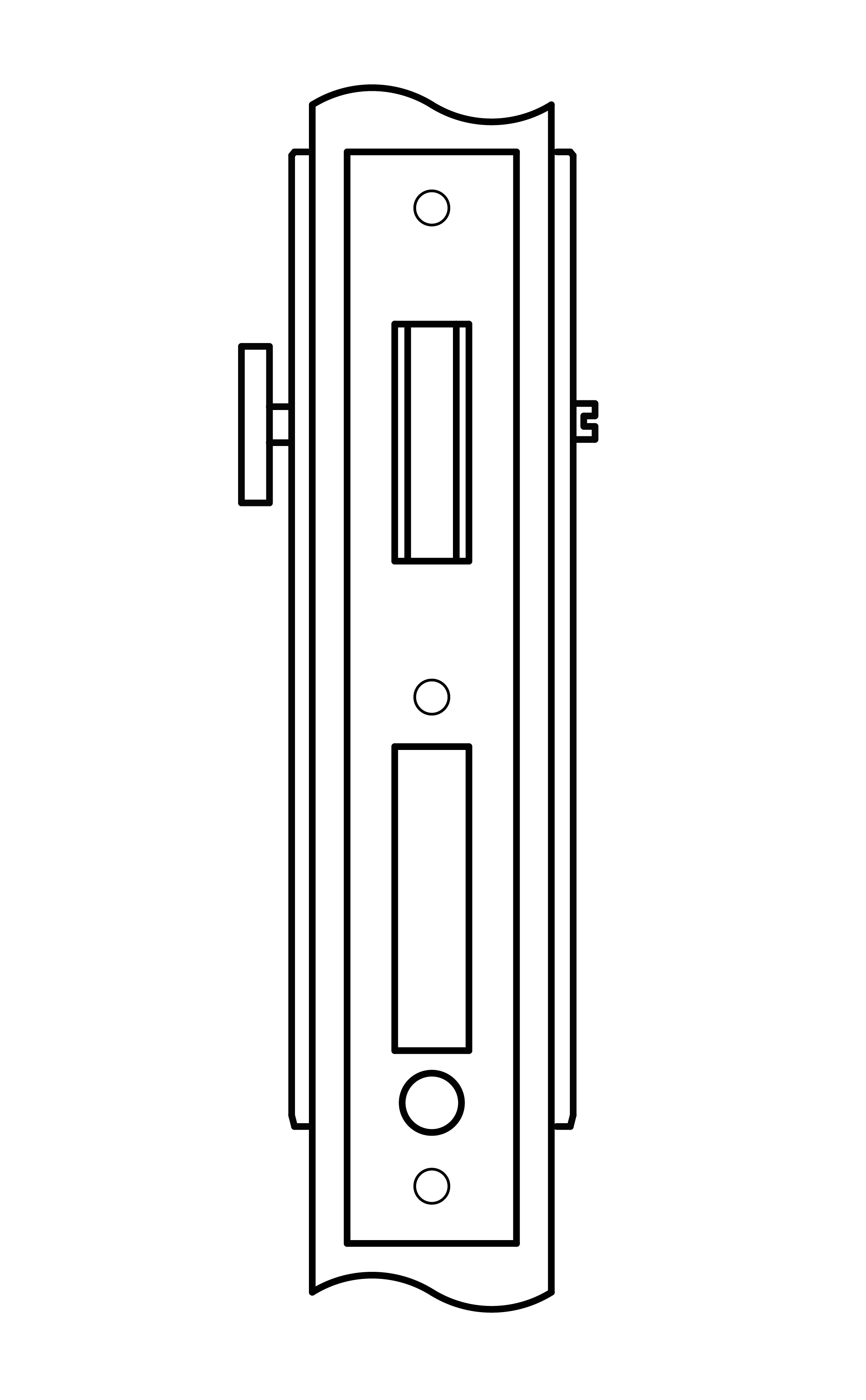

2002CPDL-5 | 2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
2002CPDL-5i | 2002Q-5i Privacy with Indicator
- By T-turn inside, ERi outside.
- Includes:
- 2002CPDL-5i or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- Specify handing.

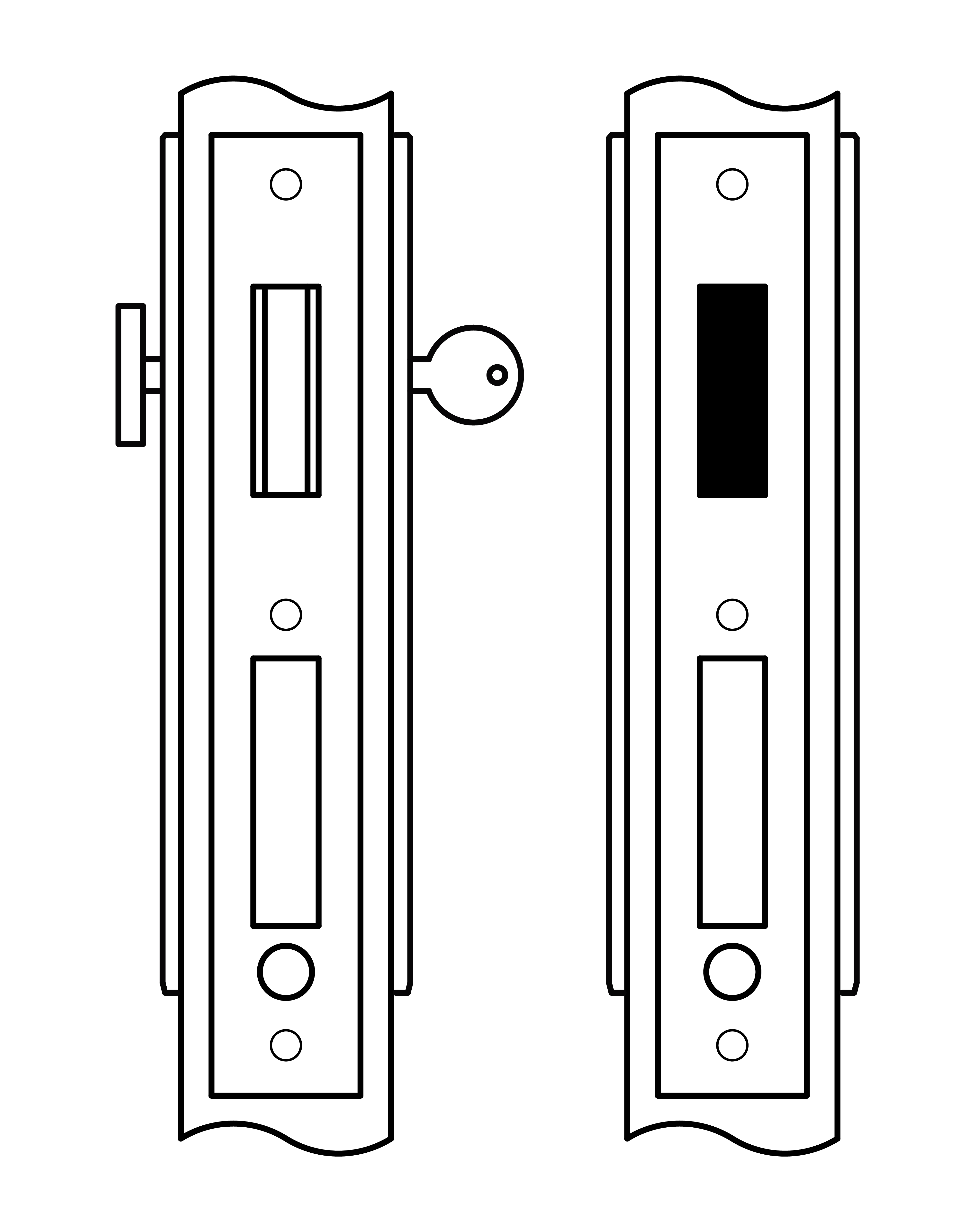

2002CPDL-3 | 2002Q-3 Privacy
- By key outside, T-turn inside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.
- 2002CPDS or 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.

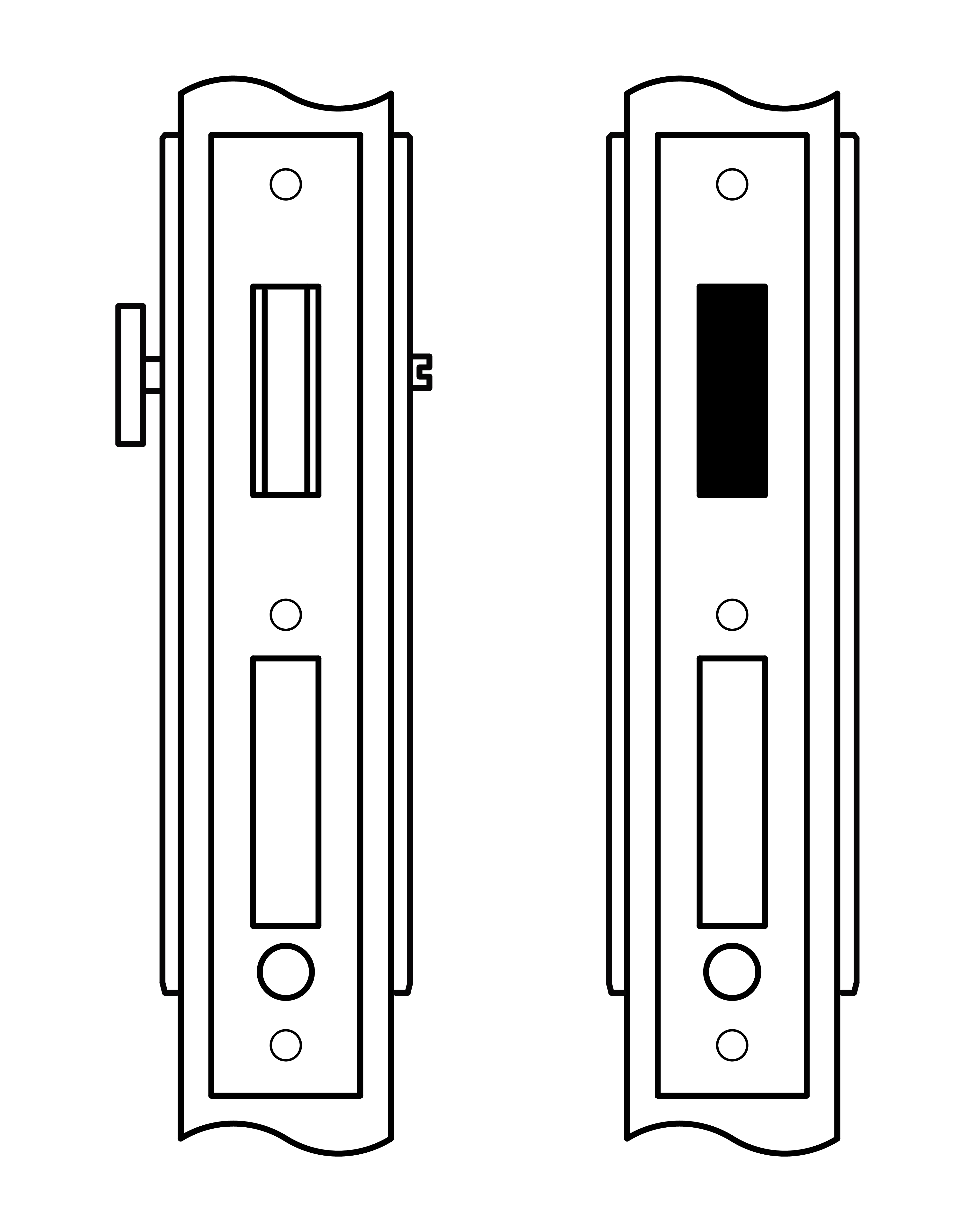

2002CPDL-5 | 2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
- 2002CPDS or 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
2002CPDL-5i | 2002Q-5i Privacy with Indicator
- By T-turn inside, ERi outside.
- Includes:
- 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
- Specify handing.
Sell Sheet
Specification Sheets
- Spec.S2002
- Spec.A2002
- Spec.N2002
- Spec.O2002
- Spec.2002CPDL
- Spec.2002Q
- Spec.2002CPDS
- Spec.2002CPDS-Q
- Spec.2002CPDP
- Spec.2002CPDP-Q
Installation Templates
- T-ALH.2002CPDL.2002Q.A.N.O
- T-ALH.2002CPDL.2002Q.S
- T-ALH.2002CPDP.CPDP-Q.A.N.O
- T-ALH.2002CPDP.CPDP-Q.S
- T-ALH.2002CPDS.CPDS-Q.A.N.O
- T-ALH.2002CPDS.CPDS-Q.S
- T-ALH.2002CPDL.2002Q.24R
- T-ALH.2002CPDL.2002Q.24S
- T-ALH.2002CPDL.2002Q-3.FC2348T.C
- T-ALH.2002CPDL.2002Q-3.FE2348T.C
- T-ALH.2002CPDL.2002Q-5.FC2348T.E
- T-ALH.2002CPDL.2002Q-5.FE2348T.E
Click on a swatch below to get a closer look
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type .OPTIONS
Examples
-
Quiet Pocket Door Set | Exposed Fasteners | Double Cylinder | Single Door
E.g.: S. 2002Q-5. 212. US15. 134. SD -
Pocket Door Set | Exposed Fasteners | Passage | Single Door | Jamb Protector Plate
E.g.: O. 2002CPDP. 234. US26D. 134. SD. 2002JPP -
Pocket Door Set | Exposed Fasteners | Privacy with Indicator | Pair of Doors | All Bolts Finished
E.g.: S. 2002CPDL-5i. 212. US19. RH. 134. PD. US19BOLTS -
Quiet Pocket Door Set | Exposed Fasteners | Entry | Pair of Doors
E.g.: A. 2002Q-3. 5. US14. 134. PD
Notes
- Available with SilentPac™ Quiet Pocket Door Pull.
- Custom narrow and large backsets are available. 1-3/4” backset available for non-cylinder functions.
- SD Strike and Dust Box are included in the lock cost. (SD-8, 2002JPP and 2002CPDS/2002CPDS-Q require an upcharge).
- Furnished standard with lacquered satin brass bolt/button/bail.
- Patinated components are available as a special order, please specify accordingly.
