M9100E-ELR
Motor Drive Electrified Dual Motor Mortise Lock
This dual electrified mortise lock features two independently powered motors to offer the convenience of ELR touch-free operation with fail safe/fail secure functionality. The door will remain latched when closed to ensure code compliance.
Electrified Locks
- Continuous duty motor enables door to be scheduled for unlocked status for indefinite periods of time.
- Contributes to elevated accessibility by automatically retracting the latch rather than requiring it to be done by hand, particularly when paired with a low energy automatic door opener. (Similar to M9143ELR.)
- Access control components (keypad, wall paddle, etc.) by others.
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- BACKSETS: 2-1/2", 2-3/4", 3-3/4", 5", 6".
- OPERATION: Key Cylinder (by others) will override electronics to retract latch bolt.
- Access granted with both a keypad and wall paddle that opens the door automatically on exterior with wall paddle on inside for egress. Suitable for controlled egress openings and stairwell reentry doors.
- Motor Electric Controlled Locking/Unlocking (Blue Leads).
- Voltage: 12-24V AC/DC (11V-30V).
- Current: 250mA MAX Inrush, 10mA MAX Holding.
- Non-polarized leads.
- Motor Drive Electric Latch Retraction (White Leads).
- Filtered and Regulated Power Supply.
- Voltage: 24VDC (21VDC-30VDC).
- Current: 625mA MAX Inrush, 150mA MAX Holding.
- Non-polarized leads.

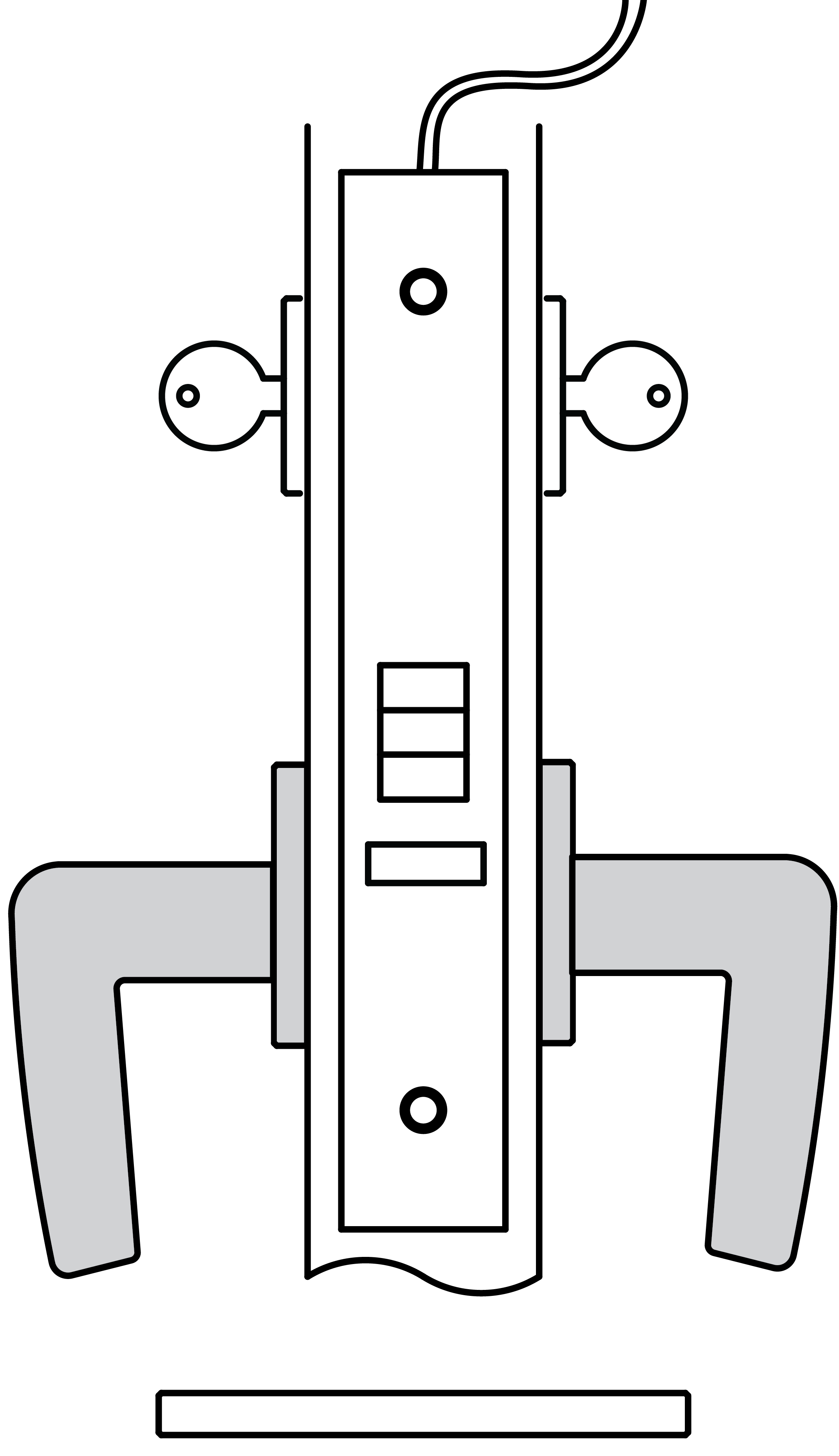

M9158E-ELR
ELR + ELEC Dual Door Control
- Latch bolt by key either side.
- Auxiliary latch deadlocks latch bolt.
- Motor Drive Electric Latch Retraction
- Latch retracts when power is applied (FAIL SECURE only).
- Motor Drive Electric Controlled Locking/Unlocking
- FAIL SECURE OPERATION: Inside and outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Inside and outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

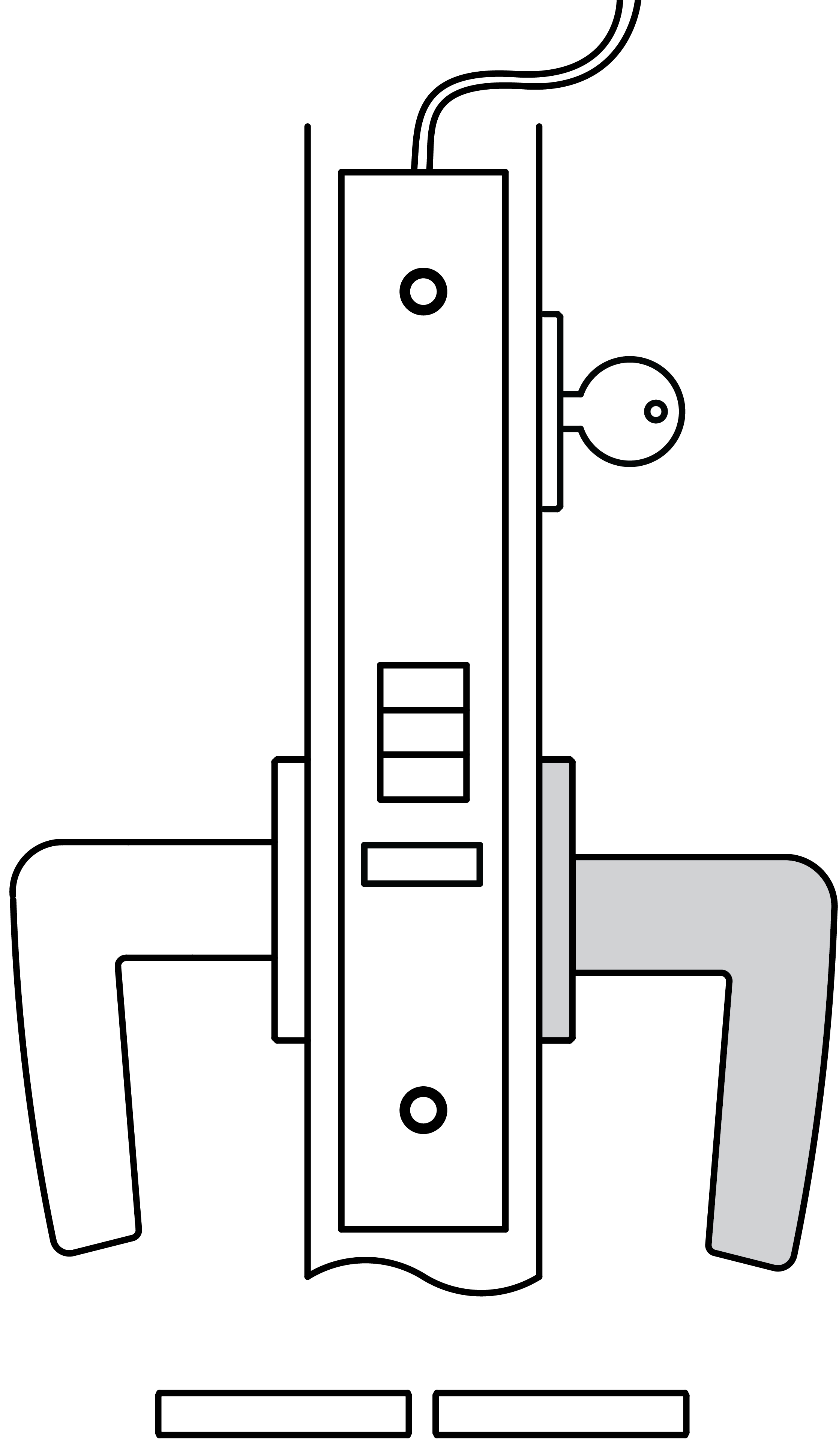

M9159E-ELR
ELR + ELEC Dual Door Control
- Inside trim always free.
- Latch bolt by key outside.
- Auxiliary latch deadlocks latch bolt.
- Motor Drive Electric Latch Retraction.
- Latch retracts when power is applied (FAIL SECURE only).
- Motor Drive Electric Controlled Locking/Unlocking
- FAIL SECURE OPERATION: Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
Sell Sheet
Specification Sheet
Installation Templates
Operating Instructions
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type
Examples
-
Dual Motor Mortise Lock | Authorized Egress | Accurate Trim
E.g.: M9159E-ELR-AE. 212. 29L/2R. US26D. RH. 134. HM -
Dual Motor Mortise Lock | Accurate Trim
E.g.: M9158E-ELR. 234. 19L/1R. US4NL. LH. 134. WD -
Dual Motor Mortise Lock | Latch Bolt Monitor Retracted | Accurate Trim
E.g.: M9158E-ELR-LMR. 234. 21L/1E. US26D. RH. 134. HM
Notes
- SS-Security Strikes.
- USD K x K Upside Down (cylinder/thumb turn below knobs).
- USD L x L Upside Down (cylinder/thumb turn below levers).
- K x L Knob Outside, Lever Inside.
- L x K Lever Outside, Knob Inside.
- Compatible with the following add-ons: SilentPac™ Lever Dampening Disc.
