2002 Invisi-Mount
Pocket Door Sets Invisi-Mount
Pocket Door Hardware Sets are now available with Invisi-Mount innovative mounting system offering the simplest and cleanest screwless flush pulls on the market. Utilizing rare-earth magnets for secure and precise installation, this is an upgrade to exposed or concealed fastener options. Pair with the SilentPac™ 2002Q Quiet Pocket Door Pull featuring a quiet slow release edge pull for a premium pocket door set in privacy and passage functions.
Noise Reduction
- Backsets: 2”, 2-1/2”, 2-3/4”, 3-3/4”, 5”, 6” (other backsets available custom order).
- For single or a pair of doors.
- Privacy Options:
- 2002Q Quiet Pocket Door Pull with Integrated Edge Pull (specify 2002CPDL for standard version).
- Pair with 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull for Pair of Doors.
- Passage Options:
- 2002CPDP-Q Quiet Pocket Door Edge Pull, 8".
- 2002CPDP-SD-Q Quiet Pocket Door Edge Pull, Narrow Stile (2-7/8" depth).
- Flush Pulls:
- IS, IN, IA, IO Flush Pulls with Invisi-Mount Fasteners.
2002Q-1 Single Cylinder
- By key outside only.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Blank.
- 2002C Cylinder Collar.
- Specify handing.
2002Q-2 Double Cylinder
- By key outside and inside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x Cylinder Cutout.
- 2002C Cylinder Collar (2).
2002Q-3 Entry
- By key outside x T-turn inside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.
- Specify handing.
2002Q-3i Entry with Indicator
- By key outside x thumb turn inside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout with Indicator x T-turn.
- 2002C Cylinder Collar.
- Specify handing.
2002Q-4 Patio
- By T-turn inside only.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Blank x T-turn.
2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
- Specify handing.

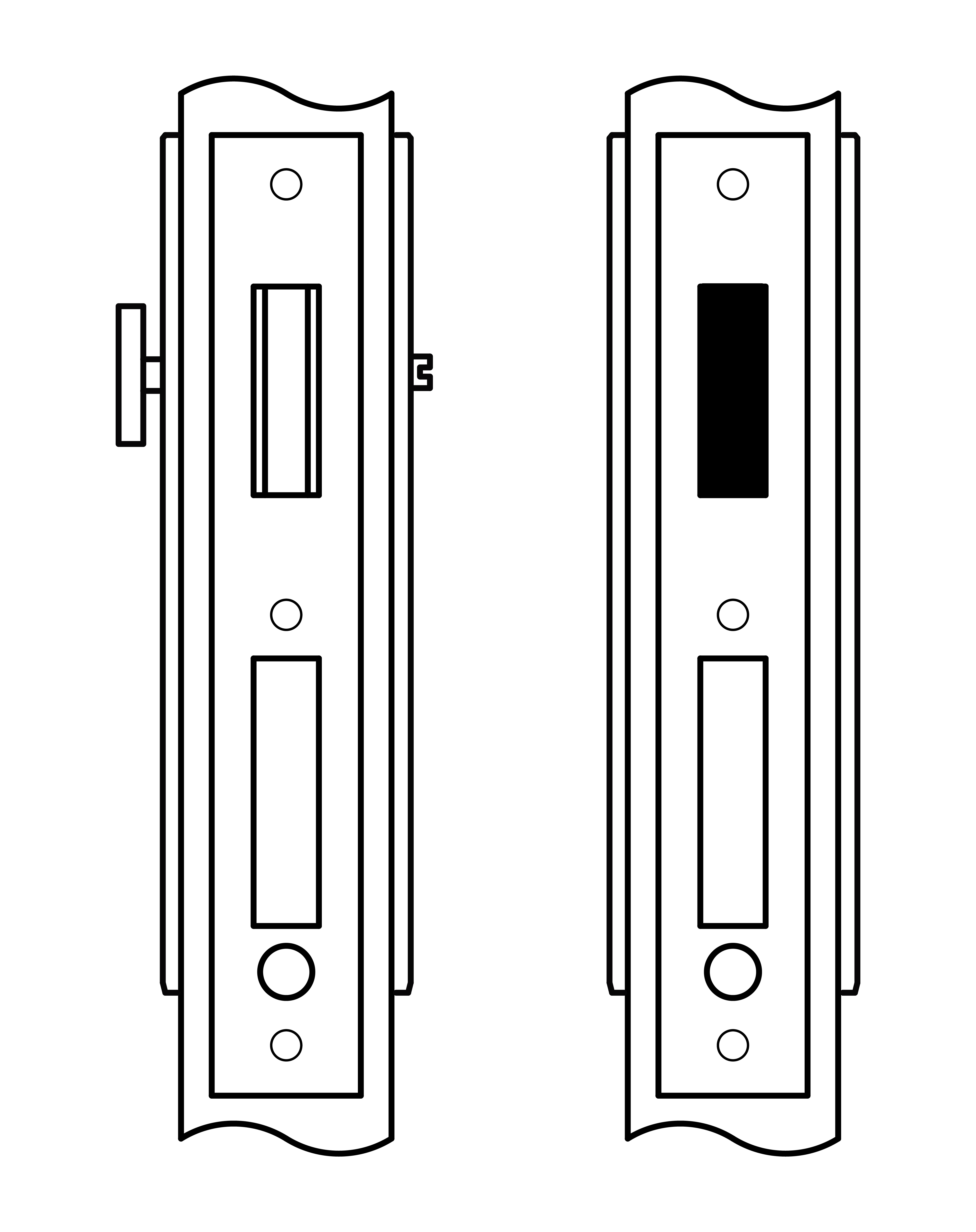

2002Q-5i Privacy with Indicator
- By T-turn inside, ERi outside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- Specify handing.
2002Q-3 Entry
- By key outside, T-turn inside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Cylinder Cutout x T-turn.
- 2002C Cylinder Collar.
- 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
- Specify handing.
2002Q-5 Privacy
- By T-turn inside, ER outside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release x T-turn.
- 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
- Specify handing.
2002Q-5i
- By T-turn inside, ERi outside.
- Includes:
- 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
- Flush Pull Trim: Emergency Coin Release with Indicator x T-turn.
- 2002CPDS-Q Quiet Pocket Door Strike with Integrated Edge Pull and Pair of Blank Flush Pulls.
- Specify handing.
Sell Sheet
Specification Sheets
Installation Templates
- T-ALH.2002CPDL.2002Q.IA.IN.IO
- T-ALH.2002CPDL.2002Q.IS
- T-ALH.2002CPDS.CPDS-Q.IA.IN.IO
- T-ALH.2002CPDS.CPDS-Q.IS
- T-ALH.2002CPDP.CPDP-Q.IA.IN.IO
- T-ALH.2002CPDP.CPDP-Q.IS
Product Catalog
-
Invisi-Mount Booklet
Video
-
Invisi-Mount Pocket Door Sets
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type. Options
Examples
-
Invisi-Mount Quiet Pocket Door Set | Double Cylinder | Single Door
E.g.: IS. 2002Q-2. 212. US19. 134. SD -
Invisi-Mount Quiet Pocket Door Set | Passage | Single Door | Jamb Protector Plate
E.g.: IO. 2002CPDP-Q. 234. US14. 134. SD. 2002JPP -
Invisi-Mount Quiet Pocket Door Set | Privacy | Pair of Doors | All Bolts Finished
E.g.: IS. 2002Q-5. 2. US19. RH. 134. PD. US19BOLTS -
Invisi-Mount Quiet Pocket Door Set | Entry | Pair of Doors
E.g.: IA. 2002Q-3. 2. US14. LH. 134. PD
Notes
- Furnished standard with 2002Q SilentPac Quiet Pocket Door Lock (2002CPDL Standard Pocket Door Lock with Integrated Edge Pull available, specify 2002CPDL-X).
- Custom narrow and large backsets are available. 1-3/4” backset available for non-cylinder functions.
- SD Strike and Dust Box are included in the lock cost. (SD-8, 2002JPP and 2002CPDS-Q require an upcharge).
- Furnished standard with lacquered satin brass bolt/button/bail.
- Patinated components are available as a special order, please specify accordingly.
