9000ML | 9100ML
Magnetic Latch
The Magnetic Latch offers a seamless doorway to complement the most discerning design vision. A powerful, rare-earth magnet projects the latch bolt to secure the door with no visible strike. For use on standard doors in privacy and passage functions in a variety of finishes. Similar to the interior magnetic latches, the 9100ML Series is designed for use on exterior or interior doors.
- 9000 Series comes standard with a 1″ wide faceplate
- 9100 Series comes standard with a 1 1/4″ wide faceplate
Noise Reduction
Magnetic Latch
- For use with Accurate’s levers or prepared for use with other manufacturers’ trim (for compatibility please verify vertical spacing as well as through-bolting locations or call for assistance).
- 2”, 2-1/2”, 2-3/4” backset for door stiles starting at 3”.
- Custom backsets, marine grade and rabbeted kits available.
- Heavy Gauge Steel Case (15/16” thick)
- Armor Front: Adjustable bevel. Made from brass, bronze or stainless steel and finished as required.
- Magnetic stainless steel latch bolt, 5/8” throw
- Brass or stainless steel deadbolt, 1” throw
- Hubs available in different sizes to be compatible with various trim
- Thumb Turn Hub is 3/16” 5mm on the diamond specialty 5mm or 6mm square hub available special order.
- Available in passage, privacy and storeroom functions.
- Magnetic latch cannot be provided with deadlatch. All functions with deadlatches can be provided less deadlatch (9142, 9145, 9145S, 9146, 9153, 9156, 9158, 9159). Please call for assistance.
- 9000 Series comes standard with a 1" wide faceplate
- 9100 Series comes standard with a 1 1/4" wide faceplate

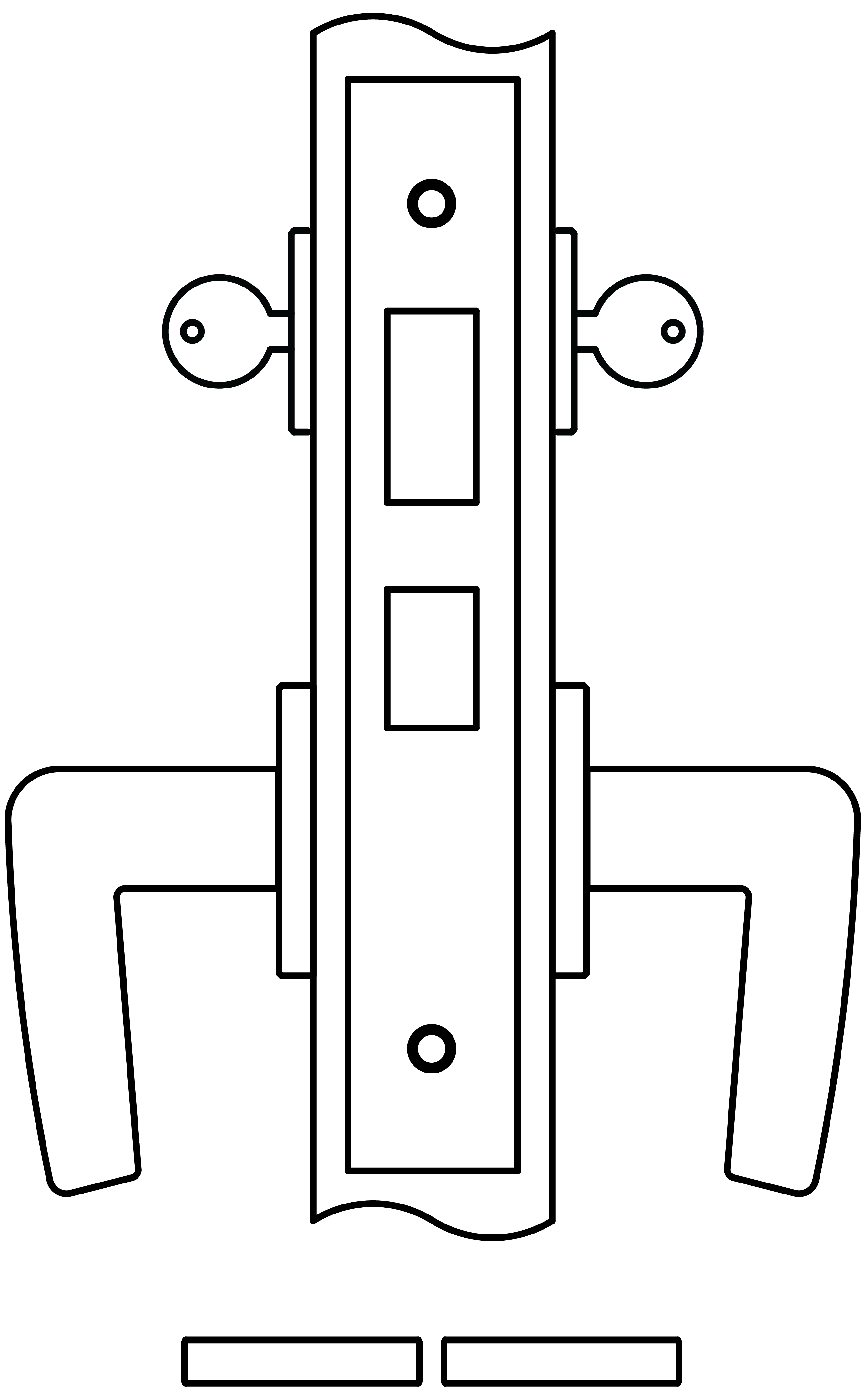

9022ML | 9122ML Store Door
- Latch bolt by knob or lever either side.
- Deadbolt by key either side.
- No emergency egress.

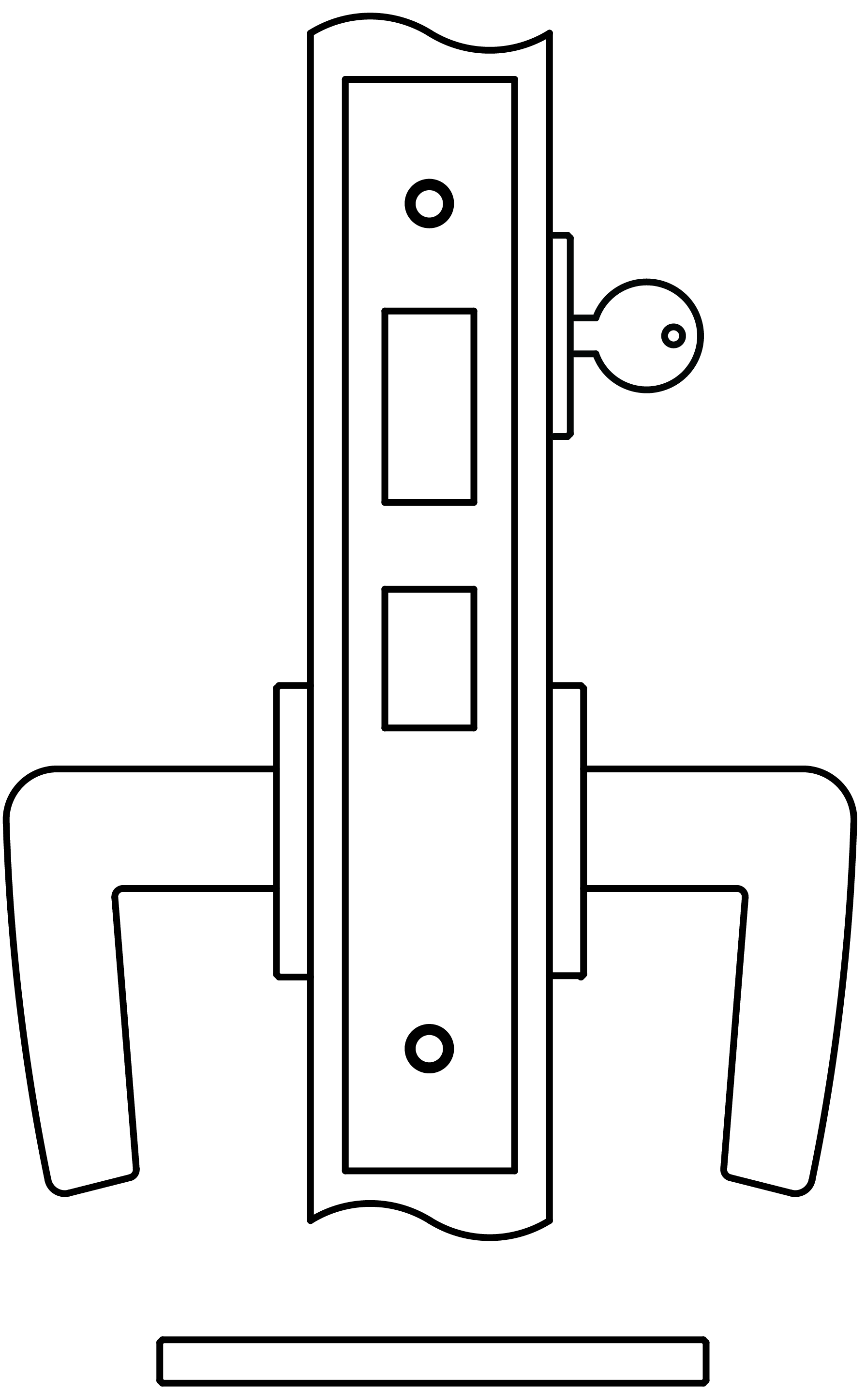

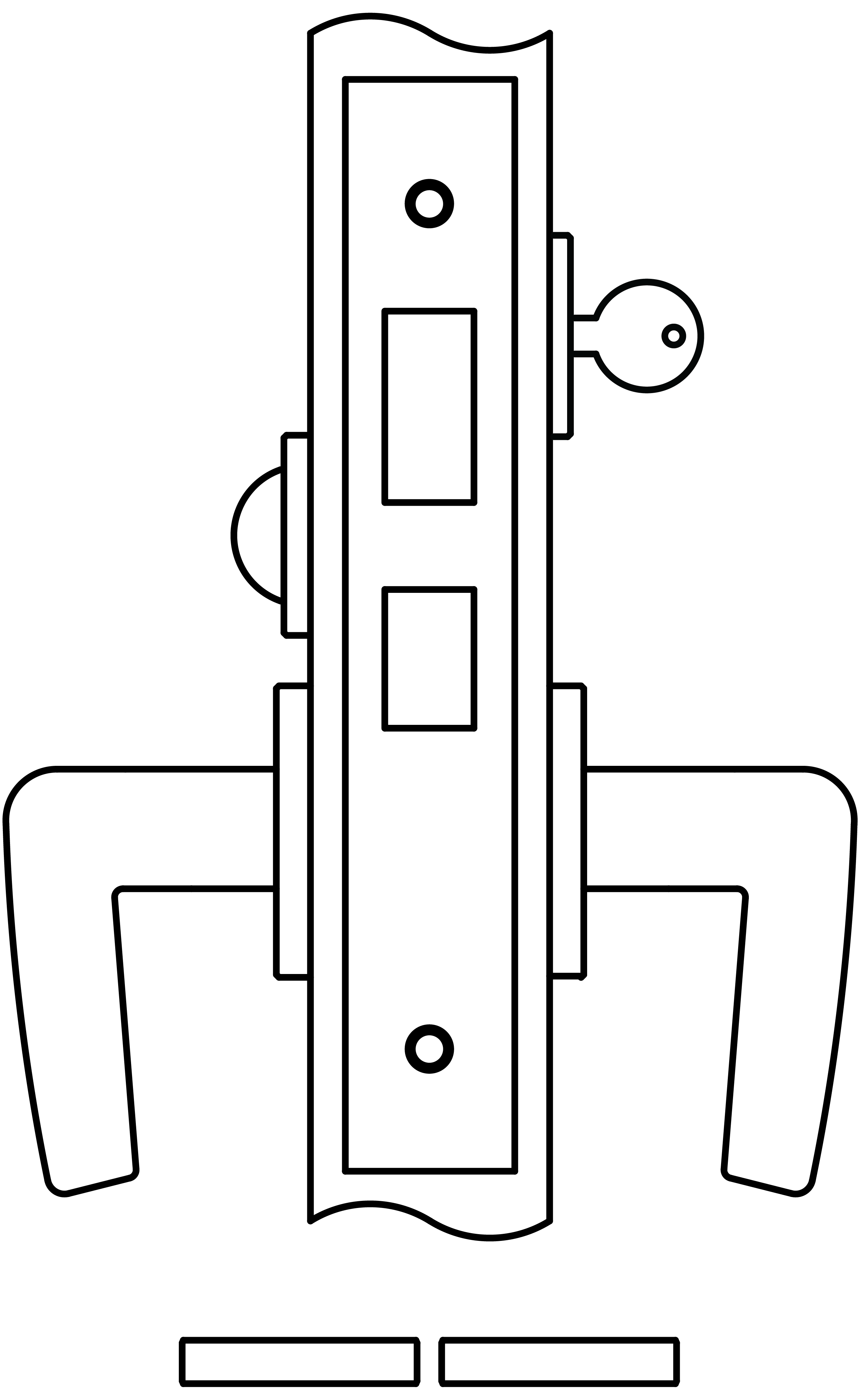

9024ML | 9124ML Dormitory
(ANSI SERIES 1000-F13)
- Latch bolt by lever either side.
- Deadbolt by key outside, thumb turn inside.
- A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

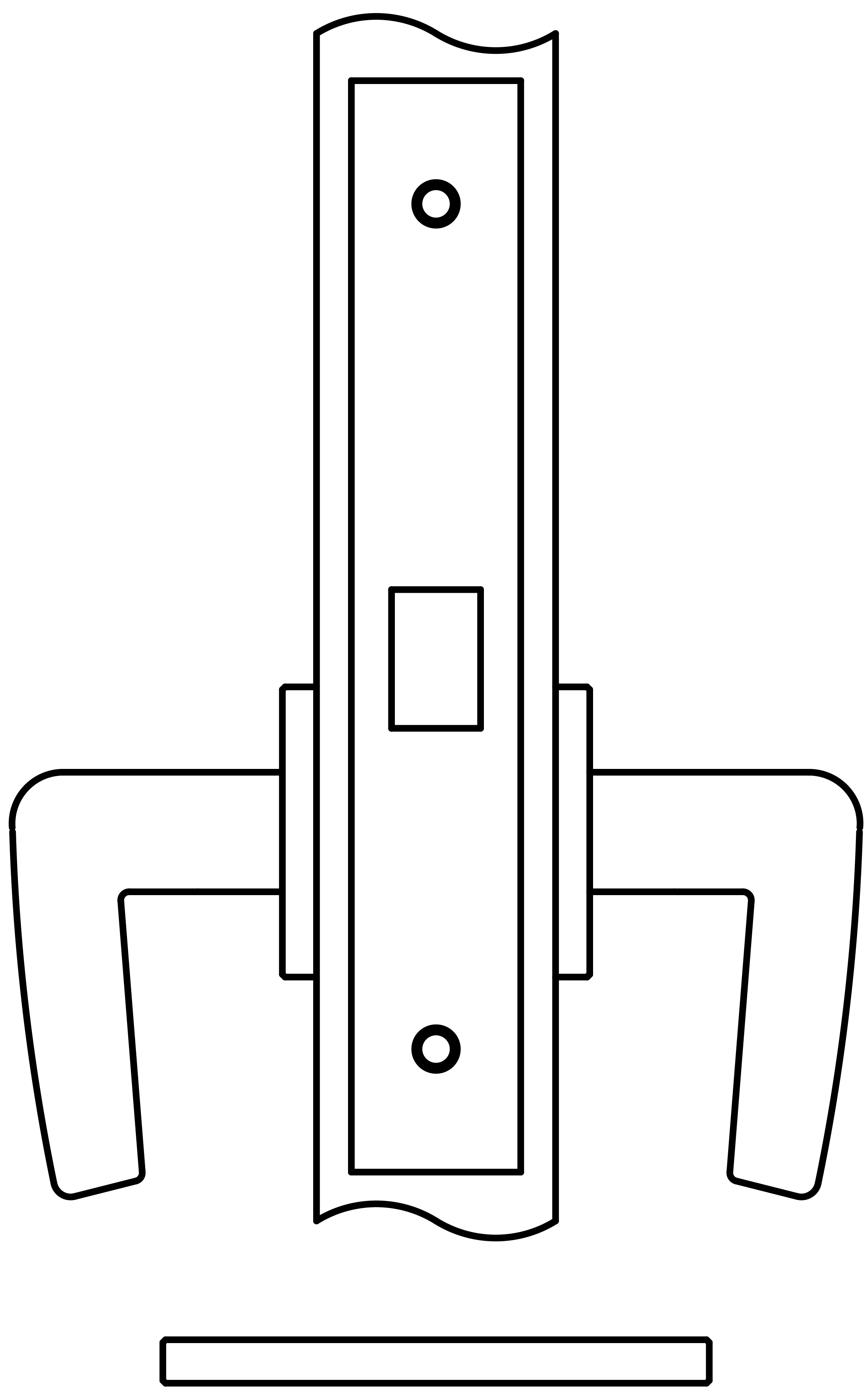

9025ML | 9125ML Interior Passage and Closet Latch
(ANSI SERIES 1000-F01)
- Latch bolt by lever either side.

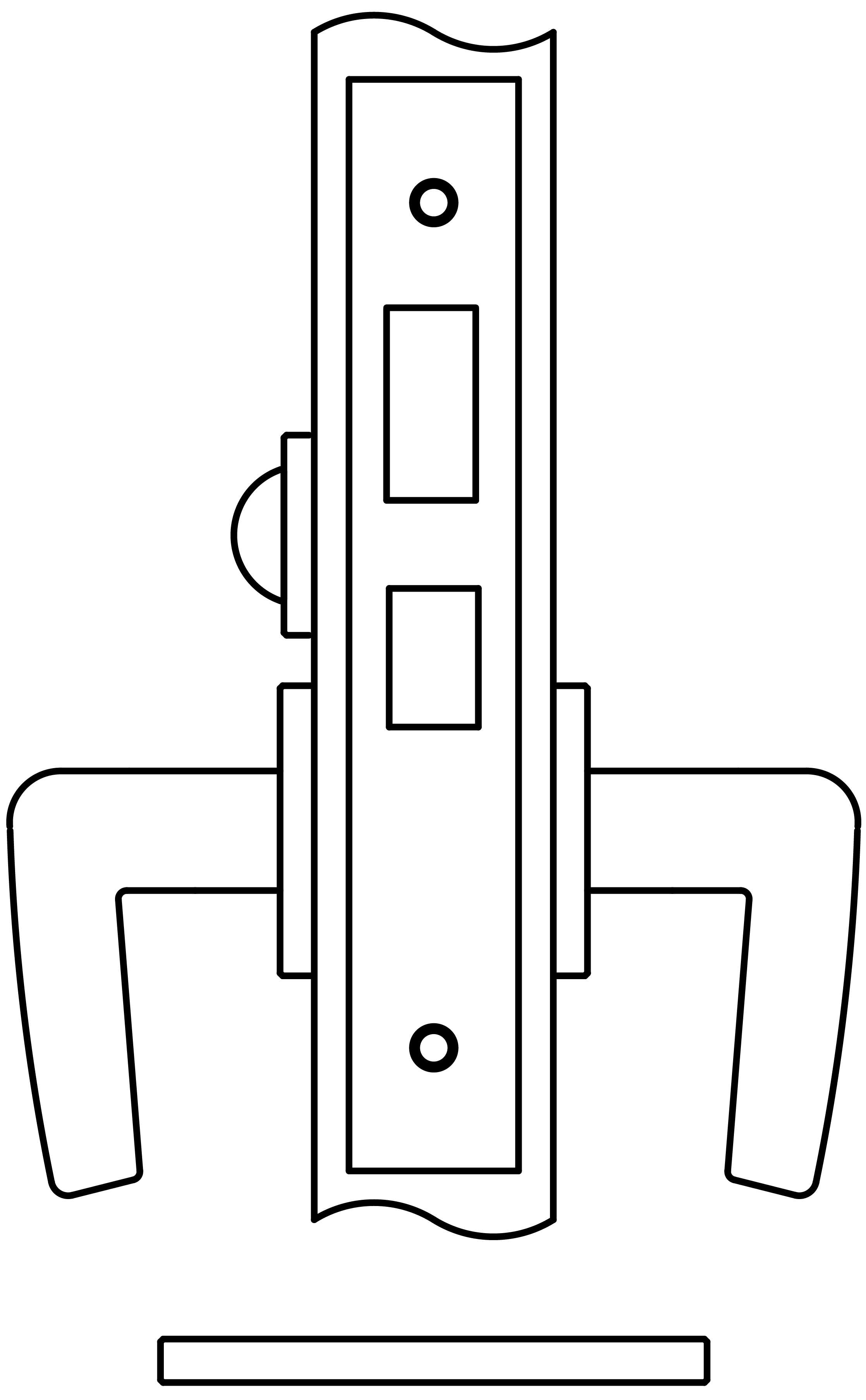

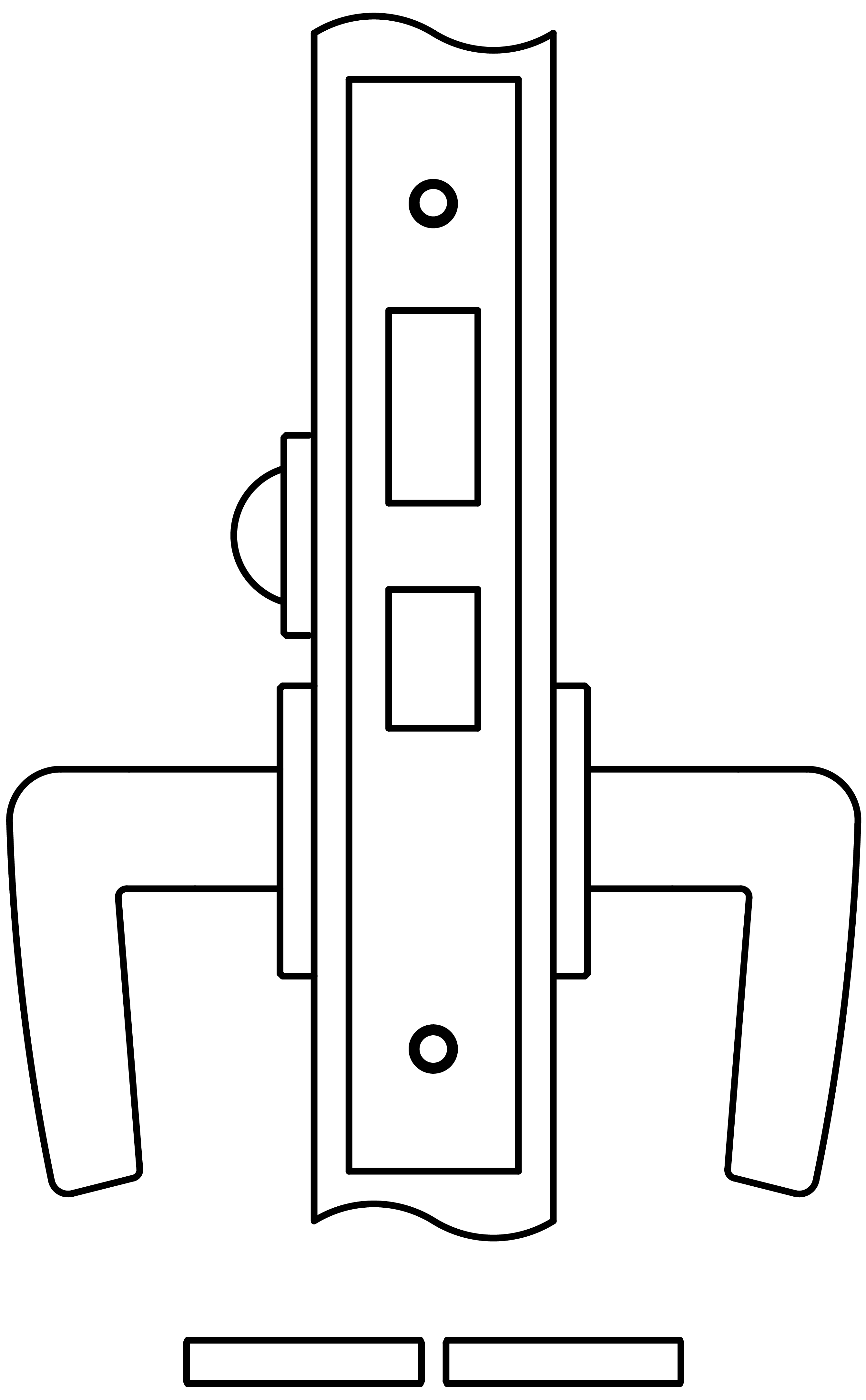

9039ML | 9139ML Interior Privacy Bedroom or Bathroom Lock
(ANSI SERIES 1000-F19)
- Latch bolt by lever either side.
- Deadbolt by thumb turn inside and optional emergency release outside.
- Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.
Sell Sheet
Specification Sheets
Installation Templates
Product Catalog
-
Magnetic Solutions Brochure
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
9100 Magnetic Latch | Passage | SilentPac™ Disc | Accurate Lever Trim
E.g.: 9125ML.SP. 212. 19L/1R. US15A. 134 -
9100 Magnetic Latch | Privacy | NO SilentPac™ Disc | Other Manufacturers’ Trim
E.g.: 9139ML. 234. LxL.8mm. US9. LH. 134
