• Ideal for new and retrofit applications.
  • Can be paired with a variety of commercial, residential, and specialty trim in a standard ANSI mortise prep.
  • Now recommended as the new standard for behavioral health and ligature resistant applications.
  • Institutional: Paired with high security, detention grade trim, this lock ensures the prevention of unauthorized passage to secure areas, confines inmates and will delay or frustrate escape attempts.
  • Residential and Commercial: This detention grade mortise lock can be paired with any architectural trim in residential or commercial settings. Achieve optimal safety without compromising style.
  • Behavioral Health: Available with ADA compliant and ligature resistant trim featuring paperclip protection. Ideal for use in behavioral healthcare settings.

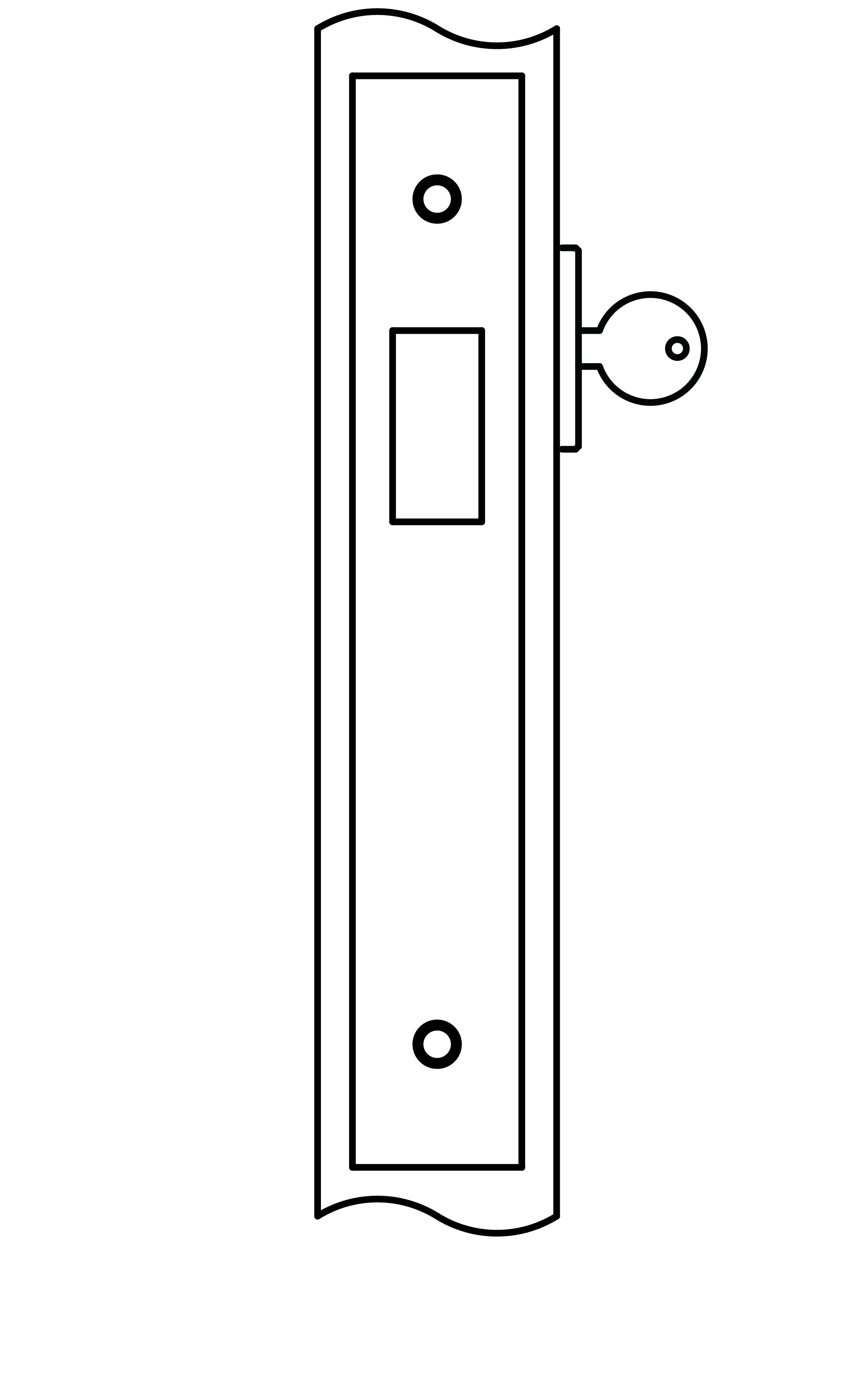

9101SEC Deadlock


  • Deadbolt by key outside, no inside operation.

9102SEC Deadlock

(ANSI SERIES 1000-F18)


  • Deadbolt by key either side.

9103SEC Deadbolt

(ANSI SERIES 1000-F16)


  • Deadbolt by key outside and turn piece inside.

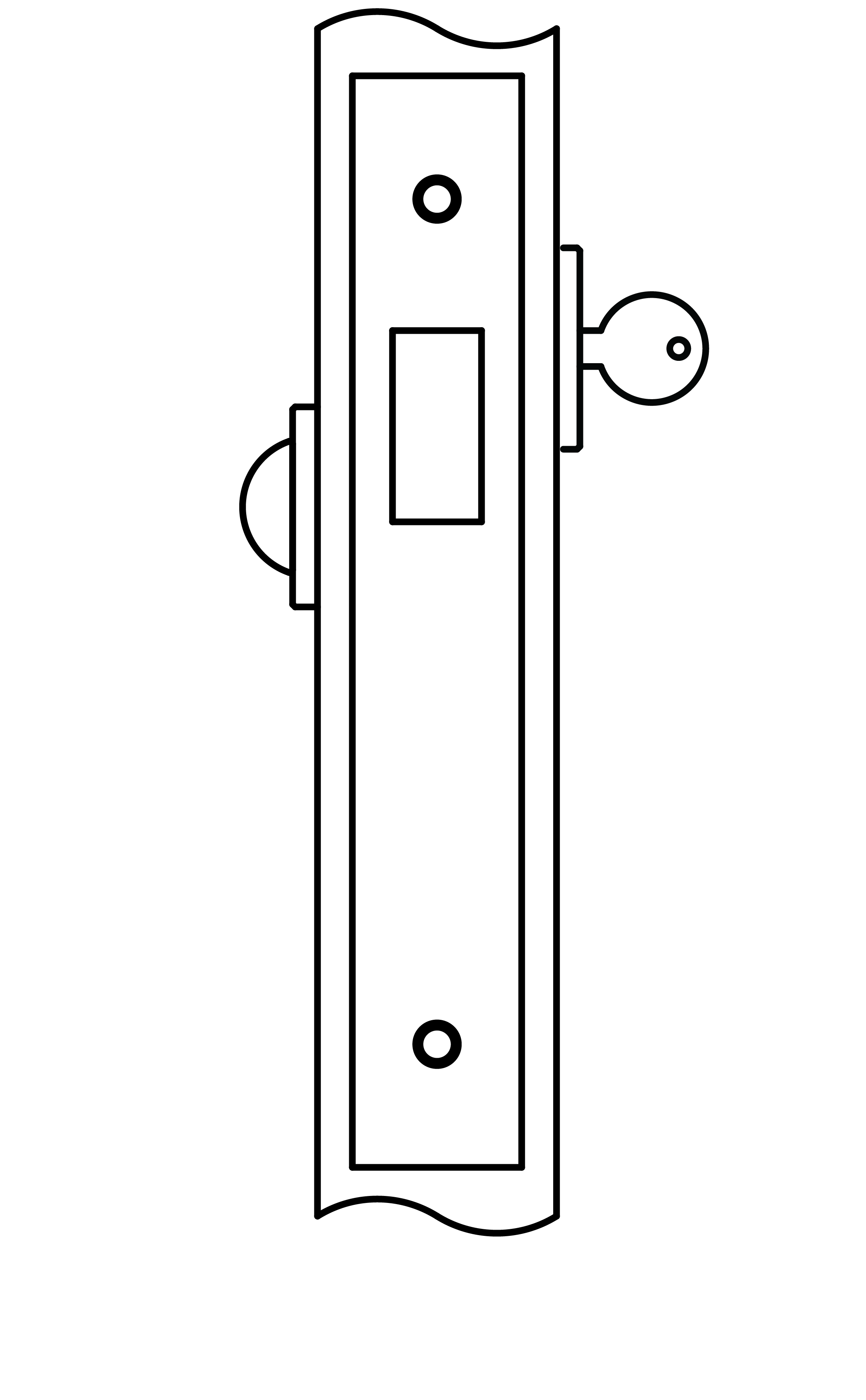

9104SEC Deadbolt

(ANSI SERIES 1000-F17)


  • Deadbolt by turn piece inside, no outside operation.

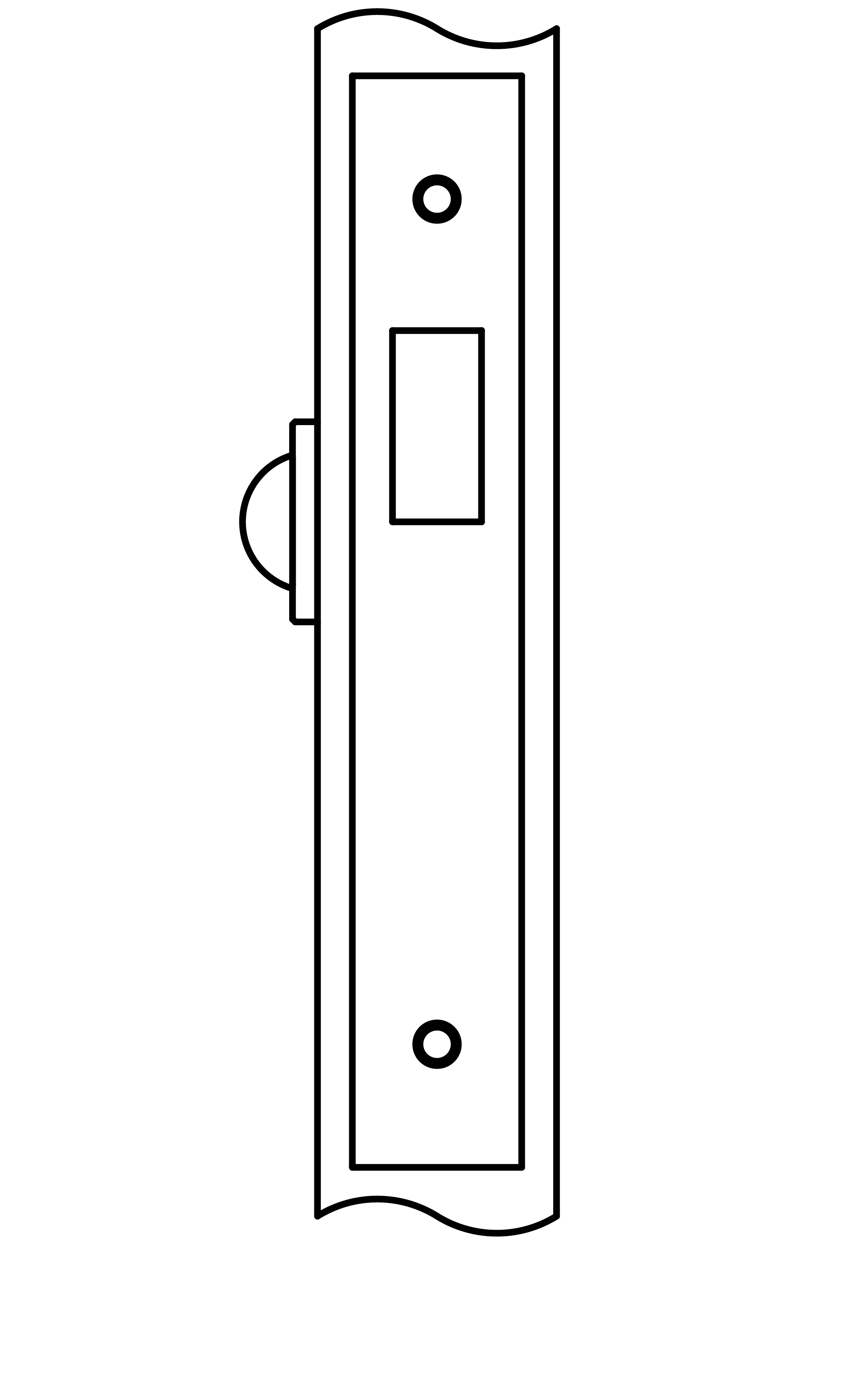

9105SEC Deadbolt


  • Deadbolt by turn piece inside and emergency key outside.

9122SEC Store Door


  • Latch bolt by lever either side.
  • Deadbolt by key either side.
  • No emergency egress.

9124SEC Dormitory, Entrance or Storeroom

(ANSI SERIES 1000-F14)


  • Latch bolt by lever either side.
  • Deadbolt by key outside and turn piece inside.
  • Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

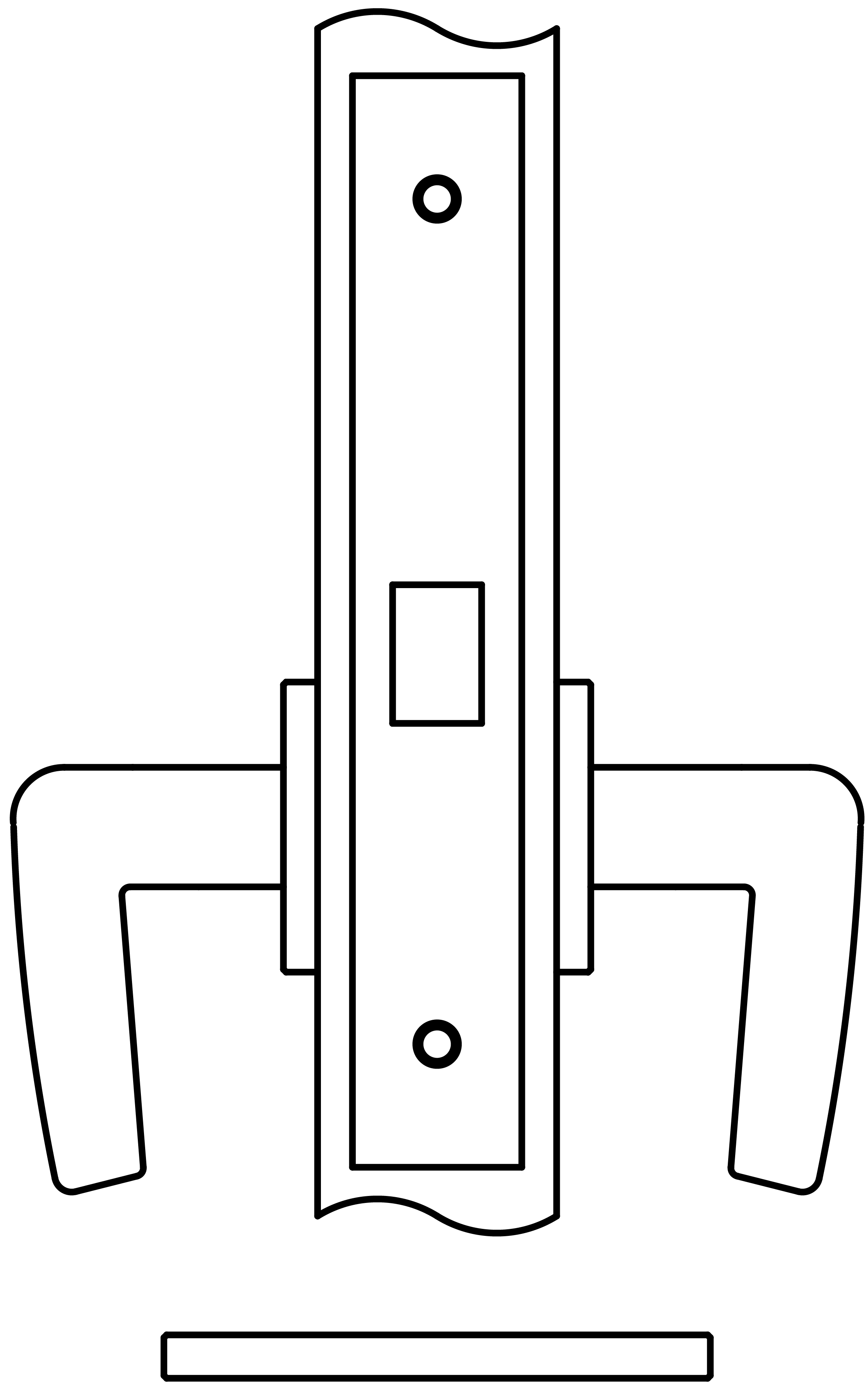

9125SEC Passage

(ANSI SERIES 1000-F13)


  • Latch bolt by lever either side.

9134SEC Hotel or Motel

(ANSI SERIES 1000-F01)


  • Latch bolt by lever and Guest or Master Key outside.
  • Outside lever always rigid. Deadbolt by turn piece inside.
  • Turn of inside lever retracts latch and deadbolt simultaneously.
  • Auxiliary latch deadlocks latch bolt.
View More Details +

9139SEC Privacy Bedroom or Bathroom

(ANSI SERIES 1000-F15)


  • Latch bolt by lever either side.
  • Deadbolt by turn piece inside and optional emergency key outside.
  • Turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

9142SEC Entrance

(ANSI SERIES 1000-F19)


  • Latch bolt by lever either side unless outside lever is locked by Master key from inside.
  • When outside lever is locked, latch bolt by key outside and lever inside.
  • Auxiliary latch deadlocks latch bolt.

9143SEC Institutional Privacy

(ANSI SERIES 1000-F09)


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever. Key locks or unlocks outside lever.
  • Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt. Outside lever unlocks when inside lever is turned or door closes.
View More Details +

9143E-SEC Institutional Privacy or Emergency Release


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever. Emergency release locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned or door closes.
View More Details +

9143i-SEC Institutional Privacy or Occupancy Indicator


  • Same operation as 9143 Institutional Privacy (specify Occupancy Indicator trim separately).

9144SEC Institutional Privacy


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Key locks or unlocks outside lever.
  • Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt.
  • Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever).
View More Details +

9144E-SEC Institutional Privacy or Emergency Release


  • Latch bolt by lever either side unless outside lever is locked by thumb turn.
  • Thumb turn locks or unlocks outside lever.
  • Emergency release locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt. Outside lever unlocks when inside lever is turned (closing door will not unlock outside handle).
View More Details +

9144i-SEC Institutional Privacy or Occupancy Indicator


  • Same operation as 9144 Institutional Privacy (specify Occupancy Indicator Trim separately).

9144TO-SEC Time Out Lock

(ANSI SERIES 1000-F05)


  • Latch retracted by lever either side unless outside thumb turn is rotated and held into position to temporarily lock inside lever.
  • When thumb turn is released by user, inside lever unlocks.
  • *Optional key inside retracts latch for emergency exit in case thumb turn is held locked by unauthorized person outside.

9145SEC Classroom

(ANSI SERIES 1000-F88)


  • Latch bolt by key outside and lever either side unless outside lever is locked by key.
  • Auxiliary latch deadlocks latch bolt.

9145D-SEC Classroom


  • Deadbolt by key outside.
  • Inside lever will retract deadbolt.

9145S-SEC Classroom Security

(ANSI SERIES 1000-F12)


  • Latch bolt by lever either side unless outside lever is locked by key outside or inside.
  • When locked, latch bolt retracted by key either side or by lever inside.
  • Inside lever is always free.
  • Auxiliary latch deadlocks latch bolt.
View More Details +

9146SEC Classroom Double Locking


  • Latch bolt by key from either side.
  • Key from either side locks and unlocks outside and inside* levers.
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before specifying this function.
View More Details +

9153SEC Entrance or Office

(ANSI SERIES 1000-F04)


  • Latch bolt by key outside and lever either side unless outside lever is locked by thumb turn or key.
  • Key or thumb turn locks or unlocks outside lever.
  • Auxiliary latch deadlocks latch bolt.

9156SEC Entrance or Office

(ANSI SERIES 1000-F04)


  • Latch bolt by key outside and lever either side unless outside lever is locked by toggle-action stop.
  • Auxiliary latch deadlocks latch bolt.

9158SEC Institution or Asylum

(ANSI SERIES 1000-F30)


  • Latch by key either side.
  • Inside* and outside handle is always RIGID.
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before specifying this function.
View More Details +

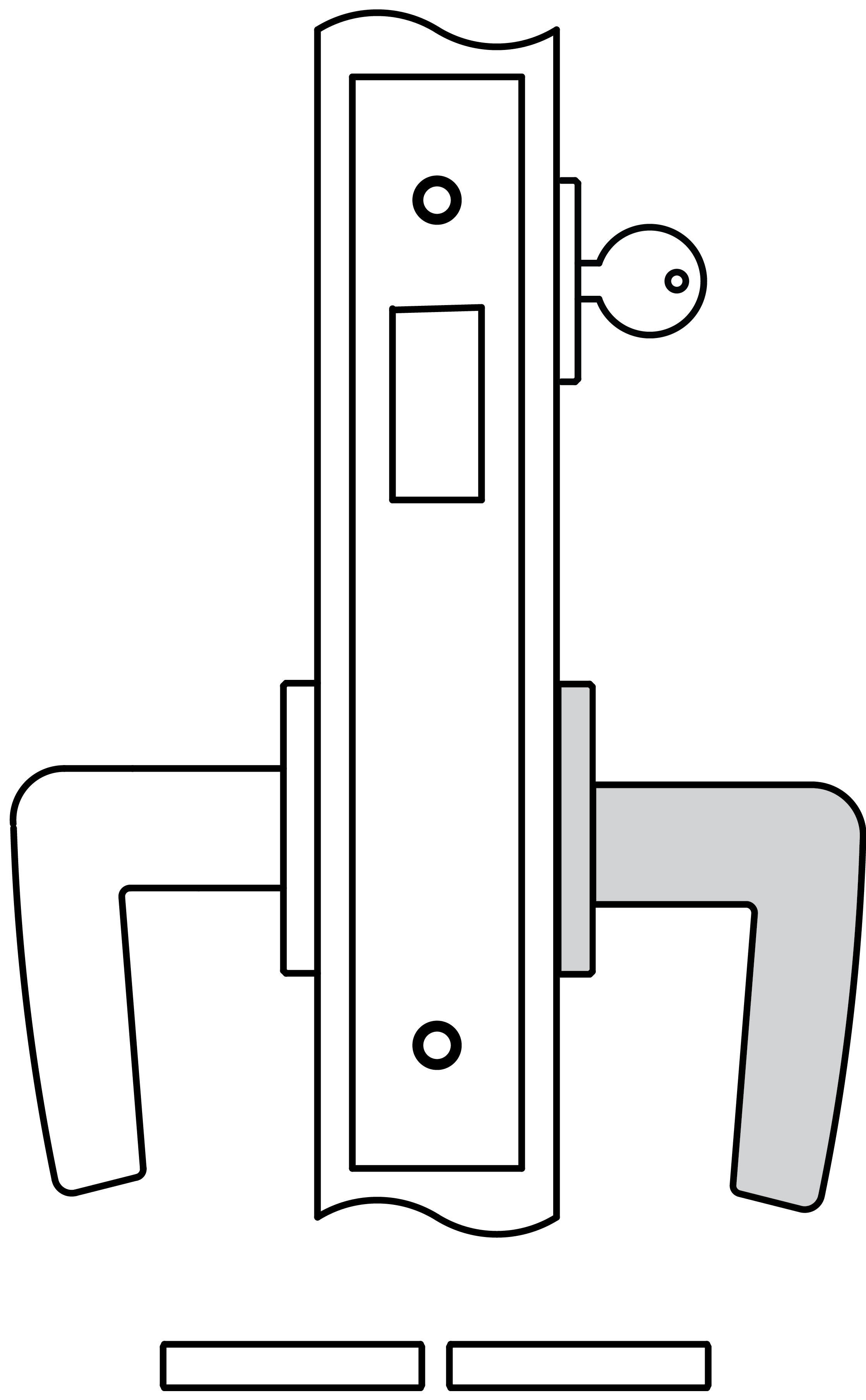

9159SEC Store Room or Closet

(ANSI SERIES 1000-F07)


  • Latch by lever inside and key outside.
  • Outside lever always rigid.
  • Auxiliary latch deadlocks latch bolt.

9160SEC Asylum with Deadbolt


  • Latch by key either side.
  • Deadbolt by key either side (key projects deadbolt and retracts latch bolt and deadbolt).
  • Inside* and outside lever always rigid.
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before using this function.
View More Details +

9167SEC Entrance or Apartment Lock

(ANSI SERIES 1000-F20)


  • Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
  • Deadbolt by key outside and turn piece inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains locked until manually unlocked by toggle.
  • Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
View More Details +

9169SEC Entrance or Apartment Lock


  • Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
  • Deadbolt by key outside and turn piece inside.
  • Turning inside lever retracts latch and deadbolt simultaneously.
  • Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
  • Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
View More Details +
View More Functions +










Click on a swatch below to get a closer look
  • US4
    Satin Brass
  • US4NL
    Satin Brass + No Lacquer
  • US32D
    Satin Stainless Steel
  • US26D
    Satin Chrome

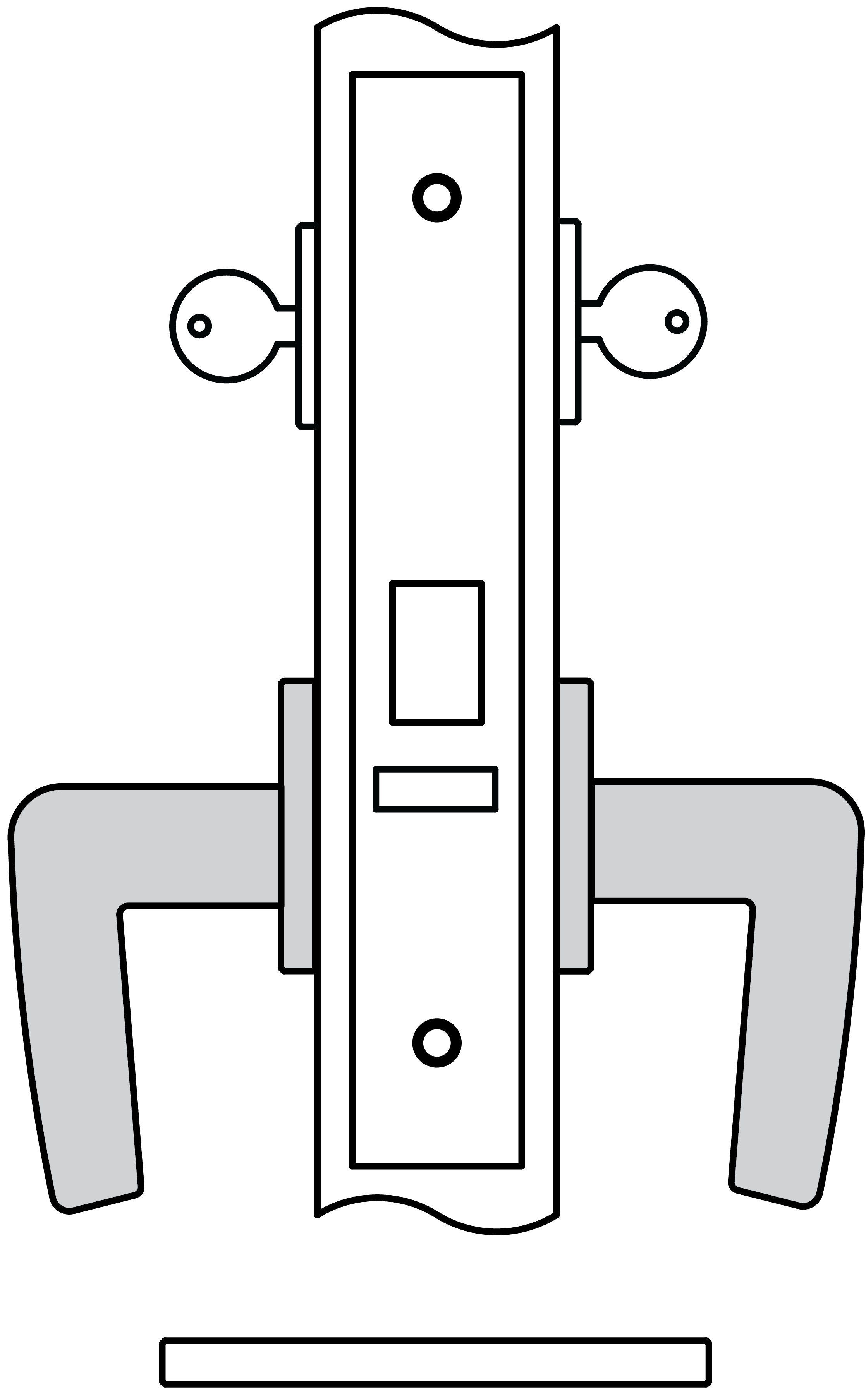

  • US3
    Polished Brass
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US26
    Polished Chrome
  • US32
    Bright Stainless Steel
  • US9
    Polished Bronze
  • US10
    Satin Bronze
  • US10B
    Oil Rubbed Bronze
  • US14
    Polished Nickel
  • US15
    Satin Nickel
  • US19
    Oxidized Black + Lacquer
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • TN
    Tarnished Nickel
  • TB
    Tarnished Brass
  • DURO
    Duronotic
  • ESN
    Electroless Nickel
  • US15A
    Antique Nickel
  • US5
    Satin Brass + Black
  • Cerakote
    Protective Ceramic Coating
US26D
Satin Chrome





How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness.



Examples
  • High Security Institutional Privacy Lock | Accurate Trim
    E.g.: 9143SEC. 234. 19L/1R. US10B. RH. 134
  • High Security Institutional Privacy with Occupancy Indicator | Accurate Trim
    E.g.: 9143SEC-i. 212. 18L/1R. US5. RH. 134
  • High Security Entrance or Apartment Lock | Accurate Trim
    E.g.: 9167SEC. 234. 19L/1E. BB. LH. 134
Notes
  • Furnished standard with security strike (no additional charge).
  • A reinforced latching strike plate fortifies the opening to prevent kick-in type burglaries.
  • A solid machined steel plate is secured by four individual three-inch steel screws that reach into the opening’s studded framing.
  • Normal strikes typically fasten to the door finish trim only when combined with the 9100SEC, a reinforced strike plate adds solid protection to the most vulnerable part of the door opening.
