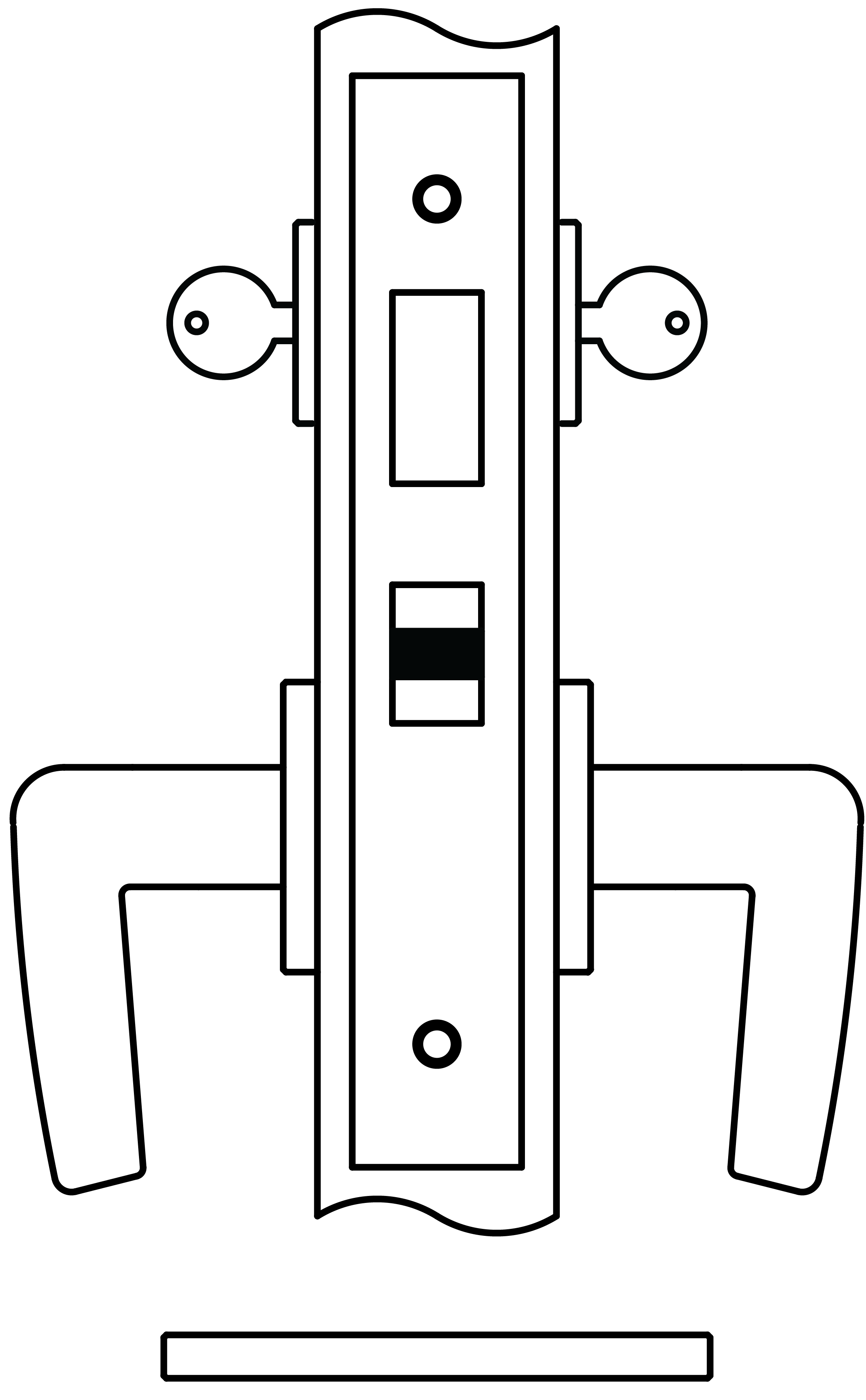

9122Q Store Door

(ANSI SERIES 1000-F14)

• Latch bolt by lever either side.
• Deadbolt by key either side.
• No emergency egress.

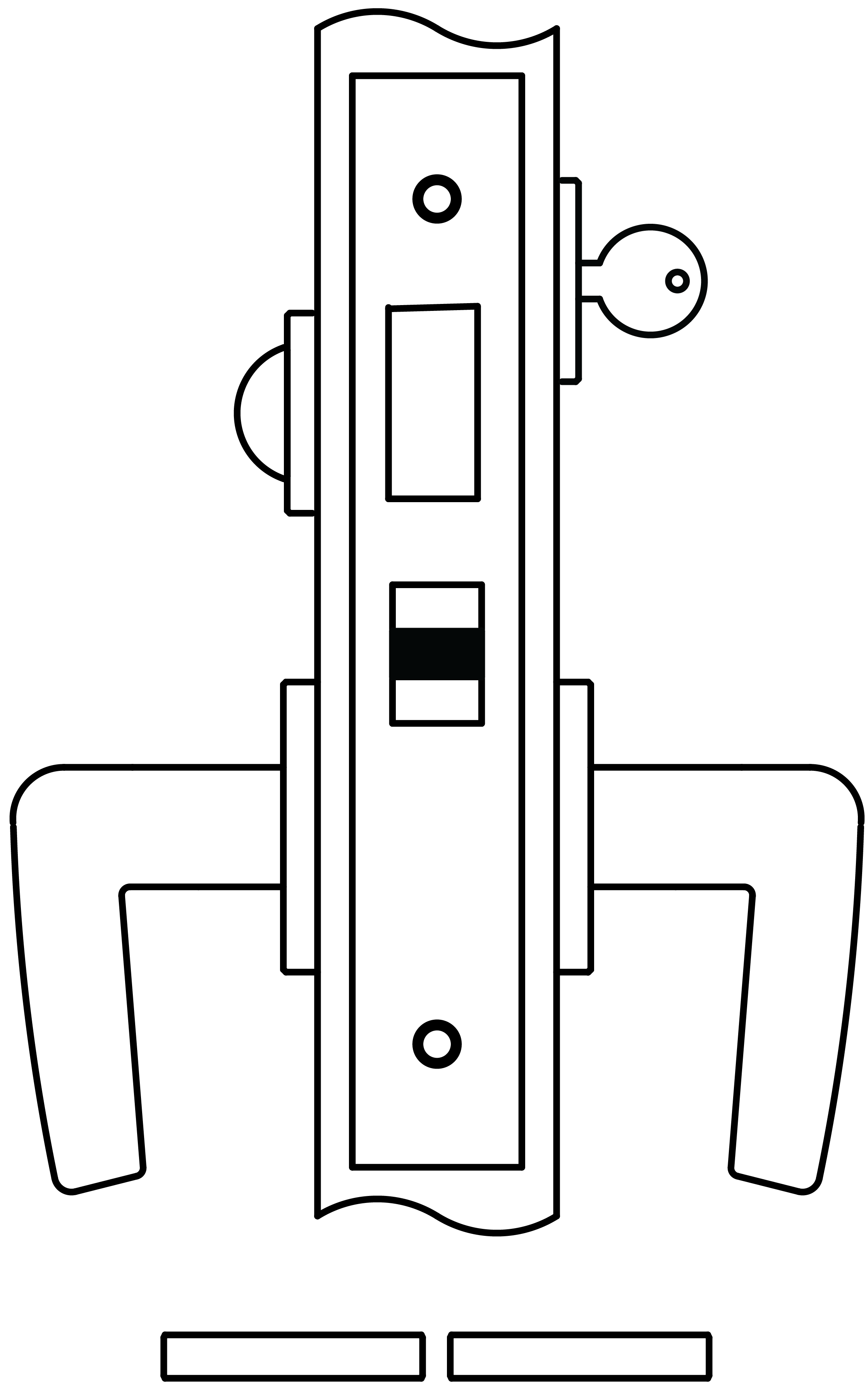

9124Q Dormitory

(ANSI SERIES 1000-F13)

• Latch bolt by lever either side.
• Deadbolt by key outside, thumbturn inside.
• A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

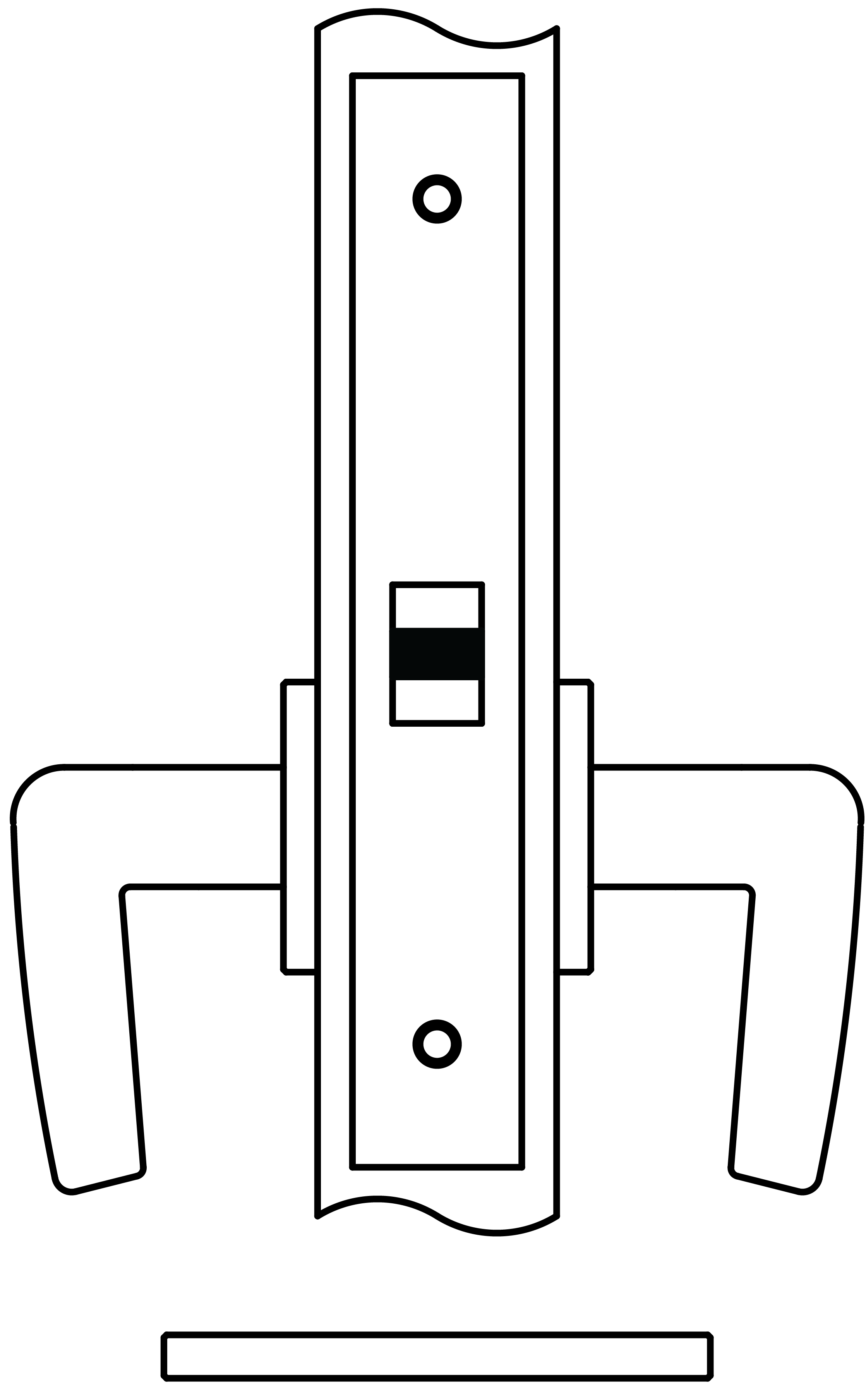

9125Q Passage

(ANSI SERIES 1000-F01)

• Latch bolt by lever either side.

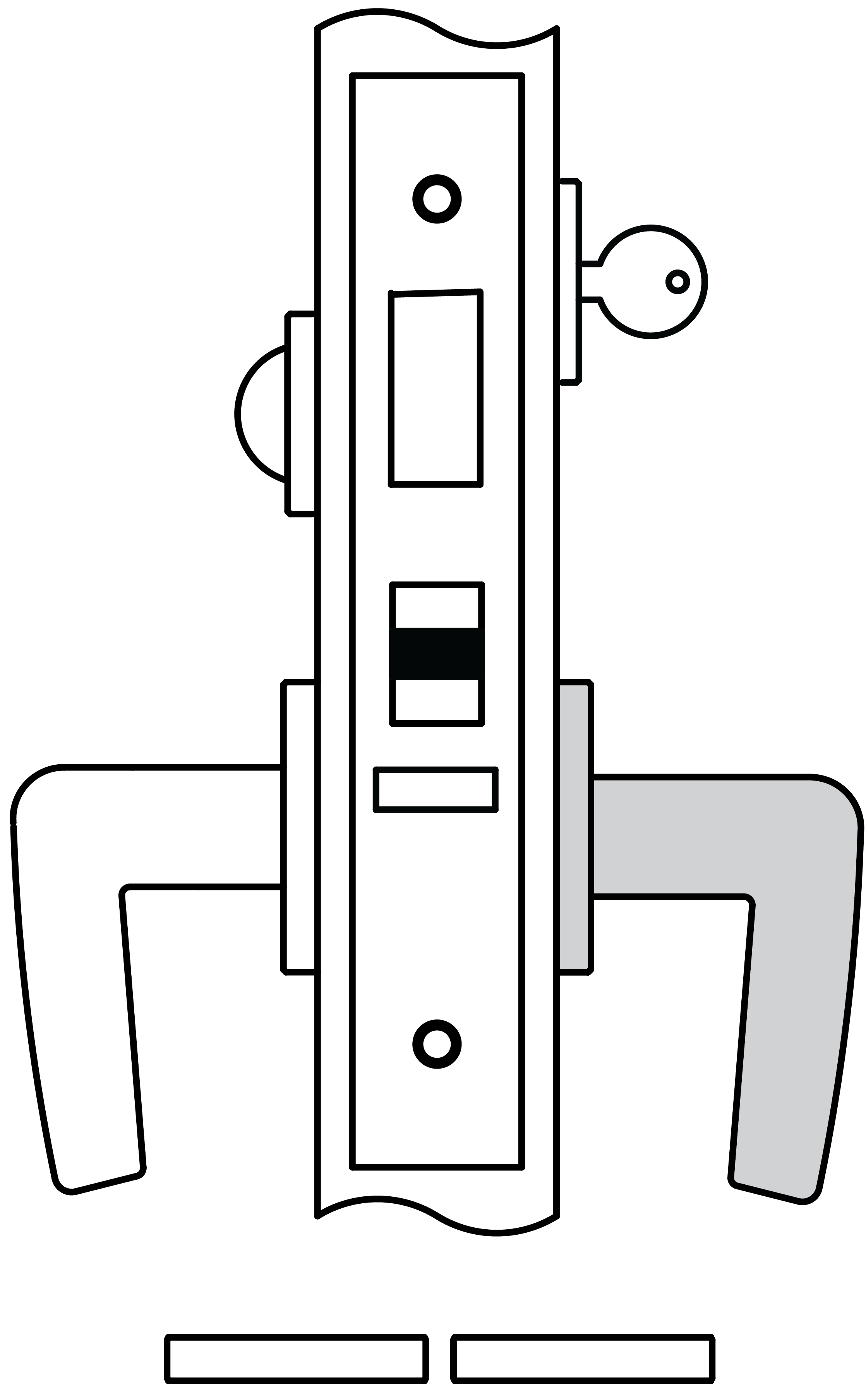

9134Q Hotel

(ANSI SERIES 1000-F15)

• Latch bolt by lever inside and key outside.
• Outside lever always rigid.
• Deadbolt by thumb turn inside.
• A turn of inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

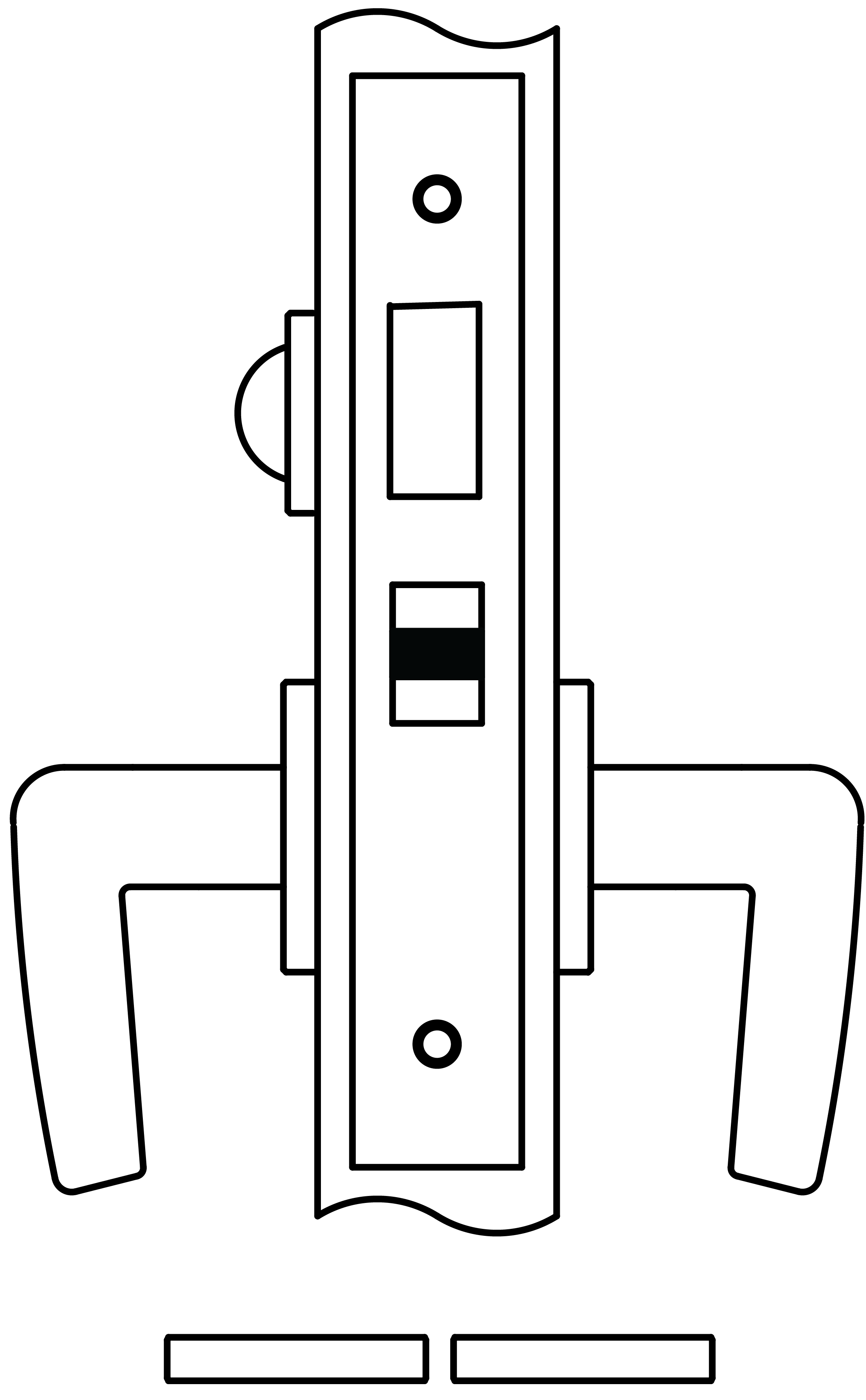

9139Q Privacy

(ANSI SERIES 1000-F19)

• Latch bolt by lever either side.
• Deadbolt by thumb turn and optional emergency coin turn outside.
• A turn of inside lever retracts latch and deadbolt simultaneously.

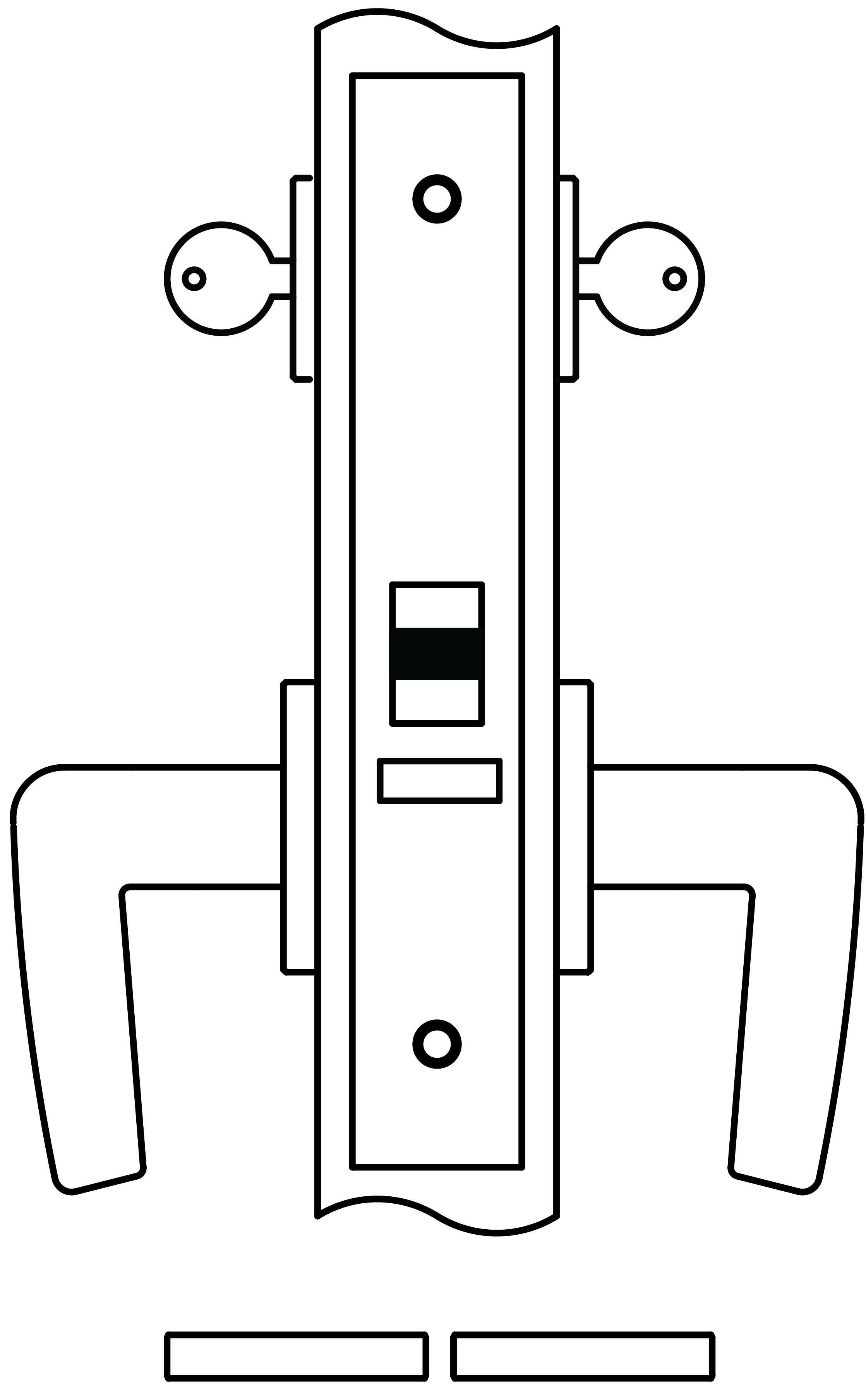

9142Q Entrance or Public Restroom

(ANSI SERIES 1000-F09)

• Latch bolt by lever either side unless outside lever is locked by Master Key from inside.
• When outside lever is locked, latch bolt by key outside and lever inside.
• Auxiliary latch deadlocks latch bolt.

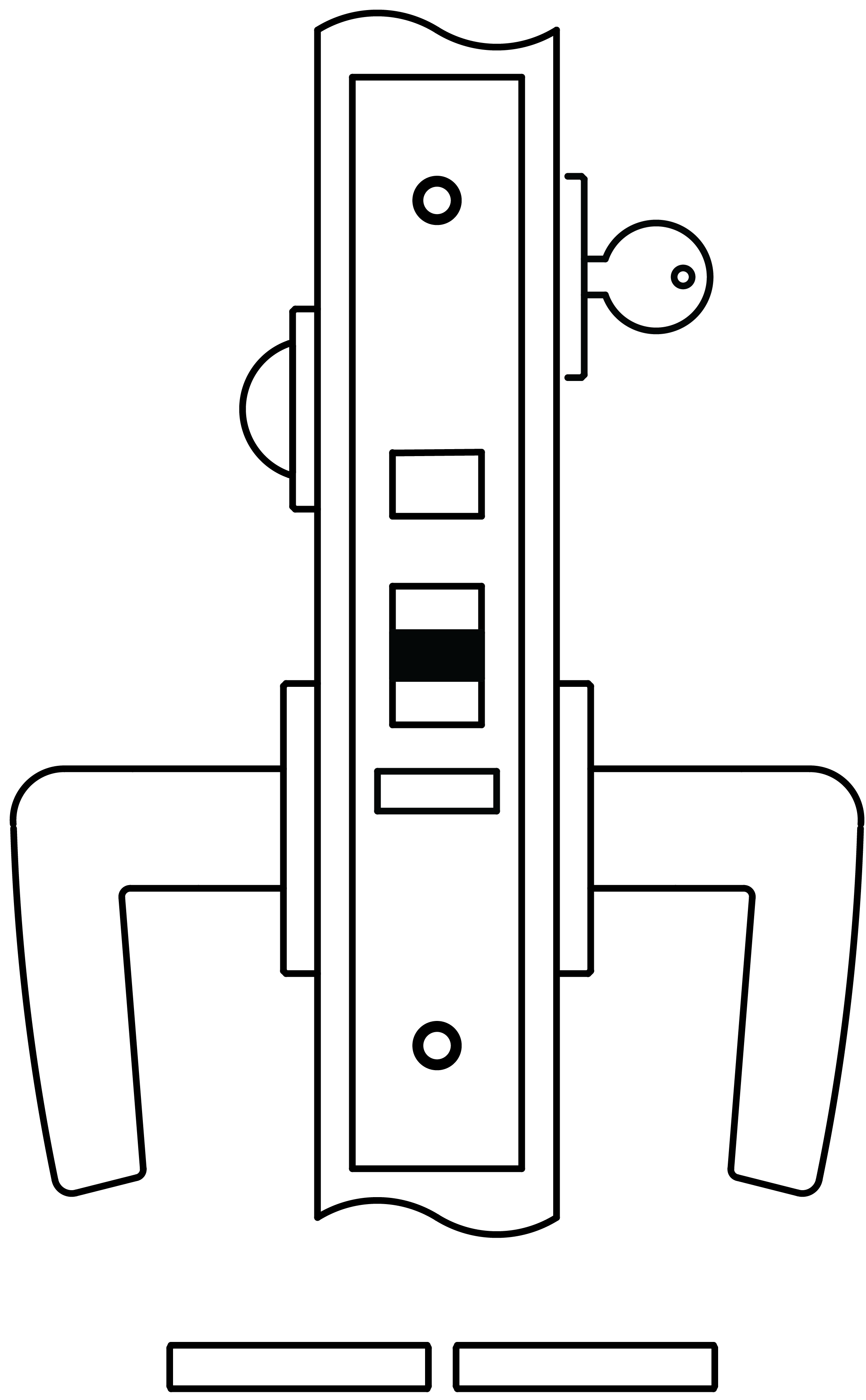

9143Q Institutional Privacy

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Key locks or unlocks outside lever.
• Key retracts latch as an independent function of the thumb turn to allow
• retraction if thumb turn is forcibly held in locked position.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned or door closes.

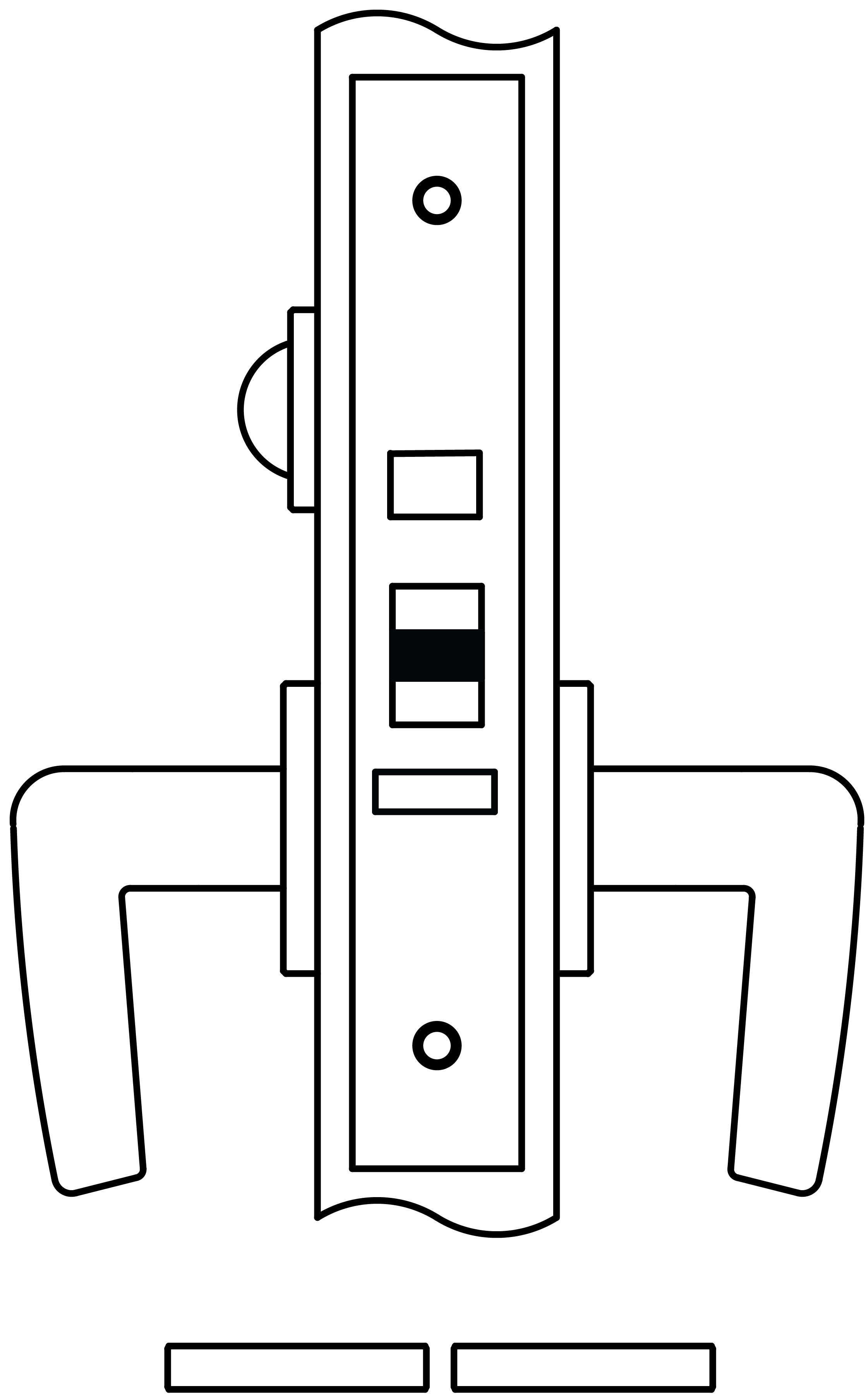

9143E-Q Institutional Privacy or Emergency Release

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Emergency release locks or unlocks outside lever.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned or door closes.

9144Q Institutional Privacy

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Key locks or unlocks outside lever.
• Key retracts latch as an independent function of the thumb turn to allow
• retraction if thumb turn is forcibly held in locked position.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever).

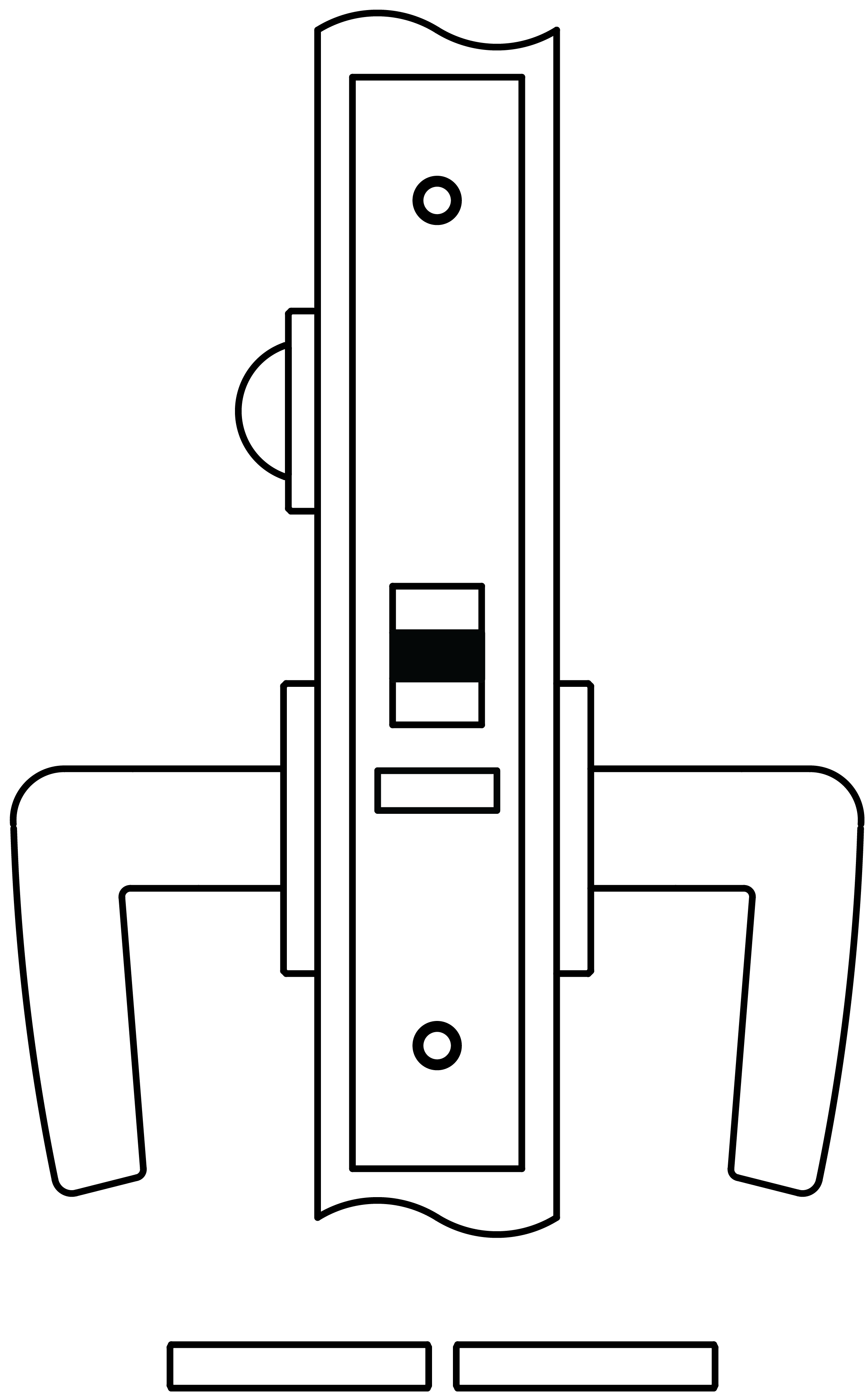

9144E-Q Institutional Privacy or Emergency Release

• Latch bolt by lever either side unless outside lever is locked by thumb turn.
• Thumb turn locks or unlocks outside lever.
• Emergency release locks or unlocks outside lever.
• Auxiliary latch deadlocks latch bolt.
• Outside lever unlocks when inside lever is turned (closing door will not unlock outside lever).

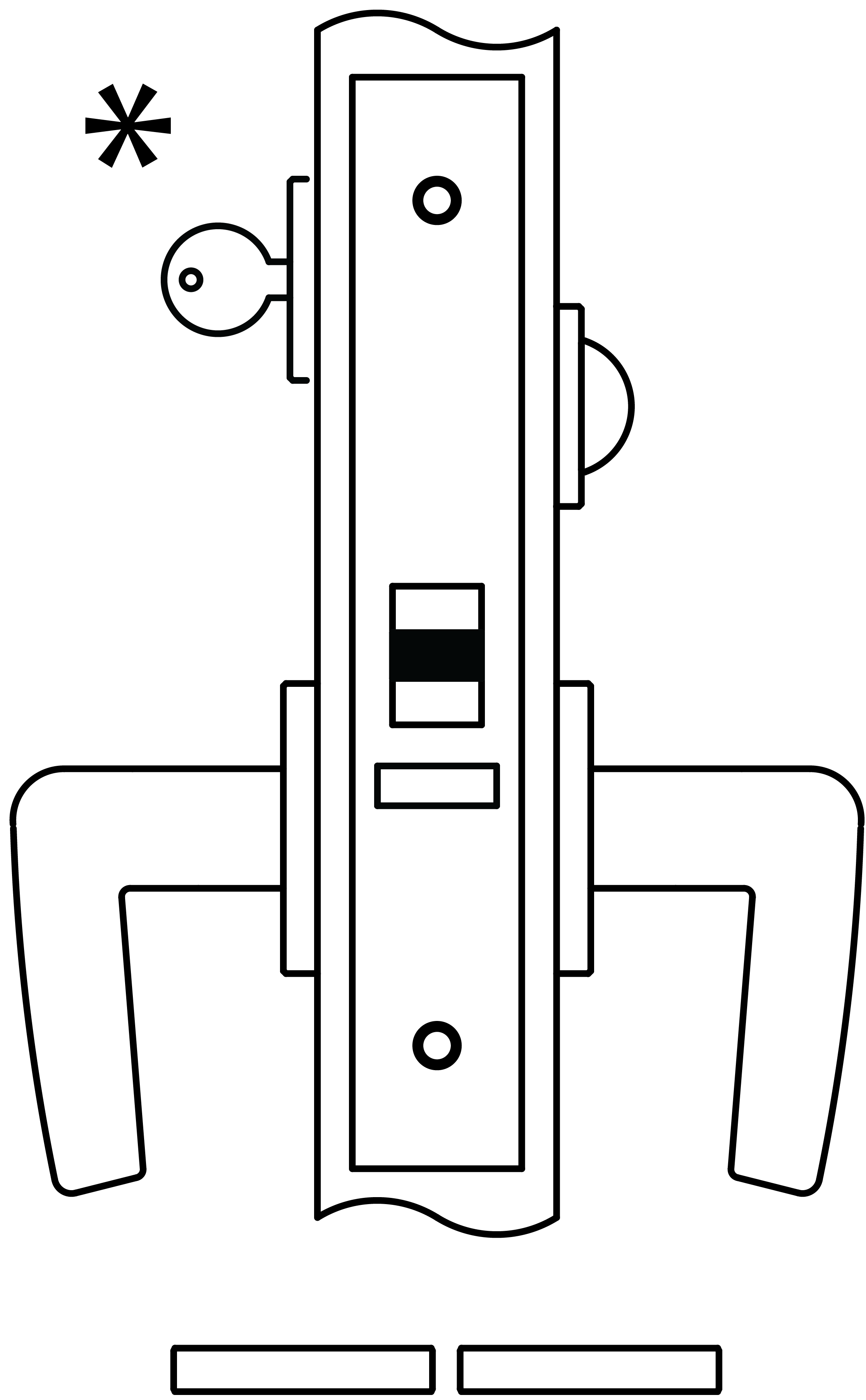

9144TO-Q Time Out Lock

• Latch retracted by lever either side unless outside thumb turn is rotated and held into position to temporarily lock inside lever.
• When thumb turn is released by user, inside lever unlocks.
• *Optional key inside retracts latch for emergency exit in case t-turn is held by unauthorized person outside.

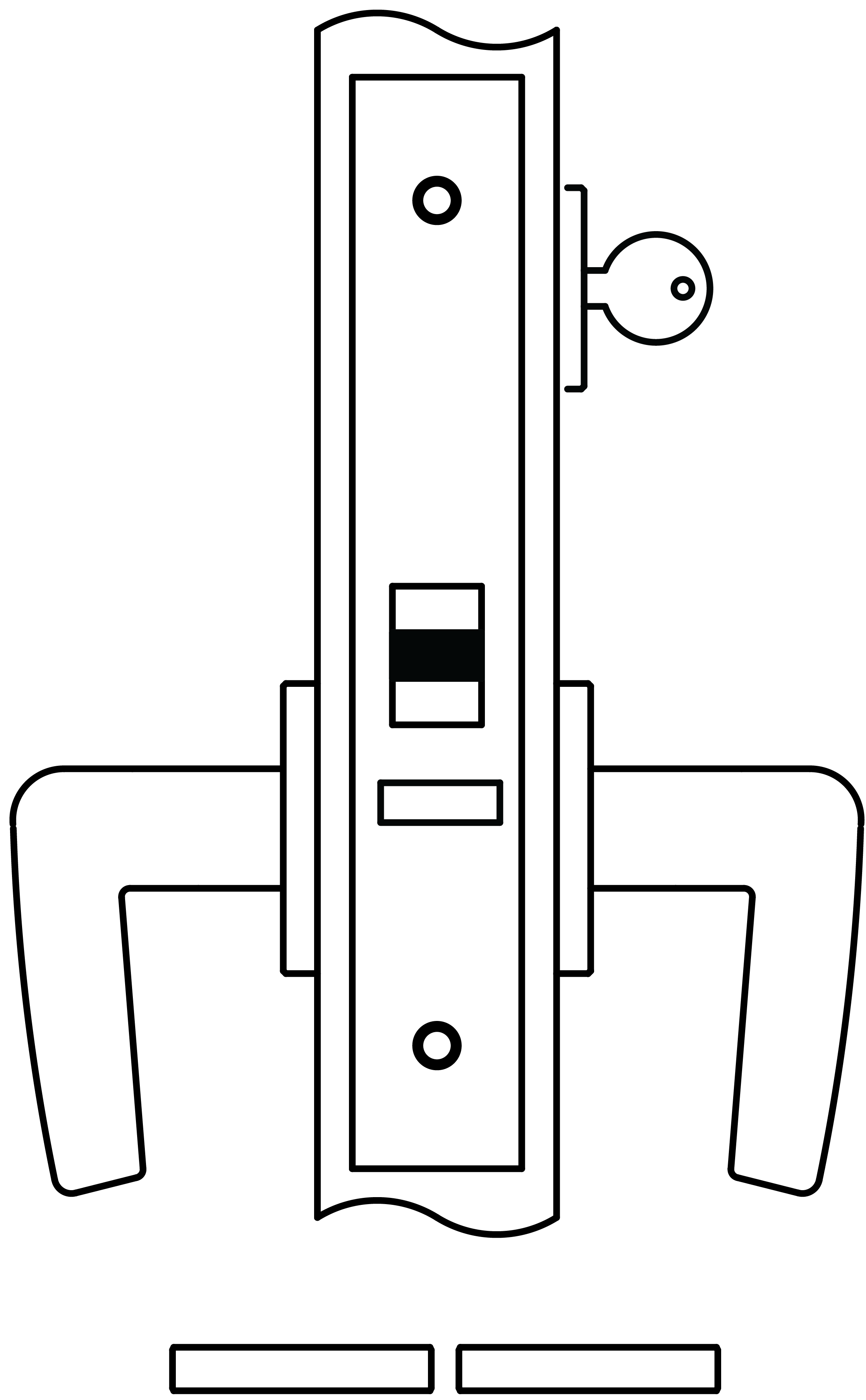

9145Q Classroom

(ANSI SERIES 1000-F05)

• Latch bolt by key outside and lever either side unless outside lever is locked by key.
• Auxiliary latch deadlocks latch bolt.

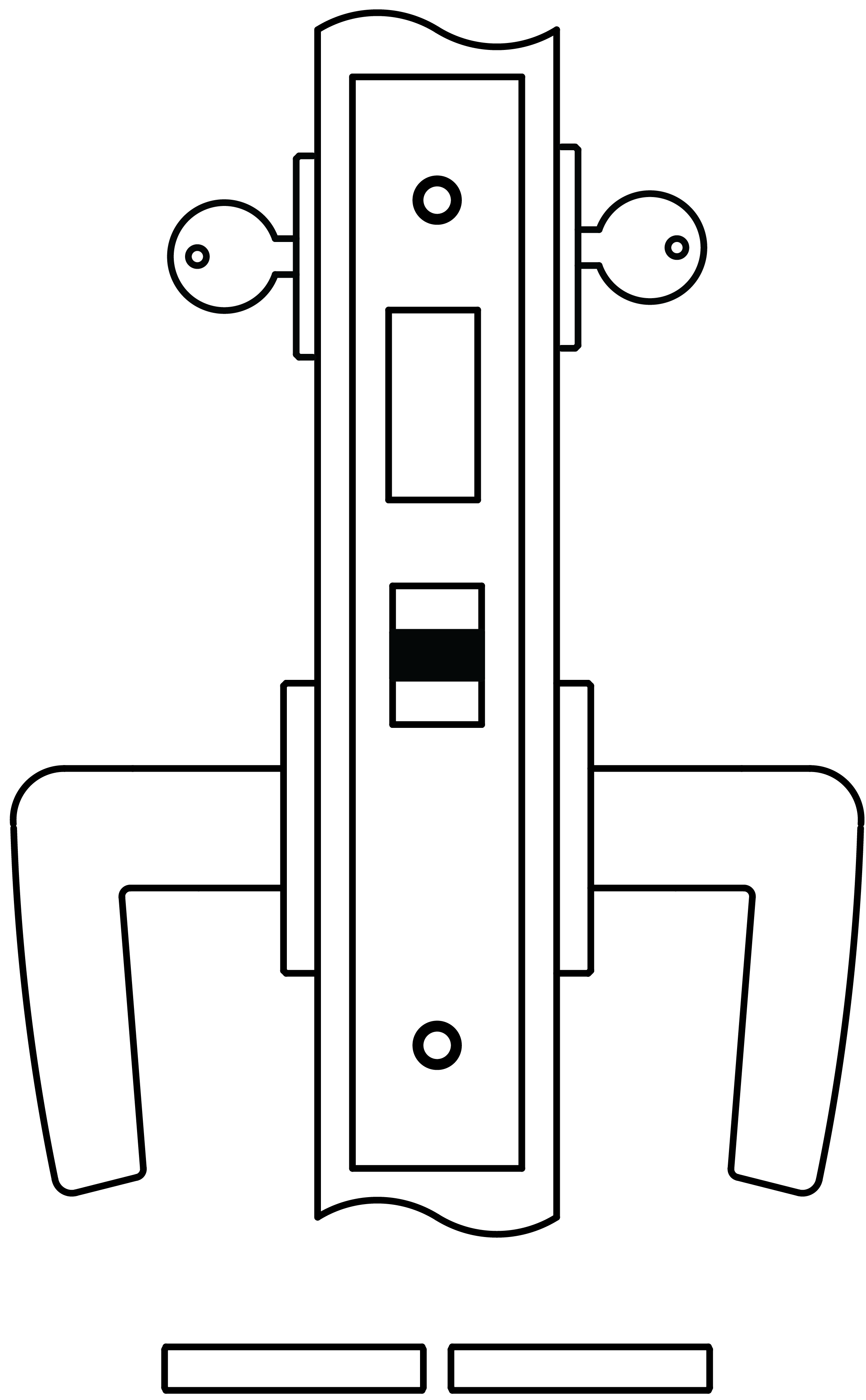

9145S-Q Classroom Security

(ANSI SERIES 1000-F88)

• Latch bolt by lever either side unless outside lever is locked by key outside or inside.
• When locked, latch bolt retracted by key inside or outside or lever inside.
• Inside lever is always free.
• Auxiliary latch deadlocks latch bolt.

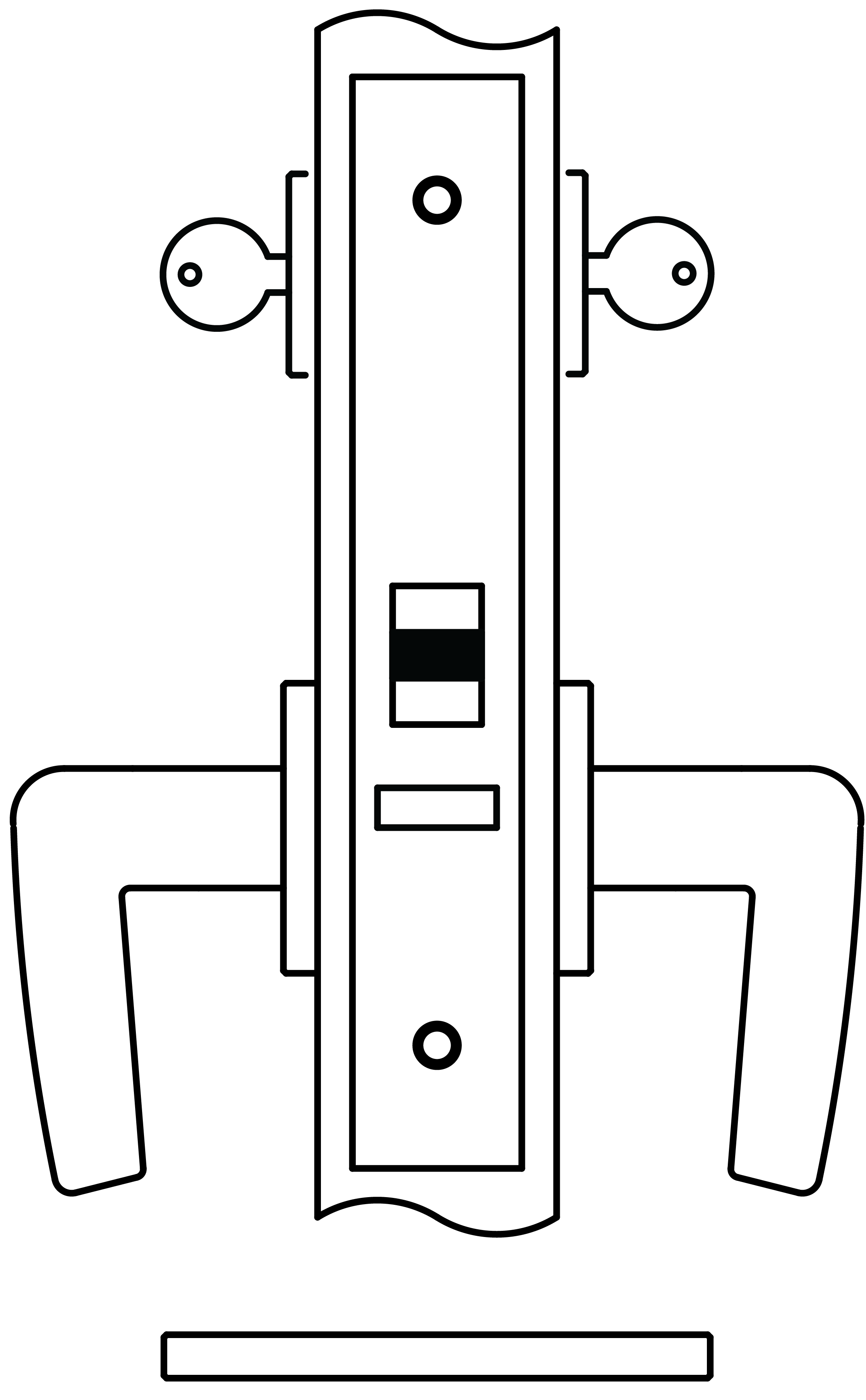

9146Q Classroom Double Locking

• Latch bolt by key from either side.
• Key from either side locks and unlocks outside and inside* levers.
• Auxiliary latch deadlocks latch bolt.
• *Inside lever is not always free. Verify code compliance before using this function.

9148Q Entrance or Apartment

(ANSI SERIES 1000-F12)

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Deadbolt by key outside and turn piece inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains locked until manually unlocked by toggle.

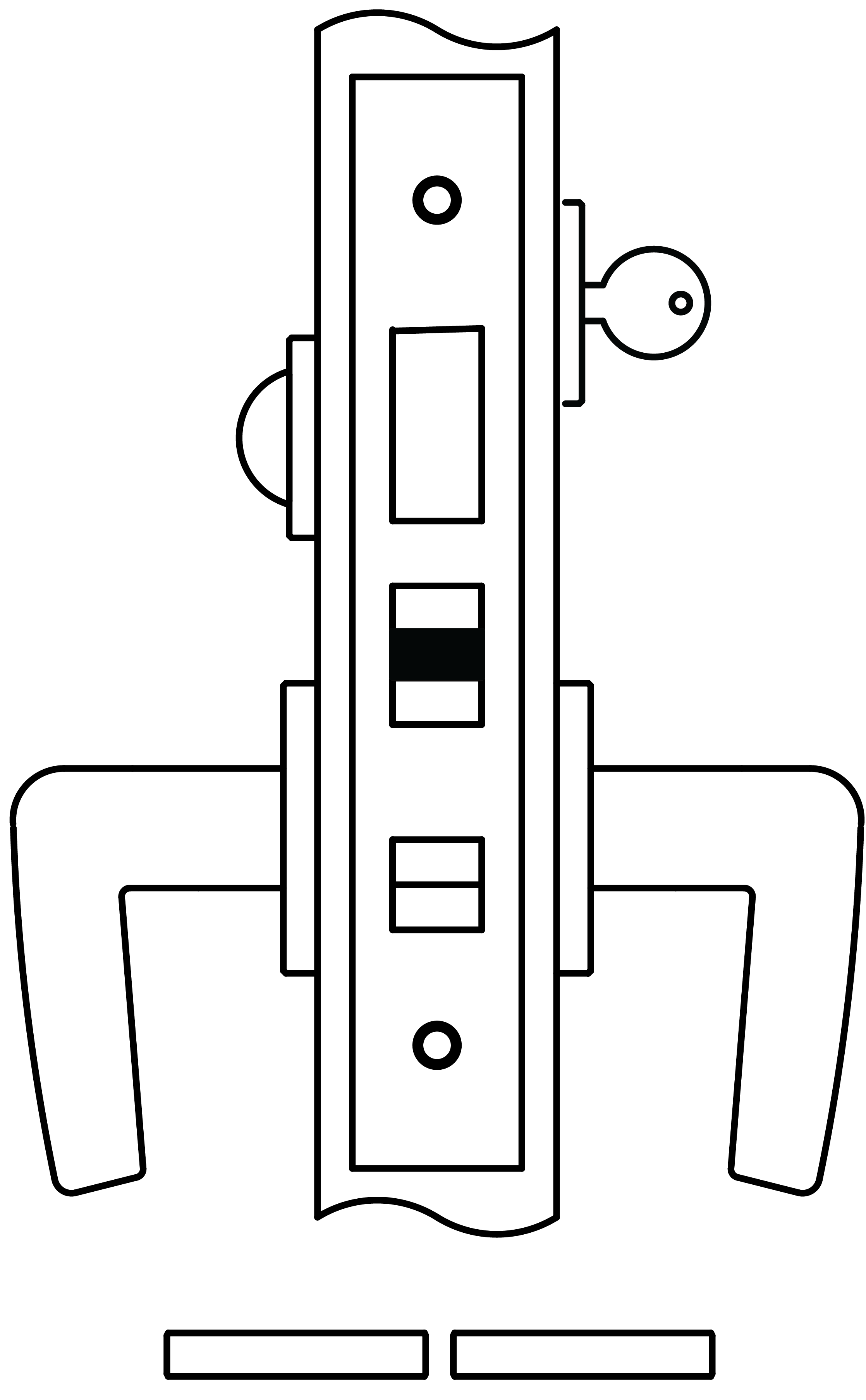

9149Q Entrance or Apartment

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Deadbolt by key outside and turn piece inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
• Note: Function not offered on thumb grip x thumb grip applications.

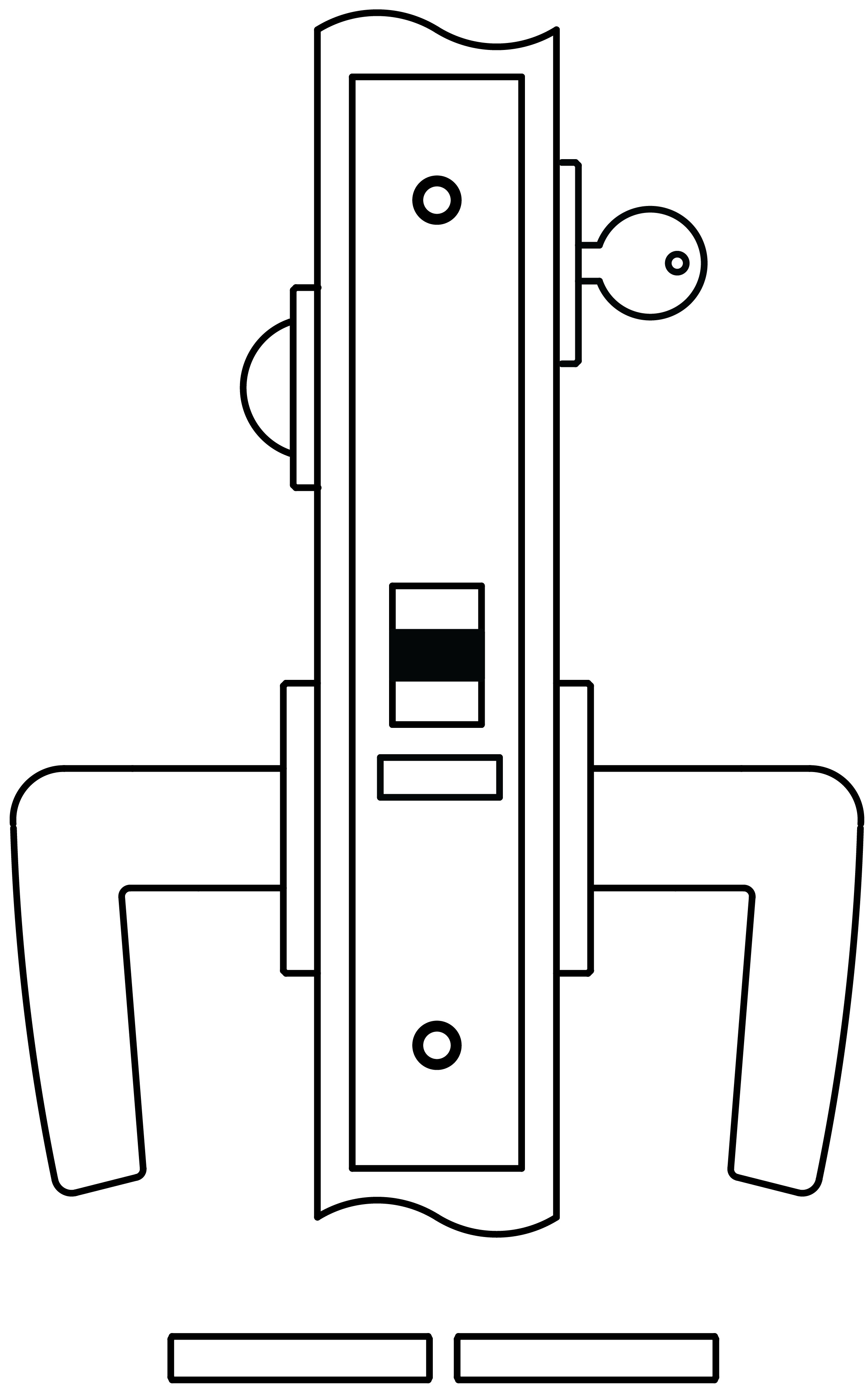

9153Q Entrance or Office

(ANSI SERIES 1000-F04)

• Latch bolt by key outside and lever either side unless outside lever is locked by thumb turn or key.
• Key or thumb turn locks or unlocks outside lever.
• Auxiliary latch deadlocks latch bolt.

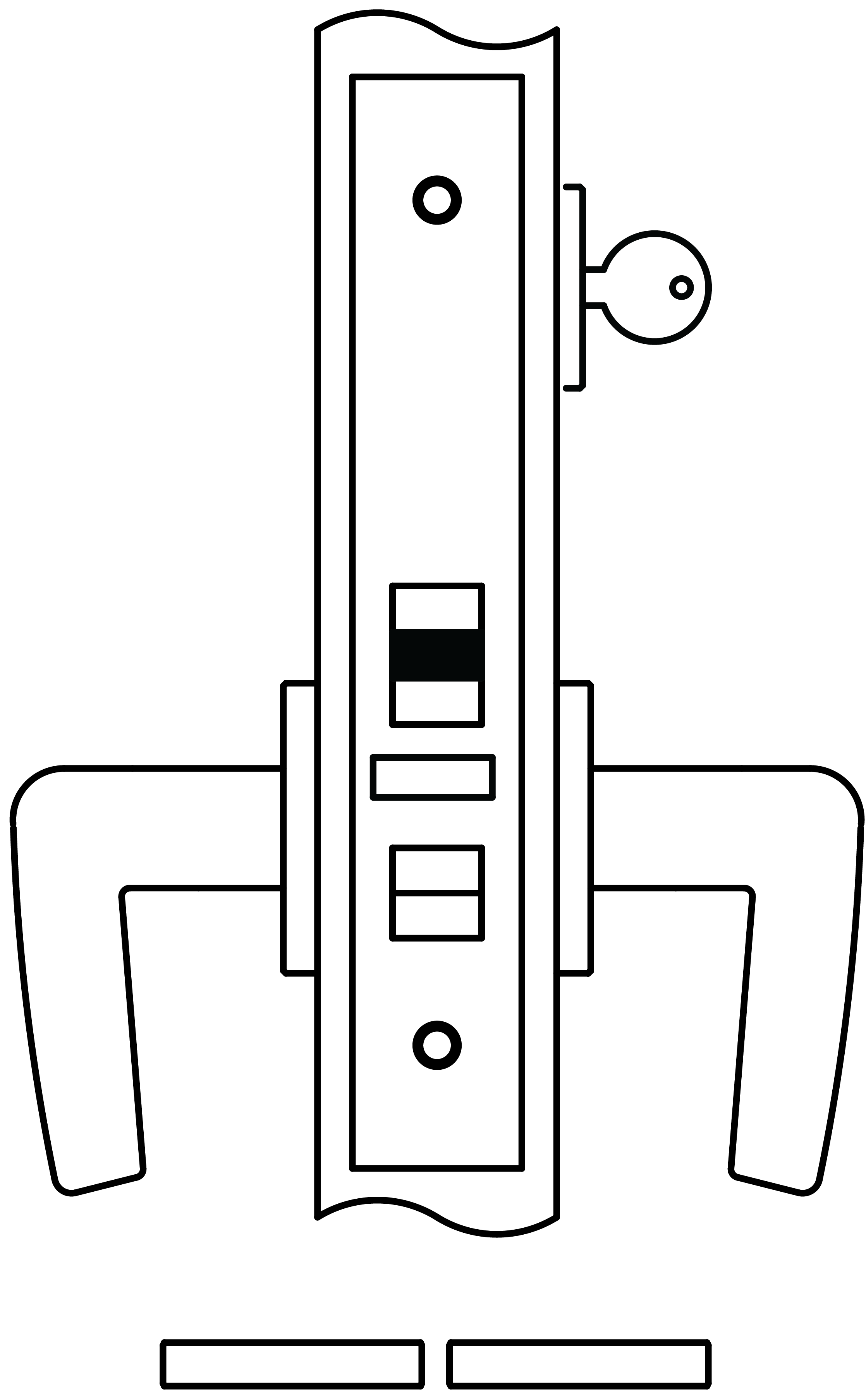

9156Q Entrance or Office

(ANSI SERIES 1000-F04)

• Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
• Auxiliary latch deadlocks latch bolt.

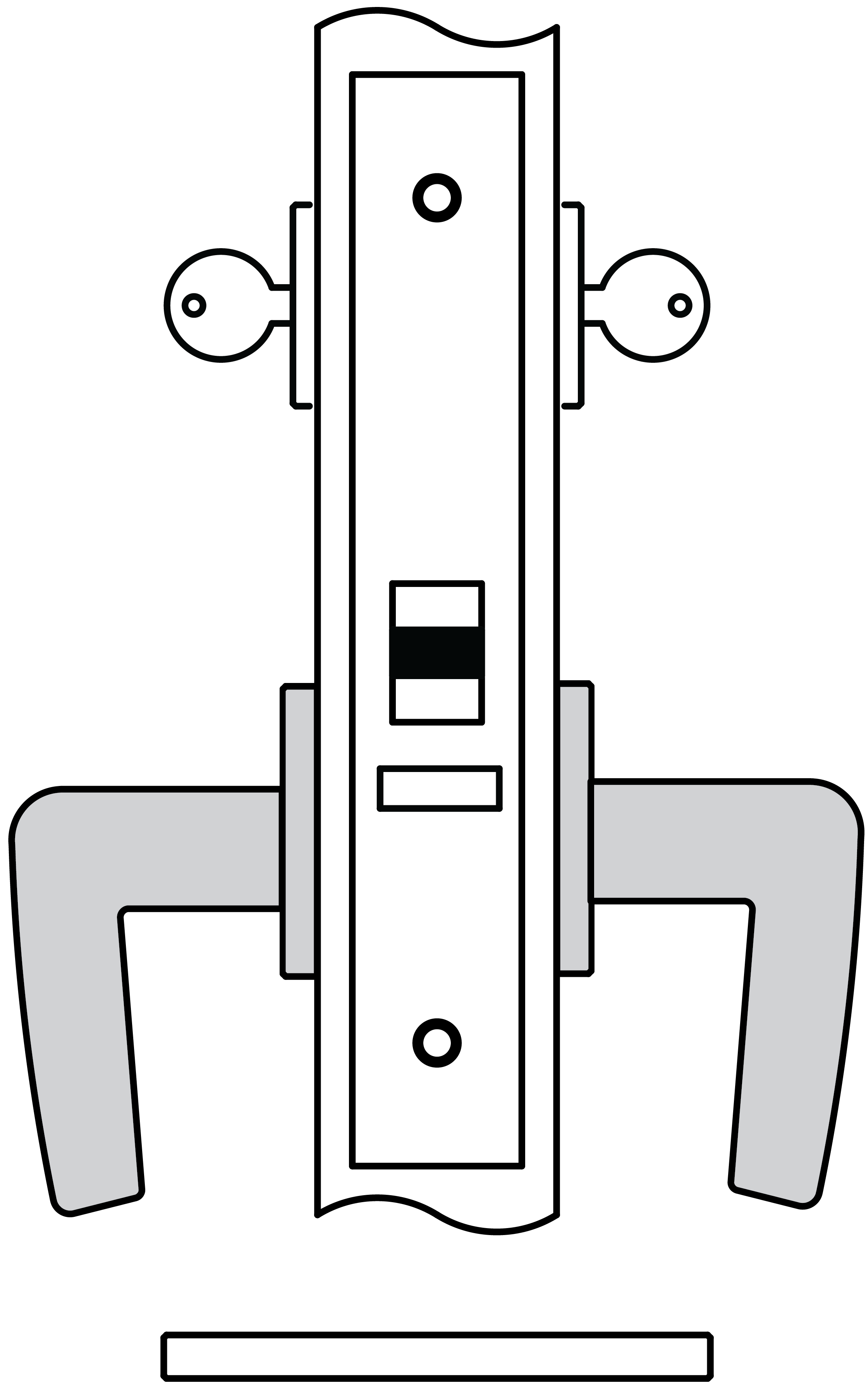

9158Q Institutional or Asylum

(ANSI SERIES 1000-F30)

• Latch by key either side.
• Inside* and outside lever always rigid.
• Auxiliary latch deadlocks latch bolt.
• *Verify code compliance before using this function.

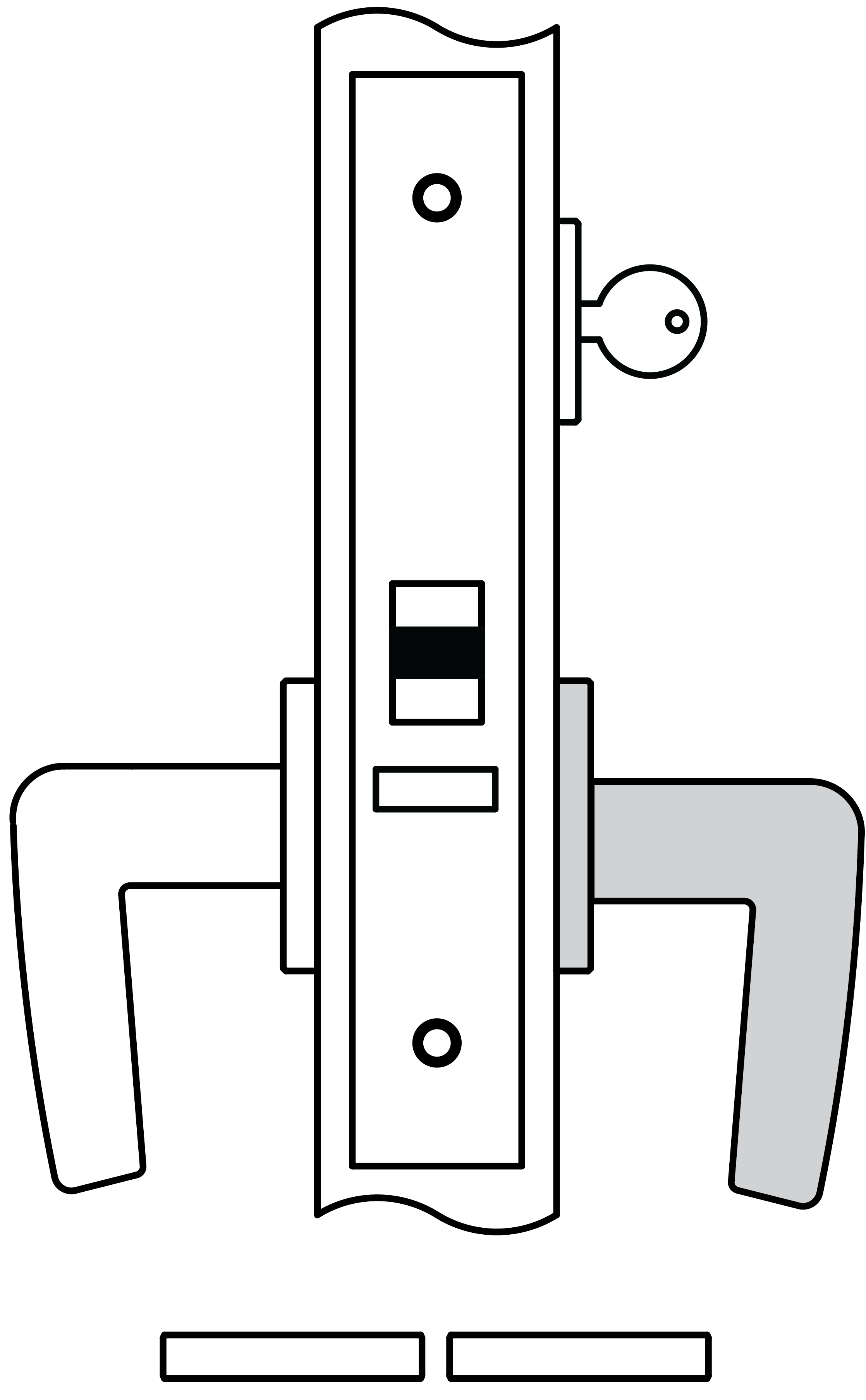

9159Q Storeroom or Closet

(ANSI SERIES 1000-F07)

• Latch by lever inside and key outside.
• Outside lever always rigid.
• Auxiliary latch deadlocks latch bolt.

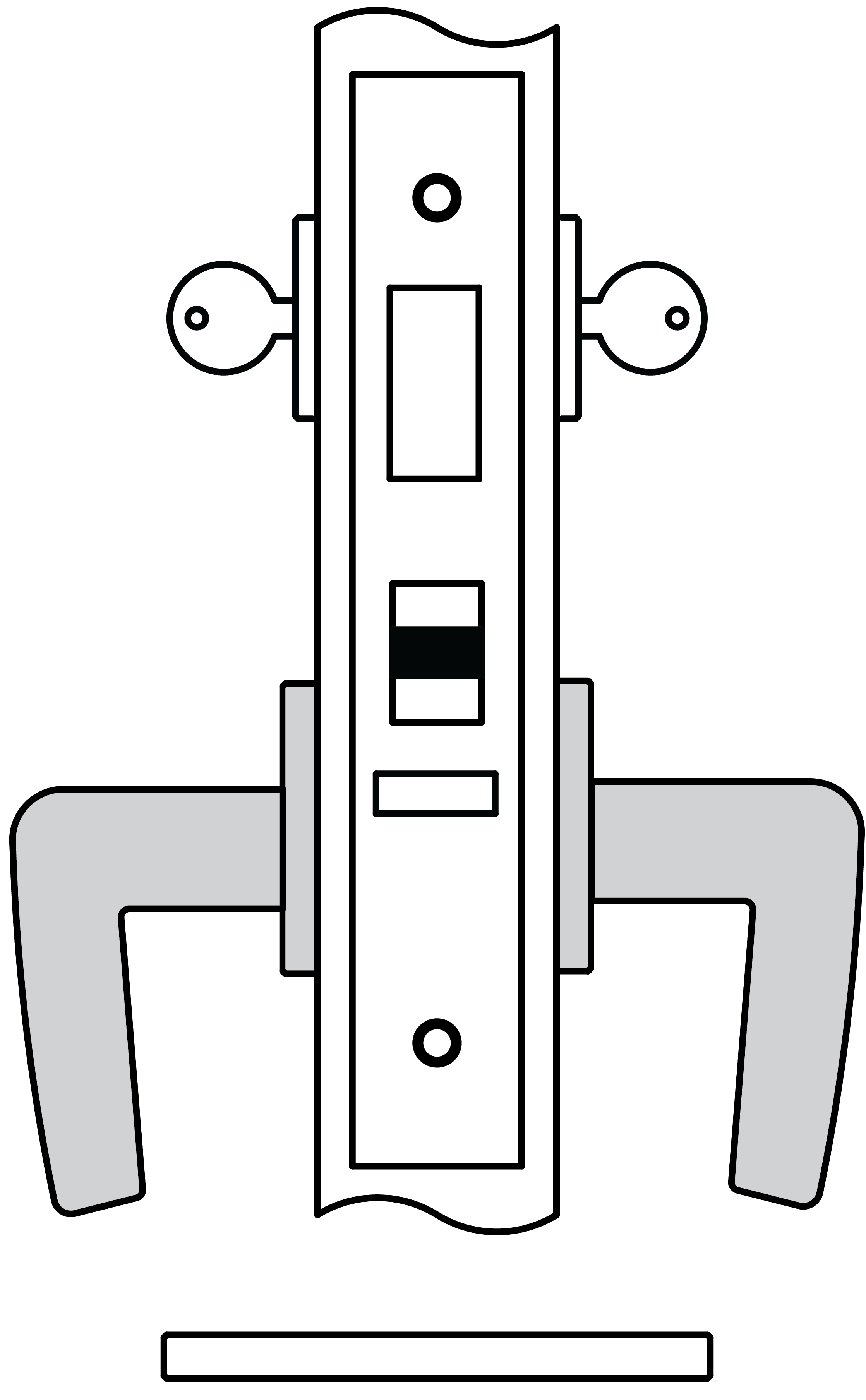

9160Q Asylum with Deadbolt

• Latch by key either side.
• Deadbolt by key either side (key projects deadbolt and retracts latch bolt and
• deadbolt).
• Inside* and outside handle always rigid.
• Auxiliary latch deadlocks latch bolt.
• *Verify code compliance before using this function.

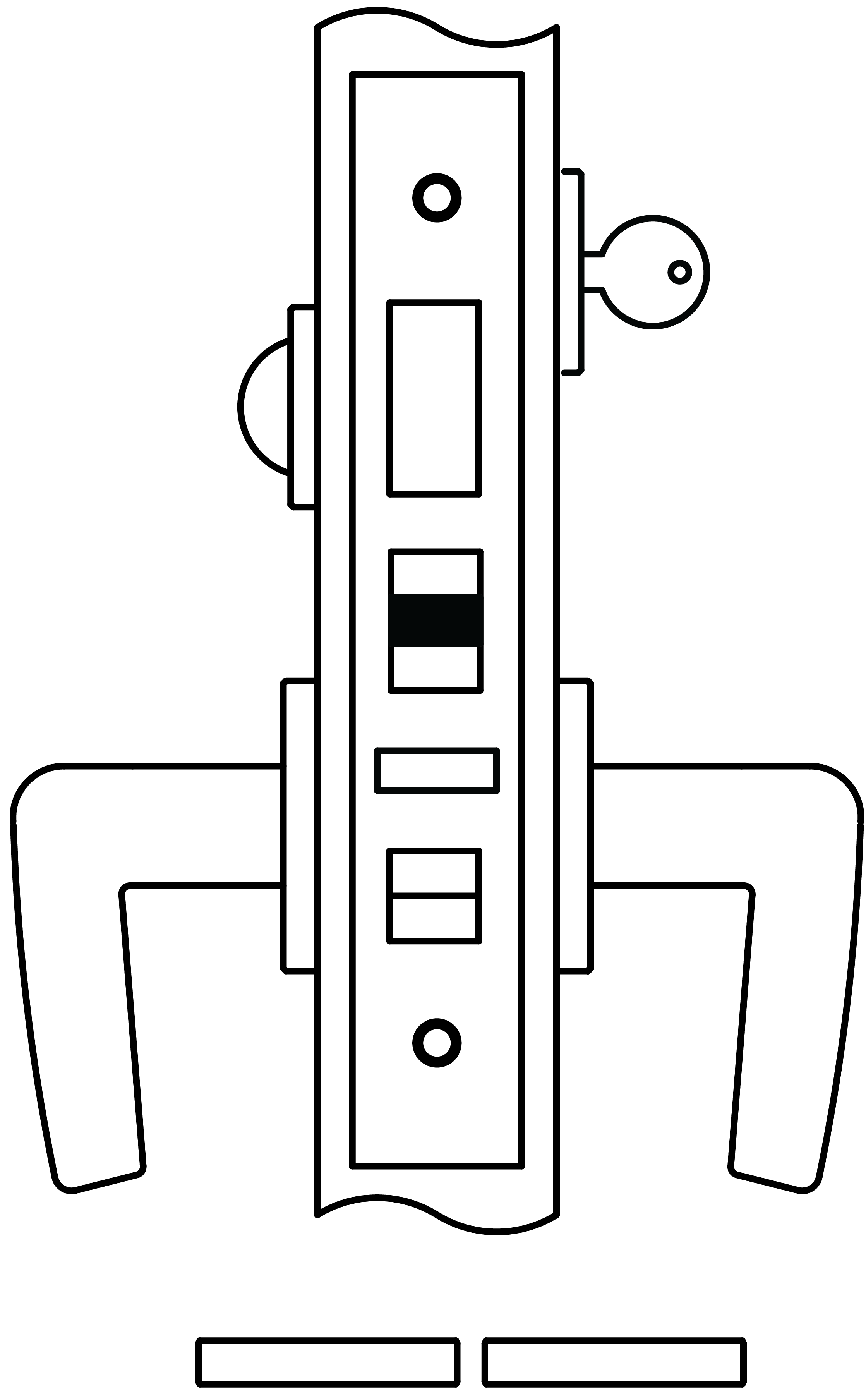

9167Q Entrance or Apartment

(ANSI SERIES 1000-F20)

• Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
• Deadbolt by key outside and turn piece inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains locked until manually unlocked by toggle.
• Auxiliary latch dead locks latch bolt and prevents manipulation of locked toggle action stop.

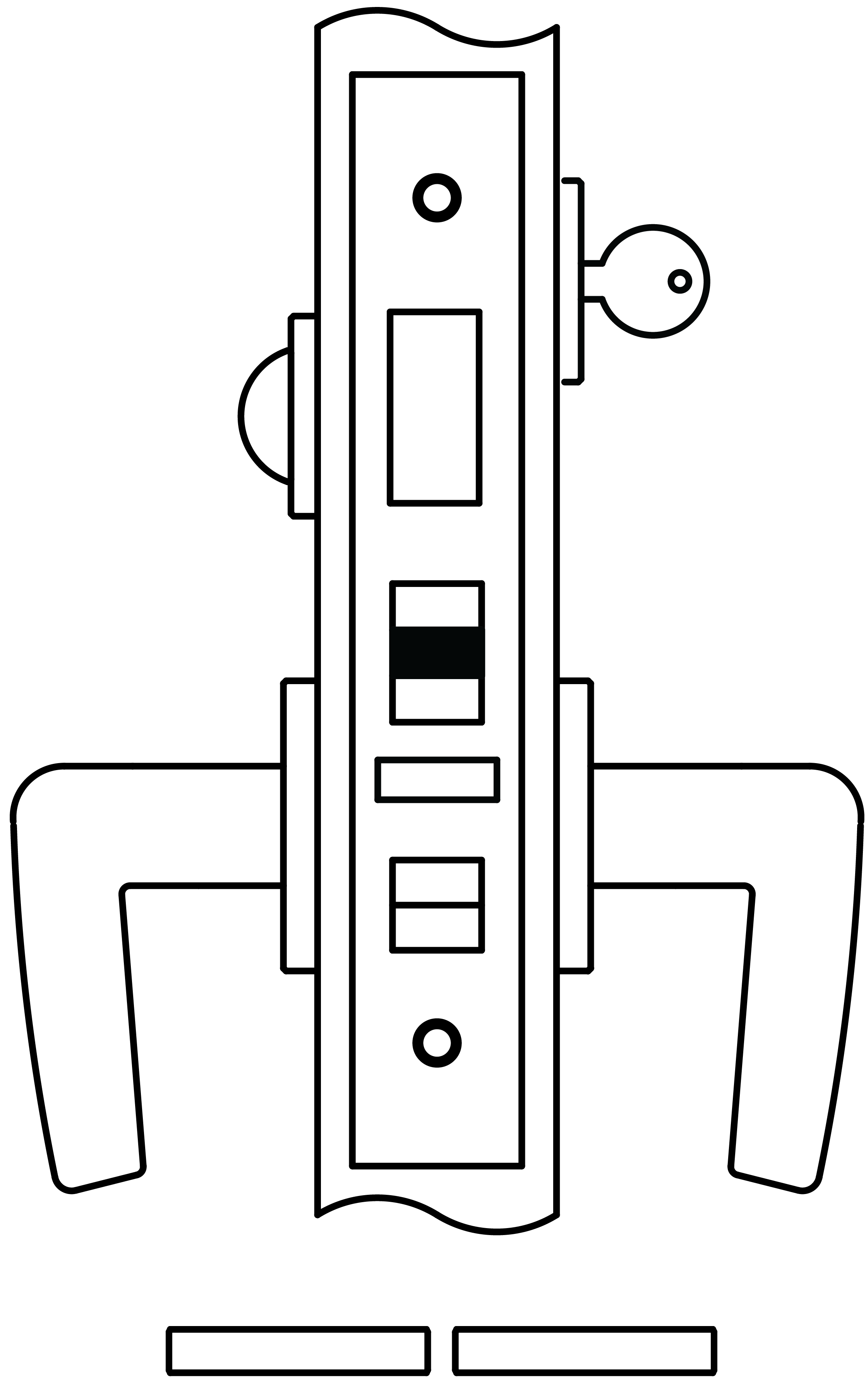

9169Q Entrance or Apartment

• Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
• Deadbolt by key outside and turn piece inside.
• Turning inside lever retracts latch and deadbolt simultaneously.
• Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
• Auxiliary latch dead locks latch bolt and prevents manipulation of locked toggle-action stop.
• *Function not offered on thumb grip x thumb grip applications.
