SL-M915XE Self-Latching Motor Drive Electrified Mortise Lock for Sliding Doors in Office SL-M915XE Self-Latching Motor Drive Electrified Mortise Lock Closed
SL-M915XE

Self-Latching Motor Drive Electrified Mortise Lock for Sliding Doors


SL-M915XE Self-Latching Motor Drive Electrified Mortise Lock for Sliding Doors offers flexible access control for sliding doors.  Featuring single-action egress and universal output voltage (accepts between 11V – 30V), this electrified lock can be remotely unlocked when door is in closed position.  Access control is enabled by utilizing SDC’s WPT Power Transfer that transfers power through the door gap wirelessly (not continuous duty).



Electrified Locks


  • SL-M9058E/SL-M9059E for doors 1-3/8" minimum (1" armor front).
  • SL-M9158E/SL-M9159E for doors 1-3/4" minimum (1-1/4" armor front).
  • Standard backset is 2-1/2" or 2-3/4" for door stiles 4-1/2" or wider.
  • Latch bolt will project when in contact with the frame, securing the opening. Electronic operation will unlock outside handle (or handles depending on the function). Key cylinders (by others) will override electronics to retract latch bolt.
  • For use with wireless power transfer systems (like SDC's WPT Wireless Power Transfer). NOT CONTINUOUS DUTY.
  • For use on wood or metal doors. Can be used on glass doors with a glass patch kit custom made to fit WPR Device.
  • 12-24V AC/DC (11V-30V Operating Range)
  • 250mA MAX Inrush
  • 10mA MAX Holding
  • Non-polarized Leads

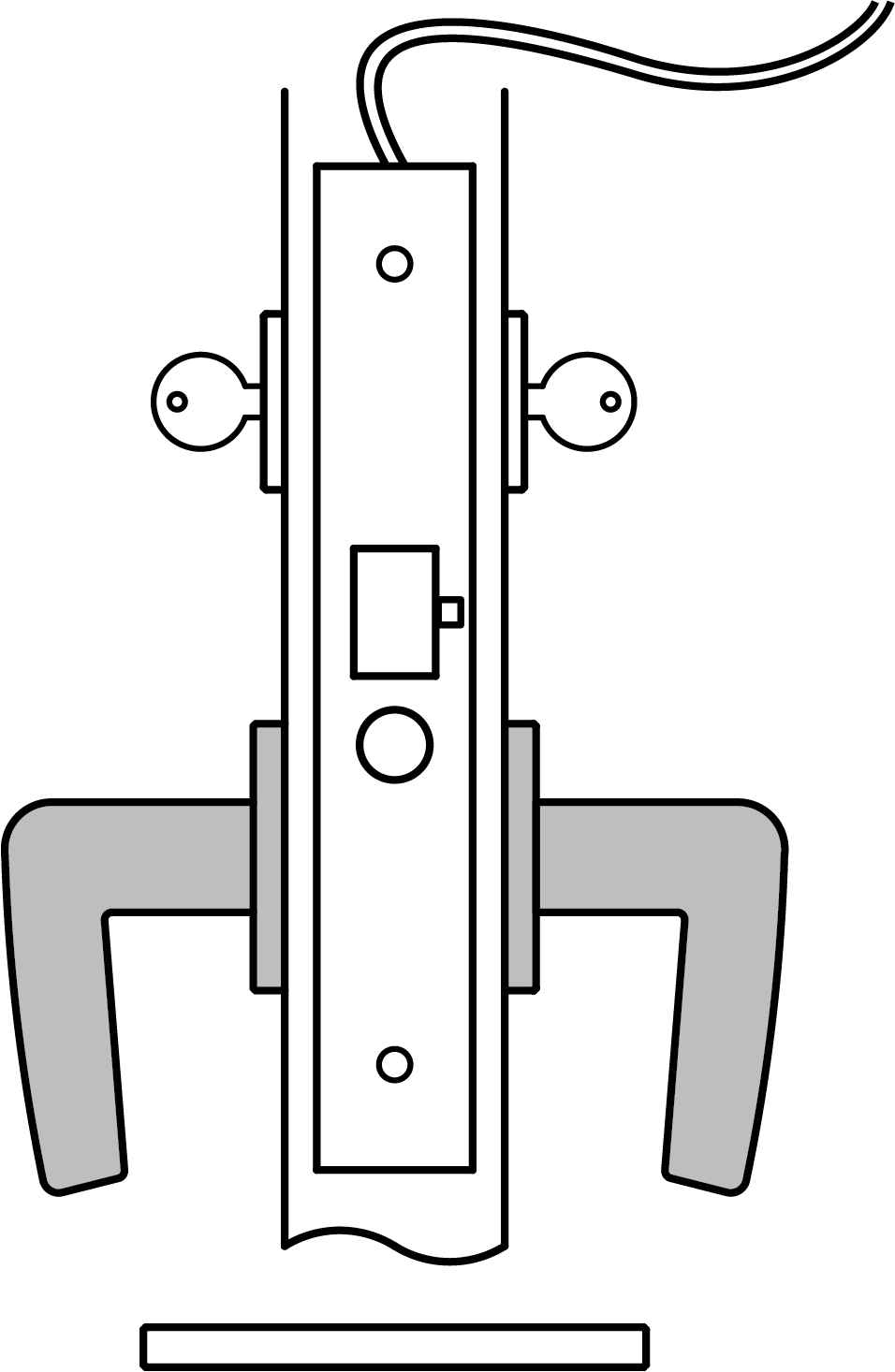

SL-M9158E


  • Latch bolt by key either side.

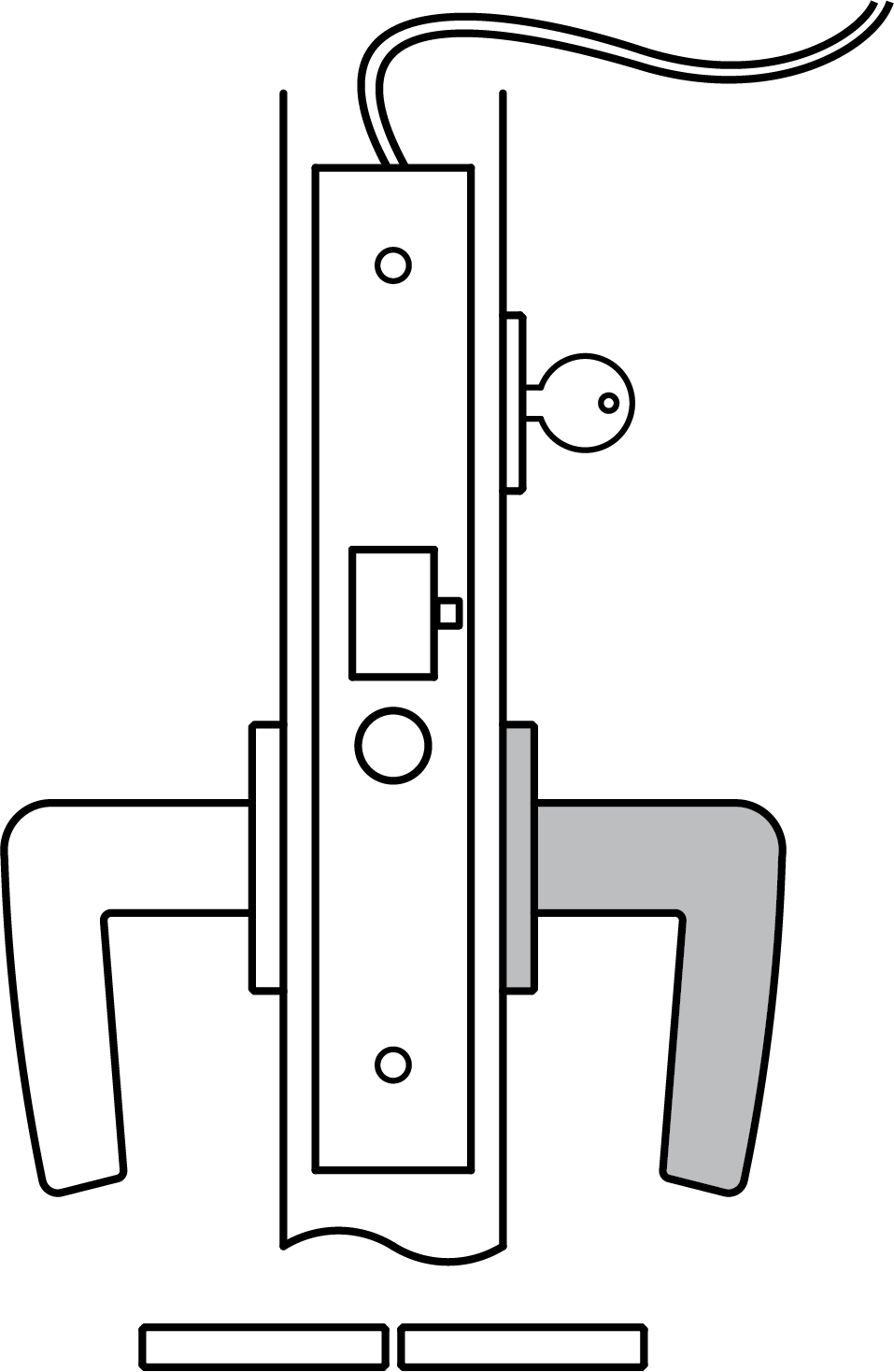

SL-M9159E


  • Inside trim always free.
  • Latch bolt by key outside.




Specification Sheet




Click on a swatch below to get a closer look
  • CVB
    Cerakote Vortex Bronze
  • Cerakote Black Gloss CBG
    Cerakote Black Gloss
  • Cerakote White Gloss Cerakote White Gloss
    CWG
  • Cerakote White Matte CWM
    Cerakote White Matte
  • Cerakote Black Matte CBM
    Cerakote Black Matte
  • Cerakote
    Protective Ceramic Coating
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • US15A
    Antique Nickel
  • TB
    Tarnished Brass
  • ESN
    Electroless Nickel
  • DURO
    Duronotic
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • US32
    Bright Stainless Steel
  • US26
    Polished Chrome
  • US19
    Oxidized Black + Lacquer
  • US15
    Satin Nickel
  • US10
    Satin Bronze
  • US9
    Polished Bronze
  • US4NL
    Satin Brass + No Lacquer
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US4
    Satin Brass
  • US32D
    Satin Stainless Steel
  • US3
    Polished Brass
  • US14
    Polished Nickel
  • US5
    Satin Brass + Black
  • TN
    Tarnished Nickel
  • US10B
    Oil Rubbed Bronze
  • US25D Satin Chrome US26D
    Satin Chrome
US25D Satin Chrome US26D
Satin Chrome
REQUEST FINISH SAMPLE




How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness. Other



Examples
  • Electrified Sliding Door Lock | Card Reader Access | Accurate Trim
    E.g.: SL-M9159E. 212. 29L/1R. US14. RH. 134
  • Electrified Sliding Door Lock | Card Reader Access Inside + Outside | Trim by Others
    E.g.: SL-M9158E. 212. SCH07A. US26D. LH. 134
  • Electrified Sliding Door Lock | Card Reader Access | Pocket Door Trim
    E.g.: SL-M9159E-PDL. 234. US10B. LH. 134
Notes
  • SDC WPT Wireless Power Transfer supplied by others, not continuous duty.
  • For compatibility please verify vertical spacing as well as through-bolting locations or call for assistance.
