STD.RAB
Standard Rabbeted Kit

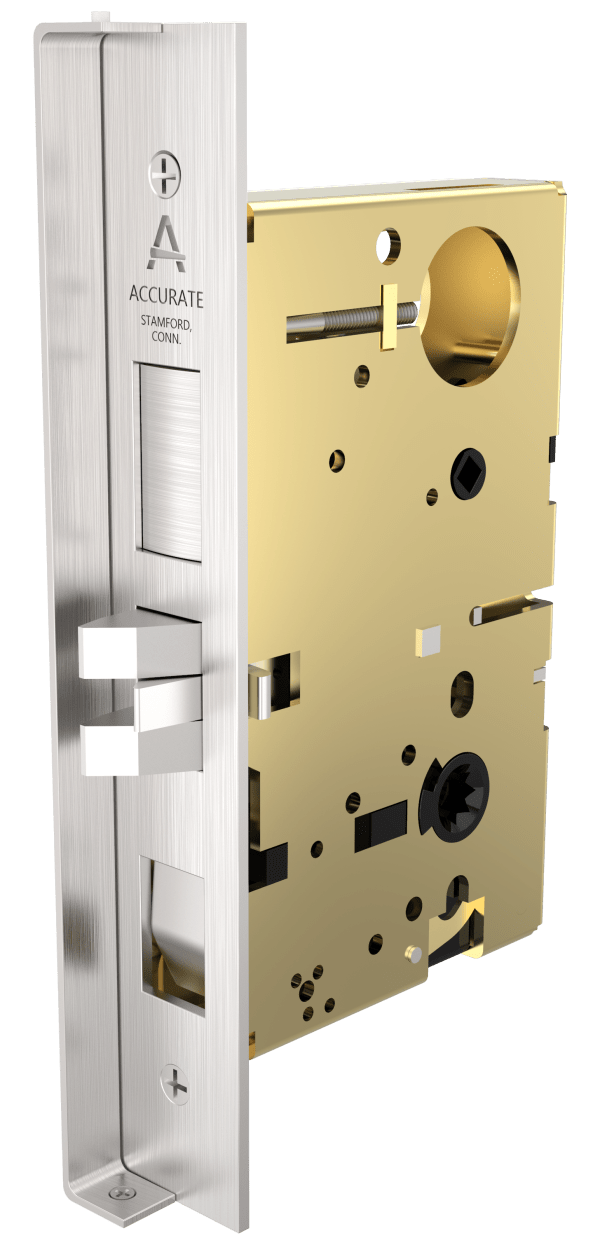

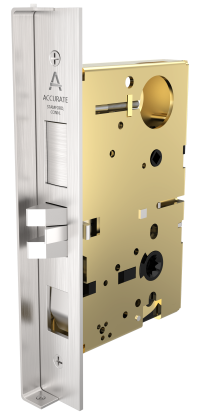

The Standard Rabbeted Kit is designed for door openings that feature a recess or groove cut into the wood, eliminating any gaps when doors are closed providing maximum privacy. Shown here with 9100 Series Mortise Lock.
- Rabbeted kits are commonly used to create seamless openings on interior pairs of doors.
- Each door is cut with a recess (half of the edge) so that high edge of the door meets the low edge of the other door creating a seamless closure that enhances privacy and eliminates gaps.
- Available for 9000/9100 and 8700/8800 Series Locks (for other locks please call for assistance).
- Standard rabbeted prep is 1/2” from high side to low side of door, with cut centered on the door (for other preps, please call for assistance).
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
RAB.LOCK. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Standard Rabbeted Kit | 9100 | Accurate Trim
E.g.: STD.RAB.9134. 212. 19L/1R. US4. LHR. 134 -
Standard Rabbeted Kit | 8800 | Accurate Trim
E.g.: STD.RAB.8845. 234. 21L/1E. US15. RH. 134 -
Standard Rabbeted Kit | 9100 | Other Manufacturers' Trim
E.g.: STD.RAB.9139. 212. LxL.8mm. US19. LH. 134
Notes
- Standard rabbeted prep is 1/2” from high side to low side of door, with cut centered on the door. For other preps, please call for assistance.
