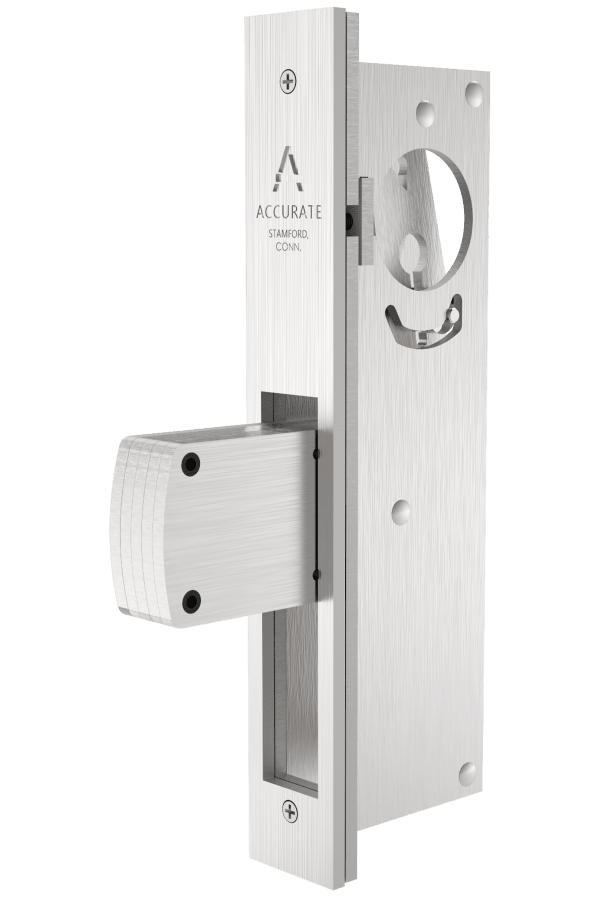

1600
Narrow Backset Deadlock
The 1600 Series ideal for narrow stile aluminum doors in storefront or retail applications. It is a direct retrofit for popular Adams Rite Series locks and is most commonly paired with ADA compliant rigid pulls. It features a flip deadbolt for swinging doors and a flip hookbolt for sliding doors.
- Maintain sleek lines where narrow stile door are prominent, ideal for aluminum storefronts.
- Specify 1600 flip deadbolt for swinging doors, 1600SDL hook deadbolt for sliding doors.
- 1”, 1-1/8” standard narrow backsets. (1-1/4", 1-1/2" custom narrow backsets available.)
- Pair with rigid 7200P or custom architectural pulls in a variety of finishes or custom sizes.
- Available in a variety of deadbolt functions.
- Can be used with standard mortise cylinders or thumb turn cylinders (by others).
- Retrofit for popular Adams Rite Series locks.
- Heavy gauge, stainless steel case.
- Brass, bronze, aluminum or stainless steel armor front, finished as required.
- Faceplate options: flat (default), radius or beveled.
- 4-7/8" strike.
- Laminated stainless steel deadbolt with anti-lift feature, 1-1/2” throw
- Brass, stainless steel or oil rubbed bronze dust box.

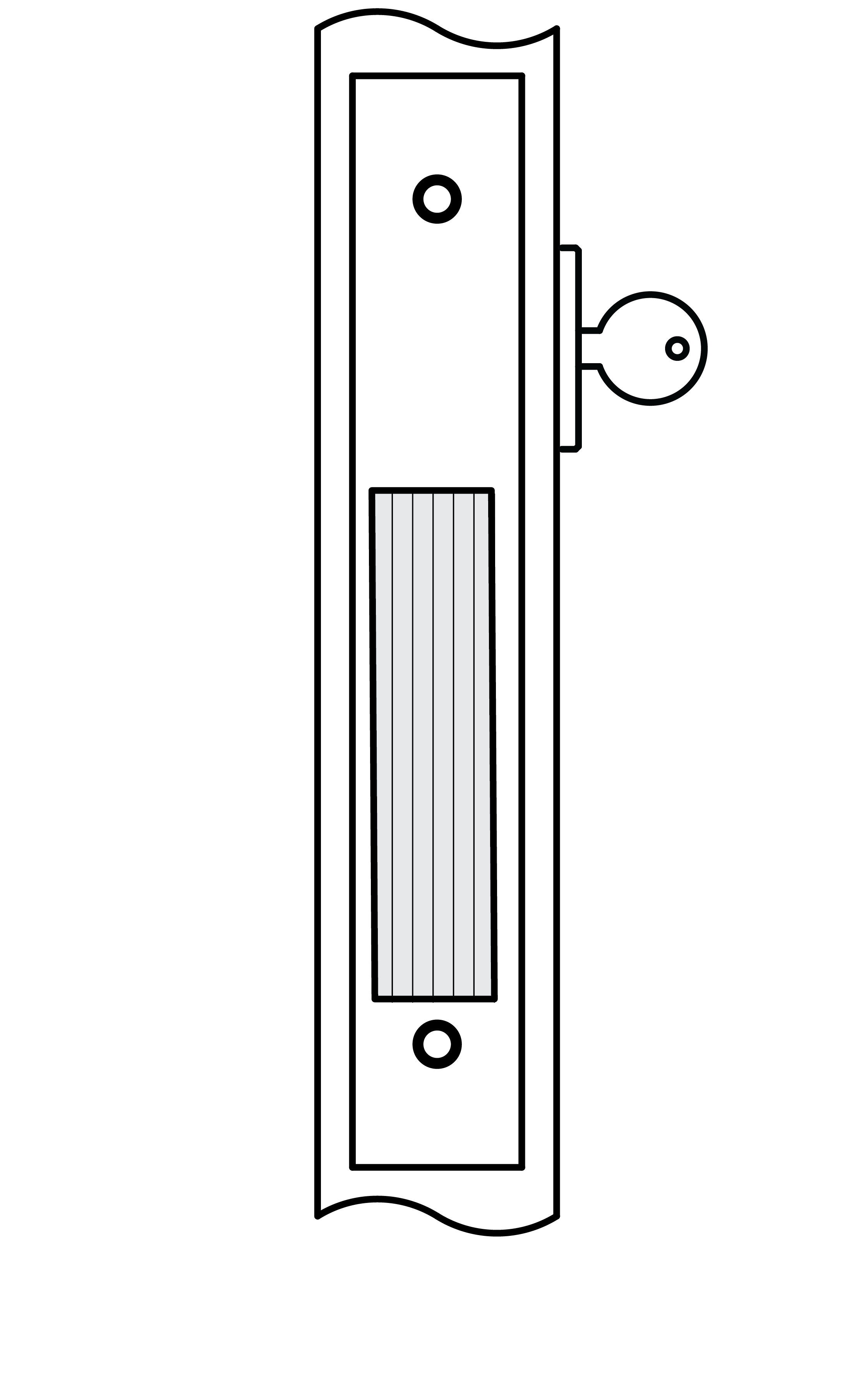

1601 | 1601SDL Deadlock
- Deadbolt by key outside.
- No inside operation.

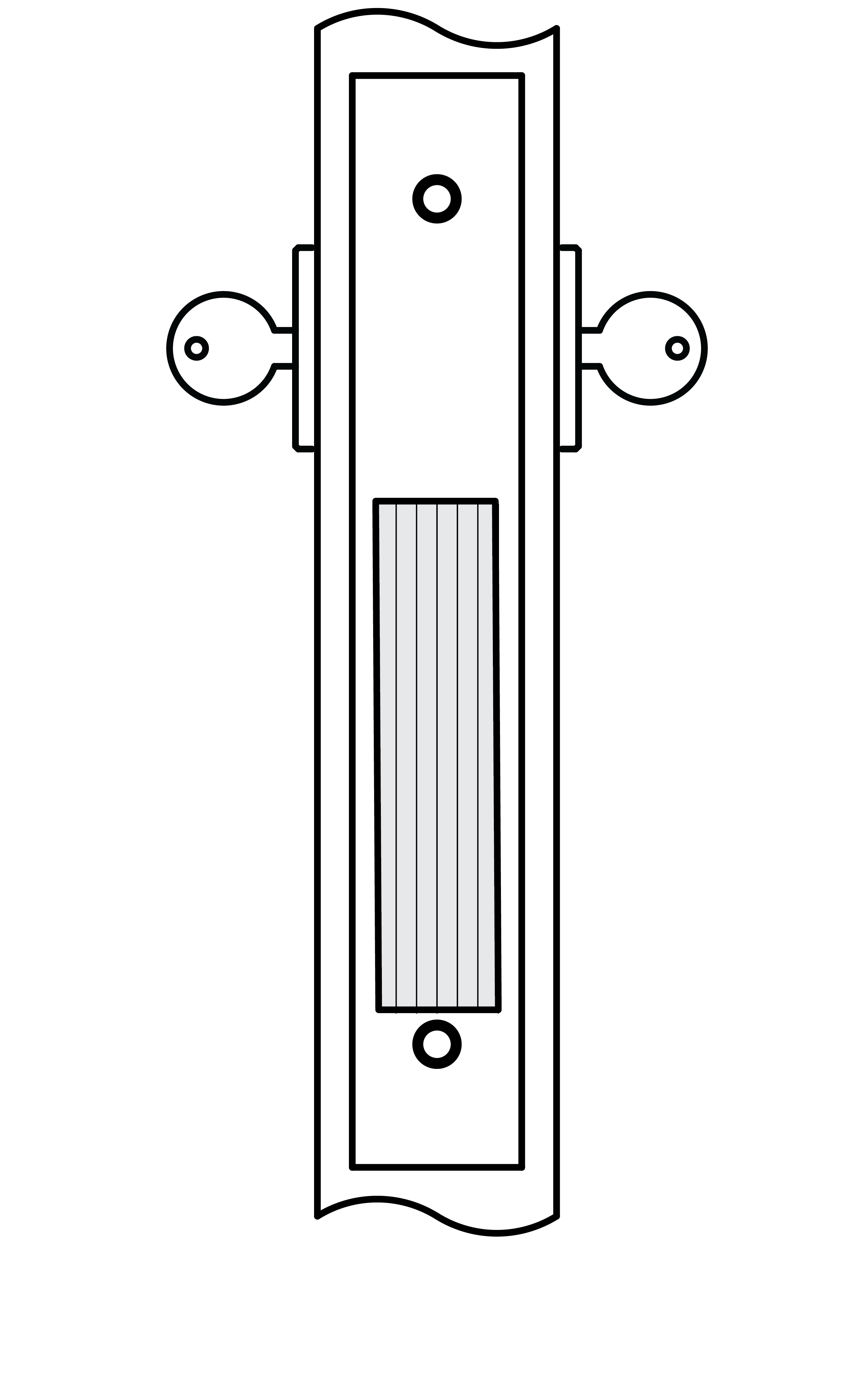

1602 | 1602SDL Deadlock
- Deadbolt by key or thumb turn cylinder either side.

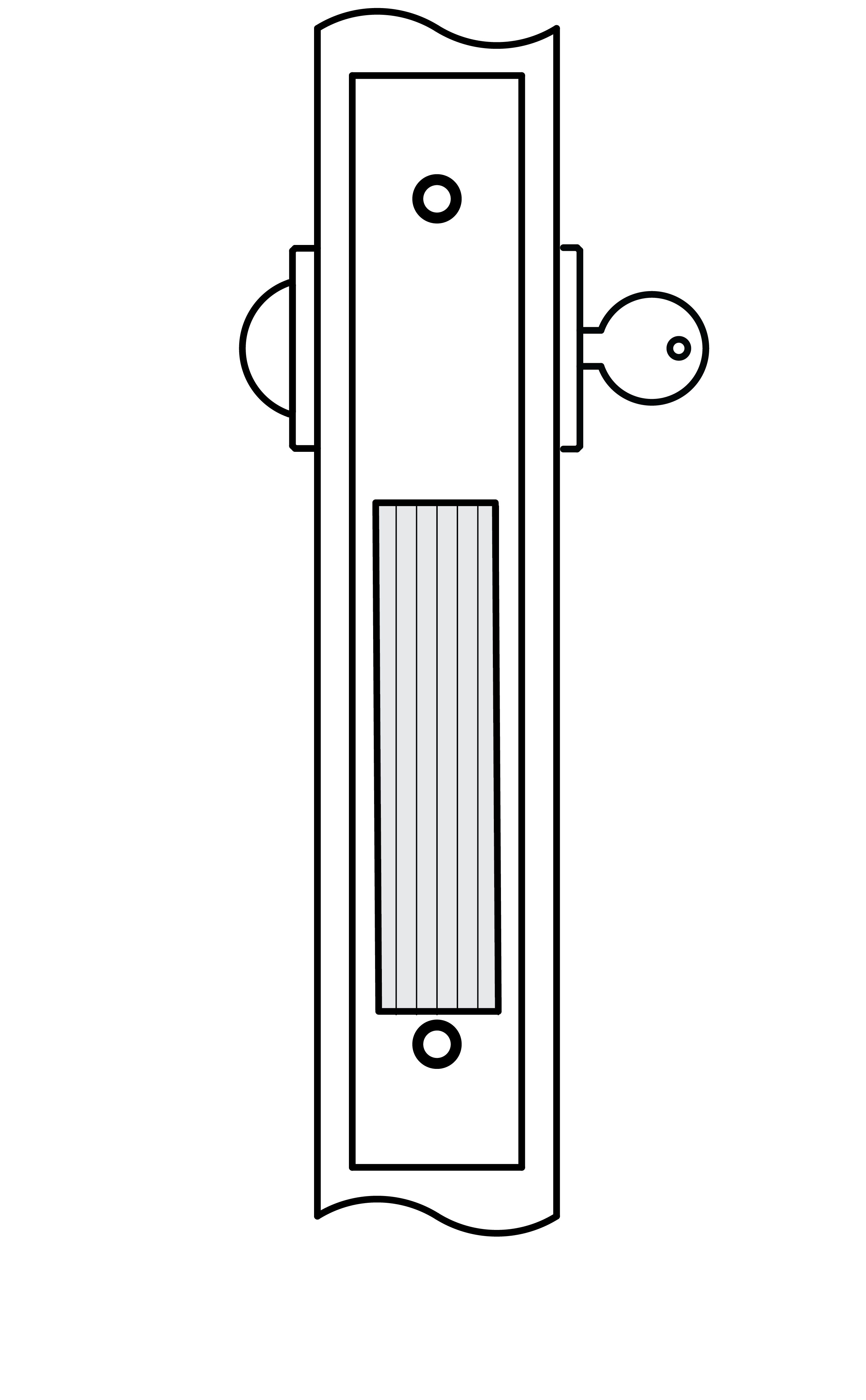

1603 | 1603SDL Deadlock
- Deadbolt by key outside and thumb turn inside.

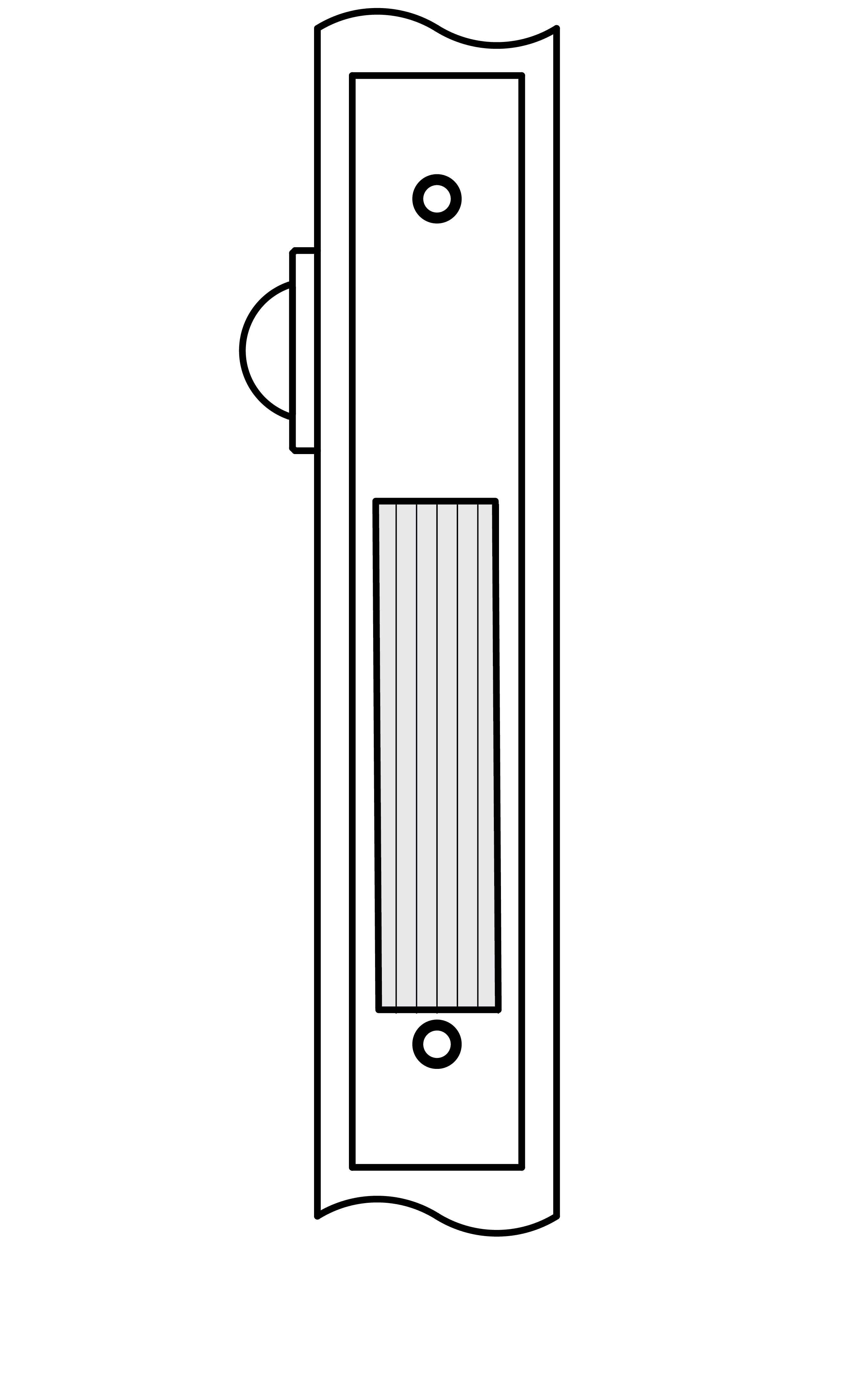

1604 | 1604SDL Deadlock
- Deadbolt by thumb turn inside.
- No outside operation.
Sell Sheet
Specification Sheets
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Faceplate.
Examples
-
Single Cylinder Deadlock | Swinging Door | Radius Faceplate Round Corners
E.g.: 1601. RFRC. 118. 7200P. US32D -
Entry Function | Swinging Door | Flat Faceplate Square Corners
E.g.: 1603. 1. 7200P. US19 -
Single Cylinder Deadlock | Sliding Door | Beveled Faceplate Square Corners
E.g.: 1602SDL. BF. 114. 7200P. US5
Notes
- Set up for inactive trim by other manufacturers.
- For compatibility with other manufacturers’ trim please call for assistance.
- Available for glass (G16) and sliding door applications (SL1600SDL).
