5000TG
Thumb Grip Entry Set
This clean and contemporary thumb grip design has no exposed screws on either side and makes a simple yet sophisticated statement to any entry door. Pair with popular Accurate mortise locks to best fit the needs of the entry. Available in a variety of entry functions, finishes and backsets and available to ship in 3-5 days.
- Features Concealed Screws.
- Modern, crisp and sophisticated design machined from solid brass, available in standard Accurate. finishes.
- Made and shipped in 3-5 days (Applicable Finishes: US19, US4, US14).
- Available in narrow, standard or large backsets: 1-3⁄4”, 2", 2-1⁄4", 2-1⁄2", 2-3⁄4", 3-3⁄4", 5", 6" (call for custom backsets).
- Available in Electrified options, High Security, and SmartEntry™.
- Cerakote premium protective coating for weather resistance and finish integrity.

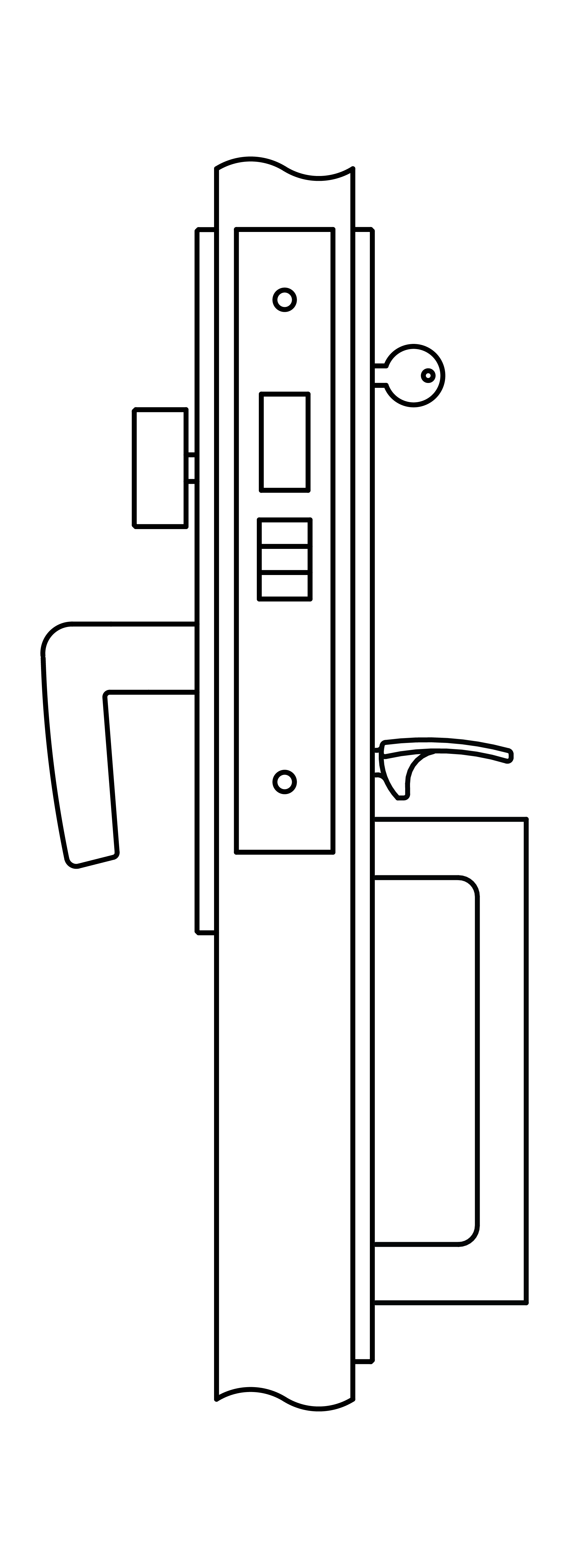

5924TG Dormitory
- Latch bolt by lever either side.
- Deadbolt by key outside, thumb turn inside.
- A turn of the inside lever retracts latch and deadbolt simultaneously, automatically unlocking outside lever.

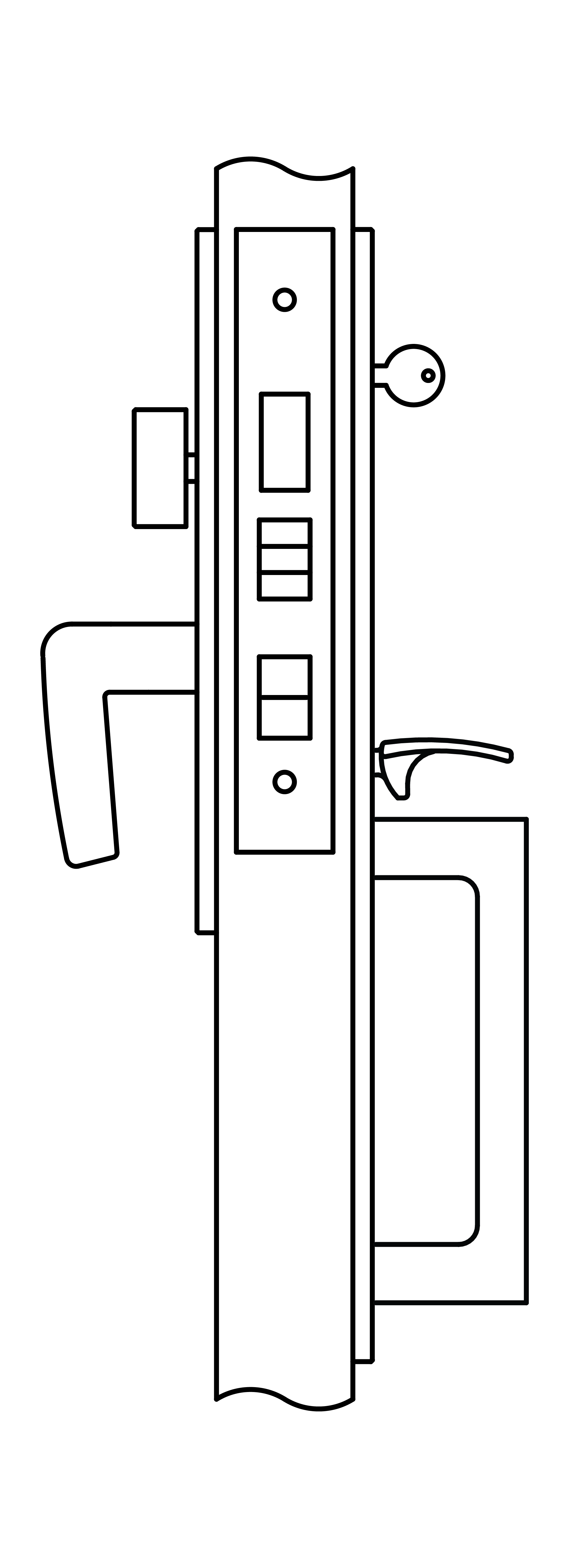

5948TG Entrance or Apartment
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and thumb turn inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains locked until manually unlocked by toggle.

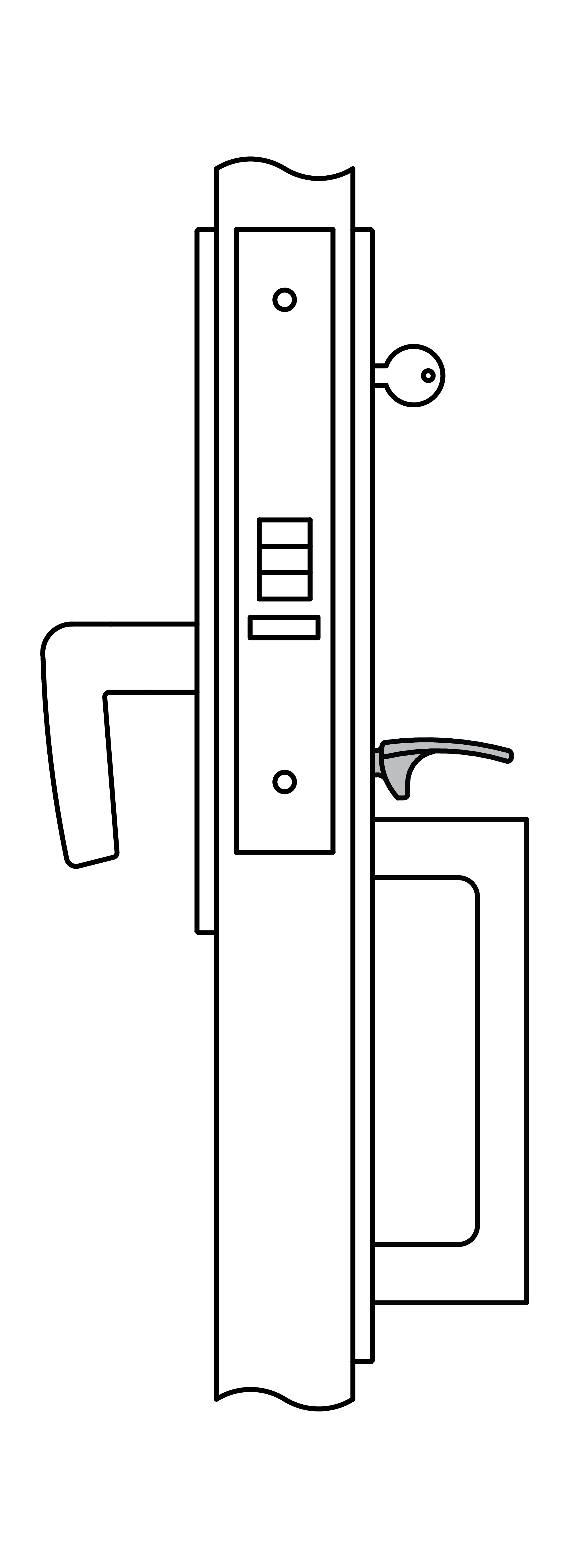

5959TG Storeroom
- Latch by lever inside and key outside.
- Outside lever always rigid.
- Auxiliary latch deadlocks latch bolt.

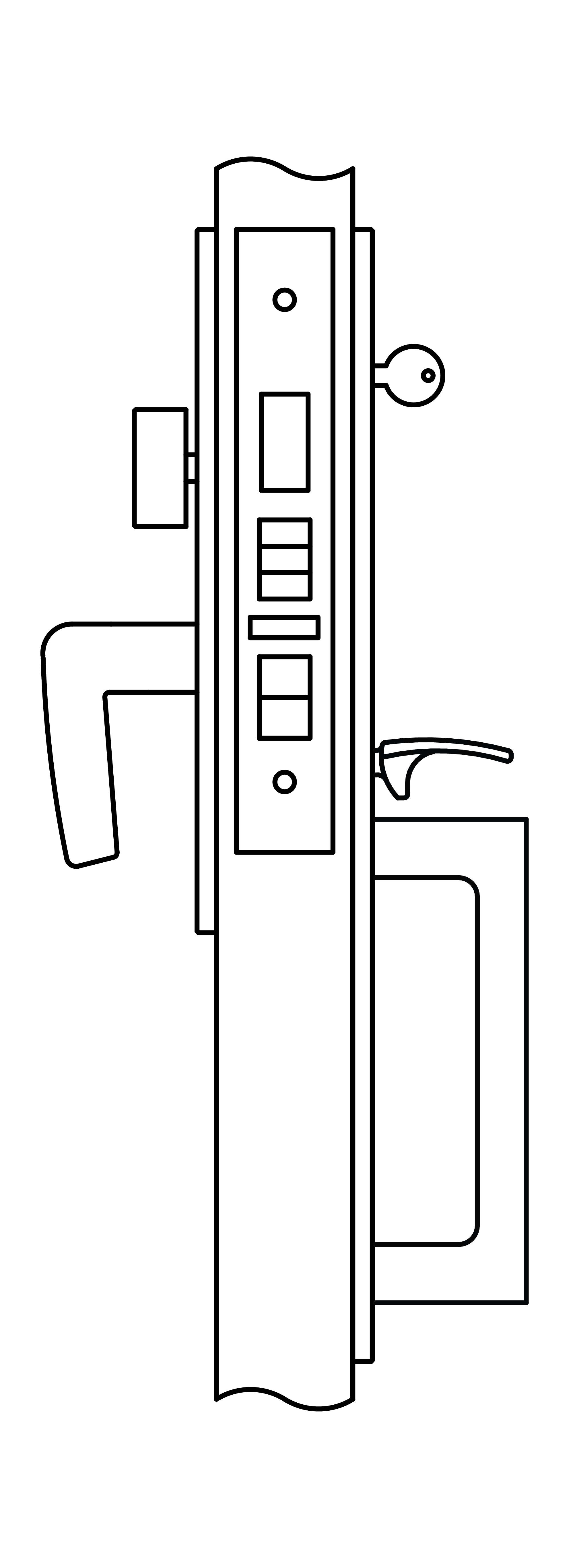

5967TG Entrance or Apartment
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle action stop.
- Deadbolt by key outside and thumb turn inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains locked until manually unlocked by toggle.
- Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.

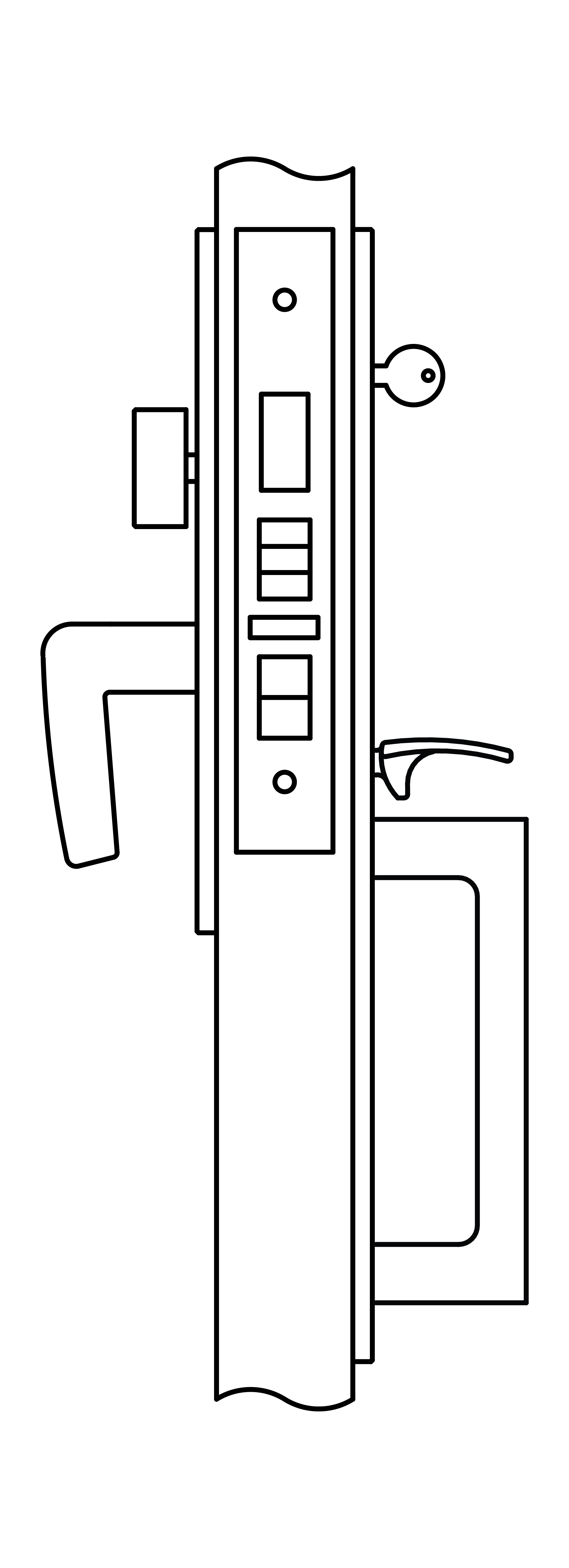

5967TG Entrance or Apartment
- Latch bolt by key outside and lever either side, unless outside lever is locked by toggle-action stop.
- Deadbolt by key outside and thumb turn inside.
- Turning inside lever retracts latch and deadbolt simultaneously.
- Outside lever remains unlocked until manually locked by toggle or projection of deadbolt.
- Auxiliary latch deadlocks latch bolt and prevents manipulation of locked toggle-action stop.
- *Function not offered on thumb grip x thumb grip
- applications.
Sell Sheet
Specification Sheets
Installation Templates
Installation Instruction
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Interior Trim. Finish[CG or CM]. Hand. Door Thickness.
Examples
-
Thumb Grip | 8800 Series Narrow Backset Lock
E.g.: 5824TG. 2. 21L. US4.CM. LH. 134 -
Thumb Grip | M9100E Series Motor Drive Electrified Lock with Deadbolt
E.g.: M5934E-TG. 234. 39L. US5.CG. LH. 134 -
Thumb Grip | 9100 Series Lock
E.g.: 5967TG. 212. 19L. US15.CG. RH. 134
