7200SEC
High Security Deadlock
Commonly used above a standard latch or entry lock wherever security and durability is paramount. Available High Security with the same heavy duty bolt with absorption technology as the 9100SEC High Security Mortise Lock. An ideal solution for commercial and residential applications, as well as behavioral environments that may require an extra layer of security.
- BACKSET: 2 1/2", 2 3/4"
- Custom backsets also available. For door stiles 3 7/8" wide and up.
- OPERATION:
- 7201SEC By key, outside only.
- 7202SEC By key, outside and inside.
- 7203SEC By key outside, thumb turn inside.
- 7204SEC By thumb turn, inside only.
- 7205SEC By thumb turn inside, emergency key outside.
- 7203ST-SEC Classroom Deadlock Key outside will project/retract deadbolt. Thumb turn inside can retract but not throw deadbolt.
- *Numbers are for specification and door preparation purposes - Inside and Outside trim must be specified separately.
- CASE: Heavy Gauge Steel (15/16").
- DEADBOLT: 1" throw.
- THUMB TURN HUB: 3/16" (5mm) on the diamond.
- ARMOR FRONT: Brass, bronze, or stainless steel.
- STRIKE: 3 1/2" x 1 1/8".
- DUST BOX: Brass, stainless, or US10B.

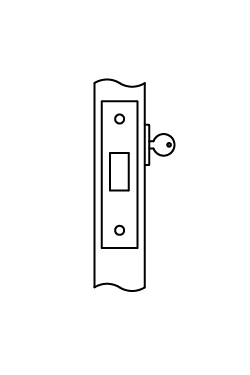

7201SEC
- Cylinder outside only.

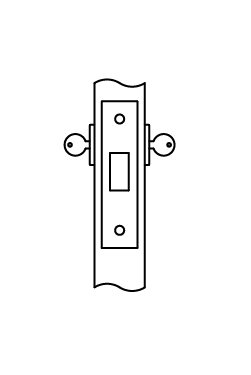

7202SEC
- Double Cylinder.

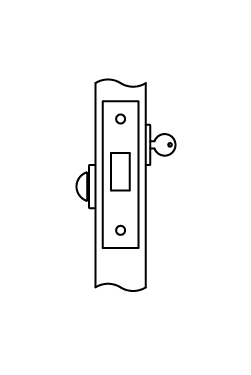

Classroom Deadlock
- Key outside will project/retract deadbolt.
- Thumb turn inside can retract but not throw
- deadbolt.

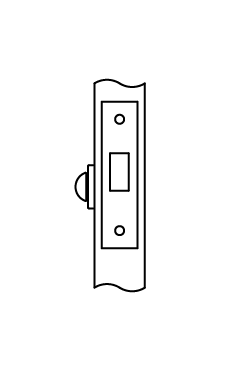

7204SEC
- Inside thumb turn only.

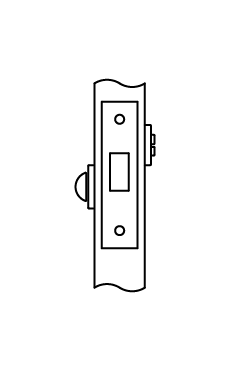

7205SEC
- Thumb turn inside, emergency key outside.
Sell Sheet
Installation Template
Specification Sheet
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type Other
Examples
-
7200SEC | Single Cylinder | Oil Rubbed Bronze
E.g.: 7201SEC. 212. US10B -
7200SEC | Classroom Deadlock | Satin Chrome
E.g.: 7203ST-SEC. 212. US26D
