9500
Interior Mortise Locks
Designed for interior doors in passage, privacy and bit key functions, 9500 Series Mortise locks feature a 2-1/4″ vertical spacing. European style installation (lever high) is standard, but are also available to order ‘upside down’ (lever low).
- Features 2-1/4” vertical spacing. For use with Accurate Trim or prepared for other manufacturers’ trim, for compatibility please verify vertical spacing as well as through-bolting locations.
- Furnished standard with Hub Adjust Feature which keeps levers perfectly level and can easily be adjusted onsite. (Not available on 2” backset.)
- Passage, privacy and bit key functions.
- Furnished standard with European style installation (Lever High), available to order as Upside Down (Lever Low).
- Custom backsets, marine grade, rabbeted kits available.
- Pair with SilentPac™ Lever Dampening Disc to diminish noise by making lever return smooth and slow, avoiding the abrupt snapback of levers into place.
- 2", 2-1/2", 2-3/4" backset for door stiles starting at 3-1/4"(Note: lock body measures 2-7/8" overall for a 2” backset).
- Case: Heavy Gauge Steel (3/4” thick).
- Armor Front: Adjustable bevel. Made from brass, bronze or stainless steel and finished as required.
- Latch Bolt: 7/16" throw. Magnetic stainless steel.
- Deadbolt: Brass or stainless steel. ½” throw.
- Hubs: Available in different sizes to be compatible with various trim options.
- Thumb Turn Hub: 3/16” (5mm). Special 6mm square hub available as special order.
- For door stiles 3-1/4" or Wider.
- Also available with magnetic latch bolt option paired with a non-lipped strike for quiet operation and minimalistic design.
9500ADL Active Dummy Lock
- Active handles inside and outside.
9500ADLS Active Dummy Lock Prepared as Strike
- Active handles inside and outside.
- For use on “dummy door” (in double door applications where the active lock has a 9525 or 9539 lock, please specify.)

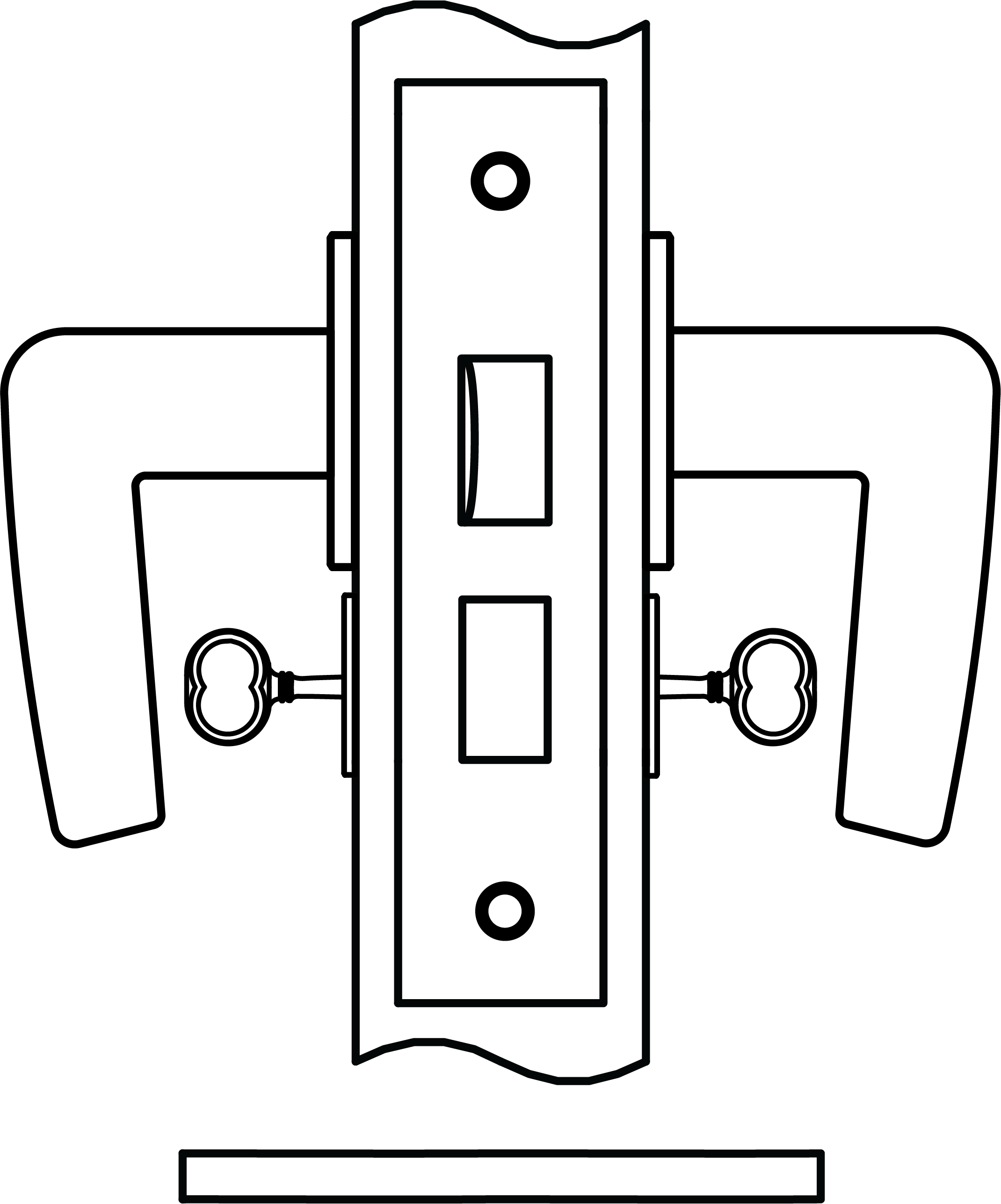

9524 Interior Privacy Bit Key Lock
- Latch bolt by knob or lever either side.
- Deadbolt by bit key inside and outside.
- One solid brass bit key furnished with each lock – extra keys available to order. (P/N 9-BK)
9525 Interior Passage
- Latch bolt by lever either side.
9539 Interior Privacy
- Latch bolt by knob or lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.
Sell Sheet
Installation Templates
Click on a swatch below to get a closer look
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
