9800

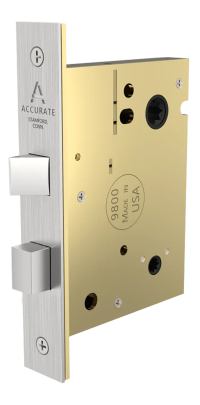

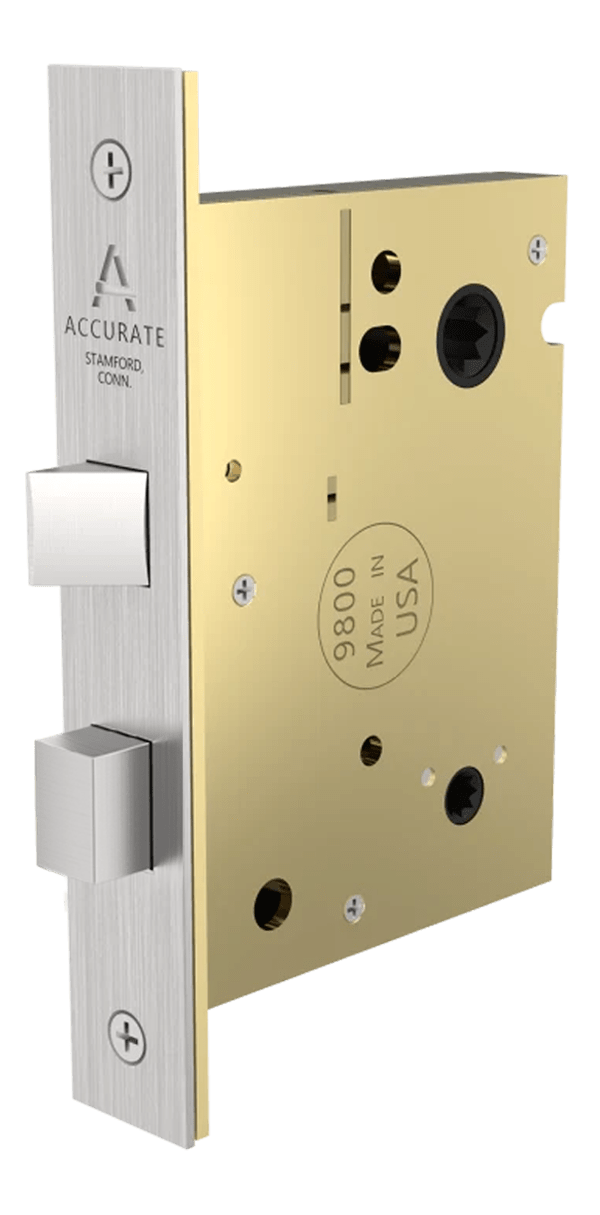

Interior Mortise Locks
Designed for interior doors in passage, privacy and bit key functions, 9800 Series Mortise locks feature a 2-7/8″ vertical spacing to accommodate larger trim designs. European style installation (lever high) is standard, but are also available to order ‘upside down’ (lever low).
- Features a 2-7/8" vertical spacing to allow the use of larger trim designs. For use with Accurate Trim or prepared for other manufacturers' trim, for compatibility please verify vertical spacing as well as through-bolting locations.
- Furnished standard with Hub Adjust Feature which keeps levers perfectly level and can easily be adjusted onsite. (Not available on 2” backset.)
- Passage, privacy and bit key functions.
- Furnished standard with European style installation (Lever High), available to order as Upside Down (Lever Low).
- Custom backsets, marine grade, rabbeted kits available.
- Pair with SilentPac™ Lever Dampening Disc to diminish noise by making lever return smooth and slow, avoiding the abrupt snapback of levers into place.
- Backset: 2", 2-1/2", 2-3/4" for door stiles starting at 3-1/4"(Note: lock body measures 2-7/8" overall for a 2” backset).
- Case: Heavy Gauge Steel (3/4” thick).
- Armor Front: Adjustable bevel. Made from brass, bronze or stainless steel and finished as required.
- Latch Bolt: 7/16" throw.
- Deadbolt: Brass or stainless steel. ½” throw.
- Hubs: Available in different sizes to be compatible with various trim options.
- Thumb Turn Hub: 3/16” (5mm.) Special 6mm square hub available as special order.
- For door stiles 3-1/4" or Wider.
- Also available with magnetic latch bolt option paired with a non-lipped strike for quiet operation and minimalistic design.Â

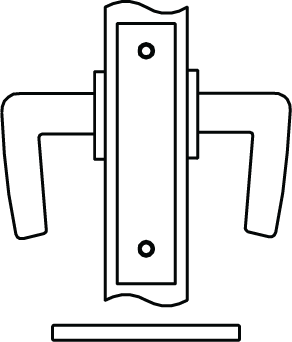

9800ADL Active Dummy Lock
- Active handles inside and outside.

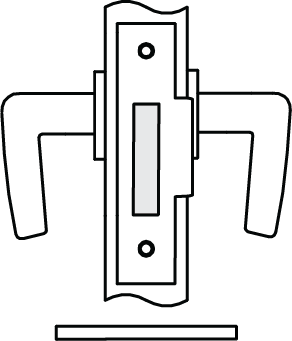

Active Dummy Lock Prepared As Strike
- Active handles inside and outside.
- For use on “dummy door” (in double door applications where the active lock has a 9825 or 9839 lock, please specify.)

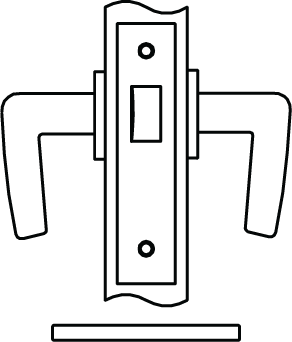

9825 Interior Passage
- Latch bolt by lever either side.
9824 Interior Privacy Bit Key Lock
- Latch bolt by knob or lever either side.
- Deadbolt by bit key inside and outside.
- One solid brass bit key furnished with each lock – extra keys available to order (P/N 9-BK).

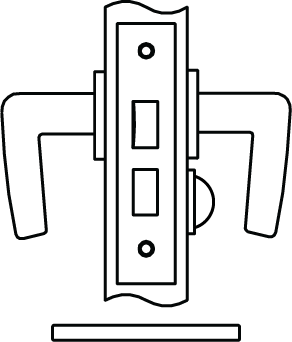

9839 Interior Privacy
- Latch bolt by knob or lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.
Sell Sheet
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Accurate 9800 Interior Mortise | Other Manufacturers’ Trim
E.g.: 9839. 234. LxL.8mm. US3. RH. 214 -
Accurate 9800 Interior Mortise | Accurate Trim
E.g.: 9839. 2. 18L/1R. US19. LH. 134
Notes
- For compatibility please verify vertical spacing as well as through-bolting locations or call for assistance.
