9800ML
Magnetic Latch
The Magnetic Latch offers a seamless doorway to complement the most discerning design vision. A powerful, rare-earth magnet projects the latch bolt to secure the door with no visible strike. For use on standard and narrow stile doors in privacy and passage functions in a variety of finishes.
Noise Reduction
Magnetic Latch
- Features 2-7/8” vertical spacing to allow for larger trim designs. For use with Accurate Trim or prepared for other manufacturers’ trim, for compatibility please verify vertical spacing as well as through-bolting locations.
- Furnished standard with Hub Adjust Feature which keeps levers perfectly level and can easily be adjusted onsite. (Not available on 2” backset.)
- Passage, privacy and bit key functions.
- Furnished standard with European style installation (Lever High), available to order as Upside Down (Lever Low.)
- Custom backsets, marine grade, rabbeted kits available.
- Pair with SilentPac™ Lever Dampening Disc to diminish noise by making lever return smooth and slow, avoiding the abrupt snapback of levers into place.
- Backset: 2", 2-1/2", 2-3/4" for door stiles starting at 3-1/4"(Note: lock body measures 2-7/8" overall for a 2” backset.)
- Case: Heavy Gauge Steel (3/4” thick.)
- Armor Front: Adjustable bevel. Made from brass, bronze or stainless steel and finished as required.
- Latch Bolt: 7/16" throw. Magnetic stainless steel.
- Deadbolt: Brass or stainless steel. ½” throw.
- Hubs: Available in different sizes to be compatible with various trim options.
- Thumb Turn Hub: 3/16” (5mm.) Special 6mm square hub available as special order.

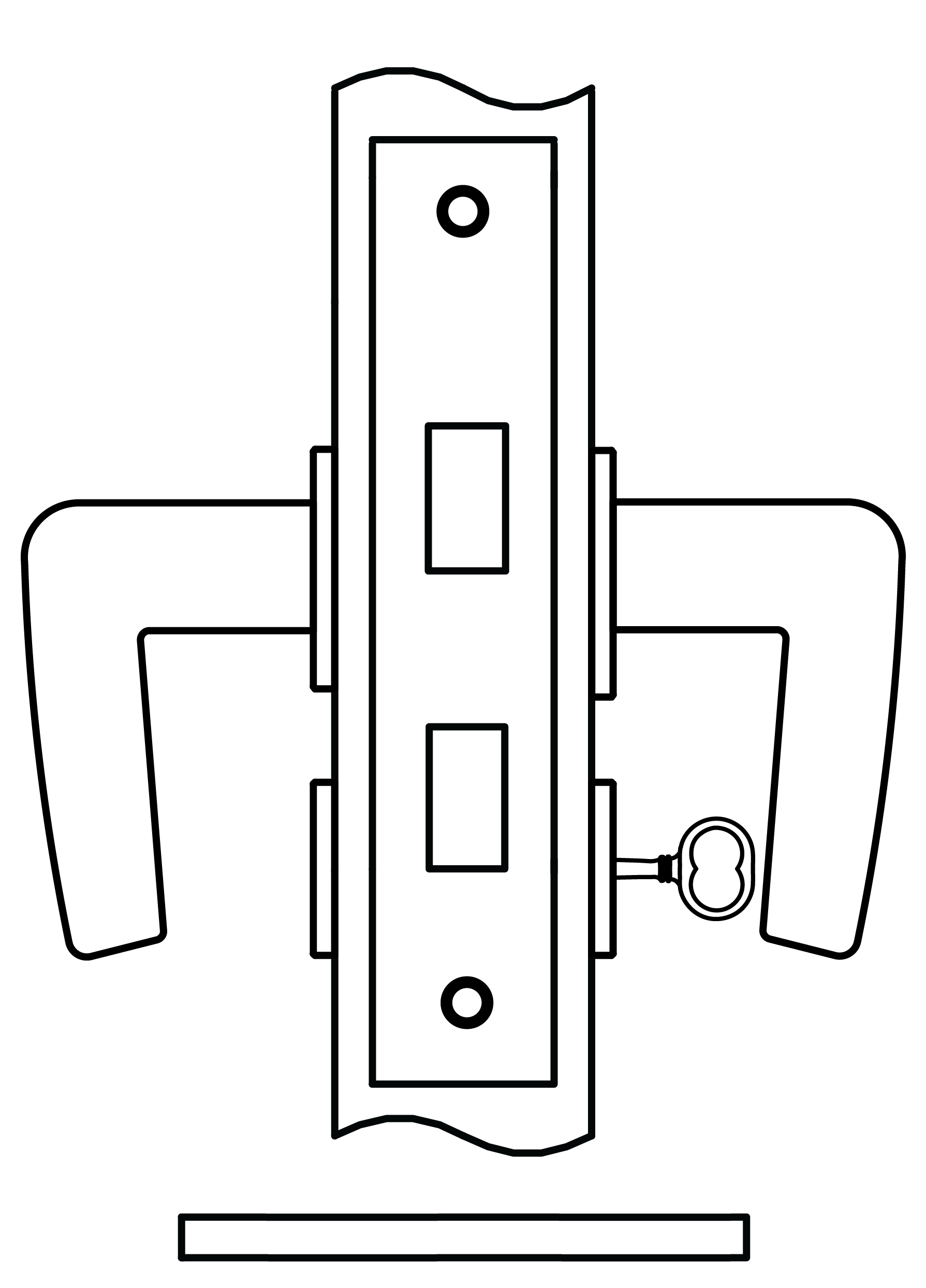

9824ML Interior Bit Key Magnetic Latch
- Latch bolt by knob or lever either side.
- Deadbolt by bit key inside and outside.
- One solid brass bit key furnished with each lock.

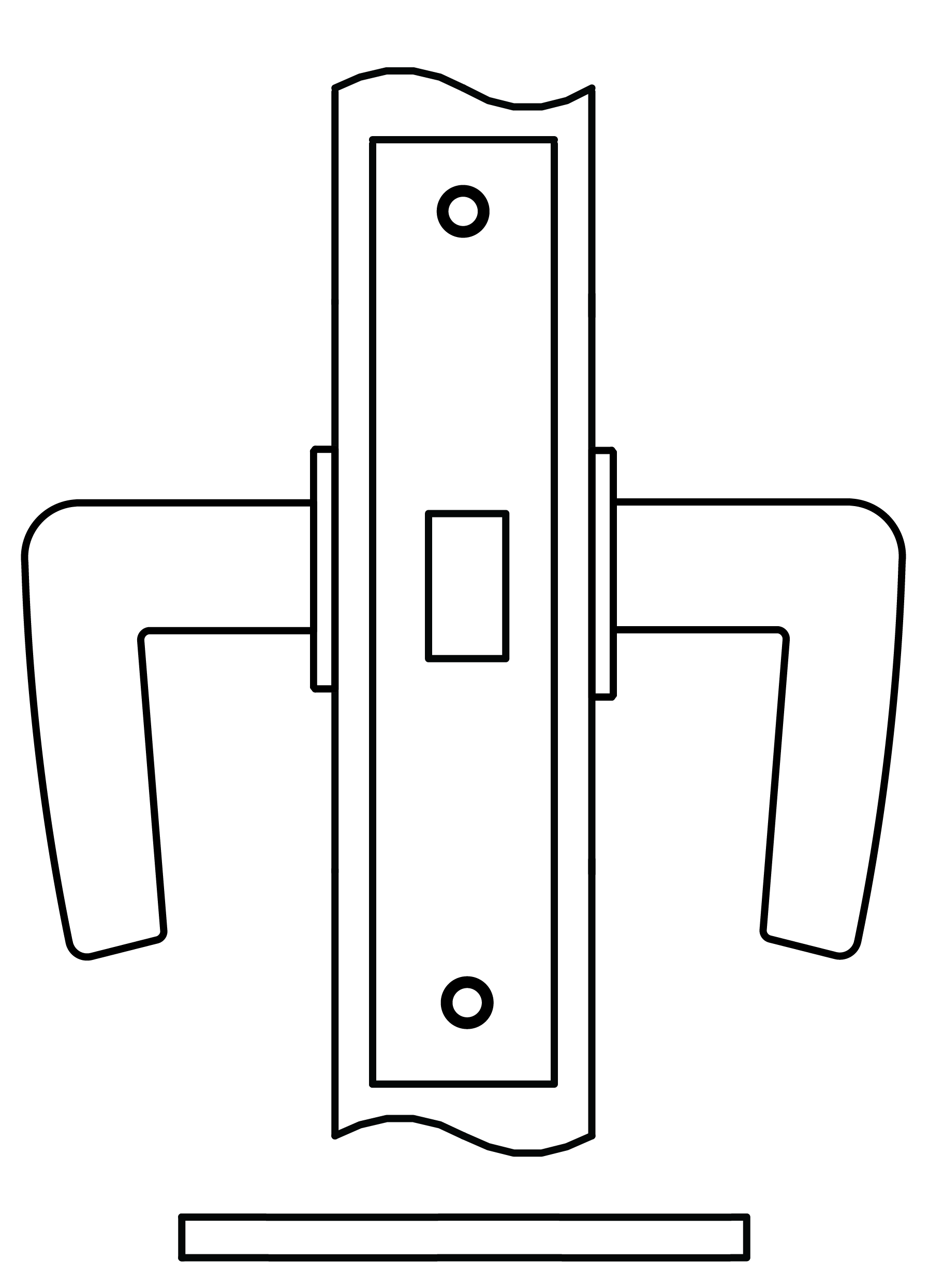

9825ML Interior Passage
- Latch bolt by lever either side.

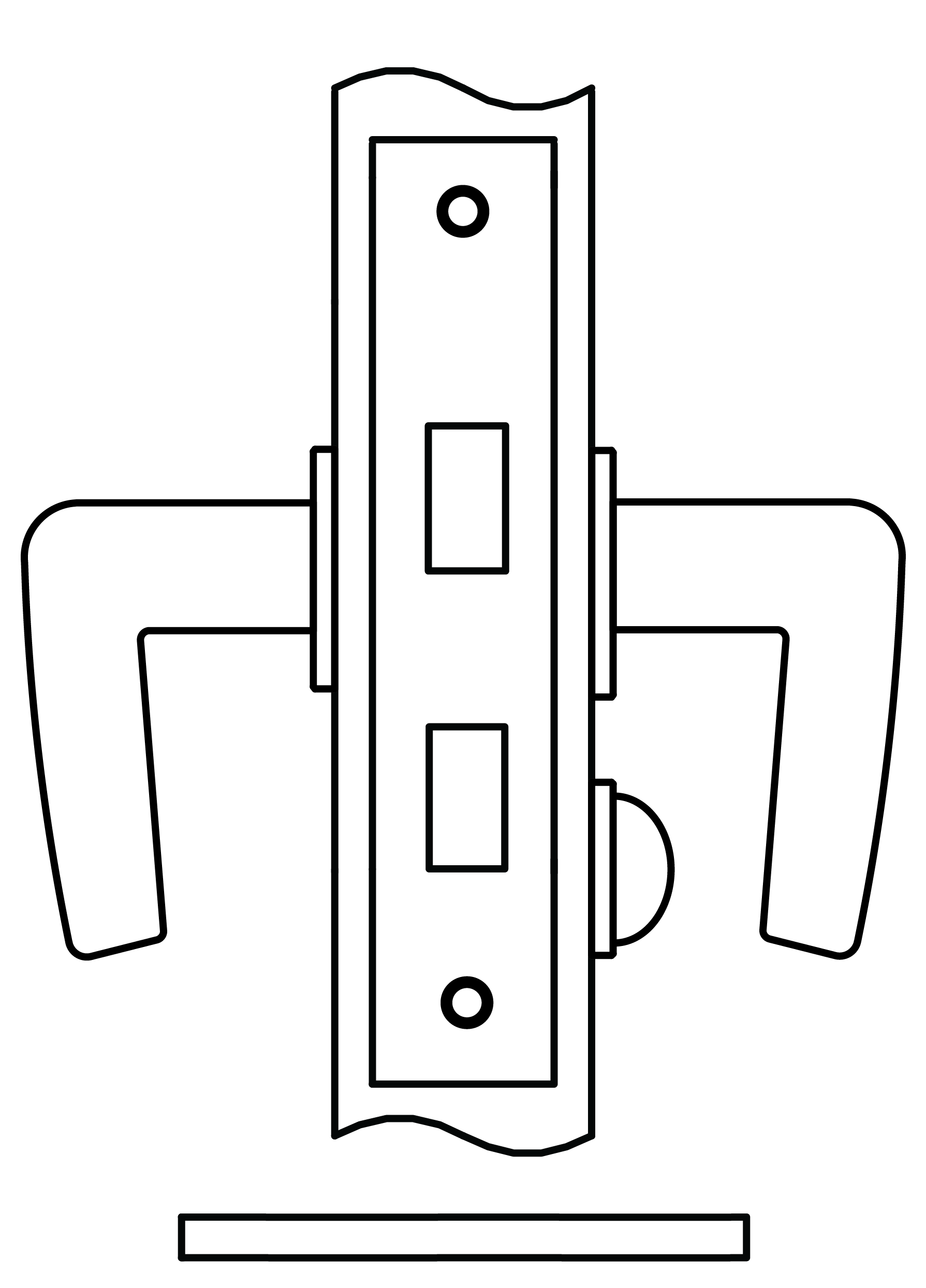

9839ML
- Latch bolt by knob or lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.
Sell Sheet
Specification Sheets
Installation Templates
Product Catalog
-
Magnetic Solutions Brochure
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Door Thickness.
Examples
-
Interior Magnetic Latch | Privacy | Accurate Trim
E.g.: 9839ML. 212. 19L/1R. US26D. 134 -
Interior Magnetic Latch | Privacy | Accurate Trim
E.g.: 9825ML. 234. 19L. US4. 314 -
Interior Magnetic Latch | Bit Key | Other Manufacturers' Trim
E.g.: 9839. 2. LxL.8mm. US19. 134
Notes
- For compatibility with other manufacturers' trim please call for assistance.
