LR-9122SEC-MP Store Door Lock | Security Deadbolt

• Latch bolt by handle either side unless deadbolt is thrown.
• Inside handle won’t retract deadbolt when projected.
• Deadbolt by key either side.

LR-9124SEC-MP Dormitory

• Latch bolt by handle either side unless deadbolt is thrown, in which case outside handle becomes rigid.
• A turn of inside handle retracts latch and deadbolt simultaneously, automatically unlocking outside handle.
• Deadbolt by key outside.

LR-9125SEC-MP Passage

• Latch bolt by handle either side.

LR-9144SEC-MP Institutional Privacy

• Latch bolt by handle either side unless outside handle is locked by thumb turn.
• Thumb turn locks or unlocks outside handle.
• Key locks or unlocks outside handle.
• Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
• Auxiliary latch deadlocks latch bolt.
• Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).

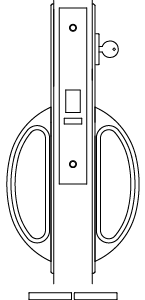

LR-9145SEC-MP Classroom

• Latch bolt by key outside and handle either side unless outside handle is locked by key.
• Auxiliary latch deadlocks latch bolt.

LR-9145SSEC-MP Classroom Security

• Latch bolt by handle either side unless outside handle is locked by key outside or inside.
• When locked, latch bolt retracted by key inside or outside or handle inside.
• Inside handle is always free.
• Auxiliary latch deadlocks latch bolt.

LR-9146SEC-MP Classroom Double Locking

• Latch bolt by key from either side.
• Key from either side locks and unlocks outside and inside handles.*
• *Verify code compliance before specifying this function.

LR-9153SEC-MP OFFICE | ENTRY

• Latch bolt by key outside and handle either side unless outside handle is locked by thumb turn or key.
• Key or thumb turn locks or unlocks outside handle.
• Operating inside handle will not unlock outside handle if locked
• Auxiliary latch deadlocks latch bolt.

LR-9158SEC-MP Institutional or Asylum

• Latch by key either side.
• Inside and outside handle always rigid.*
• *Verify code compliance before using this function.

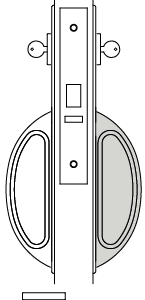

LR-9159SEC-MP Storeroom

• Latch by handle inside and key outside.
• Outside handle always rigid.
• Auxiliary latch deadlocks latch bolt.

LR-9160SEC-MP Asylum with Deadbolt

• Latch by key either side. Deadbolt by key either side (key projects deadbolt and retracts latch bolt and deadbolt).
• Inside and outside handle always rigid.*
• Auxiliary latch deadlocks latch bolt.
• *Verify code compliance before using this function.

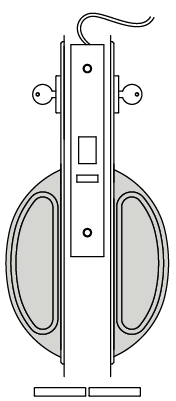

LR-M9158ESEC-MP Motor Drive Electrified Mortise Lock

(Both Sides)

• Latch bolt by key either side.
• Auxiliary latch deadlocks latch bolt.
• FAIL SECURE OPERATION*:
• Inside and outside trim unlocked when power is applied, and locked when power is removed.
• FAIL SAFE OPERATION:
• Inside and outside trim locked when power is applied and unlocked when power is removed.
• Lockset will unlock in the event of power failure.
• *Lock is furnished as FAIL SECURE and can easily be changed to FAIL SAFE via the switch on the front.

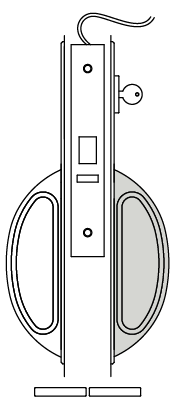

LR-M9159ESEC-MP Motor Drive Electrified Mortise Lock

• Inside trim always free.
• Latch bolt by key outside.
• FAIL SECURE OPERATION*:
• Outside trim is unlocked when power is applied, and locked when power is removed.
• FAIL SAFE OPERATION:
• Inside and outside trim locked when power is applied and unlocked when power is removed.
• Lockset will unlock in the event of power failure.
• *Lock is furnished as FAIL SECURE and can easily be changed to FAIL SAFE via the switch on the front.
• Available with AE –AUTHORIZED EGRESS
• Also referred to as REQUEST TO EXIT (or RX switch), monitors the use of the INSIDE trim when the OUTSIDE trim is locked.
