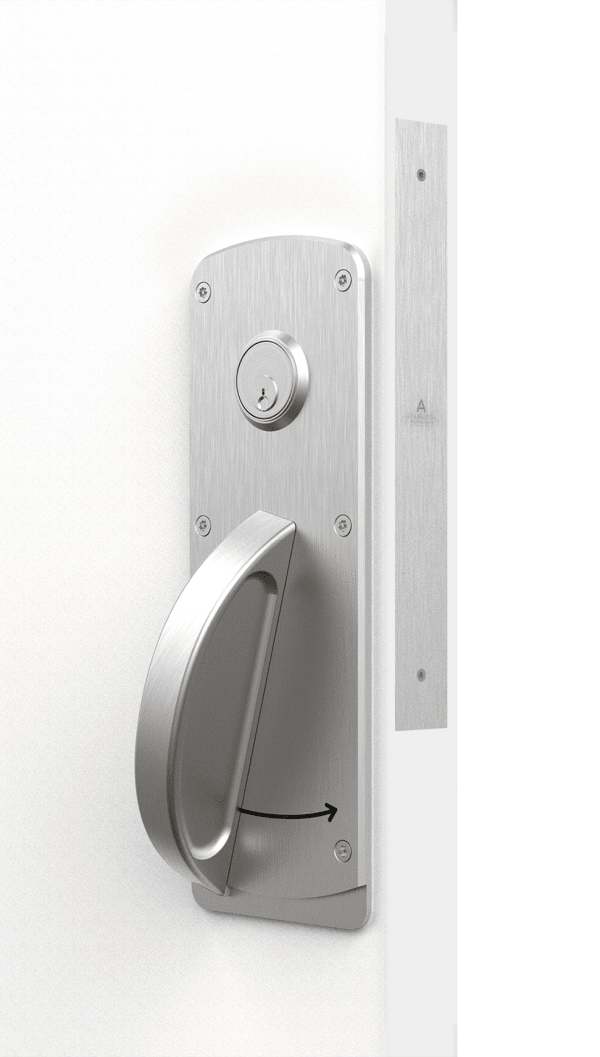

CH 9100ML-VRT
Crescent Magnetic Vertical Rod Lock
The Ligature Resistant Magnetic Vertical Rod Top Lock is designed to stay flush until it is pulled into the strike by the magnet, essentially removing the latch as a ligature point and creating a safer opening for areas of all risk levels. There is no visible strike and the handle will retract back to the starting position.
Ligature Resistant
ADA Compliant
- The highest level of ligature resistance featuring Paperclip Protection.
- Meets BHMA 156.34 Ligature Resistant Trim Standard.
- Compatible with any standard mortise cylinder (must be ordered with appropriate cam).
- US26D/US32D finish standard, anti-microbial plating available.
- Supplied with Torx® Security Screws.
CH 9125ML-VRT Passage
- Latch bolt by handle either side.
CH 9144ML-VRT Institutional Privacy
- Latch bolt by handle either side unless outside handle is locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Key will not retract latch as an override. Clutch* on inside thumb turn required to enable key to unlock the outside handle if inside thumb turn forcibly held.
- Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).
CH 9144E-ML-VRT Institutional Privacy
- Latch bolt by handle either side unless outside handle is locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Emergency release locks or unlocks outside handle.
- Key will not retract latch as an override. Clutch* on inside thumb turn required to enable key to unlock the outside handle if inside thumb turn forcibly held.
- Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).
CH 9144i-ML-VRT Institutional Privacy with Occupancy Indicator
- Same operation as 9144 Institutional Privacy except outside plate has an occupancy indicator.
CH 9145ML-VRT Classroom
- Latch bolt by key outside and handle either side unless outside handle is locked by key.
CH 9146ML-VRT Classroom Double Locking
- Latch bolt by key from either side.
- Key from either side locks and unlocks outside and inside handles.*
- *Verify code compliance before specifying this function.
CH 9153ML-VRT Entrance
- Latch bolt by key outside and handle either side unless outside handle is locked by thumb turn or key.
- Thumb turn locks or unlocks outside handle.
- Key will not retract latch as an override. Clutch* on inside thumb turn required to enable key to unlock the outside handle if inside thumb turn forcibly held.
- Operating inside handle will not unlock outside handle if locked.
CH 9158ML-VRT Institutional or Asylum
- Latch by key either side.
- Inside and outside handle always rigid.*
- *Verify code compliance before using this function.
CH 9159ML-VRT Storeroom
- Latch by handle inside and key outside.
- Outside handle always rigid.
Sell Sheet
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Height Special Options
Examples
-
Crescent Magnetic Vertical Rod Lock | Institutional Privacy | Large Plate
E.g.: CH 9144E-ML-VRT. 234. L.PC. US26D. RH. 134. 84 -
Crescent Magnetic Vertical Rod Lock | Classroom Lock | Small Plate
E.g.: CH 9145ML-VRT. 234. S.PC. US26D. RH. 134. 96 -
Crescent Magnetic Vertical Rod Lock | Storeroom Door | Anti-Vandal Trim
E.g.: CH 9159ML-VRT. 234. L.PC. US26D. LH. 134. 96. AV
Notes
- Special Options Available:
- Specify SP: SilentPac™ Lever Dampening Disc
- Specify ETCH: Custom Etching
- Specify AV: Anti-Vandal Trim
- Specify LRCC.A: Ligature Resistant Cylinder Collar (‘A’ based on cylinder application or length)
