G-ML-CRL
Retrofit Mortise Glass Patch

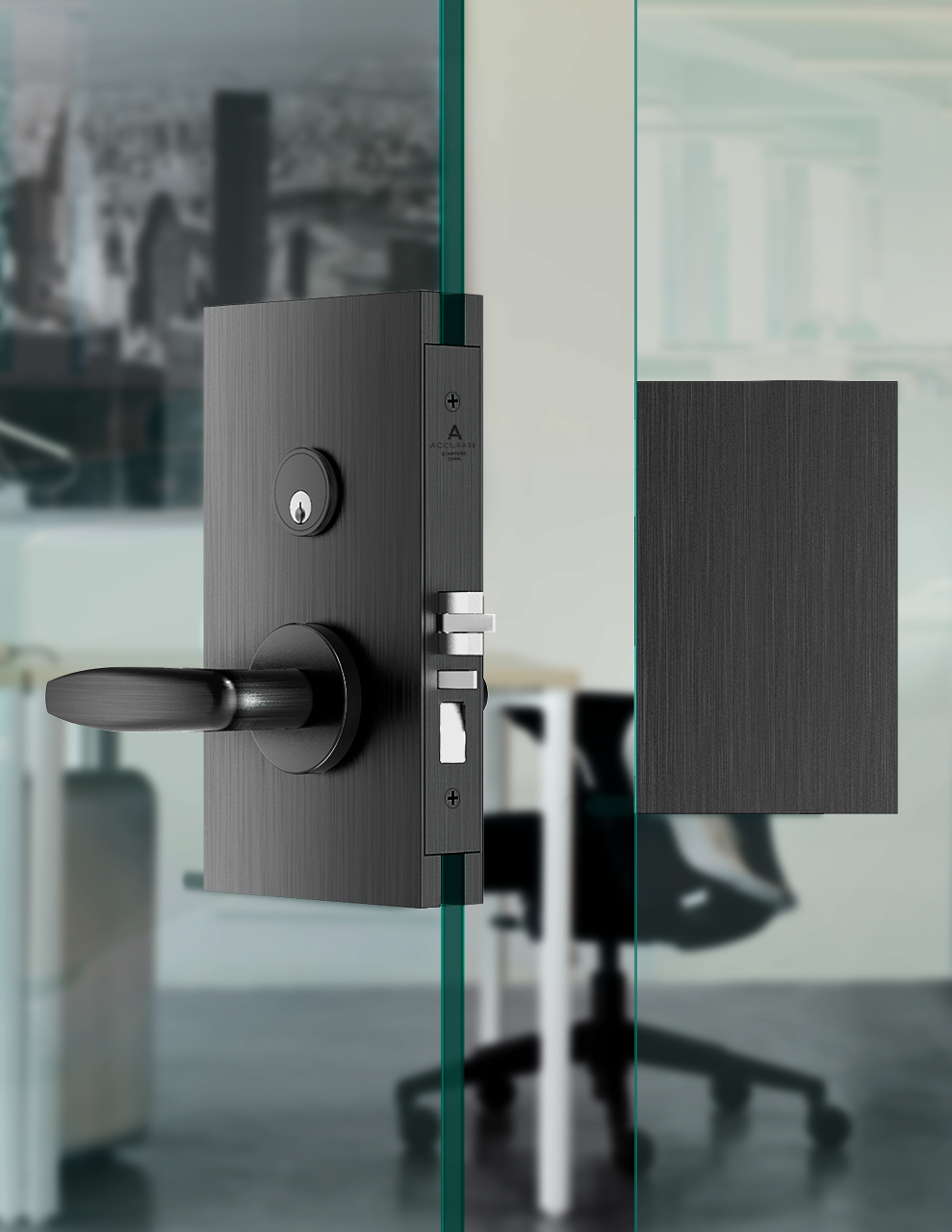

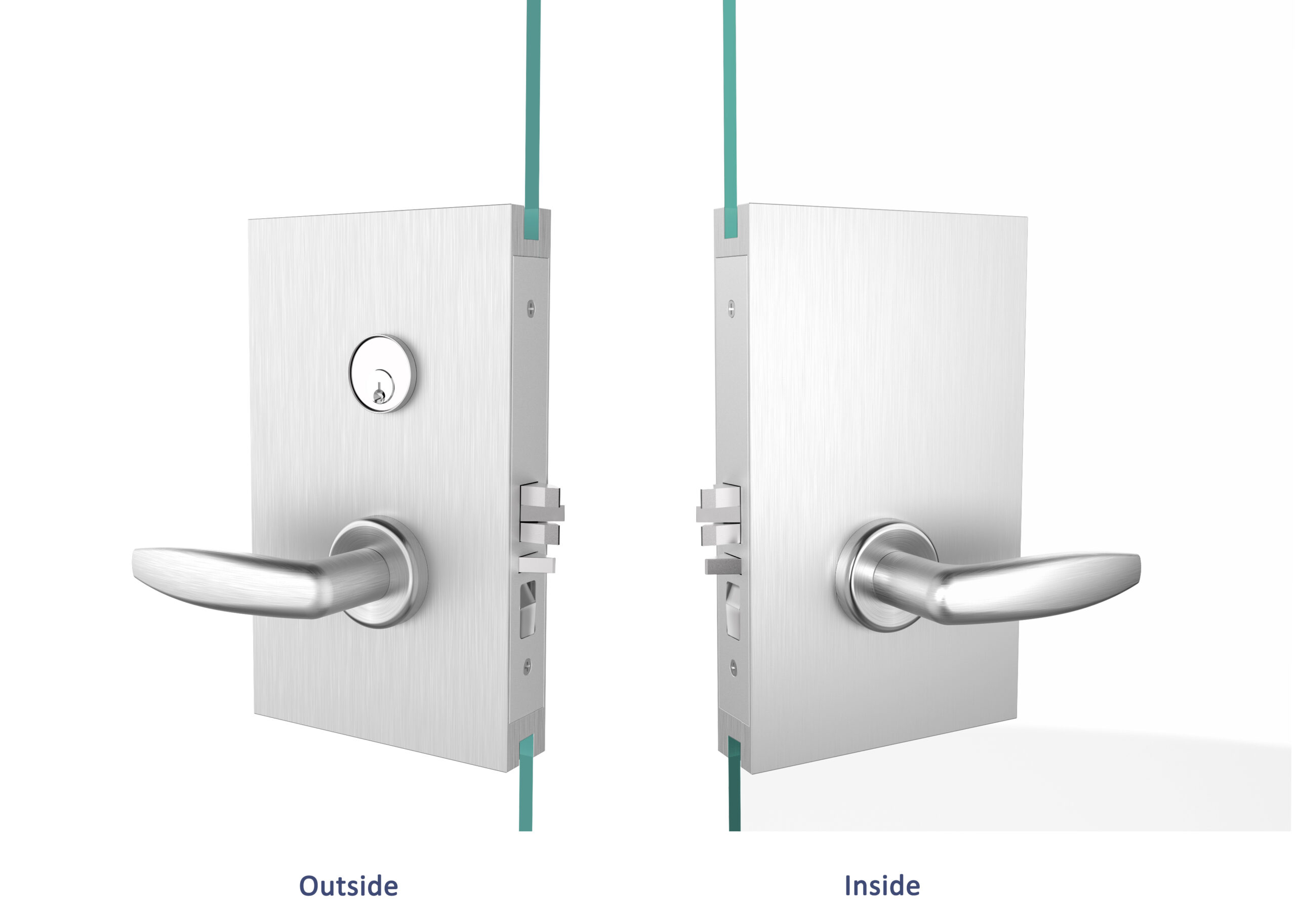

G-ML-CRL is a mortise retrofit glass patch kit for doors that previously had CR Laurence patch locks. Available in a variety of finishes, this solid, one-piece patch slides onto the glass for easy installation.
- Designed to retrofit CR Laurence Glass Patches (centered on glass).
- Standard set up is for 2 3/4" backset onto 1/2" thick tempered glass.
- Glass Patch Strikes specified and sold separately.
- Patch only (6" x 10"), lock not included.
- Custom options available including: other backsets, other door thicknesses, custom anondized aluminum finishes/colors.
- Mortise locks installed onsite onc G-ML-CRL is installed.
Sell Sheet
Specification Sheet
Installation Templates
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
-
US28
Satin Aluminum
How to Specify
Function. Backset. Lockseries. Finish. Hand. Door Thickness. Strike Option Other
Examples
-
Retrofit Glass Patch | Corbin Russwin ML2060 | Matching Patch Strike
E.g.: G-ML-CRL. 234. ML2060. US28. RH. 1/2. G-ML-CRL-GPS -
Retrofit Glass Patch | Schlage® L9080 | No Strike
E.g.: G-ML-CRL. 234. L9080. US19. LH. 1/2 -
Retrofit Glass Patch | Accurate Lock | Matching Patch Strike
E.g.: G-ML-CRL. 234. 9145. ESN. LH. 1/2. G-ML-CRL-GPS
Notes
- Lock to be supplied by others and can be installed onsite once G-ML-CRL Patch is installed.
- G-ML-CRL-GPS is sold separately (from G-ML-CRL Glass Patch).
