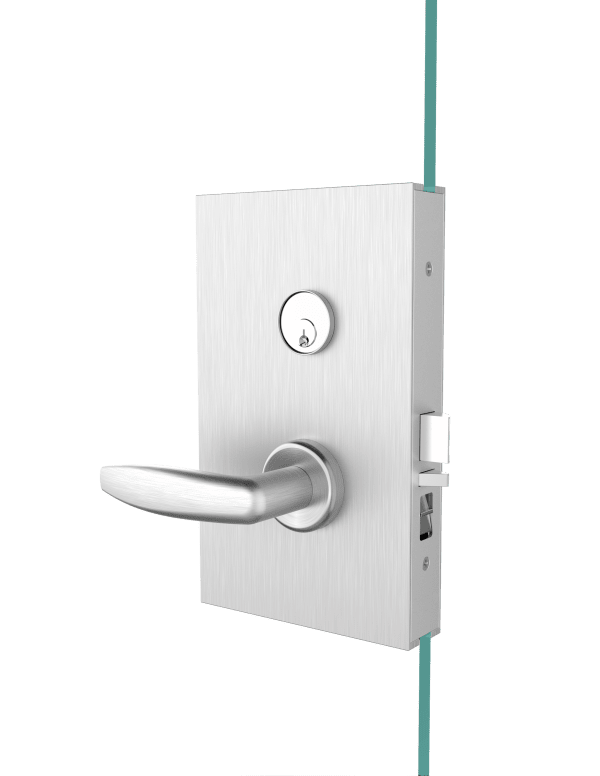

G-ML
Universal Mortise Glass Patch
The G-ML and GO-ML Series are designed to provide an aesthetically pleasing and suitable structure to allow any mortise lock to be installed on glass. This patch kit consists of two pieces that ‘sandwich’ the glass creating a secure and contemporary solution for frameless glass openings.
- Available centered on glass (G-ML) or offset on glass (GO-ML).
- Designed to retrofit other manufacturers' locks with glass wall partition systems with frameless openings.
- Standard set up is for 2 3/4" backset onto 1/2" thick tempered glass.
- Patch only (5 1/2" x 10"), lock not included.
- Custom options available including: other backsets, other door thicknesses, custom anondized aluminum finishes/colors.
- Mortise locks to be supplied by other manufacturers and can be installed onsite once G-ML/GO-ML patch is installed.
- Glass Patch Strikes specified and sold separately.
Sell Sheet
Specification Sheets
Installation Templates
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
US28
Satin Aluminum
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
How to Specify
Function. Backset. Lockseries. Finish. Hand. Door Thickness. Strike Option Other
Examples
-
Glass Patch | Centered | To Accept Schlage L9050 | Matching Patch Strike
E.g.: G-ML. 234. SCHLAGEL9050. US19. LH. 1/2. G-ML-GPS -
Glass Patch | Centered | To Accept Yale | Matching Patch Strike
E.g.: G-ML. 234. YALE8807. ESN. RH. 1/2. G-ML-GPS -
Glass Patch | Offset | To Accept Schlage L9070 | No Strike
E.g.: G-ML. 234. SCHLAGEL9070. US19. RH. 1/2
Notes
- Lock to be supplied by others and can be installed onsite once G-ML Glass Patch is installed.
- G-ML-GPS is sold separately (from G-ML Glass Patch).
