GR86
Rabbeted Glass Patch Mortise Sets
This rabbeted glass patch kit is designed for offset on-glass applications with privacy gasketing. The GR86 is offered as a complete package including lock body, patch assembly and levers, compatible with US mortise cylinders.
- Compatible with various partition system configurations.
- For inswing and outswing doors that utilize proprietary framing.
- Fits 1/2" tempered glass, other door thicknesses available.
- Available in a variety of functions.
- Can be used with standard mortise cylinders.
- Quick and simple door prep and installation.

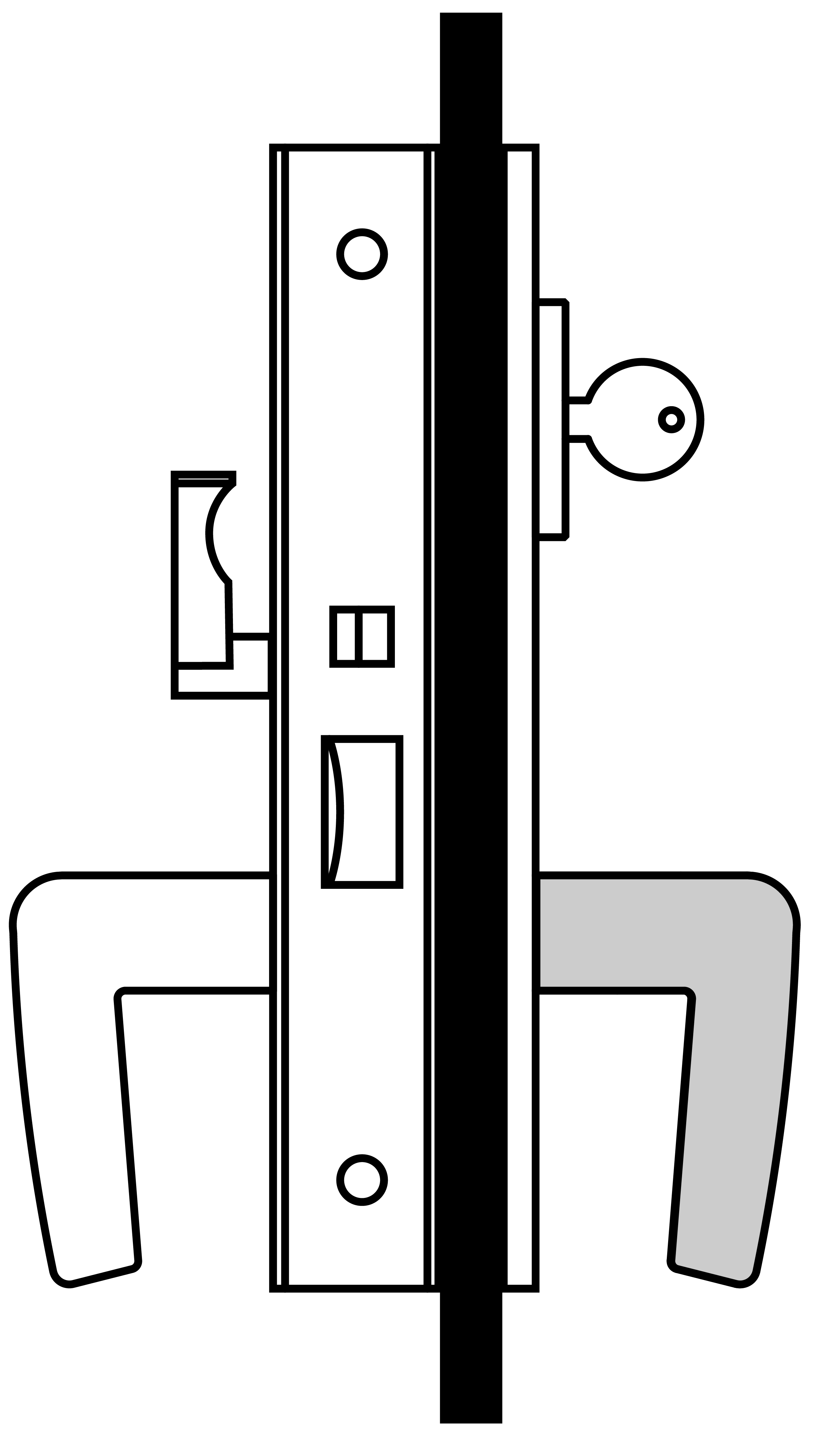

GR8624 Entrance
- Latch bolt by lever either side.
- Deadbolt by key outside and turn piece inside.

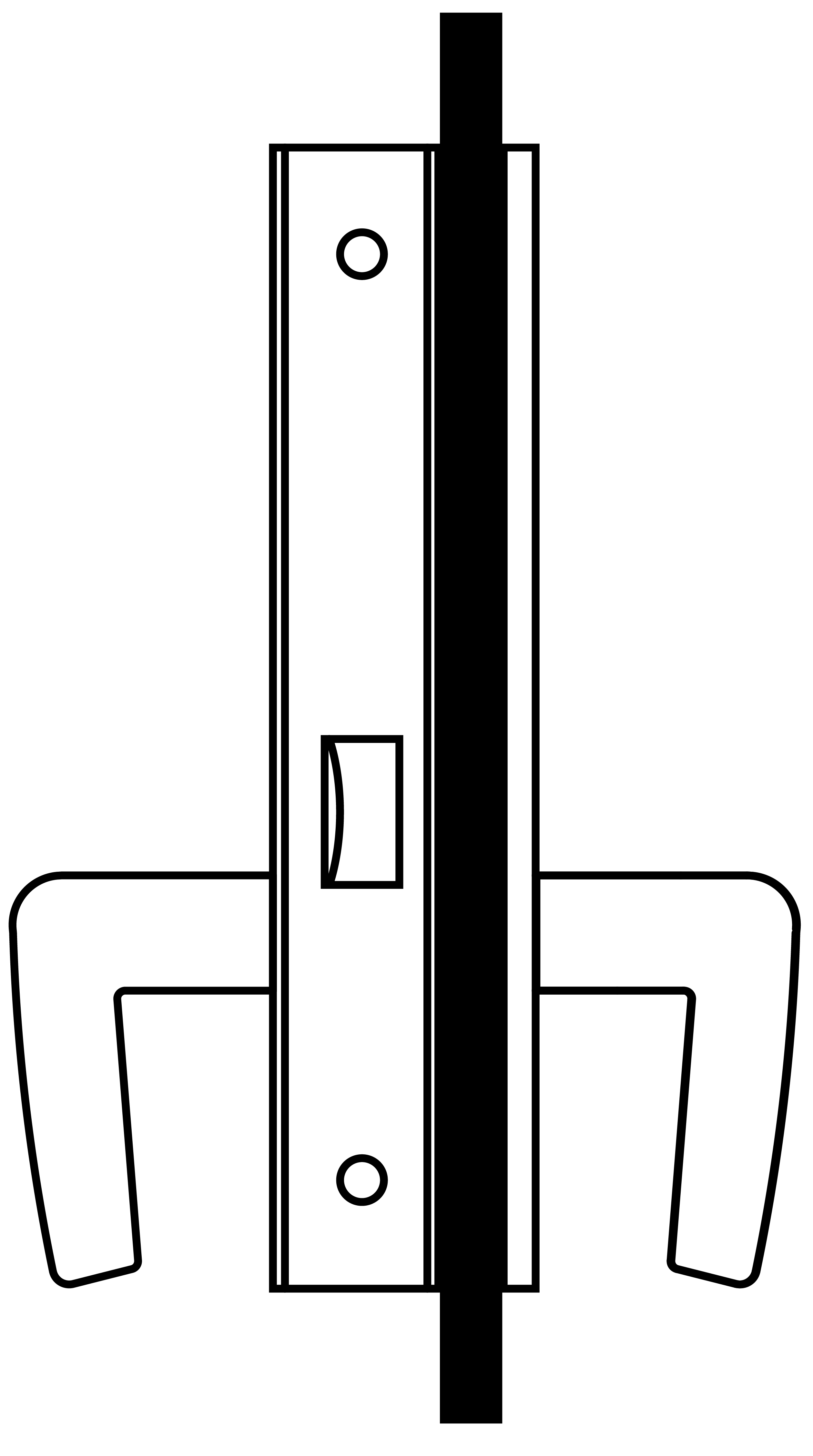

GR8625 Passage
- Latch bolt by lever either side.

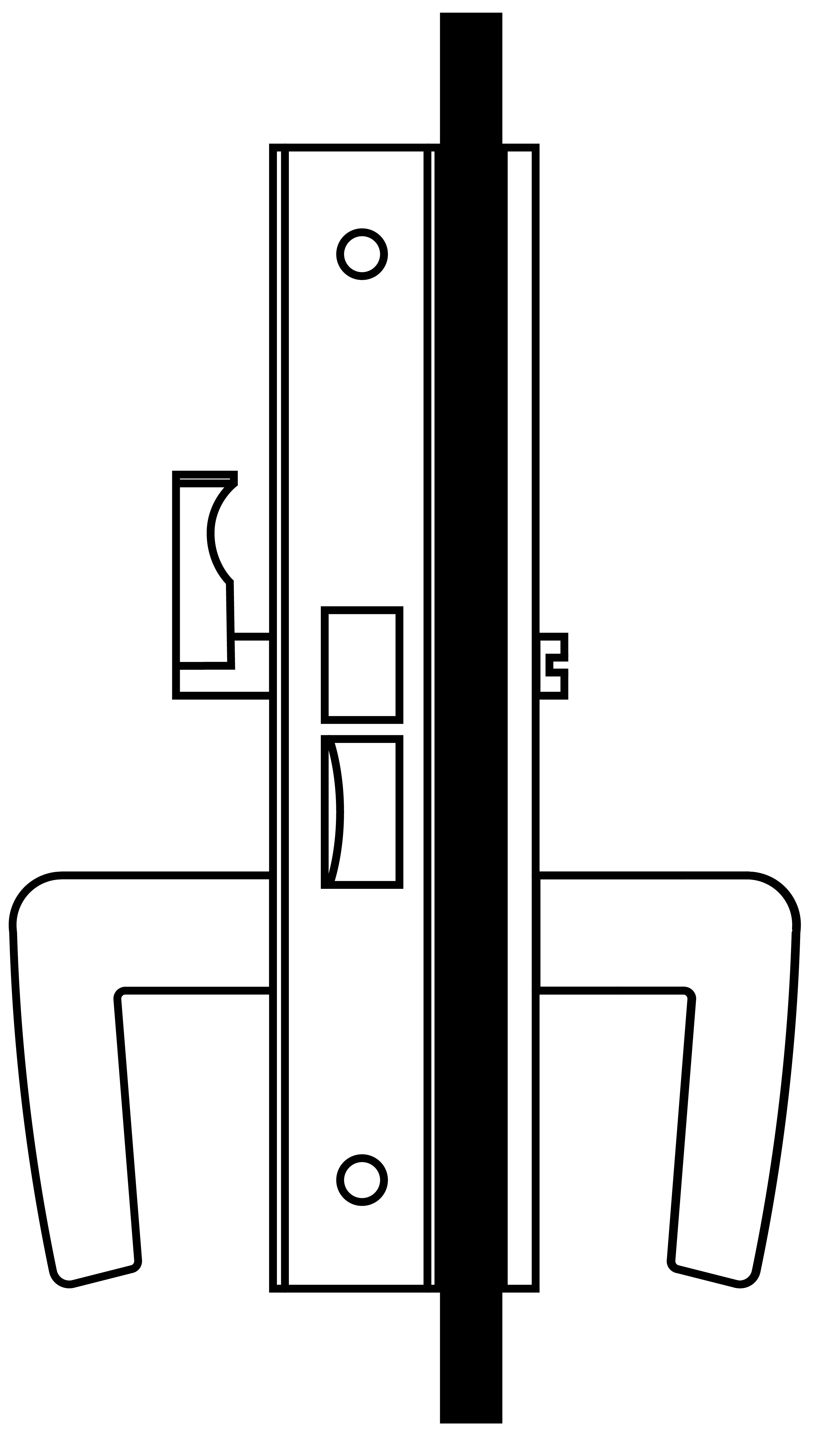

GR8639 Privacy
- Latch bolt by lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.

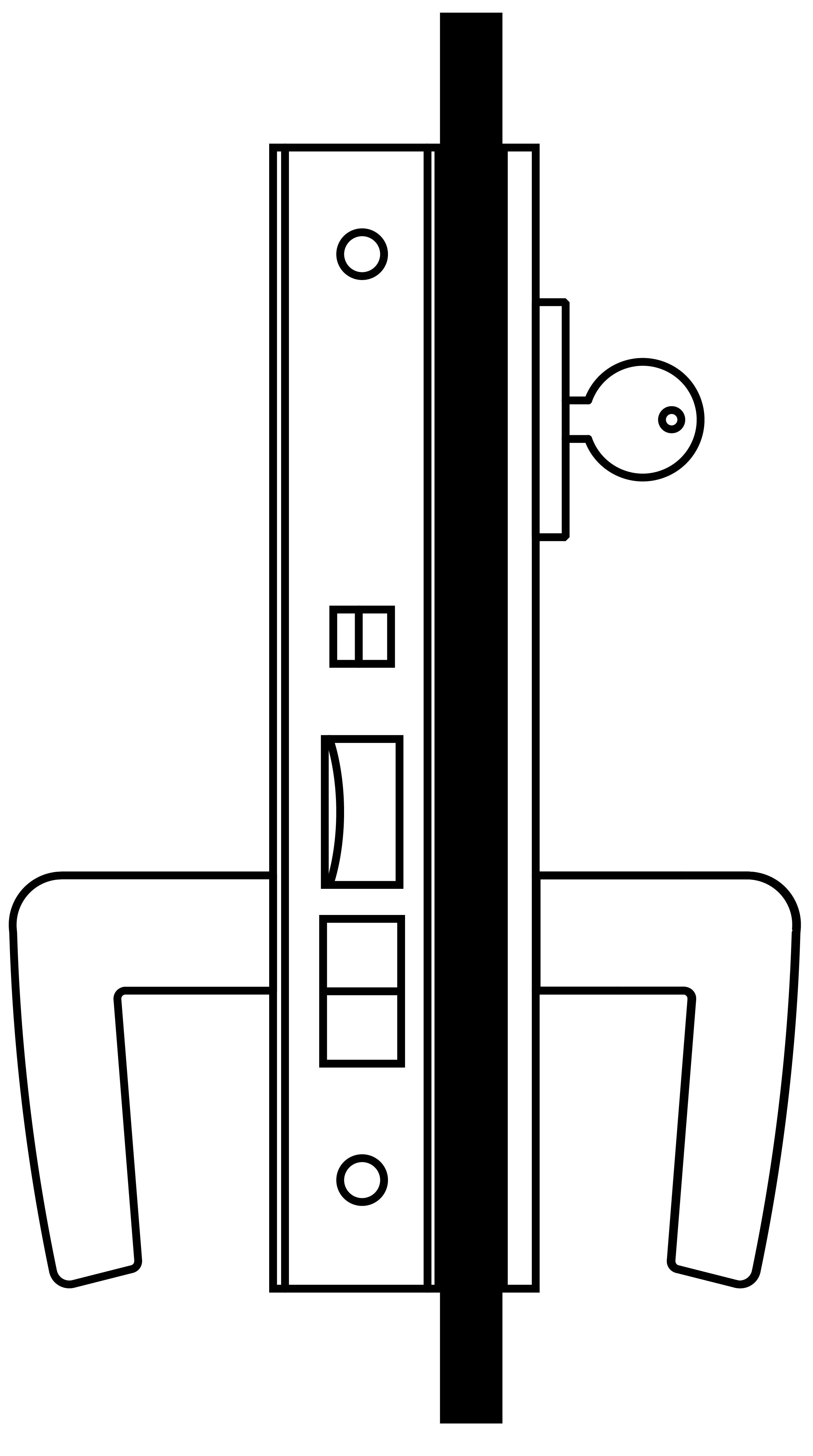

GR8656 Entrance or Office
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

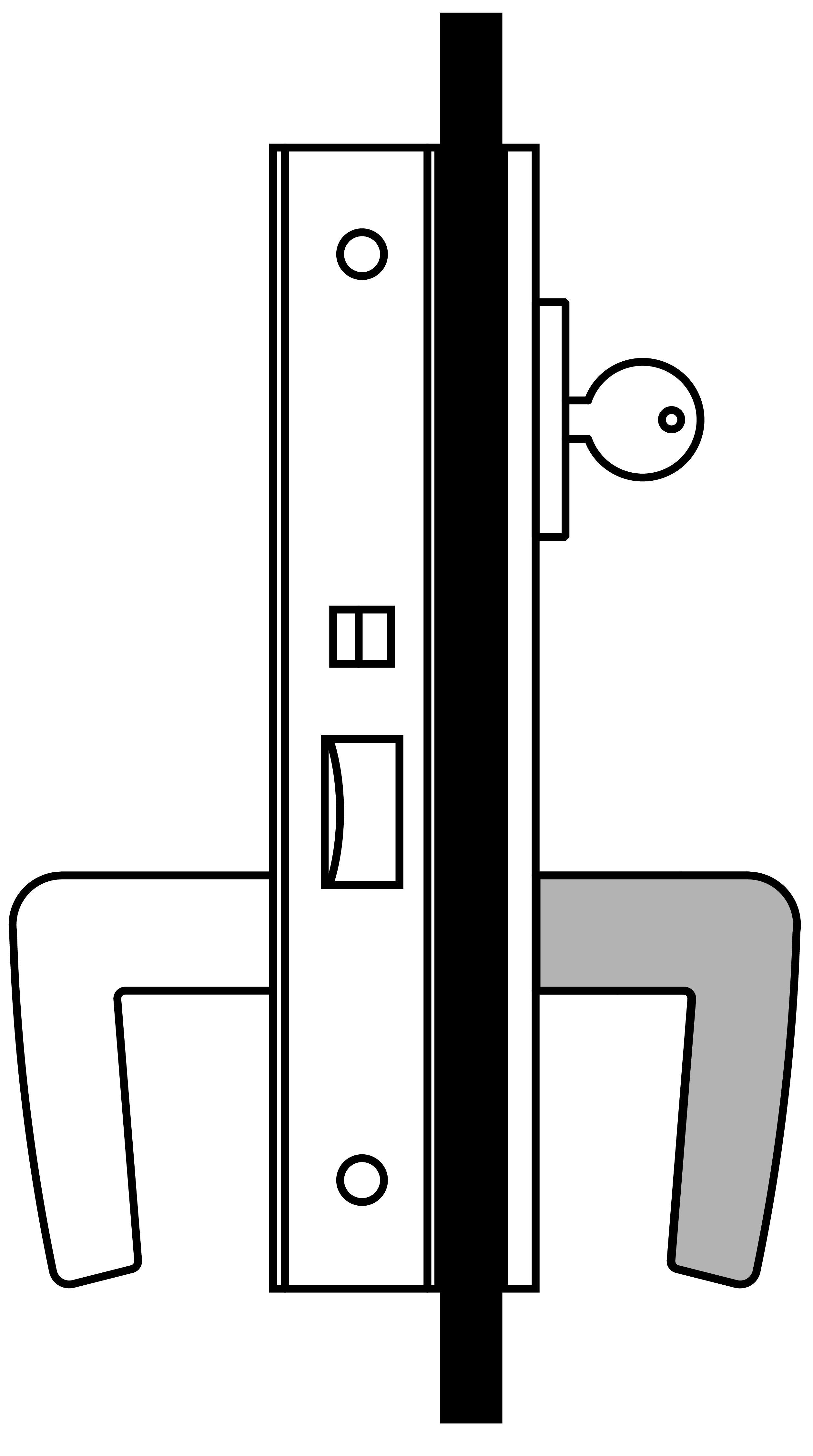

GR8659 Storeroom
- Latch by handle inside and key outside.
- Outside handle always rigid.
- Auxiliary latch deadlocks latch bolt.
Sell Sheet
Specification Sheets
- Spec.GR8624-RH.LH
- Spec.GR8624-RHR.LHR
- Spec.GR8625-RH.LH
- Spec.GR8625-RHR.LHR
- Spec.GR8639-RH.LH
- Spec.GR8639-RHR.LHR
- Spec.GR8656-RH.LH
- Spec.GR8656-RHR.LHR
- Spec.GR8659-RH.LH
- Spec.GR8659-RHR.LHR
Installation Template
Video
-
GR86 Rabbeted Glass Patch Mortise Sets
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Rabbeted Glass Patch Entrance Set | Glass Wall
E.g.: GR8656. 112. 18L. US28. RH. 1/2 -
Rabbeted Glass Patch Office Set | Aluminum Frame (4-7/8" Strike)
E.g.: GR8659. 112. 19L. US19. LH. 1/2 -
Rabbeted Glass Patch Passage Set
E.g.: GR8625. 112. 29L. ESN. RH. 1/2
Notes
- GR86 can be set up for levers by other manufacturers upon request.
- Access control applications available.
- Cylinders must be specified separately if required.
