CH-CYL

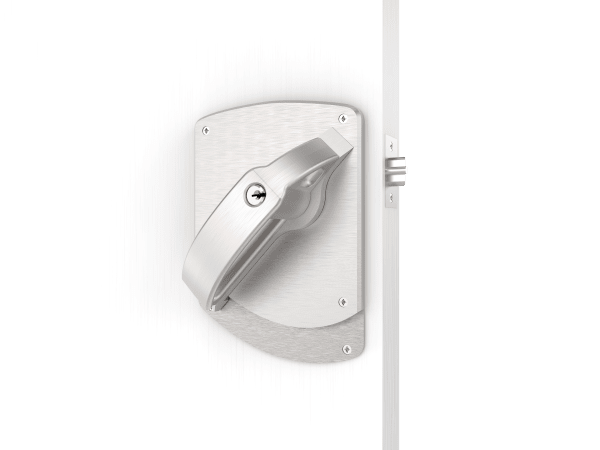

Crescent Cylindrical Set
Cylindrical lock systems are popular in many hospital facilities, and conversion of these doors to mortise style can be labor intensive. The recommended Crescent Handle Cylindrical Lock Set offers ease of installation and can quickly solve any retrofit issues with minimal disruption in a live unit for a quick patient safety upgrade.
Ligature Resistant
ADA Compliant
RMS Standard Product
- The highest level of ligature resistance featuring Paperclip Protection
- UL Listed 3 Hour (R13846)
- For use on cylindrical (ANSI 161) door preparations
- Furnished with a Grade 1, UL Listed cylindrical lock (less cylinders)
- Meets BHMA 156.34 Ligature Resistant Trim Standard
- Fitted for conventional or IC cylinders to preserve existing keying systems or furnished with conventional type cylinders
- Available in electromechanical functions
- US26D/US32D finish standard
- Supplied with Torx® Security Screws
- 2-3/4" backset standard, 3-3/4" or 5" available for retrofit or specialty applications
- Dimensions: 8-1/2" high by 6-3/16" wide with a projection of 2-5/8"

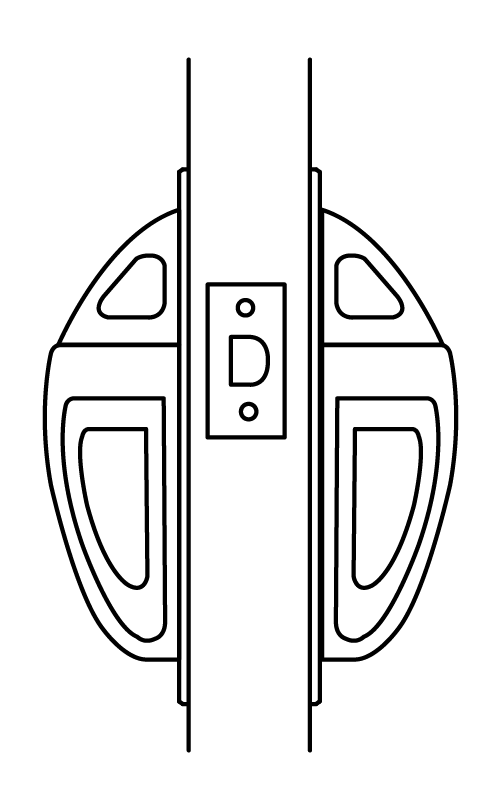

CH-CYL-PA
- Latch by handle either side.

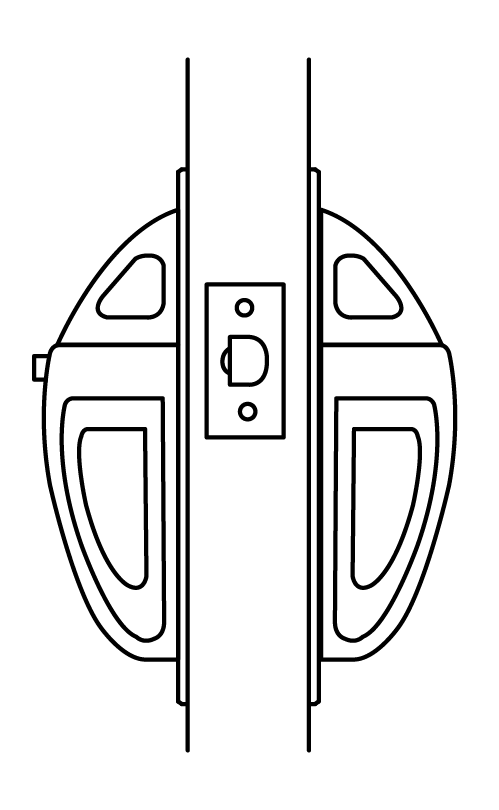

CH-CYL-PRI Privacy or Bathroom
- Latch by handle either side unless outside handle is locked by inside button.
- Turning inside handle or closing door releases button.
- Emergency slot on outside handle unlocks and releases inside button.

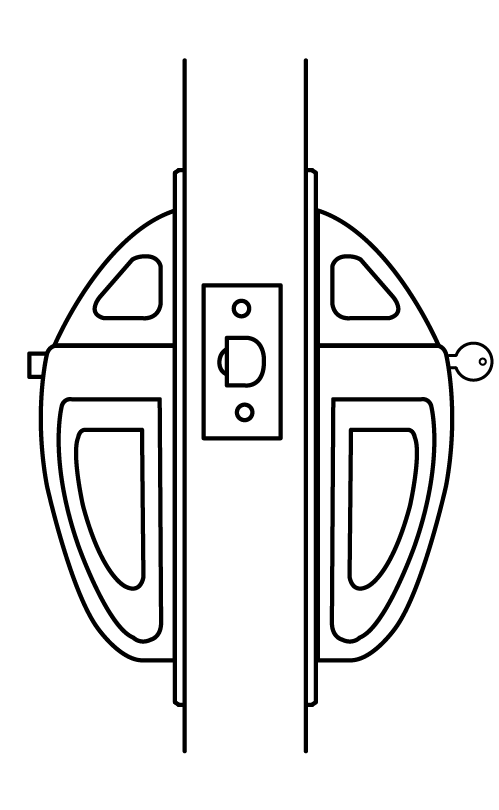

CH-CYL-CLA Classroom
- Latch by handle either side unless outside handle is locked by key.
- Key outside locks/unlocks outside handle and retracts latch.
- Inside handle is always free.

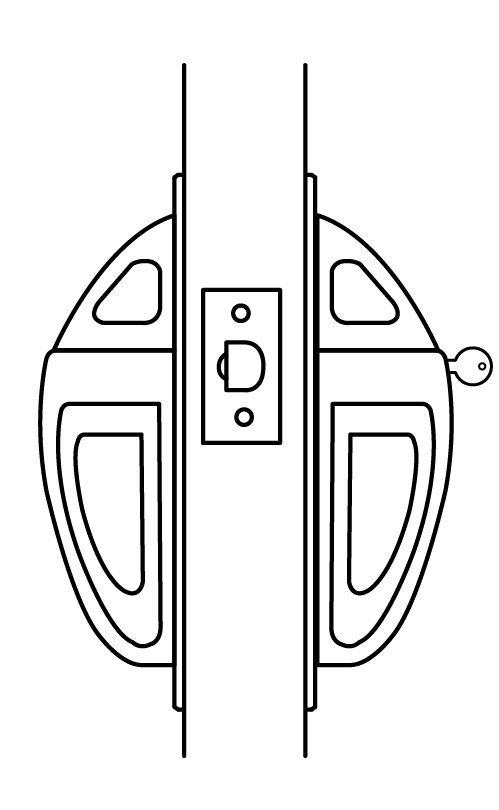

CH-CYL-STO Storeroom
- Latch by handle inside or key outside.
- Outside handle rigid at all times.

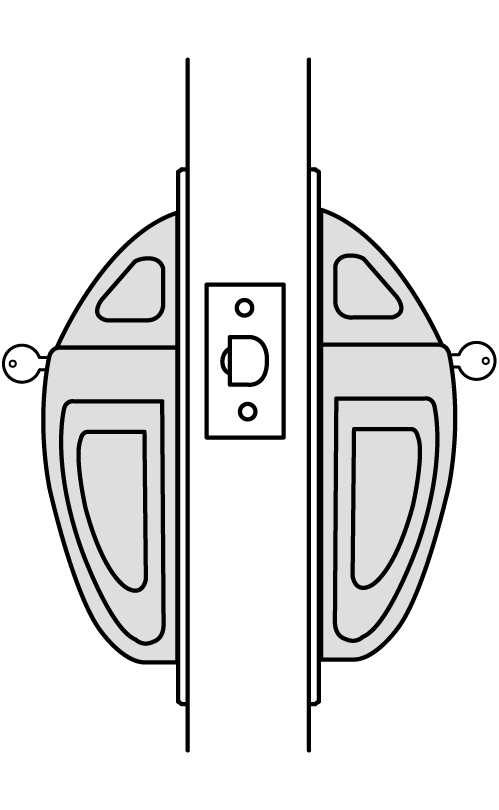

CH-CYL-ASY Asylum
- Both handles rigid at all times.
- Latch by key either side.
- Verify code compliance before using this function.

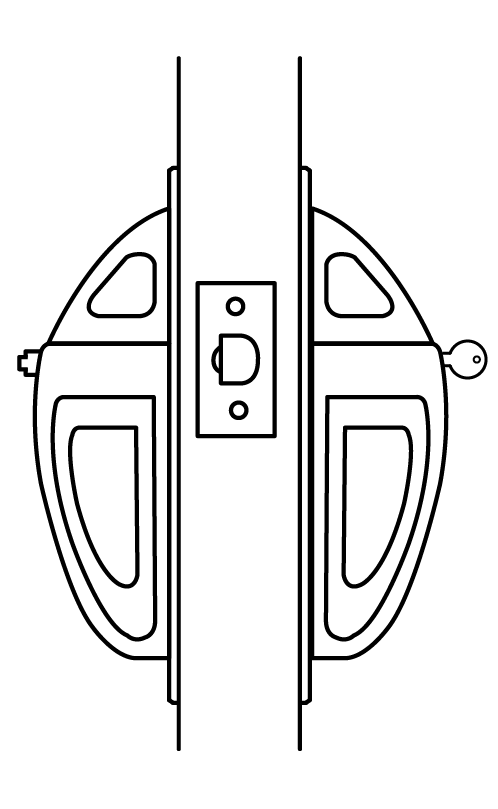

CH-CYL-EN Entrance
- Latch by handle either side unless outside handle is locked by push/turn-button inside.
- Push button released by key outside or handle inside.
- Latch by key outside when outside handle is locked.

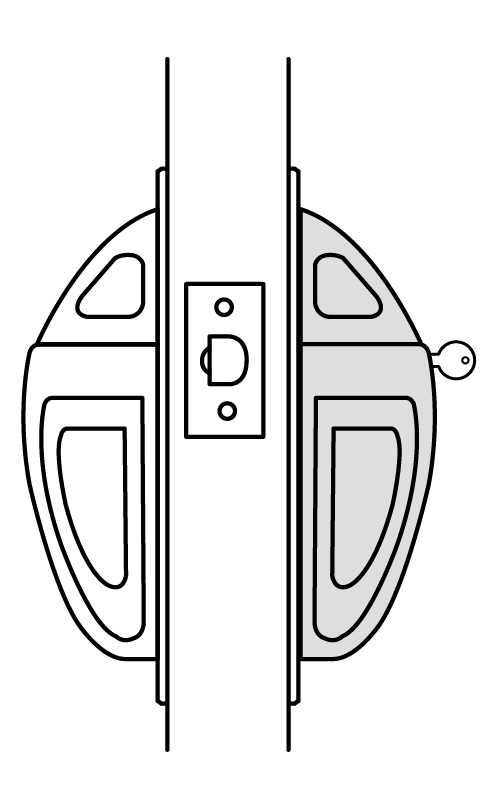

CH-CYL-F90 Dormitory or Institutional Privacy
- Latch by handle either side unless outside handle is locked by push button inside or key outside.
- Operating inside handle or closing door releases inside button but outside handle remains locked if locked by key.
- Key outside locks or unlocks the outside handle and retracts latch bolt when locked.
Sell Sheets
Installation Instruction
Installation Template
Video
-
CH-CYL Installation
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Backset. Cylinder Option. Finish. Hand. Door Thickness. Strike Option
Examples
-
Crescent Cylindrical | Classroom Lock | Fitted for Best SFIC | No Strike Required
E.g.: CH-CYL-CLA. 234. LC-SFIC. US26D. RH. 134 -
Crescent Cylindrical | Storeroom Door| Fitted for Conventional Cylinder | ASA Strike
E.g.: CH-CYL-STO. 234. LC-C. US26D. RH. 134. 478STK -
Crescent Cylindrical | Passage Door | Replace Non-Compliant Push/Pull Set | 2-3/4” T Strike
E.g.: CH-CYL-PA. 5. US26D. LH. 134. 234STK
Notes
- The CH-CYL Handles are machined specifically for the cylinder they will be used with, a sample cylinder MUST accompany every CH-CYL order.
- Most Cylinders can be accommodated; however, there are certain limitations.
- Small and large format cores may carry an upcharge. We strongly encourage sending a sample cylinder for evaluation prior to providing a firm quote.
- Also available with Beveled Latch (BL), please specify with caution and evaluate each opening for what is most important: safety or security.
