• UL listed (R13846).
  • Compatible with any standard mortise cylinder (must be ordered with appropriate cam).
  • US28 Satin Aluminum finish standard.
  • Supplied with Torx® Security Screws.
  • Available in electrified functions.
  • Optional Beveled Latch ( specify with caution and evaluate each opening for what is most important: safety or security).
  • Custom Pull x Pull option available.
  • Dimensions: 7" high by 4-1/2" wide with a projection of 2" on pull side and 7/8" on push side.

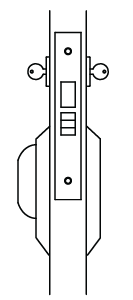

9122ALP Store Door


  • Latch bolt by handle either side unless deadbolt is thrown.
  • Inside handle won’t retract deadbolt when projected.*
  • Deadbolt by key either side.
  • *Verify code compliance before specifying this function.
View More Details +

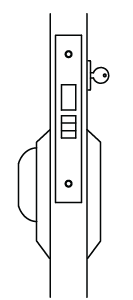

9124ALP Dormitory


  • Latch bolt by handle either side unless deadbolt is thrown, in which case outside handle becomes rigid.
  • A turn of inside handle retracts latch and deadbolt simultaneously, automatically unlocking outside handle.
  • Deadbolt by key outside.

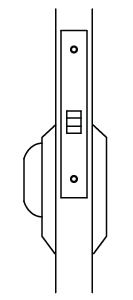

9125ALP Passage


  • Latch bolt by handle either side.

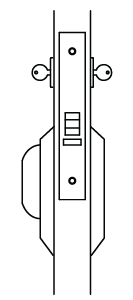

9142ALP Entrance or Public Restroom


  • Latch bolt by handle either side unless outside handle is locked by Master Key from inside.
  • When outside handle is locked, latch bolt by key outside or handle inside.
  • Auxiliary latch deadlocks latch bolt.

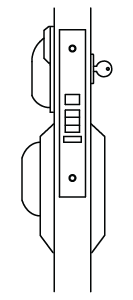

9143ALP Institutional Privacy


  • Latch bolt by handle either side unless outside handle is locked by thumb turn.
  • Thumb turn locks or unlocks outside handle.
  • Key locks or unlocks outside handle.
  • Key retracts latch as an independent function of thumb turn to allow retraction when thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt.
  • Outside handle unlocks when inside handle is turned or door closes.
View More Details +

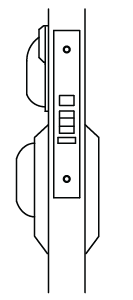

9143E-ALP Institutional Privacy Emergency Release


  • Latch bolt by handle either side unless outside handle is locked by thumb turn.
  • Thumb turn locks or unlocks outside handle.
  • Emergency release locks or unlocks outside handle.
  • Auxiliary latch deadlocks latch bolt.
  • Outside handle unlocks when inside handle is turned or door closes.
  • Auxiliary latch deadlocks latch bolt.
View More Details +

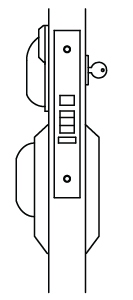

9143i-ALP Institutional Privacy with Occupancy Indicator


  • Same operation as 9143 Institutional Privacyexcept outside plate has an occupancy indicator.

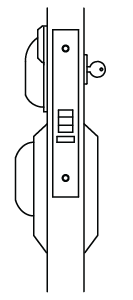

9144ALP Institutional Privacy


  • Latch bolt by handle either side unless outside handle is locked by thumb turn.
  • Thumb turn locks or unlocks outside handle.
  • Key locks or unlocks outside handle.
  • Key retracts latch as an independent function of the thumb turn to allow retraction if thumb turn is forcibly held in locked position.
  • Auxiliary latch deadlocks latch bolt.
  • Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).
View More Details +

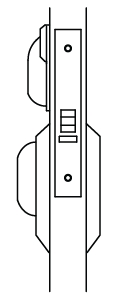

9144E-ALP Institutional Privacy


  • Latch bolt by handle either side unless outside handle is locked by thumb turn.
  • Thumb turn locks or unlocks outside handle.
  • Emergency release locks or unlocks outside handle.
  • Auxiliary latch deadlocks latch bolt.
  • Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).
View More Details +

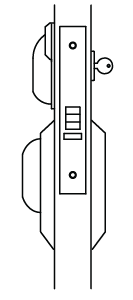

9144i-ALP Institutional Privacy with Occupancy Indicator


  • Same operation as 9144 Institutional Privacy except outside plate has an occupancy indicator.

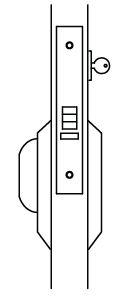

9145ALP Classroom


  • Latch bolt by key outside and handle either side unless outside handle is locked by key.
  • Auxiliary latch deadlocks latch bolt.

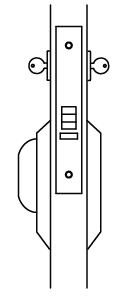

9145S-ALP Classroom Security


  • Latch bolt by handle either side unless outside handle is locked by key outside or inside.
  • When locked, latch bolt retracted by key inside or outside or handle inside.
  • Inside handle is always free.
  • Auxiliary latch deadlocks latch bolt
View More Details +

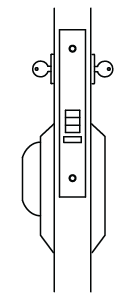

9146ALP Classroom Double Locking


  • Latch bolt by key from either side.
  • Key from either side locks and unlocks outside and inside handles.*
  • Auxiliary latch deadlocks latch bolt.
  • *Verity code compliance before specifying this function.
View More Details +

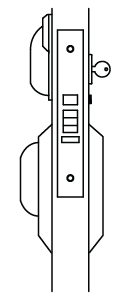

9147i-ALP Staff Bathroom


  • Inside handle always free.
  • Outside handle always rigid, entry by key only.
  • Indicator automatically reverts to green (unoccupied) when door is closed.
  • When thumb turn is thrown to indicate occupancy, key will override to retract latch.
View More Details +

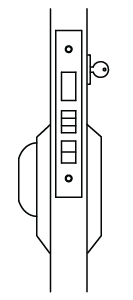

9148ALP Entrance


  • Latch bolt by key outside and handle either side unless outside handle is locked by toggle action stop.
  • Deadbolt by key outside.
  • Turning inside handle retracts latch and deadbolt simultaneously.
  • Outside handle remains locked until manually unlocked by toggle.
View More Details +

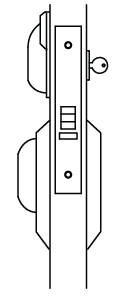

9153ALP Entrance


  • Latch bolt by key outside and handle either side unless outside handle is locked by thumb turn or key.
  • Key or thumb turn locks or unlocks outside handle.
  • Operating inside handle will not unlock outside handle if locked
  • Auxiliary latch deadlocks latch bolt.
View More Details +

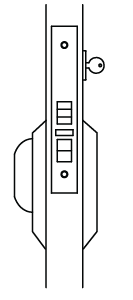

9156ALP Entrance


  • Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
  • Auxiliary latch deadlocks latch bolt.

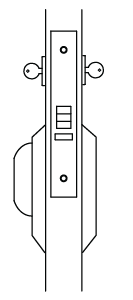

9158ALP Institutional or Asylum


  • Latch by key either side.
  • Inside and outside handle always rigid.*
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before using this function.
View More Details +

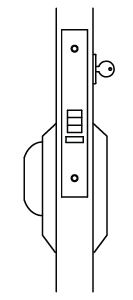

9159ALP Storeroom


  • Latch by handle inside and key outside.
  • Outside handle always rigid.
  • Auxiliary latch deadlocks latch bolt.

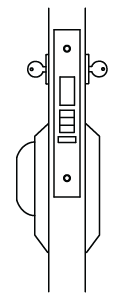

9160ALP Asylum with Deadbolt


  • Latch by key either side.
  • Deadbolt by key either side (key projects deadbolt and retracts latch bolt and deadbolt).
  • Inside and outside handle always rigid.*
  • Auxiliary latch deadlocks latch bolt.
  • *Verify code compliance before using this function.
View More Details +
View More Functions +





Sell Sheet
Video

  • > 9100ALP Safety Push Pull Mortise Set Installation


Product Catalog

  • Ligature Resistant Catalog







Click on a swatch below to get a closer look
  • US26D
    Satin Chrome
  • US32D
    Satin Stainless Steel
US26D
Satin Chrome





How to Specify


Function. Backset. Finish. Hand. Door Thickness.



Examples
  • Safety Push Pull | Classroom Lock
    E.g.: 9145ALP. 234. US26D. RH. 134
  • Safety Push Pull | Institutional Privacy | Beveled Latch
    E.g.: 9143BL-ALP. 234. US26D. RHR. 134
  • Safety Push Pull | Passage Lock | Beveled Latch
    E.g.: 9125BL-ALP. 234. US26D. LHR. 134
Notes
  • Please specify Beveled Latch (BL) with caution and evaluate each opening for what is most important: safety or security.
