Motor Drive Electrified Latch Retraction Narrow Backset Mortise Lock


The M8800ELR utilizes low voltage Motor Drive Electrification to retract the latch of the mechanical lock for easy access when presenting a credential.  Outside trim is rigid, active lever on interior.  It is ideal for power operated openings that facilitate accessibility/ADA compliance in commercial settings.  The lock also features ‘continuous duty’ available for doors on hold open schedules.  In a residential setting, this lock is popular on special function openings like wine rooms and offices.



Electrified Locks


  • M8758ELR/M8759ELR for doors 1” minimum (1” armor front)
  • M8858ELR/M8859ELR for doors 1-1/4" ” minimum (1 -1/4" armor front)
  • 1-1/2", 1-3/4", 2", 2-1/4" backsets.
  • OPERATION: Key Cylinder (by others) will override electronics to retract latch bolt.
  • 24VDC +/-10%
  • 650mA MAX Inrush
  • 200mA MAX Holding
  • Non-polarized Leads
  • Furnished Fail Secure Operation Only.
  • AE - Authorized Egress: Also referred to as REQUEST TO EXIT (or REX switch), monitors the use of the INSIDE trim when the OUTSIDE trim is locked. (Not available on M8858ELR.)

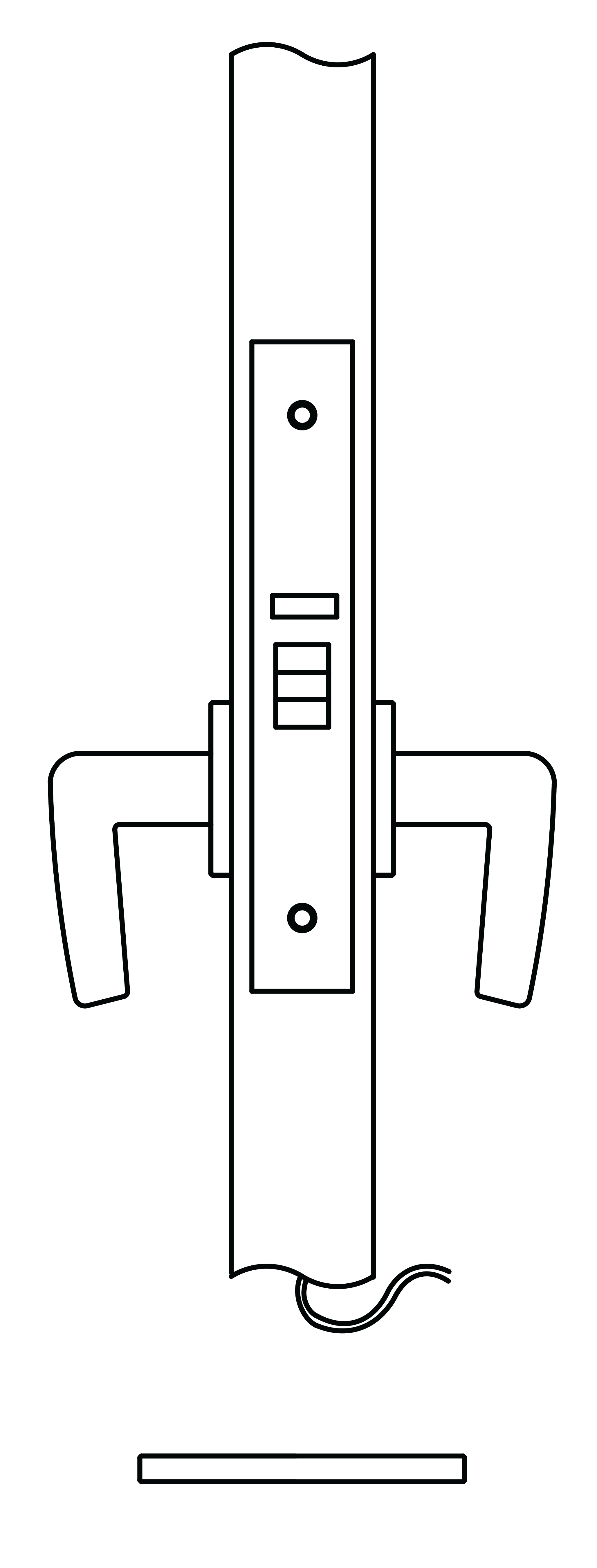

M8825ELR Passage


  • Latch bolt by handle either side.
  • Inside and outside trim always free.

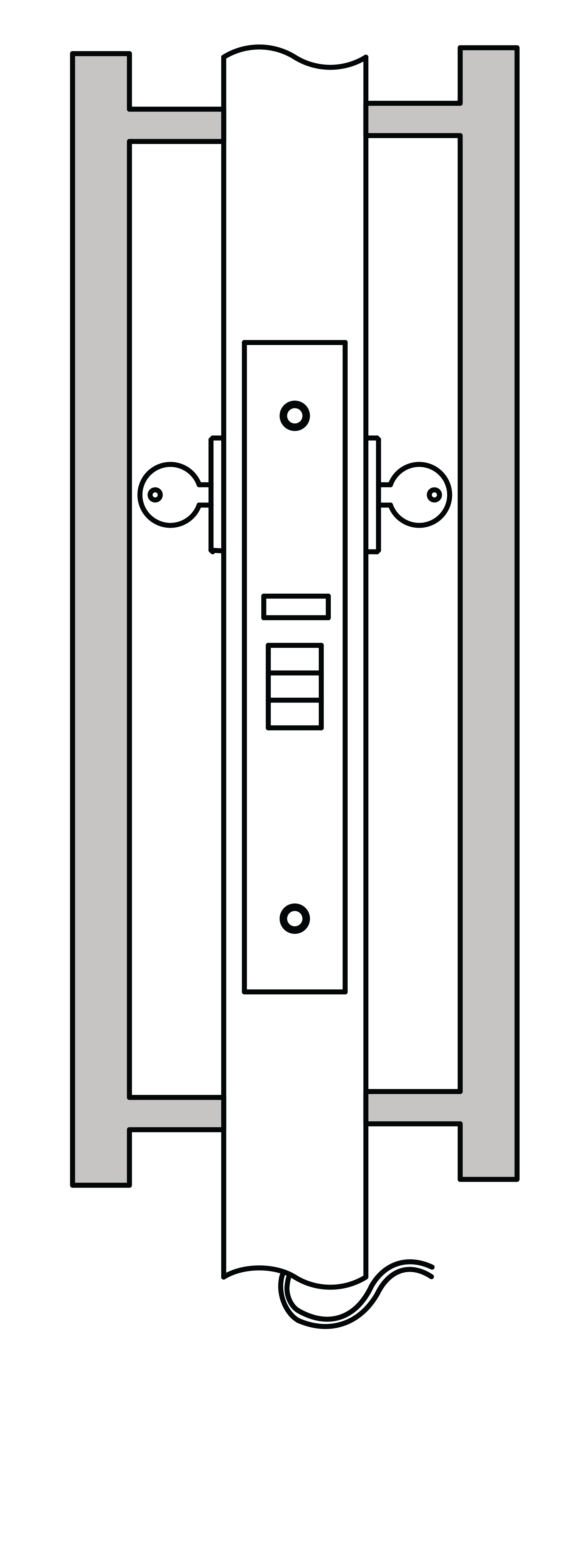

M8858ELR Institutional


  • Latch bolt by key either side.
  • Inside and outside trim always rigid.
  • Auxiliary latch deadlocks latch bolt.
  • (AE Monitoring not available.)
View More Details +

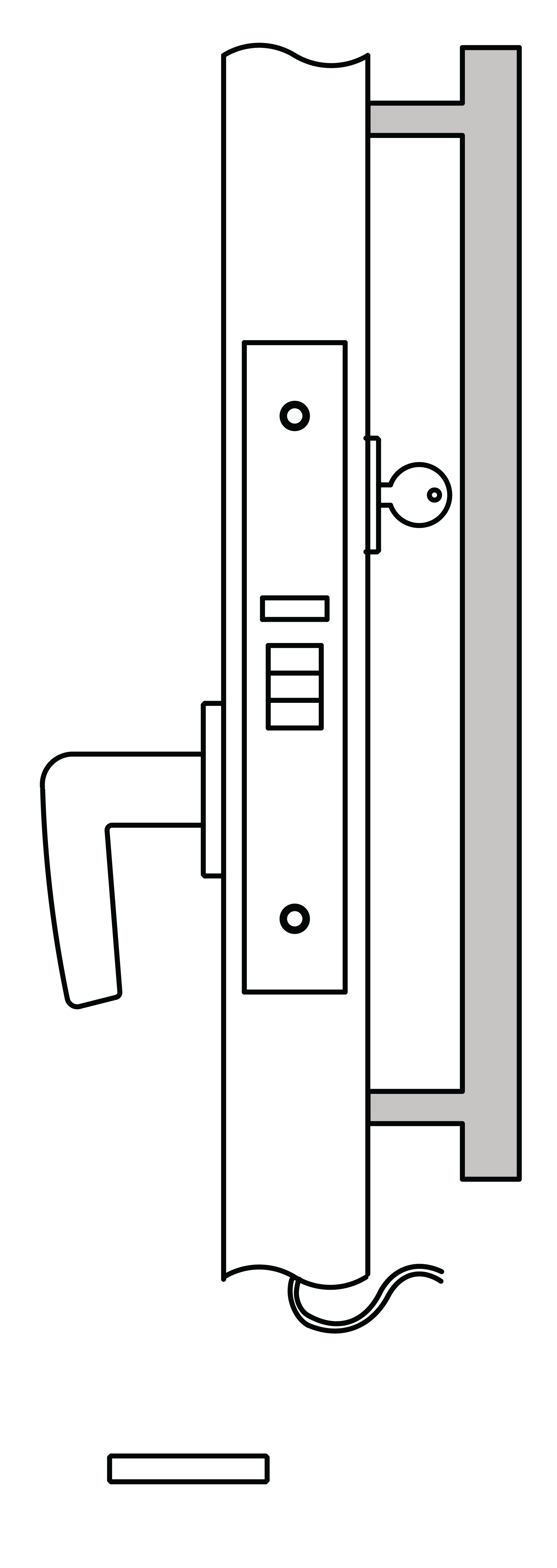

M8859ELR Storeroom


  • Latch bolt by key outside.
  • Inside trim always free.
  • Outside trim always rigid.
  • Auxiliary latch deadlocks latch bolt
View More Details +




Specification Sheet
Video
  • M8800ELR Motor Drive Electrified Latch Retraction Narrow Backset Mortise Lock
    M8800ELR Motor Drive Electrified Latch Retraction Narrow Backset Mortise Lock




Click on a swatch below to get a closer look
  • CVB
    Cerakote Vortex Bronze
  • Cerakote Black Gloss CBG
    Cerakote Black Gloss
  • Cerakote White Gloss Cerakote White Gloss
    CWG
  • Cerakote White Matte CWM
    Cerakote White Matte
  • Cerakote Black Matte CBM
    Cerakote Black Matte
  • Cerakote
    Protective Ceramic Coating
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • US15A
    Antique Nickel
  • TB
    Tarnished Brass
  • ESN
    Electroless Nickel
  • DURO
    Duronotic
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • US32
    Bright Stainless Steel
  • US26
    Polished Chrome
  • US19
    Oxidized Black + Lacquer
  • US15
    Satin Nickel
  • US10
    Satin Bronze
  • US9
    Polished Bronze
  • US4NL
    Satin Brass + No Lacquer
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US4
    Satin Brass
  • US32D
    Satin Stainless Steel
  • US3
    Polished Brass
  • US14
    Polished Nickel
  • US5
    Satin Brass + Black
  • TN
    Tarnished Nickel
  • US10B
    Oil Rubbed Bronze
  • US25D Satin Chrome US26D
    Satin Chrome
US25D Satin Chrome US26D
Satin Chrome
REQUEST FINISH SAMPLE




How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness.



Examples
  • Electrified Latch Retraction | Inside Handle Active/Rigid Pull | Authorized Egress
    E.g.: M8859ELR-AE. 212. 7200P-S-10. US26D. RH. 134
  • Electrified Latch Retraction | Pair of Rigid Pulls
    E.g.: M8858ELR. 212. 7200P-10. US4NL. LH. 134
  • Electrified Latch Retraction | Both Handles Active | Accurate Trim
    E.g.: M8825ELR. 214. 21L/1E. US10B. RH. 134
Notes
  • Access Control Components by Others.
  • M8800ELR lock is ideal to pair with a low energy power operator (by others).
  • Special Options available:
  • SS-Security Strikes
  • USD K x K Upside Down (cylinder/thumb turn below knobs)
  • USD L x L Upside Down (cylinder/thumb turn below levers)


Contact a salesperson
