All - Electrified Locks - Mortise Swinging Doors - Narrow Backset Mortise Locks
M885XE Narrow Backset Motor Drive Electrified Mortise Lock in US26D Satin Chrome M885XE Narrow Backset Motor Drive Electrified Mortise Lock in US10B Oil Rubbed Bronze M8824E M885XE Narrow Backset Motor Drive Electrified Mortise Lock Inside View M8859E Narrow Backset Motor Drive Electrified Mortise Lock PCB Switch M885XE Narrow Backset Motor Drive Electrified Mortise Lock in Environment
M885XE Narrow Backset Motor Drive Electrified Mortise Lock in US26D Satin Chrome
M8800E

Motor Drive Electrified Narrow Backset Mortise Lock


All the advantages of motorized access control, now available for narrow door stiles making design possibilities endless. This product includes improved flexibility, AE functionality, longer life, costs less per year, low power requirement, and is trusted with numerous other manufacturers.



Electrified Locks RMS Standard Product


  • M8724E/M8758E/M8759E for doors 1-3/8” minimum.
  • M8824E/M8858E/M8859E for doors 1-3/4” minimum.
  • Standard backsets: 1-1/2", 1-3/4”, 2”, 2-1/4”.
  • Latch bolt is brass, anti-friction type, 1/2" throw.  (For fire-rated applications, specify M8800E-UL with 3/4" throw).
  • Key Cylinder (by others) will override electronics to retract latch bolt.
  • 12-24V AC/DC (11V - 30V Operating Range).
  • 250mA MAX Inrush.
  • 10mA MAX Holding.
  • Non-polarized Leads.

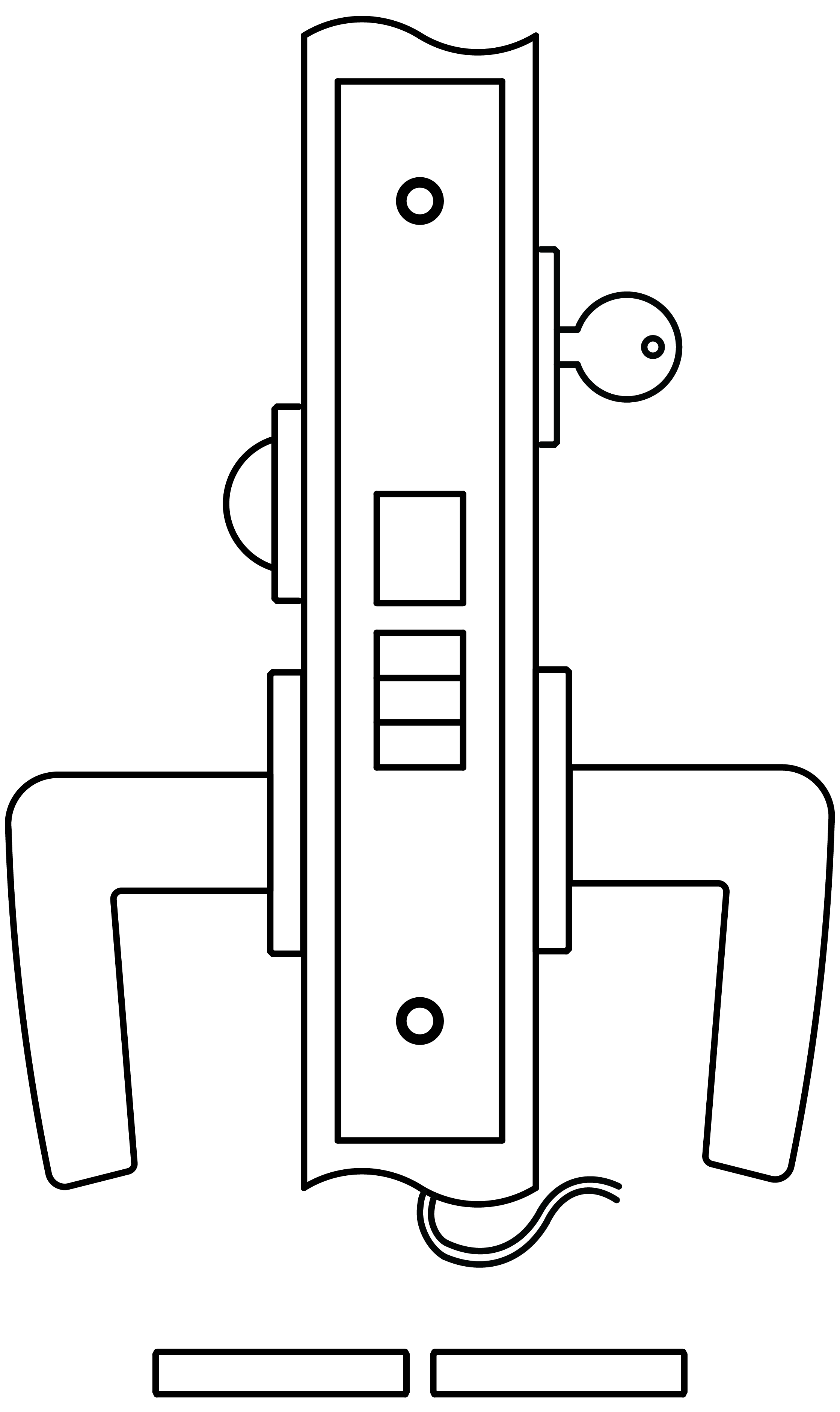

M8724E | M8824E Dormitory


  • Non-deadbolt secure allows user to enter home via credential even if deadbolt is thrown.
  • Deadbolt is MANUALLY projected/retracted by key outside of thumb turn inside.
  • When electronically unlocked, outside lever will simultaneously retract latch and deadbolt.
  • Inside lever always free, retracting latch and deadbolt simultaneously.
  • No auxiliary latch deadlock when deadbolt is retracted.
  • FAIL SECURE OPERATION: Outside lever unlocked when power is applied and locked when power is removed. Lockset will lock in the event of power failure.
  • FAIL SAFE OPERATION: Outside lever locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
View More Details +

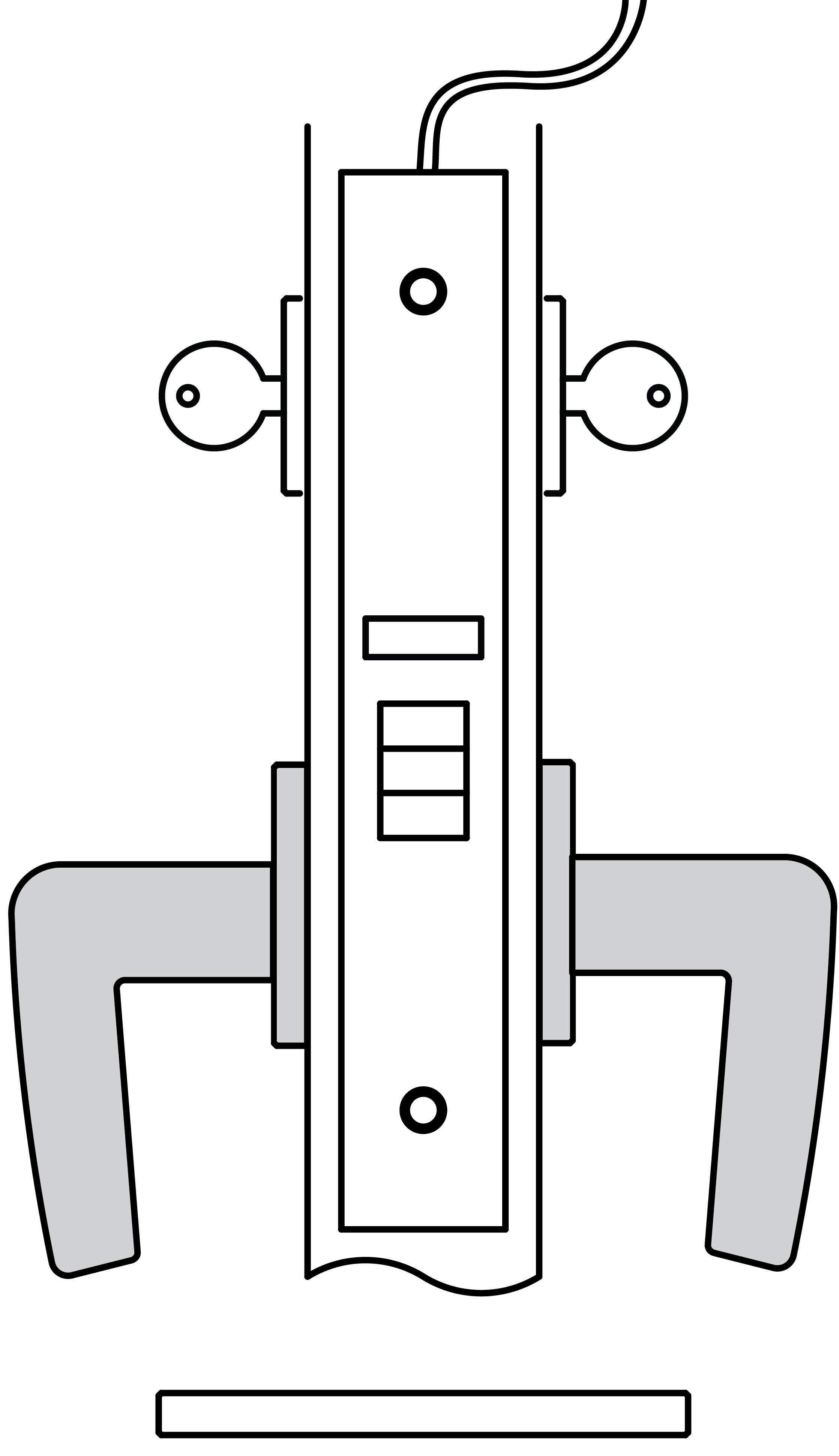

M8758E | M8858E Institutional or Asylum


  • Latch bolt by key either side.
  • Auxiliary latch deadlocks latch bolt.
  • FAIL SECURE OPERATION*: Inside and outside trim unlocked when power is applied and locked when power is removed.
  • FAIL SAFE OPERATION: Inside and outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
View More Details +

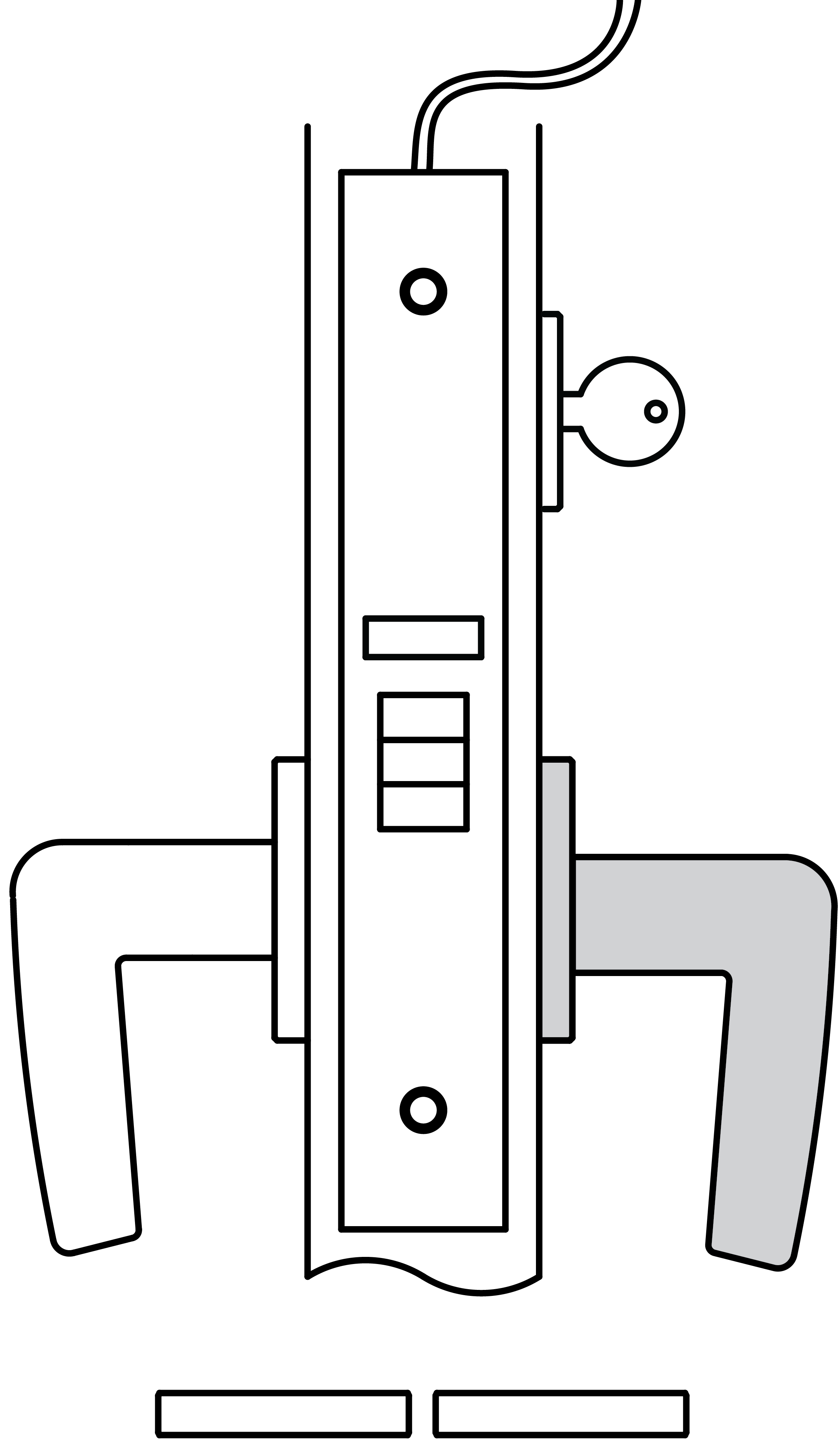

M8759E | M8859E Storeroom


  • Inside trim always free.
  • Latch bolt by key outside.
  • Auxiliary latch deadlocks latch bolt.
  • FAIL SECURE OPERATION*: Inside and outside trim unlocked when power is applied and locked when power is removed.
  • FAIL SAFE OPERATION: Inside and outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
View More Details +




Specification Sheets




Click on a swatch below to get a closer look
  • CVB
    Cerakote Vortex Bronze
  • Cerakote Black Gloss CBG
    Cerakote Black Gloss
  • Cerakote White Gloss Cerakote White Gloss
    CWG
  • Cerakote White Matte CWM
    Cerakote White Matte
  • Cerakote Black Matte CBM
    Cerakote Black Matte
  • Cerakote
    Protective Ceramic Coating
  • US19LLG_Oxidized Black Less Lines +Lacquer_G0A2246_HiRes US19LL
    Oxidized Black Less Lines + Lacquer
  • US15A
    Antique Nickel
  • TB
    Tarnished Brass
  • ESN
    Electroless Nickel
  • DURO
    Duronotic
  • BN
    Burnished Nickel
  • BB
    Burnished Brass
  • US32
    Bright Stainless Steel
  • US26
    Polished Chrome
  • US19
    Oxidized Black + Lacquer
  • US15
    Satin Nickel
  • US10
    Satin Bronze
  • US9
    Polished Bronze
  • US4NL
    Satin Brass + No Lacquer
  • US3NL Polished Brass No Lacquer US3NL
    Polished Brass + No Lacquer
  • US4
    Satin Brass
  • US32D
    Satin Stainless Steel
  • US3
    Polished Brass
  • US14
    Polished Nickel
  • US5
    Satin Brass + Black
  • TN
    Tarnished Nickel
  • US10B
    Oil Rubbed Bronze
  • US25D Satin Chrome US26D
    Satin Chrome
US25D Satin Chrome US26D
Satin Chrome
REQUEST FINISH SAMPLE




How to Specify


Function. Backset. Trim. Finish. Hand. Door Thickness. Other



Examples
  • Electrified Lock | Authorized Egress | Accurate Trim
    E.g.: M8759E-AE. 2. 29L/2R. US26D. RH. 134
  • Electrified Lock | Double Cylinder | Trim by Others
    E.g.: M8858E. 134. 7mm. US3NL. LH. 134
  • Electrified Lock | UL Listed | Accurate Trim
    E.g.: M8759E-UL. 2. 19L/1R. US19. RH. 138
Notes
  • Furnished standard with anti-friction latch bolt as of August 1, 2021 (solid latch available, special order).
  • Specify SS for Security Strikes.
  • USD K x K Upside Down (cylinder/thumb turn below knobs).
  • UL version (not available for USD configuration).
  • USD L x L Upside Down (cylinder/thumb turn below levers, not available for USD configuration).
  • SilentPac™ Lever Dampening Disc (not compatible with 2R/4R roses).
  • For compatibility with other manufacturers’ trim please call for assistance.
