M9100ELR
Motor Drive Electrified Latch Retraction Mortise Locks

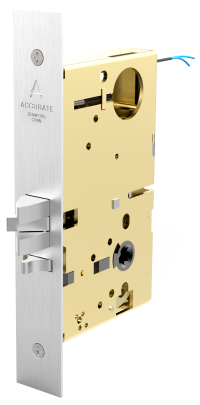

For commercial or residential use, the new M9100ELR utilizes Motor Drive Electrification to retract the latch of the mechanical lock allowing access without grasping exterior door hardware. Also ideal for power operated openings that facilitate accessibility/ADA compliance. This electrified solution helps stop the spread of infection by allowing access with a simple push.
- For Door Stiles 4" or Wider.
- M9058ELR/M9059ELR/M9025ELR for doors 1 3/8" minimum (1" armor front).
- M9158ELR/M9159ELR/M9125ELR for doors 1 3/4" minimum (1 1/4" armor front).
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- BACKSETS: 2 1/2", 2 3/4", 3 3/4", 5", or 6"
- OPERATION: Key Cylinder (by others) will override electronics to retract latch bolt.
- 24VDC (21VDC - 30VDC)
- 625mA MAX Inrush
- 150mA MAX Holding
- Non-polarized Leads
- Ample power to overcome sideload on latch.
- Available with AE Monitoring Function (not on TP x TP locks or M9158ELR function).

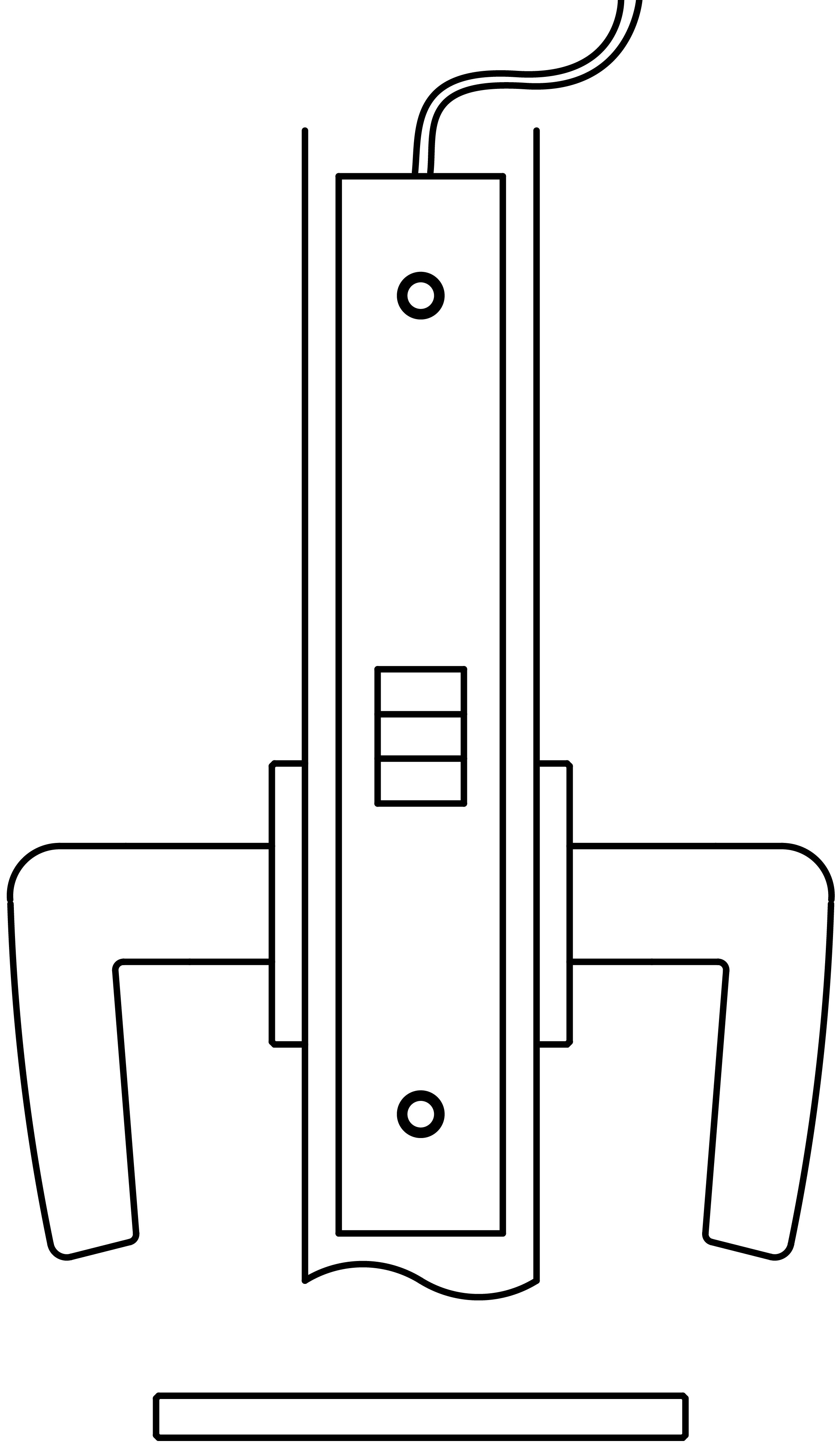

M9125ELR Passage or Closet
- Latch bolt by handle either side.
- Inside and outside trim always free.
- FAIL SECURE (latch stays projected in the absence of power).
- Latch retracts on either side when power is applied.

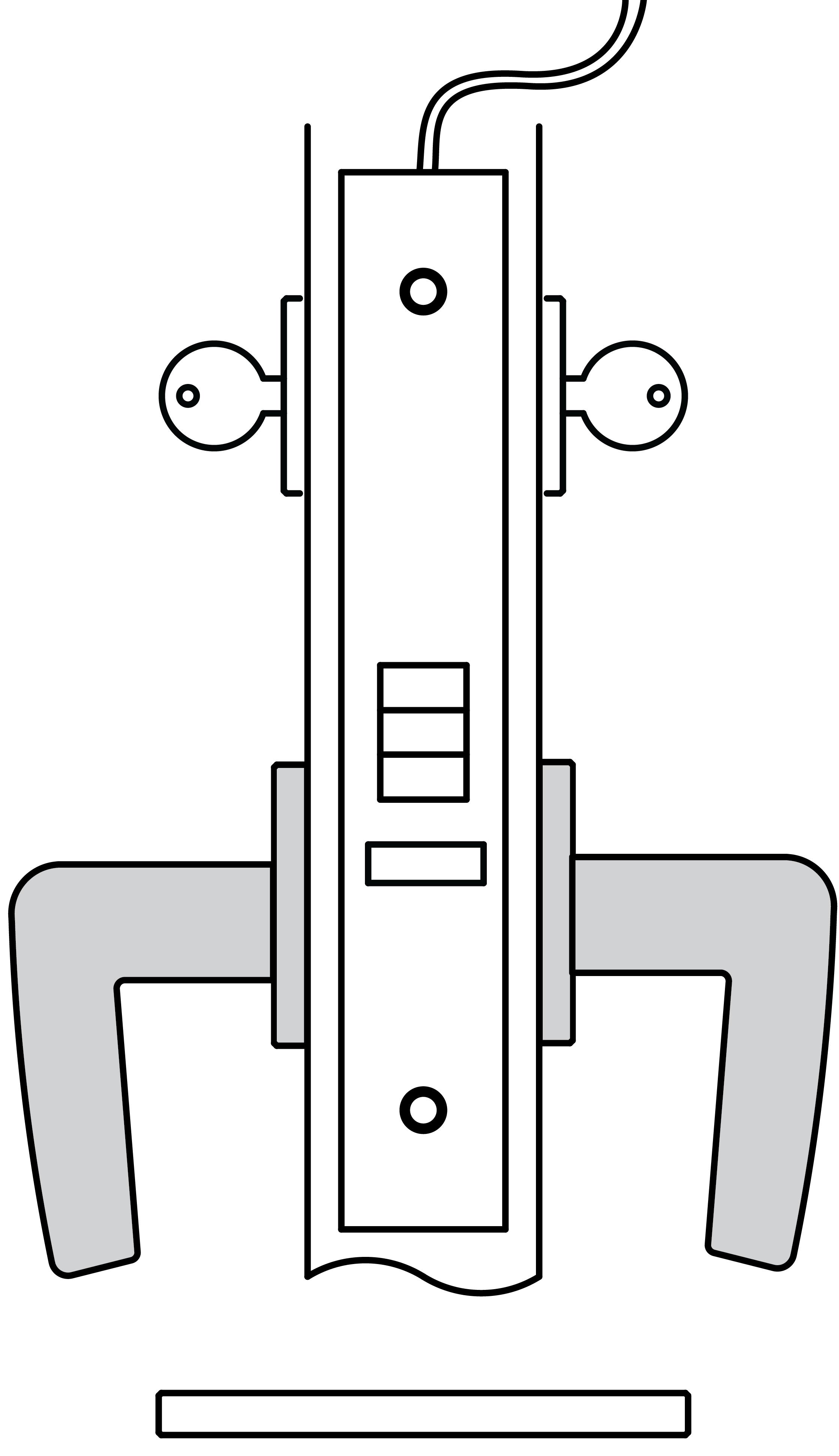

M9158ELR Institution or Asylum
- Latch bolt by key either side.
- Inside and outside trim always rigid.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION ONLY:
- Latch retracts when power is applied.
- (AE Monitor not available.)

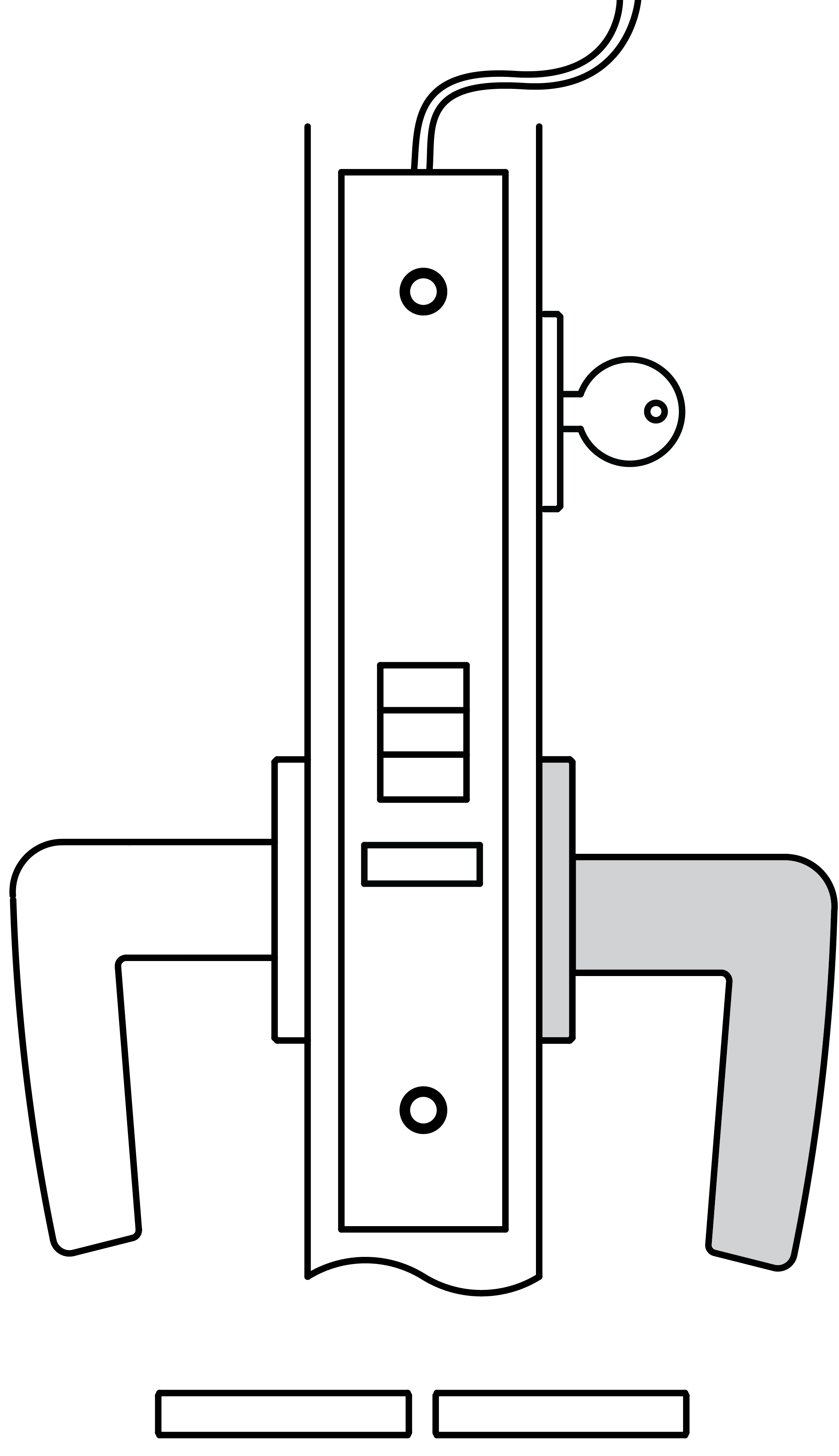

M9159ELR Storeroom
- Latch bolt by key outside.
- Inside trim always free.
- Outside trim always rigid.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION ONLY:
- Latch retracts when power is applied.
Sell Sheet
Specification Sheet
Operating Instructions
Installation Templates
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Other
Examples
-
Electrified Latch Retraction | Inside Handle Active | Authorized Egress | Accurate Trim
E.g.: M9159ELR-AE. 212. 29L/2R. US26D. RH. 134 -
Electrified Latch Retraction | Handles Inactive Both Sides | Accurate Trim
E.g.: M9158ELR. 212. 19L/1R. US4NL. LH. 134
